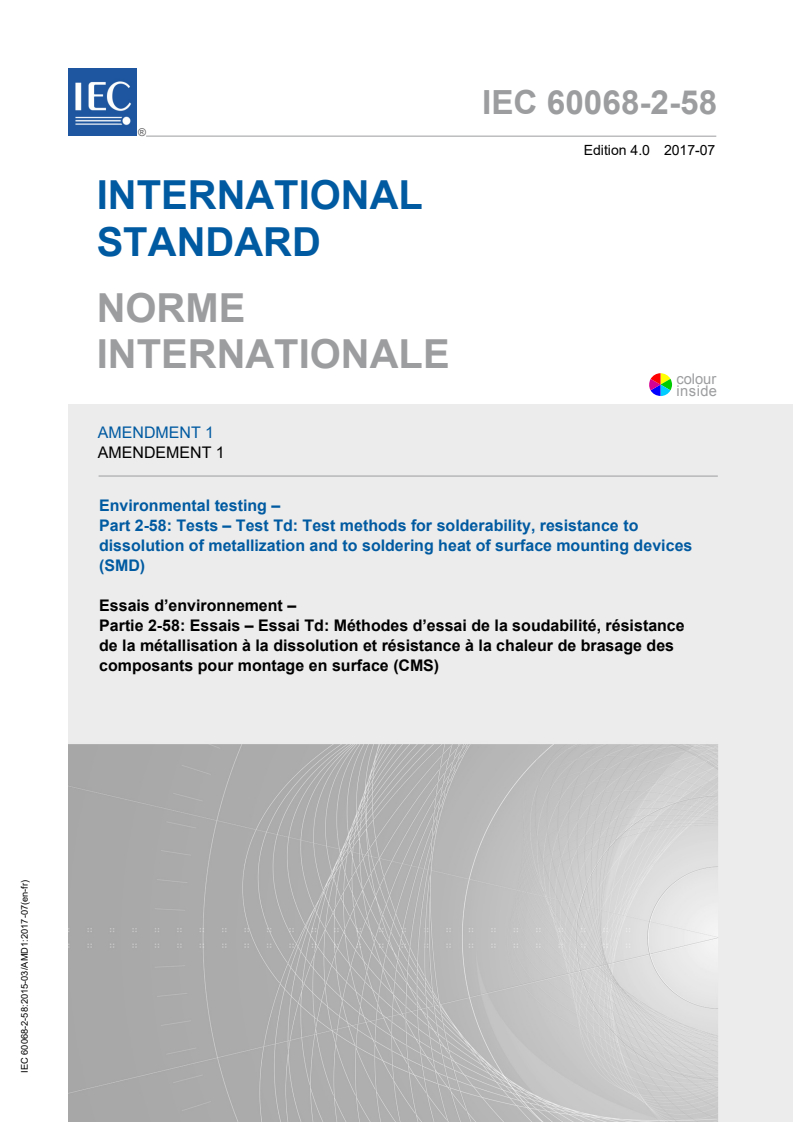

IEC 60068-2-58:2015/AMD1:2017

IEC 60068-2-58 ®
Edition 4.0 2017-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Environmental testing –
Part 2-58: Tests – Test Td: Test methods for solderability, resistance to
dissolution of metallization and to soldering heat of surface mounting devices
(SMD)
Essais d’environnement –
Partie 2-58: Essais – Essai Td: Méthodes d’essai de la soudabilité, résistance
de la métallisation à la dissolution et résistance à la chaleur de brasage des
composants pour montage en surface (CMS)

IEC 60068-2-58:2015-03/AMD1:2017-07(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur les adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 300 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 19 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

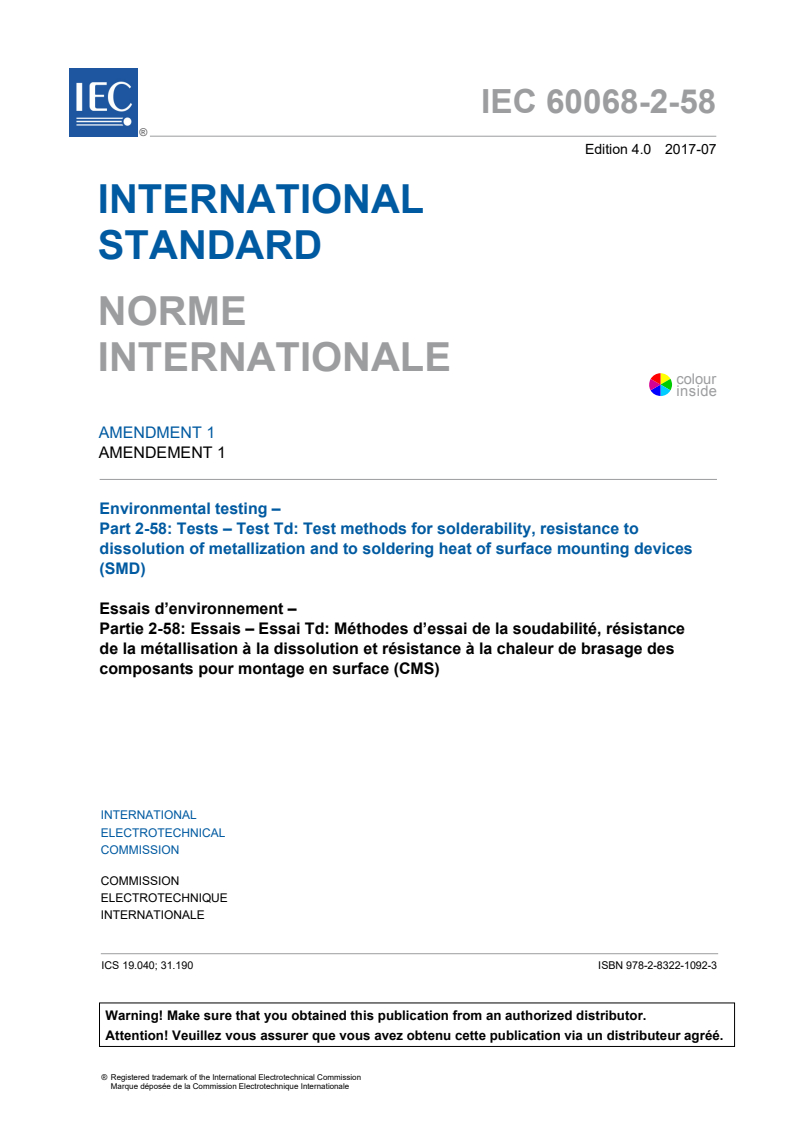

IEC 60068-2-58 ®
Edition 4.0 2017-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Environmental testing –
Part 2-58: Tests – Test Td: Test methods for solderability, resistance to

dissolution of metallization and to soldering heat of surface mounting devices

(SMD)
Essais d’environnement –
Partie 2-58: Essais – Essai Td: Méthodes d’essai de la soudabilité, résistance

de la métallisation à la dissolution et résistance à la chaleur de brasage des

composants pour montage en surface (CMS)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.040; 31.190 ISBN 978-2-8322-1092-3

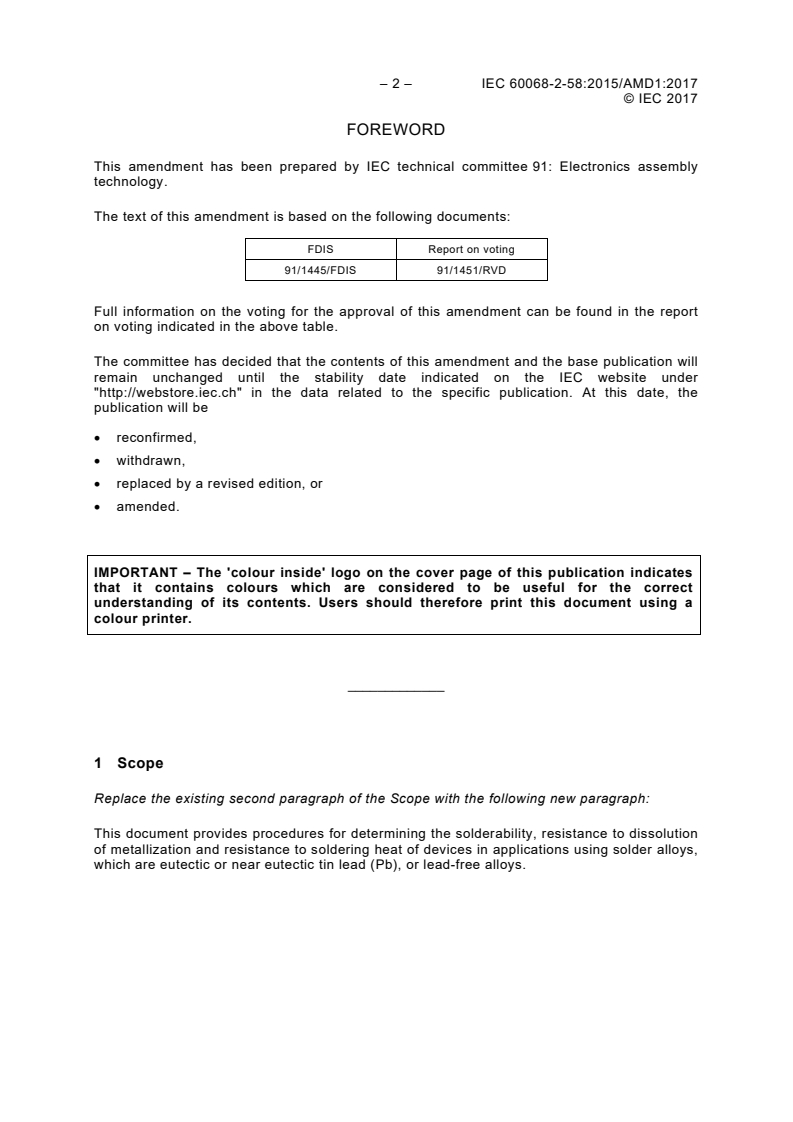

– 2 – IEC 60068-2-58:2015/AMD1:2017
© IEC 2017
FOREWORD
This amendment has been prepared by IEC technical committee 91: Electronics assembly
technology.
The text of this amendment is based on the following documents:
FDIS Report on voting
91/1445/FDIS 91/1451/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
_____________
1 Scope
Replace the existing second paragraph of the Scope with the following new paragraph:
This document provides procedures for determining the solderability, resistance to dissolution
of metallization and resistance to soldering heat of devices in applications using solder alloys,
which are eutectic or near eutectic tin lead (Pb), or lead-free alloys.

© IEC 2017
3.2
resistance to soldering heat
Replace the existing definition with the following new definition:
ability of the component to withstand the highest temperature stress in terms of temperature
gradient, peak temperature and duration of the soldering process, within the applicable
temperature range of the solder alloy

6.5.3.4 Solder immersion
Replace the existing first paragraph of Subclause 6.5.3.4 with the following new paragraph:
If the preheating is prescribed by the relevant specification, the specified duration and
temperature shall be applied immediately prior to the immersion of the specimen in the solder
bath.
8.5.8 Evaluation
Replace “Clause A.4.” by “Clause A.2”.
Add the following new text at the end of Subclause 8.5.8:
Note that this test does not directly assess the dewetting but assesses the possibility of the
dewetting.
9.3.1.3 Metallic terminations shorter than 6 mm (dimension “d” in Figure 6)
Replace existing item b) with the following new text:
b) The upper side of the termination (area “b” in Figure 6):
After the dipping test, the dipped surface shall show visible evidence of being wettable, as
indicated by the presence of fresh solder. A homogeneous coating is not necessary here.
Replace existing item c) with the following new text:
c) Non-coated cut edges at the end of the termination and the termination above the lower
bend (area “c” in Figure 6):
For these areas (“b”, “c” and “d”), no quality criterion of solder coating is given.
Delete item d).
10.2 Solderability
Replace the existing text of Subclause 10.2 with the following new text:
The following details shall be applied for solderability.
a) Property to be tested *
b) Applicable test method *
– 4 – IEC 60068-2-58:2015/AMD1:2017
© IEC 2017
c) Condition of preconditioning (if required) *
d) For solder bath method
1) Selected solder alloy *
2) Flux type*
3) Clamping, fluxing and solder immersion *
4) Preheating *
5) Attitude to be used
6) Solder temperature and duration *
e) For reflow method
1) Solder paste *
2) Dimensional details of test substrate *
3) Thickness of solder paste *
4) Amount of solder paste
5) Placement procedure
6) Temperature profile *
7) Temperature measurement point *
f) Removal procedure
g) Cleaning method
h) Recovery conditions
i) Areas of the terminations to be examined *
j) Final inspection requirements and acceptance criteria *

10.3 Resistance to soldering heat, dewetting and resistance to dissolution of
metallization
Replace the existing text of Subclause 10.3 with the following new text:
The following details shall be applied for resistance to soldering heat, dewetting and
resistance to dissolution of metallization.
a) Property to be tested *
b) Applicable test method *
c) Condition of preconditioning (if required) *
d) For solder bath method
1) Selected solder alloy *
2) Flux type *
3) Clamping, fluxing and solder immersion *
4) Preheating *
5) Attitude to be used
6) Solder temperature and duration *
7) Number of test cycles if other than 1 cycle (for resistance to soldering heat) *
e) For reflow method
1) Solder paste (if required)*
2) Dimensional details of test substrate (for resistance to soldering heat and if required) *
3) Thickness of solder paste (if required) *

© IEC 2017
4) Amount of solder paste (if required) *
5) Placement procedure (if required) *
6) Temperature profile *
7) Temperature measurement point *
8) Number of test cycles for resistance to soldering heat *
f) Removal procedure
g) Cleaning method
h) Recovery conditions
i) Areas of the terminations to be examined *
j) Final inspection requirements and acceptance criteria *

Annex A Criteria for visual inspection
Replace the existing text of Annex A with the following new text:
A.1 Evaluation of wetting
A.1.1 General
In various specifications, a complete or nearly complete coating with solder is often defined
by the so-called 95 % requirement. The application of this requirement is often difficult when
assessing specimens with metallized terminations or with short metallic terminations,
especially when different parts of the termination are distinguished. Nevertheless, the same
approach is followed here.
A.1.2 Criteria for wetting
Acceptable when 95 % or more area to be evaluated covered by an ideal solder coating with a
dewetting area is scattered and not concentrated in one area.
Figure A.1 comprises six examples illustrating the criteria for visual examination.
NOTE To help in the evaluation of wetting, the photographs in Figure A.1 have been reproduced on such a scale
that the dimensions are reasonably comparable with the view obtained under a microscope, while ensuring that
smaller details are still sufficiently clear.

– 6 – IEC 60068-2-58:2015/AMD1:2017
© IEC 2017
Acceptable Unacceptable
IEC IEC
Unacceptable: more than 5 % dewetting on the toe; the
Acceptable: ideal coating both on the foot and on the
bend is well coated
sides; the visible rim is not dewetted because there is
no contact angle; the flux residues between body and
termination have not been removed.
IEC
IEC
Acceptable: some spots of non-ideal coating on the
Unacceptable: more than 5 % dewetting of the foot.
surface are visible.
IEC
IEC
Unacceptable: more than 5 % of the area not wetted.
Acceptable: a few very small irregularities are visible.
The arrows indicate imperfections (acceptable or unacceptable).

Figure A.1 – Evaluation of wetting
A.1.3 Additional criteria for wetting, method 2
For method 2 (reflow), in addition to A.1.2, the following criteria shall be applied:
• solder balls at the pins or irregular solder accumulations are not allowed;
• the surface shall be homogenous without irregularities or damage.

© IEC 2017
A.2 Evaluation of dewetting, method 2
Figure A.2 comprises four examples illustrating the criteria for visual examination.
Good example (dewetting not present) Negative example (dewetting > 5 %)

IEC
IEC
Bad edge covering
IEC
IEC
“Voids” dewetting
Figure A.2 – Evaluation of dewetting

___________
– 8 – IEC 60068-2-58:2015/AMD1:2017
© IEC 2017
AVANT-PROPOS
Le présent amendement a été établi par le comité d'études 91 de l'IEC: Techniques
d'assemblage des composants électroniques.
La présente version bilingue (2022-04) correspond à la version anglaise monolingue publiée en
2017-07.
La version française de cet amendement n'a pa
...
