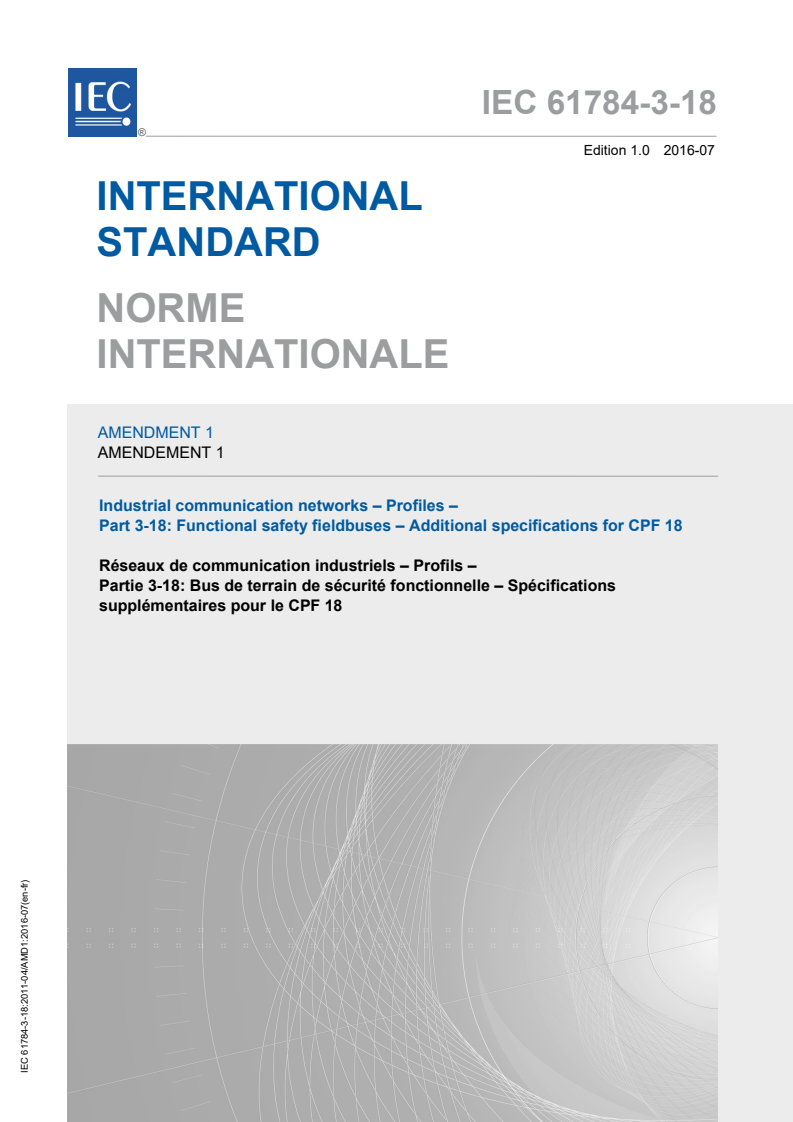

IEC 61784-3-18:2011/AMD1:2016

IEC 61784-3-18 ®
Edition 1.0 2016-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 1
AM ENDEMENT 1
Industrial communication networks – Profiles –
Part 3-18: Functional safety fieldbuses – Additional specifications for CPF 18

Réseaux de communication industriels – Profils –
Partie 3-18: Bus de terrain de sécurité fonctionnelle – Spécifications
supplémentaires pour le CPF 18

IEC 61784-3-18:2011-04/AMD1:2016-07(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

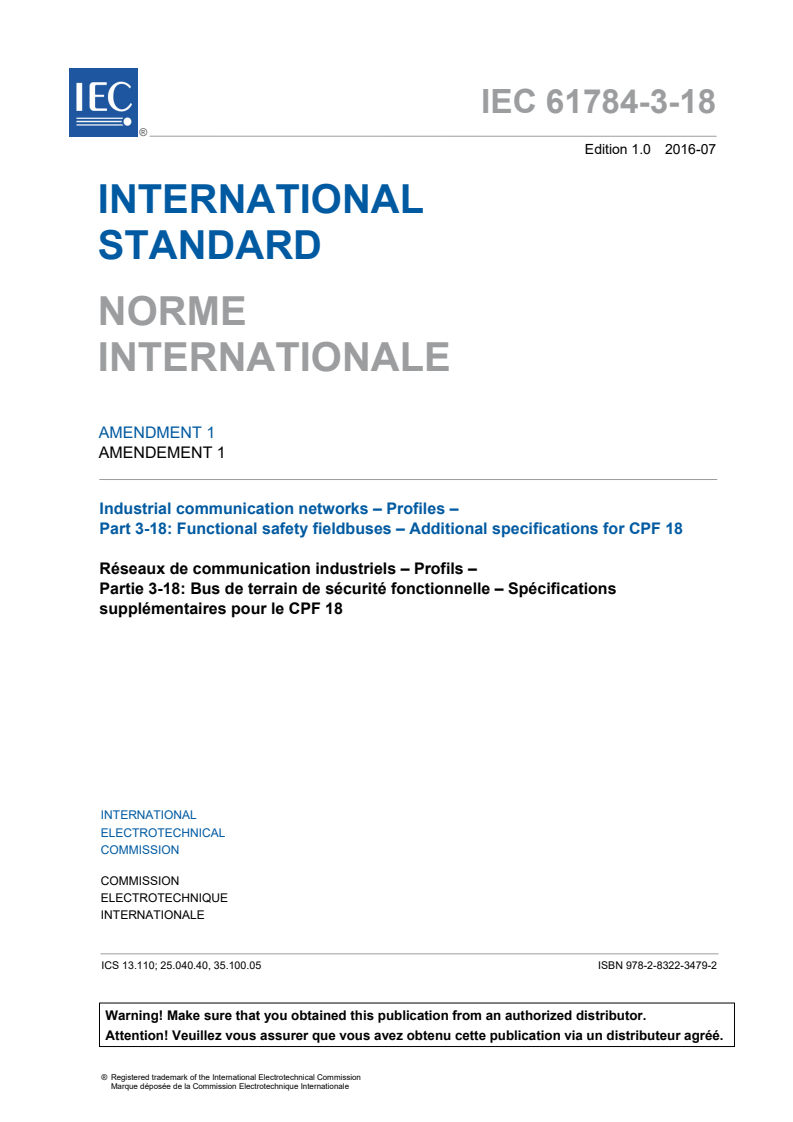

IEC 61784-3-18 ®
Edition 1.0 2016-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 1
AM ENDEMENT 1
Industrial communication networks – Profiles –

Part 3-18: Functional safety fieldbuses – Additional specifications for CPF 18

Réseaux de communication industriels – Profils –

Partie 3-18: Bus de terrain de sécurité fonctionnelle – Spécifications

supplémentaires pour le CPF 18

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.110; 25.040.40, 35.100.05 ISBN 978-2-8322-3479-2

– 2 – IEC 61784-3-18:2011/AMD1:2016
 IEC 2016

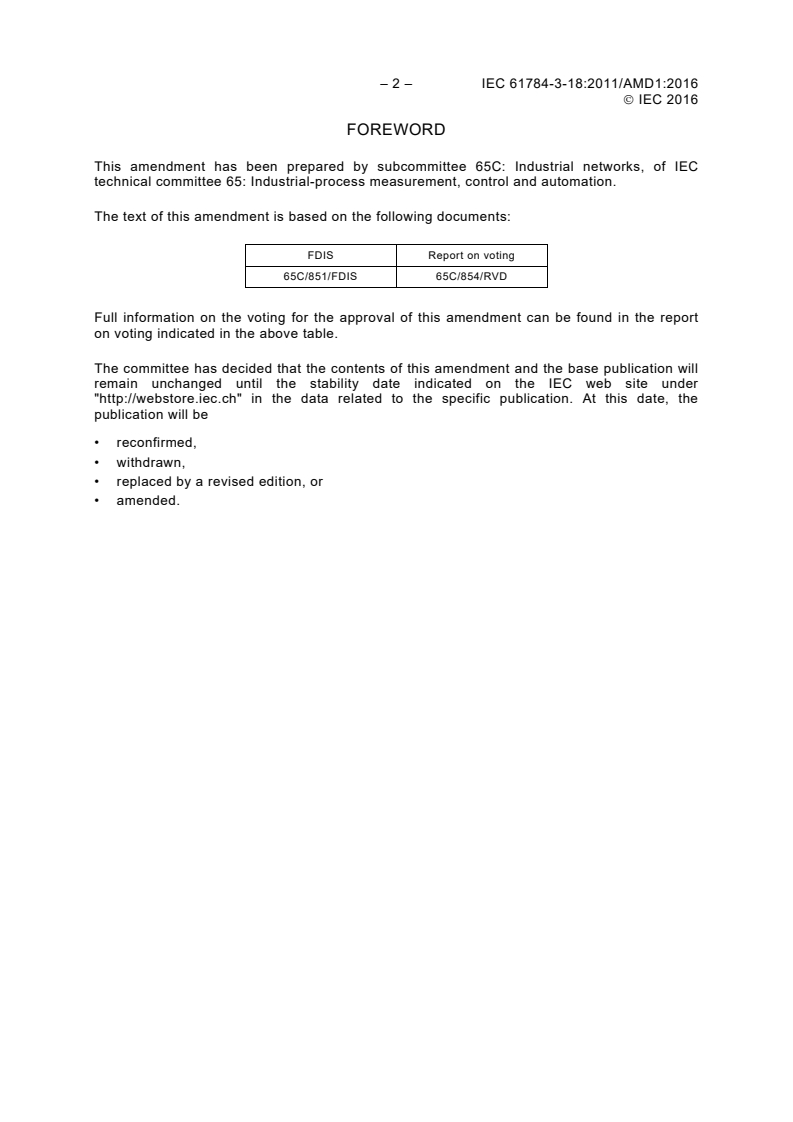

FOREWORD
This amendment has been prepared by subcommittee 65C: Industrial networks, of IEC
technical committee 65: Industrial-process measurement, control and automation.
The text of this amendment is based on the following documents:
FDIS Report on voting
65C/851/FDIS 65C/854/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
 IEC 2016
5 General
5.2 Safety functional requirements
Add, in this subclause, at the end of the list, the following new items:
–9
• For devices using protocol version 2 (see 7.1.3.4) it is required to add 10 to the PFH
of the device hardware to account for the communication channel.
NOTE In this way, the user of the device will not have to account for the number of logical connections
within a safety function.
• The use of error correction mechanisms in the black channel is permitted.
7 Safety communication layer protocol
7.1.2.1 SPDO structure
Replace, in this subclause, the existing Table 4 by the following new table:
Table 4 – SPDO PDU structure
Octet offset Data field Description
0 to 2 PID Packet ID
3 Length Length of the complete packet in octets
4 to 4+n-1 Safety data 1 Mapped safety application process data
4+n to 5+n SID 1 Safety ID of the sender
6+n to 6+n+m-1 Consecutive number 1 Consecutive number for sequencing and application
monitoring where:
m = 1 for protocol version 1
m = 3 for protocol version 2
7+n+m to 10+n+m CRC 1 32 bit cyclic redundancy check covering data fields
PID, safety data 1, SID 1 and consecutive number 1
11+n+m to 11+2n-1+m Safety data 2 Copy of mapped safety application process data
11+2n+m to 12+2n+m SID 2 Copy of SID 1
13+2n+m to 13+2n+2m-1 Consecutive number 2 Copy of consecutive number 1
14+2n+2m to 17+2n+2m CRC 2 32 bit cyclic redundancy check covering data fields
PID, safety data 2, SID 2 and consecutive number 2
NOTE 1 n is the length in octets of the data field safety data 1 (safety data 2).
NOTE 2 m is the length of the consecutive number depending on the protocol version (see 7.1.3.4).

7.1.2.4 Safety data
Replace, in this subclause, second paragraph:
“117 octets” by “115 octets for protocol version 2 or respectively 117 octets for protocol
version 1”.
7.1.2.6 SPDO consecutive number
Replace, in this subclause, “an 8 bit” by “a”.
Add, at the end of this subclause, the following text:
The size of the consecutive number depends on the protocol version (see 7.1.3.4) and is 1
octet for protocol version 1 and 3 octets for protocol version 2.

– 4 – IEC 61784-3-18:2011/AMD1:2016
 IEC 2016
7.1.2.7 SPDO CRC
Delete, in this subclause, first paragraph, ”length”.
7.1.3.1.1 SHB request PDU
Table 5 – SHB request PDU structure
Replace, in this subclause, the existing Table 5 by the following new table:
Table 5 – SHB request PDU structure
Octet offset Data field Description
0 to 2 PID Packet ID
3 Length Length of the complete packet in octets
4 SCL state 1 SALMT state (see Table 7)
5 to 5+n-1 Safety AP state 1 Safety application process state (implementation specific)
6+n to 7+n SID 1 Safety ID of the sender
8+n to 8+n+m-1 Consecutive number 1 Consecutive number for sequencing and application
monitoring where:
m = 1 for protocol version 1
m = 3 for protocol version 2
9+n+m to 12+n+m CRC 1 32 bit cyclic redundancy check covering data fields PID,
SCL state 1, Safety AP state 1, SID 1 and consecutive
number 1
13+n+m SCL state 2 Copy of SALMT state 1
14+n+m to 14+2n+m-1 Safety AP state 2 Copy of safety application process state 1
15+2n+m to 16+2n+m SID 2 Copy of SID 1
17+2n+m to 17+2n+2m-1 Consecutive number 2 Copy of consecutive number 1
18+2n+2m to 21+2n+2m CRC 2 32 bit cyclic redundancy check covering data fields PID,
SCL state 2, Safety AP state 2, SID 2 and consecutive
number 2
NOTE 1 n is the length in octets of the data field Safety AP state.
NOTE 2 m is the length of the consecutive number, depending on the protocol version (see 7.1.3.4).

 IEC 2016
7.1.3.1.2 SHB response PDU
Table 6 – SHB response PDU structure
Replace, in this subclause, the existing Table 6 by the following new table:
Table 6 – SHB response PDU structure
Octet offset Data field Description
0 to 2 PID Packet ID
3 Length Length of the complete packet in octets
4 to 5 SID 1 Safety ID of the sender
6 to 6+m-1 Consecutive number 1 Consecutive number for sequencing and
application monitoring where:
m = 1 for protocol version 1
m = 3 for protocol version 2
7+m to 10+m CRC 1 32 bit cyclic redundancy check covering data fields
PID, SID 1 and consecutive number 1
11+m to 12+m SID 2 Copy of SID 1
13+m to 13+2m-1 Consecutive number 2 Copy of consecutive number 1
14+2m to 17+2m CRC 2 32 bit cyclic redundancy check covering data fields
PID, SID 2 and consecutive number 2
NOTE m is the length of the consecutive number, depending on the protocol version (see 7.1.3.4).

7.1.3.4 SHB safety communication layer state
Table 7 – SHB safety communication layer state encoding
Replace, in this subclause, the existing Table 7 by the following new table:
Table 7 – SHB safety communication layer state encoding
Value Description Protocol
0x00 FS FAL is in BOOTUP state Version 1
0x04 FS FAL is in STOPPED state Version 1
0x05 FS FAL is in OPERATIONAL state Version 1
0x7F FS FAL is in PRE-OPERATIONAL state Version 1
0x10 FS FAL is in BOOTUP state Version 2
0x14 FS FAL is in STOPPED state Version 2
0x15 FS FAL is in OPERATIONAL state Version 2
0x1F FS FAL is in PRE-OPERATIONAL state Version 2

Add, in this subclause, after Table 7, as last paragraph:
The device shall support at least one protocol version. The FS FAL state shall be encoded
according to Table 7 depending on the used protocol version. It is recommended to support all
protocol versions.
7.1.3.5 SHB safety AP state
Replace, in the last sentence of this subclause: “116 octets” by “114 octets for protocol
version 2 or respectively 116 octets for protocol version 1”.

– 6 – IEC 61784-3-18:2011/AMD1:2016
 IEC 2016
7.1.3.7 SHB consecutive number
Replace, in this subclause: “an 8 bit” by “a”.
Add, at the end of this subclause:
The size of the consecutive number depends on the protocol version (see 7.1.3.4) and is
1 octet for protocol version 1 and 3 octets for protocol version 2.
7.1.3.8 SHB CRC
Delete, in this subclause, first paragraph: ”length, ”.
9 System requirements
9.7 Safety manual
Add, in this subclause, at the end of the list, the following new items:
• Probability of failure on demand PFH;
• Safety integrity level SIL;
• Proof test interval T (per IEC 61508-6) and/or Mission T (per ISO 13849-1);

1 m
• Supported protocol version(s) (see 7.1.3.4) unless only protocol version 1 is supported.

_____________
– 8 – IEC 61784-3-18:2011/AMD1:2016
 IEC 2016
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 65C: Réseaux de communication
industriels, du comité d'études 65 de l'IEC: Mesure, commande et automation dans les
processus industriels.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
65C/851/FDIS 65C/854/RVD
Le rapport de v
...
