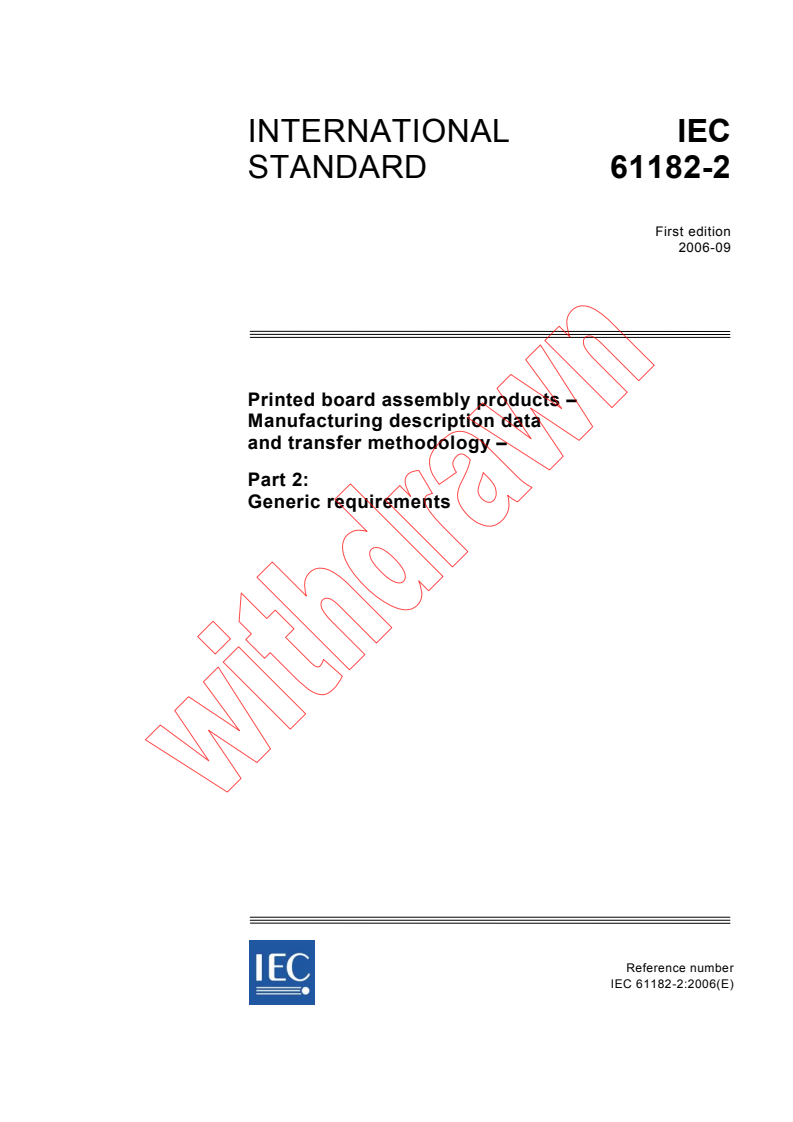

IEC 61182-2:2006

INTERNATIONAL IEC
STANDARD 61182-2
First edition
2006-09
Printed board assembly products –
Manufacturing description data
and transfer methodology –
Part 2:
Generic requirements
Reference number

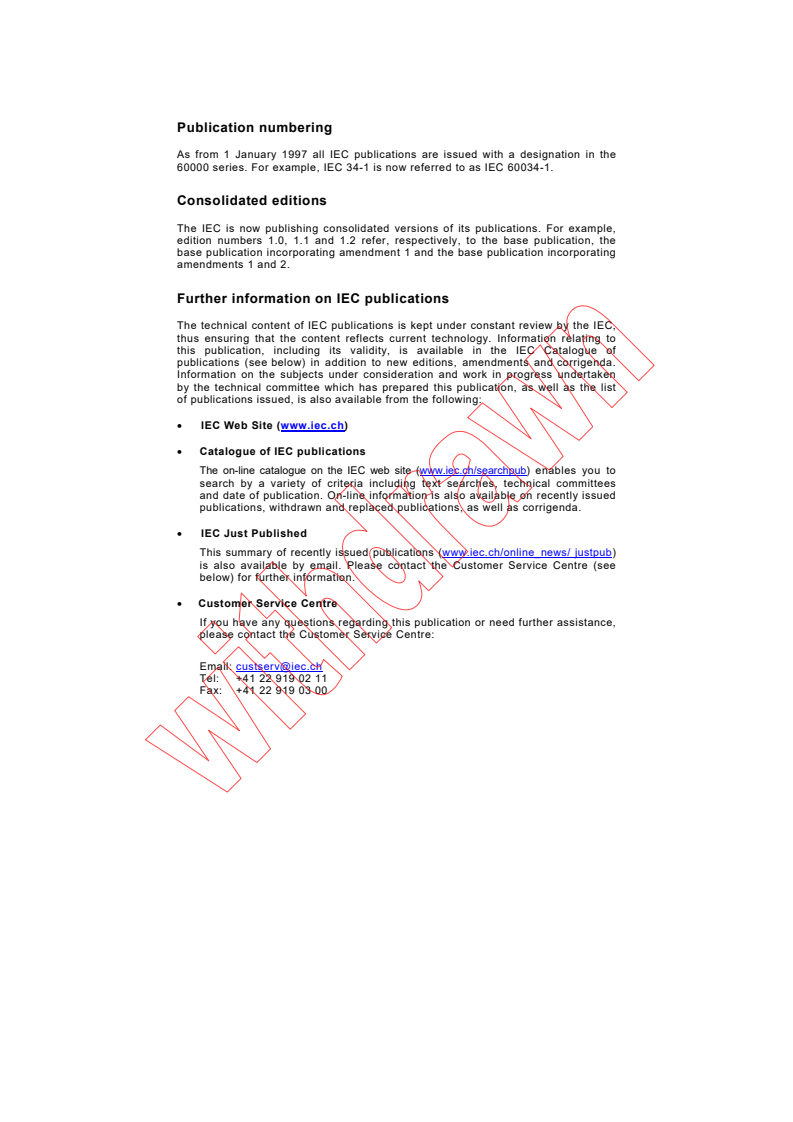

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00

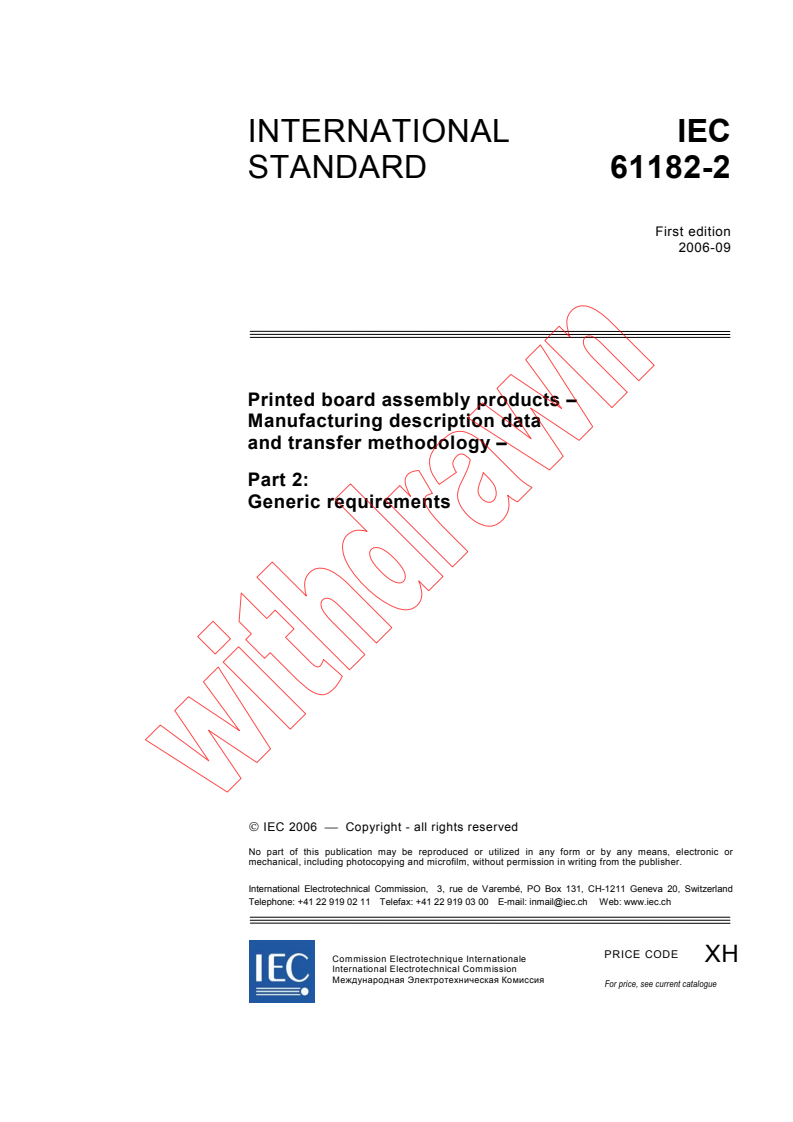

INTERNATIONAL IEC
STANDARD 61182-2
First edition
2006-09
Printed board assembly products –
Manufacturing description data
and transfer methodology –
Part 2:
Generic requirements
 IEC 2006  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale XH
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

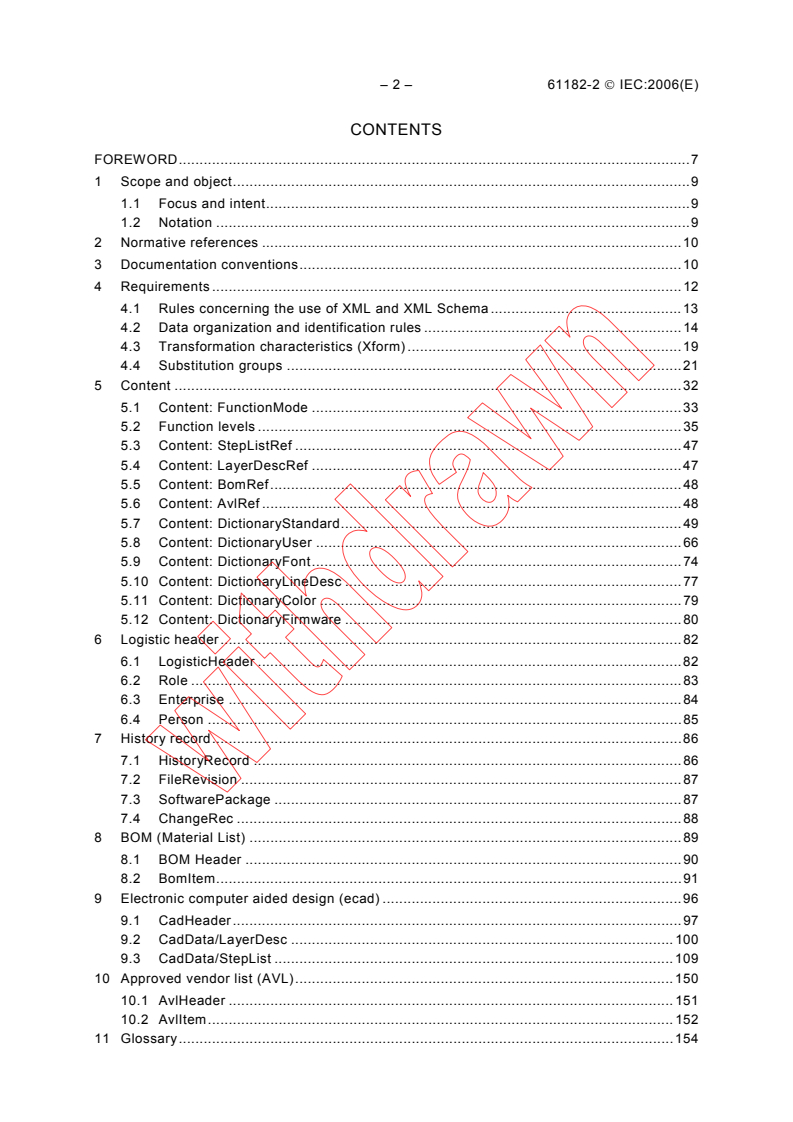

– 2 – 61182-2  IEC:2006(E)
CONTENTS
FOREWORD.7
1 Scope and object.9
1.1 Focus and intent.9
1.2 Notation .9
2 Normative references .10
3 Documentation conventions.10
4 Requirements .12
4.1 Rules concerning the use of XML and XML Schema.13
4.2 Data organization and identification rules .14
4.3 Transformation characteristics (Xform) .19
4.4 Substitution groups .21
5 Content .32
5.1 Content: FunctionMode .33
5.2 Function levels .35
5.3 Content: StepListRef .47
5.4 Content: LayerDescRef .47
5.5 Content: BomRef.48
5.6 Content: AvlRef .48
5.7 Content: DictionaryStandard.49
5.8 Content: DictionaryUser .66
5.9 Content: DictionaryFont.74
5.10 Content: DictionaryLineDesc .77
5.11 Content: DictionaryColor .79
5.12 Content: DictionaryFirmware .80
6 Logistic header.82
6.1 LogisticHeader .82
6.2 Role .83
6.3 Enterprise .84
6.4 Person .85
7 History record.86
7.1 HistoryRecord .86
7.2 FileRevision .87
7.3 SoftwarePackage .87
7.4 ChangeRec .88
8 BOM (Material List) .89
8.1 BOM Header .90
8.2 BomItem.91
9 Electronic computer aided design (ecad) .96
9.1 CadHeader.97
9.2 CadData/LayerDesc .100
9.3 CadData/StepList .109
10 Approved vendor list (AVL).150
10.1 AvlHeader .151
10.2 AvlItem.152
11 Glossary.154

61182-2  IEC:2006(E) – 3 –
Annexe A (informative) IPC-7351 Naming Convention for Land Patterns.155
Annexe B Informative references .160

Figure 1 – The IEC 61182-2 children element .13
Figure 2 – Printed board viewing.18
Figure 3 – Mirror and rotation diagram .21
Figure 4 – Bounding rectangle to round end character relationships .72
Figure 5 – Text transformation examples .73
Figure 6 – Rotation Angle .73
Figure 7 – Glyph bounding rectangles to Text bounding box relationships.77

Table 1– Graphical notation overview .11
Table 2 – Governing template basic types defined by W3C.16
Table 3 – Governing template basic types defined by IEC 61182-2-X.17
Table 4 – Xform characteristics.19
Table 5 – Substitution groups .22
Table 6 – Attribute substitution group .23
Table 7 – ColorGroup substitution group .25
Table 8 – Feature substitution group .25
Table 9 – Fiducial substitution group .26
Table 10 – FirmwareGroup substitution group .26
Table 11 – FontDef substitution group .27
Table 12 – LineDescGroup substitution group .27
Table 13 – Polystep substitution group .28
Table 14 – Simple substitution group .28
Table 15 – Standard primitive substitution group.29
Table 16 – StandardShape substitution group.31
Table 17 – UserPrimitive substitution group .31
Table 18 – UserShape substitution group.32
Table 19 – Content sub-element .32
Table 20 – File segmentation and function apportionment.34
Table 21 – Content – FunctionMode .36
Table 22 – Content – StepListRef .47
Table 23 – Content – LayerDescRef .48
Table 24 – Content – BomRef .48
Table 25 – Content – AvlRef .49
Table 26 – Content –DictionaryStandard.49
Table 27 – StandardPrimitive – Butterfly .50
Table 28 – StandardPrimitive – Circle .51
Table 29 – StandardPrimitive – Contour.51
Table 30 – StandardPrimitive – Diamond .53
Table 31 – StandardPrimitive – Donut.54

– 4 – 61182-2  IEC:2006(E)
Table 32 – StandardPrimitive – Ellipse.55
Table 33 – StandardPrimitive – Hexagon .56
Table 34 – StandardPrimitive – Moire .57
Table 35 – StandardPrimitive – Octagon .58
Table 36– StandardPrimitive – Oval.58
Table 37 – StandardPrimitive – RectCenter .59
Table 38 – StandardPrimitive –RectCham.60
Table 39 – StandardPrimitive – RectCorner .61
Table 40 – StandardPrimitive – RectRound.62
Table 41 – StandardPrimitive –Thermal .63
Table 42 – StandardPrimitive – Triangle .65
Table 43 – Content – DictionaryUser .66
Table 44 – UserPrimitive – Simple .67
Table 45 – UserPrimitive – Simple: Arc.67
Table 46 – UserPrimitive – Simple: Line .68
Table 47 UserPrimitive – Simple: Outline .69
Table 48 UserPrimitive – Simple: PolyLine.70
Table 49 – UserPrimitive –Text .71
Table 50 – UserPrimitive – UserSpecial .74
Table 51 – Content – DictionaryFont.74
Table 52 – FontDetEmbedded element .75
Table 53 FontDetExternal element.75
Table 54 – FontDet – Glyph .76
Table 55 – Content – DictionaryLineDesc .77
Table 56 – LineDesc element.78
Table 57 – LineDescRef element .79
Table 58 – Content – DictionaryColor .79
Table 59 – Color element.80
Table 60 – ColorRef element .80
Table 61 – Content – DictionaryFirmware .80
Table 62 – CachedFirmware element.81
Table 63 – FirmwareRef element .82
Table 64 LogisticHeader element.82
Table 65 – Role element .83
Table 66 – Enterprise element .84
Table 67 – Person element .85
Table 68 HistoryRecord element .86
Table 69 FileRevision element .87
Table 70 SoftwarePackage element.87
Table 71 – ChangeRec element .88
Table 72 – Bom element .89
Table 73 – BomHeader element.90
Table 74 – BomItem.91

61182-2  IEC:2006(E) – 5 –
Table 75 – RefDes element.92
Table 76 – Tuning element .93
Table 77 Firmware element.93
Table 78 – Characteristics element .94
Table 79 Measured element.94
Table 80 – Ranged element .95
Table 81 – Enumerated element .96
Table 82 – Textual element.96
Table 83 – Ecad.96
Table 84 – CadHeader element .97
Table 85 – Spec element .98
Table 86 – SurfaceFinish element.99
Table 87 – ChangeRec element .100
Table 88 – CadData/LayerDesc elements .101
Table 89 – Layer element .101
Table 90 – Span element .103
Table 91 – DrillTool element .104
Table 92 Stackup element .105
Table 93 – StackupGroup .105
Table 94 – StackupImpedance element.107
Table 95 – CadData StepList .109
Table 96 – Step .110
Table 97 – Attribute substitution group.111
Table 98 – PadStack element .112
Table 99 – LayHole element .112
Table 100 LayerPad element .113
Table 101 – Route element .114
Table 102 – Set .115
Table 103 – Datum element .116
Table 104 – Profile element .117
Table 105 – StepRepeat element .118
Table 106 – Package element.120
Table 107 – Outline element .121
Table 108 – LandPattern element .122
Table 109 – SilkScreen element.123
Table 110 – AssemblyDrawing element.125
Table 111 – Pin element .127
Table 112 – Component element .128
Table 113 – VplPackage element.130
Table 114 – VplComponent element .132
Table 115 – LogicalNet elements .133
Table 116 – PhyNetGroup element .134
Table 117 – PhyNet element.134

– 6 – 61182-2  IEC:2006(E)
Table 118 – LayerFeature element.136
Table 119 – Attribute element .139
Table 120 – Pad element .139
Table 121 – Fiducial .140
Table 122 – BadBoardMark element .141
Table 123 – GlobalFiducial element .142
Table 124 – GoodpanelMark element.143
Table 125 – LocalFiducial element.145
Table 126 – Hole element .146
Table 127 – Slot element .147
Table 128 – Features element .147
Table 129 – ColorGroup substitution group .148
Table 130 – LineDescGroup substitution group.149
Table 131 – DfxMeasurementList element .149
Table 132 – DfxMeasurement element .150
Table 133 – Avl element .150
Table 134 – AvlHeader element .151
Table 135 AvlItem element .152
Table 136 – AvlVmpn element .152
Table 137 – AvlMpn element.153
Table 138 – AvlVendor element .154

61182-2  IEC:2006(E) – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
PRINTED BOARD ASSEMBLY PRODUCTS –
MANUFACTURING DESCRIPTION DATA AND
TRANSFER METHODOLOGY –
Part 2: Generic requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61182-2 has been prepared by IEC technical committee 93:
Design automation.
The text of this standard is based on the following documents:
CDV Report on voting
93/211/CDV 93/231/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 8 – 61182-2  IEC:2006(E)
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this standard may be issued at a later date.

61182-2  IEC:2006(E) – 9 –
PRINTED BOARD ASSEMBLY PRODUCTS –
MANUFACTURING DESCRIPTION DATA AND
TRANSFER METHODOLOGY –
Part 2: Generic requirements
1 Scope and object
This part of IEC 61182 specifies the XML Schema that represents the intelligent data file
format used to describe printed board and printed board assembly products with details
sufficient for tooling, manufacturing, assembly, and inspection requirements. This format may
be used for transmitting information between a printed board designer and a manufacturing or
assembly facility. The data is most useful when the manufacturing cycle includes computer-
aided processes and numerical control machines.
The data can be defined in either English or International System of Units (SI) units.
1.1 Focus and intent
The generic format requirements are provided in a series of standards focused on printed
board manufacturing, assembly, and inspection testing. This standard series consists of a
generic standard (IEC 61182-2) that contains all the general requirements. There are four
sectional standards that are focused on the XML details necessary to accumulate information
in the single file, that addresses the needs of the design, fabrication, assembly and test
disciplines producing a particular product.
The sectional standards (IEC 61182-2-1 through IEC 61182-2-4) paraphrase the important
requirements and provide suggested usage and examples for the topic covered by the
sectional standard.
1.2 Notation
Although the data would be contained in a single file, the file can have different purposes as
described in Clause 4. The XML Schema used for this standard follows the notations set forth
by the W3C and is as follows:
element – Element appears exactly one time
element? – element may appear 0 or 1 times
element* – element may appear 0 or more times
element+ – element may appear 1 or more times
Any IEC 61182-2 file is composed of a high level element IEC 61182-2 that contains up to six
sub-elements:
Content – information about the contents of the 258X file
LogisticHeader – information pertaining to the order and supply data
HistoryRec – change information of the file
Bom – Bill of Materials (Material List) information
Ecad – Computer Aided Design (engineering) information
Avl – Approved Vendors List information

– 10 – 61182-2  IEC:2006(E)
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60194, Printed board design, manufacture and assembly – Terms and definitions
IEC 61188-5-1, Printed boards and printed board assemblies – Design and use – Part 5-1:
Attachment (land/joint) considerations – Generic requirements
IEC 61188-5-2, Printed boards and printed board assemblies – Design and use – Part 5-2:
Attachment (land/joint) considerations – Discrete components
IEC 61188-5-3, Printed boards and printed board assemblies – Part 5-3: Sectional design and
use requirements – Attachment (land/joint) considerations – Components with Gull-wing leads
on two sides
IEC 61188-5-4, Printed boards and printed board assemblies – Design and use – Part 5-4:
Sectional requirements – Attachment (land/joint) consideration – Components with J leads on
two sides
IEC 61188-5-5, Printed boards and printed board assemblies – Design and use – Part 5-5:
Sectional requirements – Attachment (land/joint) considerations – Components with Gull-wing
leads on four sides
IEC 61188-5-6, Printed boards and printed board assemblies – Design and use – Part 5-6:
Attachment (land/joint) considerations – Chip carriers with J-leads on four sides
IEC 61188-5-8, Printed boards and printed board assemblies – Design and use – Part 5-8 :
Sectional Requirement – Attachment (land/joint) considerations – Area array components
(BGA, FBGA, CGA, LGA)
3 Documentation conventions
The XML file format standard and the XML Schema definition language standard, as defined
by the World Wide Web Consortium (W3C), have been adopted by IEC for use in the
IEC 61182 series of standards.
In addition to the text based schema notation, this document provides graphical
representation of the structure of the file format. The XML diagrams are designed to
effectively illustrate the structure and cardinality of elements and attributes that make up any
IEC 61182-2 file. The notation in the graphics does not provide a complete visualization of the
schema definition for the file format, but it does provide a good top down overview. Should
there be any conflict between the graphical notation and the schema notation, the
authoritative definition is the schema notation.
Table 1 provides an overview of the graphical notation used in the document.
—————————
To be published.
61182-2  IEC:2006(E) – 11 –
Table 1– Graphical notation overview
This diagram depicts an element named
AnElement that is of type TypeB. There is one
attribute, named anAttribute, that is of type
double. The attribute is required.
Example:

Note that all attribute values must be enclosed in quotes, regardless of type.
This diagram depicts an element with two
attributes. The attribute anAttribute is required.
The “?” in the circle indicates that the second

attribute, anOptionalAttribute, is optional. Both
attributes are of type string.
Examples:


The element OneToManyOrElements is the
parent of an unordered list of one or more
instances of the elements AnElement and
AnothertElement. The “+” indicates the
occurrence is one to many and the angled lines

indicate this is a choice relationship (“|”)
between the children elements.
< OneToManyOrParentElement>…
The absence of an occurrence bubble declares
that one and only one occurrence are allowed.
The AnOrParentElement can have one of
AnElement or AnotherElement as a child
element.
The ‘*’ in the occurrence bubble indicates the
choice is from 0 to many.
This diagram depicts an element,
From2to3Elements. The element has no type
and no attributes. It can have from 2 to 3 sub-
elements of either AnElement or
AnotherElement.
This diagram depicts an element,
AParentElement, of type AParentElementType.
This element has one attribute,
attributeOfParent, which is optional. The lines
with square corners indicate that occurrences of
AnElement and AnotherElement must appear in
the order by the illustration on the right where
the top element is addressed first and
AnotherElement is addressed secondly.

– 12 – 61182-2  IEC:2006(E)
This diagram depicts a type,
AParentElementType, that contains a sequence
starting with one of AThirdElement or AFourth
element followed by 0-n AnElement and an
optional final AnotherElement.

4 Requirements
The XML Schema contained in this document describes the structure of a generic computer-
aided manufacturing IEC 61182-2 exchange format. The document specifies data elements
specifically designed to establish the information exchange related to the data needed by
printed board manufacturing, and assembly including inspection of those products.
The XML Schema defines the configuration of mandatory and optional elements, as well as
mandatory and optional attributes. The Top Level (TopElement) of the schema contains six
major elements. The schema notation specifies that the 6 top-level elements are required to
appear in the order shown in Figure 1. The order of appearance in the file is significant. For
instance, the appearance of graphics on a layer is dependent on the order of appearance in
the file. The order is also important because elements often reference information that is
defined elsewhere in the file in order to eliminate redundancy within the file. The file is
structured to allow all references to be resolved in one pass.
An implementation of the XML Schema must be able to facilitate the reading and/or writing of
all characteristics defined within the requirements stated in the Mode function of this standard.
Some tools may have only read capability; some may have only write capability. Some tools
may have both read/write capability. All schema defined in the standard as mandatory (1-1, 1-
n occurrences) shall be executed as appropriate. Tool providers shall identify their capability
by Mode Level (Full, Design 1, 2 or 3, Fabrication 1, 2, or 3, etc.) plus 2581R (read-only);
2581W (write-only); or 2581RW (read and write).
Each element has a specific function or task. Accordingly, the information interchange for a
specific purpose is possible only if that element is populated. The ability to select those
characteristics that are appropriate for a given task makes the schema a robust methodology
for defining only those areas and characteristics that are necessary to produce a given
product. Figure 1 shows the children elements of the Top Element IEC 61182-2.

61182-2  IEC:2006(E) – 13 –
Attribute/ Attribute/ Description Occur-
Element Name Element Type rence
IEC 61182-2 IEC 61182-2 Type The generic name of the file used to describe design, 1-1
fabrication, assembly, and test information in accordance
with IEC 61182-2 .
Content ContentType 1-1
The Content element defines the function of the file, and
references the major sections of the product description (i.e.
Step, Layer, Bom and Avl). In addition, there are six
dictionaries indicated in Content that would contain the pre-
descibed information needed for the file details.
1-1
LogisticHeader LogisticHeaderType The LogisticHeader describes information pertaining to
ordering and delivery, by identifying individuals and locations
responsible for these functions.
HistoryRecord HistoryRecordType 1-1
The HistoryRecord element provides a sequential change
number for the IEC 61182-2 file. The number is changed
every time the controlled version of the IEC 61182-2 file is
modified. Also identified are the change approval conditions.
Bom BomType 1-n
The Bill of Materials for the board is a list of all the
different components to be used for the assembly of the
board, arranged by their OEM Design Number (ODN) and the
materials used to fabricate the printed board.
Ecad EcadType 1-1
The Ecad section describes the Computer Aided Design data
of the job, including all the graphical description of the layers,
component location, panel design, etc.
Avl AvlTYpe 1-1
The AVL element contains the list of matching manufacturer’s
part numbers (MPNs) and vendor information of certain
component parts. Approved vendors of printed board
materials may also be included.
IEC  1669/06
Figure 1 – The IEC 61182-2 children element
4.1 Rules concerning the use of XML and XML Schema
The rules required to define syntax and semantics of the 61182-2-X file format notation have
been simplified by the adoption of the W3C standards for XML Schema and XML file formats.
These two standards are well-specified by the W3C. The popularity of these standards has
lead to the development of many commercial and open source software tools and libraries
that conform to the W3C standards.
A IEC 61182-2 file begins with the <61182-2-X revision = ”1.0”> tag and end with the
tag. The content between these tags must match the .xsd definition of the
61182-2-X element as defined by the IEC 61182-2-1 through IEC 61182-2-4 XML Schema.

– 14 – 61182-2  IEC:2006(E)
4.1.1 File readability and uniformity
A valid IEC 61182-2-1 through IEC 61182-2-4 file must conform to the W3C Canonical XML
format. The format is defined by the http://www.w3.org/TR/xml-c14n specification. Software
tools exist that will take malformed XML and automatically generate Canonical XML.
4.1.2 File markers
An optional checksum can be appended following the tag. The checksum is an
MD5 message digest algorithm (see Internet RFC 1321: http://www.ietf.org/rfc/rfc1321.txt)
that is base64 encoded. The checksum starts with the “<” character of the <258X> tag and
ending with the “>” character of the closing tag. The checksum follows
immediately after the “>” character of the closing tag.
The digest provides a 128-bit checksum of the 61182-2-X file contents. The MD5 signature
must be base64 encoded (see IETF RFC 1421 for the base64 algorithm) to convert the MD5
signature to a US-ASCII, base64 string. An end of line character will indicate the end of the
base64 encoded MD5 signature.
4.1.3 File extension
The file extension for a 61182-2-X file is .cvg.
4.1.4 File remarks
The 61182-2-X format permits file remarks using the standard XML commenting notation.
They are only to be used to support debugging software. A p
...
