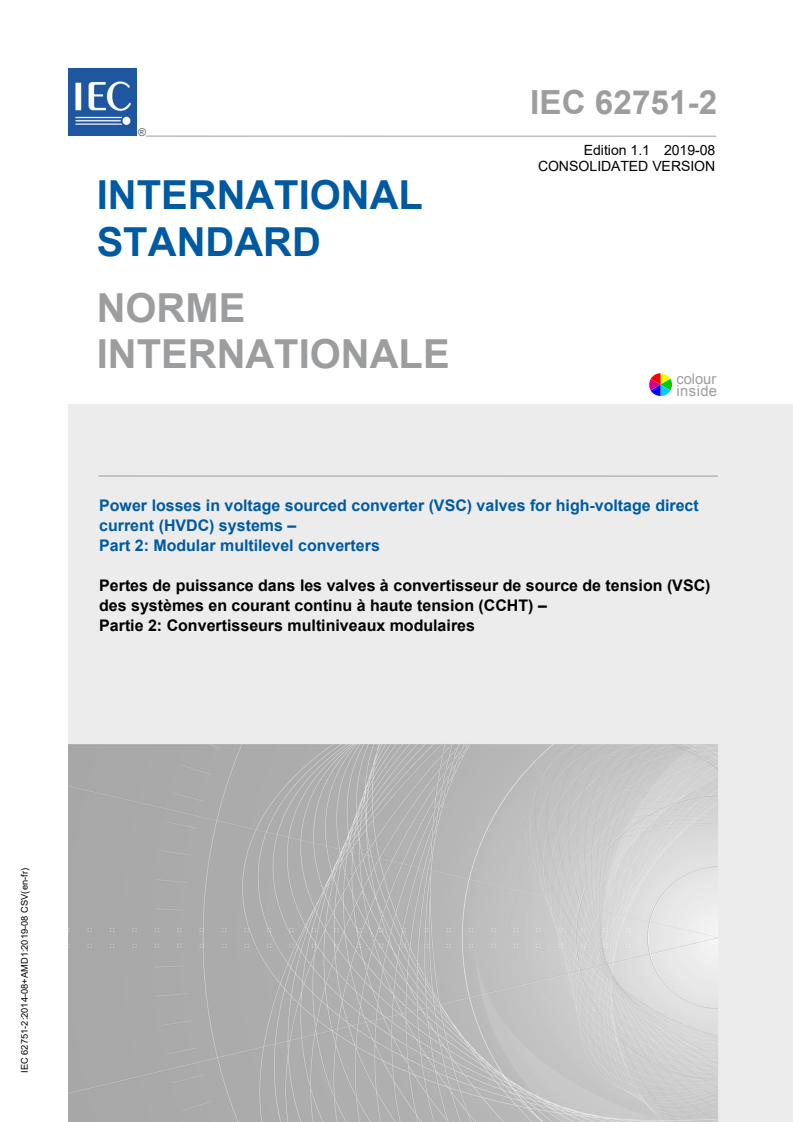

IEC 62751-2:2014

IEC 62751-2 ®
Edition 1.1 2019-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power losses in voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) systems –
Part 2: Modular multilevel converters

Pertes de puissance dans les valves à convertisseur de source de tension (VSC)
des systèmes en courant continu à haute tension (CCHT) –
Partie 2: Convertisseurs multiniveaux modulaires

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

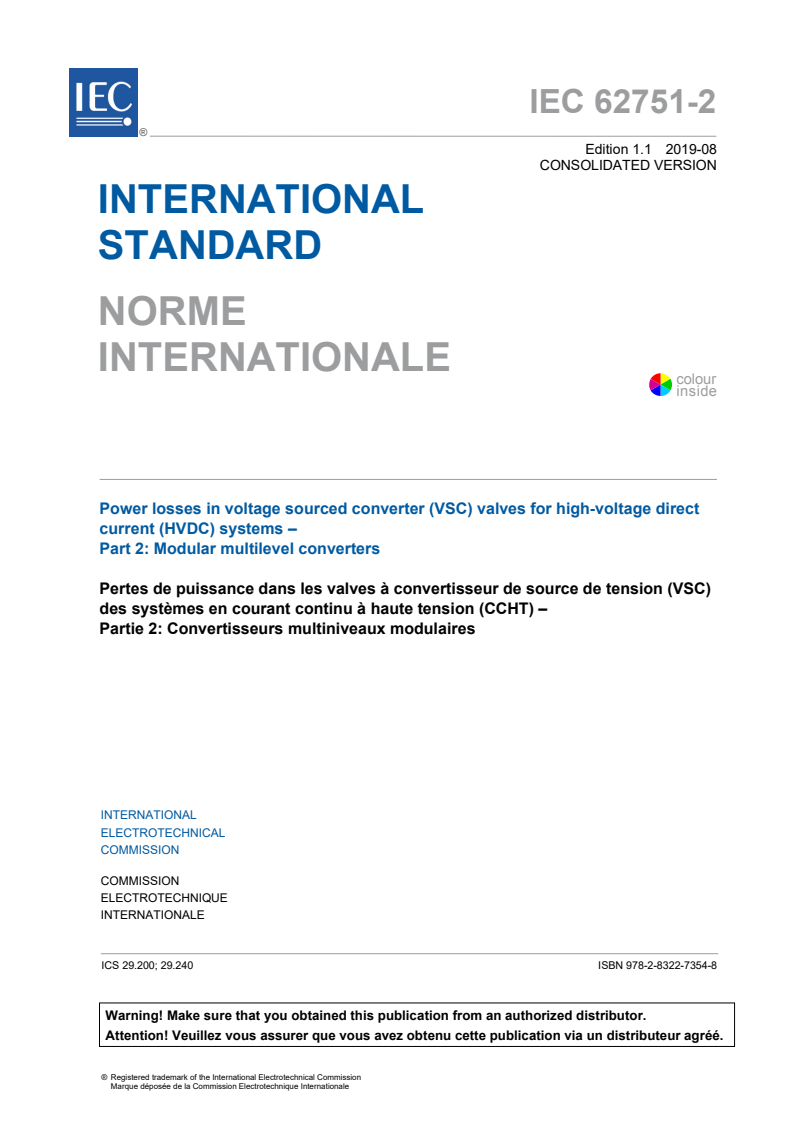

IEC 62751-2 ®
Edition 1.1 2019-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power losses in voltage sourced converter (VSC) valves for high-voltage direct

current (HVDC) systems –
Part 2: Modular multilevel converters

Pertes de puissance dans les valves à convertisseur de source de tension (VSC)

des systèmes en courant continu à haute tension (CCHT) –

Partie 2: Convertisseurs multiniveaux modulaires

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200; 29.240 ISBN 978-2-8322-7354-8

IEC 62751-2 ®
Edition 1.1 2019-08
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Power losses in voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) systems –
Part 2: Modular multilevel converters

Pertes de puissance dans les valves à convertisseur de source de tension (VSC)
des systèmes en courant continu à haute tension (CCHT) –
Partie 2: Convertisseurs multiniveaux modulaires

– 2 – IEC 62751-2:2014+AMD1:2019 CSV
© IEC 2019

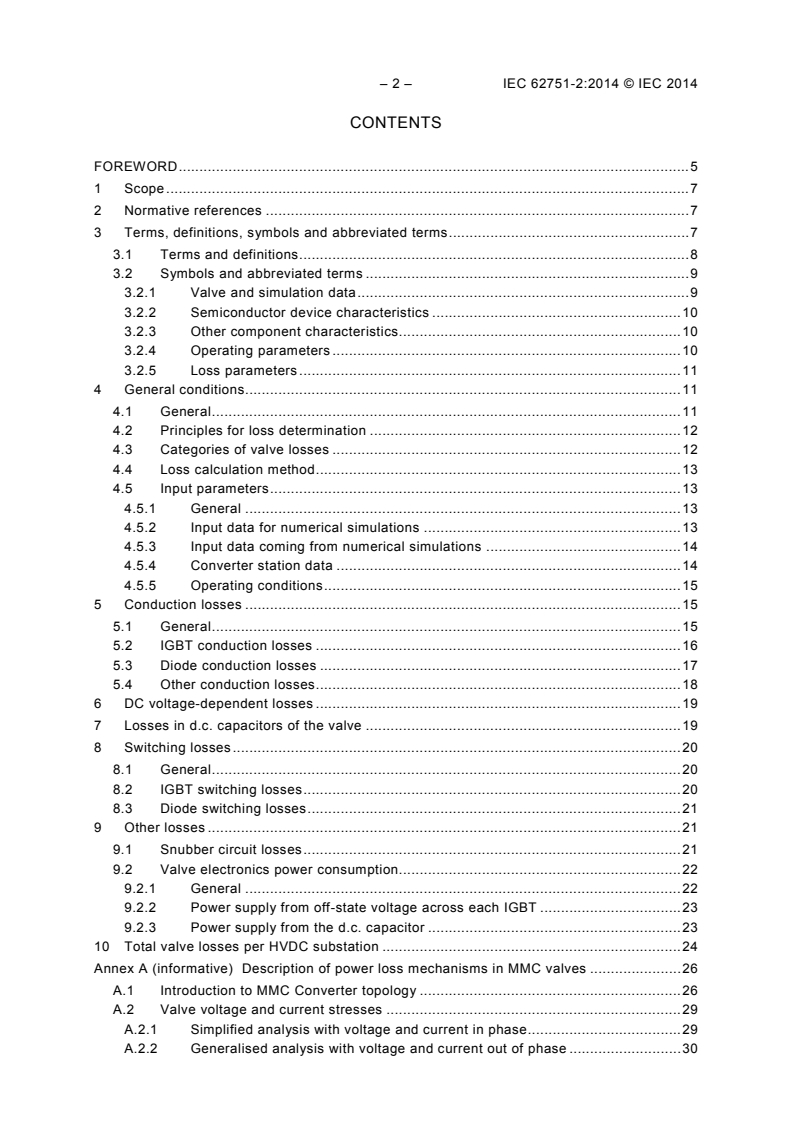

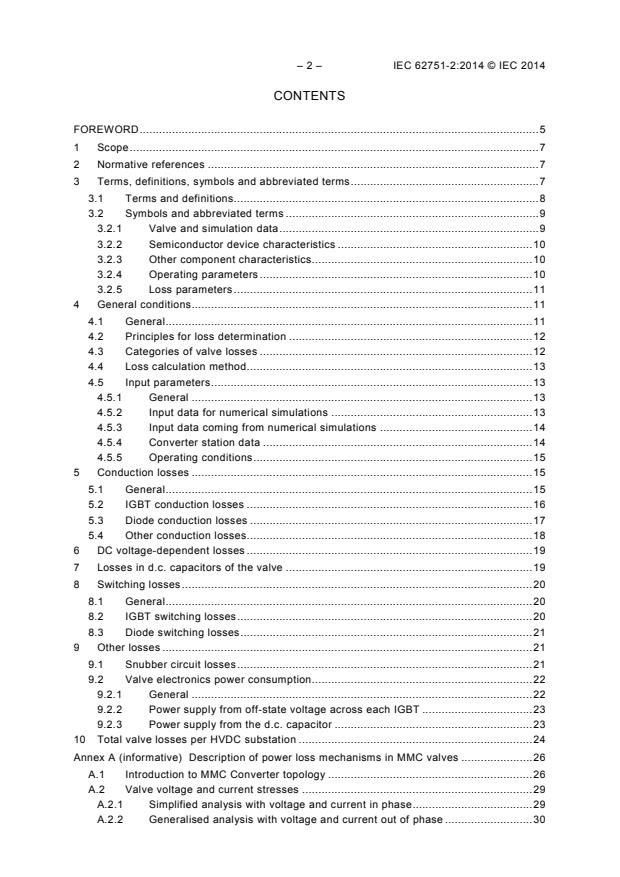

CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, symbols and abbreviated terms . 7
3.1 Terms and definitions . 8
3.2 Symbols and abbreviated terms . 9
3.2.1 Valve and simulation data . 9
3.2.2 Semiconductor device characteristics . 10
3.2.3 Other component characteristics. 10
3.2.4 Operating parameters . 10
3.2.5 Loss parameters . 11
4 General conditions. 11
4.1 General . 11
4.2 Principles for loss determination . 12
4.3 Categories of valve losses . 12
4.4 Loss calculation method . 13
4.5 Input parameters . 13
4.5.1 General . 13
4.5.2 Input data for numerical simulations . 13
4.5.3 Input data coming from numerical simulations . 14
4.5.4 Converter station data . 14
4.5.5 Operating conditions . 15
4.6 Contents and structure of valve loss determination report . 15
5 Conduction losses . 16
5.1 General . 16
5.2 IGBT conduction losses . 18
5.3 Diode conduction losses . 19
5.4 Other conduction losses . 20
6 DC voltage-dependent losses . 20
7 Losses in d.c. capacitors of the valve . 21
8 Switching losses . 21
8.1 General . 21
8.2 IGBT switching losses . 22
8.3 Diode switching losses . 22
9 Other losses . 23
9.1 Snubber circuit losses . 23
9.2 Valve electronics power consumption. 23
9.2.1 General . 23
9.2.2 Power supply from off-state voltage across each IGBT . 24
9.2.3 Power supply from the d.c. capacitor . 25
10 Total valve losses per HVDC substation . 25
Annex A (informative) Description of power loss mechanisms in MMC valves . 27
A.1 Introduction to MMC Converter topology . 27
A.2 Valve voltage and current stresses . 30
A.2.1 Simplified analysis with voltage and current in phase . 30

© IEC 2019
A.2.2 Generalised analysis with voltage and current out of phase . 31
A.2.3 Effects of third harmonic injection . 32
A.3 Conduction losses in MMC building blocks . 33
A.3.1 Description of conduction paths . 33
A.3.2 Conduction losses in semiconductors . 39
A.3.3 MMC building block d.c. capacitor losses . 43
A.3.4 Other conduction losses . 44
A.4 Switching losses . 44
A.4.1 Description of state changes . 44
A.4.2 Analysis of state changes during cycle . 45
A.4.3 Worked example of switching losses . 46
A.5 Other losses . 49
A.5.1 Snubber losses . 49
A.5.2 DC voltage-dependent losses . 49
A.5.3 Valve electronics power consumption . 52
A.6 Application to other variants of valve. 54
A.6.1 General . 54
A.6.2 Two-level full-bridge MMC building block . 54
A.6.3 Multi-level MMC building blocks . 55
Annex B (informative) Recommended data to be supplied with the loss calculation
report . 57
Bibliography . 59

Figure 1 – Two basic versions of MMC building block designs . 16
Figure 2 – Conduction paths in MMC building blocks . 17
Figure A.1 – Phase unit of the modular multi-level converter (MMC) in basic half-
bridge, two-level arrangement, with submodules . 28
Figure A.2 – Phase unit of the cascaded two-level converter (CTL) in half-bridge form . 29
Figure A.3 – Basic operation of the MMC converters . 30
Figure A.4 – MMC converters showing composition of valve current . 31
Figure A.5 – Phasor diagram showing a.c. system voltage, converter a.c. voltage and
converter a.c. current . 32
rd
Figure A.6 – Effect of 3 harmonic injection on converter voltage and current . 33
Figure A.7 – Two functionally equivalent variants of a “half-bridge”, two-level MMC
building block . 34
Figure A.8 – Conducting states in “half-bridge”, two-level MMC building block . 35
Figure A.9 – Typical patterns of conduction for inverter operation (left) and rectifier
operation (right), based on the submodule configuration of Figure A.7 a) . 36
Figure A.10 – Example of converter with only one MMC building block per valve to
illustrate switching behaviour . 37
Figure A.11 – Inverter operation example of switching events . 37
Figure A.12 – Rectifier operation example of switching events . 38
Figure A.13 – Valve current and mean rectified valve current . 40
Figure A.14 – IGBT and diode switching energy as a function of collector current . 45
Figure A.15 – Valve voltage, current and switching behaviour for a hypothetical MMC

valve consisting of 5 submodules . 47
Figure A.16 – Power supply from IGBT terminals . 52
Figure A.17 – Power supply from IGBT terminals in cell . 53

– 4 – IEC 62751-2:2014+AMD1:2019 CSV
© IEC 2019
Figure A.18 – Power supply from d.c. capacitor in submodule . 54
Figure A.19 – One “full-bridge”, two-level MMC building block . 55
Figure A.20 – Four possible variants of three-level MMC building block . 56

Table 1 – Contributions to valve losses in different operating modes . 26
Table A.1 – Hard switching events . 44
Table A.2 – Soft switching events . 45
Table A.3 – Summary of switching events from Figure A.15 . 48
Table B.1 – Valve loss data . 57
Table B.2 – Other data . 58

© IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER LOSSES IN VOLTAGE SOURCED
CONVERTER (VSC) VALVES FOR HIGH-VOLTAGE
DIRECT CURRENT (HVDC) SYSTEMS –
Part 2: Modular multilevel converters
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 62751-2 edition 1.1 contains the first edition (2014-08) [documents 22F/303/CDV and
22F/322A/RVC] and its amendment 1 (2019-08) [documents 22F/479/CDV and 22F/488B/
RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
– 6 – IEC 62751-2:2014+AMD1:2019 CSV
© IEC 2019
International Standard IEC 62751-2 has been prepared by subcommittee 22F: Power
electronics for electrical transmission and distribution systems, of IEC technical committee 22:
Power electronic systems and equipment.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62751series, published under the general title Power losses in
voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) systems, can
be found on the IEC website.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
© IEC 2019
POWER LOSSES IN VOLTAGE SOURCED
CONVERTER (VSC) VALVES FOR HIGH-VOLTAGE
DIRECT CURRENT (HVDC) SYSTEMS –

Part 2: Modular multilevel converters

1 Scope
This part of IEC 62751 gives the detailed method to be adopted for calculating the power
losses in the valves for an HVDC system based on the “modular multi-level converter”, where
each valve in the converter consists of a number of self-contained, two-terminal controllable
voltage sources connected in series. It is applicable both for the cases where each modular
cell uses only a single turn-off semiconductor device in each switch position, and the case
where each switch position consists of a number of turn-off semiconductor devices in series
(topology also referred to as “cascaded two-level converter”). The main formulae are given for
the two-level “half-bridge” configuration but guidance is also given in Annex A as to how to
extend the results to certain other types of MMC building block configuration.
The standard is written mainly for insulated gate bipolar transistors (IGBTs) but may also be
used for guidance in the event that other types of turn-off semiconductor devices are used.
Power losses in other items of equipment in the HVDC station, apart from the converter
valves, are excluded from the scope of this standard.
This standard does not apply to converter valves for line-commutated converter HVDC
systems.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60633, Terminology for high-voltage direct-current (HVDC) transmission
IEC 61803, Determination of power losses in high-voltage direct current (HVDC) converter
stations
IEC 62747, Terminology for voltage-sourced converters (VSC) for high-voltage direct current
(HVDC) systems
IEC 62751-1:2014, Power losses in voltage sourced converter (VSC) valves for high-voltage
direct current (HVDC) systems – Part 1: General requirements
ISO/IEC Guide 98-3, Uncertainty of measurement – Part 3: Guide to the expression of
uncertainty in measurement (GUM:1995)
3 Terms, definitions, symbols and abbreviated terms
For the purposes of this document, the terms and definitions given in IEC 60633, IEC 62747,
IEC 62751-1, as well as the following apply.

– 8 – IEC 62751-2:2014+AMD1:2019 CSV
© IEC 2019
3.1 Terms and definitions
3.1.1
modular multi-level converter
MMC
multi-level converter in which each VSC valve consists of a number of MMC building blocks
connected in series
Note 1 to entry: This note applies to the French language only.
3.1.2
MMC building block
self-contained, two-terminal controllable voltage source together with d.c. capacitor(s) and
immediate auxiliaries, forming part of a MMC
3.1.3
IGBT-diode pair
arrangement of IGBT and free-wheeling diode connected in inverse parallel
3.1.4
switch position
semiconductor function which behaves as a single, indivisible switch
Note 1 to entry: A switch position may consist of a single IGBT-diode pair or, in the case of the cascaded two
level converter, a series connection of multiple IGBT-diode pairs.
3.1.5
cascaded two-level converter
CTL
modular multi-level converter in which each switch position consists of more than one
IGBT-diode pair connected in series
Note 1 to entry: This note applies to the French language only.
3.1.6
submodule
MMC building block where each switch position consists of only one IGBT-diode pair
3.1.7
cell
MMC building block where each switch position consists of more than one IGBT-diode pair
connected in series
3.1.8
turn-off semiconductor device
controllable semiconductor device which may be turned on and off by a control signal, for
example an IGBT
3.1.9
insulated gate bipolar transistor
IGBT
turn-off semiconductor device with three terminals: a gate terminal (G) and two load terminals
emitter (E) and collector (C)
Note 1 to entry: This note applies to the French language only.
3.1.10
operating state
condition in which the HVDC substation is energized and the converters are de-blocked

© IEC 2019
Note 1 to entry: Unlike line-commutated converter, VSC can operate with zero active/reactive power output.
3.1.11
no-load operating state
condition in which the HVDC substation is energized but the IGBTs are blocked and all
necessary substation service loads and auxiliary equipment are connected
Note 1 to entry: In the no-load state, in principle no switching should occur as the valve is blocked. However, in
some designs, it may be necessary to make occasional switching operations to balance voltages between different
parts of the converter. Here, some losses may occur and need to be accounted for.
3.1.12
idling operating state
condition in which the HVDC substation is energized and the IGBTs are de-blocked but with
no active or reactive power output at the point of common connection to the a.c. network
Note 1 to entry: The “idling operating” and “no-load” conditions are similar but from the no-load state, several
seconds may be needed before power can be transmitted, while from the idling operating state, power transmission
may be commenced almost immediately (less than 3 power frequency cycles).
Note 2 to entry: In the idling operating state, the converter is capable of actively controlling the d.c. voltage, in
contrast to the no-load state where the behavior of the converter is essentially “passive”.
Note 3 to entry: Losses will generally be slightly lower in the no-load state than in the idling operating state,
therefore this operating mode is preferred where the arrangement of the VSC system permits it.
3.1.13
modulation index of PWM converters
M
ratio of the peak line to ground a.c. converter voltage, to half of the converter d.c. terminal to
terminal voltage
2 ⋅U
c1
M =
U
dc
3 ⋅
where
U is the r.m.s value of the fundamental frequency component of the line-to-line voltage U ;
c1 c
U is the output voltage of one VSC phase unit at its a.c. terminal;
c
U is the output voltage of one VSC phase unit at its d.c. terminals.
dc
Note 1 to entry: Some sources define modulation index in a different way such that a modulation index of 1 refers
to a square-wave output, which means that the modulation index can never exceed 1. The modulation index
according to that definition is given simply by M·(π/4). However, that definition is relevant mainly to two-level
converters using PWM.
3.2 Symbols and abbreviated terms
3.2.1 Valve and simulation data
N number of MMC building blocks per valve
tc
N number of series-connected semiconductor devices per switch position
c
N total number of series resistive elements contributing to conduction losses in the
sr
valve, other than in the IGBTs and diodes
N number of d.c. capacitors in the valve
cv
N number of switching cycles (on or off) experienced by each VSC valve level
s
during the integration time t
i
N total number of parallel resistive elements contributing to d.c. voltage dependent
pr
losses in the valve
N number of snubber circuits per valve
sn
– 10 – IEC 62751-2:2014+AMD1:2019 CSV
© IEC 2019
t integration time used in the simulation
i
3.2.2 Semiconductor device characteristics
V average IGBT threshold voltage for the relevant operating conditions
0T
R average IGBT slope resistance for the relevant operating conditions, valid at the
0T
device terminals
V average diode threshold voltage for the relevant operating conditions
0D
R average diode slope resistance for the relevant operating condition, valid at the
0D
device terminals
E average turn-on energy dissipated in the IGBT for the relevant operating
on
conditions
E average turn-off energy dissipated in the IGBT(s) for the relevant operating
off
conditions
th th
E turn-on energy dissipated in IGBT T1 in the j MMC building block for the k
on,T1_j,k
turn-on event for the relevant operating conditions (voltage, current and junction
temperature)
th th
E turn-on energy dissipated in IGBT T2 in the j MMC building block for the k
on,T2_j,k
turn-on event for the relevant operating conditions (voltage, current and junction
temperature)
th th
E turn-off energy dissipated in IGBT T1 in the j MMC building block for the k
off,T1_j,k
turn-off event for the relevant operating conditions (voltage, current and junction
temperature)
th th
E turn-off energy dissipated in IGBT T2 in the j MMC building block for the k
off,T2_j,k
turn-off event for the relevant operating conditions (voltage, current and junction
temperature)
th
E diode recovery energy dissipated in diode D1 in the j MMC building block for
rec,D1_j,k
th
the k diode turn-off event for the relevant operating conditions (voltage, current
and junction temperature)
th
E diode recovery energy dissipated in diode D2 in the j MMC building block for
rec,D2_j,k
th
the k diode turn-off event for the relevant operating conditions (voltage, current
and junction temperature)
3.2.3 Other component characteristics
th
R total resistance of the k series resistive elements in the valve contributing to
s_k
other conduction losses
th
R resistance of the k parallel resistive component in the valve
dc_k
th
R average equivalent series resistance of the j d.c. capacitor
ESR_j
th th
E energy dissipated in the snubber resistor of the j snubber circuit for the k turn-
sn,on_j,k
on event for the relevant operating conditions (voltage, and current where
relevant to the design of the snubber)
th th
E energy dissipated in the snubber resistor of the j snubber circuit for the k turn-
sn,off_j,k
off event for the relevant operating conditions (voltage, and current where
relevant to the design of the snubber)
3.2.4 Operating parameters
th
I mean current of IGBT T1 in the j MMC building block, averaged over an
T1av_j
integration time t
i
th
I mean current of IGBT T2 in the j MMC building block, averaged over an
T2av_j
integration time t
i
th
I rms current of IGBT T1 in the j MMC building block, averaged over an
T1rms_j
integration time t
i
th
I rms current of IGBT T2 in the j MMC building block, averaged over an
T2rms_j
integration time t
i
© IEC 2019
th
I mean current of diode D1 in the j MMC building block, averaged over an
D1av_j
integration time t
i
th
I mean current of diode D2 in the j MMC building block, averaged over an
D2av_j
integration time t
i
th
I rms current of diode D1 in the j MMC building block, averaged over an
D1rms_j
integration time t
i
th
I rms current of diode D2 in the j MMC building block, averaged over an
D2rms_j
integration time t
i
th
I rms current flowing in the k series resistive element for the relevant operating
rms_k
conditions
th
U rms value (including d.c. component) of the voltage across the k parallel
rms_k
resistive component in the valve
th
I rms current flowing in the j d.c. capacitor of the valve
crms_j
th th
P average power input to the power supply of k IGBT in j MMC building block
GU_j,k
th th
(t) instantaneous power input to the power supply of k IGBT in j MMC building
p
GU_j,k
block
th th
u (t) instantaneous voltage input to the power supply of k IGBT in j MMC building
GU_j,k
block
th th
i (t) instantaneous current input to the power supply of k IGBT in j MMC building
GU_j,k
block
th
P average power input to the power supply in j MMC building block
GU_j
th
p (t) instantaneous power input to the power supply in j MMC building block
GU_j
th
u (t) instantaneous voltage input to the power supply in j MMC building block
GU_j
th
i (t) instantaneous current input to the power supply in j MMC building block
GU_j
3.2.5 Loss parameters
P IGBT conduction losses
V1
P diode conduction losses
V2
P other valve conduction losses
V3
P d.c. voltage-dependent losses
V4
P d.c. capacitor losses
V5
P IGBT switching losses
V6
P diode turn-off losses
V7
P snubber losses
V8
P valve electronics power consumption
V9
P total valve losses
Vt
4 General conditions
4.1 General
Modular multi-level converters (MMC) are a family of converters in which each valve forms a
controllable voltage source. The converter a.c. voltage is synthesized by switching large
numbers of relatively small, self-contained, two-terminal controllable voltage sources at
different times, thereby obtaining a high-quality converter waveform with low switching losses
and therefore a high overall efficiency. The MMC building blocks from which the overall
converter is built up may use multiple IGBT-diode pairs connected in series (in which case the
converter is referred to as the “Cascaded two level converter”, CTLC) or only a single IGBT-
diode pair per switch position. A detailed description of these types of converter is beyond the
scope of this standard; however, Annex A includes a general description of the operation of
the MMC (see also IEC TR 62543).

– 12 – IEC 62751-2:2014+AMD1:2019 CSV
© IEC 2019
4.2 Principles for loss determination
Theoretically, the losses of a converter station can be determined either by direct
measurements of the input and output powers or by means of component characteristics,
using suitable mathematical models of the individual components of a converter. The
selection of the principle under which the losses are to be determined shall take into
consideration the uncertainties. The manufacturer shall justify, in the loss calculation report,
how the uncertainties have been considered.
The overall uncertainty of the value of losses is an important parameter for a converter and
for a converter station since it is used to compare investment cost to capitalised cost over the
life-time of the converter station. To ensure that estimates are undisputed, adherence to the
provisions of this standard and the provisions of ISO/IEC Guide 98-3 is indispensable. All
measurements shall furthermore be traceable to national and/or international standards of
measurement.
As mentioned above, a determination of the losses of a converter station could in principle be
performed by making a direct measurement a.c. and d.c. side power. The difference between
these two power values is however small, and a good accuracy will be very difficult to reach.
In practice, this measurement would require the use of state-of-the-art measurement
equipment that rivals the best equipment available at national metrology institutes, equipment
that is not intended for on-site use. While not impossible, this method is unlikely to be used.
To date, although some industry/academic partnership projects have demonstrated prototypes
of measurement equipment claiming sufficient accuracy, there is little industry experience with
using such equipment on site. The feasibility of using laboratory measurements on VSC
valves to support a more accurate determination of valve losses is now under study in
CIGRÉ WG B4-75.
In rare cases, where there are two converters in a substation, there may be an opportunity to
connect the two converters in a temporary back-to-back configuration and circulate d.c. power
between them, with their total loss being supplied by the a.c. grid. This loss can be measured,
using standard energy meters and voltage transformers, but with special current transformers
that have a rated current that is on the order of 5 % to 10 % of the normal operating current of
the converters in order to reach sufficient accuracy at the power levels to be measured. In
order to enable back-to-back measurements, additional equipment and/or control and
protection enhancements could be needed, which will increase the investment cost of the
converter station.
For most cases, however, the losses have to be estimated from component characteristics,
using suitable mathematical models of the converters, as discussed in this standard. It is
however important that all such estimates have a base in actual measurements having
sufficiently low uncertainty. Care should also be taken to show the propagation of
uncertainties from measurements and how they interact with the model. Estimates of the
uncertainty contributions from imperfections in the models themselves should also be
considered.
4.3 Categories of valve losses
The various components of valve losses are subdivided into terms referred to as P to P :
V1 V9
P IGBT conduction losses
V1
P diode conduction losses
V2
P other valve conduction losses
V3
P d.c. voltage-dependent losses
V4
P d.c. capacitor losses
V5
P IGBT switching losses
V6
P diode turn-off losses
V7
© IEC 2019
P snubber losses
V8
P valve electronics power consumption
V9
For the MMC topology, because the switching frequency is usually low (less than 200 Hz) the
largest contributors to the valve losses are usually the IGBT and diode conduction losses P
V1
and P . With half-bridge converters, P is dominant in inverter mode and P is dominant in
V2 V1 V2
rectifier mode, while with full-bridge converters there is no major difference between rectifier
and inverter modes. IGBT switching losses P and diode turn-off losses P are also a
V6 V7
significant (although not dominant) contribution. The other components of valve losses are
generally minor.
4.4 Loss calculation method
The proposed method for determining valve losses is based on analytical formulae for the
operating conditions. However, some of the necessary input parameters are difficult to obtain
by purely analytical means. Numerical solutions using real-time or non-real-time simulations
shall be applied, to derive such input parameters, for example valve currents and switching
energies. For that, the input parameters described in 4.5 are required.
An important requirement for such simulations is an accurate modelling of the system under
investigation. Multi-level converters offer a high degree of freedom in terms of control
strategies. Therefore the resulting valve currents strongly depend on the realization and the
algorithms of the control itself.
In alignment with the statement presented in 4.2, uncertainties of numerical simulations shall
be clearly stated and justified by the manufacturer.
4.5 Input parameters
4.5.1 General
This subclause describes the input parameters necessary for the calculation of power losses
in the valves of an MMC to take place. These input parameters refer to the data needed for
the performance of numerical simulations as well as the converter and component data
needed for calculation of losses. At the same time, converter and component data is divided
into two categories: converter station data such as the number of MMC building blocks per
valve and the on-state characteristics of the IGBT and free-wheeling diode, and operating
parameters such as the converter a.c. and d.c. currents, converter voltage (amplitude and
rd
waveshape, including 3 harmonic injection where applicable), a.c. system frequency and
mean MMC building block switching frequency.
4.5.2 Input data for numerical simulations
For numerical simulations, the following requirements shall be considered.
– The simulation model shall include a control block which represents the real control
behaviour and realistic behaviour regarding measurements, dead and transfer times,
interlocking times, etc.
– The calculations shall be performed for a period of time with stable conditions in terms of
active and reactive power transfer on the a.c. side and active power on the d.c. side.
– After the simulation has settled to steady-state conditions, a minimum integration time t of
i
1 s shall be used for operating state losses, but a longer time may be required for standby
and no-load operating states, depending on the switching strategies used.
– The simulation models shall represent real conditions of the converter station in terms of
number of MMC building blocks, main components, parasitic elements, orig
...

IEC 62751-2 ®
Edition 1.2 2023-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power losses in voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) systems –
Part 2: Modular multilevel converters

Pertes de puissance dans les valves à convertisseur de source de tension (VSC)
des systèmes en courant continu à haute tension (CCHT) –
Partie 2: Convertisseurs multiniveaux modulaires

IEC 62751-2 2014-08+AMD1:2019-08+AMD2:2023-08 CSV(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch

IEC 62751-2 ®
Edition 1.2 2023-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power losses in voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) systems –
Part 2: Modular multilevel converters
Pertes de puissance dans les valves à convertisseur de source de tension (VSC)
des systèmes en courant continu à haute tension (CCHT) –
Partie 2: Convertisseurs multiniveaux modulaires
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200, 29.240.99 ISBN 978-2-8322-7472-9

IEC 62751-2 ®
Edition 1.2 2023-08
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Power losses in voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) systems –
Part 2: Modular multilevel converters

Pertes de puissance dans les valves à convertisseur de source de tension (VSC)
des systèmes en courant continu à haute tension (CCHT) –
Partie 2: Convertisseurs multiniveaux modulaires

IEC 62751-2 2014-08+AMD1:2019-08+AMD2:2023-08 CSV(en-fr)

– 2 – IEC 62751-2:2014+AMD1:2019
+AMD2:2023 CSV © IEC 2023
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, symbols and abbreviated terms . 7
3.1 Terms and definitions . 8
3.2 Symbols and abbreviated terms . 9
3.2.1 Valve and simulation data . 9
3.2.2 Semiconductor device characteristics . 10
3.2.3 Other component characteristics. 10
3.2.4 Operating parameters . 10
3.2.5 Loss parameters . 11
4 General conditions. 11
4.1 General . 11
4.2 Principles for loss determination . 12
4.3 Categories of valve losses . 12
4.4 Loss calculation method . 13
4.5 Input parameters . 13
4.5.1 General . 13
4.5.2 Input data for numerical simulations . 13
4.5.3 Input data coming from numerical simulations . 15
4.5.4 Converter station data . 15
4.5.5 Operating conditions . 16
4.6 Contents and structure of valve loss determination report . 16
5 Conduction losses . 16
5.1 General . 16
5.2 IGBT conduction losses . 18
5.3 Diode conduction losses . 19
5.4 Other conduction losses . 20
6 DC voltage-dependent losses . 21
7 Losses in d.c. capacitors of the valve . 21
8 Switching losses . 22
8.1 General . 22
8.2 IGBT switching losses . 22
8.3 Diode switching losses . 23
9 Other losses . 23
9.1 Snubber circuit losses . 23
9.2 Valve electronics power consumption. 24
9.2.1 General . 24
9.2.2 Power supply from off-state voltage across each IGBT . 25
9.2.3 Power supply from the d.c. capacitor . 25
10 Total valve losses per HVDC substation . 26
Annex A (informative) Description of power loss mechanisms in MMC valves . 28
A.1 Introduction to MMC Converter topology . 28
A.2 Valve voltage and current stresses . 31
A.2.1 Simplified analysis with voltage and current in phase . 31
A.2.2 Generalised analysis with voltage and current out of phase . 32

+AMD2:2023 CSV © IEC 2023
A.2.3 Effects of third harmonic injection . 33
A.3 Conduction losses in MMC building blocks . 34
A.3.1 Description of conduction paths . 34
A.3.2 Conduction losses in semiconductors . 40
A.3.3 MMC building block d.c. capacitor losses . 44
A.3.4 Other conduction losses . 45
A.4 Switching losses . 45
A.4.1 Description of state changes . 45
A.4.2 Analysis of state changes during cycle . 46
A.4.3 Worked example of switching losses . 47
A.5 Other losses . 50
A.5.1 Snubber losses . 50
A.5.2 DC voltage-dependent losses . 50
A.5.3 Valve electronics power consumption . 53
A.6 Application to other variants of valve. 55
A.6.1 General . 55
A.6.2 Two-level full-bridge MMC building block . 55
A.6.3 Multi-level MMC building blocks . 56
Annex B (informative) Recommended data to be supplied with the loss calculation
report . 58
Annex C (informative) Loss measurement . 60
Bibliography . 61

Figure 1 – Two basic versions of MMC building block designs . 16
Figure 2 – Conduction paths in MMC building blocks . 17
Figure A.1 – Phase unit of the modular multi-level converter (MMC) in basic half-
bridge, two-level arrangement, with submodules . 29
Figure A.2 – Phase unit of the cascaded two-level converter (CTL) in half-bridge form . 30
Figure A.3 – Basic operation of the MMC converters . 31
Figure A.4 – MMC converters showing composition of valve current . 32
Figure A.5 – Phasor diagram showing a.c. system voltage, converter a.c. voltage and
converter a.c. current . 33
rd
Figure A.6 – Effect of 3 harmonic injection on converter voltage and current . 34
Figure A.7 – Two functionally equivalent variants of a “half-bridge”, two-level MMC
building block . 35
Figure A.8 – Conducting states in “half-bridge”, two-level MMC building block . 36
Figure A.9 – Typical patterns of conduction for inverter operation (left) and rectifier

operation (right), based on the submodule configuration of Figure A.7 a) . 37
Figure A.10 – Example of converter with only one MMC building block per valve to
illustrate switching behaviour . 38
Figure A.11 – Inverter operation example of switching events . 38
Figure A.12 – Rectifier operation example of switching events . 39
Figure A.13 – Valve current and mean rectified valve current . 41
Figure A.14 – IGBT and diode switching energy as a function of collector current . 46
Figure A.15 – Valve voltage, current and switching behaviour for a hypothetical MMC
valve consisting of 5 submodules . 48
Figure A.16 – Power supply from IGBT terminals . 53

– 4 – IEC 62751-2:2014+AMD1:2019
+AMD2:2023 CSV © IEC 2023
Figure A.17 – Power supply from IGBT terminals in cell . 54
Figure A.18 – Power supply from d.c. capacitor in submodule . 55
Figure A.19 – One “full-bridge”, two-level MMC building block . 56
Figure A.20 – Four possible variants of three-level MMC building block . 57

Table 1 – Contributions to valve losses in different operating modes . 27
Table A.1 – Hard switching events . 45
Table A.2 – Soft switching events . 46
Table A.3 – Summary of switching events from Figure A.15 . 49
Table B.1 – Valve loss data . 58
Table B.2 – Other data . 59

+AMD2:2023 CSV © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER LOSSES IN VOLTAGE SOURCED
CONVERTER (VSC) VALVES FOR HIGH-VOLTAGE
DIRECT CURRENT (HVDC) SYSTEMS –

Part 2: Modular multilevel converters

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
IEC 62751-2 edition 1.2 contains the first edition (2014-08) [documents 22F/303/CDV and
22F/322A/RVC], its amendment 1 (2019-08) [documents 22F/479/CDV and 22F/488B/RVC]
and its amendment 2 (2023-08) [documents 22F/712/CDV and 22F/726/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available
in this publication.
– 6 – IEC 62751-2:2014+AMD1:2019
+AMD2:2023 CSV © IEC 2023
International Standard IEC 62751-2 has been prepared by subcommittee 22F: Power
electronics for electrical transmission and distribution systems, of IEC technical committee 22:
Power electronic systems and equipment.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62751series, published under the general title Power losses in
voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) systems, can
be found on the IEC website.
The committee has decided that the contents of this document and its amendments will
remain unchanged until the stability date indicated on the IEC website under webstore.iec.ch
in the data related to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
+AMD2:2023 CSV © IEC 2023
POWER LOSSES IN VOLTAGE SOURCED
CONVERTER (VSC) VALVES FOR HIGH-VOLTAGE
DIRECT CURRENT (HVDC) SYSTEMS –

Part 2: Modular multilevel converters

1 Scope
This part of IEC 62751 gives the detailed method to be adopted for calculating the power
losses in the valves for an HVDC system based on the “modular multi-level converter”, where
each valve in the converter consists of a number of self-contained, two-terminal controllable
voltage sources connected in series. It is applicable both for the cases where each modular
cell uses only a single turn-off semiconductor device in each switch position, and the case
where each switch position consists of a number of turn-off semiconductor devices in series
(topology also referred to as “cascaded two-level converter”). The main formulae are given for
the two-level “half-bridge” configuration but guidance is also given in Annex A as to how to
extend the results to certain other types of MMC building block configuration.
The standard is written mainly for insulated gate bipolar transistors (IGBTs) but may also be
used for guidance in the event that other types of turn-off semiconductor devices are used.
Power losses in other items of equipment in the HVDC station, apart from the converter
valves, are excluded from the scope of this standard.
This standard does not apply to converter valves for line-commutated converter HVDC
systems.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60633, Terminology for high-voltage direct-current (HVDC) transmission
IEC 61803, Determination of power losses in high-voltage direct current (HVDC) converter
stations
IEC 62747, Terminology for voltage-sourced converters (VSC) for high-voltage direct current
(HVDC) systems
IEC 62751-1:2014, Power losses in voltage sourced converter (VSC) valves for high-voltage
direct current (HVDC) systems – Part 1: General requirements
ISO/IEC Guide 98-3, Uncertainty of measurement – Part 3: Guide to the expression of
uncertainty in measurement (GUM:1995)
3 Terms, definitions, symbols and abbreviated terms
For the purposes of this document, the terms and definitions given in IEC 60633, IEC 62747,
IEC 62751-1, as well as the following apply.

– 8 – IEC 62751-2:2014+AMD1:2019
+AMD2:2023 CSV © IEC 2023
3.1 Terms and definitions
3.1.1
modular multi-level converter
MMC
multi-level converter in which each VSC valve consists of a number of MMC building blocks
connected in series
Note 1 to entry: This note applies to the French language only.
3.1.2
MMC building block
self-contained, two-terminal controllable voltage source together with d.c. capacitor(s) and
immediate auxiliaries, forming part of a MMC
3.1.3
IGBT-diode pair
arrangement of IGBT and free-wheeling diode connected in inverse parallel
3.1.4
switch position
semiconductor function which behaves as a single, indivisible switch
Note 1 to entry: A switch position may consist of a single IGBT-diode pair or, in the case of the cascaded two
level converter, a series connection of multiple IGBT-diode pairs.
3.1.5
cascaded two-level converter
CTL
modular multi-level converter in which each switch position consists of more than one
IGBT-diode pair connected in series
Note 1 to entry: This note applies to the French language only.
3.1.6
submodule
MMC building block where each switch position consists of only one IGBT-diode pair
3.1.7
cell
MMC building block where each switch position consists of more than one IGBT-diode pair
connected in series
3.1.8
turn-off semiconductor device
controllable semiconductor device which may be turned on and off by a control signal, for
example an IGBT
3.1.9
insulated gate bipolar transistor
IGBT
turn-off semiconductor device with three terminals: a gate terminal (G) and two load terminals
emitter (E) and collector (C)
Note 1 to entry: This note applies to the French language only.
3.1.10
operating state
condition in which the HVDC substation is energized and the converters are de-blocked

+AMD2:2023 CSV © IEC 2023
Note 1 to entry: Unlike line-commutated converter, VSC can operate with zero active/reactive power output.
3.1.11
no-load operating state
condition in which the HVDC substation is energized but the IGBTs are blocked and all
necessary substation service loads and auxiliary equipment are connected
Note 1 to entry: In the no-load state, in principle no switching should occur as the valve is blocked. However, in
some designs, it may be necessary to make occasional switching operations to balance voltages between different
parts of the converter. Here, some losses may occur and need to be accounted for. The integration time over which
such losses are averaged might need to be longer than during normal operation, so as to obtain the correct
weighted average of the losses while blocked and the losses while switching.
3.1.12
idling operating state
condition in which the HVDC substation is energized and the IGBTs are de-blocked but with
no active or reactive power output at the point of common connection to the a.c. network
Note 1 to entry: The “idling operating” and “no-load” conditions are similar but from the no-load state, several
seconds may be needed before power can be transmitted, while from the idling operating state, power transmission
may be commenced almost immediately (less than 3 power frequency cycles).
Note 2 to entry: In the idling operating state, the converter is capable of actively controlling the d.c. voltage, in
contrast to the no-load state where the behavior of the converter is essentially “passive”.
Note 3 to entry: Losses will generally be slightly lower in the no-load state than in the idling operating state,
therefore this operating mode is preferred where the arrangement of the VSC system permits it.
3.1.13
modulation index of PWM converters
M
ratio of the peak line to ground a.c. converter voltage, to half of the converter d.c. terminal to
terminal voltage
2 ⋅U
c1
M =
U
dc
3 ⋅
where
U is the r.m.s value of the fundamental frequency component of the line-to-line voltage U ;
c1 c
U is the output voltage of one VSC phase unit at its a.c. terminal;
c
U is the output voltage of one VSC phase unit at its d.c. terminals.
dc
Note 1 to entry: Some sources define modulation index in a different way such that a modulation index of 1 refers
to a square-wave output, which means that the modulation index can never exceed 1. The modulation index
according to that definition is given simply by M·(π/4). However, that definition is relevant mainly to two-level
converters using PWM.
3.2 Symbols and abbreviated terms
3.2.1 Valve and simulation data
N number of MMC building blocks per valve
tc
N number of series-connected semiconductor devices per switch position
c
N total number of series resistive elements contributing to conduction losses in the
sr
valve, other than in the IGBTs and diodes
N number of d.c. capacitors in the valve
cv
N number of switching cycles (on or off) experienced by each VSC valve level
s
during the integration time t
i
N total number of parallel resistive elements contributing to d.c. voltage dependent
pr
losses in the valve
– 10 – IEC 62751-2:2014+AMD1:2019
+AMD2:2023 CSV © IEC 2023
N number of snubber circuits per valve
sn
t integration time used in the simulation
i
3.2.2 Semiconductor device characteristics
V average IGBT threshold voltage for the relevant operating conditions
0T
R average IGBT slope resistance for the relevant operating conditions, valid at the
0T
device terminals
V average diode threshold voltage for the relevant operating conditions
0D
R average diode slope resistance for the relevant operating condition, valid at the
0D
device terminals
E average turn-on energy dissipated in the IGBT for the relevant operating
on
conditions
E average turn-off energy dissipated in the IGBT(s) for the relevant operating
off
conditions
th th
E turn-on energy dissipated in IGBT T1 in the j MMC building block for the k
on,T1_j,k
turn-on event for the relevant operating conditions (voltage, current and junction
temperature)
th th
E turn-on energy dissipated in IGBT T2 in the j MMC building block for the k
on,T2_j,k
turn-on event for the relevant operating conditions (voltage, current and junction
temperature)
th th
E turn-off energy dissipated in IGBT T1 in the j MMC building block for the k
off,T1_j,k
turn-off event for the relevant operating conditions (voltage, current and junction
temperature)
th th
turn-off energy dissipated in IGBT T2 in the j MMC building block for the k
E
off,T2_j,k
turn-off event for the relevant operating conditions (voltage, current and junction
temperature)
th
E diode recovery energy dissipated in diode D1 in the j MMC building block for
rec,D1_j,k
th
diode turn-off event for the relevant operating conditions (voltage, current
the k
and junction temperature)
th
E diode recovery energy dissipated in diode D2 in the j MMC building block for
rec,D2_j,k
th
the k diode turn-off event for the relevant operating conditions (voltage, current
and junction temperature)
3.2.3 Other component characteristics
th
R total resistance of the k series resistive elements in the valve contributing to
s_k
other conduction losses
th
R resistance of the k parallel resistive component in the valve
dc_k
th
R average equivalent series resistance of the j d.c. capacitor
ESR_j
th th
E energy dissipated in the snubber resistor of the j snubber circuit for the k turn-
sn,on_j,k
on event for the relevant operating conditions (voltage, and current where
relevant to the design of the snubber)
th th
E energy dissipated in the snubber resistor of the j snubber circuit for the k turn-
sn,off_j,k
off event for the relevant operating conditions (voltage, and current where
relevant to the design of the snubber)
3.2.4 Operating parameters
th
mean current of IGBT T1 in the j MMC building block, averaged over an
I
T1av_j
integration time t
i
th
I mean current of IGBT T2 in the j MMC building block, averaged over an
T2av_j
integration time t
i
th
I rms current of IGBT T1 in the j MMC building block, averaged over an
T1rms_j
integration time t
i
+AMD2:2023 CSV © IEC 2023
th
I rms current of IGBT T2 in the j MMC building block, averaged over an
T2rms_j
integration time t
i
th
I mean current of diode D1 in the j MMC building block, averaged over an
D1av_j
integration time t
i
th
I mean current of diode D2 in the j MMC building block, averaged over an
D2av_j
integration time t
i
th
I rms current of diode D1 in the j MMC building block, averaged over an
D1rms_j
integration time t
i
th
I rms current of diode D2 in the j MMC building block, averaged over an
D2rms_j
integration time t
i
th
I rms current flowing in the k series resistive element for the relevant operating
rms_k
conditions
th
rms value (including d.c. component) of the voltage across the k parallel
U
rms_k
resistive component in the valve
th
I rms current flowing in the j d.c. capacitor of the valve
crms_j
th th
P average power input to the power supply of k IGBT in j MMC building block
GU_j,k
th th
p (t) instantaneous power input to the power supply of k IGBT in j MMC building
GU_j,k
block
th th
u (t) instantaneous voltage input to the power supply of k IGBT in j MMC building
GU_j,k
block
th th
i (t) instantaneous current input to the power supply of k IGBT in j MMC building
GU_j,k
block
th
P average power input to the power supply in j MMC building block
GU_j
th
p (t) instantaneous power input to the power supply in j MMC building block
GU_j
th
u (t) instantaneous voltage input to the power supply in j MMC building block
GU_j
th
i (t) instantaneous current input to the power supply in j MMC building block
GU_j
3.2.5 Loss parameters
P IGBT conduction losses
V1
P diode conduction losses
V2
P other valve conduction losses
V3
P d.c. voltage-dependent losses
V4
P d.c. capacitor losses
V5
P IGBT switching losses
V6
P diode turn-off losses
V7
P snubber losses
V8
P valve electronics power consumption
V9
P total valve losses
Vt
4 General conditions
4.1 General
Modular multi-level converters (MMC) are a family of converters in which each valve forms a
controllable voltage source. The converter a.c. voltage is synthesized by switching large
numbers of relatively small, self-contained, two-terminal controllable voltage sources at
different times, thereby obtaining a high-quality converter waveform with low switching losses
and therefore a high overall efficiency. The MMC building blocks from which the overall
converter is built up may use multiple IGBT-diode pairs connected in series (in which case the
converter is referred to as the “Cascaded two level converter”, CTLC) or only a single IGBT-

– 12 – IEC 62751-2:2014+AMD1:2019
+AMD2:2023 CSV © IEC 2023
diode pair per switch position. A detailed description of these types of converter is beyond the
scope of this standard; however, Annex A includes a general description of the operation of
the MMC (see also IEC TR 62543).
4.2 Principles for loss determination
Theoretically, the losses of a converter station can be determined either by direct
measurements of the input and output powers or by means of component characteristics,
using suitable mathematical models of the individual components of a converter. The
selection of the principle under which the losses are to be determined shall take into
consideration the uncertainties. The manufacturer shall explain, in the loss calculation report,
how the uncertainties have been considered.
The overall uncertainty of the value of losses is an important parameter for a converter and
for a converter station since it is used to compare investment cost to capitalised cost over the
life-time of the converter station. To ensure that estimates are undisputed, adherence to the
provisions of this standard and the provisions of ISO/IEC Guide 98-3 is indispensable. All
measurements shall furthermore be traceable to national and/or international standards of
measurement.
As mentioned above, a determination of the losses of a converter station could in principle be
performed by making a direct measurement a.c. and d.c. side power. The difference between
these two power values is however small, and a good accuracy will be very difficult to reach.
In practice, this measurement would require the use of state-of-the-art measurement
equipment that rivals the best equipment available at national metrology institutes, equipment
that is not intended for on-site use. While not impossible, this method is unlikely to be used.
To date, although some industry/academic partnership projects have demonstrated prototypes
of measurement equipment claiming sufficient accuracy, there is little industry experience with
using such equipment on site. The feasibility of using laboratory measurements on VSC
valves to support a more accurate determination of valve losses has been studied by CIGRE
WG B4-75 and is summarised in Annex C.
In rare cases, where there are two converters in a substation, there may be an opportunity to
connect the two converters in a temporary back-to-back configuration and circulate d.c. power
between them, with their total loss being supplied by the a.c. grid. This loss can be measured,
using standard energy meters and voltage transformers, but with special current transformers
that have a rated current that is on the order of 5 % to 10 % of the normal operating current of
the converters in order to reach sufficient accuracy at the power levels to be measured. In
order to enable back-to-back measurements, additional equipment and/or control and
protection enhancements could be needed, which will increase the investment cost of the
converter station.
For most cases, however, the losses have to be estimated from component characteristics,
using suitable mathematical models of the converters, as discussed in this standard. It is
however important that all such estimates have a base in actual measurements having
sufficiently low uncertainty. Care should also be taken to show the propagation of
uncertainties from measurements and how they interact with the model. Estimates of the
uncertainty contributions from imperfections in the models themselves should also be
considered.
4.3 Categories of valve losses
The various components of valve losses are subdivided into terms referred to as P to P :
V1 V9
P IGBT conduction losses
V1
P diode conduction losses
V2
P other valve conduction losses
V3
P d.c. voltage-dependent losses
V4
+AMD2:2023 CSV © IEC 2023
P d.c. capacitor losses
V5
P IGBT switching losses
V6
P diode turn-off losses
V7
P snubber losses
V8
P valve electronics power consumption
V9
For the MMC topology, because the switching frequency is usually low (less than 200 Hz) the
largest contributors to the valve losses are usually the IGBT and diode conduction losses P
V1
and P . With half-bridge converters, P is dominant in inverter mode and P is dominant in
V2 V1 V2
rectifier mode, while with full-bridge converters there is no major difference between rectifier
and inverter modes. IGBT switching losses P and diode turn-off losses P are also a
V6 V7
significant (although not dominant) contribution. The other components of valve losses are
generally minor.
4.4 Loss calculation method
The proposed method for determining valve losses is based on analytical formulae for the
operating conditions. However, some of the necessary input parameters are difficult to obtain
by purely analytical means. Numerical solutions using real-time or non-real-time simulations
shall be applied, to derive such input parameters, for example valve currents and switching
energies. For that, the input parameters described in 4.5 are required.
An important requirement for such simulations is an accurate modelling of the system under
investigation. Multi-level converters offer a high degree of freedom in terms of control
strategies. Therefore the resulting valve currents losses strongly depend on the realization
and the algorithms of the control itself.
In alignment with the statement presented in 4.2, uncertainties of numerical simulations shall
be clearly stated and justified by the manufacturer. The main benefit of the numerical offline
simulation is the determination of the average distribution of the switching events across a
cycle.
The remaining calculations can be performed analytically with a reasonable accuracy. If it can
be shown by the manufacturer that the distribution of switching events is reasonably accurate,
then the remaining calculations shall be allowed to be performed analytically.
4.5 Input parameters
4.5.1 General
This subclause describes the input parameters necessary for the calculation of power losses
in the valves of an MMC to take place. These input parameters refer to the data needed for
the performance of numerical simulations as well as the converter and component data
needed for calculation of losses. At the same time, converter and component data is divided
into two categories: converter station data such as the number of MMC building blocks per
valve and the on-state characteristics of the IGBT and free-wheeling diode, and operating
parameters such as the converter a.c. and d.c. currents, converter voltage (amplitude and
rd
waveshape, including 3 harmonic injection where applicable), a.c. system frequency and
mean MMC building block switching frequency.
4.5.2 Input data for numerical simulations
For numerical simulations, the following requirements shall be considered.
– The simulation mod
...
