EN IEC 60335-2-40:2023

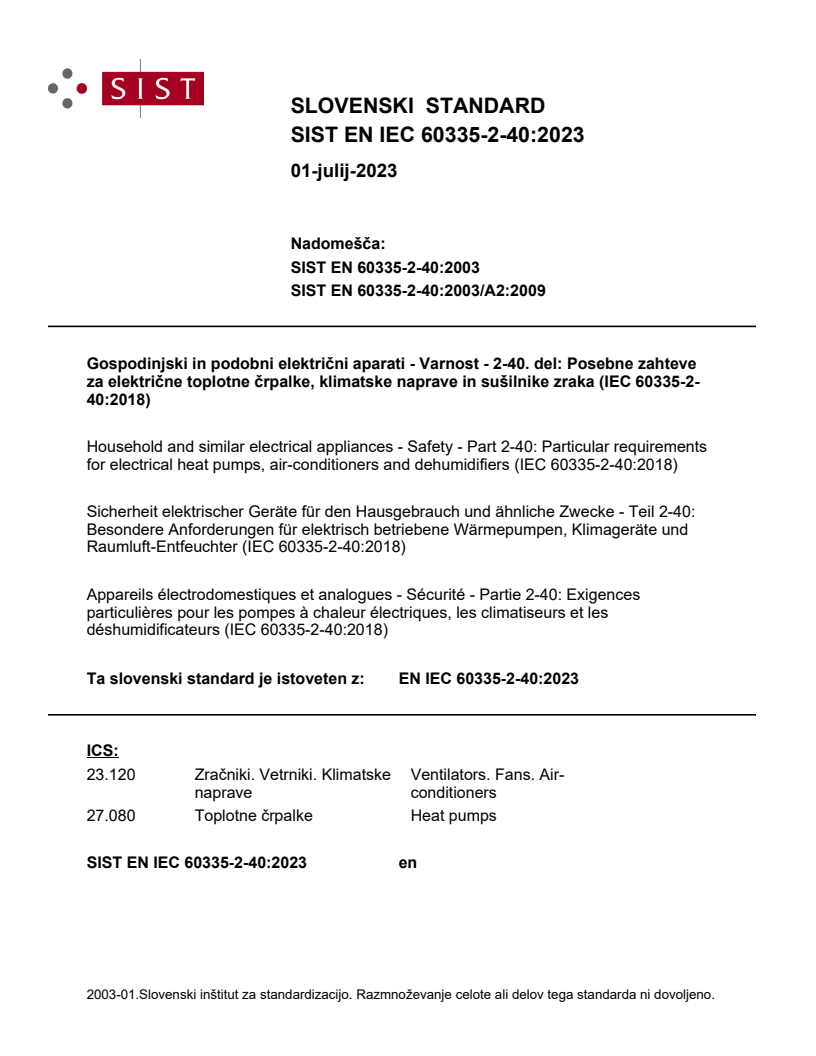

SLOVENSKI STANDARD
01-julij-2023
Nadomešča:
SIST EN 60335-2-40:2003
SIST EN 60335-2-40:2003/A2:2009
Gospodinjski in podobni električni aparati - Varnost - 2-40. del: Posebne zahteve
za električne toplotne črpalke, klimatske naprave in sušilnike zraka (IEC 60335-2-
40:2018)
Household and similar electrical appliances - Safety - Part 2-40: Particular requirements
for electrical heat pumps, air-conditioners and dehumidifiers (IEC 60335-2-40:2018)
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-40:
Besondere Anforderungen für elektrisch betriebene Wärmepumpen, Klimageräte und
Raumluft-Entfeuchter (IEC 60335-2-40:2018)
Appareils électrodomestiques et analogues - Sécurité - Partie 2-40: Exigences
particulières pour les pompes à chaleur électriques, les climatiseurs et les
déshumidificateurs (IEC 60335-2-40:2018)
Ta slovenski standard je istoveten z: EN IEC 60335-2-40:2023
ICS:
23.120 Zračniki. Vetrniki. Klimatske Ventilators. Fans. Air-
naprave conditioners
27.080 Toplotne črpalke Heat pumps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

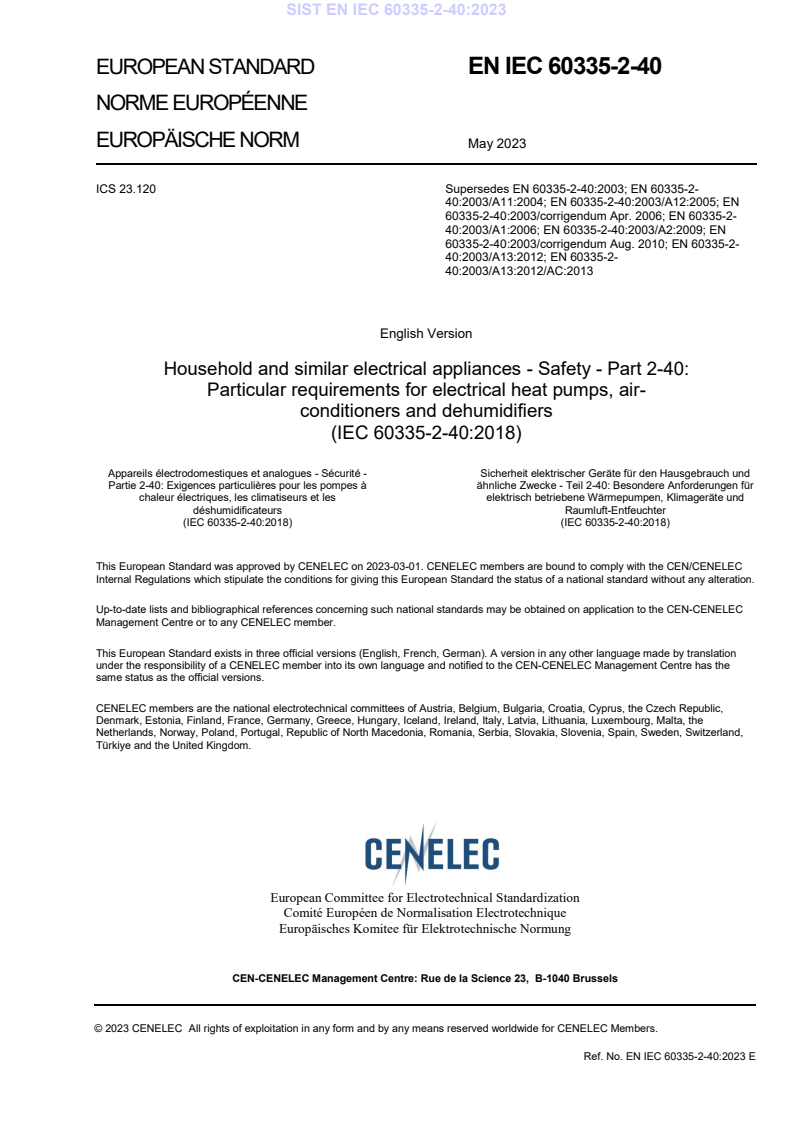

EUROPEAN STANDARD EN IEC 60335-2-40

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 23.120 Supersedes EN 60335-2-40:2003; EN 60335-2-
40:2003/A11:2004; EN 60335-2-40:2003/A12:2005; EN
60335-2-40:2003/corrigendum Apr. 2006; EN 60335-2-
40:2003/A1:2006; EN 60335-2-40:2003/A2:2009; EN
60335-2-40:2003/corrigendum Aug. 2010; EN 60335-2-
40:2003/A13:2012; EN 60335-2-
40:2003/A13:2012/AC:2013
English Version
Household and similar electrical appliances - Safety - Part 2-40:
Particular requirements for electrical heat pumps, air-
conditioners and dehumidifiers
(IEC 60335-2-40:2018)
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-40: Exigences particulières pour les pompes à ähnliche Zwecke - Teil 2-40: Besondere Anforderungen für
chaleur électriques, les climatiseurs et les elektrisch betriebene Wärmepumpen, Klimageräte und
déshumidificateurs Raumluft-Entfeuchter
(IEC 60335-2-40:2018) (IEC 60335-2-40:2018)
This European Standard was approved by CENELEC on 2023-03-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60335-2-40:2023 E

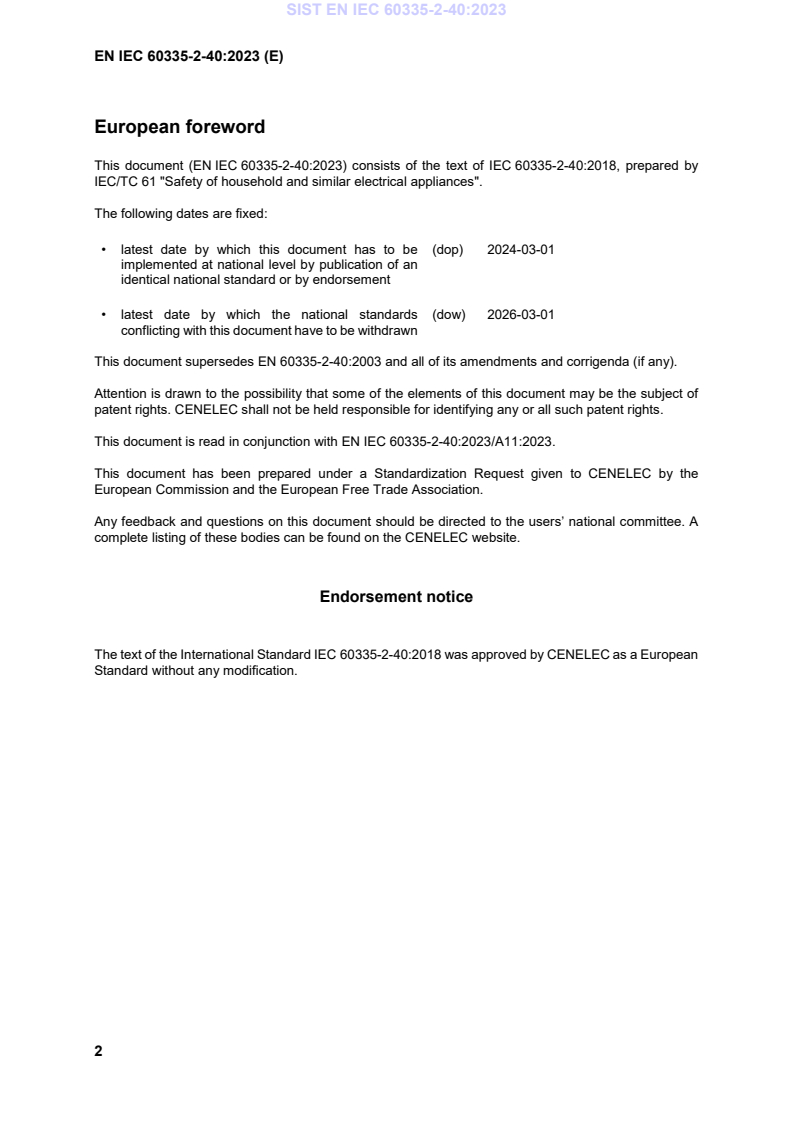

European foreword
This document (EN IEC 60335-2-40:2023) consists of the text of IEC 60335-2-40:2018, prepared by
IEC/TC 61 "Safety of household and similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-03-01
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2026-03-01
conflicting with this document have to be withdrawn
This document supersedes EN 60335-2-40:2003 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 60335-2-40:2023/A11:2023.
This document has been prepared under a Standardization Request given to CENELEC by the
European Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60335-2-40:2018 was approved by CENELEC as a European
Standard without any modification.

IEC 60335-2-40 ®
Edition 6.0 2018-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-40: Particular requirements for electrical heat pumps, air-conditioners

and dehumidifiers
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-40: Exigences particulières pour les pompes à chaleur électriques,

les climatiseurs et les déshumidificateurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 23.120 ISBN 978-2-8322-7980-9

– 2 – IEC 60335-2-40:2018  IEC 2018
CONTENTS
FOREWORD . 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Terms and definitions . 10
4 General requirement . 16
5 General conditions for the tests . 16
6 Classification . 17
7 Marking and instructions . 18
8 Protection against access to live parts . 23
9 Starting of motor-operated appliances . 23
10 Power input and current . 23
11 Heating . 23
12 Void . 29
13 Leakage current and electric strength at operating temperature . 29
14 Transient overvoltages . 29
15 Moisture resistance . 29
16 Leakage current and electric strength . 30
17 Overload protection of transformers and associated circuits . 31
18 Endurance . 31
19 Abnormal operation . 31
20 Stability and mechanical hazards . 36
21 Mechanical strength . 36
22 Construction . 36
23 Internal wiring . 46
24 Components . 46
25 Supply connection and external flexible cords . 47
26 Terminals for external conductors . 47
27 Provision for earthing . 47
28 Screws and connections . 47
29 Clearances, creepage distances and solid insulation . 48
30 Resistance to heat and fire . 48
31 Resistance to rusting . 48
32 Radiation, toxicity and similar hazards . 48
Annexes . 54
Annex D (normative) Thermal motor protectors . 54
Annex I (normative) Motors having basic insulation that is inadequate for the rated
voltage of the appliance . 54
Annex AA (informative) Examples for operating temperatures of the appliance . 55
Annex BB (normative) Selected information about refrigerants . 56
Annex CC (informative) Transportation, marking and storage for units that employ
flammable refrigerants . 58

IEC 60335-2-40:2018  IEC 2018 – 3 –
Annex DD (normative) Requirements for operation, service and installation manuals of
appliances using flammable refrigerants . 59
Annex EE (normative) Pressure tests . 68
Annex FF (normative) Leak simulation tests . 71
Annex GG (normative) Charge limits, ventilation requirements and requirements for

secondary circuits . 73
Annex HH (informative) Competence of service personnel . 99
Annex II (Void) . 102
Annex JJ (normative) Allowable opening of relays and similar components to prevent
ignition of A2L refrigerants . 103
Annex KK (normative) Test method for hot surface ignition temperature for A2L . 105
Annex LL (normative) Refrigerant detection systems for A2L refrigerants . 109
Annex MM (normative) Refrigerant sensor location confirmation test . 111
Annex NN (normative) Flame arrest enclosure verification test for A2L refrigerants . 113
Annex OO (normative) UV radiation conditioning . 115
Bibliography . 116

Figure 101 – Example of label for field charged units . 50
Figure 102 – Arrangement for heating test of appliances with supplementary heater . 52
Figure 103 – Supply circuit for locked-rotor test of a motor of the single-phase type –
Revise as needed for three-phase test . 53
Figure GG.1 – Unventilated area. 95
Figure GG.2 – Mechanical ventilation . 96
Figure GG.3 – Isosceles triangle arrow test gauge . 96
Figure GG.4 – Measurement of vibration amplitude. 96
Figure GG.5 – Relevant heights h , h and h for calculation of A and m . 97
inst 0 rel min max
Figure GG.6 – Airflow direction . 98
Figure KK.1 – Front view of test apparatus labels . 105
Figure KK.2 – Test apparatus with dimensions . 106
Figure KK.3 – Top view of test apparatus . 107

Table 3 – Temperature limits . 27
Table 101 – UVC irradiance measurement location . 49
Table AA.1 – Examples for operating temperatures of the appliance . 55
Table BB.1 – Selected information about refrigerants. 56
Table DD.1 – Mandatory clauses in each manual . 59
Table GG.1 – Outline of Annex GG (informative). 74
Table GG.2 – Circulation airflow . 78
Table GG.3 – Appliance with packaging . 83
Table GG.4 – Appliance without packaging . 83
Table GG.5 – Minimum airflow . 94

– 4 – IEC 60335-2-40:2018  IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-40: Particular requirements for electrical heat pumps,
air-conditioners and dehumidifiers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-40 has been prepared by subcommittee 61D: Appliances
for air-conditioning for household and similar purposes, of IEC technical committee 61: Safety
of household and similar electrical appliances.
The text of this International Standard is based on the following documents:
FDIS Report on voting
61D/386/FDIS 61D/391/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This sixth edition cancels and replaces the fifth edition published in 2013 and its
Amendment 1:2016. This edition constitutes a technical revision.

IEC 60335-2-40:2018  IEC 2018 – 5 –
This edition includes the following significant technical changes with respect to the previous
edition:
– Clause 1 – limiting A2L refrigerants to those of a molar mass of more than or equal to
42 kg/kmol;
– Clause 7 – added requirements for A2L refrigerants,
– Clause 7 – added requirement for pre-charge pipe sets, detection systems, ventilation and
the resulting charge;
– Clause 7 – added requirements for UV-C systems;
– Clause 7 – added requirements for transcritical refrigerating systems;
– Subclause 19.7 – amended text to match the intention of the subclause;
– Clause 21 – added requirements for transcritical refrigerating systems;
– Subclause 22 – added requirements for A2L refrigerants;
– Subclause 22– added detection systems;
– Subclause 22 – added new requirements for enhanced tightness refrigerating systems;
– Subclause 22 – added new requirements for UV-C;
– Clause 23 – added new requirements for UV-C;Clause
– Clause 24 – added requirements for transcritical refrigerating systems;
– Subclause 24 – added requirements for detection systems and airflow;
– Clause 32 added new requirements for UV-C;
– Annex BB – revised to add surface temperatures;
– Annex DD – added requirements for A2L refrigerants and amended requirements for
flammable refrigerants to exempt A2L refrigerants;
– Annex GG – added requirements for A2L refrigerants;
– Annex GG.1 – amended Table GG.1 and related wording
– Annex GG.7 – added requirement to test;
– Annex GG.8 to GG.13 – new coverage for A2L refrigerants;
– Annex HH – revised to take into account A2L refrigerants;
– Annex JJ – new coverage of allowable opening of relays and similar components to
prevent ignition of A2L refrigerants;
– Annex KK – new coverage of test method for hot surface ignition temperature for A2L;
– Annex LL – new coverage of refrigerant detection systems for A2L Refrigerants;
– Annex MM – new coverage of refrigerant sensor location confirmation test;
– Annex NN – new coverage of flame arrest enclosure verification test for A2L refrigerants;
– Annex OO – new coverage of UV radiation conditioning
– Bibliography – added new references.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2-40 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of IEC 60335-1:2010, its Amendment 1:2013
and its Amendment 2:2016.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2-40 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electrical heat pumps,
air-conditioners and dehumidifiers.

– 6 – IEC 60335-2-40:2018  IEC 2018
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
• subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
• unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
• additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
• requirements: in roman type;
• test specifications: in italic type;
• notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and
associated noun are also in bold.
The following differences exist in the countries indicated below:
• 6.1: Class 0I appliances are allowed (Japan).
• 11.8: The temperature of the wooden walls in the test casing is limited to 85 °C (Sweden).
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
IEC 60335-2-40:2018  IEC 2018 – 7 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the instructions. It also covers abnormal situations that can be
expected in practice.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 8 – IEC 60335-2-40:2018  IEC 2018
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-40: Particular requirements for electrical heat pumps,
air-conditioners and dehumidifiers

1 Scope
This clause of Part 1 is replaced by the following.
This part of IEC 60335 deals with the safety of electric heat pumps, including sanitary hot
water heat pumps, air conditioners, and dehumidifiers incorporating motor-compressors
and hydronic fan coils units, their maximum rated voltages being not more than 250 V for
single phase appliances and 600 V for all other appliances. Partial units are within the scope
of this International Standard.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
The appliances referenced above may consist of one or more factory-made assemblies. If
provided in more than one assembly, the separate assemblies are to be used together, and
the requirements are based on the use of matched assemblies.
NOTE 101 A definition of ‘motor-compressor’ is given in IEC 60335-2-34, which includes the statement that the
term motor-compressor is used to designate either a hermetic motor-compressor or semi-hermetic motor-
compressor.
NOTE 102 Requirements for refrigerating safety are covered by ISO 5149-1, ISO 5149-2, and ISO 5149-3.
Requirements for containers intended for storage of the heated water included in sanitary hot water heat pumps
are, in addition, covered by IEC 60335-2-21.
This standard does not take into account refrigerants other than group A1, A2L, A2 and A3 as
defined by ISO 817 classification, A2L refrigerants are limited to those of a molar mass of
more than or equal to 42 kg/kmol based on WCF – Worst Case Formulation as specified in
ISO 817.
This standard specifies particular requirements for the use of flammable refrigerants. Unless
specifications are covered by this standard, including the annexes, requirements for
refrigerating safety are covered by ISO 5149.
The parts of ISO 5149 of particular concern to this standard are as follows:
• ISO 5149-1:2014, Refrigerating systems and heat pumps – Safety and environmental
requirements – Part 1: Definitions, classification and selection criteria.
• ISO 5149-2, Refrigerating systems and heat pumps – Safety and environmental
requirements – Part 2: Design, construction, testing, marking and documentation;
• ISO 5149-3:2014, Refrigerating systems and heat pumps – Safety and environmental
requirements – Part 3: Installation site.
Supplementary heaters, or a provision for their separate installation, are within the scope of
this standard, but only heaters which are designed as a part of the appliance package, the
controls being incorporated in the appliance.
NOTE 103 Attention is drawn to the fact that

IEC 60335-2-40:2018  IEC 2018 – 9 –
• for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
• for appliances subjected to pressure, additional requirements may be necessary;
• in many countries, additional requirements are specified, for example, by the national health authorities
responsible for the protection of labour and the national authorities responsible for storage, transportation,
building constructions and installations.
NOTE 104 This standard does not apply to
• humidifiers intended for use with heating and cooling equipment (IEC 60335-2-88);
• appliances designed exclusively for industrial processing;
• appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-52, Environmental testing – Part 2: Tests – Test Kb: Salt mist, cyclic (sodium,
chloride solution)
IEC 60079-14, Explosive atmospheres – Part 14: Electrical installations design, selection and
erection
IEC 60079-15:2010, Explosive atmospheres – Part 15: Equipment protection by type of
protection "n"
IEC 60335-2-34:2012, Household and similar electrical appliances – Safety – Part 2-34:
Particular requirements for motor-compressors
IEC 60335-2-51, Household and similar electrical appliances – Safety – Part 2-51: Particular
requirements for stationary circulation pumps for heating and service water installations
IEC 60730-2-6, Automatic electrical controls – Part 2-6: Particular requirements for automatic
electrical pressure sensing controls including mechanical requirements
IEC 61032, Protection of persons and equipment by enclosures – Probes for verification
IEC 62471:2006, Photobiological safety of lamps and lamp systems
ISO 817, Refrigerants – Designation and safety classification
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ISO 4892-2, Plastics – Methods of exposure to laboratory light sources – Part 2: Xenon-arc
lamps
ISO 4892-4, Plastics – Methods of exposure to laboratory light sources – Part 4: Open-flame
carbon-arc lamps
ISO 5149-1:2014, Refrigerating systems and heat pumps – Safety and environmental
requirements – Part 1: Definitions, classification and selection criteria

– 10 – IEC 60335-2-40:2018  IEC 2018
ISO 5149-2, Refrigerating systems and heat pumps – Safety and environmental requirements –
Part 2: Design, construction, testing, marking and documentation
ISO 5149-3:2014, Refrigerating systems and heat pumps – Safety and environmental
requirements – Part 3: Installation site
ISO 5151, Non-ducted air conditioners and heat pumps – Testing and rating for performance
ISO 7010:2011, Graphic symbols – Safety colours and safety signs – Registered safety signs
ISO 13253, Ducted air-conditioners and air-to-air heat pumps – Testing and rating for
performance
ISO 13256 (all parts), Water-source heat pumps – Testing and rating for performance
ISO 14903, Refrigerating systems and heat pumps – Qualification of tightness of components
and joints
ISO 15042, Multiple split-system air-conditioners and air-to-air heat pumps – Testing and
rating for performance
ASTM D4728-06:2012, Standard Test Method for Random Vibration Testing of Shipping
Containers
CAN/CSA-C22.2 No. 0.17, Evaluation of Properties of Polymeric Materials
UL 746A, Standard for Polymeric Materials – Short Term Property Evaluations
UL 746B, Standard for Polymeric Materials – Long Term Property Evaluations
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.4 Addition:
Note 101 to entry: If the appliance comprises electrical accessories, including fans, the rated power input is
based upon the total maximum electrical power input with all accessories energized, when operating continuously
under the appropriate environmental conditions. If the heat pump can be operated in the heating or cooling mode,
the rated power input is based upon the input in the heating or in the cooling mode, whichever is the greater.
3.1.9 Replacement:
normal operation
conditions that apply when the appliance is mounted as in normal use and is operating under
the most severe operating conditions specified by the manufacturer
3.101
heat pump
appliance which takes up heat at a certain temperature and releases heat at a higher
temperature
Note 1 to entry: When operated to provide heat (e.g., for space heating or water heating), the appliance is said to
operate in the heating mode; when operated to remove heat (for example, for space cooling), it is said to operate in
the cooling mode.
Note 2 to entry: A heat pump can contain a combination of condensing unit or condenser unit and an
evaporating unit or evaporator unit and can be equipped to operate in a reverse cycle mode.

IEC 60335-2-40:2018  IEC 2018 – 11 –
3.102
sanitary hot water heat pump
heat pump intended to transfer heat to water suitable for human consumption
3.103
air conditioner
encased assembly or assemblies designed as an appliance to provide delivery of conditioned
air to an enclosed space, room or zone
Note 1 to entry: It includes an electrically operated refrigerating system for cooling and possibly dehumidifying
the air.
Note 2 to entry: It may have means for heating, circulating, cleaning and humidifying the air.
Note 3 to entry: An air conditioner can contain a combination of condensing unit or condenser unit and an
evaporating unit or evaporator unit.
3.104
dehumidifier
encased assembly designed to remove moisture from its surrounding atmosphere
Note 1 to entry: It includes an electrically operated refrigerating system and the means to circulate air. It also
includes a drain arrangement for collecting and storing and/or disposing of the condensate.
3.108
wet-bulb temperature
WB
temperature indicated when the temperature-sensitive element in a wetted wick has reached a
state of constant temperature (evaporative equilibrium)
3.109
dry-bulb temperature
DB
temperature indicated by a dry, temperature-sensitive element shielded from the effects of
radiation
3.110
evaporator
heat exchanger in which refrigerant liquid is vaporized by absorption of heat
3.111
heat exchanger
device specifically designed to transfer heat between two physically separated fluids
3.112
indoor heat exchanger
heat exchanger designed to transfer heat to the indoor parts of the building or to the indoor
hot water supplies (e.g. sanitary water) or to remove heat therefrom
3.113
outdoor heat exchanger
heat exchanger designed to remove or release heat from the heat source (for example,
ground water, outdoor air, exhaust air, water or brine)
3.114
supplementary heater
electric heater provided as part of the appliance to supplement or replace the output of the
refrigerant circuit of the appliance by operation in conjunction with, or instead of, the
refrigerating circuit
– 12 – IEC 60335-2-40:2018  IEC 2018
3.115
pressure-limiting device
mechanism that automatically responds to a predetermined pressure by stopping the
operation of the pressure-imposing element
3.116
pressure-relief device
pressure actuated valve or rupture member which functions to relieve excessive pressure
automatically
3.117
appliances accessible to the general public
appliances intended to be located in residential buildings or in commercial buildings
3.118
appliances not accessible to the general public
appliances which are located either in a secured location with restricted access (e.g. machine
rooms, rooftop and the like) or at a level not less than 2,5 m or in secured rooftop areas
3.119
hydronic fan coil unit
factory-made assembly which provides the function of forced circulation of air for heating
and/or cooling, which may also include the function of dehumidification and/or filtering of air,
but which does not include the source of cooling or heating
Note 1 to entry: Hydronic fan coil units can include provision for electric resistance heating. Heat exchanger
coils are intended for hydronic heating and cooling only.
3.120
flammable refrigerant
refrigerant classified as class A2L, A2 or A3 according to ISO 817
3.121
refrigerating system
combination of interconnected refrigerant containing parts constituting one closed refrigerant
circuit in which refrigerant is circulated for the purpose of extracting heat at the low
temperature side to reject heat at the high temperature side by changing the state of the
refrigerant
3.122
maximum allowable pressure
limit to the refrigerating system operating pressure, generally the maximum pressure for
which the equipment is designed, as specified by the manufacturer
Note 1 to entry: Maximum allowable pressure constitutes a limit to the operating pressure whether the
equipment is working or not, see Clause 21.
3.123
low-pressure side
part(s) of a refrigerating system operating at the evaporator pressure
3.124
high-pressure side
part(s) of a refrigerating system operating at the condenser pressure
3.125
service port
means to access the refrigerant in a refrigerating system for the purpose of charging or
servicing the system, typically a valve, tube extension or entry location

IEC 60335-2-40:2018  IEC 2018 – 13 –
3.126
factory sealed single package unit
factory assembly of components of refrigerating system fixed on a common mounting to
form a discrete unit in which all refrigerating system parts have been sealed tight by
welding, brazing or a similar permanent connection during the manufacturing process
3.127
pre-charged pipe sets
interconnecting refrigerant lines which are supplied with the unit and supplied with a
refrigerant charge for the purpose of completing the refrigerating system in the field for
appliances that are made up of more than one subassembly and are assembled in the field to
complete the refrigerating system
3.128
condenser
heat exchanger in which refrigerant vapour is condensed by removal of heat
3.129
condensing unit
factory-made assembly that includes one or more motor-compressors, condenser in cooling
mode and motor-driven fan, blower or pump to circulate the heat transfer fluid through the
condenser with associated operational controls in addition to the necessary wiring
Note 1 to entry: These units are intended for field connection to an evaporator unit. A condensing unit can also
be equipped to operate in the reverse cycle mode. A condensing unit can include expansion device(s).
3.130
condenser unit
factory-made assembly that includes one or more condensers in cooling mode and motor-
driven fan, blower or pump to circulate the heat transfer fluid through the condenser with
associated operational controls in addition to the necessary wiring
Note 1 to entry: These units are intended for field connection to an evaporating unit. A condenser unit can also
be equipped to operate in the reverse cycle mode.
Note 2 to entry: A condenser unit does not include a motor compressor or expansion device.
3.131
evaporating unit
factory-made assembly that includes one or more motor-compressors, evaporator in cooling
mode, expansion device(s), and motor-driven fan, blower or pump to circulate fluid through
the evaporator with associated operational controls in addition to the necessary wiring
Note 1 to entry: These units are intended for field connection to a condenser unit. An evaporating unit can also
be equipped to operate in the reverse cycle mode and can include provision for electric resistance heating or
similar sources of auxiliary heat.
3.132
evaporator unit
factory-made assembly that includes one or more evaporators in cooling mode, and may
include a motor-driven fan, blower or pump to circulate fluid through the evaporator with
associated operational controls in addition to the necessary wiring
Note 1 to entry: These units are intended for field connection to a condensing unit. An evaporator unit can also
be equipped to operate in the reverse cycle mode and can include provision for electric resistance heating or
similar sources of auxiliary heat. An evaporator unit can include expansion device(s).
Note 2 to entry: An evaporator unit does not include a motor compressor.

– 14 – IEC 60335-2-40:2018  IEC 2018
3.133
partial unit
condensing unit, evaporating unit, condenser unit, or evaporator unit which are part of a
total assembly of a heat pump, air-conditioner, or sanitary hot water heat pumps where not
all assemblies to create the complete refrigerating system are specified by the manufacturer
Note 1 to entry: Partial units are evaluated for safety as stand-alone.
3.134
installed height
h
inst
height of the bottom of the appliance relative to the floor of the room after installation
Note 1 to entry: The installed height is given in metres.
3.135
release offset
h
...
