EN ISO 7010:2012

SLOVENSKI STANDARD
01-oktober-2012
1DGRPHãþD
SIST ISO 7010:2010
SIST ISO 7010:2010/Amd 1:2010
SIST ISO 7010:2010/Amd 2:2010
SIST ISO 7010:2010/Amd 3:2010
SIST ISO 7010:2010/Amd 4:2010
*UDILþQLVLPEROL9DUQRVWQHEDUYHLQYDUQRVWQL]QDNL5HJLVWULUDQLYDUQRVWQL]QDNL
,62
Graphical symbols - Safety colours and safety signs - Registered safety signs (ISO
7010:2011)
Graphische Symbole - Sicherheitsfarben und Sicherheitszeichen - Registrierte
Sicherheitszeichen (ISO 7010:2011)
Symboles graphiques - Couleurs de sécurité et signaux de sécurité - Signaux de sécurité
enregistrés (ISO 7010:2011)
Ta slovenski standard je istoveten z: EN ISO 7010:2012
ICS:
01.080.10 6LPEROL]DMDYQRREYHãþDQMH Public information symbols.
=QDNL7DEOH2]QDþEH Signs. Plates. Labels
13.200 3UHSUHþHYDQMHQHVUHþLQ Accident and disaster control
NDWDVWURI
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 7010
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2012
ICS 01.080.20; 01.080.10
English Version
Graphical symbols - Safety colours and safety signs -
Registered safety signs (ISO 7010:2011)
Symboles graphiques - Couleurs de sécurité et signaux de Graphische Symbole - Sicherheitsfarben und
sécurité - Signaux de sécurité enregistrés (ISO 7010:2011) Sicherheitszeichen - Registrierte Sicherheitszeichen (ISO
7010:2011)
This European Standard was approved by CEN on 23 June 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 7010:2012: E
worldwide for CEN national Members.

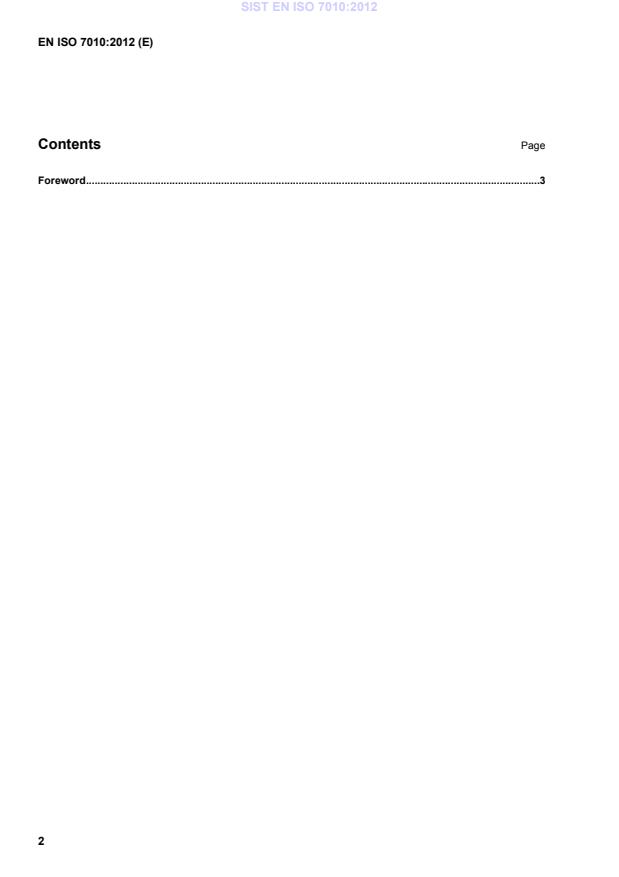

Contents Page
Foreword .3

Foreword
The text of ISO 7010:2011 has been prepared by Technical Committee ISO/TC 145 “Graphical symbols” of
the International Organization for Standardization (ISO) and has been taken over as EN ISO 7010:2012.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2013, and conflicting national standards shall be withdrawn at
the latest by January 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 7010:2011 has been approved by CEN as a EN ISO 7010:2012 without any modification.
INTERNATIONAL ISO
STANDARD 7010
Second edition
2011-06-01
Graphical symbols — Safety colours and
safety signs — Registered safety signs
Symboles graphiques — Couleurs de sécurité et signaux de sécurité —
Signaux de sécurité enregistrés

Reference number
ISO 7010:2011(E)
©
ISO 2011
ISO 7010:2011(E)
©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Referents and categorization of safety signs . 2
4.1 General . 2
4.2 Referent (safety meaning) . 3
4.3 Categorization of safety signs . 6
5 Registered safety signs . 6
Bibliography . 124

ISO 7010:2011(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7010 was prepared by Technical Committee ISO/TC 145, Graphical symbols, Subcommittee SC 2, Safety
identification, signs, shapes, symbols and colours.
This second edition cancels and replaces the first edition (ISO 7010:2003), as well as ISO 6309:1987. It also
incorporates the Amendments
ISO 7010:2003/Amd. 1:2006,
ISO 7010:2003/Amd. 2:2007,
ISO 7010:2003/Amd. 3:2007,
ISO 7010:2003/Amd. 4:2009,
ISO 7010:2003/Amd. 5:2010,
ISO 7010:2003/Amd. 6:2010,
ISO 7010:2003/Amd. 7:2010, and
ISO 7010:2003/Amd. 8:2011.
iv © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Introduction
There is a need to standardize a system of giving safety information that relies as little as possible on the use
of words to achieve understanding.
Continued growth in international trade, travel and mobility of labour requires a common method of
communicating safety information.
Lack of standardization may lead to confusion and the risk of accidents.
The use of standardized safety signs does not replace proper work methods, instructions and accident
prevention training or measures. Education is an essential part of any system that provides safety information.
The safety signs are intended for use only where there is a risk to people. They may appear in safety signage
in workplaces and public areas, safety manuals and notices, product labelling and escape and evacuation
plans, as appropriate.
This International Standard is intended to be used by all Technical Committees within ISO charged with
developing specific safety signing for their industry, to ensure that there is only one safety sign for each safety
meaning. It is also intended that this International Standard be revised regularly to include safety signs as they
are standardized by ISO, and which conform to the design principles given in ISO 3864.
The safety signs in this International Standard have been validated by ISO/TC 145/SC 2 according to
procedures of standardization current at the time of publication.
NOTE 1 Some countries' statutory regulations may differ in some respects from those given in this International
Standard.
NOTE 2 Information on procedures, criteria of acceptability, safety sign templates and application of safety signs are
given on the website: http://www.iso.org/tc145/sc2.

INTERNATIONAL STANDARD ISO 7010:2011(E)

Graphical symbols — Safety colours and safety signs —
Registered safety signs
IMPORTANT — The colours represented in the electronic file of this International Standard can be
neither viewed on screen nor printed as true representations. Although the copies of this International
Standard printed by ISO have been produced to correspond (with an acceptable tolerance as judged
by the naked eye) to the requirements of ISO 3864-4, it is not intended that these printed copies be
used for colour matching. Instead consult ISO 3864-4 which provides colorimetric and photometric
properties together with, as a guideline, references from colour order systems.
1 Scope
This International Standard prescribes safety signs for the purposes of accident prevention, fire protection,
health hazard information and emergency evacuation.
The shape and colour of each safety sign are according to ISO 3864-1 and the design of the graphical
symbols is according to ISO 3864-3.
This International Standard is applicable to all locations where safety issues related to people need to be
addressed. However, it is not applicable to the signalling used for guiding rail, road, river, maritime and air
traffic and, in general, to those sectors subject to a regulation which may differ with regard to certain points of
this International Standard and of the ISO 3864 series.
This International Standard specifies the safety sign originals that may be scaled for reproduction and
application purposes.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3864-1 Graphical symbols — Safety colours and safety signs — Part 1: Design principles for safety signs
and safety markings
ISO 3864-3, Graphical symbols — Safety colours and safety signs — Part 3: Design principles for graphical
symbols for use in safety signs
ISO 3864-4, Graphical symbols — Safety colours and safety signs — Part 4: Colorimetric and photometric
properties of safety sign materials
ISO 17724, Graphical symbols — Vocabulary
ISO 7010:2011(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 17724 and the following apply.
3.1
image content
written description of the elements of a graphical symbol or safety sign and their relative disposition
3.2
referent
idea or object that a graphical symbol is intended to represent
3.3
safety sign
sign giving a general safety message, obtained by a combination of a colour and geometric shape and which,
by the addition of a graphical symbol, gives a particular safety message
3.4
safety sign original
safety sign with which a referent, a graphical representation and a description of the application are
associated
3.5
supplementary sign
sign that is supportive of another sign and the main purpose of which is to provide additional clarification
4 Referents and categorization of safety signs
4.1 General
The summaries in 4.2 and 4.3 are provided to facilitate the search for registered safety signs.
This International Standard will be maintained electronically through the use of a database. The indexes of
this database will be used in these summaries as search engines with each registered safety sign having a
1)
unique reference number .
1) The registered safety signs can be found at http://cdb.iso.org.
2 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
4.2 Referent (safety meaning)
Table 1 gives the list of referents in alphabetical order and provides the safety sign functional reference
number.
Table 1 — Summary of referents in alphabetical order
Referent
Functional reference number
(safety meaning)
Automated external heart defibrillator E010
Automatic start-up, warning W018
Battery charging, warning W026
Biological hazard, warning W009
Break to obtain access E008
Connect an earth terminal to the ground M005
Corrosive substance, warning W023
Counterrotating rollers, warning W025
Crushing, warning W019
Crushing of hands, warning W024
Disconnect before carrying out maintenance or repair M021
Disconnect mains plug from electrical outlet M006
Doctor E009
Do not alter the state of the switch P031
Do not extinguish with water P011
Do not obstruct P023
Do not tie knots in rope P030
Do not touch P010
Do not use for face grinding P032
Do not use for wet grinding P033
Do not use lift in the event of fire P020
Do not use this device in a bathtub, shower or water-filled reservoir P026
Do not use this incomplete scaffold P025
Do not use this lift for people P027
Do not use with hand-held grinding machine P034
Do not walk or stand here P024
Do not wear gloves P028
Drop (fall), warning W008
Electricity, warning W012
Emergency exit (left hand) E001
Emergency exit (right hand) E002
Emergency telephone E004
Emergency window with escape ladder E016
ISO 7010:2011(E)
Table 1 (continued)
Referent
Functional reference number
(safety meaning)
Evacuation assembly point E007
Explosive material, warning W002
Eyewash station E011
Fire alarm call point F005
Fire emergency telephone F006
Fire extinguisher F001
Firefighting equipment, collection of F004
Fire hose reel F002
Fire ladder F003
First aid E003
Flammable material, warning W021
Floor-level obstacle, warning W007
Forklift trucks and other industrial vehicles, warning W014
General mandatory action sign M001
General prohibition sign P001
General warning sign W001
Guard dog, warning W013
Hot surface, warning W017
Laser beam, warning W004
Low temperature/freezing conditions, warning W010
Magnetic field, warning W006
No access for forklift trucks and other industrial vehicles P006
No access for people with active implanted cardiac devices P007
No access for people with metallic implants P014
No activated mobile phones P013
No dogs P021
No eating or drinking P022
No heavy load P012
No metallic articles or watches P008
No open flame; Fire, open ignition source and smoking prohibited P003
No photography P029
No pushing P017
No reaching in P015
No sitting P018
No smoking P002
No stepping on surface P019
No thoroughfare P004
4 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 1 (continued)
Referent
Functional reference number
(safety meaning)
Non-ionizing radiation, warning W005
Not drinking water P005
Opaque eye protection must be worn M007
Optical radiation, warning W027
Overhead load, warning W015
Overhead obstacle, warning W020
Oxidizing substance, warning W028
Pressurized cylinder, warning W029
Protect infants' eyes with opaque eye protection M025
Radioactive material or ionizing radiation, warning W003
Refer to instruction manual/booklet M002
Rescue window E017
Safety shower E012
Sharp element, warning W022
Slippery surface, warning W011
Stretcher E013
Toxic material, warning W016
Turn anticlockwise to open E018
Turn clockwise to open E019
Use barrier cream M022
Use footbridge M023
Use handrail M012
Use protective apron M026
Use this walkway M024
Wash your hands M011
Wear ear protection M003
Wear eye protection M004
Wear a face shield M013
Wear head protection M014
Wear high-visibility clothing M015
Wear a mask M016
Wear protective clothing M010
Wear protective gloves M009
Wear respiratory protection M017
Wear safety belts M020
Wear safety footwear M008
Wear a safety harness M018
Wear a welding mask M019
ISO 7010:2011(E)
4.3 Categorization of safety signs
Safety signs are categorized according to their function as follows:
 E is the category for signs indicating an evacuation route, the location of safety equipment or a safety
facility, or a safety action (safe condition signs);
 F is the category for fire equipment signs;
 M is the category for mandatory action signs;
 P is the category for prohibition signs;
 W is the category for warning signs.
Table 2 summarizes the registered safety signs in terms of safety sign category in accordance with
ISO 3864-1.
5 Registered safety signs
Tables 3 to 7 give safety sign originals in a uniform 70 mm size with corner marks to enable accurate
enlargement and reduction scaling. The sign illustrations are shown without borders in order to allow for
consistent reproduction scaling, though a border can be useful to achieve a luminance contrast between the
safety sign and its background when mounted or displayed. The safety signs should be reproduced exactly as
shown in Tables 3 to 7. However some degree of graphical modification is permitted when cultural differences
or special application formats need to be considered, provided the original meaning is retained and
comprehension of the safety sign is maintained. Consistent reproduction and use of these safety signs will
lead to a progressively improved degree of comprehension at the international level.
In cases where the orientation of the graphical symbol is not essential to the meaning of the safety sign, the
graphical symbol may be reproduced in a mirrored form. For prohibition signs, it is essential that the
prohibition bar does not obscure significant details of the graphical symbol.
NOTE The graphical symbol is the complete image containing all the graphical symbol elements as shown in the
registered safety sign.
Where a registered safety sign is not available to indicate a particular desired meaning, the meaning shall be
obtained either by developing a new safety sign following the design principles of ISO 3864-1 and ISO 3864-3
or by using the appropriate general sign (ISO 7010-M001, -P001, -W001), together with supplementary safety
information.
Tables 3 to 7 present the safety sign originals according to their category as follows:
 E Signs indicating an evacuation route, the location of safety equipment
or a safety facility, or a safety action (safe condition signs) see Table 3
 F Fire equipment signs see Table 4
 M Mandatory action signs see Table 5
 P Prohibition signs see Table 6
 W Warning signs see Table 7
Tables 3 to 7 also give a description of the application of each safety sign.
6 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 2 — Summary of all safety signs
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign
Reference number E001 F001 M001 P001 W001
Referent Emergency exit Fire extinguisher General mandatory General prohibition General warning
(left hand) action sign sign sign
Safety sign
Reference number E002 F002 M002 P002 W002
Referent Emergency exit Fire hose reel Refer to instruction No smoking Warning;
(right hand) manual/booklet Explosive material
Safety sign
Reference number E003 F003 M003 P003 W003
Referent First aid Fire ladder Wear ear protection No open flame; Warning;
Fire, open ignition Radioactive material
source and smoking or ionizing radiation
prohibited
Safety sign
Reference number E004 F004 M004 P004 W004
Referent Emergency Collection of Wear eye protection No thoroughfare Warning;
telephone firefighting Laser beam
equipment
Safety sign withdrawn
Reference number E005 F005 M005 P005 W005
Referent Direction, arrow Fire alarm call point Connect an earth Not drinking water Warning;
(90° increments), terminal to the Non-ionizing
safe condition ground radiation
ISO 7010:2011(E)
Table 2 (continued)
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign withdrawn
Reference number E006 F006 M006 P006 W006
Referent Direction, 45° arrow Fire emergency Disconnect mains No access for forklift Warning;
(90° increments), telephone plug from electrical trucks and other Magnetic field
safe condition outlet industrial vehicles
Safety sign —
Reference number E007 — M007 P007 W007
Referent Evacuation — Opaque eye No access for people Warning;
assembly point protection must be with active implanted Floor-level obstacle
worn cardiac devices
Safety sign —
Reference number E008 — M008 P008 W008
Referent Break to obtain — Wear safety No metallic articles Warning;
access footwear or watches Drop (fall)
Safety sign — in the process
Reference number E009 — M009 — W009
Referent Doctor — Wear protective — Warning;
gloves Biological hazard
Safety sign —
Reference number E010 — M010 P010 W010
Referent Automated external — Wear protective Do not touch Warning;
heart defibrillator clothing Low temperature/
freezing conditions
8 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 2 (continued)
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign —
Reference number E011 — M011 P011 W011
Referent Eyewash station — Wash your hands Do not extinguish Warning;
with water Slippery surface
Safety sign —
Reference number E012 — M012 P012 W012
Referent Safety shower — Use handrail No heavy load Warning;
Electricity
Safety sign —
Reference number E013 — M013 P013 W013
Referent Stretcher — Wear a face shield No activated mobile Warning;
phones Guard dog
Safety sign in the process —
Reference number — — M014 P014 W014
Referent — — Wear head No access for people Warning;
protection with metallic Forklift trucks and
implants other industrial
vehicles
Safety sign in the process —
Reference number — — M015 P015 W015
Referent — — Wear high-visibility No reaching in Warning;
clothing Overhead load
ISO 7010:2011(E)
Table 2 (continued)
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign — in the process
Reference number E016 — M016 — W016
Referent Emergency window — Wear a mask — Warning;
with escape ladder Toxic material
Safety sign —
Reference number E017 — M017 P017 W017
Referent Rescue window — Wear respiratory No pushing Warning;
protection Hot surface
Safety sign —
Reference number E018 — M018 P018 W018
Referent Turn anticlockwise — Wear a safety No sitting Warning;
to open harness Automatic start-up
Safety sign —
Reference number E019 — M019 P019 W019
Referent Turn clockwise — Wear a welding No stepping on Warning;
to open mask surface Crushing
Safety sign — —
Reference number — — M020 P020 W020
Referent — — Wear safety belts Do not use lift in the Warning;
event of fire Overhead obstacle
10 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 2 (continued)
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign — —
Reference number — — M021 P021 W021
Referent — — Disconnect before No dogs Warning;
carrying out main- Flammable material
tenance or repair
Safety sign — —
Reference number — — M022 P022 W022
Referent — — Use barrier cream No eating or drinking Warning;
Sharp element
Safety sign — —
Reference number — — M023 P023 W023
Referent — — Use footbridge Do not obstruct Warning;
Corrosive substance
Safety sign — —
Reference number — — M024 P024 W024
Referent — — Use this walkway Do not walk or stand Warning;
here Crushing of hands
Safety sign — —
Reference number — — M025 P025 W025
Referent — — Protect infants’ eyes Do not use this Warning;
with opaque eye incomplete scaffold Counterrotating
protection rollers
ISO 7010:2011(E)
Table 2 (continued)
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign — —
Reference number — — M026 P026 W026
Referent — — Use protective apron Do not use this Warning;
device in a bathtub, Battery charging
shower, or water-
filled reservoir
Safety sign — — —
Reference number — — — P027 W027
Referent — — — Do not use this lift Warning;
for people Optical radiation
Safety sign — — —
Reference number — — — P028 W028
Referent — — — Do not wear gloves Warning;
Oxidizing substance
Safety sign — — —
Reference number — — — P029 W029
Referent — — — No photography Warning;
pressurized cylinder
Safety sign — — — —
Reference number — — — P030 —
Referent — — — Do not tie knots —
in rope
12 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 2 (continued)
Category
E F M P W
Safety sign,
Evacuation route,
reference number
location of safety
and referent
equipment or Fire equipment Mandatory action
Prohibition signs Warning signs
safety facility, signs signs
safety action (safe
condition signs)
Safety sign — — — —
Reference number — — — P031 —
Referent — — — Do not alter the state —
of the switch
Safety sign — — — —
Reference number — — — P032 —
Referent — — — Do not use for —
face grinding
Safety sign — — — —
Reference number — — — P033 —
Referent — — — Do not use for —
wet grinding
Safety sign — — — —
Reference number — — — P034 —
Referent — — — Do not use with —
hand-held grinding
machine
ISO 7010:2011(E)
Table 3 — Description and application of referent for signs indicating an evacuation route, the location
of safety equipment or a safety facility, or a safety action (safe condition signs) (category E)
Reference No.
ISO 7010-E001
Referent
Emergency exit (left hand)
Function
To indicate an escape route to a place of safety
Image content
Human figure moving (to the left) through doorway

Hazard
Not being able to locate an escape route to a place of safety which is provided for evacuation in the event of an
emergency
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an escape route to a place of safety in the event of an emergency
Related referents
ISO 7010-E002, ISO 7010-E016, ISO 7010-E017
Additional information
Test data obtained according to ISO 9186-1:2007 are not available. However, this safety sign has been the subject of
extensive research in Japan and the design selected has received the best comprehension results. A supplementary text
sign shall be used to increase comprehension except when the safety sign is supplemented by manuals, instructions or
training.
Supplementary arrow sign (type D of ISO 3864-3) in white on green to be used to give directional information (direction
examples, the arrows may be rotated in increments of 45°):

14 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E002
Referent
Emergency exit (right hand)
Function
To indicate an escape route to a place of safety
Image content
Human figure moving (to the right) through doorway

Hazard
Not being able to locate an escape route to a place of safety which is provided for evacuation in the event of an
emergency
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an escape route to a place of safety in the event of an emergency
Related referents
ISO 7010-E001, ISO 7010-E016, ISO 7010-E017
Additional information
Test data obtained according to ISO 9186-1:2007 are not available. However, this safety sign has been the subject of
extensive research in Japan and the design selected has received the best comprehension results. A supplementary text
sign shall be used to increase comprehension except when the safety sign is supplemented by manuals, instructions or
training.
Supplementary arrow sign (type D of ISO 3864-3) in white on green to be used to give directional information (direction
examples, the arrows may be rotated in increments of 45°):

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E003
Referent
First aid
Function
To indicate the location of first aid equipment or facilities or
staff
Image content
First aid cross
Hazard
Not being able to locate first aid equipment or facilities or staff in the event of injury or emergency
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of first aid equipment or facilities or staff
Related referents
ISO 7010-E004, ISO 7010-E009, ISO 7010-E010, ISO 7010-E011, ISO 7010-E012, ISO 7010-E013
Additional information
This safety sign should be used for first aid equipment or facilities or staff for which/whom there is no registered safety sign.
The first aid cross may be replaced with another element appropriate to cultural requirements.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall be used
to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

16 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E004
Referent
Emergency telephone
Function
To indicate the location of an emergency telephone
Image content
Telephone receiver (profile), first aid cross

Hazard
Not being able to locate a telephone which is provided for use in the event of an emergency
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an emergency telephone
Related referents
ISO 7010-E003, ISO 7010-E009, ISO 7010-E010, ISO 7010-E011, ISO 7010-E012, ISO 7010-E013, ISO 7010-F006
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall be used
to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E005
Referent
Direction,
arrow (90° increments),
safe condition
withdrawn
Function
Image content
Hazard
Human behaviour that is intended to be caused after understanding the safety sign's meaning

Related referents
Additional information
This sign has been withdrawn as a registered safety sign, since it is to be used as a supplementary sign only.

18 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E006
Referent
Direction,
45° arrow (90° increments),
safe condition
withdrawn
Function
Image content
Hazard
Human behaviour that is intended to be caused after understanding the safety sign's meaning

Related referents
Additional information
This sign has been withdrawn as a registered safety sign, since it is to be used as a supplementary sign only.

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E007
Referent
Evacuation assembly point
Function
To indicate the location of a safe assembly point following
evacuation
Image content
Two human figures and a head of a third figure in a group,
four arrows coming from the corners pointing to them

Hazard
Not being able to locate a safe assembly point following evacuation
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the evacuation assembly point which is provided to enable people to be accounted for following the
evacuation of a building or premises
Related referents
—
Additional information
Test data obtained according to ISO 9186-1:2007 are not available from more than one country. Findings from national
testing, however, showed that in one country the safety sign did not reach the criteria of acceptability. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
20 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E008
Referent
Break to obtain access
Function
To indicate a cover which requires breaking to obtain
access to an emergency exit device
Image content
Human fist and lower arm (outlined) holding a bar, uneven
star shape
Hazard
Not being able to open an emergency exit device
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Breaking the cover to gain access to the device that operates an emergency exit in the event of an emergency
Related referents
—
Additional information
Test data obtained according to ISO 9186-1:2007 are not available from more than one country. Findings from national
testing, however, showed that in one country the safety sign did not reach the criteria of acceptability. Consequently, a
supplementary text sign shall be used to increase comprehension except when the safety sign is supplemented by manuals,
instructions or training.
ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E009
Referent
Doctor
Function
To indicate the location of a doctor for emergencies
Image content
Upper human figure with stethoscope, first aid cross

Hazard
Not being able to locate an emergency doctor
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an emergency doctor
Related referents
ISO 7010-E003, ISO 7010-E004, ISO 7010-E010, ISO 7010-E011, ISO 7010-E012, ISO 7010-E013
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall be used
to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

22 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E010
Referent
Automated external heart defibrillator
Function
To indicate the location of an automated external heart
defibrillator
Image content
Heart with lightning bolt in the middle, first aid cross

Hazard
Not being able to locate an automated external heart defibrillator
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an automated external heart defibrillator
Related referents
ISO 7010-E003, ISO 7010-E004, ISO 7010-E009, ISO 7010-E011, ISO 7010-E012, ISO 7010-E013
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target group.
Test data obtained according to ISO 9186-1:2007 are available from more than one country. Findings from testing
showed that the safety sign did not reach the criteria of acceptability. Consequently, a supplementary text sign shall be
used to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E011
Referent
Eyewash station
Function
To indicate the location of an eyewash station
Image content
Eye above running water coming out of a shower head, first
aid cross
Hazard
Not being able to locate an eyewash station
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of an eyewash station
Related referents
ISO 7010-E003, ISO 7010-E004, ISO 7010-E009, ISO 7010-E010, ISO 7010-E012, ISO 7010-E013
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target group.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall be used
to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

24 © ISO 2011 – All rights reserved

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E012
Referent
Safety shower
Function
To indicate the location of a safety shower
Image content
Human figure under running water coming out of a shower
head, first aid cross
Hazard
Not being able to locate a safety shower
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of a safety shower
Related referents
ISO 7010-E003, ISO 7010-E004, ISO 7010-E009, ISO 7010-E010, ISO 7010-E011, ISO 7010-E013
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target group.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall be used
to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

ISO 7010:2011(E)
Table 3 (continued)
Reference No.
ISO 7010-E013
Referent
Stretcher
Function
To indicate the location of a stretcher
Image content
Human figure on a stretcher, first aid cross

Hazard
Not being able to locate a stretcher
Human behaviour that is intended to be caused after understanding the safety sign's meaning
Being aware of the location of a stretcher
Related referents
ISO 7010-E003, ISO 7010-E004, ISO 7010-E009, ISO 7010-E010, ISO 7010-E011, ISO 7010-E012
Additional information
The first aid cross may be replaced with another element appropriate to cultural requirements of the target group.
Test data obtained according to ISO 9186-1:2007 are not available. Consequently, a supplementary text sign shall be used
to increase comprehension except when the safety sign is supplemented by manuals, instructions or training.

26 © ISO 2011 – All rights reserved

-----------------
...
