EN 60809:1996/A4:2009

SLOVENSKI STANDARD
01-september-2009
6LMDONH]DFHVWQDYR]LOD'LPHQ]LMVNHHOHNWULþQHLQVYHWOREQH]DKWHYH,(&
$
Lamps for road vehicles - Dimensional, electrical and luminous requirements (IEC
60809:1995/A4:2009)
Lampen für Straßenfahrzeuge - Maße, elektrische und lichttechnische Anforderungen
(IEC 60809:1995/A4:2009)
Lampes pour véhicules routiers - Prescriptions dimensionnelles, électriques et
lumineuses (CEI 60809:1995/A4:2009)
Ta slovenski standard je istoveten z: EN 60809:1996/A4:2009
ICS:
29.140.20 Žarnice z žarilno nitko Incandescent lamps
43.040.20 Naprave za osvetlitev, Lighting, signalling and
signalizacijo in opozarjanje warning devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60809/A4
NORME EUROPÉENNE
June 2009
EUROPÄISCHE NORM
ICS 29.140.20; 43.040.20
English version
Lamps for road vehicles -
Dimensional, electrical and luminous requirements
(IEC 60809:1995/A4:2009)
Lampes pour véhicules routiers -  Lampen für Straßenfahrzeuge -
Prescriptions dimensionnelles, Maße, elektrische
électriques et lumineuses und lichttechnische Anforderungen
(CEI 60809:1995/A4:2009) (IEC 60809:1995/A4:2009)

This amendment A4 modifies the European Standard EN 60809:1996; it was approved by CENELEC on
2009-05-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia,
Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60809:1996/A4:2009 E

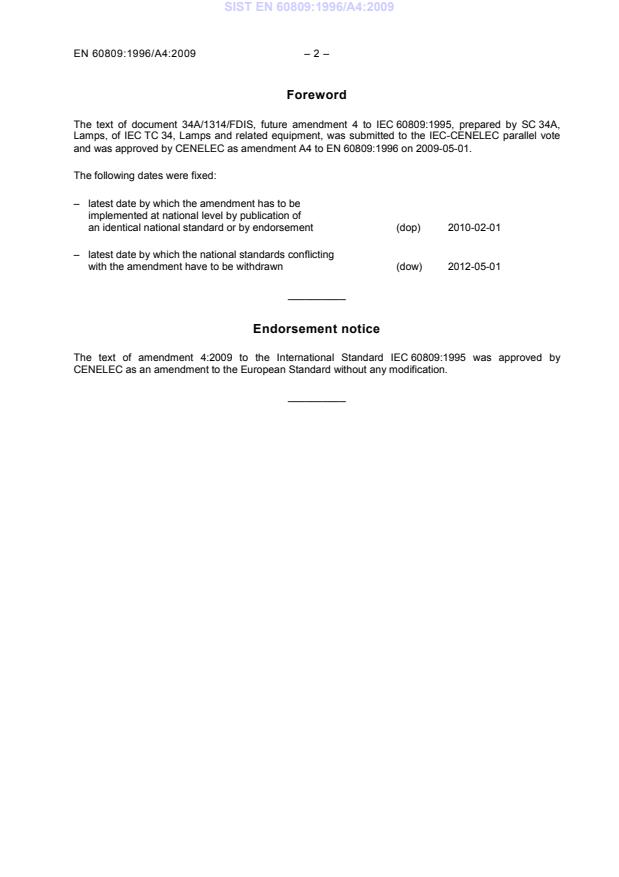

Foreword
The text of document 34A/1314/FDIS, future amendment 4 to IEC 60809:1995, prepared by SC 34A,
Lamps, of IEC TC 34, Lamps and related equipment, was submitted to the IEC-CENELEC parallel vote
and was approved by CENELEC as amendment A4 to EN 60809:1996 on 2009-05-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2010-02-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2012-05-01
__________
Endorsement notice
The text of amendment 4:2009 to the International Standard IEC 60809:1995 was approved by
CENELEC as an amendment to the European Standard without any modification.
__________
IEC 60809
Edition 2.0 2009-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 4
AMENDEMENT 4
The sheets contained in this amendment are to be inserted in IEC 60809
Les feuilles de cet amendement sont à insérer dans la CEI 60809
Lamps for road vehicles – Dimensional, electrical and luminous requirements

Lampes pour véhicules routiers – Prescriptions dimensionnelles, électriques et
lumineuses
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX S
ICS 29.140.20; 43.040.20 ISBN 2-8318-1032-5

60809 Amend.4 © IEC:2009 60809 Amend.4 © CEI:2009

AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 34A: Lampes, du comité d'études 34
de la CEI: Lampes et équipements associés.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
34A/1314/FDIS 34A/1321/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera
pas modifié avant la date du résultat de la maintenance indiquée sur le site web de la CEI
"http://webstore.iec.ch" dans les données spécifiques à cette publication A cette date, la
publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
_____________
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/1314/FDIS 34A/1321/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
60809 Amend.4 © IEC:2009 60809 Amend.4 © CEI:2009

INSTRUCTIONS POUR L’INSERTION DES INSTRUCTIONS FOR THE
NOUVELLES PAGES ET FEUILLES INSERTION OF NEW PAGES
DE CARACTÉRISTIQUES DANS LA AND DATA SHEETS
PUBLICATION 60809 IN PUBLICATION 60809
----------------------- -----------------------

1. Retirer les pages 1. Remove the existing pages
2 - 18, 24, 28, 30, G-1 et J-1 3 - 19, 25, 29, 31, G-2 and J-2

existantes, insérer les nouvelles pages insert the new pages
2 - 18, 24, 28, 30, 32, G-1et J-1. 3 - 19, 25, 29, 31, 33, G-2 and J-2

2. Remplacer les feuilles de caractéristiques : 2. Replace the lamp data sheets :

60809-IEC-7110-1 par 60809-IEC-7110-1 with
60809-IEC-7110-2 (6 pages) 60809-IEC-7110-2 (6 pages)
60809-IEC-7120-1 par  60809-IEC-7120-1 with
60809-IEC-7120-2 (8 pages) 60809-IEC-7120-2 (8 pages)

3. Insérer les nouvelles feuilles de 3. Insert the new lamp data sheets:
caractéristiques :
60809-IEC-2132-1 (4 pages) 60809-IEC-2132-1 (4 pages)
60809-IEC-3135-1 (2 pages) 60809-IEC-3135-1 (2 pages)
60809-IEC-4335-1 (2 pages) 60809-IEC-4335-1 (2 pages)

----------------------- -----------------------

60809 Amend. 4 © IEC:2009 – 3 –

CONTENTS
FOREWORD.5
1 General.7
1.1 Scope.7
1.2 Normative references.9
1.3 Definitions.9
1.4 Numbering system for lamp data sheets .13
2 Requirements and test conditions for filament lamps .13
2.1 General requirements.13
2.2 Lamp marking .13
2.3 Bulbs.15
2.4 Colour.15
2.5 Lamp dimensions.15a
2.6 Caps and bases .17
2.7 Initial electrical and luminous requirements .17
2.8 Check on optical quality .17
2.9 UV radiation.19
2.10 Standard (étalon) filament lamps .19
3 Requirements and test conditions for discharge lamps .19
3.1 General requirements.19
3.2 Lamp marking .19
3.3 Bulbs.21
3.4 Caps.21
3.5 Position and dimensions of electrodes, arc and black stripes .21
3.6 Starting, run-up and hot-restrike characteristics .23
3.7 Electrical and photometric characteristics.23
3.8 Colour.23
3.9 UV radiation.25
3.10 Standard (étalon) discharge lamps .27
4 Sampling and conditions of compliance .27
5 Lamp data sheets.29
5.1 List of specific lamp types .29
Annex A (normative) Filament shape, length and position . A-2
Annex B (normative) Measurement method of the colour of filament lamps . B-2
Annex C (normative) Test conditions for electrical and luminous characteristics. C-2
Annex D (normative) Method of measuring internal elements of R2 lamps. D-2
Annex E (normative) Method of measuring internal elements of H4 and HS1
lampsE-2
Annex F (normative) Method of measuring internal elements of HB1 lamps . F-2
Annex G (informative) Optical set-up for the measurement of the position and form
of the arc and of the position of the electrodes of discharge lamps.G-2
Annex H (normative) Measurement method of electrical and photometric
characteristics of discharge lamps . H-2
Annex J (informative) Overview of lamp types and their applications .J-2
Annex K (normative) Test conditions for colour endurance measurements…. K-2

60809 Amend. 4 © IEC:2009 – 5 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60809 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This consolidated version of IEC 60809 is based on the second edition (1995) [documents
34A/592/DIS and 34A/626/RVD], its Amendment 1 (1996) [documents 34A/653/FDIS and
34A/686/RVD], its Amendment 2 (2002) [documents 34A/979/FDIS and 34A/987/RVD], its
Amendment 3 (2004) [documents 34A/1077/FDIS and 34A/1081/RVD] and its Amendment 4
(2009) [documents 34A/1314/FDIS and 34A/1321/RVD].
It bears the edition number 2.4.
The origin (edition 2 or Amendment 1, 2, 3 or 4) of the standard sheets constituting this
consolidated edition may be identified by the headers of the sheets.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60809 Amend. 2 © IEC:2002 – 7 –

LAMPS FOR ROAD VEHICLES –
DIMENSIONAL, ELECTRICAL AND LUMINOUS REQUIREMENTS

1 General
1.1 Scope
This International Standard is applicable to replaceable lamps (filament lamps and discharge
lamps) to be used in headlamps, fog-lamps and signalling lamps for road vehicles.
It is especially applicable to those lamps which are the subject of legislation. In particular, it
1)
includes the lamps contained in Regulations No.37 and No.99 of the Geneva Agreement of
20 March 1958 of the United Nations Economic Commission for Europe (ECE). However, the
standard may be used for other lamps falling under the scope of this standard.
The standard specifies the technical requirements with methods of tests and basic
interchangeability (dimensional, electrical and luminous) for lamps of normal production and
for standard (étalon) lamps.
For most of the requirements given in this standard, reference is made to the "relevant data
sheet". For all lamps listed in Clause 5 , data sheets are contained in this standard. For other
lamps, the relevant data are supplied by the lamp manufacturer or responsible vendor. It
could be based on national legislation.
Other requirements such as lamp life, lumen maintenance, torsion strength and resistance to
vibration and shock are specified in IEC 60810. The latter standard also gives information for
guidance of lighting equipment design, such as temperature limits and maximum lamp
outlines.
Road vehicle lamps for supplementary purposes which are not the subject of legislation are
specified in IEC 60983.
In countries which legislate for approval, for example under the terms of the aforementioned
ECE Regulations, it is suggested that reference is made to this standard for assessment of
compliance. IEC 60810 and IEC 60983 are not intended for that purpose.
NOTE In the various vocabularies and standards, different terms are used for "incandescent lamp" (IEV 845-07-04) and
"discharge lamp" (IEV 845-07-17). In this standard "filament lamp" and "discharge lamp" are used. However, where
only "lamp" is written both types are meant, unless the context clearly shows that it applies to one type only.
———————
1)
United Nations Economic Commission for Europe (ECE), Regulation 37:1992, Uniform provisions concerning
the approval of filament lamps for use in approved lamp units of power-driven vehicles and of their trailers
United Nations Economic Commission for Europe (ECE), Regulation 99:1996, Uniform provisions concerning
the approval of gas-discharge light sources for use in approved gas-discharge lamp units of power-driven
vehicles
60809 Amend. 3 © IEC:2004 – 9 –

1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050(845), International Electrotechnical Vocabulary (IEV) – Chapter 845: Lighting
IEC 60051, Direct acting indicating analogue electrical measuring instruments and their
accessories
IEC 60061-1, Lamp caps and holders together with gauges for the control of
interchangeability and safety – Part 1: Lamp caps
IEC 60810, Lamps for road vehicles – Performance requirements
IEC 60983, Miniature lamps
1.3 Definitions
1.3.1
category
this term is used to describe different basic designs of standardized lamps.
NOTE Each specific designation, for example P21/5W, H4, D2R forms a category. Most of these designations are
taken from the ECE Regulations.
1.3.2
type
lamps of different types are those within the same category which differ in such essential
respects as:
a) trade name or mark;
NOTE Lamps bearing the same trade name or mark but produced by different manufacturers are considered as
being of different types. Lamps produced by the same manufacturer differing only by the trade name or mark may
be considered to be of the same type.
b) bulb design, insofar as it affects the optical results;
c) for filament lamps, nominal voltage.
NOTE A selective-yellow bulb or a selective-yellow additional outer bulb, solely intended to change the colour but
not the other characteristics of a light source emitting white light, does not constitute a change of type of the light
source.
1.3.3
type test
test or series of tests, made on a type test sample, for the purpose of checking compliance of
the design of a given product with the requirements of the relevant specification.
1.3.4
type test sample
sample consisting of one or more similar units, submitted by the manufacturer or responsible
vendor for the purpose of a type test.

60809 Amend. 2 © IEC:2002 – 11 –

1.3.5
conformity of production
compliance of the series production of a given type with the requirements of the relevant
specification.
NOTE 1 Production lamps are of the same design as the approved type test sample.
NOTE 2 Local regulations may provide for checking conformity of production by a government agency.
1.3.6
nominal voltage
voltage used to designate a lamp, usually being the battery voltage (6 V,12 V or 24 V) of the
road vehicle supply network.
1.3.7
nominal wattage
wattage used to designate a lamp.
1.3.8
test voltage
voltage at the cap terminals for filament lamps and at the input terminals of the ballast for
discharge lamps for which some characteristics are specified and at which they shall be
tested.
1.3.9
rated value
value of a characteristic specified for operation of a lamp at test voltage and/or other specified
conditions.
1.3.10
tolerance
allowable variation from a rated value generally expressed as percentage of the rated value.
1.3.11
limit values
lowest and/or highest values for characteristics to which the lamp has to comply when
operated under specified conditions.
1.3.12
test luminous flux
specified luminous flux of a standard (étalon) lamp at which the photometric characteristics of
lighting and light-signalling devices shall be measured and which has to be adjusted for
testing a lamp in the standard headlamp according to 2.8.
1.3.13
reference plane
plane defined with reference to the cap or base and with respect to which positions of certain
parts of the lamp are measured.
1.3.14
reference axis
axis defined with reference to the cap or base and with respect to which the positions of
certain parts of the lamp are measured.

60809 Amend. 3 © IEC:2004 – 13 –

1.3.15
ageing period
period during which unused lamps are operated at their test voltage in order to stabilize their
performance.
1.3.16
standard lamp (étalon lamp)
lamp emitting white or amber or red light with reduced dimensional tolerances, used for the
photometric testing of lighting and light-signalling devices.
NOTE Standard lamps are specified for only one nominal voltage for each category.
1.3.17
production lamp
lamp which shall comply with the requirements of this standard as indicated in the column
“production lamps” on the relevant lamp data sheet.
1.3.18
heavy duty lamp
lamp declared as such by the manufacturer or responsible vendor which shall comply with the
heavy duty test conditions specified in Table B.2 of IEC 60810 in addition to the requirements
specified in this standard.
1.4 Numbering system for lamp data sheets
The first number represents the number of this standard (60809) followed by the letters “IEC”.
The second number represents the lamp data sheet number.
The third number on the sheet indicates the edition of the sheet.
2 Requirements and test conditions for filament lamps
2.1 General requirements
Filament lamps shall be so designed as to be and to remain in good working order when in
normal use. They shall, moreover, exhibit no fault in design or manufacture.
2.2 Lamp marking
The following information shall be legibly and durably marked on all filament lamps:
– the trade name or mark of the manufacturer or responsible vendor;
– the nominal voltage;
– the international designation of the relevant category;
– the nominal wattage (in the sequence: high wattage filament/low wattage filament for dual
filament lamps); this need not be indicated separately if it is part of the international
designation of the relevant filament lamp category.

60809 Amend. 3 © IEC:2004 – 15 –

Additionally, halogen filament lamps meeting the requirements of 2.9 shall be marked with
a “U”.
NOTE Halogen filament lamps are filament lamps whose category designation starts with the letter “H”.
Inscriptions other than the above may be affixed.
NOTE An example of such an inscription is the approval mark conferred by an administrative authority.
Compliance shall be checked by the following:
a) presence and legibility - by visual inspection;
b) durability - by applying the following test on unused lamps:
The area of the marking on the lamp shall be rubbed by hand with a smooth cloth, dampened
with water, for a period of 15 s.
After this test, the marking shall still be legible.
If the marking is on the bulb, it shall not adversely affect the luminous characteristics.
2.3 Bulbs
Filament lamp bulbs shall exhibit no scores or spots which might impair their optical
performance.
2.4 Colour
2.4.1 Colour of light
The colour of the light emitted by the filament lamp shall be white, unless otherwise
prescribed on the relevant filament lamp data sheet. For some categories other colour(s) of
light are allowed.
The colorimetric characteristics of the light emitted, expressed in CIE chromaticity
co-ordinates, shall lie within the following limits:
– finished filament lamps emitting white light
limit towards blue: x ≥ 0,310
limit towards yellow: x ≤ 0,500
limit towards green: y ≤ 0,150 + 0,640 x
limit towards green: y ≤ 0,440
limit towards purple: y ≥ 0,050 + 0,750 x
limit towards red: y ≥ 0,382
– finished filament lamps emitting selective-yellow light
limit towards red: y ≥ 0,138 + 0,580 x
limit towards green: y ≤ 1,290 x – 0,100
limit towards white: y ≥ 0,940 – x and y ≥ 0,440
– finished filament lamps emitting amber light
limit towards green: y ≤ x – 0,120
limit towards red: y ≥ 0,390
limit towards white: y ≥ 0,790 – 0,670 x

60809 Amend. 3 © IEC:2004 – 15a –

– finished filament lamps emitting red light
limit towards yellow: y ≤ 0,335
limit towards purple: y ≥ 0,980 – x
The colour of the light emitted shall be measured by the method specified in annex B.
Each measured value shall lie within the required tolerance area. Moreover, in the case of
filament lamps emitting white light, the measured values shall not deviate more than
0,020 units in the x and/or y direction from a point of choice on the Planckian locus
For conformity of production purposes and for amber and red colour only, at least 80 % of the
measuring results shall lie within the required tolerance area.
2.4.2 Colour endurance
Coloured filament lamps for use in light signalling devices shall be operated under test
conditions for colour endurance measurements as specified in annex K.
Thereafter the colour of the light shall be measured by the method specified in annex B, and
all measuring results, but for amber and red colour at least 80 % of the measuring results,
shall be within the limits specified in 2.4.1.
In case of colour filter coatings no cracks in these coatings shall be visible without specific
optical tools.
2.4.3 Coated bulb
In the case of a coated bulb, after the ageing period corresponding to C.1, the surface of the
bulb shall be lightly wiped with a cotton cloth soaked in a mixture of 70 % by volume of
n-heptane and 30 % by volume of toluol. After about 5 min, the surface shall be inspected
visually. It shall not show any apparent changes.
2.5 Lamp dimensions
The filament lamp dimensions shall comply with the limiting values given in the lamp drawing
or on the relevant filament lamp data sheet.
The definition of and the measuring condition for the filament shape, length and position, shall
be in accordance with the appropriate requirements of annexes A, D, E and F respectively.

60809 Amend. 3 © IEC:2004 – 17 –

2.6 Caps and bases
Filament lamps shall have standard caps or bases as specified on the relevant filament lamp
data sheet and shall comply with the relevant cap data sheet of IEC 60061-1.
2.7 Initial electrical and luminous requirements
Filament lamp wattage and luminous flux shall comply with the limiting values given on the
relevant lamp data sheet.
The luminous flux specified on the relevant filament lamp data sheet applies for filament
lamps emitting white light, unless a special colour is stated there.
In the case where selective-yellow colour is allowed the luminous flux of the filament lamp
with selective-yellow (outer) bulb shall be at least 85 % of the specified luminous flux of the
relevant filament lamps with colourless bulb.
Compliance shall be checked by the tests specified in annex C.
2.8 Check on optical quality
This requirement applies only to double filament lamps with internal shield for headlamps
emitting an asymmetrical dipped beam when the relevant regulation requires such a test.
The check on optical quality shall be carried out at a voltage such that the test luminous flux
is obtained.
2.8.1 12 V lamps emitting white light
The sample which most nearly conforms to the requirements laid down for the standard
filament lamp shall be tested in an appropriate standard headlamp and it shall be verified that
the assembly comprising the aforesaid headlamp and the filament lamp being tested meets
the light-distribution requirements laid down for the dipped beam in the relevant regulation,
directive or standard.
2.8.2 6 V and 24 V lamps emitting white light
The sample which most nearly conforms to the rated dimension values shall be tested in an
appropriate standard headlamp and it shall be verified that the assembly comprising the
aforesaid headlamp and the filament lamp being tested meets the light-distribution
requirements laid down for the dipped beam in the relevant regulation, directive or standard.
Deviations not exceeding 10 % of the minimum values will be acceptable.
2.8.3 Lamps emitting selective-yellow light
Filament lamps emitting selective-yellow light shall be tested in the same manner as
described in 2.8.1 and 2.8.2 in an appropriate standard headlamp to ensure that the
illuminance complies with at least 85 % for 12 V filament lamps, and at least 77 % for 6 V and
24 V filament lamps, with the minimum values of the light-distribution requirements laid down
for the dipped beam in the relevant regulation, directive or standard. The maximum
illuminance limits remain unchanged.
In the case of a filament lamp having a selective-yellow bulb, the test shall be left out if the
approval is also given to the same type of filament lamp emitting white light.

60809 Amend. 4 © IEC:2009 – 19 –
2.9 UV radiation
The UV radiation of a halogen filament lamp shall be such that:
400 nm
Φ λ d λ
∫
315 nm
− 4
k = ≤ 2 × 10 W/lm
780 nm
k • Φ λV ( λ )d λ
m
∫
380 nm
315 nm
Φ λ d λ
∫
250 nm
− 6
k = ≤ 2 × 10 W/lm
780 nm
k • Φ λV ( λ )d λ
m
∫
380 nm
where
k = 683 [lm/W] ;
m
Ф [W/nm] is the spectral distribution of the radiant flux;
λ
V(λ) [1] is the spectral luminous efficiency;
λ [nm] is the wavelength.
These values shall be calculated using intervals of five nanometres.
2.10 Standard (étalon) filament lamps
Standard filament lamps shall fulfil the additional requirements as specified on the relevant
filament lamp data sheets.
Bulbs of standard (étalon) filament lamps emitting white light shall not alter the CIE chromaticity
co-ordinates of a luminous source having a colour temperature of 2 856 K by more than
0,010 units in the x and/or y direction. For standard (étalon) filament lamps emitting amber or red
light, changes of the bulb temperature shall not affect the luminous flux which might impair
photometric measurements of signalling devices. Moreover, for amber standard (étalon) filament
lamps the colour shall be in the lower part of the tolerance area, i.e. towards the red.
3 Requirements and test conditions for discharge lamps
3.1 General requirements
Discharge lamps shall be so designed as to be and to remain in good working order when in
normal use. They shall, moreover, exhibit no fault in design or manufacture.
3.2 Lamp marking
The following information shall be legibly and durably marked on the cap of the discharge
lamps:
– the trade name or mark of manufacturer or responsible vendor;
– the nominal wattage;
– the international designation of the relevant category.
Inscriptions other than the above may be affixed.
NOTE 1 An example of such inscription is the approval mark conferred by an administrative authority.
NOTE 2 The ballast used for starting and operating the discharge lamps should be marked with type and trade
mark identification and with the nominal voltage and wattage, as indicated on the relevant data sheet.

60809 Amend. 4 © IEC:2009 – 25 –

In case of yellow, the colorimetric characteristics shall lie within the area formed by the
following limits:
limit towards red
y ≥ 0,138 + 0,580 x
limit towards green
y ≤ 1,29 x – 0,100
limit towards white y ≥ – x + 0,940 and y ≥ 0,440
limit towards spectral value
y ≤ – x + 0,992
The minimum red content of the light of a discharge lamp emitting white light shall be such
that:
780 nm
Φ λV (λ )dλ
∫
610 nm
k = ≥ 0,05
red
780 nm
Φ λV (λ )dλ
∫
380 nm
where
Ф [W/nm] is the spectral distribution of the radiant flux;
λ
V(λ) [1] is the spectral luminous efficiency;
λ [nm] is the wavelength.
This value shall be calculated using intervals of one nanometre.
Compliance is checked by the tests specified in annex H.
3.9 UV radiation
The maximum UV content of the light of a discharge lamp shall be such that:
400 nm
ΦλS(λ)dλ
∫
250 nm
−5
k = ≤10 W/lm
UV
780 nm
k • ΦλV(λ)dλ
m
∫
380 nm
where
k = 683 [lm/W] ;
m
S(λ) [1] is the spectral weighting function.
For the definition of the parameters Ф , V(λ) and λ, see 3.8.
λ
This value shall be calculated using intervals of one nanometre.

60809 Amend. 4 © IEC:2009 – 29 –
5 Lamp data sheets
5.1 List of specific lamp types
Sheet No. Category Voltage Wattage Cap
(V) (W)
60809-IEC-2110- R2 6 45/40 P45t
12 45/40 P45t
24 55/50 P45t
60809-IEC-2120- H4 12 60/55 P43t-38
24 75/70 P43t-38
60809-IEC-2125- H6 12 65/55 PZ43t
60809-IEC-2130- HS1 6 35/35 PX43t
12 35/35 PX43t
60809-IEC-2132- HS5 12 35/30 P23t
60809-IEC-2135- HB1 12 65/45 P29t
60809-IEC-2140- S1 6 25/25 BA20d
12 25/25 BA20d
60809-IEC-2150- S2 6 35/35 BA20d
12 35/35 BA20d
60809-IEC-2160- S4 6 15/15 BAX15d
12 15/15 BAX15d
60809-IEC-2305- H5 12 50 PY43d
60809-IEC-2310- H1 6 55 P14.5s
12 55 P14.5s
24 70 P14.5s
60809-IEC-2315- H7 12 55 PX26d
24 70 PX26d
60809-IEC-2320- H2 6 55 X511
12 55 X511
24 70 X511
60809-IEC-2325- HB3 12 60 P20d
HB3A 12 60 P20d
60809-IEC-2330- H3 6 55 PK22s
12 55 PK22s
24 70 PK22s
60809-IEC-2335- HB4 12 51 P22d
HB4A 12 51 P22d
60809-IEC-2340- HS2 6 15 PX13.5s
12 15 PX13.5s
60809-IEC-2350- HS3 6 2,4 PX13.5s
60809-IEC-2360- S3 6 15 P26s
12 15 P26s
60809-IEC-2365- H8 12 35 PGJ19-1
60809-IEC-2370- H9 12 65 PGJ19-5
60809-IEC-2375- H10 12 42 PY20d
60809-IEC-2380- H11 12 55 PGJ19-2
24 70 PGJ19-2
60809-IEC-2385- H12 12 53 PZ20d
60809-IEC-2410- HIR1 12 65 PX20d
60809-IEC-2420- HIR2 12 55 PX22d

60809 Amend. 4 © IEC:2009 – 31 –

Sheet No. Category Voltage Wattage Cap
(V) (W)
60809-IEC-3110- P21/5W 6 21/5 BAY15d
12 21/5 BAY15d
24 21/5 BAY15d
60809-IEC-3120- P21/4W 6 21/4 BAZ15d
12 21/4 BAZ15d
24 21/4 BAZ15d
60809-IEC-3130- W21/5W 12 21/5 W3x16q
60809-IEC-3135- WR21/5W 12 21/5 WY3x16q
60809-IEC-3140- P27/7W 12 27/7 W2.5x16q
60809-IEC-3141- PY27/7W 12 27/7 WX2.5x16q
60809-IEC-3310- P21W 6 21 BA15s(BA15d)
12 21 BA15s(BA15d)
24 21 BA15s(BA15d)
60809-IEC-3311- PY21W 12 21 BAU15s
24 21 BAU15s
60809-IEC-3315- P27W 12 27 W2.5x16d
60809-IEC-3320- R5W 6 5 BA15s(BA15d)
12 5 BA15s(BA15d)
24 5 BA15s(BA15d)
60809-IEC-3330- R10W 6 10 BA15s(BA15d)
12 10 BA15s(BA15d)
24 10 BA15s(BA15d)
60809-IEC-3340- T4W 6 4 BA9s
12 4 BA9s
24 4 BA9s
60809-IEC-3410- H6W 12 6 BAX9s
60809-IEC-3420- H21W 12 21 BAY9s
24 21 BAY9s
60809-IEC-3430 H27W/1 12 27 PG13
H27W/2 12 27 PGJ13
60809-IEC-4110- C5W 6 5 SV8.5
12 5 SV8.5
24 5 SV8.5
60809-IEC-4120- C21W 12 21 SV8.5
60809-IEC-4305- W2.3W 12 2,3 W2x4.6d
60809-IEC-4310 W3W 6 3 W2.1x9.5d
12 3 W2.1x9.5d
24 3 W2.1x9.5d
60809-IEC-4320- W5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
60809-IEC-4321- WY5W 6 5 W2.1x9.5d
12 5 W2.1x9.5d
24 5 W2.1x9.5d
60809-IEC-4330- W21W 12 21 W3x16d
60809-IEC-4335- WY21W 12 21 WX3x16d
60809-IEC-4340- W16W 12 16 W2.1x9.5d
60809-IEC-5010- T1.4W 12 1,4 P11.5d

60809 Amend. 4 © IEC:2009 – 33 –

Sheet No. Category Voltage Wattage Cap
(V) (W)
60809-IEC-7110- D1S 12 35 PK32d-2
D2S 12 35 P32d-2
D3S 12 35 PK32d-5
D4S 12 35 P32d-5
60809-IEC-7120- D1R 12 35 PK32d-3
D2R 12 35 P32d-3
D3R 12 35 PK32d-6
D4R 12 35 P32d-6
60809-IEC-9310- B1.13W 2,7 1,13 PX13.5s
60809-IEC-9610- B0.6W 6 0,6 E10
60809-IEC-9620- B2.4W 6 2,4 EP10/14x11

60809 Amend. 4 © CEI/IEC:2009
LAMPES À DÉCHARGE POUR ROAD VEHICLE

VÉHICULES ROUTIERS DISCHARGE LAMP

FEUILLE DE CARACTÉRISTIQUES DATA SHEET

CATÉGORIE: D1S, D2S, CATEGORY: D1S, D2S,
Page 1
D3S & D4S D3S & D4S
CULOT: PK32d-2, P32d-2, CAP: PK32d-2, P32d-2,
PK32d-5 & P32d-5 PK32d-5 & P32d-5

Tension nominale [V] 12
Nominal voltage (ballast)
Puissance nominale [W] 35
Nominal wattage
Tension d’essai [V] 13,5
Test voltage
Les dessins ont pour seul but d’indiquer les dimensions essentielles de la lampe à décharge.
The drawings are intended only to indicate the essential dimensions of the gas-discharge lamp.
Dimensions en millimètres - Dimensions in millimetres
A
Plan de référence
1)
nce
Refere plane
αα2
3)
Axe de référence
2)
2 7,
Reference axis
Figure 1 - Catégorie D1S; Type à fils; Culot PK32d-2
Category D1S; Type with cables; Cap PK32d-2
Plan référen
de ce
A
1)
Reference plane
α α
3)
Axe de référence
2 7, 1
2)
Reference axis
Figure 2 - Catégorie D2S; Type à broche; Culot P32d-2
Category D2S; Type with connector; Cap P32d-2
1) Le plan de référence est défini par les points de la 1) The reference plane is defined by the positions on the
surface de la douille où viennent reposer les trois surface of the holder on which the three supporting bosses
bossages supports de l’anneau du culot. of the cap ring will rest.
2) Voir page 3. 2) See page 3.
3) Lorsqu’elle est mesurée à une distance de 27,1 mm du 3) When measured at a distance of 27,1 mm from the
plan de référence et par rapport au centre de l’ampoule reference plane and with respect to the mid-point of the
intérieure, l’excentricité de l’ampoule extérieure doit être inner bulb, the outer bulb shall have an eccentricity of
inférieure à 1 mm. 1 mm max.
60809-IEC-7110-2
Publication CEI 60809
IEC Publication 60809
60809 Amend. 4 © CEI/IEC:2009
LAMPES À DÉCHARGE POUR ROAD VEHICLE

VÉHICULES ROUTIERS DISCHARGE LAMP

FEUILLE DE CARACTÉRISTIQUES DATA SHEET

CATÉGORIE: D1S, D2S, CATEGORY: D1S, D2S, Page 2

D3S & D4S D3S & D4S
CULOT: PK32d-2, P32d-2, CAP: PK32d-2, P32d-2,
PK32d-5 & P32d-5 PK32d-5 & P32d-5

Tension nominale [V] 12
Nominal voltage (ballast)
Puissance nominale [W] 35
Nominal wattage
Tension d’essai [V] 13,5
Test voltage
Les dessins ont pour seul but d’indiquer les dimensions essentielles de la lampe à décharge.
The drawings are intended only to indicate the essential dimensions of the gas-discharge lamp.
Dimensions en millimètres - Dimensions in millimetres

Plan de référence 1)
Reference plane
3)
Axe de référence 2)
Reference axis
Figure 3 - Catégorie D3S;  Type à starter;  Culot PK32d-5
Category D3S;  Type with starter;  Cap PK32d-5

Plan de référence 1)
Reference plane
3)
Axe de référence 2)
Reference axis
Figure 4 - Catégorie D4S;  Type à broche;  Culot P32d-5
Category D4S;  Type with connector;  Cap P32d-5
1) Le plan de référence est défini par les points de la 1) The reference plane is defined by the positions on the
surface de la douille où viennent reposer les trois surface of the holder on which the three supporting bosses
bossages supports de l’anneau du culot. of the cap ring will rest.
2) Voir page 3. 2) See page 3.
3) Lorsqu’elle est mesurée à une distance de 27,1 mm du 3) When measured at a distance of 27,1 mm from the
plan de référence et par rapport au centre de l’ampoule reference plane and with respect to the mid-point of the
intérieure, l’excentricité de l’ampoule extérieure doit être inner bulb, the outer bulb shall have an eccentricity of
inférieure à 1 mm. 1 mm max.
Publication CEI 60809
60809-IEC-7110-2
IEC Publication 60809
60809 Amend. 4 © CEI/IEC:2009
LAMPES À DÉCHARGE POUR ROAD VEHICLE

VÉHICULES ROUTIERS DISCHARGE LAMP

FEUILLE DE CARACTÉRISTIQUES DATA SHEET

CATÉGORIE: D1S, D2S, CATEGORY: D1S, D2S,
Page 3
D3S & D4S D3S & D4S
CULOT: PK32d-2, P32d-2, CAP: PK32d-2, P32d-2,
PK32d-5 & P32d-5 PK32d-5 & P32d-5

Le culot doit être poussé dans le sens de la flèche - The cap shall be pushed in this direction
Axe de référence
Reference axis
90º
1)
Figure 5 - Définition de l’axe de référence
1)
Definition of reference axis.
Axe de référence
Reference axis
32,1 25
6,5
55 1
2)
Figure 6 – Encombrement maximal de la lampe
2)
Maximum lamp outline
1) L’axe de référence est perpendiculaire au plan de 1) The reference axis is perpendicular to the reference
référence et passe par l’intersection des deux lignes comme plane and crosses the intersection of the two lines as
indiqué sur la figure 5. indicated in figure 5.

2) L’ampoule et les supports ne doivent pas dépasser 2) Glass bulb and supports shall not exceed the
l’enveloppe indiquée à la figure 6. L’enveloppe est envelope, as indicated in figure 6. The envelope is
concentrique à l’axe de référence. concentric with the reference axis.

60809-IEC-7110-2
Publication CEI 60809
IEC Publication 60809
SIST EN 60809:1996/A4:
...
