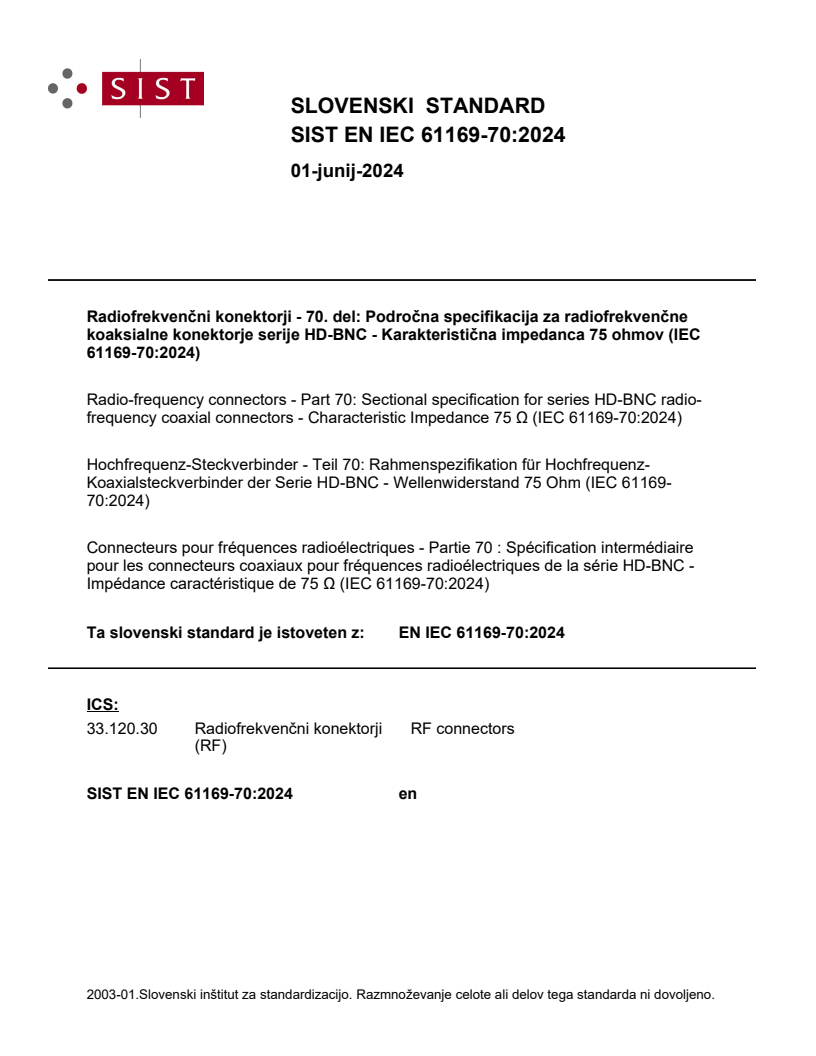

EN IEC 61169-70:2024

SLOVENSKI STANDARD
01-junij-2024
Radiofrekvenčni konektorji - 70. del: Področna specifikacija za radiofrekvenčne
koaksialne konektorje serije HD-BNC - Karakteristična impedanca 75 ohmov (IEC
61169-70:2024)
Radio-frequency connectors - Part 70: Sectional specification for series HD-BNC radio-
frequency coaxial connectors - Characteristic Impedance 75 Ω (IEC 61169-70:2024)
Hochfrequenz-Steckverbinder - Teil 70: Rahmenspezifikation für Hochfrequenz-
Koaxialsteckverbinder der Serie HD-BNC - Wellenwiderstand 75 Ohm (IEC 61169-
70:2024)
Connecteurs pour fréquences radioélectriques - Partie 70 : Spécification intermédiaire
pour les connecteurs coaxiaux pour fréquences radioélectriques de la série HD-BNC -
Impédance caractéristique de 75 Ω (IEC 61169-70:2024)
Ta slovenski standard je istoveten z: EN IEC 61169-70:2024
ICS:
33.120.30 Radiofrekvenčni konektorji RF connectors
(RF)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

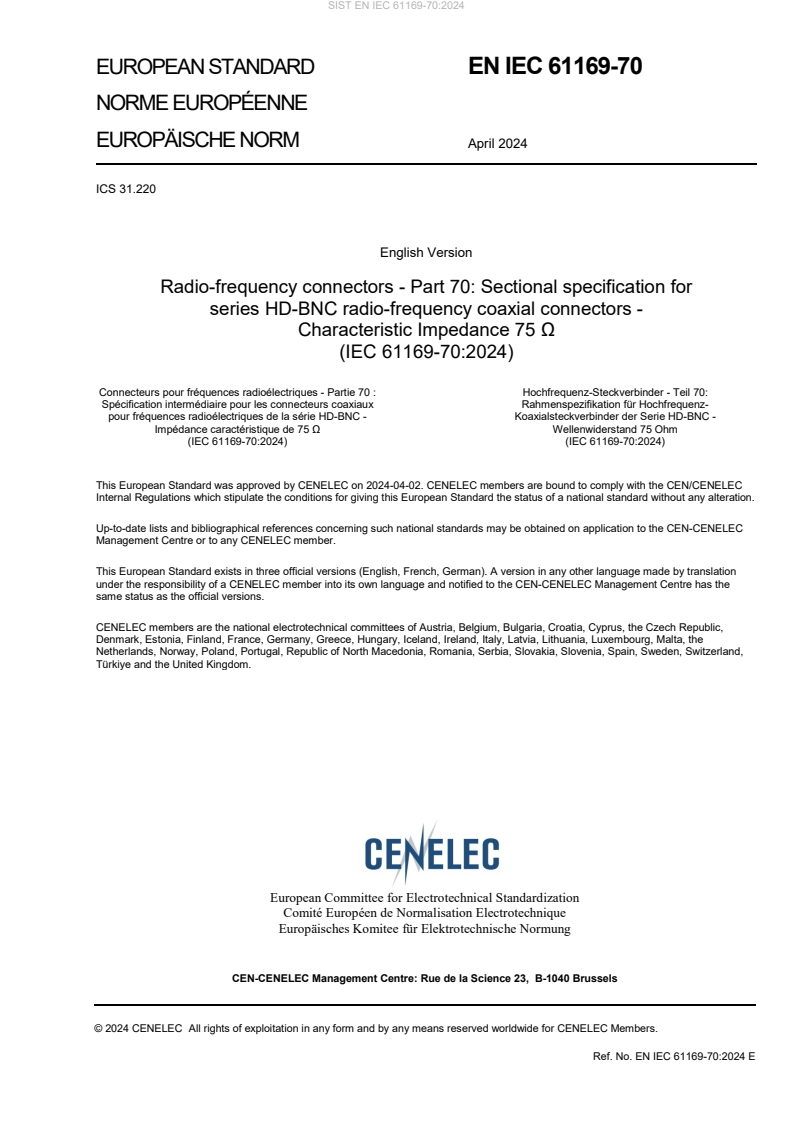

EUROPEAN STANDARD EN IEC 61169-70

NORME EUROPÉENNE
EUROPÄISCHE NORM April 2024
ICS 31.220
English Version
Radio-frequency connectors - Part 70: Sectional specification for
series HD-BNC radio-frequency coaxial connectors -
Characteristic Impedance 75 Ω
(IEC 61169-70:2024)
Connecteurs pour fréquences radioélectriques - Partie 70 : Hochfrequenz-Steckverbinder - Teil 70:
Spécification intermédiaire pour les connecteurs coaxiaux Rahmenspezifikation für Hochfrequenz-
pour fréquences radioélectriques de la série HD-BNC - Koaxialsteckverbinder der Serie HD-BNC -
Impédance caractéristique de 75 Ω Wellenwiderstand 75 Ohm
(IEC 61169-70:2024) (IEC 61169-70:2024)
This European Standard was approved by CENELEC on 2024-04-02. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61169-70:2024 E

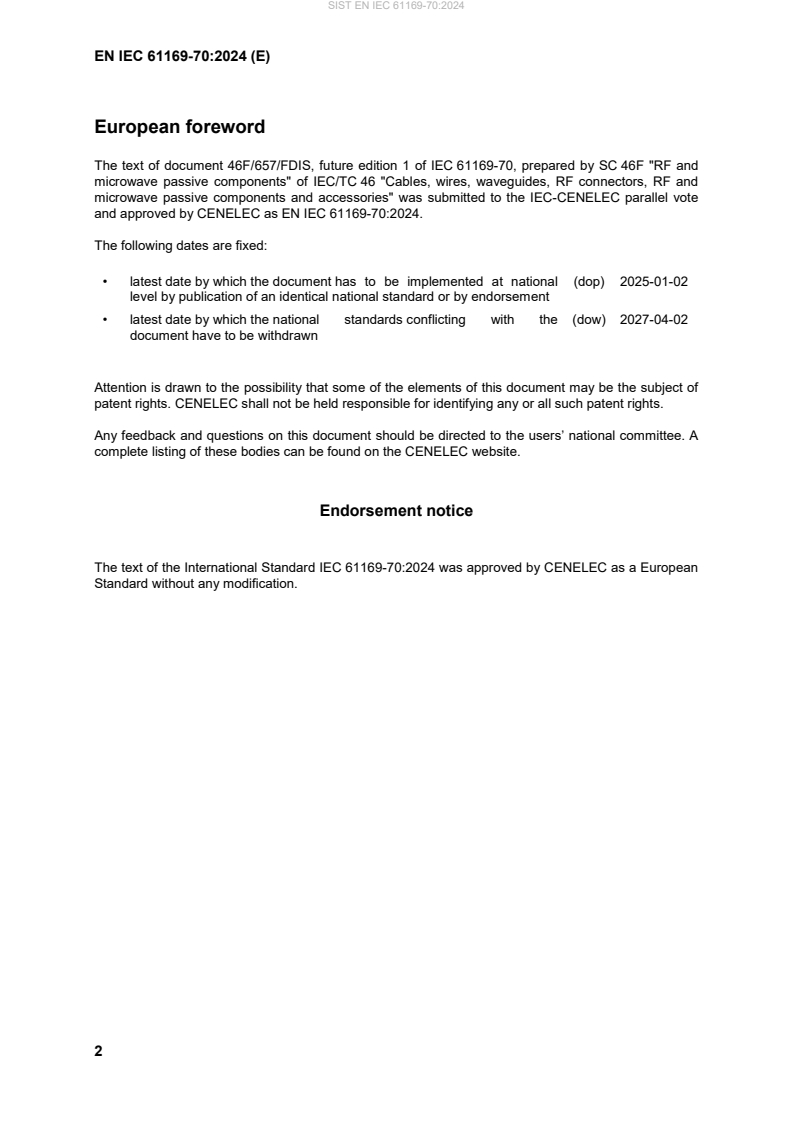

European foreword
The text of document 46F/657/FDIS, future edition 1 of IEC 61169-70, prepared by SC 46F "RF and
microwave passive components" of IEC/TC 46 "Cables, wires, waveguides, RF connectors, RF and
microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 61169-70:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-01-02
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-04-02
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61169-70:2024 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61169-1 2013 Radio frequency connectors - Part 1: EN 61169-1 2013
Generic specification - General
requirements and measuring methods

IEC 61169-70 ®
Edition 1.0 2024-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 70: Sectional specification for series HD-BNC radio-frequency coaxial

connectors – Characteristic Impedance 75 Ω

Connecteurs pour fréquences radioélectriques –

Partie 70 : Spécification intermédiaire pour les connecteurs coaxiaux pour

fréquences radioélectriques de la série HD-BNC – Impédance caractéristique de

75 Ω
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220  ISBN 978-2-8322-8278-6

– 2 – IEC 61169-70:2024 © IEC 2024
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Mating face and gauge information . 5
4.1 Dimensions – General connectors – Grade 1 . 5
4.1.1 Connector with pin-centre contact . 5
4.1.2 Connector with socket-centre contact . 7
4.1.3 Coupling nut details . 9
4.2 Gauges . 11
4.2.1 Gauge pin for socket-centre contact . 11
4.2.2 Gauge for outer contact of plug . 12
5 Quality assessment procedure . 13
5.1 General . 13
5.2 Rating and characteristics (see IEC 61169-1:2013, Clause 5) . 14
5.3 Test schedule and inspection requirements. 16
5.3.1 Acceptance tests . 16
5.3.2 Periodic tests . 16
5.4 Procedures . 17
5.4.1 Quality conformance inspection . 17
5.4.2 Quality conformance and its maintenance . 18
6 Instructions for preparation of detail specifications (DS) . 18
6.1 General . 18
6.2 Identification of the component . 18
6.3 Performance . 18
6.4 Marking, ordering information and related matters . 18
6.5 Selection of tests, test conditions and severities . 19
6.6 Blank detail specification pro forma for series HD-BNC connectors . 19

Figure 1 – Connector with pin-centre contact . 6
Figure 2 – Pin-centre contact . 6
Figure 3 – Connector with socket-centre contact . 8
Figure 4 – Socket- centre contact . 8
Figure 5 – Coupling nut details . 10
Figure 6 – Gauge pin for socket-centre contact . 11
Figure 7 – Gauge for outer contact of plug . 13

Table 1 – Dimensions of connector with pin-centre contact . 7
Table 2 – Dimensions of connector with socket-centre contact . 9
Table 3 – Dimensions of coupling nut . 11
Table 4 – Dimensions of gauge pin for socket-centre contact . 12
Table 5 – Dimensions of outer contact gauge. 13
Table 6 – Rating and characteristics . 14
Table 7 – Acceptance tests . 16
Table 8 – Periodic tests . 16

IEC 61169-70:2024 © IEC 2024 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 70: Sectional specification for series HD-BNC radio-frequency
coaxial connectors – Characteristic impedance 75 Ω

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61169-70 has been prepared by subcommittee 46F: RF and microwave passive
components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF
and microwave passive components and accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46F/657/FDIS 46F/664/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 61169-70:2024 © IEC 2024
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IEC 61169-70:2024 © IEC 2024 – 5 –
RADIO-FREQUENCY CONNECTORS –
Part 70: Sectional specification for series HD-BNC radio-frequency
coaxial connectors – Characteristic impedance 75 Ω

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) of HD-BNC series RF coaxial connectors
together with the pro forma blank detail specification. HD-BNC series connectors with
characteristic impedance of 75 Ω are used with RF cables or micro-strips in microwave,
telecommunication, wireless and other fields. The operating frequency limit is up to 18 GHz.
It also prescribes mating face dimensions for general purpose connectors, gauging information
and tests selected from IEC 61169-1, applicable to all detail specifications relating to series
HD-BNC RF connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a detail specification and it covers test schedules and inspection requirements for
assessment levels M and H.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio frequency connectors − Part 1: Generic specification − General
requirements and measuring methods
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 Mating face and gauge information
4.1 Dimensions – General connectors – Grade 1
4.1.1 Connector with pin-centre contact
The mating face of connector with pin-centre contact is shown in Figure 1 and Figure 2, and its
dimensions are given in Table 1. Metric dimensions are original dimensions. All undimensioned
pictorial information is for reference only.

– 6 – IEC 61169-70:2024 © IEC 2024

For dimensions, see Table 1.
NOTE Mechanical and electrical reference plane.
Figure 1 – Connector with pin-centre contact

For dimensions, see Table 1.
Figure 2 – Pin-centre contact
IEC 61169-70:2024 © IEC 2024 – 7 –
Table 1 – Dimensions of connector with pin-centre contact
mm
Ref. Notes
Min Max
Reference – Dimension to meet
a 3,73
gauge test per 4.2.2
b 3,61 Ref – Dimension to meet gauge test
c 3,49 Ref – Dimension to meet gauge test
d 2,80 2,85 Inner diameter of outer contact
e 3,71 -- Insulator
f 0,28 0,62
g 4,80 4,88
h 0,36 0,39
i 30° Angle
j 0,80 Ref
k 45° Angle
l 2,50 --
m -- 0,10 Flat
4.1.2 Connector with socket-centre contact
The mating face of connector with socket-centre contact is shown in Figure 3 and Figure 4, and
its dimensions are given in Table 2. Metric dimensions are original dimensions. All
undimensioned pictorial information is for reference only.

– 8 – IEC 61169-70:2024 © IEC 2024

For dimensions, see Table 2.
NOTE Mechanical and electrical reference plane.
Figure 3 – Connector with socket-centre contact

For dimensions, see Table 2.
NOTE Socket contact configuration to meet electrical and mechanical requirements.
Figure 4 – Socket- centre contact

IEC 61169-70:2024 © IEC 2024 – 9 –
Table 2 – Dimensions of connector with socket-centre contact
mm
Ref. Notes
Min Max
a 4,52 4,58
b 3,56 3,62
c -- 1,75
d 5,66 5,76
e 3,10 3,20
f 1,35 1,45
g 1,25 --
h 0,42 --
i 20° Angle
j 2,45 2,65 Contact
k 0,45 0,55
l -- 3,48
m 4,03 4,09
p 2,86 --
q 0,80
4.1.3 Coupling nut details
The details of the coupling nut for the pin-centre contact connector are shown in Figure 5, and
its dimensions are given in Table 3. Metric dimensions are original dimensions. All
undimensioned pictorial information is for reference only.

– 10 – IEC 61169-70:2024 © IEC 2024

For dimensions, see Table 3.
NOTE Front face.
Figure 5 – Coupling nut details

IEC 61169-70:2024 © IEC 2024 – 11 –
Table 3 – Dimensions of coupling nut
Ref. mm Notes
Min Max
a 6,30 6,35
b 3,10 3,20
c 1,62 Typical
d 0,81 Typical
e 4,62 4,72
f 7,65 7,85
g 2,48 2,58
h 0,55 Reference
i R 0,76 R 0,86 Typical
j 45° Reference Typical
k 0,92 Reference
l 0,77 0,87
m 1,58 1,68
n 3,02 3,12
o 4,65 4,75
4.2 Gauges
4.2.1 Gauge pin for socket-centre contact
4.2.1.1 Gauge pin dimensions
The gauge pin for socket contacts is shown in Figure 6, and its dimensions are given in Table 4.
Metric dimensions are original dimensions. All undimensioned pictorial information is for
reference only.
For dimensions, see Table 4.
Figure 6 – Gauge pin for socket-centre contact

– 12 – IEC 61169-70:2024 © IEC 2024
Table 4 – Dimensions of gauge pin for socket-centre contact
Gauge A Gauge B
