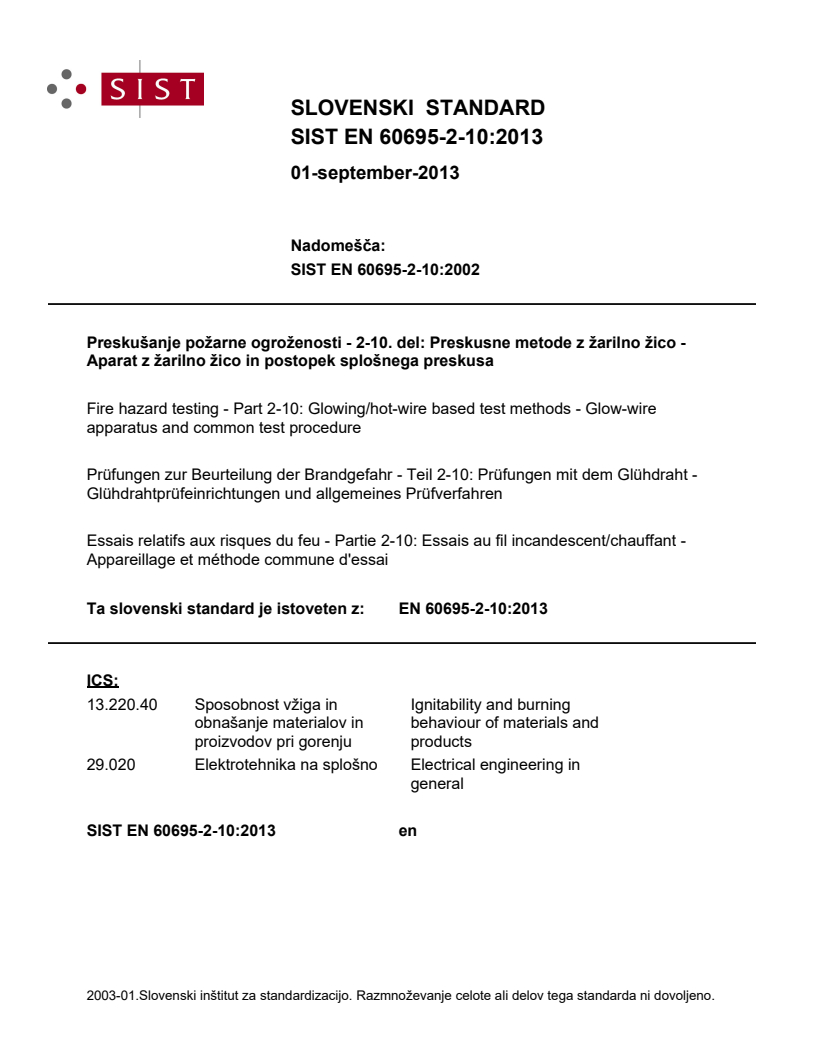

SLOVENSKI STANDARD
01-september-2013
1DGRPHãþD
SIST EN 60695-2-10:2002
Preskušanje požarne ogroženosti - 2-10. del: Preskusne metode z žarilno žico -
Aparat z žarilno žico in postopek splošnega preskusa
Fire hazard testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire
apparatus and common test procedure
Prüfungen zur Beurteilung der Brandgefahr - Teil 2-10: Prüfungen mit dem Glühdraht -
Glühdrahtprüfeinrichtungen und allgemeines Prüfverfahren
Essais relatifs aux risques du feu - Partie 2-10: Essais au fil incandescent/chauffant -
Appareillage et méthode commune d'essai
Ta slovenski standard je istoveten z: EN 60695-2-10:2013
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
29.020 Elektrotehnika na splošno Electrical engineering in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

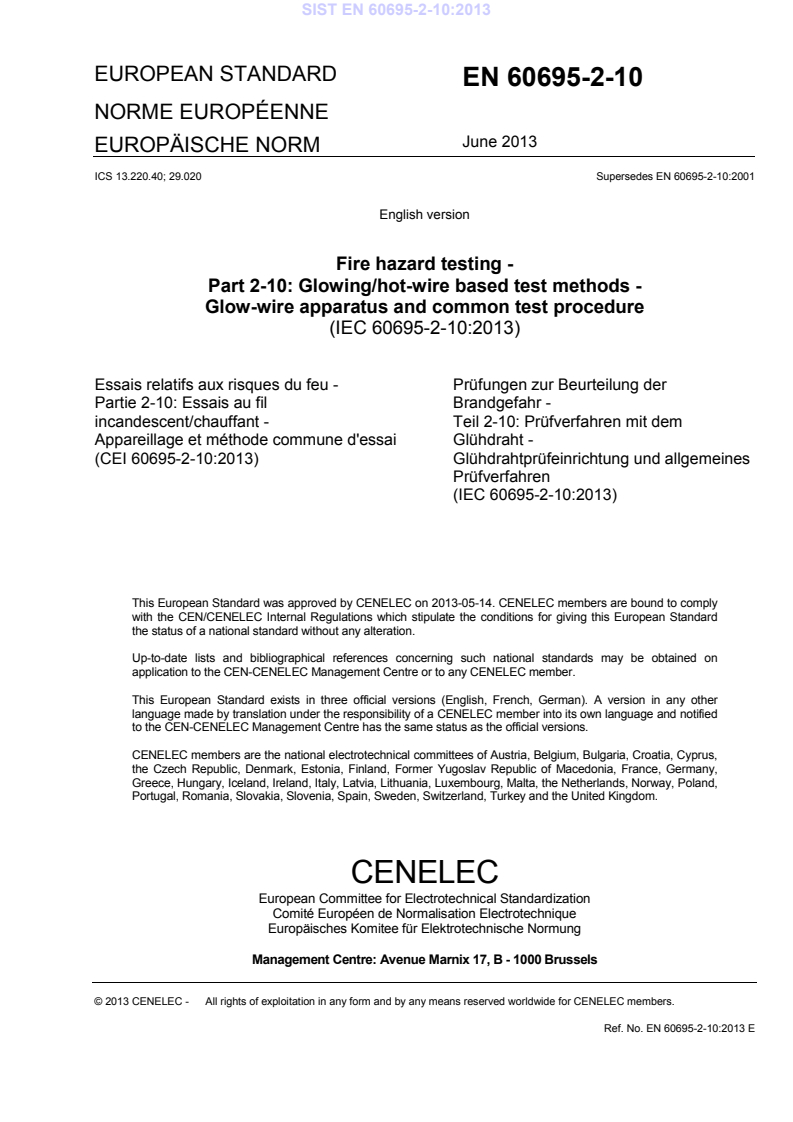

EUROPEAN STANDARD
EN 60695-2-10
NORME EUROPÉENNE
June 2013
EUROPÄISCHE NORM
ICS 13.220.40; 29.020 Supersedes EN 60695-2-10:2001
English version
Fire hazard testing -
Part 2-10: Glowing/hot-wire based test methods -
Glow-wire apparatus and common test procedure
(IEC 60695-2-10:2013)
Essais relatifs aux risques du feu - Prüfungen zur Beurteilung der
Partie 2-10: Essais au fil Brandgefahr -
incandescent/chauffant - Teil 2-10: Prüfverfahren mit dem
Appareillage et méthode commune d'essai Glühdraht -
(CEI 60695-2-10:2013) Glühdrahtprüfeinrichtung und allgemeines
Prüfverfahren
(IEC 60695-2-10:2013)
This European Standard was approved by CENELEC on 2013-05-14. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60695-2-10:2013 E

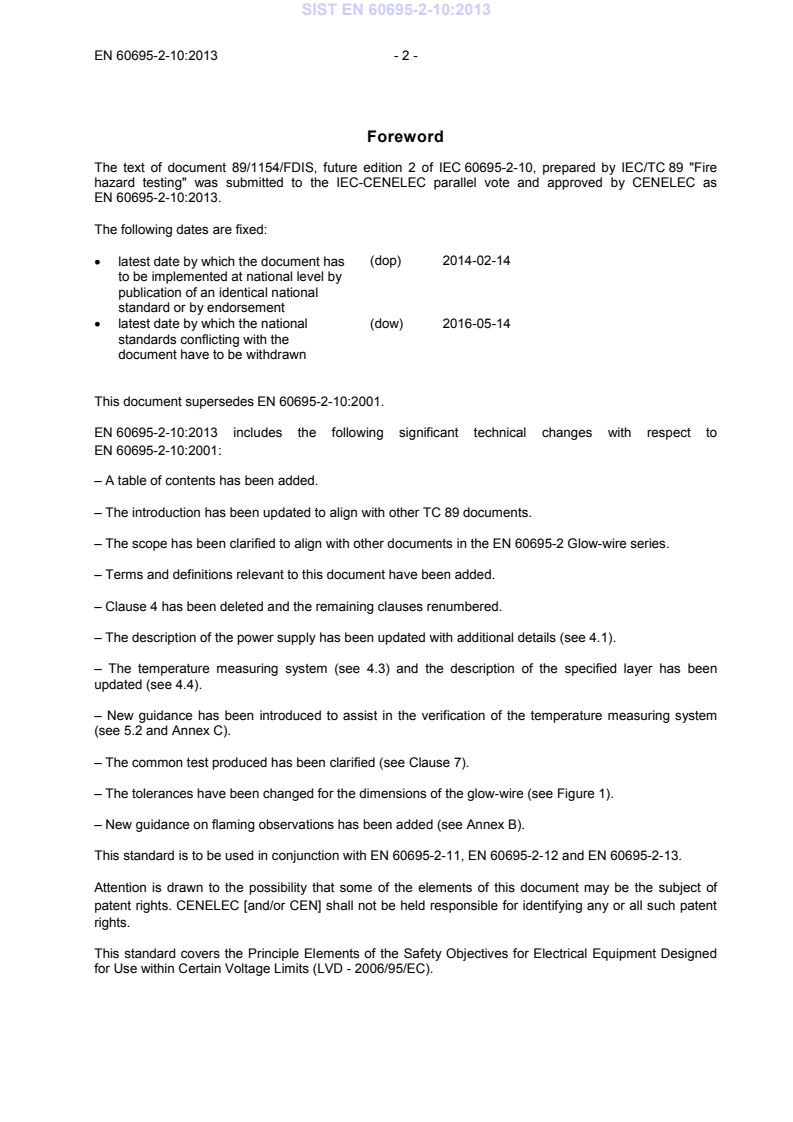

Foreword
The text of document 89/1154/FDIS, future edition 2 of IEC 60695-2-10, prepared by IEC/TC 89 "Fire
hazard testing" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has (dop) 2014-02-14
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2016-05-14
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60695-2-10:2001.
EN 60695-2-10:2001:
– A table of contents has been added.
– The introduction has been updated to align with other TC 89 documents.
– The scope has been clarified to align with other documents in the EN 60695-2 Glow-wire series.
– Terms and definitions relevant to this document have been added.
– Clause 4 has been deleted and the remaining clauses renumbered.
– The description of the power supply has been updated with additional details (see 4.1).
– The temperature measuring system (see 4.3) and the description of the specified layer has been
updated (see 4.4).
– New guidance has been introduced to assist in the verification of the temperature measuring system
(see 5.2 and Annex C).
– The common test produced has been clarified (see Clause 7).
– The tolerances have been changed for the dimensions of the glow-wire (see Figure 1).
– New guidance on flaming observations has been added (see Annex B).
This standard is to be used in conjunction with EN 60695-2-11, EN 60695-2-12 and EN 60695-2-13.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed
for Use within Certain Voltage Limits (LVD - 2006/95/EC).
- 3 - EN 60695-2-10:2013
Endorsement notice
The text of the International Standard IEC 60695-2-10:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60695-1-10 NOTE Harmonised as EN 60695-1-10.
IEC 60695-1-11 NOTE Harmonised as EN 60695-1-11.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60584-1 - Thermocouples - EN 60584-1 -
Part 1: Reference tables
IEC 60584-2 - Thermocouples - EN 60584-2 -
Part 2: Tolerances
IEC 60695-2-11 - Fire hazard testing - EN 60695-2-11 -
Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test method
for end-products
IEC 60695-2-12 - Fire hazard testing - EN 60695-2-12 -
Part 2-12: Glowing/hot-wire based test
methods - Glow-wire flammability index
(GWFI) test method for materials
IEC 60695-2-13 - Fire hazard testing - EN 60695-2-13 -
Part 2-13: Glowing/hot-wire based test
methods - Glow-wire ignition temperature
(GWIT) test method for materials
IEC Guide 104 2010 The preparation of safety publications and the - -
use of basic safety publications and group
safety publications
ISO/IEC Guide 51 1999 Safety aspects - Guidelines for their inclusion - -
in standards
ISO 4046-4 2002 Paper, board, pulps and related terms - - -
Vocabulary -
Part 4: Paper and board grades and
converted products
ISO 13943 2008 Fire safety - Vocabulary EN ISO 13943 2010
IEC 60695-2-10 ®
Edition 2.0 2013-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ
Fire hazard testing –
Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and
common test procedure
Essais relatifs aux risques du feu –
Partie 2-10: Essais au fil incandescent/chauffant – Appareillage et méthode
commune d’essai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX S
ICS 13.220.40; 29.020 ISBN 978-2-83220-716-1
– 2 – 60695-2-10 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Description of the test apparatus . 8
4.1 Glow-wire . 8
4.2 Test circuit and connections . 8
4.3 Temperature measuring system. 9
4.4 Specified layer . 9
4.5 Test chamber . 9
4.6 Timing device . 10
5 Verification of the apparatus . 10
5.1 Verification of the glow-wire tip . 10
5.2 Verification of the temperature measuring system . 10
6 Conditioning . 10
7 Common test procedure . 10
7.1 Test specimen support . 10
7.2 Glow-wire temperature . 11
7.3 Application of the glow-wire . 11
Annex A (informative) Equipment manufacturers and suppliers . 16
Annex B (informative) Guidance on “ignition” and “flaming” observations . 17
Annex C (informative) Guidance on the verification procedure of the glow-wire
temperature measuring system by the heating current . 19
Bibliography . 21
Figure 1 – Glow-wire and position of thermocouple . 12
Figure 2 – Test circuit . 12
Figure 3 – Test apparatus examples . 14
Figure 4 – Test specimen support (example – see Figures 3a and 3b) . 15
Figure B.1 – Example of a brightly shining flame . 17
Figure B.2 – Example of a blue corona at the glow-wire tip . 18
Figure B.3 – Example of a blue corona near the glow-wire tip . 18
Figure C.1 – Correlation curve between the heating current and the glow-wire
temperature (example) . 20
60695-2-10 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIRE HAZARD TESTING –
Part 2-10: Glowing/hot-wire based test methods –
Glow-wire apparatus and common test procedure
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sens
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
