EN 61810-1:2015
(Main)Electromechanical elementary relays - Part 1: General and safety requirements
Electromechanical elementary relays - Part 1: General and safety requirements
IEC 61810-1:2015 applies to electromechanical elementary relays (non-specified time all-or-nothing relays) for incorporation into low voltage equipment (circuits up to 1 000 V alternate current or 1 500 V direct current). It defines the basic functional and safety requirements and safety-related aspects for applications in all areas of electrical engineering or electronics, such as: general industrial equipment, electrical facilities, electrical machines, electrical appliances for household and similar use, information technology and business equipment, building automation equipment, automation equipment, electrical installation equipment, medical equipment, control equipment, telecommunications, vehicles, transportation (e.g. railways). Compliance with the requirements of this standard is verified by the type tests indicated. In case the application of a relay determines additional requirements exceeding those specified in this standard, the relay should be assessed in line with this application in accordance with the relevant IEC standard(s). This fourth edition cancels and replaces the third edition published in 2008. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - two main test procedures were introduced: procedure A, reflecting the procedure known from Edition 3 of this standard and procedure B, reflecting the assessment according to North American requirements; - inclusion of dedicated device application tests especially relevant for applications in the North American Market (see Clause D.1); - introduction of testing under single mounting condition; - clarification of insulation requirements after endurance testing; - inclusion of provisions for basic safety requirements; - update of references.
Elektromechanische Elementarrelais - Teil 1: Allgemeine und Sicherheitsanforderungen
Relais électromécaniques élémentaires - Partie 1: Exigences générales et de sécurité
L'IEC 61810-1:2015 s'applique aux relais électromécaniques élémentaires (relais de tout ou rien à temps non spécifié) destinés à être incorporés dans des matériels basse tension (circuits jusqu'à 1 000 V en courant alternatif ou 1 500 V en courant continu). Elle définit les exigences fondamentales fonctionnelles et de sécurité ainsi que les aspects liés à la sécurité, destinés à être appliqués dans tous les domaines de l'électrotechnique ou de l'électronique, tels que: l'équipement industriel général, les installations électriques, les machines électriques, les appareils électriques pour usages domestiques et analogues, les matériels de traitement de l'information et les matériels de bureau, les automatismes du bâtiment, les appareils d'automatisme, les appareils pour installations électriques, les appareils médicaux, le matériel de contrôle, les télécommunications, les véhicules, le transport (par exemple, chemins de fer). La conformité aux exigences de la présente norme est vérifiée par les essais de type indiqués. Au cas où l'application d'un relais détermine des exigences supplémentaires dépassant celles spécifiées dans la présente norme, il convient que le relais soit évalué par rapport à cette application, conformément à la ou aux normes IEC correspondantes. Cette quatrième édition annule et remplace la troisième édition parue en 2008. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - introduction de deux procédures d essai principales: procédure A qui reflète la procédure de l'édition 3 de la présente norme et procédure B qui reflète l'évaluation réalisée conformément aux exigences nord-américaines; - inclusion d'essais pour des appareils dédiés à des applications particulièrement appropriées aux applications sur le marché nord-américain (voir Article D.1); - introduction des essais dans des conditions de montage simple; - clarification des exigences d'isolation après les essais d'endurance; - inclusion de dispositions applicables aux exigences de sécurité de base; - mise à jour des références.
Elektromehanski osnovni releji - 1. del: Splošne in varnostne zahteve (IEC 61810-1:2015)
Ta del standarda IEC 61810 se uporablja za elektromehanske osnovne releje (neopredeljene časovne stikalne releje) za vgradnjo v nizkonapetostno opremo (tokokrogi do 1000 V izmeničnega toka ali 1500 C enosmernega toka). Določa osnovne funkcionalne in varnostne zahteve ter z varnostjo povezane vidike za uporabe na vseh področjih elektroinženiringa ali elektronike, kot so:
• splošna industrijska oprema,
• električni objekti,
• električni stroji,
• električni aparati za gospodinjsko in podobno uporabo,
• informacijska tehnologija in poslovna oprema,
• gradbena avtomatizacijska oprema,
• avtomatizacijska oprema,
• električna namestitvena oprema,
• medicinska oprema,
• nadzorna oprema,
• telekomunikacije,
• vozila,
• prevoz (npr. železnice).
Skladnost z zahtevami iz tega standarda se preveri z navedenimi tipskimi preskusi. Če uporaba releja določa dodatne zahteve, ki presegajo zahteve iz tega standarda, je treba rele oceniti v skladu s to uporabo glede na skladnost z ustreznimi standardi IEC (npr. IEC 60730-1, IEC 60335-1, IEC 60950-1).
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2015
1DGRPHãþD
SIST EN 61810-1:2008
Elektromehanski osnovni releji - 1. del: Splošne in varnostne zahteve (IEC 61810-
1:2015)
Electromechanical elementary relays - Part 1: General and safety requirements (IEC
61810-1:2015)
Electromechanical elementary relays - Part 1: General and safety requirements (IEC
61810-1:2015)
Relais électromécaniques élémentaires - Partie 1: Exigences générales et de sécurité
(IEC 61810-1:2015)
Ta slovenski standard je istoveten z: EN 61810-1:2015
ICS:
29.120.70 Releji Relays
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

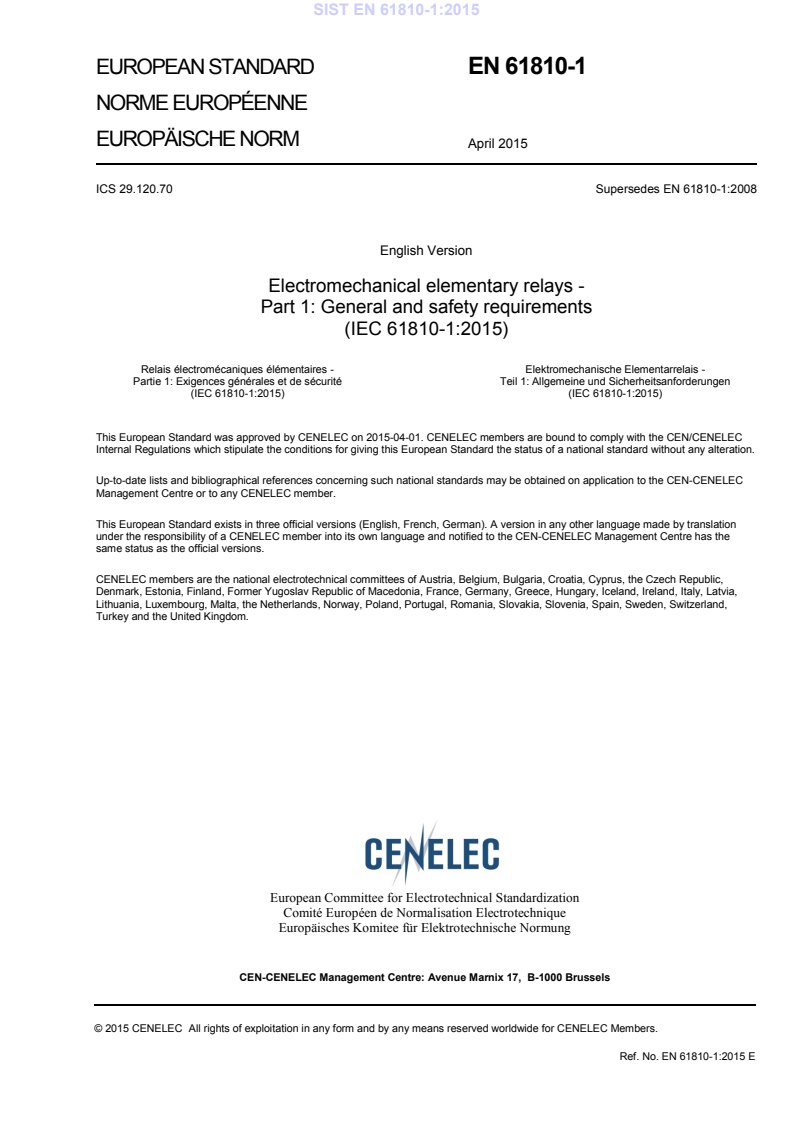

EUROPEAN STANDARD EN 61810-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2015
ICS 29.120.70 Supersedes EN 61810-1:2008
English Version
Electromechanical elementary relays -
Part 1: General and safety requirements
(IEC 61810-1:2015)
Relais électromécaniques élémentaires - Elektromechanische Elementarrelais -
Partie 1: Exigences générales et de sécurité Teil 1: Allgemeine und Sicherheitsanforderungen
(IEC 61810-1:2015) (IEC 61810-1:2015)
This European Standard was approved by CENELEC on 2015-04-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61810-1:2015 E

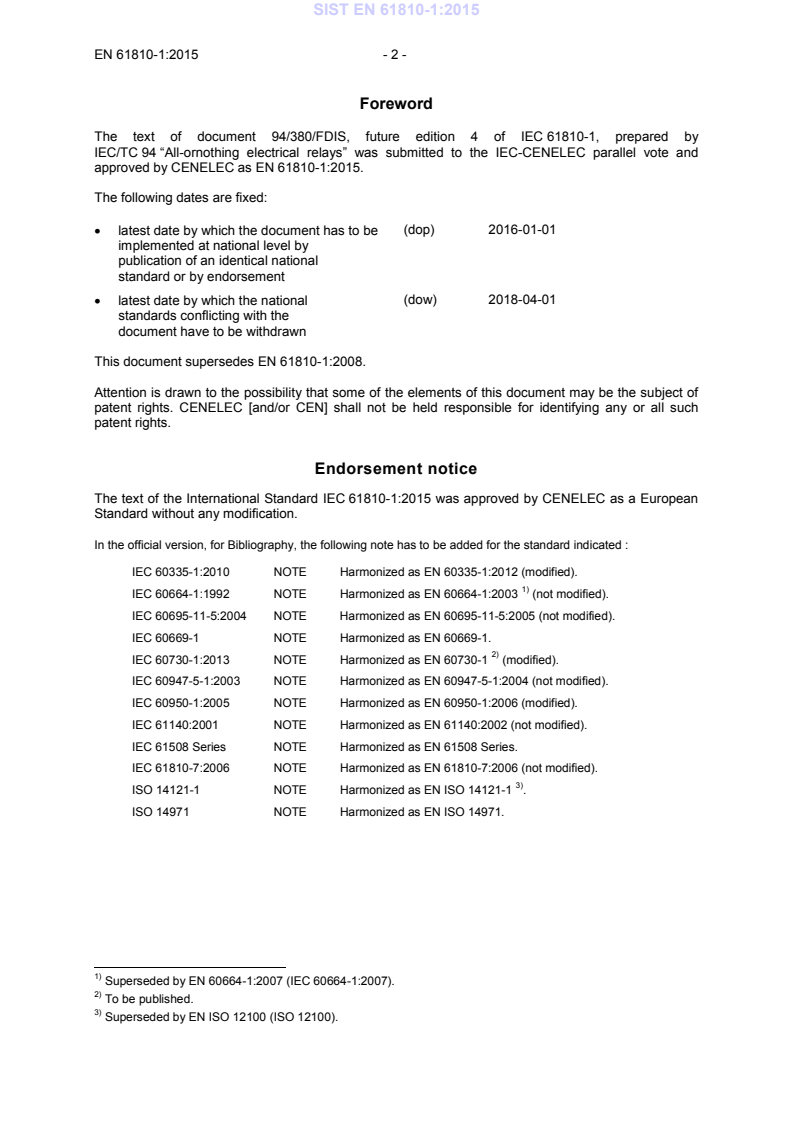

Foreword
The text of document 94/380/FDIS, future edition 4 of IEC 61810-1, prepared by
IEC/TC 94 “All-ornothing electrical relays” was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 61810-1:2015.
The following dates are fixed:
(dop) 2016-01-01
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2018-04-01
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61810-1:2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 61810-1:2015 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated :
IEC 60335-1:2010 NOTE Harmonized as EN 60335-1:2012 (modified).
1)
IEC 60664-1:1992 NOTE Harmonized as EN 60664-1:2003 (not modified).
IEC 60695-11-5:2004 NOTE Harmonized as EN 60695-11-5:2005 (not modified).
IEC 60669-1 NOTE Harmonized as EN 60669-1.
2)
IEC 60730-1:2013 NOTE Harmonized as EN 60730-1 (modified).
IEC 60947-5-1:2003 NOTE Harmonized as EN 60947-5-1:2004 (not modified).
IEC 60950-1:2005 NOTE Harmonized as EN 60950-1:2006 (modified).
IEC 61140:2001 NOTE Harmonized as EN 61140:2002 (not modified).
IEC 61508 Series NOTE Harmonized as EN 61508 Series.
IEC 61810-7:2006 NOTE Harmonized as EN 61810-7:2006 (not modified).
3)
ISO 14121-1 NOTE Harmonized as EN ISO 14121-1 .
ISO 14971 NOTE Harmonized as EN ISO 14971.
1)
Superseded by EN 60664-1:2007 (IEC 60664-1:2007).
2)
To be published.
3)
Superseded by EN ISO 12100 (ISO 12100).
- 3 - EN 61810-1:2015
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year
IEC 60038 (mod) 2009 IEC standard voltages EN 60038 2011
IEC 60050 Series International Electrotechnical Vocabulary - -
(IEV)
IEC 60068-2-2 2007 Environmental testing - EN 60068-2-2 2007
Part 2-2: Tests - Test B: Dry heat
IEC 60068-2-17 1994 Basic environmental testing procedures - EN 60068-2-17 1994
Part 2-17: Tests - Test Q: Sealing
IEC 60068-2-20 2008 Environmental testing - EN 60068-2-20 2008
Part 2-20: Tests - Test T: Test methods for
solderability and resistance to soldering
heat of devices with leads
IEC 60079-15 2010 Explosive atmospheres - EN 60079-15 2010
Part 15: Equipment protection by type of
protection "n"
IEC 60085 2007 Electrical insulation - Thermal evaluation EN 60085 2008
and designation
IEC 60099-1 - Surge arresters - EN 60099-1 -
Part 1: Non-linear resistor type gapped
surge arresters for a.c. systems
IEC 60112 2003 Method for the determination of the proof EN 60112 2003
and the comparative tracking indices of
solid insulating materials
IEC 60364-4-44 2007 Low-voltage electrical installations - HD 60364-4-442 2012
(mod) Part 4-44: Protection for safety - Protection
against voltage disturbances and
electromagnetic disturbances
IEC 60417-DB - Graphical symbols for use on equipment - -
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems -
Part 1: Principles, requirements and tests
Publication Year Title EN/HD Year
IEC 60664-3 2003 Insulation coordination for equipment EN 60664-3 2003
within low-voltage systems -
Part 3: Use of coating, potting or moulding
for protection against pollution
IEC 60664-4 2005 Insulation coordination for equipment EN 60664-4 2006
within low-voltage systems - + corr. October 2006
Part 4: Consideration of high-frequency
voltage stress
IEC 60664-5 2007 Insulation coordination for equipment EN 60664-5 2007
within low-voltage systems -
Part 5: Comprehensive method for
determining clearances and creepage
distances equal to or less than 2 mm
IEC 60695-2-10 2013 Fire hazard testing - EN 60695-2-10 2013
Part 2-10: Glowing/hot-wire based test
methods - Glow-wire apparatus and
common test procedure
1)
IEC 60695-2-11 2000 Fire hazard testing - EN 60695-2-11 2001
Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test
method for end-products
IEC 60695-2-12 2010 Fire hazard testing - EN 60695-2-12 2010
Part 2-12: Glowing/hot-wire based test
methods - Glow-wire flammability index
(GWFI) test method for materials
IEC 60695-2-13 2010 Fire hazard testing - EN 60695-2-13 2010
Part 2-13: Glowing/hot-wire based test
methods - Glow-wire ignition temperature
(GWIT) test method for materials
2)
IEC 60695-10-2 2003 Fire hazard testing - EN 60695-10-2 2003
Part 10-2: Abnormal heat - Ball pressure
test
IEC 60721-3-3 1994 Classification of environmental conditions - EN 60721-3-3 1995
- Part 3: Classification of groups of
+A1 1995 - -
environmental parameters and their
+A2 1996 +A2 1997
severities -
Section 3: Stationary use at
weatherprotected locations
IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for
screw-type and screwless-type clamping
units -
Part 1: General requirements and
particular requirements for clamping units
for conductors from 0,2 mm² up to 35 mm²
(included)
1)
Superseded by EN 60695-2-11:2014 (IEC 60695-2-11:2014): dow = 2017-03-13.
2)
Superseded by EN 60695-10-2:2014 (IEC 60695-10-2:2014): dow = 2017-03-26.
- 5 - EN 61810-1:2015
Publication Year Title EN/HD Year
IEC 61210 (mod) 2010 Connecting devices - Flat quick-connect EN 61210 2010
terminations for electrical copper
conductors - Safety requirements
IEC 61760-1 2006 Surface mounting technology - EN 61760-1 2006
Part 1: Standard method for the
specification of surface mounting
components (SMDs)
IEC 61984 2008 Connectors - Safety requirements and EN 61984 2009
tests
IEC 61810-1 ®
Edition 4.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electromechanical elementary relays –
Part 1: General and safety requirements
Relais électromécaniques élémentaires –
Partie 1: Exigences générales et de sécurité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.70 ISBN 978-2-8322-2322-2
– 2 – IEC 61810-1:2015 © IEC 2015
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 11
3.1 Terms and definitions related to general terms . 11
3.2 Terms and definitions of relay types . 12
3.3 Terms and definitions related to conditions and operations . 13
3.4 Terms and definitions of operating values . 15
3.5 Terms and definitions related to contacts . 16
3.6 Terms and definitions related to accessories. 19
3.7 Terms and definitions related to insulation . 19
4 Influence quantities . 21
5 Rated values . 22
5.1 General . 22
5.2 Rated coil voltage/rated coil voltage range . 22
5.3 Operative range . 22
5.4 Release . 23
5.5 Reset . 23
5.6 Electrical endurance . 23
5.7 Frequency of operation . 23
5.8 Contact loads . 23
5.9 Ambient temperature . 24
5.10 Categories of environmental protection . 24
5.11 Duty factor . 24
6 General provisions for testing . 24
7 Documentation and marking . 27
7.1 Data . 27
7.2 Additional data . 28
7.3 Marking . 28
7.4 Symbols . 29
8 Heating .
...
