(Main)Safety requirements for power electronic converter systems and equipment - Part 1: General
Safety requirements for power electronic converter systems and equipment - Part 1: General
IEC 62477-1:2022 applies to power electronic converter systems (PECS), any specified accessories, and their components for electronic power conversion and electronic power switching, including the means for their control, protection, monitoring and measurement, such as with the main purpose of converting electric power, with rated system voltages not exceeding 1 000 V AC or 1 500 V DC. This document also applies to PECS which intentionally emit or receive radio waves for the purpose of radio communication. This document can also be used as a reference standard for product committees producing product standards for: - adjustable speed electric power drive systems (PDS); - standalone uninterruptible power systems (UPS); - low voltage - stabilized DC power supplies; - bidirectional power converters. For PECS and their specified accessories for which no product standard exists, this document provides minimum requirements for safety aspects. This document has the status of a group safety publication in accordance with IEC Guide 104 for power electronic converter systems for solar, wind, tidal, wave, fuel cell or similar energy sources. According to IEC Guide 104, one of the responsibilities of technical committees is, wherever applicable, to make use of basic safety publications and/or group safety publications in the preparation of their product standards. Guidance for use of this group safety publication for product committees is given in Annex S. This document - establishes a common terminology for safety aspects relating to PECS, - establishes minimum requirements for the coordination of safety aspects of interrelated parts within a PECS, - establishes a common basis for minimum safety requirements for the PECS portion of products that contain PECS, - specifies requirements to reduce risks of fire, electric shock, thermal, energy and mechanical hazards, during use and operation and, where specifically stated, during service and maintenance, and - specifies minimum requirements to reduce risks with respect to PECS designed as pluggable and permanently connected equipment, whether it consists of a system of interconnected units or independent units, subject to installing, operating and maintaining the PECS in the manner prescribed by the manufacturer. This document does not cover - telecommunications apparatus other than power supplies to such apparatus, - functional safety aspects as covered by, for example, IEC 61508 (all parts), and - electrical equipment and systems for railways applications and electr
Sicherheitsanforderungen an Leistungselektronik-Umrichtersysteme und -betriebsmittel - Teil 1: Allgemeines
Exigences de sécurité applicables aux systèmes et matériels électroniques de conversion de puissance - Partie 1: Généralités
L'IEC 62477-1:2022 s'applique aux systèmes électroniques de conversion de puissance (PECS), à tout accessoire spécifié, ainsi qu'à leurs composants pour la conversion de puissance électronique et la commande (ouverture et fermeture) électronique de puissance, y compris les moyens de commande, de protection, de surveillance et de mesure, qui ont pour principale fonction la conversion de puissance électrique, d'une tension système assignée qui ne dépasse pas 1 000 V en courant alternatif ou 1 500 V en courant continu. Le présent document s'applique également aux PECS qui émettent ou reçoivent intentionnellement des ondes radioélectriques à des fins de radiocommunication. Le présent document peut également être utilisé comme norme de référence par les comités de produits qui élaborent des normes de produits applicables aux:
systèmes d'entraînement électrique de puissance à vitesse variable (PDS, Power Drive Systems);
alimentations sans interruption (ASI) autonomes;
alimentations stabilisées basse tension en courant continu;
convertisseurs de puissance bidirectionnels. Pour les PECS et leurs accessoires spécifiés pour lesquels il n'existe pas de norme de produits, le présent document spécifie des exigences minimales pour les aspects de sécurité. Le présent document a le statut d'une publication groupée de sécurité conformément au Guide 104 de l'IEC applicable aux systèmes électroniques de conversion de puissance pour énergie solaire, éolienne, des marées, des vagues, des piles à combustible ou sources d'énergie analogues. Conformément au Guide 104 de l'IEC, il incombe aux comités d'études d'utiliser, dans toute la mesure du possible, les publications fondamentales de sécurité et/ou les publications groupées de sécurité pour l'élaboration de leurs normes de produits. Les recommandations relatives à l'utilisation de la présente publication groupée de sécurité pour les comités de produits sont données à l'Annexe S. Le présent document
établit une terminologie commune applicable aux aspects de sécurité concernant les matériels et les PECS,
établit les exigences minimales pour la coordination des aspects de sécurité des parties interconnectées au sein d'un PECS,
établit une base commune applicable aux exigences minimales de sécurité de la partie du convertisseur électronique de puissance (PEC) des produits qui comprennent un PECS,
spécifie les exigences qui permettent de réduire les risques d'incendie, de choc électrique, les dangers thermiques, mécaniques et dus à l'énergie électrique, en cours d'utilisation et de fonctionnement et, lorsque cela est spécifiquement indiqué, au cours des opérations d'entretien et de maintenance, et
Varnostne zahteve za močnostne elektronske pretvorniške sisteme in opreme - 1. del: Splošno (IEC 62477-1:2022)
Ta del standarda IEC 62477 se nanaša na močnostne električne pretvorniške sisteme (PECS), posebno dodatno opremo in njihove dele za električno močnostno pretvorbo in električno močnostno preklapljanje, vključno s sredstvi za njihov nadzor, zaščito, spremljanje in merjenje, kot z glavnim namenom za pretvorbo električne energije z nazivnimi sistemskimi izmeničnimi napetostmi največ 1000 V oziroma sistemskimi enosmernimi napetostmi največ 1500 V.
Ta dokument se uporablja tudi za električne močnostne pretvorniške sisteme, ki namenoma oddajajo ali sprejemajo radijske valove za namene radijske komunikacije.
Ta dokument lahko kot referenčni standard uporabljajo odbori za proizvode, ki pripravljajo standarde za proizvode za:
• električne pogonske sisteme z nastavljivo hitrostjo (PDS);
• samostojne sisteme za neprekinjeno napajanje (UPS);
• nizkonapetostne napajalnike za stabilizirano napajanje z enosmernim tokom;
• dvosmerne močnostne pretvornike.
Ta dokument določa minimalne varnostne zahteve za močnostne električne pretvorniške sisteme in njihovo posebno dodatno opremo, ki nimajo določenega standarda za proizvod.
Ta dokument ima status publikacije skupinske varnosti, ki je v skladu z vodilom IEC 104 za električne močnostne pretvorniške sisteme na osnovi sonca, vetra, plimovanja, valovanja, gorivnih celic ali podobnih virov.
Glede na vodilo IEC 104 je ena od dolžnosti tehničnih odborov, da pri pripravi standardov za proizvode uporabijo osnovne varnostne publikacije in/ali publikacije skupinske varnosti, če je to mogoče.
Napotki za uporabo te publikacije skupinske varnosti za odbore za proizvode so podani v dodatku S.
Ta dokument
• vzpostavlja skupno terminologijo za varnostne vidike v zvezi z močnostnimi električnimi pretvorniškimi sistemi,
• določa minimalne zahteve za usklajevanje varnostnih vidikov medsebojno povezanih delov znotraj močnostnih električnih pretvorniških sistemov,
• vzpostavlja skupno osnovo za minimalne varnostne zahteve za tiste delov proizvodov, ki vsebujejo močnostne električne pretvorniške sisteme,
• določa zahteve za zmanjšanje tveganja požara, električnega udara, toplotnih, energijskih in mehaničnih tveganj med uporabo, delovanjem ter, kjer je to navedeno, popravilom in vzdrževanjem, in
• določa minimalne zahteve za zmanjšanje tveganja v zvezi z močnostnimi električnimi pretvorniškimi sistemi, zasnovanimi kot oprema, ki se priklopi ali je stalno priklopljena, če je sestavljena iz sistema vzajemno povezanih enot ali samostojnih enot, upoštevajoč namestitev, uporabo in vzdrževanje močnostnih električnih pretvorniških sistemov, na način, ki ga je predpisal proizvajalec.
Ta dokument ne zajema:
• telekomunikacijskih naprav, ki niso napajalniki teh naprav,
• funkcionalne varnosti, ki jo zajema na primer standard IEC 61508 (vsi deli), in
• električne opreme in sistemov za uporabo pri železnici in za elektronska vozila.
General Information
Relations
Overview
EN IEC 62477-1:2023 (identical to IEC 62477-1:2022 / EN IEC 62477-1:2023) defines safety requirements for power electronic converter systems and equipment (PECS). It applies to PECS, specified accessories and components used for electronic power conversion and switching - including control, protection, monitoring and measurement means - with rated system voltages up to 1 000 V AC or 1 500 V DC. The standard also covers PECS that intentionally emit or receive radio waves for communication and serves as a group safety publication under IEC Guide 104 for converters used with solar, wind, tidal, wave, fuel cell and similar energy sources.
Key topics and technical requirements
- Scope and terminology: establishes a common vocabulary for safety aspects related to PECS, ensuring consistent interpretation across product standards and committees.
- Minimum safety requirements: sets baseline requirements for the PECS portion of products where no dedicated product standard exists.
- Hazard reduction: specifies measures to reduce risks of electric shock, fire, thermal, energy and mechanical hazards during normal operation and, where stated, during service and maintenance.
- Coordination of interrelated parts: requires minimum design coordination between interconnected units and independent units within PECS to ensure overall system safety.
- Installation types: addresses requirements for both pluggable and permanently connected equipment.
- Radio functionality: includes PECS that intentionally use radio waves (e.g., for telemetry or control).
- Guidance for product committees: Annex S offers direction for using this group safety publication when preparing product-specific standards.
Practical applications
EN IEC 62477-1:2023 is applicable to designers, manufacturers and integrators of:
- Adjustable speed electric power drive systems (PDS)
- Standalone uninterruptible power systems (UPS)
- Stabilized low-voltage DC power supplies
- Bidirectional power converters
- Renewable-energy converter systems (solar, wind, tidal, wave, fuel cell)
It is used to establish minimum safety requirements when no product-specific standard exists, to harmonize safety clauses across product families, and to support risk assessment and compliance activities.
Who should use this standard
- Product committees and standards developers
- Electrical and safety engineers designing PECS and accessories
- OEMs and system integrators of power converters
- Test laboratories and compliance officers verifying low-voltage converter safety
Related standards
Referenced or related documents include IEC Guide 104 (group safety publications), IEC 61508 (functional safety - excluded from this standard), IEC 62109-1 (power converters for photovoltaic systems), and insulation/flammability standards such as IEC 60664-1 and IEC fire-testing standards. These references support coordinated application of safety, insulation coordination and testing practices.
Keywords: EN IEC 62477-1:2023, IEC 62477-1:2022, power electronic converter systems, PECS safety requirements, low-voltage converters, UPS, PDS, renewable energy converters.
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2024
Varnostne zahteve za močnostne elektronike pretvorniške sisteme in opreme - 1.
del: Splošno (IEC 62477-1:2022)
Safety requirements for power electronic converter systems and equipment - Part 1:
General (IEC 62477-1:2022)
Sicherheitsanforderungen an Leistungshalbleiter-Umrichtersysteme und -betriebsmittel -
Teil 1: Allgemeines (IEC 62477-1:2022)
Exigences de sécurité applicables aux systèmes et matériels électroniques de
conversion de puissance - Partie 1: Généralités (IEC 62477-1:2022)
Ta slovenski standard je istoveten z: EN IEC 62477-1:2023
ICS:
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

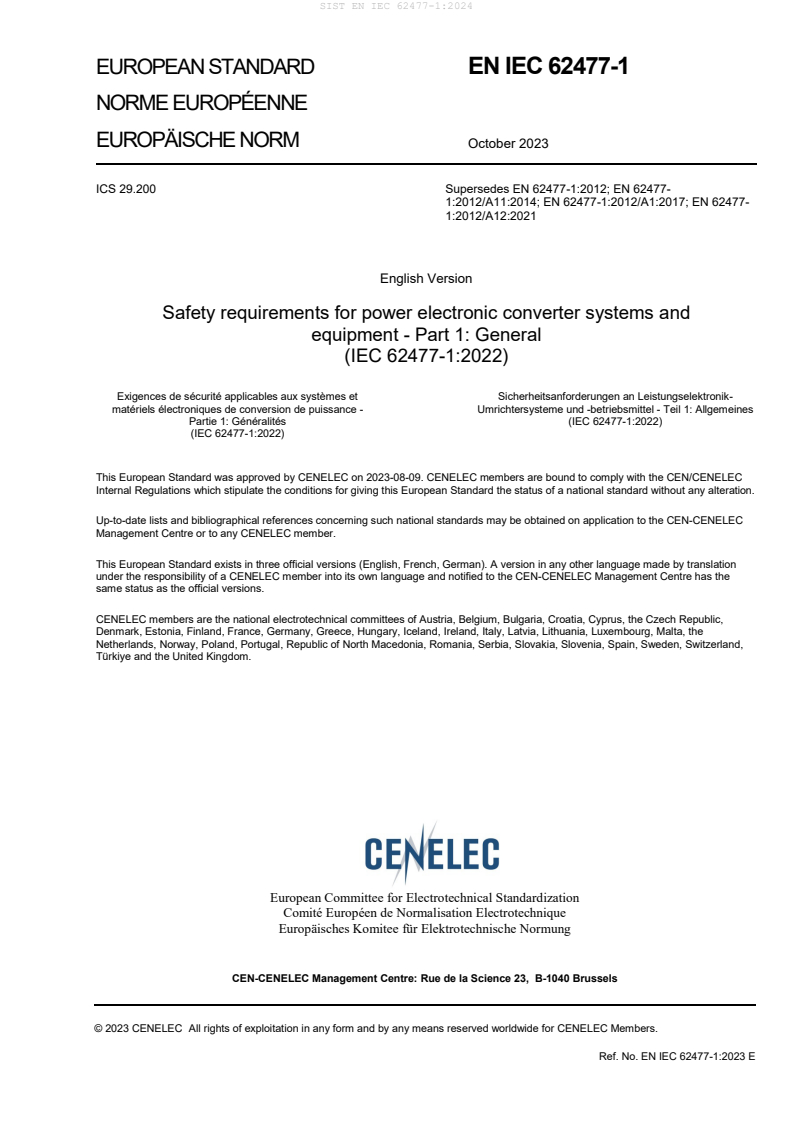

EUROPEAN STANDARD EN IEC 62477-1
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2023
ICS 29.200 Supersedes EN 62477-1:2012; EN 62477-
1:2012/A11:2014; EN 62477-1:2012/A1:2017; EN 62477-
1:2012/A12:2021
English Version
Safety requirements for power electronic converter systems and
equipment - Part 1: General
(IEC 62477-1:2022)
Exigences de sécurité applicables aux systèmes et Sicherheitsanforderungen an Leistungselektronik-
matériels électroniques de conversion de puissance - Umrichtersysteme und -betriebsmittel - Teil 1: Allgemeines
Partie 1: Généralités (IEC 62477-1:2022)
(IEC 62477-1:2022)
This European Standard was approved by CENELEC on 2023-08-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62477-1:2023 E

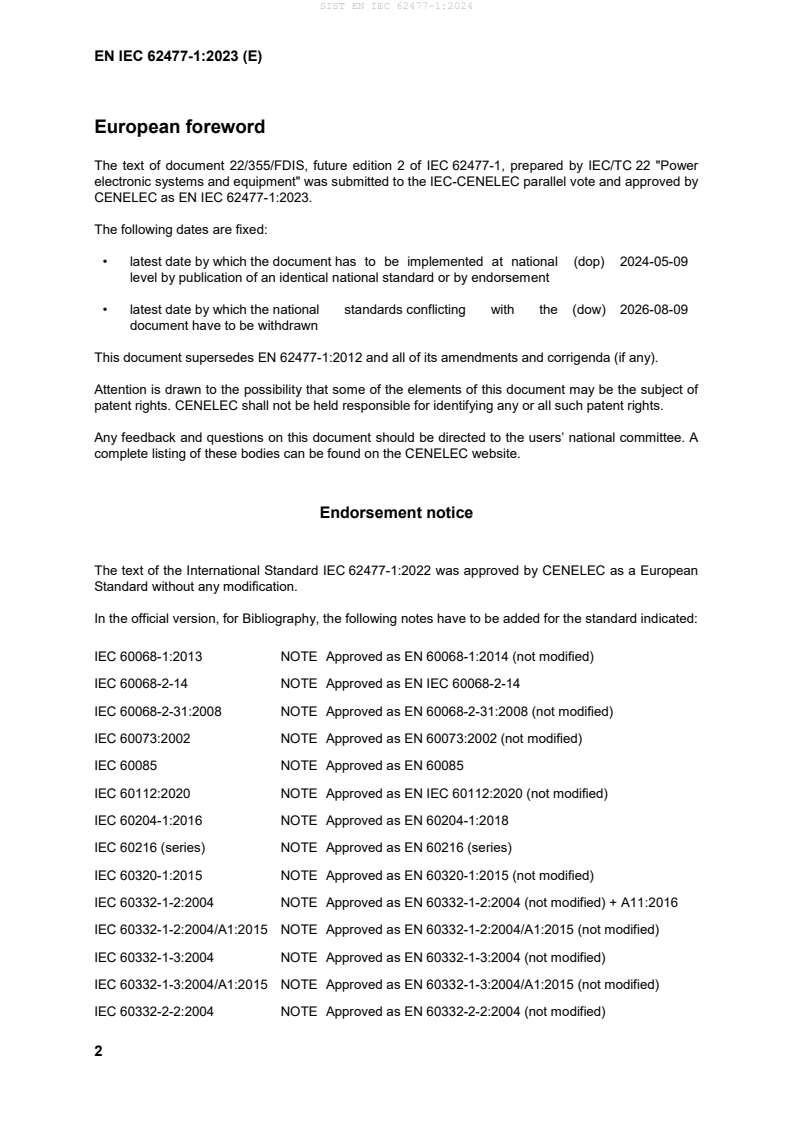

European foreword
The text of document 22/355/FDIS, future edition 2 of IEC 62477-1, prepared by IEC/TC 22 "Power
electronic systems and equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62477-1:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-05-09
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-08-09
document have to be withdrawn
This document supersedes EN 62477-1:2012 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62477-1:2022 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-1:2013 NOTE Approved as EN 60068-1:2014 (not modified)
IEC 60068-2-14 NOTE Approved as EN IEC 60068-2-14
IEC 60068-2-31:2008 NOTE Approved as EN 60068-2-31:2008 (not modified)
IEC 60073:2002 NOTE Approved as EN 60073:2002 (not modified)
IEC 60085 NOTE Approved as EN 60085
IEC 60112:2020 NOTE Approved as EN IEC 60112:2020 (not modified)
IEC 60204-1:2016 NOTE Approved as EN 60204-1:2018
IEC 60216 (series) NOTE Approved as EN 60216 (series)
IEC 60320-1:2015 NOTE Approved as EN 60320-1:2015 (not modified)
IEC 60332-1-2:2004 NOTE Approved as EN 60332-1-2:2004 (not modified) + A11:2016
IEC 60332-1-2:2004/A1:2015 NOTE Approved as EN 60332-1-2:2004/A1:2015 (not modified)
IEC 60332-1-3:2004 NOTE Approved as EN 60332-1-3:2004 (not modified)
IEC 60332-1-3:2004/A1:2015 NOTE Approved as EN 60332-1-3:2004/A1:2015 (not modified)
IEC 60332-2-2:2004 NOTE Approved as EN 60332-2-2:2004 (not modified)
IEC 60364-1:2005 NOTE Approved as HD 60364-1:2008 + A11:2017
IEC 60364-4-44:2007 NOTE Approved as HD 60364-4-444:2010
IEC 60364-4-44:2007/A1:2015 NOTE Approved as HD 60364-4-443:2016
IEC 60364-5-52:2009 NOTE Approved as HD 60364-5-52:2011 + A11:2017
IEC 60445:2021 NOTE Approved as EN IEC 60445:2021 (not modified)
IEC 60695-10-3:2016 NOTE Approved as EN 60695-10-3:2016 (not modified)
IEC 60695-11-5:2016 NOTE Approved as EN 60695-11-5:2017 (not modified)
IEC 60695-11-10:2013 NOTE Approved as EN 60695-11-10:2013 (not modified)
IEC 60721 (series) NOTE Approved as EN 60721 (series)
IEC 60865 (series) NOTE Approved as EN 60865 (series)
IEC 60865-1 NOTE Approved as EN 60865-1
IEC 60909 (series) NOTE Approved as EN 60909 (series)
IEC 60909-0:2016 NOTE Approved as EN 60909-0:2016 (not modified)
IEC 60947 (series) NOTE Approved as EN IEC 60947 (series)
IEC 60947-1:2020 NOTE Approved as EN IEC 60947-1:2021 (not modified)
IEC 60947-2:2016 NOTE Approved as EN 60947-2:2017 (not modified)
IEC 60947-2:2016/A1:2019 NOTE Approved as EN 60947-2:2017/A1:2020 (not modified)
IEC 60947-6-1:2021 NOTE Approved as EN IEC 60947-6-1:2023 (not modified)
IEC 60691 NOTE Approved as EN 60691
IEC 61082-1 NOTE Approved as EN 61082-1
IEC 61084 (series) NOTE Approved as EN IEC 61084 (series)
IEC 61140:2016 NOTE Approved as EN 61140:2016 (not modified)
IEC 61148:2011 NOTE Approved as EN 61148:2012 (not modified)
IEC 61386 (series) NOTE Approved as EN 61386 (series)
IEC 61439-1:2020 NOTE Approved as EN IEC 61439-1:2021 (not modified)
IEC 61508 (series) NOTE Approved as EN 61508 (series)
IEC 61558 (series) NOTE Approved as EN 61558 (series)
IEC 61643-11:2011 NOTE Approved as EN 61643-11:2012 + A11:2018
IEC 61643-12 NOTE Approved as CLC/TS 61643-12
IEC 62311:2019 NOTE Approved as EN IEC 62311:2020 (not modified)
IEC/IEEE 82079-1:2019 NOTE Approved as EN IEC/IEEE 82079-1:2020 (not modified)
ISO 9773:1998 NOTE Approved as EN ISO 9773:1998 (not modified)
IEC 60127 (series) NOTE Approved as EN IEC 60127 (series)
IEC 60309-1 NOTE Approved as EN IEC 60309-1
IEC 60317 (series) NOTE Approved as EN IEC 60317 (series)
IEC 60730 (series) NOTE Approved as EN IEC 60730 (series)
IEC 60931 (series) NOTE Approved as EN 60931 (series)
IEC 60940 NOTE Approved as EN 60940
IEC 60947 (series) NOTE Approved as EN IEC 60947 (series)
IEC 60691 NOTE Approved as EN 60691
IEC 61008 (series) NOTE Approved as EN 61008 (series)
IEC 61009 (series) NOTE Approved as EN 61009 (series)
IEC 61010-1 NOTE Approved as EN 61010-1
IEC 61051-2 NOTE Approved as EN IEC 61051-2
IEC 61058-1 NOTE Approved as EN IEC 61058-1
IEC 61071 NOTE Approved as EN 61071
IEC 61439 (series) NOTE Approved as EN IEC 61439 (series)
IEC 61558-2-16 NOTE Approved as EN IEC 61558-2-16
IEC 61810-1 NOTE Approved as EN 61810-1
IEC 61984 NOTE Approved as EN 61984
IEC 62368-1:2018 NOTE Approved as EN IEC 62368-1:2020 (not modified) + A11:2020
IEC 62423 NOTE Approved as EN 62423
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-112 - International Electrotechnical Vocabulary - - -
Part 112: Quantities and units
IEC 60050-113 - International Electrotechnical Vocabulary - - -
Part 113: Physics for electrotechnology
IEC 60050-114 - International Electrotechnical Vocabulary - - -
Part 114: Electrochemistry
IEC 60050-151 - International Electrotechnical Vocabulary - - -
Part 151: Electrical and magnetic devices
IEC 60050-161 - International Electrotechnical Vocabulary. - -
Chapter 161: Electromagnetic compatibility
IEC 60050-192 - International electrotechnical vocabulary - - -
Part 192: Dependability
IEC 60050-426 - International Electrotechnical Vocabulary - -
(IEV) - Part 426: Explosive atmospheres
IEC 60050-441 - International Electrotechnical Vocabulary. - -
Switchgear, controlgear and fuses
IEC 60050-442 - International Electrotechnical Vocabulary - - -
Part 442: Electrical accessories
IEC 60050-551 - International Electrotechnical Vocabulary - - -
Part 551: Power electronics
IEC 60050-601 - International Electrotechnical Vocabulary. - -
Chapter 601: Generation, transmission and
distribution of electricity - General
IEC 60050-826 - International Electrotechnical Vocabulary - - -
Part 826: Electrical installations
IEC 60068-2-2 2007 Environmental testing - Part 2-2: Tests - Test EN 60068-2-2 2007
B: Dry heat
IEC 60068-2-6 2007 Environmental testing - Part 2-6: Tests - Test EN 60068-2-6 2008
Fc: Vibration (sinusoidal)
Publication Year Title EN/HD Year
IEC 60068-2-52 2017 Environmental testing - Part 2-52: Tests ¿ EN IEC 60068-2-52 2018
Test Kb: Salt mist, cyclic (sodium chloride
solution)
IEC 60068-2-68 1994 Environmental testing - Part 2-68: Tests - EN 60068-2-68 1996
Test L: Dust and sand
IEC 60068-2-78 2012 Environmental testing - Part 2-78: Tests - EN 60068-2-78 2013
Test Cab: Damp heat, steady state
IEC 60320 series Appliance couplers for household and similar - -
general purposes
IEC 60364 series Low-voltage electrical installations HD 60364 series
IEC 60364-4-41 2005 Low-voltage electrical installations - Part 4- HD 60364-4-41 2017
(mod) 41: Protection for safety - Protection against
electric shock
+ A1 2017
- - + A11 2017
- - + A12 2019
IEC 60364-5-54 2011 Low-voltage electrical installations - Part 5- HD 60364-5-54 2011
54: Selection and erection of electrical
equipment - Earthing arrangements and
protective conductors
- - + A11 2017
+ A1 2021 + A1 2022
IEC 60384-14 2013 Fixed capacitors for use in electronic EN 60384-14 2013
equipment - Part 14: Sectional specification -
Fixed capacitors for electromagnetic
interference suppression and connection to
the supply mains
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the single
sheets.
IEC 60529 1989 Degrees of protection provided by enclosures EN 60529 1991
(IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60617 - Standard data element types with associated - -
classification scheme for electric components
- Part 4: IEC reference collection of standard
data element types and component classes
IEC 60664-1 2020 Insulation coordination for equipment within EN IEC 60664-1 2020
low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60664-3 2016 Insulation coordination for equipment within EN 60664-3 2017
low-voltage systems - Part 3: Use of coating,
potting or moulding for protection against
pollution
Publication Year Title EN/HD Year
IEC 60664-4 2005 Insulation coordination for equipment within EN 60664-4 2006
low-voltage systems - Part 4: Consideration
of high-frequency voltage stress
- - + corrigendum Oct. 2006
IEC 60695-2-10 2013 Fire hazard testing - Part 2-10: Glowing/hot- EN 60695-2-10 2013
wire based test methods - Glow-wire
apparatus and common test procedure
IEC 60695-2-11 2021 Fire hazard testing - Part 2-11: Glowing/hot- EN IEC 60695-2-11 2021
wire based test methods - Glow-wire
flammability test method for end products
(GWEPT)
IEC 60695-2-13 2010 Fire hazard testing - Part 2-13: Glowing/hot- EN 60695-2-13 2010
wire based test methods - Glow-wire ignition
temperature (GWIT) test method for
materials
+ A1 2014 + A1 2014
IEC 60695-10-2 2014 Fire hazard testing - Part 10-2: Abnormal EN 60695-10-2 2014
heat - Ball pressure test method
IEC 60695-11-20 2015 Fire hazard testing - Part 11-20: Test flames - EN 60695-11-20 2015
500 W flame test method
+ A1 1995 - -
+ A2 1996 - -
IEC 60721-3-3 1994 Classification of environmental conditions - - -
Part 3: Classification of groups of
environmental parameters and their
severities - Section 3: Stationary use at
weatherprotected locations
+ A1 1995 - -
+ A2 1996 - -
IEC 60721-3-4 1995 Classification of environmental conditions – - -
Part 3: Classification of groups of
environmental parameters and their
severities – Section 4: Stationary use at non-
weatherprotected locations
+ A1 1996 - -
IEC 60730-1 2013 Automatic electrical controls – Part 1: EN 60730-1 2016
(mod) General requirements
+ A1 2015 + A1 2019
+ A2 2020 + A2 2022
IEC 60738-1-1 2008 Thermistors – Directly heated positive step- EN 60738-1-1 2008
function temperature coefficient – Part 1-1:
Blank detail specification – Current limiting
application – Assessment leve EZ
IEC 60755 2017 General safety requirements for residual - -
current operated protective devices
IEC 60799 2018 Electrical accessories – Cord sets and EN IEC 60799 2021
interconnection cord sets
Publication Year Title EN/HD Year
IEC 60947-7 series Low-voltage switchgear and controlgear EN 60947-7 series
IEC 60949 1988 Calculation of thermally permissible short- - -
circuit currents, taking into account non-
adiabatic heating effects
+ A1 2008 - -
IEC 60990 2016 Methods of measurement of touch current EN 60990 2016
and protective conductor current
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures - Probes for verification
IEC 61180 2016 High-voltage test techniques for low-voltage EN 61180 2016
equipment - Definitions, test and procedure
requirements, test equipment
IEC 61189-3 2007 Test methods for electrical materials, printed EN 61189-3 2008
boards and other interconnection structures
and assemblies - Part 3: Test methods for
interconnection structures (printed boards)
IEC 61204-7 2016 Low-voltage switch mode power supplies - EN IEC 61204-7 2018
Part 7: Safety requirements
IEC 61558-1 2017 Safety of transformers, reactors, power EN IEC 61558-1 2019
supply units and combinations thereof - Part
1: General requirements and tests
IEC 62109-1 2010 Safety of power converters for use in - -
photovoltaic power systems - Part 1: General
requirements
ISO/IEC Guide 2014 Safety aspects - Guidelines for their inclusion - -
51 in standards
IEC Guide 104 2019 The preparation of safety publications and - -
the use of basic safety publications and
group safety publications
IEC Guide 116 2018 Guidelines for safety related risk assessment - -
and risk reduction for low voltage equipment
ISO 3746 2010 Acoustics - Determination of sound power EN ISO 3746 2010
levels and sound energy levels of noise
sources using sound pressure - Survey
method using an enveloping measurement
surface over a reflecting plane
ISO 3864 series Safety colours and safety signs - -
ISO 3864-1 2011 Graphical symbols - Safety colours and - -
safety signs - Part 1: Design principles for
safety signs and safety markings
ISO 7000 - Graphical symbols for use on equipment_- - -
Registered symbols
ISO 7010 - Graphical symbols - Safety colours and - -
safety signs - Registered safety signs
ISO 9614-1 1993 Acoustics - Determination of sound power EN ISO 9614-1 2009
levels of noise sources using sound intensity
- Part 1: Measurement at discrete points
IEC 62477-1 ®
Edition 2.0 2022-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for power electronic converter systems and equipment –
Part 1: General
Exigences de sécurité applicables aux systèmes et matériels électroniques de
conversion de puissance –
Partie 1: Généralités
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200 ISBN 978-2-8322-2199-0
– 2 – IEC 62477-1:2022 © IEC 2022
CONTENTS
FOREWORD . 11
INTRODUCTION . 14
1 Scope . 16
2 Normative references . 17
3 Terms and definitions . 20
4 Protection against hazards . 33
4.1 General . 33
4.2 Single fault conditions and abnormal operating conditions . 33
4.3 Short-circuit and overload protection . 34
4.3.1 General . 34
4.3.2 Input short-circuit withstand strength and output short-circuit current
ability . 36
4.3.3 Short-circuit coordination (backup protection) . 37
4.3.4 Protection by several devices . 37
4.4 Protection against electric shock . 37
4.4.1 General . 37
4.4.2 Decisive voltage class . 40
4.4.3 Means for basic protection (protection against direct contact) . 44
4.4.4 Means for fault protection (protection against indirect contact) . 45
4.4.5 Means for enhanced protection . 55
4.4.6 Protective means for equipment classes . 56
4.4.7 Insulation . 58
4.4.8 Compatibility with residual current-operated protective devices (RCD) . 75
4.4.9 Capacitor discharge . 76
4.5 Protection against electrical energy hazards . 76
4.5.1 General access areas . 76
4.5.2 Service access areas . 77
4.6 Protection against fire and thermal hazards . 77
4.6.1 Circuits representing a fire hazard . 77
4.6.2 Components representing a fire hazard . 77
4.6.3 Fire enclosures . 79
4.6.4 Temperature limits . 83
4.6.5 Limited power sources . 86
4.7 Protection against mechanical hazards . 87
4.7.1 General . 87
4.7.2 Specific requirements for liquid cooled PECS . 88
4.7.3 Mechanical hazards from rotating parts . 89
4.7.4 Sharp edges . 90
4.8 PECS with multiple sources of supply . 90
4.9 Protection against environmental stresses . 91
4.10 Protection against excessive acoustic noise hazards . 92
4.11 Wiring and connections . 93
4.11.1 General . 93
4.11.2 Insulation of conductors . 93
4.11.3 Stranded wire . 95
4.11.4 Routing and clamping . 95
4.11.5 Identification of conductors and terminals . 95
IEC 62477-1:2022 © IEC 2022 – 3 –
4.11.6 Splices and connections . 96
4.11.7 Accessible connections . 96
4.11.8 Interconnections between parts of the PECS . 97
4.11.9 Supply connections. 97
4.11.10 Field wiring terminals and internal terminals . 99
4.11.11 Means for shield connection of shielded wire or shielded cable . 101
4.12 Enclosures . 101
4.12.1 General . 101
4.12.2 Handles and manual controls . 102
4.12.3 Cast metal . 102
4.12.4 Sheet metal . 103
4.12.5 Stability requirement for enclosure. 105
4.12.6 Strain relief . 106
4.12.7 Polymeric enclosure stress relief . 106
4.12.8 Polymeric enclosure UV resistance . 106
4.13 Components . 106
4.13.1 General . 106
4.13.2 PTC thermistors . 107
4.13.3 Mains supply cords . 107
4.13.4 Capacitors and RC units bridging insulation . 107
4.13.5 Wound components . 107
4.13.6 Plug and socket-outlets . 108
4.14 Protection against electromagnetic fields . 108
5 Test requirements . 108
5.1 General . 108
5.1.1 Test objectives and classification . 108
5.1.2 Selection of test samples . 108
5.1.3 Sequence of tests . 108
5.1.4 Earthing conditions . 109
5.1.5 General conditions for tests . 109
5.1.6 Compliance . 110
5.1.7 Test overview . 110
5.2 Test specifications . 112
5.2.1 Visual inspection (type test and routine test) . 112
5.2.2 Mechanical tests . 112
5.2.3 Electrical tests . 121
5.2.4 Abnormal operation and simulated faults tests . 141
5.2.5 Material tests . 148
5.2.6 Environmental tests (type tests) . 153
5.2.7 Hydrostatic pressure test (type test, routine test) . 157
5.2.8 Electromagnetic fields (EMF) . 158
6 Information and marking requirements . 158
6.1 General . 158
6.2 Information for selection . 160
6.2.1 General . 160
6.2.2 Instructions and markings pertaining to accessories . 162
6.3 Information for installation and commissioning . 162
6.3.1 General . 162
6.3.2 Mechanical considerations . 162
– 4 – IEC 62477-1:2022 © IEC 2022
6.3.3 Environment . 162
6.3.4 Handling and mounting . 162
6.3.5 Enclosure temperature. 163
6.3.6 Open type PECS . 163
6.3.7 Connections . 163
6.3.8 Commissioning . 165
6.3.9 Protection requirements . 165
6.4 Information for intended use . 167
6.4.1 General . 167
6.4.2 Adjustment . 167
6.4.3 Labels, signs, symbols and signals . 168
6.4.4 Hot surfaces . 170
6.4.5 Control and device marking . 170
6.5 Supplementary information . 170
6.5.1 Maintenance . 170
6.5.2 Capacitor discharge . 171
6.5.3 Auto restart/bypass connection . 171
6.5.4 Other hazards . 171
6.5.5 PECS with multiple sources of supply . 171
6.5.6 Replaceable fuses in neutral of single-phase PECS . 171
Annex A (normative) Additional information for protection against electric shock . 173
A.1 General . 173
A.2 Protection by means of DVC As . 173
A.3 Protection by means of protective impedance . 173
A.4 Protection by using limited voltages . 174
A.5 Evaluation of the working voltage of circuits . 175
A.5.1 General . 175
A.5.2 Classification of the working voltage . 175
A.5.3 AC working voltage . 176
A.5.4 DC working voltage. 176
A.5.5 Pulsating working voltage . 177
A.6 The concept of protective means according to 4.4 . 178
A.6.1 General . 178
A.6.2 Examples of the use of elements of protective means . 178
Annex B (informative) Considerations for the reduction of the pollution degree . 180
B.1 General . 180
B.2 Factors influencing the pollution degree . 180
B.3 Reduction of influencing factors . 180
Annex C (informative) Symbols referred to in this document . 181
C.1 Symbols used . 181
C.2 Determination of contrast . 182
Annex D (normative) Evaluation of clearance and creepage distances . 184
D.1 Measurement . 184
D.2 Relationship of measurement to pollution degree . 184
D.3 Examples . 185
Annex E (normative) Altitude correction for clearances . 191
E.1 Correction factor for clearances at altitudes above 2 000 m . 191
E.2 Test voltages for verifying clearances at different altitudes . 191
IEC 62477-1:2022 © IEC 2022 – 5 –
Annex F (normative) Clearance and creepage distance determination for frequencies
greater than 30 kHz . 193
F.1 General influence of the frequency on the withstand characteristics . 193
F.2 Clearance . 193
F.2.1 General . 193
F.2.2 Clearance for inhomogenous fields . 194
F.2.3 Clearance for approximately homogenous fields . 195
F.3 Creepage distance . 196
F.4 Solid insulation . 197
F.4.1 General . 197
F.4.2 Approximately uniform field distribution without air gaps or voids . 197
F.4.3 Other cases . 198
Annex G (informative) Cross-sections of round conductors . 199
Annex H (informative) Guidelines for RCD compatibility . 200
H.1 Selection of RCD type . 200
H.2 Fault current waveforms . 201
Annex I (informative) Examples of overvoltage category reduction . 204
I.1 General . 204
I.2 Protection to the surroundings (see 4.4.7.2) . 204
I.2.1 Circuits connected to mains supply (see 4.4.7.2.3) . 204
I.2.2 Circuits connected to the non-mains supply (see 4.4.7.2.4) . 207
I.2.3 Protection between circuits (see 4.4.7.2.7) . 207
I.3 Functional insulation (see 4.4.7.3) . 208
I.4 Further examples . 208
I.5 Circuits with multiple supplies (see 4.4.7.2.1) . 209
Annex J (informative) Burn thresholds for touchable surfaces . 210
J.1 General . 210
J.2 Burn thresholds. 210
Annex K (informative) Table of electrochemical potentials . 214
Annex L (informative) Measuring instrument for touch current measurements . 215
L.1 Measuring instrument 1 . 215
L.2 Measuring instrument 2 . 215
L.3 Measuring instrument 3 . 216
Annex M (normative) Test probes for determining access . 217
Annex N (informative) Guidance regarding short-circuit current. 220
N.1 General . 220
N.2 Coordination of short-circuit current . 221
N.2.1 General . 221
N.2.2 Conditional short-circuit current (I ) and minimum required prospective
cc
short-circuit current (I ) . 221
cp, mr
N.2.3 Short-time withstand current (I ) . 223
cw
N.3 Guidance for specification of short-circuit current and short-circuit protective
device . 224
N.3.1 General . 224
N.3.2 Example 1: Two or more PECS with different ratings . 225
N.3.3 Specification of I . 226
cc
N.3.4 Specification of I . 226
cw
– 6 – IEC 62477-1:2022 © IEC 2022
N.3.5 Example 2: One PECS with more than one rating . 227
N.3.6 Additional explanation on terms, definitions and specifications . 228
N.4 Short-circuit rating and single fault conditions testing . 229
N.4.1 General . 229
N.4.2 Exemption from short-time withstand current testing . 231
N.5 Guideline for short-circuit analysis . 231
Annex O (informative) Guidelines for determination of clearance and creepage
distances . 232
O.1 Guideline for determination of clearances . 232
O.2 Guideline for determination of creepage distances . 233
O.3 Minimum spacings within solid insulation or similar . 233
Annex P (informative) Protection of persons against electromagnetic fields for
frequencies from 0 Hz up to 300 GHz . 235
P.1 General influence of electromagnetic fields to persons . 235
P.1.1 General . 235
P.1.2 Low-frequency electric fields effects (1 Hz to 100 kHz) . 235
P.1.3 Low-frequency magnetic fields effects (1 Hz to 100 kHz) . 235
P.1.4 Low-frequency electric and magnetic fields effects . 235
P.1.5 High-frequency electromagnetic fields effects (100 kHz to 300 GHz) . 235
P.1.6 Current knowledge on low-level effects . 236
P.1.7 Biological effects versus adverse health effects . 236
P.1.8 Influence of EMF on passive and active medical implants . 236
P.2 Requirements from ICNIRP LF guidelines against exposure to EMF . 236
P.2.1 Adoption of exposure limits from ICNIRP . 236
P.2.2 Limits of EMF exposure for transportation and storage . 238
P.3 Protection of persons against exposure of EMF . 238
P.3.1 General . 238
P.3.2 EMF requirements for general public access areas . 239
P.3.3 EMF requirements for general access areas, service access areas and
restricted access areas . 239
P.3.4 EMF requirements for transportation and storage . 239
P.4 Electromagnetic fields (EMF) test (type test) . 240
P.4.1 General test set up for EMF . 240
P.4.2 EMF test (type test) . 240
P.5 Electromagnetic f
...
SLOVENSKI STANDARD
01-april-2024
Varnostne zahteve za močnostne elektronske pretvorniške sisteme in opreme - 1.
del: Splošno (IEC 62477-1:2022)
Safety requirements for power electronic converter systems and equipment - Part 1:
General (IEC 62477-1:2022)
Sicherheitsanforderungen an Leistungshalbleiter-Umrichtersysteme und -betriebsmittel -
Teil 1: Allgemeines (IEC 62477-1:2022)
Exigences de sécurité applicables aux systèmes et matériels électroniques de
conversion de puissance - Partie 1: Généralités (IEC 62477-1:2022)
Ta slovenski standard je istoveten z: EN IEC 62477-1:2023
ICS:
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 62477-1
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2023
ICS 29.200 Supersedes EN 62477-1:2012; EN 62477-
1:2012/A11:2014; EN 62477-1:2012/A1:2017; EN 62477-
1:2012/A12:2021
English Version
Safety requirements for power electronic converter systems and
equipment - Part 1: General
(IEC 62477-1:2022)
Exigences de sécurité applicables aux systèmes et Sicherheitsanforderungen an Leistungselektronik-
matériels électroniques de conversion de puissance - Umrichtersysteme und -betriebsmittel - Teil 1: Allgemeines
Partie 1: Généralités (IEC 62477-1:2022)
(IEC 62477-1:2022)
This European Standard was approved by CENELEC on 2023-08-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62477-1:2023 E
European foreword
The text of document 22/355/FDIS, future edition 2 of IEC 62477-1, prepared by IEC/TC 22 "Power
electronic systems and equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62477-1:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-05-09
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-08-09
document have to be withdrawn
This document supersedes EN 62477-1:2012 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62477-1:2022 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-1:2013 NOTE Approved as EN 60068-1:2014 (not modified)
IEC 60068-2-14 NOTE Approved as EN IEC 60068-2-14
IEC 60068-2-31:2008 NOTE Approved as EN 60068-2-31:2008 (not modified)
IEC 60073:2002 NOTE Approved as EN 60073:2002 (not modified)
IEC 60085 NOTE Approved as EN 60085
IEC 60112:2020 NOTE Approved as EN IEC 60112:2020 (not modified)
IEC 60204-1:2016 NOTE Approved as EN 60204-1:2018
IEC 60216 (series) NOTE Approved as EN 60216 (series)
IEC 60320-1:2015 NOTE Approved as EN 60320-1:2015 (not modified)
IEC 60332-1-2:2004 NOTE Approved as EN 60332-1-2:2004 (not modified) + A11:2016
IEC 60332-1-2:2004/A1:2015 NOTE Approved as EN 60332-1-2:2004/A1:2015 (not modified)
IEC 60332-1-3:2004 NOTE Approved as EN 60332-1-3:2004 (not modified)
IEC 60332-1-3:2004/A1:2015 NOTE Approved as EN 60332-1-3:2004/A1:2015 (not modified)
IEC 60332-2-2:2004 NOTE Approved as EN 60332-2-2:2004 (not modified)
IEC 60364-1:2005 NOTE Approved as HD 60364-1:2008 + A11:2017
IEC 60364-4-44:2007 NOTE Approved as HD 60364-4-444:2010
IEC 60364-4-44:2007/A1:2015 NOTE Approved as HD 60364-4-443:2016
IEC 60364-5-52:2009 NOTE Approved as HD 60364-5-52:2011 + A11:2017
IEC 60445:2021 NOTE Approved as EN IEC 60445:2021 (not modified)
IEC 60695-10-3:2016 NOTE Approved as EN 60695-10-3:2016 (not modified)
IEC 60695-11-5:2016 NOTE Approved as EN 60695-11-5:2017 (not modified)
IEC 60695-11-10:2013 NOTE Approved as EN 60695-11-10:2013 (not modified)
IEC 60721 (series) NOTE Approved as EN 60721 (series)
IEC 60865 (series) NOTE Approved as EN 60865 (series)
IEC 60865-1 NOTE Approved as EN 60865-1
IEC 60909 (series) NOTE Approved as EN 60909 (series)
IEC 60909-0:2016 NOTE Approved as EN 60909-0:2016 (not modified)
IEC 60947 (series) NOTE Approved as EN IEC 60947 (series)
IEC 60947-1:2020 NOTE Approved as EN IEC 60947-1:2021 (not modified)
IEC 60947-2:2016 NOTE Approved as EN 60947-2:2017 (not modified)
IEC 60947-2:2016/A1:2019 NOTE Approved as EN 60947-2:2017/A1:2020 (not modified)
IEC 60947-6-1:2021 NOTE Approved as EN IEC 60947-6-1:2023 (not modified)
IEC 60691 NOTE Approved as EN 60691
IEC 61082-1 NOTE Approved as EN 61082-1
IEC 61084 (series) NOTE Approved as EN IEC 61084 (series)
IEC 61140:2016 NOTE Approved as EN 61140:2016 (not modified)
IEC 61148:2011 NOTE Approved as EN 61148:2012 (not modified)
IEC 61386 (series) NOTE Approved as EN 61386 (series)
IEC 61439-1:2020 NOTE Approved as EN IEC 61439-1:2021 (not modified)
IEC 61508 (series) NOTE Approved as EN 61508 (series)
IEC 61558 (series) NOTE Approved as EN 61558 (series)
IEC 61643-11:2011 NOTE Approved as EN 61643-11:2012 + A11:2018
IEC 61643-12 NOTE Approved as CLC/TS 61643-12
IEC 62311:2019 NOTE Approved as EN IEC 62311:2020 (not modified)
IEC/IEEE 82079-1:2019 NOTE Approved as EN IEC/IEEE 82079-1:2020 (not modified)
ISO 9773:1998 NOTE Approved as EN ISO 9773:1998 (not modified)
IEC 60127 (series) NOTE Approved as EN IEC 60127 (series)
IEC 60309-1 NOTE Approved as EN IEC 60309-1
IEC 60317 (series) NOTE Approved as EN IEC 60317 (series)
IEC 60730 (series) NOTE Approved as EN IEC 60730 (series)
IEC 60931 (series) NOTE Approved as EN 60931 (series)
IEC 60940 NOTE Approved as EN 60940
IEC 60947 (series) NOTE Approved as EN IEC 60947 (series)
IEC 60691 NOTE Approved as EN 60691
IEC 61008 (series) NOTE Approved as EN 61008 (series)
IEC 61009 (series) NOTE Approved as EN 61009 (series)
IEC 61010-1 NOTE Approved as EN 61010-1
IEC 61051-2 NOTE Approved as EN IEC 61051-2
IEC 61058-1 NOTE Approved as EN IEC 61058-1
IEC 61071 NOTE Approved as EN 61071
IEC 61439 (series) NOTE Approved as EN IEC 61439 (series)
IEC 61558-2-16 NOTE Approved as EN IEC 61558-2-16
IEC 61810-1 NOTE Approved as EN 61810-1
IEC 61984 NOTE Approved as EN 61984
IEC 62368-1:2018 NOTE Approved as EN IEC 62368-1:2020 (not modified) + A11:2020
IEC 62423 NOTE Approved as EN 62423
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-112 - International Electrotechnical Vocabulary - - -
Part 112: Quantities and units
IEC 60050-113 - International Electrotechnical Vocabulary - - -
Part 113: Physics for electrotechnology
IEC 60050-114 - International Electrotechnical Vocabulary - - -
Part 114: Electrochemistry
IEC 60050-151 - International Electrotechnical Vocabulary - - -
Part 151: Electrical and magnetic devices
IEC 60050-161 - International Electrotechnical Vocabulary. - -
Chapter 161: Electromagnetic compatibility
IEC 60050-192 - International electrotechnical vocabulary - - -
Part 192: Dependability
IEC 60050-426 - International Electrotechnical Vocabulary - -
(IEV) - Part 426: Explosive atmospheres
IEC 60050-441 - International Electrotechnical Vocabulary. - -
Switchgear, controlgear and fuses
IEC 60050-442 - International Electrotechnical Vocabulary - - -
Part 442: Electrical accessories
IEC 60050-551 - International Electrotechnical Vocabulary - - -
Part 551: Power electronics
IEC 60050-601 - International Electrotechnical Vocabulary. - -
Chapter 601: Generation, transmission and
distribution of electricity - General
IEC 60050-826 - International Electrotechnical Vocabulary - - -
Part 826: Electrical installations
IEC 60068-2-2 2007 Environmental testing - Part 2-2: Tests - Test EN 60068-2-2 2007
B: Dry heat
IEC 60068-2-6 2007 Environmental testing - Part 2-6: Tests - Test EN 60068-2-6 2008
Fc: Vibration (sinusoidal)
Publication Year Title EN/HD Year
IEC 60068-2-52 2017 Environmental testing - Part 2-52: Tests ¿ EN IEC 60068-2-52 2018
Test Kb: Salt mist, cyclic (sodium chloride
solution)
IEC 60068-2-68 1994 Environmental testing - Part 2-68: Tests - EN 60068-2-68 1996
Test L: Dust and sand
IEC 60068-2-78 2012 Environmental testing - Part 2-78: Tests - EN 60068-2-78 2013
Test Cab: Damp heat, steady state
IEC 60320 series Appliance couplers for household and similar - -
general purposes
IEC 60364 series Low-voltage electrical installations HD 60364 series
IEC 60364-4-41 2005 Low-voltage electrical installations - Part 4- HD 60364-4-41 2017
(mod) 41: Protection for safety - Protection against
electric shock
+ A1 2017
- - + A11 2017
- - + A12 2019
IEC 60364-5-54 2011 Low-voltage electrical installations - Part 5- HD 60364-5-54 2011
54: Selection and erection of electrical
equipment - Earthing arrangements and
protective conductors
- - + A11 2017
+ A1 2021 + A1 2022
IEC 60384-14 2013 Fixed capacitors for use in electronic EN 60384-14 2013
equipment - Part 14: Sectional specification -
Fixed capacitors for electromagnetic
interference suppression and connection to
the supply mains
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the single
sheets.
IEC 60529 1989 Degrees of protection provided by enclosures EN 60529 1991
(IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60617 - Standard data element types with associated - -
classification scheme for electric components
- Part 4: IEC reference collection of standard
data element types and component classes
IEC 60664-1 2020 Insulation coordination for equipment within EN IEC 60664-1 2020
low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60664-3 2016 Insulation coordination for equipment within EN 60664-3 2017
low-voltage systems - Part 3: Use of coating,
potting or moulding for protection against
pollution
Publication Year Title EN/HD Year
IEC 60664-4 2005 Insulation coordination for equipment within EN 60664-4 2006
low-voltage systems - Part 4: Consideration
of high-frequency voltage stress
- - + corrigendum Oct. 2006
IEC 60695-2-10 2013 Fire hazard testing - Part 2-10: Glowing/hot- EN 60695-2-10 2013
wire based test methods - Glow-wire
apparatus and common test procedure
IEC 60695-2-11 2021 Fire hazard testing - Part 2-11: Glowing/hot- EN IEC 60695-2-11 2021
wire based test methods - Glow-wire
flammability test method for end products
(GWEPT)
IEC 60695-2-13 2010 Fire hazard testing - Part 2-13: Glowing/hot- EN 60695-2-13 2010
wire based test methods - Glow-wire ignition
temperature (GWIT) test method for
materials
+ A1 2014 + A1 2014
IEC 60695-10-2 2014 Fire hazard testing - Part 10-2: Abnormal EN 60695-10-2 2014
heat - Ball pressure test method
IEC 60695-11-20 2015 Fire hazard testing - Part 11-20: Test flames - EN 60695-11-20 2015
500 W flame test method
+ A1 1995 - -
+ A2 1996 - -
IEC 60721-3-3 1994 Classification of environmental conditions - - -
Part 3: Classification of groups of
environmental parameters and their
severities - Section 3: Stationary use at
weatherprotected locations
+ A1 1995 - -
+ A2 1996 - -
IEC 60721-3-4 1995 Classification of environmental conditions – - -
Part 3: Classification of groups of
environmental parameters and their
severities – Section 4: Stationary use at non-
weatherprotected locations
+ A1 1996 - -
IEC 60730-1 2013 Automatic electrical controls – Part 1: EN 60730-1 2016
(mod) General requirements
+ A1 2015 + A1 2019
+ A2 2020 + A2 2022
IEC 60738-1-1 2008 Thermistors – Directly heated positive step- EN 60738-1-1 2008
function temperature coefficient – Part 1-1:
Blank detail specification – Current limiting
application – Assessment leve EZ
IEC 60755 2017 General safety requirements for residual - -
current operated protective devices
IEC 60799 2018 Electrical accessories – Cord sets and EN IEC 60799 2021
interconnection cord sets
Publication Year Title EN/HD Year
IEC 60947-7 series Low-voltage switchgear and controlgear EN 60947-7 series
IEC 60949 1988 Calculation of thermally permissible short- - -
circuit currents, taking into account non-
adiabatic heating effects
+ A1 2008 - -
IEC 60990 2016 Methods of measurement of touch current EN 60990 2016
and protective conductor current
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures - Probes for verification
IEC 61180 2016 High-voltage test techniques for low-voltage EN 61180 2016
equipment - Definitions, test and procedure
requirements, test equipment
IEC 61189-3 2007 Test methods for electrical materials, printed EN 61189-3 2008
boards and other interconnection structures
and assemblies - Part 3: Test methods for
interconnection structures (printed boards)
IEC 61204-7 2016 Low-voltage switch mode power supplies - EN IEC 61204-7 2018
Part 7: Safety requirements
IEC 61558-1 2017 Safety of transformers, reactors, power EN IEC 61558-1 2019
supply units and combinations thereof - Part
1: General requirements and tests
IEC 62109-1 2010 Safety of power converters for use in - -
photovoltaic power systems - Part 1: General
requirements
ISO/IEC Guide 2014 Safety aspects - Guidelines for their inclusion - -
51 in standards
IEC Guide 104 2019 The preparation of safety publications and - -
the use of basic safety publications and
group safety publications
IEC Guide 116 2018 Guidelines for safety related risk assessment - -
and risk reduction for low voltage equipment
ISO 3746 2010 Acoustics - Determination of sound power EN ISO 3746 2010
levels and sound energy levels of noise
sources using sound pressure - Survey
method using an enveloping measurement
surface over a reflecting plane
ISO 3864 series Safety colours and safety signs - -
ISO 3864-1 2011 Graphical symbols - Safety colours and - -
safety signs - Part 1: Design principles for
safety signs and safety markings
ISO 7000 - Graphical symbols for use on equipment_- - -
Registered symbols
ISO 7010 - Graphical symbols - Safety colours and - -
safety signs - Registered safety signs
ISO 9614-1 1993 Acoustics - Determination of sound power EN ISO 9614-1 2009
levels of noise sources using sound intensity
- Part 1: Measurement at discrete points
IEC 62477-1 ®
Edition 2.0 2022-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for power electronic converter systems and equipment –
Part 1: General
Exigences de sécurité applicables aux systèmes et matériels électroniques de
conversion de puissance –
Partie 1: Généralités
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200 ISBN 978-2-8322-2199-0
– 2 – IEC 62477-1:2022 © IEC 2022
CONTENTS
FOREWORD . 11
INTRODUCTION . 14
1 Scope . 16
2 Normative references . 17
3 Terms and definitions . 20
4 Protection against hazards . 33
4.1 General . 33
4.2 Single fault conditions and abnormal operating conditions . 33
4.3 Short-circuit and overload protection . 34
4.3.1 General . 34
4.3.2 Input short-circuit withstand strength and output short-circuit current
ability . 36
4.3.3 Short-circuit coordination (backup protection) . 37
4.3.4 Protection by several devices . 37
4.4 Protection against electric shock . 37
4.4.1 General . 37
4.4.2 Decisive voltage class . 40
4.4.3 Means for basic protection (protection against direct contact) . 44
4.4.4 Means for fault protection (protection against indirect contact) . 45
4.4.5 Means for enhanced protection . 55
4.4.6 Protective means for equipment classes . 56
4.4.7 Insulation . 58
4.4.8 Compatibility with residual current-operated protective devices (RCD) . 75
4.4.9 Capacitor discharge . 76
4.5 Protection against electrical energy hazards . 76
4.5.1 General access areas . 76
4.5.2 Service access areas . 77
4.6 Protection against fire and thermal hazards . 77
4.6.1 Circuits representing a fire hazard . 77
4.6.2 Components representing a fire hazard . 77
4.6.3 Fire enclosures . 79
4.6.4 Temperature limits . 83
4.6.5 Limited power sources . 86
4.7 Protection against mechanical hazards . 87
4.7.1 General . 87
4.7.2 Specific requirements for liquid cooled PECS . 88
4.7.3 Mechanical hazards from rotating parts . 89
4.7.4 Sharp edges . 90
4.8 PECS with multiple sources of supply . 90
4.9 Protection against environmental stresses . 91
4.10 Protection against excessive acoustic noise hazards . 92
4.11 Wiring and connections . 93
4.11.1 General . 93
4.11.2 Insulation of conductors . 93
4.11.3 Stranded wire . 95
4.11.4 Routing and clamping . 95
4.11.5 Identification of conductors and terminals . 95
IEC 62477-1:2022 © IEC 2022 – 3 –
4.11.6 Splices and connections . 96
4.11.7 Accessible connections . 96
4.11.8 Interconnections between parts of the PECS . 97
4.11.9 Supply connections. 97
4.11.10 Field wiring terminals and internal terminals . 99
4.11.11 Means for shield connection of shielded wire or shielded cable . 101
4.12 Enclosures . 101
4.12.1 General . 101
4.12.2 Handles and manual controls . 102
4.12.3 Cast metal . 102
4.12.4 Sheet metal . 103
4.12.5 Stability requirement for enclosure. 105
4.12.6 Strain relief . 106
4.12.7 Polymeric enclosure stress relief . 106
4.12.8 Polymeric enclosure UV resistance . 106
4.13 Components . 106
4.13.1 General . 106
4.13.2 PTC thermistors . 107
4.13.3 Mains supply cords . 107
4.13.4 Capacitors and RC units bridging insulation . 107
4.13.5 Wound components . 107
4.13.6 Plug and socket-outlets . 108
4.14 Protection against electromagnetic fields . 108
5 Test requirements . 108
5.1 General . 108
5.1.1 Test objectives and classification . 108
5.1.2 Selection of test samples . 108
5.1.3 Sequence of tests . 108
5.1.4 Earthing conditions . 109
5.1.5 General conditions for tests . 109
5.1.6 Compliance . 110
5.1.7 Test overview . 110
5.2 Test specifications . 112
5.2.1 Visual inspection (type test and routine test) . 112
5.2.2 Mechanical tests . 112
5.2.3 Electrical tests . 121
5.2.4 Abnormal operation and simulated faults tests . 141
5.2.5 Material tests . 148
5.2.6 Environmental tests (type tests) . 153
5.2.7 Hydrostatic pressure test (type test, routine test) . 157
5.2.8 Electromagnetic fields (EMF) . 158
6 Information and marking requirements . 158
6.1 General . 158
6.2 Information for selection . 160
6.2.1 General . 160
6.2.2 Instructions and markings pertaining to accessories . 162
6.3 Information for installation and commissioning . 162
6.3.1 General . 162
6.3.2 Mechanical considerations . 162
– 4 – IEC 62477-1:2022 © IEC 2022
6.3.3 Environment . 162
6.3.4 Handling and mounting . 162
6.3.5 Enclosure temperature. 163
6.3.6 Open type PECS . 163
6.3.7 Connections . 163
6.3.8 Commissioning . 165
6.3.9 Protection requirements . 165
6.4 Information for intended use . 167
6.4.1 General . 167
6.4.2 Adjustment . 167
6.4.3 Labels, signs, symbols and signals . 168
6.4.4 Hot surfaces . 170
6.4.5 Control and device marking . 170
6.5 Supplementary information . 170
6.5.1 Maintenance . 170
6.5.2 Capacitor discharge . 171
6.5.3 Auto restart/bypass connection . 171
6.5.4 Other hazards . 171
6.5.5 PECS with multiple sources of supply . 171
6.5.6 Replaceable fuses in neutral of single-phase PECS . 171
Annex A (normative) Additional information for protection against electric shock . 173
A.1 General . 173
A.2 Protection by means of DVC As . 173
A.3 Protection by means of protective impedance . 173
A.4 Protection by using limited voltages . 174
A.5 Evaluation of the working voltage of circuits . 175
A.5.1 General . 175
A.5.2 Classification of the working voltage . 175
A.5.3 AC working voltage . 176
A.5.4 DC working voltage. 176
A.5.5 Pulsating working voltage . 177
A.6 The concept of protective means according to 4.4 . 178
A.6.1 General . 178
A.6.2 Examples of the use of elements of protective means . 178
Annex B (informative) Considerations for the reduction of the pollution degree . 180
B.1 General . 180
B.2 Factors influencing the pollution degree . 180
B.3 Reduction of influencing factors . 180
Annex C (informative) Symbols referred to in this document . 181
C.1 Symbols used . 181
C.2 Determination of contrast . 182
Annex D (normative) Evaluation of clearance and creepage distances . 184
D.1 Measurement . 184
D.2 Relationship of measurement to pollution degree . 184
D.3 Examples . 185
Annex E (normative) Altitude correction for clearances . 191
E.1 Correction factor for clearances at altitudes above 2 000 m . 191
E.2 Test voltages for verifying clearances at different altitudes . 191
IEC 62477-1:2022 © IEC 2022 – 5 –
Annex F (normative) Clearance and creepage distance determination for frequencies
greater than 30 kHz . 193
F.1 General influence of the frequency on the withstand characteristics . 193
F.2 Clearance . 193
F.2.1 General . 193
F.2.2 Clearance for inhomogenous fields . 194
F.2.3 Clearance for approximately homogenous fields . 195
F.3 Creepage distance . 196
F.4 Solid insulation . 197
F.4.1 General . 197
F.4.2 Approximately uniform field distribution without air gaps or voids . 197
F.4.3 Other cases . 198
Annex G (informative) Cross-sections of round conductors . 199
Annex H (informative) Guidelines for RCD compatibility . 200
H.1 Selection of RCD type . 200
H.2 Fault current waveforms . 201
Annex I (informative) Examples of overvoltage category reduction . 204
I.1 General . 204
I.2 Protection to the surroundings (see 4.4.7.2) . 204
I.2.1 Circuits connected to mains supply (see 4.4.7.2.3) . 204
I.2.2 Circuits connected to the non-mains supply (see 4.4.7.2.4) . 207
I.2.3 Protection between circuits (see 4.4.7.2.7) . 207
I.3 Functional insulation (see 4.4.7.3) . 208
I.4 Further examples . 208
I.5 Circuits with multiple supplies (see 4.4.7.2.1) . 209
Annex J (informative) Burn thresholds for touchable surfaces . 210
J.1 General . 210
J.2 Burn thresholds. 210
Annex K (informative) Table of electrochemical potentials . 214
Annex L (informative) Measuring instrument for touch current measurements . 215
L.1 Measuring instrument 1 . 215
L.2 Measuring instrument 2 . 215
L.3 Measuring instrument 3 . 216
Annex M (normative) Test probes for determining access . 217
Annex N (informative) Guidance regarding short-circuit current. 220
N.1 General . 220
N.2 Coordination of short-circuit current . 221
N.2.1 General . 221
N.2.2 Conditional short-circuit current (I ) and minimum required prospective
cc
short-circuit current (I ) . 221
cp, mr
N.2.3 Short-time withstand current (I ) . 223
cw
N.3 Guidance for specification of short-circuit current and short-circuit protective
device . 224
N.3.1 General . 224
N.3.2 Example 1: Two or more PECS with different ratings . 225
N.3.3 Specification of I . 226
cc
N.3.4 Specification of I . 226
cw
– 6 – IEC 62477-1:2022 © IEC 2022
N.3.5 Example 2: One PECS with more than one rating . 227
N.3.6 Additional explanation on terms, definitions and specifications . 228
N.4 Short-circuit rating and single fault conditions testing . 229
N.4.1 General . 229
N.4.2 Exemption from short-time withstand current testing . 231
N.5 Guideline for short-circuit analysis . 231
Annex O (informative) Guidelines for determination of clearance and creepage
distances . 232
O.1 Guideline for determination of clearances . 232
O.2 Guideline for determination of creepage distances . 233
O.3 Minimum spacings within solid insulation or similar . 233
Annex P (informative) Protection of persons against electromagnetic fields for
frequencies from 0 Hz up to 300 GHz . 235
P.1 General influence of electromagnetic fields to persons . 235
P.1.1 General . 235
P.1.2 Low-frequency electric fields effects (1 Hz to 100 kHz) . 235
P.1.3 Low-frequency magnetic fields effects (1 Hz to 100 kHz) . 235
P.1.4 Low-frequency electric and magnetic fields effects . 235
P.1.5 High-frequency electromagnetic fields effects (100 kHz to 300 GHz) . 235
P.1.6 Current knowledge on low-level effects . 236
P.1.7 Biological effects versus adverse health effects . 236
P.1.8 Influence of EMF on passive and active medical implants . 236
P.2 Requirements from ICNIRP LF guidelines against exposure to EMF . 236
P.2.1 Adoption of exposure limits from ICNIRP . 236
P.2.2 Limits of EMF exposure for transportation and storage . 238
P.3 Protection of persons against exposure of EMF . 238
P.3.1 General . 238
P.3.2 EMF requirements for general public access areas . 239
P.3.3 EMF requirements for general access areas, service access areas and
restricted access areas . 239
P.3.4 EMF requirements for transportation and storage . 239
P.4 Electromagnetic fields (EMF) test (type test) . 240
P.4.1 General test set up for EMF . 240
P.4.2 EMF test (type test) . 240
P.5 Electromagnetic f
...
Frequently Asked Questions
EN IEC 62477-1:2023 is a standard published by CLC. Its full title is "Safety requirements for power electronic converter systems and equipment - Part 1: General". This standard covers: IEC 62477-1:2022 applies to power electronic converter systems (PECS), any specified accessories, and their components for electronic power conversion and electronic power switching, including the means for their control, protection, monitoring and measurement, such as with the main purpose of converting electric power, with rated system voltages not exceeding 1 000 V AC or 1 500 V DC. This document also applies to PECS which intentionally emit or receive radio waves for the purpose of radio communication. This document can also be used as a reference standard for product committees producing product standards for: - adjustable speed electric power drive systems (PDS); - standalone uninterruptible power systems (UPS); - low voltage - stabilized DC power supplies; - bidirectional power converters. For PECS and their specified accessories for which no product standard exists, this document provides minimum requirements for safety aspects. This document has the status of a group safety publication in accordance with IEC Guide 104 for power electronic converter systems for solar, wind, tidal, wave, fuel cell or similar energy sources. According to IEC Guide 104, one of the responsibilities of technical committees is, wherever applicable, to make use of basic safety publications and/or group safety publications in the preparation of their product standards. Guidance for use of this group safety publication for product committees is given in Annex S. This document - establishes a common terminology for safety aspects relating to PECS, - establishes minimum requirements for the coordination of safety aspects of interrelated parts within a PECS, - establishes a common basis for minimum safety requirements for the PECS portion of products that contain PECS, - specifies requirements to reduce risks of fire, electric shock, thermal, energy and mechanical hazards, during use and operation and, where specifically stated, during service and maintenance, and - specifies minimum requirements to reduce risks with respect to PECS designed as pluggable and permanently connected equipment, whether it consists of a system of interconnected units or independent units, subject to installing, operating and maintaining the PECS in the manner prescribed by the manufacturer. This document does not cover - telecommunications apparatus other than power supplies to such apparatus, - functional safety aspects as covered by, for example, IEC 61508 (all parts), and - electrical equipment and systems for railways applications and electr
IEC 62477-1:2022 applies to power electronic converter systems (PECS), any specified accessories, and their components for electronic power conversion and electronic power switching, including the means for their control, protection, monitoring and measurement, such as with the main purpose of converting electric power, with rated system voltages not exceeding 1 000 V AC or 1 500 V DC. This document also applies to PECS which intentionally emit or receive radio waves for the purpose of radio communication. This document can also be used as a reference standard for product committees producing product standards for: - adjustable speed electric power drive systems (PDS); - standalone uninterruptible power systems (UPS); - low voltage - stabilized DC power supplies; - bidirectional power converters. For PECS and their specified accessories for which no product standard exists, this document provides minimum requirements for safety aspects. This document has the status of a group safety publication in accordance with IEC Guide 104 for power electronic converter systems for solar, wind, tidal, wave, fuel cell or similar energy sources. According to IEC Guide 104, one of the responsibilities of technical committees is, wherever applicable, to make use of basic safety publications and/or group safety publications in the preparation of their product standards. Guidance for use of this group safety publication for product committees is given in Annex S. This document - establishes a common terminology for safety aspects relating to PECS, - establishes minimum requirements for the coordination of safety aspects of interrelated parts within a PECS, - establishes a common basis for minimum safety requirements for the PECS portion of products that contain PECS, - specifies requirements to reduce risks of fire, electric shock, thermal, energy and mechanical hazards, during use and operation and, where specifically stated, during service and maintenance, and - specifies minimum requirements to reduce risks with respect to PECS designed as pluggable and permanently connected equipment, whether it consists of a system of interconnected units or independent units, subject to installing, operating and maintaining the PECS in the manner prescribed by the manufacturer. This document does not cover - telecommunications apparatus other than power supplies to such apparatus, - functional safety aspects as covered by, for example, IEC 61508 (all parts), and - electrical equipment and systems for railways applications and electr
EN IEC 62477-1:2023 is classified under the following ICS (International Classification for Standards) categories: 29.200 - Rectifiers. Convertors. Stabilized power supply. The ICS classification helps identify the subject area and facilitates finding related standards.
EN IEC 62477-1:2023 has the following relationships with other standards: It is inter standard links to EN 62477-1:2012, EN 62477-1:2012/A1:2017, EN 62477-1:2012/A12:2021, EN 62477-1:2012/A11:2014, EN IEC 62477-1:2023/AC:2024-04. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN IEC 62477-1:2023 is associated with the following European legislation: EU Directives/Regulations: 2014/35/EU; Standardization Mandates: M/511. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN IEC 62477-1:2023 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
EN IEC 62477-1:2023は、電力電子コンバータシステム（PECS）及びその関連アクセサリーや構成要素に関する安全要件を定めた重要な規格です。この標準の範囲は、指定された入力電圧の範囲を超えない1,000 V ACまたは1,500 V DCまでの電力変換および電力スイッチングに関連するすべての要素に広がります。 この文書の強みは、PECSの安全性に関連する共通用語の確立、相互に関連する部品間の安全に関する調整の最低要件の設定、PECSを含む製品の最低安全要件の共通基盤の確立にあります。また、火災、感電、熱、エネルギー、機械的危険のリスクを軽減するための要件を具体的に示している点も大きな利点です。 さらに、PECSがプラグイン可能または常時接続される設備として設計されている場合のリスク軽減要件を定めているため、製品開発者にとって欠かせないガイドラインとなっています。この規格は、太陽光、風力、潮力、波力、燃料電池などのエネルギー源に関連する安全性のグループ出版物としての地位を有しており、IECガイド104に準拠しています。このように、製品基準の作成において安全性の基本的な文書やグループ安全出版物を活用することの重要性が強調されています。 全体として、EN IEC 62477-1:2023は、電力電子コンバータシステムに対する安全要求事項を明確にし、最小限の安全基準を提供することで、技術委員会や製品関連組織にとって非常に重要な参考文献となることが期待されます。
EN IEC 62477-1:2023規格は、電力電子変換システム（PECS）およびその関連アクセサリーの安全要求事項を規定しており、その適用範囲は非常に広範です。この文書は、1,000 V ACまたは1,500 V DCを超えない定格システム電圧における電子電力変換と電子電力スイッチングのためのコンポーネントを含んでいます。また、無線通信の目的で意図的にラジオ波を発信または受信するPECSにも適用されるため、通信機器分野における重要な指針を提供しています。 この標準の強みは、PECSとそのアクセサリーに対して最低限の安全要件を体系的に提供する点にあります。他の製品規格が存在しないPECSに対しても、引き続き安全性を確保するための基準を設けていることは、特に重要です。また、太陽光、風力、潮汐、波、燃料電池などのエネルギー源に関連するPECSに対するグループ安全出版物としてのステータスを有しており、技術委員会が製品標準策定において基本安全出版物を考慮する際のガイドラインを提供しています。 さらに、PECSに関連する安全性に関する共通用語を確立し、相互関連する部分の安全性の調整に必要な最低要件も提示しています。このことにより、製品内でPECSを含む部分に対する最低安全要件の共通基盤が整うため、異なる製品の間での整合性が図れます。また、火災や感電、熱、エネルギー、機械的危険を低減するための特定の要件が明示されており、製品の使用、運用、保守時のリスクも軽減されるよう配慮されています。 EN IEC 62477-1:2023は、電力電子変換システムにおける安全性を確保するための包括的なガイドラインを提供するものであり、その関連性は業界全体でますます重要性を増しています。この規格により、製品 committees が効果的にペースを保ちながら、さらなる安全性の向上を図ることが期待されます。
La norme EN IEC 62477-1:2023 présente un cadre essentiel pour les systèmes et équipements de conversion électronique de puissance, visant à garantir des exigences de sécurité robustes. Son champ d'application est clair et étendu, s'appliquant non seulement aux systèmes de conversion électronique de puissance (PECS) mais également à leurs accessoires spécifiés, englobant ainsi un large éventail de composants relatifs à la conversion et à la commutation de puissance électronique. L'un des principaux atouts de cette norme est sa capacité à établir une terminologie commune pour les aspects de sécurité liés aux PECS. Cela favorise une compréhension uniforme des exigences de sécurité à travers différents acteurs de l'industrie, facilitant ainsi la conformité et l'harmonisation des pratiques. En matière de protection, la norme définit des exigences minimales visant à coordonner les aspects de sécurité des parties interconnectées au sein d'un PECS. Cela est particulièrement pertinent dans le contexte des systèmes solaires, éoliens, marins, à hydrogène et d'autres sources d'énergie renouvelables, où la sécurité opérationnelle est d'une importance cruciale. Les exigences spécifiques énoncées dans la norme contribuent à réduire les risques d'incendie, de choc électrique et de dangers thermiques, énergétiques et mécaniques, tant pendant l'utilisation que le service. Cette approche préventive est essentielle pour garantir un niveau de sécurité adéquat, particulièrement pour les équipements conçus comme des systèmes pluggables ou des unités connectées de manière permanente. Une autre force de cette norme réside dans son rôle en tant que publication de sécurité de groupe, en conformité avec le Guide IEC 104. Elle sert de référence pour les comités de produits qui élaborent des normes pour des systèmes de contrôles électriques spécifiques, tels que les systèmes de conversion de fréquence et les systèmes d'alimentation sans interruption (UPS). Cela en fait un outil indispensable pour encourager l'utilisation de publications de sécurité de base lors de la création de normes de produits. Enfin, il convient de souligner que, bien que la norme couvre un large éventail d'applications, elle précise ce qui ne relève pas de son périmètre, comme les équipements de télécommunications autres que les alimentations nécessaires, et les aspects de sécurité fonctionnelle couverts par d'autres normes spécifiques. Cela aide à clarifier son domaine d'application, rendant ainsi la norme plus ciblée et pertinente pour les utilisateurs. En résumé, la norme EN IEC 62477-1:2023 se révèle être essentielle pour garantir la sécurité des systèmes de conversion de puissance, offrant des exigences claires et des recommandations qui favorisent la sécurité, la fiabilité et l'efficacité des PECS.
The standard EN IEC 62477-1:2023 addresses critical safety requirements for power electronic converter systems (PECS) and their components, establishing a comprehensive framework that is essential for ensuring safety in various applications of electronic power conversion and switching. The scope of this standard is extensive, encompassing systems with rated voltages up to 1,000 V AC and 1,500 V DC, which are pivotal in settings ranging from renewable energy sources like solar and wind to adjustable speed electric power drive systems (PDS) and uninterruptible power systems (UPS). One of the significant strengths of this standard is its establishment of a common terminology related to safety aspects of PECS, which enhances clarity and communication among stakeholders involved in the production and implementation of these systems. By providing minimum safety requirements, it equips product committees with a solid foundation to address safety concerns comprehensively, especially for systems lacking a specific product standard. The standard notably prioritizes risk reduction by specifying requirements aimed at mitigating fire, electric shock, thermal, energy, and mechanical hazards. This proactive approach ensures that manufacturers and users can be more confident in the operational safety of their systems, particularly for equipment designed as both pluggable and permanently connected units. The inclusion of guidance for product committees in Annex S reinforces the standard’s relevance, positioning it as a vital reference for developing comprehensive safety protocols. Furthermore, the status of EN IEC 62477-1:2023 as a group safety publication in accordance with IEC Guide 104 emphasizes its commitment to harmonizing safety across different PECS applications, thereby enhancing industry standards. Despite its breadth, the standard also clearly delineates its limitations, excluding telecommunications apparatus unrelated to power supplies and specific functional safety aspects, which helps in setting realistic expectations for its implementation. Overall, EN IEC 62477-1:2023 stands out as a robust and relevant standard, reinforcing safety in power electronic converter systems while offering clear guidelines for product committees and stakeholders alike.
Die Norm EN IEC 62477-1:2023 legt umfassende Sicherheitsanforderungen für leistungs elektronische Umwandlungssysteme (PECS) und deren Komponenten fest. Ihr Anwendungsbereich erstreckt sich auf Systeme mit Nennspannungen von bis zu 1 000 V AC oder 1 500 V DC sowie Zubehörteile, die für die elektronische Energieumwandlung und -schaltung vorgesehen sind. Besonders hervorzuheben ist, dass diese Norm auch für PECS gilt, die gezielt Radiofrequenzen zur Kommunikation nutzen, was ihre Relevanz in einem zunehmend vernetzten technologischen Umfeld unterstreicht. Ein bedeutender Strength der Norm ist die Festlegung von allgemeinen Sicherheitsstandards und Terminologien, die für alle involvierten Teile eines PECS gelten. Dadurch wird eine homogenisierte Grundlage geschaffen, die für Produktkommissionen von zentraler Bedeutung ist, insbesondere bei der Entwicklung spezifischer Produktstandards für Systeme wie regelbare elektrische Antriebssysteme (PDS) oder unterbrechungsfreie Stromversorgungen (UPS). Die Norm bietet zudem Mindestanforderungen zu sicherheitstechnischen Aspekten, die für die Koordination von sicherheitsrelevanten Teilen eines PECS unerlässlich sind. Hierdurch wird das Risiko von Bränden, elektrischen Schlägen sowie thermischen, energetischen und mechanischen Gefahren während des Betriebs und der Wartung signifikant reduziert. Ein weiterer positiver Aspekt ist, dass die Norm als Gruppensicherheitsveröffentlichung gemäß IEC Guide 104 anerkannt ist, was sie zu einer vertrauenswürdigen und umfassenden Referenz für Sicherheitsanforderungen in verschiedenen Energieanwendungssystemen macht, einschließlich erneuerbarer Energiequellen wie Solar- und Windkraft. Der Leitfaden für die Anwendung dieser Gruppensicherheitsveröffentlichung in Produktkommissionen ist in Anhang S enthalten und trägt zur Klarheit bei der Implementierung von Sicherheitsanforderungen bei. Zusammenfassend schafft die EN IEC 62477-1:2023 eine wichtige Basis für die Sicherheit von leistungs elektronischen Konvertersystemen und deren Zubehör, indem sie klare Mindestanforderungen und Richtlinien bereitstellt, die für die kontinuierliche Entwicklung und den sicheren Betrieb in dieser Technologiedomäne wesentlich sind.
La norme EN IEC 62477-1:2023, intitulée « Exigences de sécurité pour les systèmes et équipements de conversion d'énergie électrique - Partie 1 : Général », présente un cadre essentiel pour la sécurité des systèmes de conversion d'énergie électrique (PECS). Son domaine d’application est largement défini et englobe non seulement les systèmes de conversion d'énergie eux-mêmes, mais aussi les accessoires et composants spécifiés, ainsi que les moyens de contrôle, de protection, de surveillance et de mesure, particulièrement pour des tensions de système allant jusqu'à 1 000 V AC ou 1 500 V DC. Un des points forts de cette norme est sa capacité à s'appliquer à divers domaines, incluant les systèmes de communication radio liés aux PECS. Cela montre sa pertinence dans un paysage technologique en constante évolution, où la convergences des énergies renouvelables et de la communication sans fil est de plus en plus nécessaire. La norme sert également de référence pour les comités de produits qui élaborent des normes pour des systèmes de conduite d'énergie électrique à vitesse variable, des systèmes d'alimentation sans interruption (UPS), des alimentations électriques continuellement stabilisées, et des convertisseurs d'énergie bidirectionnels. En l'absence de normes de produit spécifiques pour certains PECS et accessoires, ce document établit des exigences minimales en matière de sécurité, ce qui est crucial pour garantir la fiabilité et la protection des utilisateurs. La norme présente un statut de publication de sécurité de groupe, conformément au Guide IEC 104. Cela renforce sa crédibilité et son utilité pour les comités techniques qui doivent respecter les exigences de sécurité fondamentales lors de la préparation de leurs normes de produits. Des annexes, comme l'Annexe S, offrent des orientations précieuses pour l'utilisation de cette publication de sécurité de groupe, facilitant ainsi son intégration dans les démarches normatives. De plus, la norme établit une terminologie commune pour les aspects de sécurité associés aux PECS et définit des exigences minimales pour la coordination des aspects de sécurité entre les différentes parties interconnectées d'un PECS. Ceci est fondamental pour réduire les risques de dangers liés au feu, aux chocs électriques, ainsi qu'aux risques thermiques, énergétiques et mécaniques durant l'utilisation et l'exploitation. Enfin, il est important de noter que certaines exclusions sont clairement définies dans ce document, ce qui permet d’éviter toute ambiguïté quant aux systèmes qui ne sont pas couverts, tels que les équipements télécommunication ou les aspects de sécurité fonctionnelle spécifiques traités par d’autres normes. Dans l'ensemble, EN IEC 62477-1:2023 se présente comme un référentiel robuste et pertinent pour assurer une approche sécuritaire dans la conception et l'utilisation des systèmes de conversion d'énergie électrique.
The EN IEC 62477-1:2023 standard provides comprehensive safety requirements for power electronic converter systems (PECS) and their components, significantly impacting various industries reliant on electronic power conversion and switching technologies. Its scope includes systems with rated voltages not exceeding 1,000 V AC or 1,500 V DC, addressing not only the core functionalities of these systems but also essential aspects such as control, protection, monitoring, and measurement. One of the standard's notable strengths lies in its applicability to a broad range of technologies, including adjustable speed electric power drive systems (PDS), standalone uninterruptible power systems (UPS), and low voltage stabilized DC power supplies. By serving as a reference for product committees, it enhances the development of product standards, ensuring that safety considerations are integrated early in the design process. The document establishes a common terminology that aids in uniform understanding and communication regarding safety aspects of PECS. Furthermore, it specifies minimum requirements to coordinate safety provisions across the various interrelated components of these systems, thereby reducing potential risks. The attention given to risks related to fire, electric shock, thermal events, and mechanical hazards during operation and maintenance is particularly relevant in promoting safety in environments where PECS are employed. The inclusion of specialized considerations for PECS designed as pluggable and permanently connected equipment showcases the standard's comprehensive approach, ensuring versatility and application in diverse settings. The guidance outlined for product committees in Annex S strengthens its practicality, allowing for a cohesive integration of safety criteria into new product standards. Overall, the EN IEC 62477-1:2023 standard is a crucial reference document that enhances safety in power electronic converter systems and their accessories, aligning with the overarching goals of standardization in safety and reliability for contemporary electronic applications.
Die Norm EN IEC 62477-1:2023 beschäftigt sich mit den Sicherheitsanforderungen für Systeme und Geräte von Leistungselektronik-Umrichtern (Power Electronic Converter Systems, PECS). Ihr Anwendungsbereich umfasst alle Komponenten und Zubehörteile, die für die elektronische Energieumwandlung und -schaltung erforderlich sind, einschließlich der Steuerungs-, Schutz-, Überwachungs- und Messtechniken, die notwendig sind, um elektrische Energie zu konvertieren, wobei die Nennsystemspannungen 1.000 V AC oder 1.500 V DC nicht überschreiten dürfen. Ein wesentlicher Stärke dieser Norm ist ihre umfassende Abdeckung und die Anwendung auf verschiedene Bereiche. Sie ist sowohl anwendbar auf Systeme, die gezielt Funkwellen zur Kommunikation aussenden oder empfangen, als auch als Referenznorm für Produktkomitees, die Produktstandards für vielfältige Systeme wie beispielsweise einstellbare elektrische Antriebssysteme (PDS) oder unterbrechungsfreie Stromversorgungen (UPS) entwickeln. Für PECS, für die es keinen spezifischen Produktstandard gibt, bietet dieses Dokument Mindestanforderungen an die Sicherheitsaspekte, was die Relevanz der Norm in der Branche unterstreicht. Die Norm hat den Status einer Gruppensicherheitsveröffentlichung gemäß IEC Guide 104 und richtet sich somit an technische Komitees, die in ihren Produktstandards grundlegende Sicherheitsveröffentlichungen berücksichtigen sollen. Sie legt eine gemeinsame Terminologie für Sicherheitsaspekte in Bezug auf PECS fest, was dazu beiträgt, Missverständnisse zu vermeiden und die Kommunikation zwischen den verschiedenen Stakeholdern zu verbessern. Darüber hinaus definiert die Norm Mindestanforderungen zur Koordination der Sicherheitsaspekte von miteinander verknüpften Teilen innerhalb eines PECS und schafft eine gemeinsame Grundlage für die minimalen Sicherheitsanforderungen für Produkte, die PECS enthalten. Die Spezifikationen zur Risikominderung, insbesondere bezüglich Feuer-, elektrischer Schlag-, thermischer, Energie- und mechanischer Gefahren während des Gebrauchs und Betriebs, sind klare Vorteile dieser Norm. Die Fähigkeit, spezifische Anforderungen für als steckbar und fest angeschlossen konzipierte PECS zu definieren, zeigt die praktische Anwendbarkeit der Norm im realen Betrieb. Die Norm behandelt jedoch nicht Kommunikationsgeräte, die über die Stromversorgung hinausgehen, und umfasst auch keine funktionalen Sicherheitsaspekte, die in Normen wie IEC 61508 zu finden sind. Dies macht sie zu einer gezielten und fokussierten Veröffentlichung, die sich hauptsächlich auf die Sicherheit von PECS konzentriert. Insgesamt ist die EN IEC 62477-1:2023 eine entscheidende Norm für die Sicherheit von leistungselektronischen Umrichtersystemen und -geräten, die dazu beiträgt, die Sicherheitsstandards in der Branche zu erhöhen und die Integrität von elektrischen Energiesystemen zu gewährleisten.
EN IEC 62477-1:2023 표준은 전력 전자 변환 시스템(PECS) 및 그에 연결된 구성 요소, 액세서리에 대한 안전 요구 사항을 명확히 규정하고 있습니다. 이 문서는 전력 변환 및 전력 스위칭을 위한 기본 안전 기준을 설정하며, 1,000V AC 또는 1,500V DC 이하의 정격 시스템 전압을 가진 장치들을 포함합니다. 또한, 전파 통신을 위해 의도적으로 전파를 송신하거나 수신하는 PECS에도 적용됩니다. 이 표준은 조정 가능한 속도의 전력 드라이브 시스템(PDS), 독립형 무정전 전원 장치(UPS), 저전압 안정화 DC 전원 공급 장치, 양방향 전력 변환기와 같은 다양한 전력전자 제품에 대한 제품 표준의 참고 자료로 활용될 수 있습니다. 이 문서는 제품 표준이 없는 PECS 및 해당 액세서리에 대해 최소 안전 요구 사항을 제공하므로, 안전성 측면에서 상당한 강점을 지니고 있습니다. 또한, 이 표준은 태양광, 풍력, 조수, 파도 및 연료전지와 같은 에너지 소스에 대한 전력 전자 변환 시스템을 위한 그룹 안전 간행물로서 IEC 가이드 104에 따라 인정됩니다. 기본 안전 간행물 및 그룹 안전 간행물을 활용하여 제품 표준을 준비해야 하는 기술 위원회의 책임을 고려할 때, PECS의 안전 측면에 대한 공통 용어를 정립하는 것은 중요합니다. EN IEC 62477-1:2023은 PECS 내 상호 관련된 부품의 안전 측면 조정을 위한 최소 요구 사항을 설정하며, PECS를 포함하는 제품의 최소 안전 요건을 위한 공통 기준을 마련합니다. 이 문서는 사용 및 운영, 특정적으로 명시된 경우 서비스 및 유지보수 중의 화재, 전기 쇼크, 열 및 기계적 위험 감소를 위한 요구 사항을 규정하고 있습니다. 플러그형 및 영구 연결 장비로 설계된 PECS에 대한 위험을 줄이기 위한 최소 요구 사항도 포함되어 있어, 제조업체가 규정한 방식으로 PECS를 설치, 운영 및 유지보수하는 것을 전제로 합니다. 결론적으로, EN IEC 62477-1:2023 표준은 전력전자 변환 시스템의 안전성 보장에 있어 필수적인 문서로, 제품의 안전성을 높이고 기술적 기준을 통일하는 데 기여하고 있습니다.
EN IEC 62477-1:2023 표준은 전력 전자 변환 시스템(PECS) 및 그 구성 요소에 대한 안전 요구 사항을 설정하는 중요한 문서입니다. 이 표준의 적용 범위는 전기 에너지를 변환하는 기능을 가진 장치와 시스템을 포괄하며, 이는 AC 전압 1,000V 이하 또는 DC 전압 1,500V 이하에서 작동합니다. 또한, 라디오 통신을 위해 의도적으로 전파를 발생하거나 수신하는 PECS에도 적용됩니다. 이 표준의 주요 강점 중 하나는 다양한 제품 기준을 개발하는 제품 위원회에 대한 참고 문서로 활용될 수 있다는 것입니다. 예를 들어, 조정 가능한 전력 구동 시스템(PDS), 독립형 무정전 전원 시스템(UPS), 저전압 안정화 DC 전원 공급 장치 및 양방향 전력 변환기에 대한 최소 안전 요구 사항을 제공합니다. 이러한 점에서 EN IEC 62477-1:2023은 비상 상황에서도 안전성을 보장하는 데 필요한 기준을 제시하고 있습니다. 또한, 이 문서는 PECS 및 그에 해당하는 액세서리에 대해 제품 표준이 존재하지 않을 경우.apply minimum safety aspects. 이 문서의 특성은 그룹 안전 게시물로서, 태양광, 풍력, 조수, 파도 및 연료 전지와 같은 에너지원에 대한 전력 전자 변환 시스템에 대한 안전 요구 사항을 정의합니다. 이는 IEC Guide 104에 따라, 기술 위원회의 기본적인 안전 게시물 및 그룹 안전 게시물을 기준으로 제품 표준을 작성하는 데 필요한 책임을 명확히 하고 있습니다. EN IEC 62477-1:2023은 PECS와 관련된 안전 측면에 대한 공통 용어를 설정하고, 여러 부분이 상호 연관된 PECS 내의 안전 측면 조정을 위한 최소 요구 사항을 명시하며, PECS를 포함한 제품의 최소 안전 요구 사항의 공통 기반을 마련하는 등의 중요한 기능을 수행합니다. 이 문서는 또한 사용 및 운영 중에 전기 충격, 화재, 열, 에너지 및 기계적 위험을 줄이기 위한 요구 사항을 제시하며, 플러그형 및 영구 연결 장비로 설계된 PECS와 관련된 최소 요구 사항도 명시합니다. 결론적으로, EN IEC 62477-1:2023 표준은 전력 전자 변환 시스템의 안전성을 보장하는 데 필수적인 문서로, 다양한 전력 관련 응용 프로그램에 널리 적용될 수 있습니다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
