EUROPEAN STANDARD EN 50242
EN 60436
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2016
ICS 97.040.40 Supersedes EN 50242:2008
EN 60436:2008
English Version
Electric dishwashers for household use -
Methods for measuring the performance
(IEC 60436:2004 , modified + A1:2009 , modified
+ A2:2012 , modified)
Lave-vaisselle électriques à usage domestique -  Elektrische Geschirrspüler für den Hausgebrauch -
Méthodes de mesure de l'aptitude à la fonction Messverfahren für Gebrauchseigenschaften
(IEC 60436:2004 , modifiée + A1:2009 , modifiée (IEC 60436:2004 , modifiziert + A1:2009 , modifiziert
+ A2:2012 , modifiée) + A2:2012 , modifiziert)
This European Standard was approved by CENELEC on 2016-04-11. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50242:2016 E
EN 60436:2016 E
EN 60436:2016 (E)

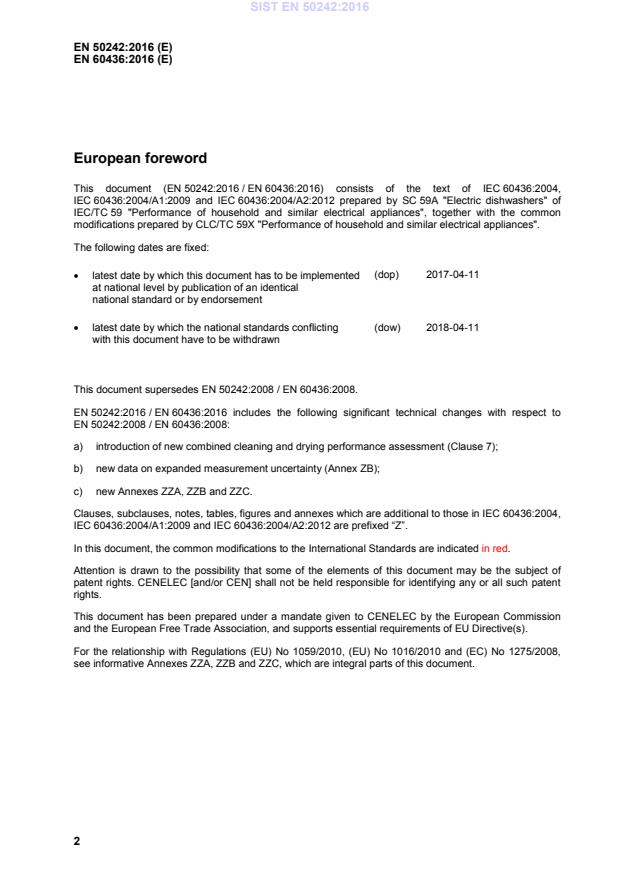

European foreword
This document (EN 50242:2016 / EN 60436:2016) consists of the text of IEC 60436:2004,
IEC 60436:2004/A1:2009 and IEC 60436:2004/A2:2012 prepared by SC 59A "Electric dishwashers" of
IEC/TC 59 "Performance of household and similar electrical appliances", together with the common
modifications prepared by CLC/TC 59X "Performance of household and similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be implemented (dop) 2017-04-11
at national level by publication of an identical
national standard or by endorsement
(dow) 2018-04-11
• latest date by which the national standards conflicting
with this document have to be withdrawn

This document supersedes EN 50242:2008 / EN 60436:2008.
EN 50242:2008 / EN 60436:2008:
a) introduction of new combined cleaning and drying performance assessment (Clause 7);
b) new data on expanded measurement uncertainty (Annex ZB);
c) new Annexes ZZA, ZZB and ZZC.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in IEC 60436:2004,
IEC 60436:2004/A1:2009 and IEC 60436:2004/A2:2012 are prefixed “Z”.
In this document, the common modifications to the International Standards are indicated in red.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with Regulations (EU) No 1059/2010, (EU) No 1016/2010 and (EC) No 1275/2008,
see informative Annexes ZZA, ZZB and ZZC, which are integral parts of this document.
EN 60436:2016 (E)
Endorsement notice
The text of the International Standard IEC 60436:2004, IEC 60436:2004/A1:2009 and
IEC 60436:2004/A2:2012 was approved by CENELEC as a European Standard with agreed common
modifications.
COMMON MODIFICATIONS
Contents
Modify the table of contents as follows:
FOREWORD
INTRODUCTION
INTRODUCTION TO AMENDMENT 2
1 Scope
2 Normative references
3 Definitions related to the appliance
4 List of measurements
5 General conditions for measurements
5.1 General
5.2 Conditioning of the machine under test and sequence of test procedures
5.3 Electricity supply for machines
5.4 Test programme
5.5 Ambient conditions
5.6 Water supply
5.7 Detergent
5.8 Rinse agent
5.9 Salt
6 Combined cleaning and drying performance tests
6.1 General and purpose
6.2 Load
6.3 Soiling agents
6.4 Preparation and application of soiling agents
6.5 Drying of the soiled dishes
6.6 Loading and operating
6.7 Evaluation
6.8 Expressing results
EN 60436:2016 (E)
7 Combined cleaning and drying performance assessment
7.1 General
7.2 General requirements to enable subsequent cleaning assessment
7.3 Determination of the drying performance
7.4 Determination of the cleaning performance
7.5 Results
8 Energy consumption, water consumption and time
8.1 General and purpose
8.2 Method of measurement
9 Airborne acoustical noise
Annex A (normative) Place settings and serving pieces (non-AHAM style load)
Annex B (normative) AHAM style load
Annex C (normative) Illustration of soil distribution
Annex D (normative) Test materials for laboratories
Annex E (normative) Description of the reference machine [Type 1]
Annex F (informative) Addresses of suppliers
Annex G (normative) Microwave oven and through-circulation thermal cabinet
Annex H (informative) Guidelines for assessing cleaning performance
Annex I (normative) Test enclosure for built-in dishwasher
Annex J (informative) Flow chart – test sequence for EN 50242
Annex K (informative) Shade chart
Annex L (informative) Test report format
Annex M (informative) Adjusting water consumption in the reference dishwasher
Annex N (normative) Description of the reference machine [Type 2]
Annex O (normative) Additional aspects of the energy consumption of dishwashers [based on 59D/343/CDV]
Annex ZA (informative) Pictures of the soiled items
Annex ZB (informative) Uncertainty of measurements
Annex ZC (informative) Tolerances and control procedures
Annex ZD (informative) Template for test report
EN 60436:2016 (E)
Annex ZZA (informative) Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) No 1059/2010 aimed to be covered
Annex ZZB (informative) Relationship between this European Standard and the ecodesign requirements
of Commission Regulation (EU) No 1016/2010 aimed to be covered
Annex ZZC (informative) Relationship between this European Standard and the ecodesign requirements
of Commission Regulation (EC) No 1275/2008 aimed to be covered.
Bibliography
Figure 1 – Position of the glasses on the microwave turntable
Figure G.1 – Illustration chart 1: Location of the thermocouple on upper, intermediate and lower wire
sheet
Figure G.2 – Illustration chart 2: The thermal cabinet filled with dishes (pictures of the soiled items: see
Annex ZA)
Figure I.1 – Test enclosure for built-in dishwasher
Figure N.1 – Maximum water level at the end of programme
Figure N.2 – Reference machine [Type 2] loading plan
Figure O.Z1 – Measurement procedure for the low power modes (left on mode and off mode)
Table 1 – Evaluation to determine the drying index
Table 2 – Evaluation of cleaning tests
Table 3 – Evaluation to determine the cleaning index
Table 4 – Numerical Values of the t-factor for statistical calculations
Table L.1 – Detailed results for test machine(s) and reference machine
Table ZB.1 – Relative expanded uncertainty of measured values of this European Standard
Table ZD.1 – Test report template
Table ZZA.1 – Correspondence between this European Standard and Commission Delegated Regulation
(EU) No 1059/2010 of 28 September 2010 supplementing Directive 2010/30/EU of the European
Parliament and of the Council with regard to energy labelling of household dishwashers [OJ L 314,
30.11.2010] and Commission’s standardization request M/481
Table ZZB.1 – Correspondence between this European Standard and Commission Regulation (EU)
No 1016/2010 of 10 November 2010 implementing Directive 2009/125/EC of the European Parliament
and of the Council with regard to ecodesign requirements for household dishwashers [OJ L 293,
11.11.2010] and Commission’s standardization request M/481
Table ZZC.1 – Correspondence between this European Standard and Commission Regulation (EC)
No 1275/2008 of 17 December 2008 implementing Directive 2005/32/EC of the European Parliament and
of the Council with regard to ecodesign requirements for standby and off mode electric power
consumption of electrical and electronic household and office equipment [OJ L 339, 18.12.2008] and
Commission’s standardization request M/481
EN 60436:2016 (E)
Introduction
Replace the existing introductions by the following:
This new edition of EN 50242 / EN 60436 has been developed based on the mandate M/481 to CEN,
CENELEC and ETSI for standardisation in the field of household dishwashers, which relates to
Directive 2009/125/EC of the European Parliament and of the Council and to Directive 2010/30/EU of the
European Parliament and of the Council.
Mandate M/481, issued by the European Commission, includes the standardization task to develop
measures in testing household dishwashers, which ensure “that the prospective harmonised standard(s)
includes a procedure that avoids an appliance being programmed to recognize the test cycles, and
reacting specifically to them, with the exclusion of test cycle recognition that is active only during the
manufacturing of the appliance”.
CLC/TC 59X/WG 2 has identified the deviating test conditions in the previous edition of this standard for
the cleaning performance assessment (soiled test load), including relevant energy and water
consumption measurements, and the drying performance assessment (unsoiled test load), excluding
energy and water consumption measurements, to be the main potential source for an appliance being
programmed to recognize the test cycle, and reacting specifically to them. Therefore, the Combined
Cleaning and Drying evaluation (CCD) has been established to repeal former deviating test conditions,
and to improve alignment with common real life household conditions.
This document submits all common modifications necessary for the application of
IEC 60436:2004/A1:2009 and IEC 60436:2004/A2:2012 in Europe. Accordingly, it incorporates the
changes made in EN 50242:2008/A11:2012 / EN 60436:2008/A11:2012.
In addition, this document submits modifications to Annex O “Additional aspects of the energy
consumption of dishwashers” based on the FDIS draft of IEC 60436 4th Edition prepared by SC 59A
"Electric dishwashers" of IEC/TC 59 "Performance of household and similar electrical appliances".
EN 60436:2016 (E)
1 Scope
In the first sentence of the first paragraph, replace ‘International Standard’ by ‘European Standard’.
2 Normative references
Add the following new references:
EN 50564:2011, Electrical and electronic household and office equipment – Measurement of low power
consumption (IEC 62301:2011, modified)
EN ISO 80000-1:2013, Quantities and units – Part 1: General (ISO 80000-1:2009 + Cor 1:2011)
ISO 3310 series, Test sieves - Technical requirements and testing
Modify the referenced documents as follows:
EN 60350 series, Household electric cooking appliances (IEC 60350 series)
EN 60704-2-3, Household and similar electrical appliances – Test code for the determination of airborne
acoustical noise – Part 2-3: Particular requirements for dishwashers (IEC 60704-2-3)
EN 60704-3, Household and similar electrical appliances – Test code for the determination of airborne
acoustical noise – Part 3: Procedure for determining and verifying declared noise emission values
(IEC 60704-3)
EN 60705, Household microwave ovens – Methods for measuring performance (IEC 60705)
EN 60734, Household electrical appliances – Performance – Hard water for testing (IEC 60734)
AHAM DW-1:2003, Performance testing methods for household electric dishwashers
3 Terms and definitions
Replace the heading of Clause 3 by the following:
3 Definitions related to the appliance
3.16
off mode
Delete the Note 2.
3.17
left on mode
Replace the definition by the following:
the lowest power consumption mode that may persist for an indefinite time after the completion of the
programme, opened and unlatched door without any further intervention of the user
3.18
delay start mode
Delete the note.
EN 60436:2016 (E)
Add the following new definitions:
3.Z1
left on mode duration
time for the dishwasher to revert automatically to off mode after the end of the programme with the door
unlatched and opened; mode applies if the test dishwasher is equipped with a power management
system
Note 1 to entry: The left on mode duration is declared by the manufacturer.
Note 2 to entry: End of programme is reached when end of programme indicator is activated or when all activities cease if there
is no end of programme indicator (according to 3.6 and 3.7).
3.Z2
power management system
system within the test dishwasher which allows it to revert automatically to off mode
4 List of measurements
Replace the first bullet point by the following:
- the combined cleaning and drying performance according to Clause 6 and Clause 7.
Delete the second bullet point.
5 General conditions for measurements
5.1 General
Replace the last sentence of the second paragraph by:
The reference machine shall be in accordance with the description given in Annex E or Annex N
respectively.
Add a new paragraph after the last sentence:
Rounding shall only be applied to reported values in Clause Z1, Clause Z2 and Annex L. If numbers have to
be rounded, they shall be rounded to the nearest number according to EN ISO 80000-1:2013, B.3 Rule B. If
the rounding takes place to the right of the comma, the omitted places shall not be filled with zeros.
5.1.1 Free standing dishwashers
Replace the second sentence by the following:
The dishwasher manufacturer’s instructions regarding installation and use of the dishwasher shall be
followed.
5.2 Conditioning of the machine under test and sequence of test procedures
Modify the two paragraphs of the subclause as follows:
Before conducting the performance tests, the dishwasher shall be operated for at least three complete
cycles using no load or a clean load with reference detergent (specified in 5.7) and with rinse agent
(specified in 5.8). If noise measurements should be done, they should be carried out before any
performance measurements and in accordance to Clause 8. No additional cycles shall be carried out on
the machine under test between the sequential steps specified in the following procedure.
The tests of cleaning performance and drying performance shall be performed simultaneously. The
determination of energy, water and cycle/programme time (Clause 8) shall be done in conjunction with
the combined cleaning and drying performance (Clauses 6 and 7) tests.
EN 60436:2016 (E)
5.3 Electricity supply for machines
Replace the text of Subclause 5.3.1.1 Voltage by the following:
The supply voltage shall be maintained at 230 V ± 1 %.
The supply voltage measured during the tests shall be recorded.
Modify Subclause 5.3.2.1 Voltage as follows:
The supply voltage shall be set at 230 V a.c. and maintained within ± 1 % throughout the test. The
measured voltage shall be reported.
5.4 Test programme
Replace the first sentence of the first paragraph by:
For energy labelling and / or ecodesign purposes, the programme to be tested shall be the cycle which
cleans normally soiled tableware (standard cleaning and drying cycle) and shall be named “eco”. The
name “eco” shall be used once and exclusively for this standard test programme. The only other
additional information which could be combined with the term “eco” is temperature.
Replace the text of the note by:
The formatting of the phrase “eco“ is not restricted in terms of font, font size, case sensitivity, colour or accentuations like the usage
of italic letter or underlining etc.
Replace the second paragraph by the following:
The same programme shall be used for measuring the combined cleaning and drying performance
according to Clauses 6 and 7, the energy and water consumption and time according to Clause 8, and
the noise according to Clause 9, if tested.
5.5 Ambient conditions
For both drying methods, replace "(20 ± 2) °C" by "(23 ± 2) °C".
For the oven drying method, replace "(55 ± 10) % RH" by "(55 ± 5) % RH".
Add the following sentence after the last paragraph:
For energy labelling and / or ecodesign purposes, the air-dry method is not permitted.
5.6.2 Water supply – Temperature
Add the following paragraph after the list:
The volume of the water pipe after the measurement device for temperature up to the connection point to
the water inlet hose of the test dishwasher shall not exceed 250 ml.
If a bypass to drain water is installed at each connection to the water inlet hose(s) of the dishwasher the
bypass shall be opened before starting tests until the water inlet temperature is in the required range. If
the temperature is measured in the circulation loop, the volume of the spur taking the water from the
circulation loop shall not exceed 250 ml.
For energy labelling and / or ecodesign purposes, the use of hot water is not permitted.
EN 60436:2016 (E)
5.6.3 Hardness
In the second sentence of the first paragraph, replace ‘IEC 60734’ by ‘EN 60734’.
Add the following sentences after the first paragraph:
For energy labelling and / or ecodesign purposes, if the appliance is not equipped with a water softener,
the hardest water which is permitted by the manufacturer's instructions shall be used, otherwise only
water of (2,5 ± 0,5) mmol/l shall be used.
5.7 Detergent
Replace the text of the paragraph by the following:
For energy labelling and / or ecodesign purposes, the reference detergent B, as described in Annex D,
shall be used.
The quantity shall be as recommended by the manufacturer, but it shall not be more than
– 2,5 g/place setting for dishwashers with a capacity of ≥ 10 place settings;
– 3,0 g/place setting for dishwashers with a capacity of < 10 place settings.
If no recommendation is given by the manufacturer, use
– 2,0 g/place setting for dishwashers with a capacity of ≥ 10 place settings;
– 2,5 g/place setting for dishwashers with a capacity of < 10 place settings.
The total quantity of detergent, in grams, used for main wash and pre-wash during the tests shall be
recorded.
The detergent shall be placed in the dishwasher immediately prior to starting the programme. If a
dispenser is incorporated in the dishwasher, it shall be used. The dispenser shall be clean and dry prior to
the placement of detergent. In the absence of manufacturer’s recommendations, the detergent shall be
placed in the main compartment of the dispenser.
Detergent from the same batch shall be used for the dishwasher under test and for the reference
dishwasher.
The detergent shall be stored in waterproof bags in quantities of no more than 1 kg in a cool and dry
atmosphere. It shall be used within six months after production and within one month of opening.
Before using, the detergent shall be homogenized in accordance with ISO 607 for example using a
sample dividing device.
NOTE For a supplier of a suitable sample dividing device, see Annex F.
5.8 Rinse agent
Add the following sentence between the first paragraph and NOTE 1:
For energy labelling and / or ecodesign purposes, only Formula III rinse aid (acidic) shall be used.
EN 60436:2016 (E)
6 Cleaning performance
Replace the heading of Clause 6 by the following:
6 Combined cleaning and drying performance tests
6.1 General and purpose
Modify the first paragraph as follows:
The purpose of this test is to measure how well the appliance cleans and dries normally soiled place
settings and serving pieces.
Replace the first sentence of the second paragraph by:
The tests are carried out in parallel with one of the reference machines specified in Annex E or Annex N.
6.2 Load
Add between the first and second paragraphs the following:
For energy labelling and / or ecodesign purposes, test load items according to Annex A shall be used.
In the paragraph between Note 1 and Note 2, replace "with 6.7" by 'with Clause 7".
Replace the second note by the following:
NOTE 2 Reconditioning in a dishwasher should be done using detergent B (refer to Annex D).
Add after the last paragraph the following new paragraphs:
The items should be used for not more than 200 cycles where soiling is applied.
After each cleaning and drying performance test with five to eight cycles a special normalization cycle
shall be performed in order to avoid residual scale formation on the test load. For this purpose clean load
is loaded into a dishwasher (no test or reference machine) having a normal / daily use programme. This
programme is run with 30 g of anhydrous fine granular citric acid (Supplier see Clause F.Z2) instead of
detergent for one cycle.
In case new test load is started to use in the tests, ten cycles using detergent (specified in 5.7) and rinse
aid (specified in 5.7) shall be performed in order to avoid the deviations in the test results of tests
performed with new load and used load.
Soup plates (specified in Clause A.2) soiled with oat flakes (specified in 6.4.5) shall be free of starch
residues from the previous tests.
NOTE 3 This can be checked by Lugols solution after each cleaning performance test. Lugols solution is a 1 % Iodine/potassium
iodide solution (Merck 109261), which may be obtained from supplier mentioned in Clause F.Z2.
6.3 Soiling agents
Add the following new paragraphs after the last paragraph of 6.3:
All soiling materials used for the reference machine and for the machine under test shall be from the
same batch.
For energy labelling and / or ecodesign purposes, it is necessary that the soilings have the same
properties in all laboratories to ensure comparable and reproducible results.
EN 60436:2016 (E)
Soilings from the same batch are offered by the supplier mentioned in Clause F.14.
Delete the last sentence of the subclause.
6.4 Preparation and application of soiling agents
Modify the first sentence of the first paragraph as follows:
Unless specifically stated otherwise, all soiling agents are to be freshly prepared for each test and have to
be finally prepared and applied to the test items at the date of testing.
Add the following Note after Note 1:
NOTE 2 Refer to Annex ZA for illustration of soiling.
6.4.1.1 Items required for preparation
Add the following sentence at the end of the first bullet point:
For energy labelling and / or ecodesign purposes, only UHT milk shall be used.
Modify the last bullet point as follows:
– Pipette (10 ml) (see Clause F.Z1)
6.4.1.2 Conversion
Replace the entire paragraph by the following:
If the power levels of the microwave oven used are not equal to the rated values (780 W and 150 W)
according to Annex G but within the given tolerances the heating times shall be corrected as follows:
1)
Bosch model HMT752F Approved microwave oven for tests
1)
(e.g. Bosch HMT742C; HMT743C; HMT75M42 )
P ⋅ t
P ⋅ Z
1 1
t = t =
(Z1)
u,1 u,1
P P
u,1 u,1
P ⋅t P ⋅ t
2 2 2 2
t = t =
(Z2)
u,2 u,2
P P
u,2 u,2
where
P is 780 W;
P is 150 W;
t is 4 min;
t is 10 min;
1) “Bosch HMT…" is the trade name of a product supplied by Bosch. This information is provided for the convenience of users of
this European Standard and does not constitute an endorsement by the CENELEC of this trademark. Items of the similar
specification may be used if they can be shown to lead to equivalent results.
EN 60436:2016 (E)
Z is the recommended time setting in min in the attached data sheet which will be delivered
together with the microwave oven as described in Clause G.1;
P is the actual max. power level used in W (measured according to EN 60705);
u,1
t is the corresponding heating time to be used in min;
u,1
P is the actual reduced power level used in W [determined by equation (Z3)];
u,2
t : is the corresponding actual heating time to be used in min.
u,2
P
u,1
( ) (Z3)
P = t −t
u,2 on up
t
p
where
t is the time of the elementary period of the magnetron in the microwave oven at the
p
reduced power level in s;
t is the time the microwave oven is on within the elementary period in s;
on
t is 1,6 s, which is the magnetron filament heating-up time.
up
Use levels, which are close to the rated levels.
6.4.1.3 Pre-heating the microwave oven
Replace the content of the subclause by the following:
Before cooking the milk in the glasses, heat up the microwave oven as follows:
• Place six glasses, each filled with 50 ml of water, in the microwave oven;
• Place the glasses symmetrically in a circle of 160 mm diameter (centre of the circle = centre of the
glass turntable). See Figure 1.
• Operate the microwave oven for 4 min or respectively Z min depending on the oven type (see above)
at a power level of 780 W and then for 10 min at a power level of 150 W, or at the corrected cooking
times calculated above for the power level used. The time Z can be found in the technical instructions
for the particular microwave.
After pre-cooking, take the water-filled glasses out of the microwave oven.
6.4.1.4 Application
Add the following between the first and the second paragraphs:
It is recommended to use the pipette of Socorex Company. Details are given in Clause F.Z1.
6.4.1.5 Cooking process
Modify the third and fourth paragraphs:
After the cooking period in the microwave oven, the colour of the cooked milk shall be compared with the
shade chart in Annex K. The colour at the bottom of the glass shall have at least colour of shade No. 4 on
the shade chart and not exceed colour of shade No. 6.
Small areas of the milk skin shall not be darker than colour of shade No. 12 on the shade chart.
EN 60436:2016 (E)
Add the following after the fourth paragraph:
For colour comparing only original colour sheets shall be used, which may be obtained from supplier
mentioned in Clause F.7.
Replace Figure 1 as follows:
Centre of the beakers to lie
on a circle of 160 mm
The beaker shall remain
flat and flush on the platter
surface.
160 mm
Figure 1 – Position of the glasses on the microwave turntable
6.4.2 Tea
Add the following sentence at the end of the subclause:
For energy labelling and / or ecodesign purposes, only black tea as described in Annex F shall be used.
EN 60436:2016 (E)
6.4.2.1 Preparation
Add the following paragraph between the first paragraph and the note:
For energy labelling and / or ecodesign purposes, the hardness of the water shall be as defined in 5.6.3.
If the hardness needs to be adjusted, it shall be prepared according to EN 60734, Method C.
6.4.2.2 Pre-drying for oven drying method
Modify the subclause as follows:
Half-fill the cups and saucers with tea, ensuring an even distribution over cups and saucers respectively.
Place the cups and saucers in a preheated to 80 °C thermal cabinet (see Annex G) within 5 min, and
leave to dry for a period of 1 h. While loading, the power has to be switched off. Ensure that the dishes
are not placed too closely together. Remove the items from the thermal cabinet and empty out any
remaining tea, and discard.
6.4.2.3 Pre-drying for air drying method
Add the following sentence at the end of the subclause:
For energy labelling and / or ecodesign purposes, this chapter is not applicable.
6.4.3 Minced meat
Modify the first sentence of the first paragraph:
Prepare a sufficiently large amount of minced pork and minced beef at a ratio of 1:1, to ensure a
homogeneous mix.
6.4.3.1 Preparation and storage
Add before the first paragraph the following sentence:
Mix the minced meat with good quality hens’ eggs; ensure that the eggs are refrigerated before use.
Modify the second sentence of the second paragraph:
Wrap air seal in aluminium foil, or place in closed containers, or place in sealed plastic bags and freeze.
6.4.3.2 Application
Modify the wording of the first bullet point as follows:
Half of the total number of dinner plates and the large (20 cm) serving bowl (7 or more place settings
only)
Modify the first sentence of the third bullet point:
Use a plastic fork.
6.4.4 Egg
Add numbering to the note to become Note 1:
Add a new Note 2:
NOTE 2 The tolerances 50…65 g are covered by class M of European eggs labelling (53…63 g).
EN 60436:2016 (E)
6.4.4.1 Preparation
Modify the order of sentences:
Use at least three eggs and separate the egg white from the egg yolk. Remove the yolk sack. Mix egg
yolks with a fork in a bowl.
6.4.4.2 Application
Add a reference to Annex F in the first sentence of bullet point ‘Method of soiling’:
Use a pastry brush with a width of approximately 25 mm (see Annex F).
6.4.5 Oat flakes
Replace the second sentence of the subclause by the following:
For energy labelling and / or ecodesign purposes, use the oat flakes as described in Annex F. If the use
of that product is not possible, the possibility of the use of an identical product available on the national
market should be checked. The comparability of the relevant test results should be proved.
6.4.5.1 Preparation
Modify the second sentence:
Make porridge by bringing the mixture to the boiling point and allow simmering for 10 min, stirring
continuously from the very beginning and using a wooden spoon.
6.4.5.2 Application
Replace in the bullet “soup spoons“ the word “porridge” by “hot porridge”:
Add a reference to Annex F in the first sentence of bullet point ‘Soup plates’:
Use a pastry brush with a width of approximately 25 mm (see Annex F).
Modify the wording in bullet point ‘soup plate’:
The porridge soil is applied evenly to the upper surface of each plate, ensuring that the higher rim
with a space of 25 mm around the edge is left clean.
6.4.6 Spinach
Replace the second sentence of the subclause by the following:
For energy labelling and / or ecodesign purposes, use frozen young spinach as described in Annex F
finely minced and with no other additives or ingredients. If the use of that product is not possible, the
possibility of the use of an identical product available on the national market should be checked. The
comparability of the relevant test results should be proved.
6.4.6.1 Preparation and storage
Modify the subclause as follows:
Allow the spinach to defrost at ambient temperature. Afterwards place the spinach in a metal strainer
(refer ISO 3310), mesh size 2 mm, wire diameter 0,9 mm and allow to drip for about 5 min. Tip away the
trickling water and then strain the spinach completely through the strainer.
Allow to stand for approximately 15 min and then empty out any liquid that may have formed over and
around the spinach.
EN 60436:2016 (E)
Divide the spinach into convenient portions and keep it in containers with the lid closed in the refrigerator
until use. Ensure that the prepared spinach is not kept in the refrigerator for more than three days. Stir the
spinach before use.
6.4.6.2 Application
Modify the first bullet point (Items to be soiled) as follows:
Half of the total number of dessert plates and the dessert bowl and medium serving bowl.
Add a reference to Annex F in the first sentence of bullet point ‘Method of soiling’:
Use a pastry brush with a width of approximately 25 mm (see Annex F).
Replace in the third bullet point (Method of soiling) the wording "The small and medium serving
bowls" by:
"The dessert bowl and medium serving bowl".
6.4.7 Margarine
6.4.7.1 Preparation and storage
Add wording to the first sentence of the subclause to read:
Keep margarine refrigerated until use but margarine shall be at ambient condition at use time.
6.4.7.2 Application
Add a new paragraph after the first paragraph of bullet point 3 (‘Method of soiling’):
The large platter(s) to be soiled with margarine shall be at ambient temperature prior to testing. The
platter is placed into the machine immediately before the start of the test run (6.6.1).
6.5 Drying of the soiled dishes
6.5.1 Oven drying method
Replace the text of the subclause by the following:
After the pre-drying period for tea according to 6.4.2.2, arrange all the soiled dishes including the soiled
cutlery, milk glasses, cups and saucers with the tea soiling in the thermal cabinet within 10 min. The load
should be always 24 place settings placed in the thermal cabinet as outlined in Figure G.2, Illustration
chart 2.
If less than 24 soiled place settings are used, the remaining ones can be unsoiled.
For loading, the power has to be switched off and the oven has to be opened for 10 min immediately after
the 1 h pre-drying period. Then the doors have to be closed and the power switched on.
Ensure that the dishes are not placed too closely together. The dishes shall remain in the oven (see
Annex G) for a period of two hours after the doors are closed. Do not place the oval platter with margarine
(see 6.4.7) or the clean cutlery in the thermal cabinet.
For cooling down the soiled items have to be unloaded after the oven drying as quickly as possible and
have to cool down outside the cabinet for (35 ± 5) min in the climate controlled room (according to 5.5) in
which the test is run. During this time, all items shall be placed inside the baskets, which remain on the
opened door of the dishwasher or are pulled out of the dishwasher. Then the machines are closed and
the test run is started immediately.
EN 60436:2016 (E)
6.5.2 Air dry method
Modify the reference in the second sentence to read 6.4.2.3.
Add the following sentence at the end of the subclause:
For energy labelling and / or ecodesign purposes, the air-dry process shall not be used.
6.6 Loading and operating
6.6.1 Loading
Modify the last sentence of the subclause as follows:
The reference dishwasher shall be loaded in accordance with Clause E.4 respectively Clause N.4.
Add the following new paragraph after the last sentence of the subclause:
If no other instruction by the manufacturer is given, the loading of the machine under test shall be similar
to the loading of the reference machine, especially in mixing the different soiling for the same kind of
dishes. The dinner plates prepared with egg or minced meat and the dessert dishes prepared with egg or
spinach should be placed in the test machine alternating.
6.6.2 Operating
Modify the second and third paragraphs including the note as follows:
Perform at least 5 combined cleaning and drying test cycles of the test programme without cleaning the
dishwasher filters between the measurements. If necessary, increase the number of cleaning and drying
test cycles until the condition ln W < 0,073 and ln W < 0,10 described in 7.4.2 and 7.3.2 is fulfilled, to a
C D
maximum of 8 combined cleaning and drying test cycles.
NOTE In W refers to the natural log to base e of W . In W refers to the natural log to base e of W .
C C
D D
Between two successive cycles in a series, in order to determine values for ln W and ln W machines
C, D
shall be allowed to cool down until they meet the requirements of 5.5. The maximum time between
successive test cycles, used to determine values in ln W and ln W shall not exceed 4 days.
C D
6.7 Evaluation
Delete the subclause 6.7 Evaluation.
6.8 Expressing results
Delete the subclause 6.8 Expressing results.
EN 60436:2016 (E)
7 Drying performance
Replace the heading of Clause 7 by the following:
7 Combined cleaning and drying performance assessment
Replace all subclauses of Clause 7 by the following:
7.1 General
This clause describes the procedure for assessing the cleaning and drying performance.
For each test run the drying assessment of the test machine, including the evaluation of the reference
machine, shall be carried out by one single assessor. The same applies for cleaning performance
assessment. The assessor for drying may or may not be the same person as the assessor for cleaning.
The lighting shall be installed where the evaluation takes place in order to avoid any direct glare. The
luminance measured at the position of evaluation shall be 1 000 lux – 1 500 lux. The colour temperature
shall be between 3 500 K – 4 500 K using diffused light.
The performance assessment is done in the following sequence:
1. Drying evaluation
2. Cleaning evaluation.
After completing each test programme (see 3.4) the dishwasher (reference machine and test unit) shall
be disconnected from the electricity supply; the door or cover is left undisturbed for 30 min.
After 30 min from the completion of the test programme, open the door of the machine completely. Start
the evaluation of the drying performance according to 7.3.
Depending on the equipment of the dishwasher, with or without a separate cutlery rack (not combined
with any other rack), the evaluation of the drying performance has to follow slightly different procedures.
7.2 General requirements to enable subsequent cleaning assessment
It is of general importance to avoid cross-contamination (falling off, transfer or dripping) of soil particles
from one load item to another. In addition, the dishware shall be touched as little as possible (max. at two
positions).
When removing items with cavities (e.g. cups) a horizontal position shall be maintained to avoid spilling
any water residue.
If serving pieces or other parts of the cutlery are positioned in any rack which is not designed exclusively
for cutlery, their drying performance shall be evaluated with the other items of the rack.
A wet rim (no drop or streak) around soil residue shall not be taken into account for the drying
assessment.
If any soil can be found in residual water in cavities (e.g. from bowls or cups), the cleaning performance of
those items shall be evaluated during the drying performance evaluation. In such a case, the cleaning
assessment shall be done by the drying assessor. The soil particles shall be assessed as if they were
dried on. The water and soil in the cup cavities shall not be emptied out into the machine (to avoid carry
over to next cycle run).
When racks have to be removed from the dishwasher, care shall be taken to avoid damaging delicate
parts on the underside such as spray arms. Resting the rack on raised supports may help avoid such
damage occurring. For example, a rack with an attached spray arm shall be placed on a holder.
Close adherence to these timings should guarantee a higher reproducibility and consistency of the drying
performance results.
EN 60436:2016 (E)
7.3 Determination of the drying performance
The evaluation of each item, which consists of removing it from the machine, viewing it, assessing it,
putting it down and recording the score) shall be completed in 8 s ± 1 s. The viewing time for evaluation
shall be 3 s per item.
7.3.1 Drying assessment procedure
Carry out the following evaluation procedures steps:
1 The lower rack shall be pulled out carefully and left on the open door of the dishwasher. The cutlery
basket, if present, shall be removed carefully from the dishwasher.
2 Carry out the drying performance evaluation of the tableware in the lower rack. After assessing each
item, replace it in its original location unless this would restrict access to other items in the rack. In
this case, place such items on a clean, light coloured surface.
3 The lower rack shall be removed from the machine or alternatively the rack shall be covered to avoid
contamination through particles falling from racks on higher levels. Kitchen paper may be used to
cover the baskets.
4 Working upwards through the dishwasher, carry out the drying performance evaluation of the
tableware in each rack following the procedure given for the lower rack in steps 2 and 3.
5 After evaluating the drying performance of the tableware in the uppermost rack, evaluate the drying
performance of the cutlery. After assessing each item of cutlery, either place it separately on a clean
bright surface, or, if a dishwasher has a cutlery rack place each item back in its original position in
the rack. Soil particles which fall from the cutlery during the evaluation shall be retained and included
in the cleaning performance score.
6 When the drying performance evaluation of the whole load has been completed, carry out the
cleaning performance evaluation of the tableware.
The drying evaluation should be carried out near the test machine to avoid drying during transport of
tableware load items in dish racks or cutlery baskets. Dish racks or cutlery baskets removed should be
placed somewhere where no additional heat or air ventilation can influence the drying result.
Inspect each item for possible water residue.
Drying effect is evaluated by visual inspection and judged to be “dry”, “intermediate” or “wet”.
“Dry” is defined as an article being completely free of moisture. In this case, the article shall be given a
score of 2.
“Intermediate” is defined as an article having one or two drops of water, or one wet streak (run). The total
wet area shall be less than 50 mm². In this case, the article shall be given a score of 1.
“Wet” is defined as an article having more than two drops of water, or one drop and one stre
...
