CEN

EN 15316-4-5:2007

(Main)

Heating systems in buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-5: Space heating generation systems, the performance and quality of district heating and large volume systems

Heating systems in buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-5: Space heating generation systems, the performance and quality of district heating and large volume systems

This European Standard is part of a set of standards on the method for calculation of system energy requirements and system efficiencies.
The scope of this specific part is to standardise the method of assessing the energy performance of district heating and cooling systems and to define:
-   system borders;
-   required inputs;
-   calculation method;
-   resulting outputs.
The method applies to district heating and cooling systems and any other kind of combined production for space heating and/or cooling and/or domestic hot water purposes.
Primary energy savings and CO2 savings, which can be achieved by district heating systems compared to other systems, are calculated according to prEN 15603.

Heizungsanlagen in Gebäuden - Verfahren zur Berechnung der Energieanforderungen und Nutzungsgrade der Anlagen - Teil 4-5: Wärmeerzeugungssysteme, Leistungsfähigkeit und Effizienz von Fernwärme- und großvolumigen Systemen

Diese Europäische Norm ist Teil einer Reihe von Normen zu den Verfahren zur Berechnung des Energie¬bedarfs und der Wirkungsgrade von Systemen.
Der Anwendungsbereich dieses spezifischen Teils behandelt die Normung des Verfahrens zur Bewertung der Gesamtenergieeffizienz von Fernwärme- und -kältesystemen und die Festlegung:
   der Systemgrenzen;
   der erforderlichen Eingangswerte;
   des Berechnungsverfahren;
                der sich ergebenden Ausgabewerte.
Das Verfahren gilt für Fernwärme- und -Kältesysteme und für alle anderen Arten der gekoppelten Erzeugung für die Raumheizung und/oder -kühlung und/oder die Trinkwassererwärmung.
Primärenergie- und CO2-Einsparungen, die durch Fernwärmesysteme im Vergleich zu anderen Systemen erreicht werden können, werden nach prEN 15603 berechnet.

Systèmes de chauffage dans les bâtiments - Méthode de calcul des besoins énergétiques et des rendements des systèmes - Partie 4-5 : Systèmes de génération de chauffage des locaux, performance et qualité des systèmes de chauffage urbain et des systèmes de grand volume

La présente Norme européenne fait partie d’une série de normes sur la méthode de calcul des besoins énergétiques et des rendements des systèmes.
L’objet de cette partie spécifique est de normaliser la méthode d’évaluation de la performance énergétique des systèmes de chauffage et de refroidissement urbains et de définir :
   les limites du système ;
   les données d’entrée requises ;
   la méthode de calcul ;
                les données de sortie obtenues.
La présente méthode s’applique aux systèmes de chauffage et de refroidissement urbains et à tout type de production combinée de chauffage et/ou de refroidissement des locaux et/ou d’eau chaude sanitaire.
Les économies d’énergie primaire et la réduction des émissions de CO2 que permettent les systèmes de chauffage urbain par rapport aux autres systèmes sont calculées conformément au prEN 15603.

Grelni sistemi v stavbah - Metoda za preračun energijskih zahtev in učinkovitosti sistema - 4-5. del: Sistemi za ogrevanje prostora, lastnosti in kakovost daljinskega ogrevanja in velikih sistemov

General Information

Status
Withdrawn
Publication Date
24-Jul-2007
Withdrawal Date
16-May-2017
ICS
91.140.10 - Central heating systems
Technical Committee
CEN/TC 228 - Heating systems in buildings
Drafting Committee
CEN/TC 228/WG 4 - Calculation methods and system performance and evaluation
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
17-May-2017
Mandate
M/343 - Mandate to CEN, CENELEC and ETSI for the elaboration and adoption of standards for a methodology calculating the integrated energy performance of buildings and estimating the environmental impact, in accordance with the terms set forth in Directive 2002/91/EC
Ref Project
SIST EN 15316-4-5:2007 - Heating systems in buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-5: Space heating generation systems, the performance and quality of district heating and large volume systems

Relations

Replaced By
EN 15316-4-5:2017 - Energy performance of buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-5: District heating and cooling, Module M3-8-5, M4-8-5, M8-8-5, M11-8-5
Effective Date
24-May-2017

Buy Standard

EN 15316-4-5:2007EN 15316-4-5:2007
PreviousNext
Standard
EN 15316-4-5:2007
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Heating systems in buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-5: Space heating generation systems, the performance and quality of district heating and large volume systemsSystemes de chauffage dans les bâtiments - Méthode de calcul des besoins énergétiques et d'efficacité des systemes - Partie 4-5: Systemes de génération de chauffage des locaux, performance et qualité du chauffage urbain et des grandes systemesHeizanlagen in Gebäuden - Berechnung und Bewertung der Energieeffizienz von Systemen - Teil 4-5: Wärmeerzeugung für die Raumheizung, Leistungsdaten und Effizienz von Fernwärme- und großvolumigen SystemenTa slovenski standard je istoveten z:EN 15316-4-5:2007SIST EN 15316-4-5:2007en91.140.10Sistemi centralnega ogrevanjaCentral heating systemsICS:SLOVENSKI
STANDARDSIST EN 15316-4-5:200701-november-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15316-4-5July 2007ICS 91.140.10 English VersionHeating systems in buildings - Method for calculation of systemenergy requirements and system efficiencies - Part 4-5: Spaceheating generation systems, the performance and quality ofdistrict heating and large volume systemsSystèmes de chauffage dans les bâtiments - Méthode decalcul des besoins énergétiques et des rendements dessystèmes - Partie 4-5 : Systèmes de génération dechauffage des locaux, performance et qualité des systèmesde chauffage urbain et des systèmes de grand volumeHeizungsanlagen in Gebäuden - Verfahren zur Berechnungder Energieanforderungen und Nutzungsgrade der Anlagen- Teil 4-5: Wärmeerzeugungssysteme, Leistungsfähigkeitund Effizienz von Fernwärme- und großvolumigenSystemenThis European Standard was approved by CEN on 30 June 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15316-4-5:2007: E

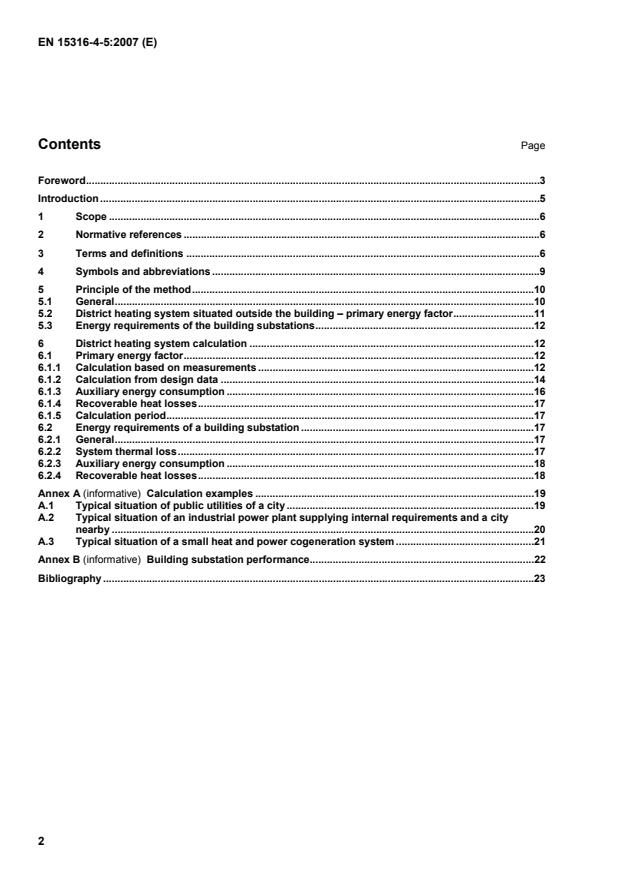

Calculation examples.19 A.1 Typical situation of public utilities of a city.19 A.2 Typical situation of an industrial power plant supplying internal requirements and a city nearby.20 A.3 Typical situation of a small heat and power cogeneration system.21 Annex B (informative)
Building substation performance.22 Bibliography.23

(ISO 12241:1998) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 auxiliary energy electrical energy used by technical building systems for heating, cooling, ventilation and/or domestic hot water to support energy transformation to satisfy energy needs NOTE 1 This includes energy for fans, pumps, electronics etc. Electrical energy input to the ventilation system for air transport and heat recovery is not considered as auxiliary energy, but as energy use for ventilation. NOTE 2 In EN ISO 9488, Solar, the energy used for pumps and valves is called "parasitic energy". 3.2 building substation technical system to transform the parameter (temperature, pressure etc.) of a district heating system to the parameter of the building heating system and to control the building heating system 3.3 cogeneration simultaneous generation in one process of thermal energy and electrical or mechanical energy NOTE Also k
...
