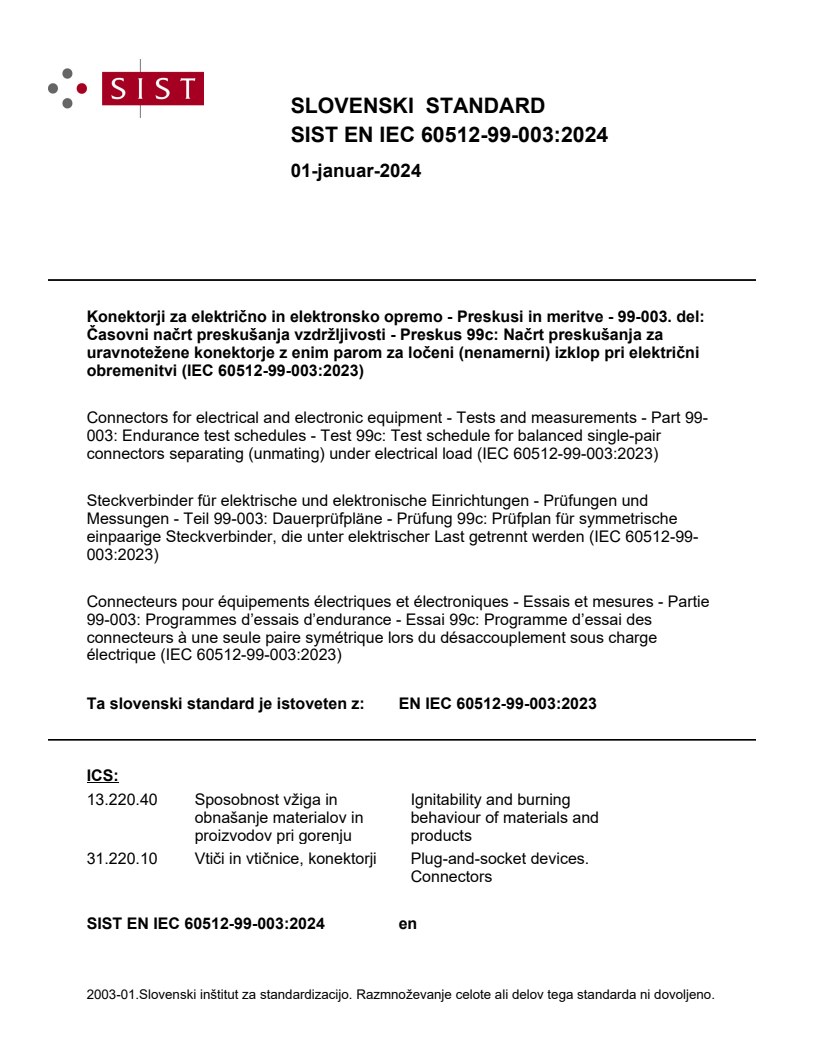

SLOVENSKI STANDARD
SIST EN IEC 60512-99-003:2024
01-januar-2024
Konektorji za električno in elektronsko opremo - Preskusi in meritve - 99-003. del:
Časovni načrt preskušanja vzdržljivosti - Preskus 99c: Načrt preskušanja za
uravnotežene konektorje z enim parom za ločeni (nenamerni) izklop pri električni
obremenitvi (IEC 60512-99-003:2023)
Connectors for electrical and electronic equipment - Tests and measurements - Part 99-
003: Endurance test schedules - Test 99c: Test schedule for balanced single-pair
connectors separating (unmating) under electrical load (IEC 60512-99-003:2023)
Steckverbinder für elektrische und elektronische Einrichtungen - Prüfungen und
Messungen - Teil 99-003: Dauerprüfpläne - Prüfung 99c: Prüfplan für symmetrische
einpaarige Steckverbinder, die unter elektrischer Last getrennt werden (IEC 60512-99-
003:2023)
Connecteurs pour équipements électriques et électroniques - Essais et mesures - Partie
99-003: Programmes d’essais d’endurance - Essai 99c: Programme d’essai des
connecteurs à une seule paire symétrique lors du désaccouplement sous charge
électrique (IEC 60512-99-003:2023)
Ta slovenski standard je istoveten z: EN IEC 60512-99-003:2023
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
SIST EN IEC 60512-99-003:2024 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 60512-99-003:2024

---------------------- Page: 2 ----------------------
SIST EN IEC 60512-99-003:2024

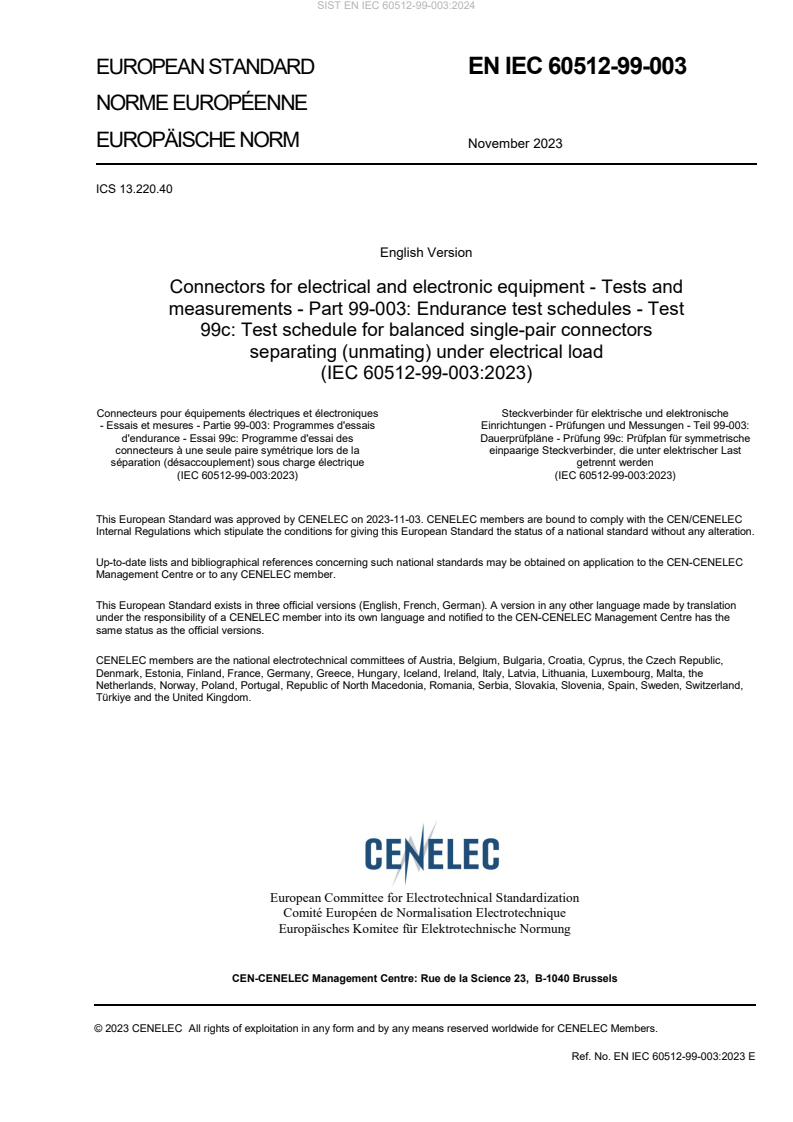

EUROPEAN STANDARD EN IEC 60512-99-003

NORME EUROPÉENNE

EUROPÄISCHE NORM November 2023
ICS 13.220.40

English Version
Connectors for electrical and electronic equipment - Tests and
measurements - Part 99-003: Endurance test schedules - Test
99c: Test schedule for balanced single-pair connectors
separating (unmating) under electrical load
(IEC 60512-99-003:2023)
Connecteurs pour équipements électriques et électroniques Steckverbinder für elektrische und elektronische
- Essais et mesures - Partie 99-003: Programmes d'essais Einrichtungen - Prüfungen und Messungen - Teil 99-003:
d'endurance - Essai 99c: Programme d'essai des Dauerprüfpläne - Prüfung 99c: Prüfplan für symmetrische
connecteurs à une seule paire symétrique lors de la einpaarige Steckverbinder, die unter elektrischer Last
séparation (désaccouplement) sous charge électrique getrennt werden
(IEC 60512-99-003:2023) (IEC 60512-99-003:2023)
This European Standard was approved by CENELEC on 2023-11-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 60512-99-003:2023 E

---------------------- Page: 3 ----------------------
SIST EN IEC 60512-99-003:2024
EN IEC 60512-99-003:2023 (E)

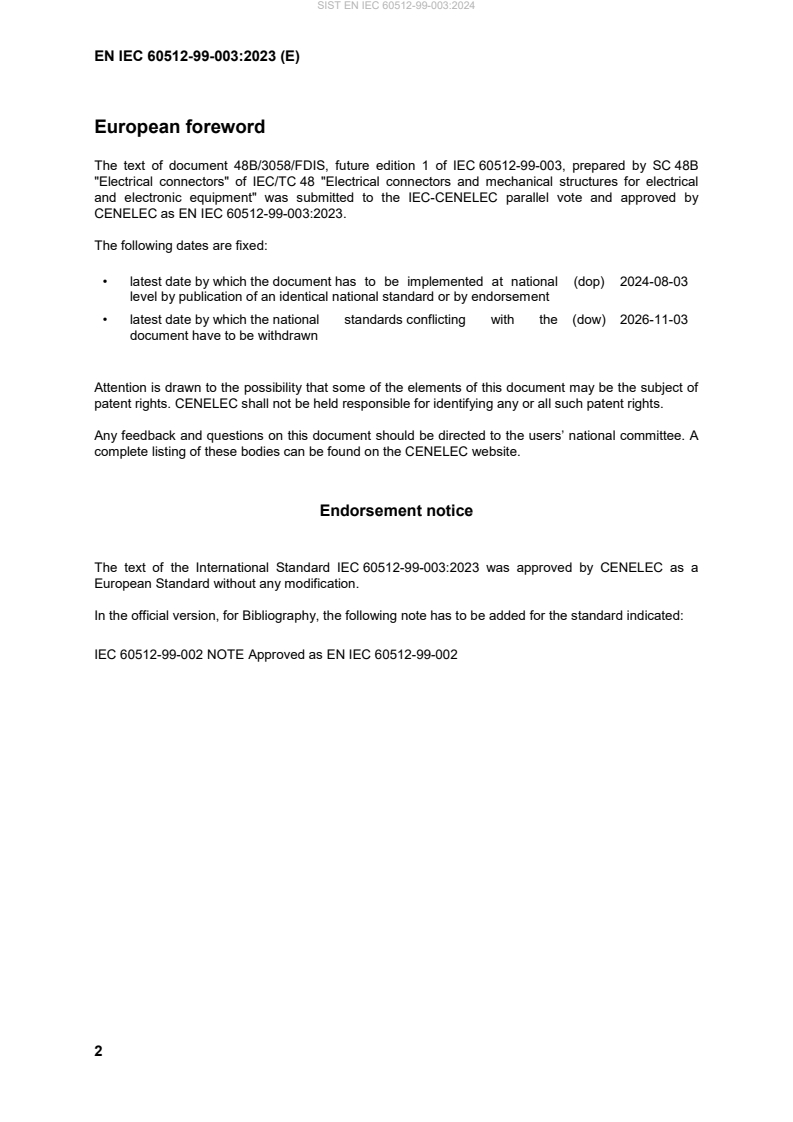

European foreword
The text of document 48B/3058/FDIS, future edition 1 of IEC 60512-99-003, prepared by SC 48B
"Electrical connectors" of IEC/TC 48 "Electrical connectors and mechanical structures for electrical
and electronic equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 60512-99-003:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-08-03
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-11-03
document have to be withdrawn
...
