EN 61058-1:2002/A2:2008

SLOVENSKI STANDARD
01-marec-2008
Stikala za aparate - 1. del: Splošne zahteve (IEC 61058-1:2000/A2:2007)
Switches for appliances - Part 1: General requirements (IEC 61058-1:2000/A2:2007)
Geräteschalter - Teil 1: Allgemeine Bestimmungen (IEC 61058-1:2000/A2:2007)
Interrupteurs pour appareils - Partie 1: Regles générales (CEI 61058-1:2000/A2:2007)
Ta slovenski standard je istoveten z: EN 61058-1:2002/A2:2008
ICS:
29.120.40
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61058-1/A2
NORME EUROPÉENNE
January 2008
EUROPÄISCHE NORM
ICS 29.120.40
English version
Switches for appliances -
Part 1: General requirements
(IEC 61058-1:2000/A2:2007)
Interrupteurs pour appareils -  Geräteschalter -
Partie 1: Règles générales Teil 1: Allgemeine Anforderungen
(CEI 61058-1:2000/A2:2007) (IEC 61058-1:2000/A2:2007)

This amendment A2 modifies the European Standard EN 61058-1:2002; it was approved by CENELEC on
2007-12-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61058-1:2002/A2:2008 E

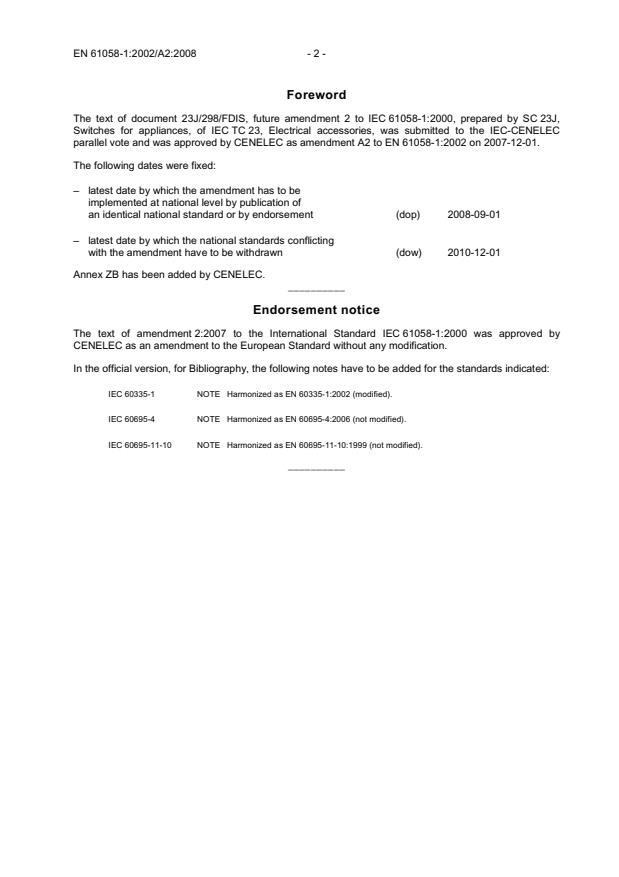

Foreword
The text of document 23J/298/FDIS, future amendment 2 to IEC 61058-1:2000, prepared by SC 23J,
Switches for appliances, of IEC TC 23, Electrical accessories, was submitted to the IEC-CENELEC
parallel vote and was approved by CENELEC as amendment A2 to EN 61058-1:2002 on 2007-12-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2008-09-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2010-12-01
Annex ZB has been added by CENELEC.
__________
Endorsement notice
The text of amendment 2:2007 to the International Standard IEC 61058-1:2000 was approved by
CENELEC as an amendment to the European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60335-1 NOTE  Harmonized as EN 60335-1:2002 (modified).
IEC 60695-4 NOTE  Harmonized as EN 60695-4:2006 (not modified).
IEC 60695-11-10 NOTE  Harmonized as EN 60695-11-10:1999 (not modified).
__________
- 3 - EN 61058-1:2002/A2:2008
Replace Annex ZB of EN 61058-1:2002 by:
Annex ZB
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1)
IEC 60034-1 (mod) 1996 Rotating electrical machines - EN 60034-1 1998
A1 1997 Part 1: Rating and performance A1 1998
A2 1999 A2 1999
+ A11 2002
2)
IEC 60038 (mod) 1983 IEC standard voltages HD 472 S1 1989
+ corr. February 2002
+ A1 1995
IEC 60050-151 1978 International Electrotechnical Vocabulary - -
(IEV) -
Part 151: Electrical and magnetic devices

IEC 60050-411 1973 International electrotechnical vocabulary - - -
Chapter 411: Rotating machines

IEC 60050-441 1984 International Electrotechnical Vocabulary - -
(IEV) -
Chapter 441: Switchgear, controlgear and
fuses
IEC 60050-826 1982 International electrotechnical vocabulary - HD 384.2 S1 1986
A1 1990 Chapter 826: Electrical installations of A1 1993
A2 1995 buildings A2 1997
IEC 60060-1 1989 High-voltage test techniques - HD 588.1 S1 1991
Part 1: General definitions and test
requirements
IEC 60065 (mod) 2001 Audio, video and similar electronic EN 60065 2002
apparatus - Safety requirements + corr. August 2007
A1 (mod) 2005 A1 2006
3)
IEC 60068-2-20 1979 Environmental testing - HD 323.2.20 S3 1988
Part 2: Tests - Test T: Soldering

IEC 60068-2-75 1997 Environmental testing - EN 60068-2-75 1997
Part 2-75: Tests - Test Eh: Hammer tests

1)
EN 60034-1 is superseded by EN 60034-1:2004, which is based on IEC 60034-1:2004.
2)
The title of HD 472 S1 is: Nominal voltages for low voltage public electricity supply systems.
3)
HD 323.2.20 S3 includes A2:1987 to IEC 60068-2-20.

Publication Year Title EN/HD Year
4)
IEC 60085 1984 Thermal evaluation and classification of HD 566 S1 1990
electrical insulation
5)
IEC 60112 1979 Method for determining the comparative and HD 214 S2 1980
the proof tracking indices of solid insulating
materials under moist conditions

IEC 60127 Series Miniature fuses EN 60127 Series

6)
IEC 60127-2 1989 Miniature fuses - EN 60127-2 1991
Part 2: Cartridge fuse-links
7)
IEC 60228 1978 Conductors of insulated cables HD 383 S2 1986
+ A1 1989
+ A2 1993
8)
IEC 60269-1 1998 Low-voltage fuses - EN 60269-1 1998
Part 1: General requirements
9)
IEC 60269-3-1 1994 Low-voltage fuses - HD 630.3.1 S2 1997
Part 3-1: Supplementary requirements for
fuses for use by unskilled persons
(fuses mainly for household and similar
applications) - Sections I to IV

10)
IEC 60335-1 1991 Safety of household and similar electrical EN 60335-1 1994
appliances - + corr. January 1995
A1 (mod) 1994 Part 1: General requirements A1 1996
+ A11 1995
+ A12 1996
+ A13 1998
+ A14 1998
+ A15 2000
+ A16 2001
IEC 60335-2 (mod) Series Household and similar electrical appliances - EN 60335-2 Series
Safety
11)
IEC 60384-14 1993 Fixed capacitors for use in electronic - -
equipment -
Part 14: Sectional specification: Fixed
capacitors for electromagnetic interference
suppression and connection to the supply
mains
IEC 60417 Data- Graphical symbols for use on equipment - -
base
IEC 60529 1989 Degrees of protection provided by enclosures EN 60529 1991
(IP Code) + corr. May 1993
4)
HD 566 S1 is superseded by EN 60085:2004, which is based on IEC 60085:2004.
5)
HD 214 S2 is superseded by EN 60112:2003, which is based on IEC 60112:2003.
6)
EN 60127-2 is superseded by EN 60127-2:2003, which is based on IEC 60127-2:2003.
7)
HD 383 S2 is superseded by EN 60228:2005, which is based on IEC 60228:2004.
8)
EN 60269-1 is superseded by EN 60269-1:2007, which is based on IEC 60269-1:2006.
9)
HD 630.3.1 S2 is superseded by HD 60269-3-1:2004, which is based on IEC 60269-3-1:2004.
10)
EN 60335-1 is superseded by EN 60335-1:2002, which is based on IEC 60335-1:2001.
11)
IEC 60384-14 is superseded by IEC 60384-14:2005, which is harmonized as EN 60384-14:2005.

- 5 - EN 61058-1:2002/A2:2008
Publication Year Title EN/HD Year
IEC 60617-2 1996 Graphical symbols for diagrams - - -
Part 2: Symbol elements, qualifying symbols
and other symbols having general application

12)
IEC 60664-1 1992 Insulation coordination for equipment within EN 60664-1 2003
low-voltage systems -
Part 1: Principles, requirements and tests

13)
IEC 60664-3 1992 Insulation coordination for equipment within HD 625.3 S1 1997
low-voltage systems -
Part 3: Use of coatings to achieve insulation
coordination of printed board assemblies

IEC 60669-1 (mod) 1998 Switches for household and similar EN 60669-1 1999
fixed-electrical installations -
Part 1: General requirements
14)
IEC 60691 1993 Thermal-links - Requirements and application EN 60691 1995
guide
IEC 60695-2-10 2000 Fire hazard testing - EN 60695-2-10 2001
Part 2-10: Glowing/hot-wire based test
methods - Glow-wire apparatus and common
test procedure
IEC 60695-2-11 2000 Fire hazard testing - EN 60695-2-11 2001
Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test method
for end-products
15) 16)
IEC 60695-2-12 - Fire hazard testing - EN 60695-2-12 2001
Part 2-12: Glowing/hot-wire based test
methods - Glow-wire flammability test method
for materials
15) 16)
IEC 60695-2-13 - Fire hazard testing - EN 60695-2-13 2001
Part 2-13: Glowing/hot-wire based test
methods - Glow-wire ignitability test method
for materials
15) 16)
IEC 60695-10-2 - Fire hazard testing - EN 60695-10-2 2003
Part 10-2: Abnormal heat - Ball pressure test

IEC 60707 1999 Flammability of solid non-metallic materials - -
when exposed to flame sources - List of test
methods
IEC 60730 (mod) Series Automatic electrical controls for household EN 60730 Series
and similar use
12)
EN 60664-1 is superseded by EN 60664-1:2007, which is based on IEC 60664-1:2007.
13)
HD 625.3 S1 is superseded by EN 60664-3:2003, which is based on IEC 60664-3:2003.
14)
EN 60691 is superseded by EN 60691:2003, which is based on IEC 60691:2002.
15)
Undated reference.
16)
Valid edition at date of issue.

Publication Year Title EN/HD Year
IEC 60730-1 (mod) 1999 Automatic electrical controls for household EN 60730-1 2000
and similar use - + corr. August 2007
Part 1: General requirements + A12 2003
+ A1 2004
+ A13 2004
+ A14 2005
+ A15 2007
+ A16 2007
IEC 60730-2-9 2000 Automatic electrical controls for household EN 60730-2-9 2002
(mod) and similar use - + A1 2003
Part 2-9: Particular requirements for + A11 2003
temperature sensing controls + A12 2004
+ A2 2005
17)
IEC 60738-1 1998 Thermistors - Directly heated positive step- EN 60738-1 1999
function temperature coefficient -
Part 1: Generic specification
IEC 60760 1989 Flat, quick-connect terminations - -

18)
IEC 60893-1 1987 Specification for industrial rigid laminated EN 60893-1 1994
sheets based on thermosetting resins for
electrical purposes -
Part 1: Definitions, designations and general
requirements
19)
IEC 60998-2-3 1991 Connecting devices for low-voltage circuits for EN 60998-2-3 1993
household and similar purposes -
Part 2-3: Particular requirements for
connecting devices as separate entities with
insulation piercing clamping units

IEC 61000 Series Electromagnetic compatibility (EMC) - -

20)
IEC 61000-3-2 1995 Electromagnetic compatibility (EMC) - EN 61000-3-2 1995
A1 1997 Part 3-2: Limits - Limits for harmonic current A1 1998
A2 1998 emissions (equipment input current up to and A2 1998

including 16 A per phase) + A14 2000

IEC 61000-3-3 1994 Electromagnetic compatibility (EMC) - EN 61000-3-3 1995
Part 3-3: Limits - Limitation of voltage + corr. July 1997
changes, voltage fluctuations and flicker in
public low-voltage supply systems, for
equipment with rated current ≤ 16 A per
phase and not subject to conditional
connection
IEC/TS 61000-3-5 1994 Electromagnetic compatibility (EMC) - - -
(mod) Part 3: Limits - Section 5: Limitation of voltage
fluctuations and flicker in low-voltage power
supply systems for equipment with rated
current greater than 16 A
17)
EN 60738-1 is superseded by EN 60738-1:2006, which is based on IEC 60738-1:2006.
18)
EN 60893-1 is superseded by EN 60893-1:2004, which is based on IEC 60893-1:2004.
19)
EN 60998-2-3 is superseded by EN 60998-2-3:2004, which is based on IEC 60998-2-3:2002.
20)
EN 61000-3-2 is superseded by EN 61000-3-2:2000, which is based on IEC 61000-3-2:2000.

- 7 - EN 61058-1:2002/A2:2008
Publication Year Title EN/HD Year
21)
IEC 61000-4-1 1992 Electromagnetic compatibility (EMC) - EN 61000-4-1 1994
Part 4: Testing and measurement
techniques - Section 1: Overview of immunity
tests
IEC 61000-4-2 1995 Electromagnetic compatibility (EMC) - EN 61000-4-2 1995
A1 1998 Part 4-2: Testing and measurement A1 1998
techniques - Electrostatic discharge immunity
test
22)
IEC 61000-4-3 1995 Electromagnetic compatibility (EMC) - EN 61000-4-3 1996
(mod) Part 4-3: Testing and measurement

A1 1998 techniques - Radiated, radio-frequency, A1 1998
electromagnetic field immunity test

23)
IEC 61000-4-4 1995 Electromagnetic compatibility (EMC) - EN 61000-4-4 1995
Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst
immunity test
24)
IEC 61000-4-6 1996 Electromagnetic compatibility (EMC) - EN 61000-4-6 1996
Part 4-6: Testing and measurement
techniques - Immunity to conducted
disturbances, induced by radio-frequency
fields
15) 16)
IEC 61000-4-8 - Electromagnetic compatibility (EMC) - EN 61000-4-8 1993
Part 4-8: Testing and measurement
techniques - Power frequency magnetic field
immunity test
25)
IEC 61000-4-11 1994 Electromagnetic compatibility (EMC) - EN 61000-4-11 1994
Part 4-11: Testing and measurement
techniques - Voltage dips, short interruptions
and voltage variations immunity tests

IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures
...
