EN IEC 60966-2-1:2024

SLOVENSKI STANDARD
01-junij-2024
Sestavi radiofrekvenčnih in koaksialnih kablov - 2-1. del: Področna specifikacija za
sestave zvijavih koaksialnih kablov
Radio frequency and coaxial cable assemblies - Part 2-1: Sectional specification for
flexible coaxial cable assemblies
Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 2-1: Rahmenspezifikation für
flexible konfektionierte Koaxialkabel
Cordons coaxiaux et cordons pour fréquences radioélectriques – Partie 2-1:
Spécification intermédiaire pour cordons coaxiaux souples
Ta slovenski standard je istoveten z: EN IEC 60966-2-1:2024
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

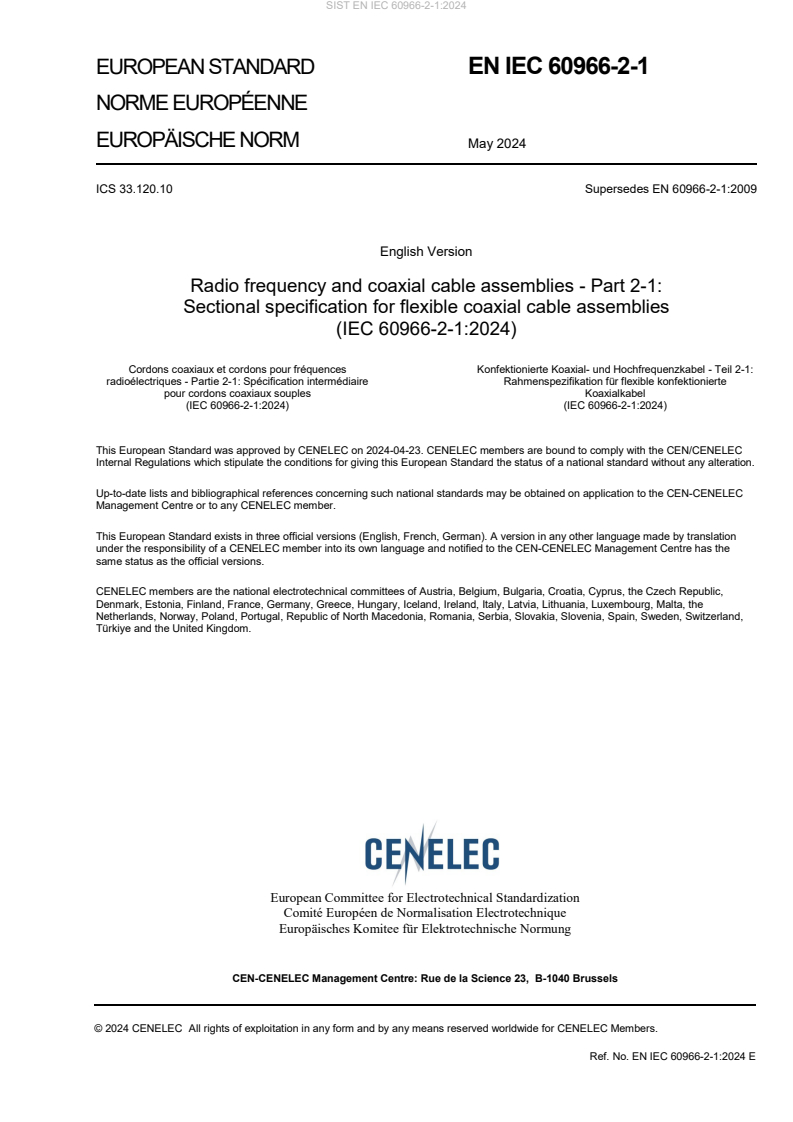

EUROPEAN STANDARD EN IEC 60966-2-1

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2024
ICS 33.120.10 Supersedes EN 60966-2-1:2009
English Version
Radio frequency and coaxial cable assemblies - Part 2-1:
Sectional specification for flexible coaxial cable assemblies
(IEC 60966-2-1:2024)
Cordons coaxiaux et cordons pour fréquences Konfektionierte Koaxial- und Hochfrequenzkabel - Teil 2-1:
radioélectriques - Partie 2-1: Spécification intermédiaire Rahmenspezifikation für flexible konfektionierte
pour cordons coaxiaux souples Koaxialkabel
(IEC 60966-2-1:2024) (IEC 60966-2-1:2024)
This European Standard was approved by CENELEC on 2024-04-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60966-2-1:2024 E

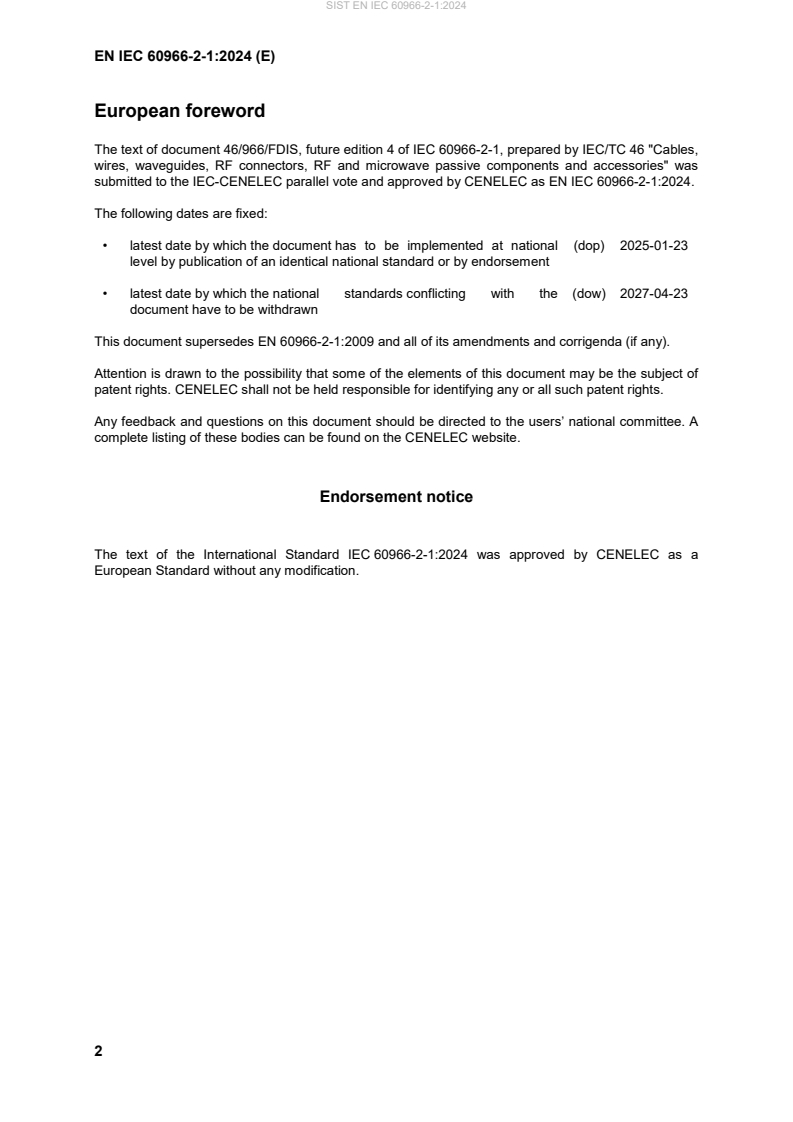

European foreword
The text of document 46/966/FDIS, future edition 4 of IEC 60966-2-1, prepared by IEC/TC 46 "Cables,
wires, waveguides, RF connectors, RF and microwave passive components and accessories" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 60966-2-1:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-01-23
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-04-23
document have to be withdrawn
This document supersedes EN 60966-2-1:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60966-2-1:2024 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60966-1 2019 Radio frequency and coaxial cable EN IEC 60966-1 2019
assemblies - Part 1: Generic specification -
General requirements and test methods
IEC 61169 series Radio frequency connectors EN 61169 series
IEC 61196-1-126 - Coaxial communication cables - Part 1- - -
126: Electrical test methods - Corona
extinction voltage
IEC 61196-9 - Coaxial communication cables - Part 9: - -
Sectional specification for flexible RF
coaxial cables
IEC 60966-2-1 ®
Edition 4.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio frequency and coaxial cable assemblies –

Part 2-1: Sectional specification for flexible coaxial cable assemblies

Cordons coaxiaux et cordons pour fréquences radioélectriques –

Partie 2-1: Spécification intermédiaire pour cordons coaxiaux souples

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.10  ISBN 978-2-8322-8412-4

– 2 – IEC 60966-2-1:2024 © IEC 2024
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Design and construction . 7
4.1 Cable design and construction . 7
4.2 Connector design and construction . 7
4.3 The relative position dimensions of the interface . 7
4.4 Outline of the cable assembly . 7
5 Workmanship, marking and packaging . 8
6 IEC type designation . 9
7 Standard rating and characteristics . 10
7.1 Nominal characteristic impedance . 10
7.2 Temperature range . 10
7.3 Bending radius . 10
7.3.1 Static bending radius . 10
7.3.2 Dynamic bending radius . 10
7.4 Rated operating frequency range . 10
7.5 Rated working voltage . 10
7.6 Rated power . 11
8 Requirements of finished cable assemblies . 11
8.1 General . 11
8.2 Electrical requirements . 11
8.3 Mechanical requirements . 13
8.4 Environmental requirements . 15
9 Quality management . 17
10 Test schedules . 17
10.1 Qualification test . 17
10.2 Acceptance tests . 18
10.3 Periodic tests . 19
Annex A (normative) The relative position dimensions of the interface of some typical
connectors . 21
Annex B (normative) Shaking test method . 24
B.1 Purpose . 24
B.2 Test equipment . 24
B.3 Test procedure . 24
B.4 Requirements . 25
B.5 Test report . 25
Annex C (normative) Preferred arrangement for vibrations, shocks test . 26

Figure 1 – Length definition of cable assemblies with two connectors . 8
Figure 2 – Length definition of cable assemblies with one connector . 8
Figure 3 – The marking example of a cable assembly . 9
Figure A.1 – The relative position dimensions of the interface of some typical
connectors . 22

IEC 60966-2-1:2024 © IEC 2024 – 3 –
Figure B.1 – Schematic diagram of shaking test . 24
Figure C.1 – Preferred arrangement for vibrations, shocks test . 26

Table 1 – Rated temperature of cable assemblies with flexible cables . 10
Table 2 – Electrical requirements . 11
Table 3 – Mechanical requirements. 13
Table 4 – Environmental requirements . 15
Table 5 – Qualification test . 17
Table 6 – Acceptance test . 18
Table 7 – Sampling plan . 19
Table 8 – Periodic test . 19
Table A.1 – The dimensions of A and B in Figure A.1 . 23

– 4 – IEC 60966-2-1:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO FREQUENCY AND COAXIAL CABLE ASSEMBLIES –

Part 2-1: Sectional specification for flexible coaxial cable assemblies

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60966-2-1 has been prepared by IEC technical committee 46: Cables, wires, waveguides,
RF connectors, RF and microwave passive components and accessories. It is an International
Standard.
This fourth edition cancels and replaces the third edition published in 2008. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) added Figure 2;
b) added Clause 6 "IEC type designation";
c) modified Figure 3;
d) added Clause 7 "Rating and characteristics";

IEC 60966-2-1:2024 © IEC 2024 – 5 –
e) added "Requirements/Remarks" to all the tests in Clause 8;
f) added "Insertion loss difference", "Corona extinction voltage" and "Shaking test" in Table 2;
g) added "Impact test" in Table 3;
h) changed "Vibrations, bumps and shocks test" to "Vibrations, shocks test" in Table 3;
i) added Annex A, Annex B and Annex C.
The text of this International Standard is based on the following documents:
Draft Report on voting
46/966/FDIS 46/996/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60966, published under the general title Radio frequency and coaxial
cable assemblies, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 60966-2-1:2024 © IEC 2024
RADIO FREQUENCY AND COAXIAL CABLE ASSEMBLIES –

Part 2-1: Sectional specification for flexible coaxial cable assemblies

1 Scope
This part of IEC 60966 is a sectional specification that relates to flexible RF coaxial cable
assemblies operating in the transverse electromagnetic mode (TEM). It establishes uniform
requirements for testing the electrical, mechanical and climatic properties of flexible cable
assemblies composed of flexible RF coaxial cables and RF coaxial connectors.
This part of IEC 60966 applies to flexible cable assemblies composed of flexible RF coaxial
cables and coaxial connectors. Flexible RF cable assemblies are widely used in mobile
communication systems, microwave test equipment, radar, aerospace and other fields.
NOTE 1 For the purposes of this sectional specification, a cable assembly is always regarded as an integral unit.
All specifications apply to the finished assembly and not to individual and non-assembled parts thereof.
NOTE 2 This sectional specification can be supplemented with detail specifications giving additional details as
required by the particular application. This application will not necessarily require all tests.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60966-1:2019, Radio frequency and coaxial cable assemblies – Part 1: Generic
specification – General requirements and test methods
IEC 61169 (all parts), Radio frequency connectors
IEC 61196-1-126, Coaxial communication cables – Part 1-126: Electrical test methods – Corona
extinction voltage
IEC 61196-9, Coaxial communication cables − Part 9: Sectional specification for flexible RF
coaxial cables
3 Terms and definitions
For the purposes of this document, the definitions given in IEC 60966-1:2019 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp

IEC 60966-2-1:2024 © IEC 2024 – 7 –
4 Design and construction
4.1 Cable design and construction
Cables should conform to IEC 61196-9 and its related detail specifications. Where cable
designs deviating from these publications are required, they shall comply with the requirements
of the relevant detail specification.
When required, the manufacturer can use additional protective tubing or cable deviating from
IEC 61196-9, in order to comply with the requirements of the relevant detail specification.
The materials used in the cable shall be given as engineering information in the relevant detail
specification.
4.2 Connector design and construction
Connectors should conform to the IEC 61169 series. Where connector designs deviating from
the IEC 61169 series are required, the interface should conform to the relevant part of
IEC 61169 where available and shall comply with the requirements of the relevant detail
specification.
The materials used in the connector shall be given as engineering information in the relevant
detail specification.
4.3 The relative position dimensions of the interface
The relative position dimensions of the interface of end connector(s) of the cable assemblies
shall comply with the interface of the relevant part of IEC 61169 or the relevant detail
specification. The relative position dimensions of the interface of end connector(s) include the
dimension of inner conductor relative to dielectric and inner conductor relative to outer
conductor.
The relative position dimensions of the interface of some typical connectors are shown in
Annex A.
4.4 Outline of the cable assembly
The outline shall be in accordance with the relevant detail specification of the cable assembly.
The length, unless otherwise specified in the relevant detail specification, is defined as between
the reference planes of the connectors. In the case of right-angle connectors, the length applies
to the axis of the connectors (see Figure 1 and Figure 2).
If not indicated in the relevant detail specification, the length tolerance shall be ±1 % for cables
equal to, or longer than, 300 mm and ±3 mm for cables shorter than 300 mm.

– 8 – IEC 60966-2-1:2024 © IEC 2024

Figure 1 – Length definition of cable assemblies with two connectors

Figure 2 – Length definition of cable assemblies with one connector
5 Workmanship, marking and packaging
IEC 60966-1:2019, Clause 5 and the following paragraph applies:
Cable assemblies made in accordance with this sectional specification comprise a section of
cable and two connectors (see Figure 1). Occasionally, the cable assembly will comprise only
a cable and one connector (see Figure 2). When specified in the relevant detail specification,
the assembly may additionally include markers for identification of the assembly and
interconnecting ends. End caps and other accessories may also be specified (see Figure 3).

IEC 60966-2-1:2024 © IEC 2024 – 9 –

a
When specified
Figure 3 – The marking example of a cable assembly
6 IEC type designation
IEC type designation of cable assembly consists of the type of cable and connectors, the length
of the cable assembly and the IEC standard number, as shown below:

Example 1: RG316-SMA-P/SMA-P-3000-A-IEC60966-2-1 cable assembly is composed of type
RG316 flexible RF coaxial cable, one end is type SMA-P connector and the other end is type
SMA-P connector, the length of the cable assembly is 3 000 mm, its distinguishing number is
A. This cable assembly complies with IEC 60966-2-1.
Example 2: RG142-SMAJ-2000-B-IEC60966-2 cable assembly is composed of type RG142
flexible RF coaxial cable, one end is type SMAJ connector and the other end empty, the length
of the cable assembly is 2 000 mm, its distinguishing number is B. This cable assembly complies
with IEC 60966-2-1.
– 10 – IEC 60966-2-1:2024 © IEC 2024
7 Standard rating and characteristics
7.1 Nominal characteristic impedance
The nominal characteristic impedance shall be 50 Ω or as specified in the relevant detail
specification.
7.2 Temperature range
The rated temperature range of cable components made of different cables, connectors and
auxiliary materials shall comply with the provisions in Table 1 or as specified in their detail
specification.
Table 1 – Rated temperature of cable assemblies with flexible cables
Materials used in cable
Storage Installation Operational
assemblies
°C °C °C
PE −40 to +70 −30 to +60 −40 to +70
PP −20 to
...
