EN 61169-48:2015

SLOVENSKI STANDARD
01-oktober-2015
5DGLRIUHNYHQþQLNRQHNWRUMLGHO3RGURþQDVSHFLILNDFLMD]DNRDNVLDOQH
NRQHNWRUMHVHULMH%PS5),(&
Radio-Frequency Connectors -- Part 48: Sectional Specification For Series Bmp R.F.
Coaxial Connectors (IEC 61169-48:2014)
Hochfrequenz-Steckverbinder - Teil 48: Rahmenspezifikation für koaxiale HF
Steckverbinder der BMP-Serie (IEC 61169-48:2014)
Connecteurs pour fréquences radioélectriques - Partie 48: Spécification intermédiaire
pour connecteurs coaxiaux R.F. série BMP (IEC 61169-48:2014)
Ta slovenski standard je istoveten z: EN 61169-48:2015
ICS:
33.120.30 5DGLRIUHNYHQþQLNRQHNWRUML R.F. connectors
5)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61169-48

NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2015
ICS 33.120.30
English Version
Radio-frequency connectors - Part 48: Sectional specification for
series BMP R.F. coaxial connectors
(IEC 61169-48:2014)
Connecteurs pour fréquences radioélectriques - Partie 48: Hochfrequenz-Steckverbinder - Teil 48:
Spécification intermédiaire relative aux connecteurs Rahmenspezifikation für koaxiale HF Steckverbinder der
coaxiaux R.F. série BMP BMP-Serie
(IEC 61169-48:2014) (IEC 61169-48:2014)
This European Standard was approved by CENELEC on 2014-11-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61169-48:2015 E

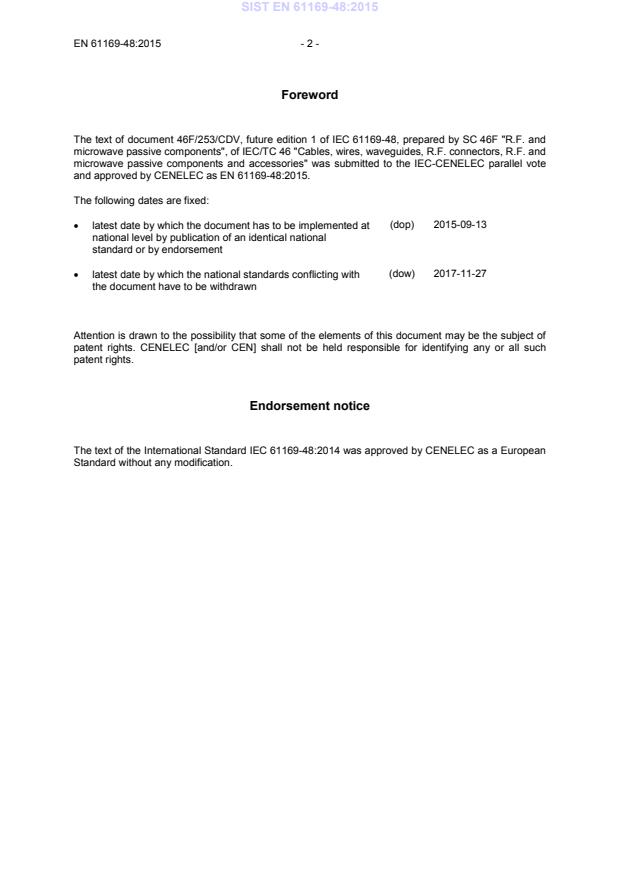

Foreword
The text of document 46F/253/CDV, future edition 1 of IEC 61169-48, prepared by SC 46F "R.F. and
microwave passive components", of IEC/TC 46 "Cables, wires, waveguides, R.F. connectors, R.F. and
microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN 61169-48:2015.
The following dates are fixed:
• latest date by which the document has to be implemented at (dop) 2015-09-13
national level by publication of an identical national
standard or by endorsement
(dow) 2017-11-27
• latest date by which the national standards conflicting with
the document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 61169-48:2014 was approved by CENELEC as a European
Standard without any modification.

- 3 - EN 61169-48:2015
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.

Publication Year Title EN/HD Year
IEC 60068-1 -  Environmental testing - EN 60068-1 -
Part 1: General and guidance
IEC 61169-1 2013 Radio-frequency connectors - EN 61169-1 2013
Part 1: Generic specification - General
requirements and measuring methods
IEC 62037 series Passive RF and microwave devices, EN 62037 series
intermodulation level measurement

IEC 61169-48 ®
Edition 1.0 2014-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 48: Sectional specification for series BMP R.F. coaxial connectors

Connecteurs pour fréquences radioélectriques –

Partie 48: Spécification intermédiaire relative aux connecteurs coaxiaux R.F.

série BMP
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 33.120.30 ISBN 978-2-8322-1902-7

– 2 – IEC 61169-48:2014 © IEC 2014
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Mating face and gauge information . 6
3.1 Dimensions – General connectors – Grade 2 . 6
3.1.1 Connector with pin-centre contact – Full detent and smooth bore . 6
3.1.2 Connector with socket-centre contact . 7
3.2 Gauges . 8
3.2.1 Gauge pin for socket-centre contact . 8
3.2.2 Test procedure . 9
3.2.3 Gauge for outer contact of connector with pin-centre contact . 10
3.3 Dimensions – Standard test connectors – Grade 0 . 12
3.3.1 Connector with pin-centre contact . 12
3.3.2 Connector with socket-centre contact . 13
3.4 General requirements for connector mounting on PCB . 14
3.4.1 General . 14
3.4.2 Maximum permitting deflexion . 15
3.4.3 Maximum permitting axial clearance . 15
4 Quality assessment procedure . 15
4.1 General . 15
4.2 Rating and characteristics (see Clause 5 of IEC 61169-1:2013) . 15
4.3 Test schedule and inspection requirements – Acceptance tests . 18
4.3.1 Acceptance tests . 18
4.3.2 Periodic tests . 19
4.4 Procedures for the quality conformance . 20
4.4.1 Quality conformance inspection . 20
4.4.2 Quality conformance and its maintenance – General procedure . 20
5 Instructions for preparation of detail specifications . 20
5.1 General . 20
5.2 Identification of the component . 21
5.3 Performance . 21
5.4 Marking, ordering information and related matters . 21
5.5 Selection of tests, test conditions and severities . 21
5.6 Blank detail specification pro-forma for type BMP connector . 22
6 Marking . 27
6.1 Marking of component . 27
6.2 Marking and contents of package . 27

Figure 1 – Connector with pin-centre contact . 7
Figure 2 – Connector with socket-centre contact . 8
Figure 3 – Gauge pin for socket-centre contact . 9
Figure 4 – Gauge A for sizing test . 10
Figure 5 – Gauge B for retention test for pin connectors – Full detent . 11
Figure 6 – Gauge C for retention test for pin connectors – Smooth bore . 12
Figure 7 – Connector with pin-centre contact . 13

IEC 61169-48:2014 © IEC 2014 – 3 –
Figure 8 – Connector with socket-centre contact . 14
Figure 9 – General requirements for connector mounting on PCB . 15

Table 1 – Dimensions of connector with pin-centre contact . 7
Table 2 – Dimensions of connector with socket-centre contact . 8
Table 3 – Dimensions of gauge pin for socket-centre contact . 9
Table 4 – Gauge A for sizing test . 10
Table 5 – Gauge B for retention test for pin connectors – Full detent . 11
Table 6 – Gauge C for retention test for pin connectors – Smooth bore . 12
Table 7 – Dimensions of connector with pin-centre contact . 13
Table 8 – Dimensions of connector with socket-centre contact . 14
Table 9 – Preferred climatic categories (see IEC 60068-1) . 16
Table 10 – Rating and characteristics . 16
Table 11 – Acceptance tests . 19
Table 12 – Periodic tests . 19

– 4 – IEC 61169-48:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 48: Sectional specification for series
BMP R.F. coaxial connectors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61169-48 has been prepared by subcommittee 46F: R.F. and
microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,
R.F. connectors, R.F. and microwave passive components and accessories.
The text of this standard is based on the following documents:

CDV Report on voting
46F/253/CDV 46F/291/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.

IEC 61169-48:2014 © IEC 2014 – 5 –
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 61169-48:2014 © IEC 2014
RADIO-FREQUENCY CONNECTORS –
Part 48: Sectional specification for series
BMP R.F. coaxial connectors
1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for series BMP RF coaxial connectors with
blind mating, typically for use in 50 Ω board to board connection. They may also be used with
RF cables or micro-strips in microwave, telecommunication, wireless and other fields. Their
operating frequency limit is up to 6 GHz.
It describes the interface dimensions with gauging information, electrical and mechanical
performance including the mandatory tests selected from IEC 61169-1:2013 applicable to all
DS relating to type BMP connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a DS and covers test schedules and inspection requirements.
NOTE Metric dimension are original dimensions.
All undimensioned pictorial configurations are for reference purpose only.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement
3 Mating face and gauge information
3.1 Dimensions – General connectors – Grade 2
3.1.1 Connector with pin-centre contact – Full detent and smooth bore
The mating face of connector with pin-centre contact is shown in Figure 1 and its dimensions
are shown in Table 1.
IEC 61169-48:2014 © IEC 2014 – 7 –
(1)
(2)
(1)
(4)
(3)
IEC
(1) Mechanical and electrical reference plane.
(2) The slots shall meet mechanical and electrical requirements.
(3) The shape and size of outer conductor shall meet the electrical and mechanical performance requirements.
(4) R0,2 recommended for fillet.
Figure 1 – Connector with pin-centre contact
Table 1 – Dimensions of connector with pin-centre contact
mm
Ref. Additional notes
Min. Max.
a 0,68 0,71
b 1,05 1,10
c 2,30 2,50
a
– –
d
e 4,14 4,18
4,52 4,57 Full detent
f
4,23 4,28 Smooth bore
g 1,77 2,02
h 0,00 0,25
i 2,62 –
0,42 0,52 Full detent
j
1,00 1,20 Smooth bore
k 1,65 1,80
l 1,18 1,28
m 45° ± 2° Angle
q 0,00 0,15
r 0,3 ± 0,1 × 45° Chamfer
a
The diameter is chosen upon the assumption that the PTFE dielectric has a dielectric constant of 2,02 to give
an impedance of 50 Ω.
3.1.2 Connector with socket-centre contact
The mating face of connector with socket-centre contact is shown in Figure 2 and its
dimensions are shown in Table 2.

– 8 – IEC 61169-48:2014 © IEC 2014
(1)
(2)
IEC
(1) Mechanical and electrical reference plane.
(2) Slotted and closed to meet electrical and mechanical requirements.
Figure 2 – Connector with socket-centre contact
Table 2 – Dimensions of connector with socket-centre contact
Ref. mm Additional notes
Min. Max.
a
a – –
b 1,05 1,10
c 1,85 1,95
d 4,17 4,21
e 4,39 4,44
f 55° ± 2°
g 1,63 1,83
h 0,00 0,15
i 2,10 –
j 0,60 0,72
k 1,80 1,90
l 2,10 2,30
m 45° ± 2° Angle
b
– –
p
r 0,15 ± 0,05 × 45° Chamfer
a
Dimensions are chosen to meet mechanical performance requirements, when mating with
Φ0,68 mm~Φ0,71 mm pin.
b
The diameter is chosen upon the assumption that the PTFE dielectric has a dielectric constant of 2,02 to
give an impedance of 50 Ω.
3.2 Gauges
3.2.1 Gauge pin for socket-centre contact
The gauge pin for socket-centre contact is shown in Figure 3 and its dimensions are shown in
Table 3.
IEC 61169-48:2014 © IEC 2014 – 9 –
IEC
Figure 3 – Gauge pin for socket-centre contact
Table 3 – Dimensions of gauge pin for socket-centre contact
Ref. Gauge A Gauge B
Maximum material for sizing purposes Minimum material for
measurement of retention force
Mass of gauge: 28 g + 2 g
mm mm
Min. Max. Min. Max.
a
0,710 0,715 0,675 0,680
b
0,95 1,20 1,30 1,60
Material: steel, polished. Surface roughness: Ra = 0,4 µm maximum on the cylindrical surface of length b.

3.2.2 Test procedure
The gauge A shall be inserted into the socket-centre contact three times with a minimum
depth of 0,95 mm. This is a sizing operation and should only be carried out when the socket-
centre contact is removed from the connector.
After this, the gauge B shall be inserted into socket-centre contact. The contact shall retain
the mass of the gauge in a vertical downward position.

– 10 – IEC 61169-48:2014 © IEC 2014
3.2.3 Gauge for outer contact of connector with pin-centre contact
3.2.3.1 Gauge A for sizing test
The gauge A for sizing test is shown in Figure 4 and its dimensions are shown in
Table 4.
IEC
Figure 4 – Gauge A for sizing test
Table 4 – Gauge A for sizing test
Ref. Gauge A
Maximum material for sizing purposes
mm
Min. Min.
a
4,15 4,17
c
1,40 1,50
d
2,50 2,70
f
55° ± 2°
Material: steel, polished. Surface roughness: Ra=0,4 µm maximum on the cylindrical surface of a and taper
surface angle f .
3.2.3.2 Test procedure
The gauge A shall be inserted into the outer contact three times. This is a sizing operation.

IEC 61169-48:2014 © IEC 2014 – 11 –
3.2.3.3 Gauge B for retention test for pin connectors – Full detent
3.2.3.3.1 Dimensions for gauge B
Gauge B for retention test for pin connectors – full detent is shown in Figure 5 and its
dimensions are shown in Table 5.
IEC
Figure 5 – Gauge B for retention test for pin connectors – Full detent
Table 5 – Gauge B for retention test for pin connectors – Full detent
Ref. Gauge B
Minimum material for measurement of retention force
Mass of gauge: 2 000 g + 100 g
mm
Min. Max.
a 4,18 4,21
b 4,39 4,44
c 1,80 1,90
d 2,50 2,70
e 45° ± 1°
f
55° ± 2°
g 0,60 0,72
Material: steel, polished. Surface roughness: Ra = 0,4 µm maximum on the cylindrical surface of length a,b and
taper surface angle e,f .
3.2.3.3.2 Test procedure
Th
...
