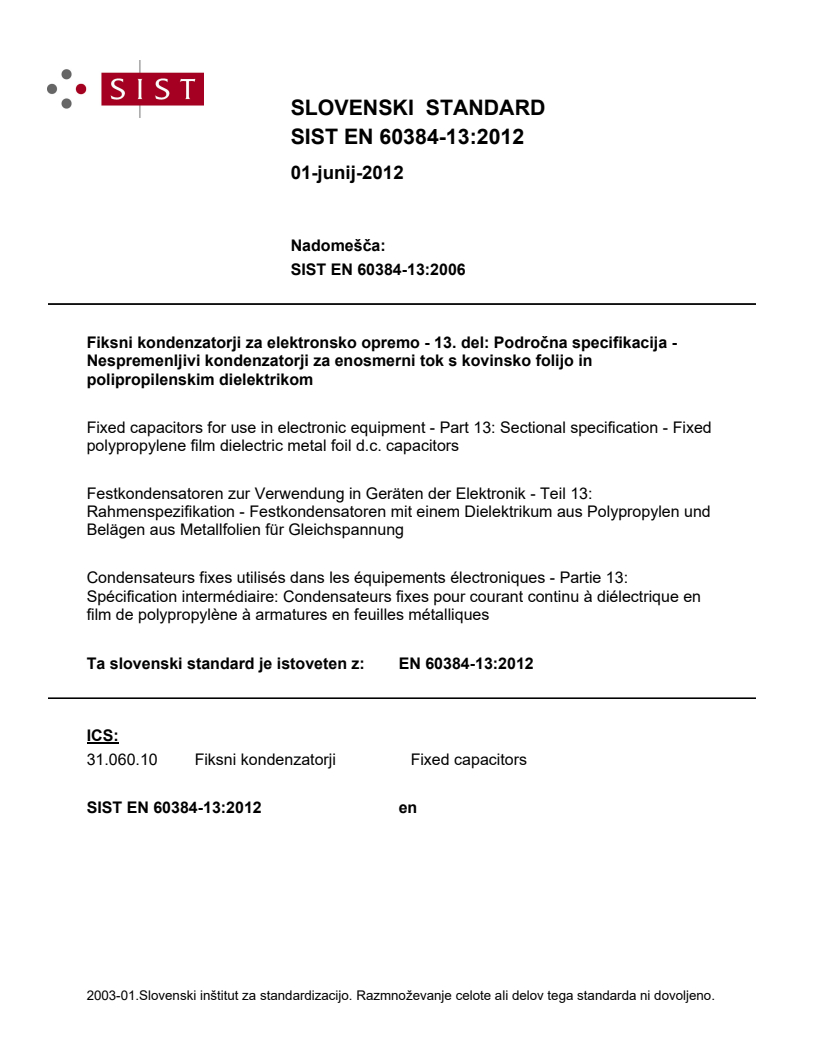

EN 60384-13:2012

SLOVENSKI STANDARD
01-junij-2012
1DGRPHãþD
SIST EN 60384-13:2006
)LNVQLNRQGHQ]DWRUML]DHOHNWURQVNRRSUHPRGHO3RGURþQDVSHFLILNDFLMD
1HVSUHPHQOMLYLNRQGHQ]DWRUML]DHQRVPHUQLWRNVNRYLQVNRIROLMRLQ
SROLSURSLOHQVNLPGLHOHNWULNRP
Fixed capacitors for use in electronic equipment - Part 13: Sectional specification - Fixed
polypropylene film dielectric metal foil d.c. capacitors
Festkondensatoren zur Verwendung in Geräten der Elektronik - Teil 13:
Rahmenspezifikation - Festkondensatoren mit einem Dielektrikum aus Polypropylen und
Belägen aus Metallfolien für Gleichspannung
Condensateurs fixes utilisés dans les équipements électroniques - Partie 13:
Spécification intermédiaire: Condensateurs fixes pour courant continu à diélectrique en
film de polypropylène à armatures en feuilles métalliques
Ta slovenski standard je istoveten z: EN 60384-13:2012
ICS:
31.060.10 Fiksni kondenzatorji Fixed capacitors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

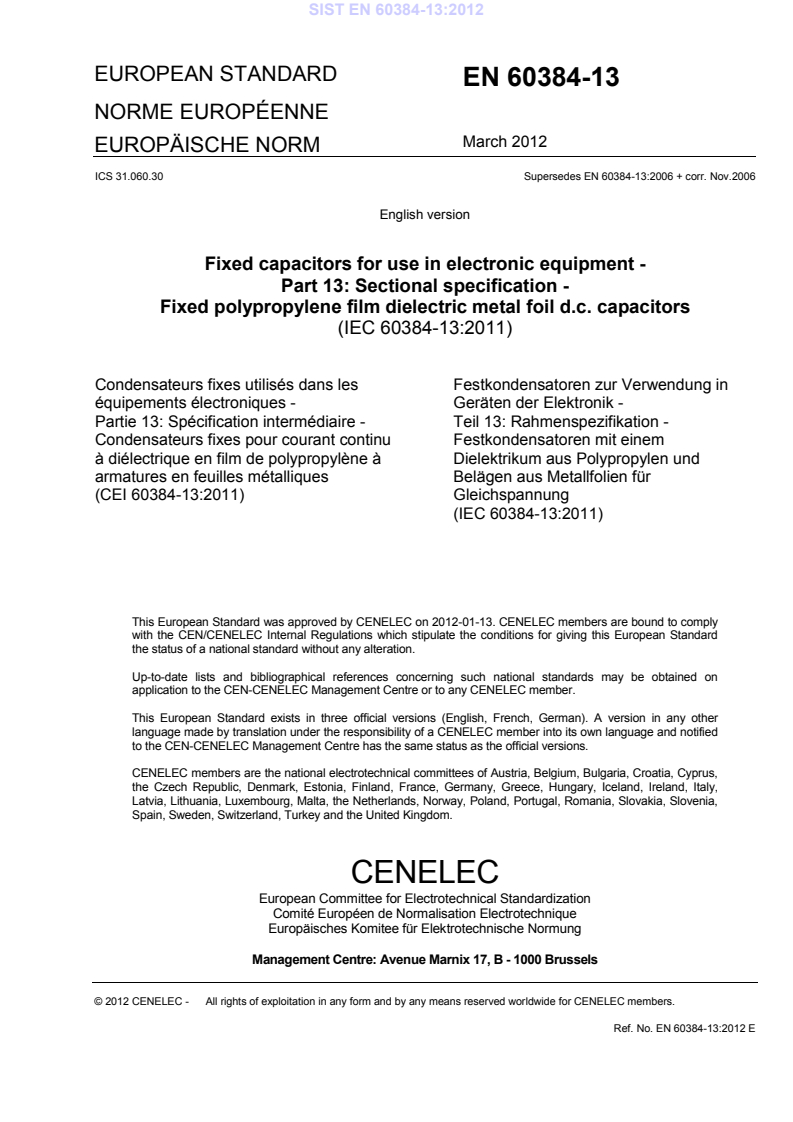

EUROPEAN STANDARD
EN 60384-13
NORME EUROPÉENNE
March 2012
EUROPÄISCHE NORM
ICS 31.060.30 Supersedes EN 60384-13:2006 + corr. Nov.2006

English version
Fixed capacitors for use in electronic equipment -
Part 13: Sectional specification -
Fixed polypropylene film dielectric metal foil d.c. capacitors
(IEC 60384-13:2011)
Condensateurs fixes utilisés dans les Festkondensatoren zur Verwendung in
équipements électroniques - Geräten der Elektronik -
Partie 13: Spécification intermédiaire - Teil 13: Rahmenspezifikation -
Condensateurs fixes pour courant continu Festkondensatoren mit einem
à diélectrique en film de polypropylène à Dielektrikum aus Polypropylen und
armatures en feuilles métalliques Belägen aus Metallfolien für
(CEI 60384-13:2011) Gleichspannung
(IEC 60384-13:2011)
This European Standard was approved by CENELEC on 2012-01-13. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60384-13:2012 E

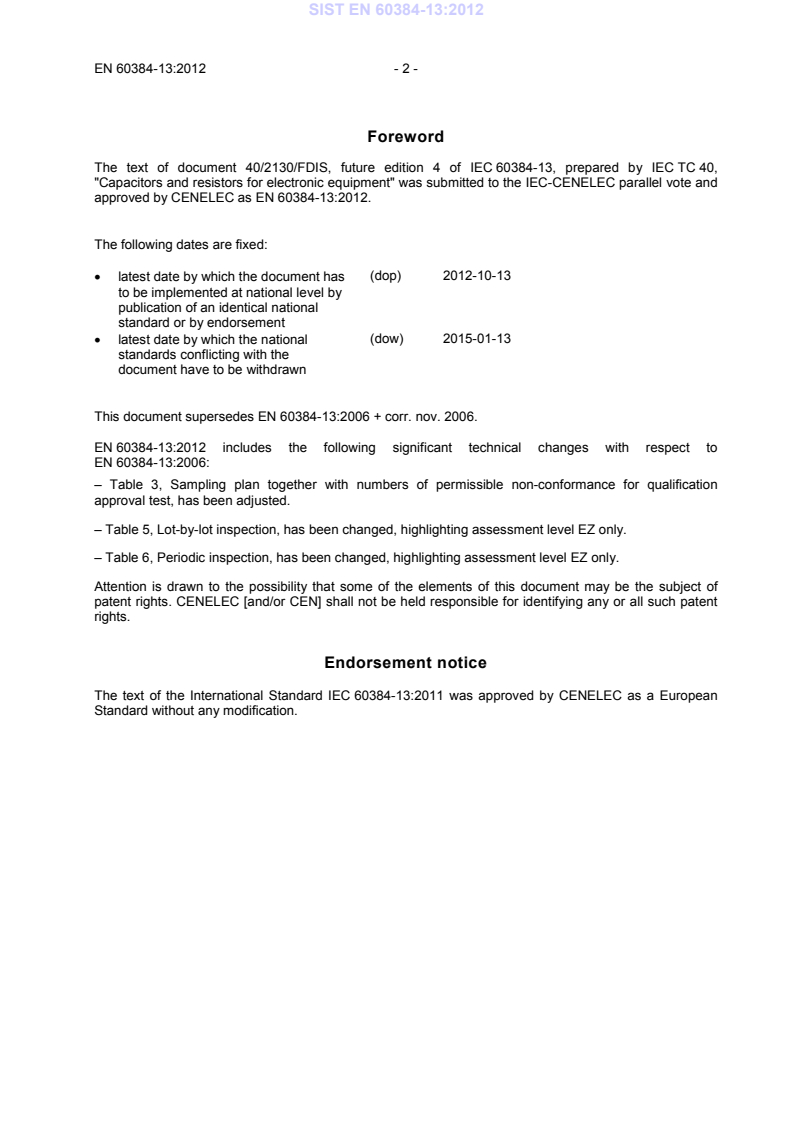

Foreword
The text of document 40/2130/FDIS, future edition 4 of IEC 60384-13, prepared by IEC TC 40,
"Capacitors and resistors for electronic equipment" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 60384-13:2012.

The following dates are fixed:
(dop) 2012-10-13
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2015-01-13
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60384-13:2006 + corr. nov. 2006.
EN 60384-13:2006:
– Table 3, Sampling plan together with numbers of permissible non-conformance for qualification
approval test, has been adjusted.
– Table 5, Lot-by-lot inspection, has been changed, highlighting assessment level EZ only.
– Table 6, Periodic inspection, has been changed, highlighting assessment level EZ only.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 60384-13:2011 was approved by CENELEC as a European
Standard without any modification.

- 3 - EN 60384-13:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60063 1963 Preferred number series for resistors and - -
+ A1 1967 capacitors
+ A2 1977
IEC 60068-1 - Environmental testing - EN 60068-1 -
Part 1: General and guidance
IEC 60384-1 2008 Fixed capacitors for use in electronic EN 60384-1 2009
+ corr. November 2008 equipment -
Part 1: Generic specification
IEC 60384-13-1 - Fixed capacitors for use in electronic EN 60384-13-1 -
equipment -
Part 13-1: Blank detail specification - Fixed
polypropylene film dielectric metal foil d.c.
capacitors - Assessment level E and EZ

IEC 60384-14 - Fixed capacitors for use in electronic EN 60384-14 -
equipment -
Part 14: Sectional specification - Fixed
capacitors for electromagnetic interference
suppression and connection to the supply
mains
IEC 60410 1973 Sampling plans and procedures for inspection - -
by attributes
IEC 61193-2 - Quality assessment systems - EN 61193-2 -
Part 2: Selection and use of sampling plans
for inspection of electronic components and
packages
ISO 3 - Preferred numbers - Series of preferred - -
numbers
IEC 60384-13 ®
Edition 4.0 2011-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 13: Sectional specification – Fixed polypropylene film dielectric metal foil
d.c. capacitors
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 13: Spécification intermédiaire – Condensateurs fixes pour courant
continu à diélectrique en film de polypropylène à armatures en feuilles
métalliques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 31.060.30 ISBN 978-2-88912-814-3

– 2 – 60384-13 © IEC:2011
CONTENTS
FOREWORD . 4
1 General . 6
1.1 Scope . 6
1.2 Object . 6
1.3 Normative references . 6
1.4 Information to be given in a detail specification . 7
1.5 Terms and definitions . 8
1.6 Marking . 8
2 Preferred ratings and characteristics . 9
2.1 Preferred characteristics . 9
2.2 Preferred values of ratings . 9
3 Quality assessment procedures . 10
3.1 Primary stage of manufacture . 10
3.2 Structurally similar components . 11
3.3 Certified records of released lots . 11
3.4 Qualification approval . 11
3.5 Quality conformance inspection . 17
4 Test and measurement procedures . 19
4.1 Visual examination and check of dimensions . 19
4.2 Electrical tests . 19
4.3 Robustness of terminations . 22
4.4 Resistance to soldering heat . 22
4.5 Solderability . 22
4.6 Rapid change of temperature . 23
4.7 Vibration. 23
4.8 Bump . 23
4.9 Shock . 24
4.10 Climatic sequence . 24
4.11 Damp heat, steady state . 25
4.12 Endurance . 26
4.13 Component solvent resistance . 26
4.14 Solvent resistance of marking . 26

Table 1 – Preferred tolerances . 9
Table 2 – Preferred values and combinations . 10
Table 3 – Sampling plan together with numbers of permissible non-conformance for
qualification approval test . 12
Table 4 – Test schedule for qualification approval. 13
Table 5 – Lot-by-lot inspection . 18
Table 6 – Periodic inspection . 18
Table 7 – Test points and voltages . 19
Table 8 – Insulation resistance requirements . 21
Table 9 – Correction factors . 21

60384-13 © IEC:2011 – 3 –
Table 10 – Preferred severities . 24
Table 11 – Test conditions . 26

– 4 – 60384-13 © IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 13: Sectional specification –
Fixed polypropylene film dielectric metal foil d.c. capacitors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an internation
...
