EN 62026-3:2009

SLOVENSKI STANDARD
01-september-2009
Nizkonapetostne stikalne in krmilne naprave - Vmesniki krmilne naprave (CDIs) - 3.
del: DeviceNet (IEC 62026-3:2008)
Low-voltage switchgear and controlgear - Controller-device interfaces (CDIs) - Part 3:
DeviceNet (IEC 62026-3:2008)
Niederspannungsschaltgeräte - Steuerung-Geräte-Netzwerke (CDIs) - Teil 3: DeviceNet
(IEC 62026-3:2008)
Appareillage à basse tension - Interfaces appareil de commande-appareil (CDI) - Partie
3: DeviceNet (CEI 62026-3:2008)
Ta slovenski standard je istoveten z: EN 62026-3:2009
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62026-3
NORME EUROPÉENNE
June 2009
EUROPÄISCHE NORM
ICS 29.130.20 Supersedes EN 50325-2:2000

English version
Low-voltage switchgear and controlgear -
Controller-device interfaces (CDIs) -
Part 3: DeviceNet
(IEC 62026-3:2008)
Appareillage à basse tension -  Niederspannungsschaltgeräte -
Interfaces appareil Steuerung-Geräte-Netzwerke (CDIs) -
de commande-appareil (CDI) - Teil 3: DeviceNet
Partie 3: DeviceNet (IEC 62026-3:2008)
(CEI 62026-3:2008)
This European Standard was approved by CENELEC on 2009-05-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62026-3:2009 E

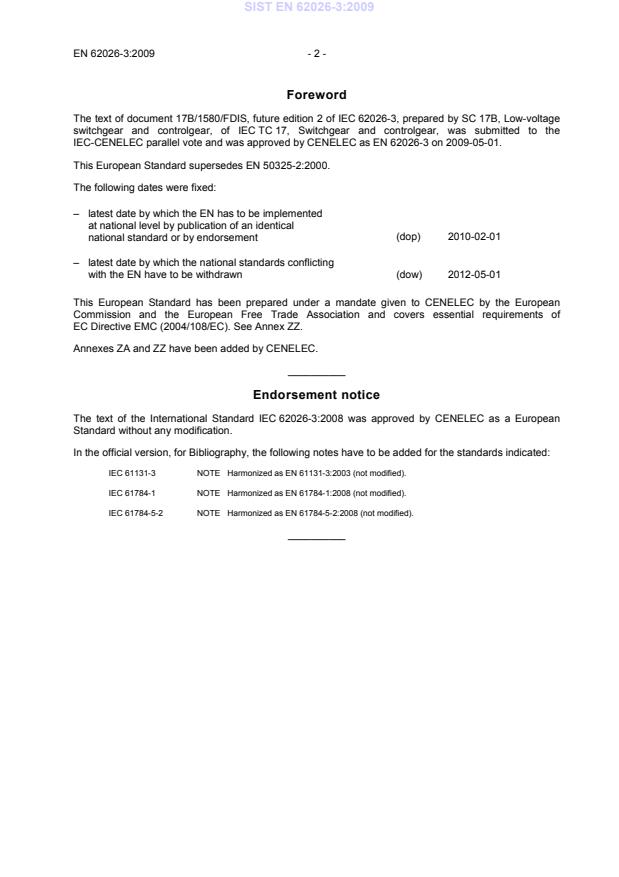

Foreword
The text of document 17B/1580/FDIS, future edition 2 of IEC 62026-3, prepared by SC 17B, Low-voltage
switchgear and controlgear, of IEC TC 17, Switchgear and controlgear, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as EN 62026-3 on 2009-05-01.
This European Standard supersedes EN 50325-2:2000.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-02-01
– latest date by which the national standards conflicting
(dow) 2012-05-01
with the EN have to be withdrawn
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and covers essential requirements of
EC Directive EMC (2004/108/EC). See Annex ZZ.
Annexes ZA and ZZ have been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 62026-3:2008 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61131-3 NOTE  Harmonized as EN 61131-3:2003 (not modified).
IEC 61784-1 NOTE  Harmonized as EN 61784-1:2008 (not modified).
IEC 61784-5-2 NOTE  Harmonized as EN 61784-5-2:2008 (not modified).
__________
- 3 - EN 62026-3:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60529 1989 Degrees of protection provided EN 60529 1991
by enclosures (IP Code) + corr. May 1993
A1 1999 A1 2000
1)
IEC 60947-5-2 1997 Low-voltage switchgear and controlgear - EN 60947-5-2 1998
(mod) Part 5-2: Control circuit devices and
A1 1999 switching elements - Proximity switches A1 1999

A2 2003 A2 2004
2)
IEC 61000-4-2 1995 Electromagnetic compatibility (EMC) - EN 61000-4-2 1995
A1 1998 Part 4-2: Testing and measurement A1 1998
A2 2000 techniques - Electrostatic discharge A2 2001
immunity test
IEC 61000-4-3 2006 Electromagnetic compatibility (EMC) - EN 61000-4-3 2006
Part 4-3: Testing and measurement + IS1 2009
techniques - Radiated, radio-frequency,
electromagnetic field immunity test

IEC 61000-4-4 2004 Electromagnetic compatibility (EMC) - EN 61000-4-4 2004
Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst
immunity test
IEC 61000-4-5 2005 Electromagnetic compatibility (EMC) - EN 61000-4-5 2006
Part 4-5: Testing and measurement
techniques - Surge immunity test

IEC 61000-4-6 2003 Electromagnetic compatibility (EMC) -
+ A1 2004 Part 4-6: Testing and measurement
+ A2 2006 techniques - Immunity to conducted EN 61000-4-6 2007
disturbances, induced by radio-frequency + corr. August 2007
fields + IS1 2009
IEC 61158 Series Industrial communication networks - EN 61158 Series
Fieldbus specifications
3) 4)
IEC 61158-4-2 - Industrial communication networks - EN 61158-4-2 2008
Fieldbus specifications -
Part 4-2: Data-link layer protocol
specification - Type 2 elements

1)
EN 60947-5-2:1998 is superseded by EN 60947-5-2:2007, which is based on IEC 60947-5-2:2007.
2)
EN 61000-4-2:1995 is superseded by EN 61000-4-2:2009, which is based on IEC 61000-4-2:2008
3)
Undated reference.
4)
Valid edition at date of issue.

Publication Year Title EN/HD Year

3) 4)
IEC 61158-5-2 - Industrial communication networks - EN 61158-5-2 2008
Fieldbus specifications -
Part 5-2: Application layer service definition -
Type 2 elements
3) 4)
IEC 61158-6-2 - Industrial communication networks - EN 61158-6-2 2008
Fieldbus specifications -
Part 6-2: Application layer protocol
specification - Type 2 elements

IEC 61508 Series Functional safety of EN 61508 Series
electrical/electronic/programmable electronic
safety-related systems
3) 4)
IEC 61784-3-2 - Industrial communication networks - EN 61784-3-2 2008
Profiles -
Part 3-2: Functional safety fieldbuses -
Additional specifications for CPF 2

IEC 62026-1 2007 Low-voltage switchgear and controlgear - EN 62026-1 2007
Controller-device interfaces (CDIs) -
Part 1: General rules
CISPR 11 (mod) 2003 Industrial scientific and medical (ISM)
+ A1 (mod) 2004 radio-frequency equipment - Electromagnetic EN 55011 2007
A2 2006 disturbance characteristics - Limits and A2 2007
methods of measurement
ISO/IEC 7498-1 1994 Information technology - Open Systems - -
Interconnection - Basic Reference Model:
The Basic Model
ISO 11898-1 2003 Road vehicles - Controller area network - -
(CAN) -
Part 1: Data link layer and physical signalling

ISO 11898-2 2003 Road vehicles - Controller area network - -
(CAN) -
Part 2: High-speed medium access unit

- 5 - EN 62026-3:2009
Annex ZZ
(informative)
Coverage of Essential Requirements of EC Directives
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all
relevant essential requirements as given in Article 1 of Annex I of the Directive 2004/108/EC.
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directive concerned.
WARNING: Other requirements and other EC Directives may be applicable to the products falling within
the scope of this standard.
__________
IEC 62026-3
Edition 2.0 2008-01
INTERNATIONAL
STANDARD
Low-voltage switchgear and controlgear – Controller-device interfaces (CDIs) –
Part 3: DeviceNet
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XE
ICS 29.130.20 ISBN 2-8318-9513-8

– 2 – 62026-3 © IEC:2008(E)
CONTENTS
FOREWORD.7
INTRODUCTION.9

1 Scope.10
2 Normative references .10
3 Terms, definitions, symbols and abbreviated terms.11
4 Classification.16
4.1 General .16
4.2 DeviceNet communication model.18
4.3 DeviceNet, CAN and CIP.18
5 Characteristics .19
5.1 DeviceNet connections .19
5.2 DeviceNet messaging protocol .20
5.3 DeviceNet communication object classes .50
5.4 Link access state machine.52
5.5 Predefined master/slave connection set .55
5.6 DeviceNet Safety™ .73
5.7 Physical layer.73
6 Product information .79
7 Normal service, mounting and transport conditions.79
7.1 Normal service conditions .79
7.2 Conditions during transport and storage .80
7.3 Mounting .80
8 Constructional and performance requirements.80
8.1 Indicators and configuration switches .80
8.2 DeviceNet cable .81
8.3 Terminating resistors.92
8.4 Connectors.92
8.5 Device taps and power taps .101
8.6 Link powered devices .103
8.7 Miswiring protection .103
8.8 Power supplies.103
8.9 Electromagnetic compatibility (EMC) .104
8.10 Additional functional safety requirements related to EMC . 106
9 Tests .106
9.1 General .106
9.2 Electrical and EMC testing .106
9.3 Logical testing .114

Bibliography.118

62026-3 © IEC:2008(E) – 3 –
Figure 1 – Typical DeviceNet controller-device interfaces .17
Figure 2 – DeviceNet protocol architecture compared with the OSI reference model .18
Figure 3 – DeviceNet’s use of the CAN identifier field .19
Figure 4 – Explicit message CAN data field use .21
Figure 5 – Explicit message data field format.21
Figure 6 – Explicit message header format .21
Figure 7 – Service field format .22
Figure 8 – Open explicit messaging connection request format .23
Figure 9 – Open explicit messaging connection response format .26
Figure 10 – Close connection request format .27
Figure 11 – Close connection response format .28
Figure 12 – Non-fragmented explicit request message format, values 0 – 3 .29
Figure 13 – Non-fragmented explicit request message format, value 4.30
Figure 14 – Non-fragmented success response message format.30
Figure 15 – Error response message .31
Figure 16 – Data field of an I/O message .31
Figure 17 – Format of DeviceNet fragmentation protocol.32
Figure 18 – I/O message fragment format .33
Figure 19 – Explicit message fragment format .33
Figure 20 – Acknowledgement message format .35
Figure 21 – Establishing the offline ownership .37
Figure 22 – Multicast nature of the offline ownership .38
Figure 23 – Offline ownership request message.39
Figure 24 – Offline ownership response message protocol.39
Figure 25 – Communication faulted request message – Multicast protocol .40
Figure 26 – Communication faulted request message – Point-to-point protocol.41
Figure 27 – Identify communication faulted request message – Multicast protocol .42
Figure 28 – Communication faulted identify response message .43
Figure 29 – Identify communication faulted request message – Point-to-point protocol .43
Figure 30 – Who communication faulted request message .44
Figure 31 – Who response message .45
Figure 32 – Change MAC ID communication faulted request message.45
Figure 33 – Device heartbeat message .46
Figure 34 – Device shutdown message .48
Figure 35 – Duplicate MAC ID check CAN identifier field .49
Figure 36 – Duplicate MAC ID check message data field format.49
Figure 37 – Link access state transition diagram.53
Figure 38 – Allocation choice byte contents .58
Figure 39 – Allocate_master/slave_connection_set request message .58
Figure 40 – Success response to allocate_master/slave_connection_set request .59
Figure 41 – Parent explicit messaging connection logic .61

– 4 – 62026-3 © IEC:2008(E)
Figure 42 – Release choice byte contents.62
Figure 43 – Release_master/slave_connection set request message .62
Figure 44 – Success response to release_master/slave_connection_set request .63
Figure 45 – Predefined master/slave I/O connection state transition diagram.65
Figure 46 – Predefined master/slave explicit messaging connection state transition
diagram .67
Figure 47 – Physical layer block diagram .74
Figure 48 – Device containing a non-isolated physical layer.76
Figure 49 – Device containing an isolated physical layer.77
Figure 50 – DeviceNet medium topology.78
Figure 51 – Thick cable: physical configuration.85
Figure 52 – Thick cable: current available on the DeviceNet power bus .85
Figure 53 – Thin cable: physical configuration .88
Figure 54 – Thin cable: current available on the DeviceNet power bus.88
Figure 55 – Flat cable: physical configuration .91
Figure 56 – Flat cable: current available on the DeviceNet power bus.91
Figure 57 – Open connector pinout .95
Figure 58 – Open connector geometry .95
Figure 59 – Mini connector pinout .97
Figure 60 – Micro connector pinout .98
Figure 61 – Flat trunk connector layout – Pin out .100
Figure 62 – Flat trunk connector layout – Geometry.101
Figure 63 – Power supply rise time test circuit .106
Figure 64 – Current consumption test circuit .107
Figure 65 – Power ON test circuit .108
Figure 66 – Test circuit for reversal of V+ and V-, and also V- interruption. 108
Figure 67 – Differential impedance test circuit .109
Figure 68 – Transmit level test setup .110
Figure 69 – Transmit levels.110
Figure 70 – Timing test setup.111
Figure 71 – Timing.111
Figure 72 – CDI test configuration .112
Figure 73 – Test circuit for logical tests.114

62026-3 © IEC:2008(E) – 5 –
Table 1 – Message body format values .24
Table 2 – Group select values .25
Table 3 – Source message ID in open explicit messaging connection request.25
Table 4 – Destination message ID in open explicit messaging connection response .26
Table 5 – UCMM error conditions/codes .28
Table 6 – Fragment type bit values .32
Table 7 – Ack status bit values .35
Table 8 – Offline connection set.37
Table 9 – Addresses reporting based upon mask .41
Table 10 – Device shutdown message shutdown code ranges .48
Table 11 – Device shutdown message “Open” shutdown codes .49
Table 12 – Link access state event matrix.53
Table 13 – Predefined master/slave connection set identifier fields.56
Table 14 – Allocate_master/slave_connection_set request service data field
parameters .57
Table 15 – Allocate_master/slave_connection set response parameters .59
Table 16 – Release_master/slave_connection_set request service data field
parameters .62
Table 17 – DeviceNet object specific additional error codes.64
Table 18 – Connection instance IDs for predefined master/slave connections.65
Table 19 – Predefined master/slave I/O connection state event matrix.66
Table 20 – Predefined master/slave explicit messaging connection state event matrix .68
Table 21 – Predefined master/slave I/O connection object attribute access .69
Table 22 – General physical layer characteristics .73
Table 23 – Transmitter characteristics .75
Table 24 – Receiver characteristics .75
Table 25 – Load limits.79
Table 26 – Cable profile: data pair specifications .81
Table 27 – Cable profile: DC power pair specifications .81
Table 28 – Cable profile: general specifications .82
Table 29 – Cable profile: topology .82
Table 30 – Thick cable: data pair specifications .83
Table 31 – Thick cable: DC power pair specifications .83
Table 32 – Thick cable: general specifications .84
Table 33 – Thick cable: topology.84
Table 34 – Thick cable: maximum current available (A) based on network length.85
Table 35 – Thin cable: data pair specifications.86
Table 36 – Thin cable: DC power pair specifications .87
Table 37 – Thin cable: general specifications.87
Table 38 – Thin cable: topology .87
Table 39 – Thin cable: maximum current available (A) based on network length .88
Table 40 – Flat cable: data pair specifications .89

– 6 – 62026-3 © IEC:2008(E)
Table 41 – Flat cable: DC power pair specifications .90
Table 42 – Flat cable: general specifications .90
Table 43 – Flat cable: topology .90
Table 44 – Flat cable: maximum current available (A) based on network length .91
Table 45 – Connector profile template .93
Table 46 – Open connector.94
Table 47 – Sealed mini connector .96
Table 48 – Sealed micro connector.97
Table 49 – Flat trunk connector .99
Table 50 – Internal pass-through conductor specifications . 102
Table 51 – Internal drop conductor specifications .102
Table 52 – Internal pass-through conductor specifications . 102
Table 53 – Internal power drop conductor specifications .103
Table 54 – Voltage regulator specifications.103
Table 55 – DeviceNet power supply specifications .104
Table 56 – Immunity performance criteria .105

62026-3 © IEC:2008(E) – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
CONTROLLER-DEVICE INTERFACES (CDIs) –

Part 3: DeviceNet
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62026-3 has been prepared by subcommittee 17B: Low-voltage
switchgear and controlgear, of IEC technical committee 17: Switchgear and controlgear.
This second edition of IEC 62026-3 cancels and replaces the first edition published in 2000.
This second edition constitutes a technical revision.

– 8 – 62026-3 © IEC:2008(E)
The main changes with respect to the previous edition are listed below:
• addition of new services to the base messaging protocol in 5.2;
• replacement of detailed application layer requirements in former annexes by references in
5.3 to corresponding specifications in the new edition of IEC 61158 (2007);
• addition of requirements for a corresponding safety protocol in 5.6 (by reference to
IEC 61784-3);
• modified presentation of cable and connector specifications in 8.2 and 8.4, and addition of
a new type;
• addition of references for safety tests for both EMC and logical tests in 8.10 and 9.3)
The text of this standard is based on the first edition and the following documents:
FDIS Report on voting
17B/1580/FDIS 17B/1585/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 62026, under the general title Low-voltage switchgear and
controlgear – Controller-device interfaces (CDIs), can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

62026-3 © IEC:2008(E) – 9 –
INTRODUCTION
)
DeviceNet™ is intended for use in, but is not limited to, industrial automation applications.
These applications may include devices such as limit switches, proximity sensors, electro-
pneumatic valves, relays, motor starters, operator interface panels, analogue inputs, analogue
outputs and controllers.
—————————
)
DeviceNet™ is a trade name of Open DeviceNet Vendor Association, Inc. This information is given for the
convenience of users of this International Standard and does not constitute an endorsement by IEC of the
trademark holder or any of its products. Compliance to this standard does not require use of the trade name
DeviceNet™. Use of the trade name DeviceNet™ requires permission of Open DeviceNet Vendor Association,
Inc.
– 10 – 62026-3 © IEC:2008(E)
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
CONTROLLER-DEVICE INTERFACES (CDIs) –

Part 3: DeviceNet
1 Scope
This part of IEC 62026 specifies an interface system between single or multiple controllers,
and control circuit devices or switching elements. The interface system uses two twisted
shielded conductor pairs within one cable – one of these pairs provides a differential
communication medium and the other pair provides power to the devices. This part
establishes requirements for the interchangeability of components with such interfaces.
This part of IEC 62026 specifies the following particular requirements for DeviceNet:
− requirements for interfaces between controllers and switching elements;
− normal service conditions for devices;
− constructional and performance requirements;
tests to verify conformance to requirements.
These particular requirements apply in addition to the general requirements of IEC 62026-1.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
Amendment 1 (1999)
IEC 60947-5-2:1997, Low-voltage switchgear and controlgear – Part 5-2: Control circuit
devices and switching elements – Proximity switches
Amendment 1 (1999)
Amendment 2 (2003)
IEC 61000-4-2:1995, Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test
Amendment 1 (1998)
Amendment 2 (2000)
IEC 61000-4-3:2006, Electromagnetic compatibility (EMC) – Part 4-3: Testing and
measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4:2004, Electromagnetic compatibility (EMC) – Part 4-4: Testing and
measurement techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5:2005, Electromagnetic compatibility (EMC) – Part 4-5: Testing and
measurement techniques – Surge immunity test

62026-3 © IEC:2008(E) – 11 –
IEC 61000-4-6:2003, Electromagnetic compatibility (EMC) – Part 4-6: Testing and
measurement techniques – Immunity to conducted disturbances, induced by radio-frequency
fields
Amendment 1 (2004)
Amendment 2 (2006)
IEC 61158 (all parts), Digital data communications for measurement and control – Fieldbus for
use in industrial control systems
IEC 61158-4-2, Industrial communication networks – Fieldbus specifications –Part 4-2: Data-
link layer protocol specification – Type 2 elements
IEC 61158-5-2, Industrial communication networks – Fieldbus specifications – Part 5-2:
Application layer service definition – Type 2 elements
IEC 61158-6-2, Industrial communication networks – Fieldbus specifications –Part 6-2:
Application layer protocol specification – Type 2 elements
IEC 61508 (all parts), Functional safety of electrical/electronic/programmable electronic
safety-related systems
IEC 61784-3-2, Industrial communication networks – Profiles – Part 3-2: Functional safety
fieldbuses – Additional specifications for CPF 2
IEC 62026-1:2007, Low-voltage switchgear and controlgear – Controller-device interfaces
(CDIs) – Part 1: General rules
ISO/IEC 7498-1:1994, Information technology – Open Systems Interconnection – Basic
Reference Model: The Basic Model
ISO 11898-1:2003, Road vehicles – Controller area network (CAN) – Part 1: Data link layer
and physical signalling
ISO 11898-2:2003, Road vehicles – Controller area network (CAN) – Part 2: High-speed
medium access unit
CISPR 11:2003, Industrial, scientific and medical (ISM) radio-frequency equipment –
Electromagnetic disturbance characteristics – Limits and methods of measurement
Amendment 1 (2004)
Amendment 2 (2006)
3 Terms, definitions, symbols and abbreviated terms
For the purposes of this part of IEC 62026, the following terms, definitions, symbols and
abbreviations, in addition to those given in IEC 62026-1, apply.
3.1 Terms and definitions
3.1.1
acknowledged fragmentation
fragmentation performed on an explicit message, in which the transmission of a fragment from
the transmitting object is followed by the transmission of an acknowledgement by the
receiving object
NOTE The reception of each fragment is acknowledged by the receiving object.

– 12 – 62026-3 © IEC:2008(E)
3.1.2
ack status
field within an acknowledgement/response message format that indicates whether or not an
error has been encountered by the receiver of a fragmented message
NOTE This applies specifically to the DeviceNet fragmentation protocol.
3.1.3
application objects
set of object classes and their object instances that are available within the node
NOTE These objects manage and provide the exchange of data and messages across DeviceNet controller-device
interfaces (CDIs) and within the DeviceNet compliant node.
3.1.4
attribute
description of an externally accessible characteristic or feature of an object
NOTE Attributes typically provide status information or govern the operation of an object.
3.1.5
bit-strobe
communication using strobing
3.1.6
broadcast
communication from one node to all other nodes
3.1.7
CAN (Controller Area Network)
ISO specification that defines a generic physical layer and data link medium access
procedure based on non-destructive bit-wise arbitration, see ISO 11898-1 and ISO 11898-2
3.1.8
CAN_H
positive half of the differential physical CAN signal
3.1.9
CAN_L
negative half of the differential physical CAN signal
3.1.10
client
(1) object which uses the services of another (server) object to perform a task, see server
(3.1.43)
(2) initiator of a message to which a server reacts
3.1.11
common service
CIP service used by DeviceNet objects (see IEC 61158-5-2, 6.2.1.3 and IEC 61158-6-2, 4.1.8)
3.1.12
communication objects
objects that manage and provide run-time exchange of messages across DeviceNet
3.1.13
connection
logical binding between two or more application objects

62026-3 © IEC:2008(E) – 13 –
NOTE These application objects may be located at the same node or at different nodes.
3.1.14
connection ID (CID)
connection identifier assigned to all transmissions that are associated with a particular
connection between multiple nodes
3.1.15
connection object
manages the communication-specific aspects associated with connections between nodes
3.1.16
consumer
end point of a connection that is responsible for receiving data
3.1.17
destination MAC ID
MAC ID of a node that is to receive a message
3.1.18
device tap
physical point of attachment from a DeviceNet device to a trunk cable or a drop cable
3.1.19
device type
identification of a collection of device-dependent information describing a viable combination
of options selected for all layers in the communication stack
3.1.20
dominant
one of two complementary logic levels on the physical signal
NOTE The dominant level is a logical "0".
3.1.21
duplicate MAC ID detection
DeviceNet-defined protocol that ensures no two nodes on the same link are assigned the
same MAC ID
3.1.22
explicit messaging
each explicit message commands the performance of a particular task and the return of the
results of the task performance to the requester
3.1.23
fragmentation
DeviceNet protocol provided by the connection object that defines a method by which data
greater than eight (8) bytes in length may be transmitted
3.1.24
group 2 client
unconnected message manager (UCMM)capable device that has gained ownership of the
predefined master/slave connection set within a server such that it may act as the client on
those connections
3.1.25
group 2 only client
device that is acting as a group 2 client to a group 2 only server

– 14 – 62026-3 © IEC:2008(E)
NOTE The group 2 only client provides the UCMM functionality for
...
