EN 15016-4:2006

SLOVENSKI STANDARD
01-maj-2006
äHOH]QLãNHQDSUDYH±7HKQLþQRULVDQMH±GHO,]PHQMDYDSRGDWNRY
Technical drawings - Railway applications - Part 4: Data exchange
Technische Zeichnungen - Bahnanwendungen - Teil 4: Datenaustausch
Applications ferroviaires - Dessins techniques - Partie 4: Echange des données
Ta slovenski standard je istoveten z: EN 15016-4:2006
ICS:
01.100.01 7HKQLþQRULVDQMHQDVSORãQR Technical drawings in
general
45.020 Železniška tehnika na Railway engineering in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 15016-4
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2006
ICS 01.100.01; 45.020
English Version
Technical drawings - Railway applications - Part 4: Data
exchange
Applications ferroviaires - Dessins techniques - Partie 4: Technische Zeichnungen - Bahnanwendungen - Teil 4:
Echange des données Datenaustausch
This European Standard was approved by CEN on 21 December 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15016-4:2006: E
worldwide for CEN national Members.

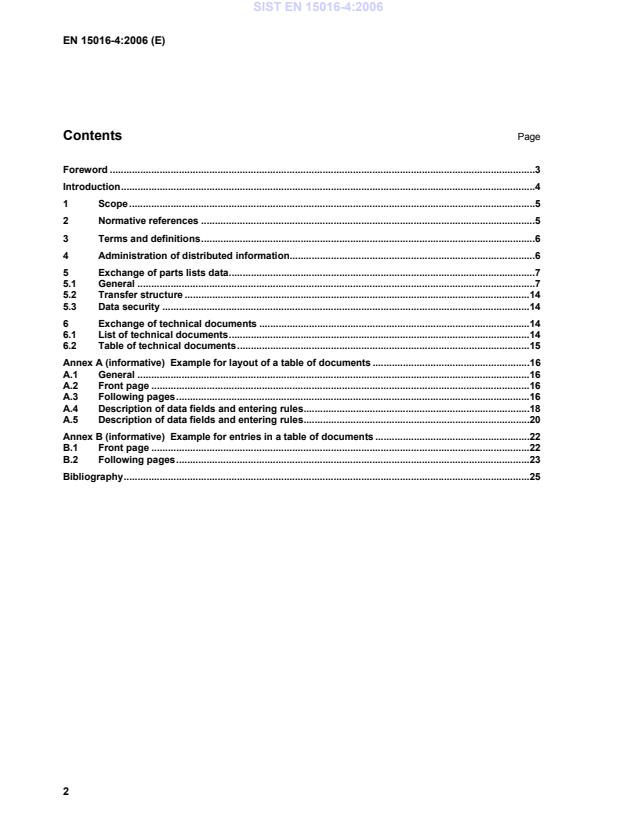

Contents Page
Foreword .3
Introduction.4
1 Scope .5
2 Normative references .5
3 Terms and definitions.6
4 Administration of distributed information.6
5 Exchange of parts lists data.7
5.1 General .7
5.2 Transfer structure .14
5.3 Data security .14
6 Exchange of technical documents .14
6.1 List of technical documents.14
6.2 Table of technical documents.15
Annex A (informative) Example for layout of a table of documents .16
A.1 General .16
A.2 Front page .16
A.3 Following pages.16
A.4 Description of data fields and entering rules.18
A.5 Description of data fields and entering rules.20
Annex B (informative) Example for entries in a table of documents .22
B.1 Front page .22

B.2 Following pages.23
Bibliography.25

Foreword
This European Standard (EN 15016-4:2006) has been prepared by Technical Committee CEN/TC 256
“Railway applications”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2006, and conflicting national standards shall be withdrawn at
the latest by August 2006.
This European Standard has been prepared under a mandate M/024 given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s).
This European Standard has been prepared under Mode 4 co-operation with CENELEC/TC9X. In the event of
an amendment being required to this European Standard, the co-op TC shall be consulted before proceeding
to amend this European Standard.
Particular considerations were made to standardize the computerised transfer of the content of the documents,
its output on conventional information carrier and its reproduction without loss of quality. Remarks in
International Standards with regard to document handling are respected and supported by this European
Standard and if necessary adopted or completed to the well-established procedures in the European railway
business.
This standard “Technical drawings — Railway applications” consists of the following parts:
 EN 15016-1: General principles
 EN 15016-2: Parts lists
 EN 15016-3: Handling of modifications of technical documents
 EN 15016-4: Data exchange
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
Introduction
In railway business, the customer very often requires, as part of a contract, technical documents in a certain
form. In order to support co-operation and effective exchange of information between customers, suppliers
and partners, it is necessary to have the document requirements precisely defined.
This European Standard refers to EN, ISO or IEC standards dealing with data fields. In cases where ISO or
IEC standards are not sufficiently precise, this European Standard gives specific details. These additions to
EN, ISO and IEC standards facilitate the exploitation and the administration of the data exchange.
These requirements have been drawn up in order to accommodate:
 the large variety of users;
 ease of transfer of documents;
 any specific series of documentation related to the railway material they define.
Special consideration has been given to those producing drawings by computer or micro-copying and their
reproduction without loss of quality.
NOTE The range of documents covers documents such as specifications, conditions for acceptance or further
technical specifications that may not be graphically represented. This is meant to highlight the difference between
"graphical representation" and "verbal description".
1 Scope
This European Standard specifies the basis of an administrative process for exchange of data such as
technical drawings, design parts lists (see EN 15016-2) and other related technical documents for railway
applications.
This European Standard applies to all railway organisations and parties concerned with the exchange of
technical documents like drawings, parts lists and related technical documents that are officially numbered.
Furthermore, it applies to suppliers preparing these documents on behalf of the railway companies or railway
network users.
The basic requirements apply to all drawings, parts lists and related technical documents independently of the
type of data e.g. graphical information (images), database types or types of data carriers.
These rules are applied by all railway companies and railway industry in the countries of the European Union
(EU). Alternatively, the application of these rules can be agreed between contract partners who are settled in
the EU and partners who are not settled in the EU by means of a contract and/or mutual agreement.
2 Normative references
The following referenced documents are indispensable for the application of this European Standard. For
dated references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 15016-2, Technical drawings — Railway applications — Part 2: Parts lists
EN 15016-3, Technical drawings — Railway applications — Part 3: Handling of modifications of technical
documents
EN 61346-1:1996, Industrial systems, installations and equipment and industrial products — Structuring
principles and reference designations — Part 1: Basic rules (IEC 61346-1:1996)
EN 61346-2:2000, Industrial systems, installations and equipment and industrial products — Structuring
principles and reference designations — Part 2: Classification of objects and codes for classes (IEC 61346-
2:2000)
EN 61355:1997, Classification and designation of documents for plants, systems and equipment (IEC
61355:1997)
EN 82045-2:2005, Document management — Part 2: Metadata elements and information reference model
(IEC 82045-2:2004)
EN ISO 5457:1999, Technical product documentation — Sizes and layout of drawing sheets (ISO 5457:1999)
ISO 639-1, Codes for the representation of names of languages — Part 1: Alpha-2 code
ISO/IEC 6523-1:1998, Information technology — Structure for the identification of organizations and
organization parts — Part 1: Identification of organization identification schemes
ISO/IEC 8859-1:1998, Information technology — 8-bit single-byte coded graphic character sets — Part 1:
Latin alphabet No. 1
ISO 8601:2004, Data elements and interchange formats – Information interchange – Representation of dates
and times
3 Terms and definitions
For the purposes of this European Standard, the following terms and definitions apply.
3.1
document
information on a data medium. Normally a document is designated in accordance with the type of information
and the form of presentation, for example overview diagram, connection table, function chart
[EN 61082-1:1993]
3.2
drawing list
list of drawings in no particular order. Possible structural correlations are neither visible nor comprehensible
3.3
table of drawings
list of drawings to which parts lists are referred to in particular order. The structural correlations among the
documents are visible and comprehensible
3.4
technical document (general)
necessary information, which is as complete as possible, gathered to form a unit for technical purposes. The
information is stored on an information medium in a non-volatile memory and is legible directly or by means of
optical or electronic aids.
NOTE Technical documents are part of the complete documentation and are necessary e.g. for manufacturing,
maintenance, procurement and application of products
3.5
technical document (specific)
document that contains important and main data of the technical product, which are not included in drawings
and parts lists
NOTE 1 This definition is applied in clause 6
NOTE 2 Technical documents are, inter alia, data sheets, descriptions, instructions/directions and manuals.
4 Administration of distributed information
Documents and information in a general sense can be sent in a variety of physical and electronic forms. It
shall be indicated in the administrating system in what form the information was sent.
When information is dispatched electronically it shall also be indicated in which format the files are written and
which version of the application is used.
To avoid misunderstanding between contract partners, non-contract partners and customers, administrative
procedures shall be set in force to keep track of information distributed. Therefore, the following points are to
be considered important for storage and maintenance in a company’s database or administrative system.
NOTE Documents can be sent for a variety of reasons and purposes e.g. just for information, to get a feedback of the
status, to get an approval, to inform the client/customer etc.
The status of the information sent shall be administrated to ensure that in case of a disagreement or
evaluation of the data
...
