This European Standard defines the grades of grey cast iron and spheroidal graphite cast iron bars, which have been produced by the continuous casting process.
This European Standard specifies the characterizing properties of grey cast iron bars by either:
a) the tensile strength measured on machined test pieces prepared from samples cut from the bars, or
b) the hardness measured on the bars.
If agreed by the manufacturer and the purchaser, the combination of both tensile strength from option a) and hardness from option b) may be specified.
This European Standard specifies the characterizing properties of spheroidal graphite cast iron bars by the tensile strength measured on machined test pieces prepared from samples cut from the bars.
This European Standard specifies 4 grades of grey cast iron and 14 grades of spheroidal graphite cast iron by a classification based on tensile strength and 4 grades of grey cast iron by a classification based on Brinell hardness.
This European Standard specifies also the straightness of the bars.
This European Standard does not cover technical delivery conditions for iron castings (see EN 1559 1 [1] and EN 1559 3 [2]).
Gießereiwesen - Gusseisen-Strangguss
Diese Europäische Norm legt die Sorten von Stangen aus Gusseisen mit Lamellengraphit oder aus Guss¬eisen mit Kugelgraphit fest, welche im Stranggussverfahren hergestellt wurden.
Diese Europäische Norm legt die kennzeichnenden Eigenschaften von Stangen aus Gusseisen mit Lamellen-graphit fest, hinsichtlich:
a) der Zugfestigkeit, bestimmt an mechanisch bearbeiteten Proben, die aus den Stangen entnommenen Probestücken hergestellt wurden, oder
b) der Härte, gemessen an den Stangen.
Wenn zwischen dem Hersteller und dem Käufer vereinbart, kann eine Kombination aus Zugfestigkeit nach Möglichkeit a) und Härte nach Möglichkeit b) festgelegt werden.
Diese Europäische Norm legt die kennzeichnenden Eigenschaften von Stangen aus Gusseisen mit Kugel-graphit fest, deren Klassifizierung auf der Zugfestigkeit beruht, bestimmt an mechanisch bearbeiteten Proben, die aus Probestücken der Stangen hergestellt wurden.
Diese Europäische Norm legt 4 Sorten von Gusseisen mit Lamellengraphit und 14 Sorten von Gusseisen mit Kugelgraphit fest, deren Klassifizierung auf der Zugfestigkeit beruht. Weiterhin 4 Sorten von Gusseisen mit Lamellengraphit, deren Klassifizierung auf der Brinellhärte beruht.
Diese Europäische Norm legt auch die Anforderungen an die Geradheit der Stangen fest.
Diese Europäische Norm behandelt nicht die technischen Lieferbedingungen für Gusseisen (siehe hierzu EN 1559 1 [1] und EN 1559 3 [2]).
Fonderie - Barres de fonte par coulée continue
La présente Norme européenne classe les barres en fonte à graphite lamellaire et les barres en fonte à graphite sphéroïdal, élaborées par le procédé de coulée continue.
La présente Norme européenne spécifie les propriétés permettant de caractériser les barres en fonte à graphite lamellaire soit :
a) par la résistance à la traction mesurée sur des éprouvettes usinées, préparées à partir d'échantillons découpés dans les barres ; soit
b) par la dureté mesurée sur les barres.
Par accord entre le fabricant et l'acheteur, il est possible de spécifier la combinaison de la résistance à la traction à partir de l'option a) et de la dureté à partir de l'option b).
La présente Norme européenne spécifie les propriétés permettant de caractériser les propriétés des barres en fonte à graphite sphéroïdal par la résistance à la traction mesurée sur des éprouvettes usinées, préparées à partir d'échantillons découpés dans les barres.
La présente Norme européenne spécifie 4 nuances de fonte à graphite lamellaire et 14 nuances de fonte à graphite sphéroïdal grâce à une classification basée sur la résistance à la traction, ainsi que 4 nuances de fonte à graphite lamellaire grâce à une classification basée sur la dureté Brinell.
La présente Norme européenne spécifie également la rectitude des barres.
La présente Norme européenne ne couvre pas les conditions techniques de fourniture des pièces moulées en fonte (voir l'EN 1559-1 [1] et l'EN 1559-3 [2]).
Livarstvo - Palice iz litega železa
Standard EN 16482 določa razrede palic iz sivega litega železa in palic iz litega železa s kroglastim grafitom, ki so bile proizvedene s postopkom zveznega litja. Ta evropski standard določa značilne lastnosti palic iz sive litine: a) z natezno trdnostjo, izmerjeno na strojno obdelanih preskusnih kosih, pripravljenih iz vzorcev, izrezanih iz palic, ali b) s trdoto izmerjenih palic. Če se proizvajalec in kupec strinjata, se lahko določi kombinacija natezne trdnosti iz možnosti a) in trdote iz možnosti b). Ta evropski standard določa značilne lastnosti palic iz litega železa s kroglastim grafitom z natezno trdnostjo, izmerjeno na strojno obdelanih preskusnih kosih, pripravljenih iz vzorcev, izrezanih iz palic. Ta evropski standard določa 4 razrede sivega litega železa in 14 razredov litega železa s kroglastim grafitom, in sicer na osnovi razvrstitve, ki temelji na natezni trdnosti, in 4 razrede sivega litega železa na osnovi razvrstitve, ki temelji na trdoti po Brinellu. Ta evropski standard določa tudi ravnost palic. Ta evropski standard ne zajema tehničnih dobavnih pogojev za železne odlitke (glejte standarda EN 1559-1 in EN 1559-3).
General Information
- Status
- Withdrawn
- Publication Date
- 10-Jun-2014
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 190 - Foundry technology
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 24-Jul-2024
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 07-Jul-2021
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Frequently Asked Questions
EN 16482:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Founding - Continuous cast iron bars". This standard covers: This European Standard defines the grades of grey cast iron and spheroidal graphite cast iron bars, which have been produced by the continuous casting process. This European Standard specifies the characterizing properties of grey cast iron bars by either: a) the tensile strength measured on machined test pieces prepared from samples cut from the bars, or b) the hardness measured on the bars. If agreed by the manufacturer and the purchaser, the combination of both tensile strength from option a) and hardness from option b) may be specified. This European Standard specifies the characterizing properties of spheroidal graphite cast iron bars by the tensile strength measured on machined test pieces prepared from samples cut from the bars. This European Standard specifies 4 grades of grey cast iron and 14 grades of spheroidal graphite cast iron by a classification based on tensile strength and 4 grades of grey cast iron by a classification based on Brinell hardness. This European Standard specifies also the straightness of the bars. This European Standard does not cover technical delivery conditions for iron castings (see EN 1559 1 [1] and EN 1559 3 [2]).
This European Standard defines the grades of grey cast iron and spheroidal graphite cast iron bars, which have been produced by the continuous casting process. This European Standard specifies the characterizing properties of grey cast iron bars by either: a) the tensile strength measured on machined test pieces prepared from samples cut from the bars, or b) the hardness measured on the bars. If agreed by the manufacturer and the purchaser, the combination of both tensile strength from option a) and hardness from option b) may be specified. This European Standard specifies the characterizing properties of spheroidal graphite cast iron bars by the tensile strength measured on machined test pieces prepared from samples cut from the bars. This European Standard specifies 4 grades of grey cast iron and 14 grades of spheroidal graphite cast iron by a classification based on tensile strength and 4 grades of grey cast iron by a classification based on Brinell hardness. This European Standard specifies also the straightness of the bars. This European Standard does not cover technical delivery conditions for iron castings (see EN 1559 1 [1] and EN 1559 3 [2]).
EN 16482:2014 is classified under the following ICS (International Classification for Standards) categories: 77.080.10 - Irons. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16482:2014 has the following relationships with other standards: It is inter standard links to EN 16482:2024, EN ISO 6506-1:2014, EN ISO 6892-1:2019, EN 10204:2004, EN ISO 945-1:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 16482:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

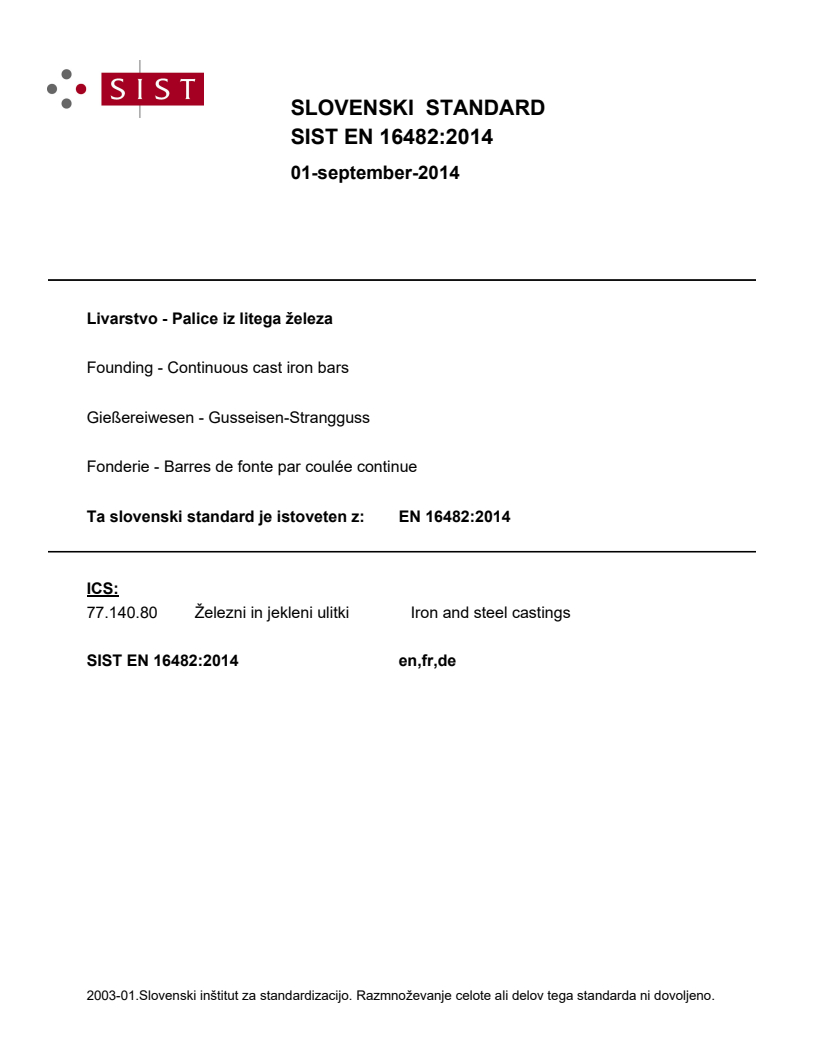

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Livarstvo - Palice iz litega železaGießereiwesen - Gusseisen-StranggussFonderie - Barres de fonte par coulée continueFounding - Continuous cast iron bars77.140.80Železni in jekleni ulitkiIron and steel castingsICS:Ta slovenski standard je istoveten z:EN 16482:2014SIST EN 16482:2014en,fr,de01-september-2014SIST EN 16482:2014SLOVENSKI
STANDARD

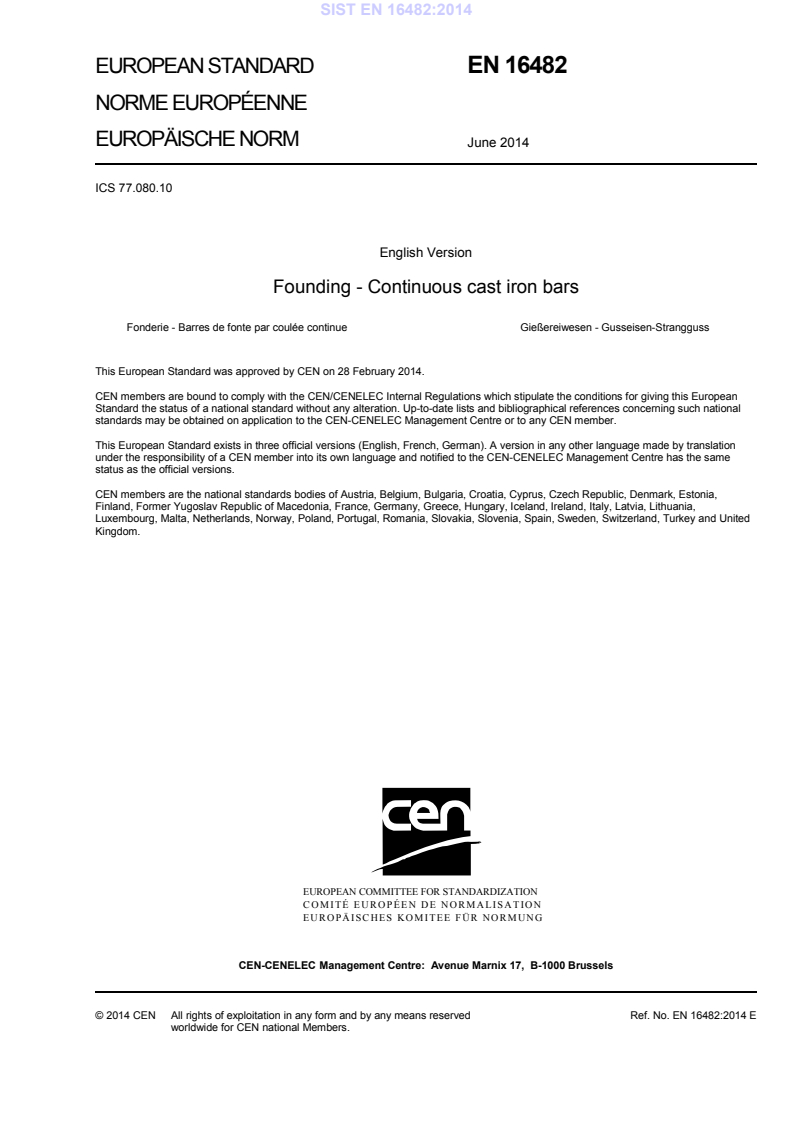

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16482
June 2014 ICS 77.080.10 English Version
Founding - Continuous cast iron bars
Fonderie - Barres de fonte par coulée continue
Gießereiwesen - Gusseisen-Strangguss This European Standard was approved by CEN on 28 February 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16482:2014 ESIST EN 16482:2014

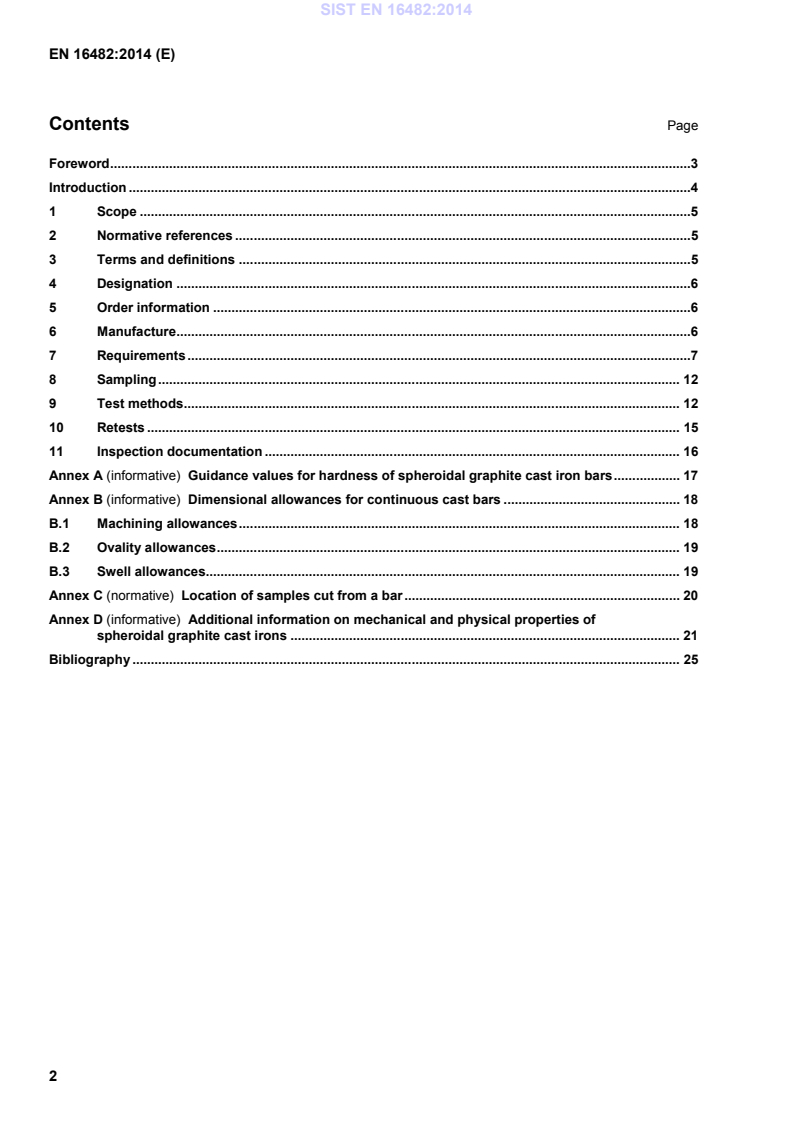

Guidance values for hardness of spheroidal graphite cast iron bars . 17 Annex B (informative)
