EN 1395-1:2007
(Main)Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 1: General requirements
Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 1: General requirements
This European Standard specifies requirements for the acceptance inspection of thermal spraying equipment including plasma (atmospheric and with controlled atmosphere in chambers), arc and flame including HVOF (high velocity oxygen-fuel) spray systems, as well as manipulator and powder feed systems used in spray jobs to produce thermally sprayed coatings of reproducible quality.
This European Standard is applied to thermal spray equipment where components are supplied by one manufacturer/supplier. If one or more interdependent components of the thermal spray equipment are not from the same manufacturer/supplier the technical specification will be agreed between the manufacturer/supplier and user/customer.
This European Standard is intended to form the basis of technical delivery conditions.
Thermisches Spritzen - Abnahmeprüfungen für Anlagen zum thermischen Spritzen - Teil 1: Allgemeine Anforderungen
Dieses Dokument definiert Anforderungen für die Abnahmeprüfung von thermischen Spritzanlagen
einschließlich Plasma- (atmosphärische und mit kontrollierter Atmosphäre in Kammern), Lichtbogen- und
Flammspritzanlagen einschließlich HVOF (Hochgeschwindigkeits-Flammspritzanlagen) und auch
Handhabungssysteme und Pulverfördereinheiten, wie sie bei Spritzarbeiten zur Herstellung von thermisch
gespritzten Schichten mit reproduzierbarer Qualität verwendet werden.
Dieses Dokument ist vorgesehen, die Grundlage für technische Lieferbedingungen zu bilden.
Projection thermique - Contrôle d'acceptation du matériel de projection thermique - Partie 1: Exigences générales
La présente Norme européenne spécifie les exigences applicables au contrôle d’acceptation du matériel de projection thermique, et notamment les matériels de projection au plasma (dans l’air et sous atmosphère contrôlée en chambre), à l’arc ou à la flamme (y compris une flamme à grande vitesse HVOF) ainsi qu’aux systèmes de manipulation et aux systèmes d’alimentation en poudre utilisés dans les travaux de projection visant à obtenir des revêtements de qualité reproductible.
La présente Norme européenne s’applique aux matériels de projection thermique dont les éléments sont fournis par un seul fabricant/fournisseur. Si un ou plusieurs des éléments constitutifs d’un matériel de projection thermique ne proviennent pas d’un seul et même fabricant/fournisseur, la spécification technique correspondante devra être convenue entre le fabricant/fournisseur et l’utilisateur/client.
La présente Norme européenne est destinée à servir de base aux conditions techniques de livraison.
Vroče brizganje – Prevzemni preskusi opreme za vroče brizganje – 1. del: Splošne zahteve
General Information
- Status
- Published
- Publication Date
- 30-Jan-2007
- Technical Committee
- CEN/TC 240 - Thermal spraying and thermally spraying coatings
- Drafting Committee
- CEN/TC 240 - Thermal spraying and thermally spraying coatings
- Current Stage
- 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
- Start Date
- 12-Nov-2024
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 1395-1:2007 is a European Standard developed by CEN that establishes general requirements for the acceptance inspection of thermal spraying equipment. It applies to various thermal spray systems including plasma (atmospheric and controlled atmosphere chamber), arc, flame, and HVOF (high velocity oxygen-fuel) spray systems. The standard also covers manipulator and powder feed systems used to produce thermally sprayed coatings with reproducible quality.
This standard is intended for equipment supplied by a single manufacturer or supplier and forms the technical basis for delivery conditions. It ensures that thermal spraying equipment meets safety, functionality, accuracy, stability, and reproducibility requirements for industrial applications.
Key Topics
Scope and Application
EN 1395-1:2007 applies to the acceptance inspection of complete thermal spraying systems. It supports agreements between manufacturers, suppliers, and customers on technical specifications.Classification of Equipment
- Class A: Fully computerized systems with gas mass flow controllers, PLCs, PCs, and digital process control, offering state-of-the-art accuracy and reproducibility.
- Class B: Simpler systems using analog gauges and flow meters, with baseline accuracy and stability.
Health and Safety Compliance
The standard ensures thermal spraying equipment complies with EC directives, including safety documentation and CE conformity declarations.Functional and Performance Testing
Equipment functionality is checked against purchase contracts, order confirmations, and technical data sheets using checklists and inspection reports.Technical and Coating Specification Tests
Acceptance tests verify parameter stability and the ability to produce coatings matching specified quality criteria such as coating thickness, roughness, bond strength, porosity, interface bonding, and oxide content.Monitoring and Control Requirements
Inspection instruments must monitor and allow correction of process parameters within an error limit of 5%, supporting accurate and reproducible thermal spray operations.Documentation and Reporting
Comprehensive inspection reports document test results, ensuring traceability and standardized acceptance evaluation.Retesting Provisions
Equipment modifications or repairs require retesting of affected properties to maintain compliance with acceptance criteria.
Applications
Industrial Thermal Coating Quality Assurance
EN 1395-1:2007 is critical for manufacturers and users of thermal spray equipment to validate the equipment’s operational reliability and ensure consistent coating quality. It supports quality assurance processes in aerospace, automotive, energy, and manufacturing industries.Supplier and Customer Quality Agreements
The standard facilitates clear technical delivery conditions between suppliers and customers for the procurement and acceptance of thermal spraying systems.Safety and Compliance Audits
Compliance with this standard is integral to meeting European health and safety regulations, reducing risk and improving workplace safety in thermal spray operations.Equipment Manufacturer Benchmarking
Manufacturers use EN 1395-1:2007 to benchmark and certify new thermal spray systems against recognized European standards, ensuring competitiveness and customer confidence.
Related Standards
EN 1395-1:2007 is part of a series on acceptance inspection of thermal spraying equipment. Related parts include:
- EN 1395-2 - Flame spraying including HVOF systems
- EN 1395-3 - Arc spraying systems
- EN 1395-4 - Plasma spraying systems
- EN 1395-5 - Plasma spraying in chambers
- EN 1395-6 - Manipulator systems
- EN 1395-7 - Powder feed systems
Additional referenced documents enhancing understanding and application:
- EN 657:2005 - Thermal spraying terminology and classification
- EN 1274 - Thermal spraying powders specifications
- EN ISO 17836 - Determination of deposition efficiency for thermal spraying
By adhering to EN 1395-1:2007, organizations ensure thermal spraying equipment achieves high standards in safety, process control, and coating quality, enabling reproducible, efficient, and standardized thermal spray applications across various industries.
Frequently Asked Questions
EN 1395-1:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 1: General requirements". This standard covers: This European Standard specifies requirements for the acceptance inspection of thermal spraying equipment including plasma (atmospheric and with controlled atmosphere in chambers), arc and flame including HVOF (high velocity oxygen-fuel) spray systems, as well as manipulator and powder feed systems used in spray jobs to produce thermally sprayed coatings of reproducible quality. This European Standard is applied to thermal spray equipment where components are supplied by one manufacturer/supplier. If one or more interdependent components of the thermal spray equipment are not from the same manufacturer/supplier the technical specification will be agreed between the manufacturer/supplier and user/customer. This European Standard is intended to form the basis of technical delivery conditions.
This European Standard specifies requirements for the acceptance inspection of thermal spraying equipment including plasma (atmospheric and with controlled atmosphere in chambers), arc and flame including HVOF (high velocity oxygen-fuel) spray systems, as well as manipulator and powder feed systems used in spray jobs to produce thermally sprayed coatings of reproducible quality. This European Standard is applied to thermal spray equipment where components are supplied by one manufacturer/supplier. If one or more interdependent components of the thermal spray equipment are not from the same manufacturer/supplier the technical specification will be agreed between the manufacturer/supplier and user/customer. This European Standard is intended to form the basis of technical delivery conditions.
EN 1395-1:2007 is classified under the following ICS (International Classification for Standards) categories: 25.220.20 - Surface treatment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1395-1:2007 has the following relationships with other standards: It is inter standard links to EN 1395:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 1395-1:2007 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

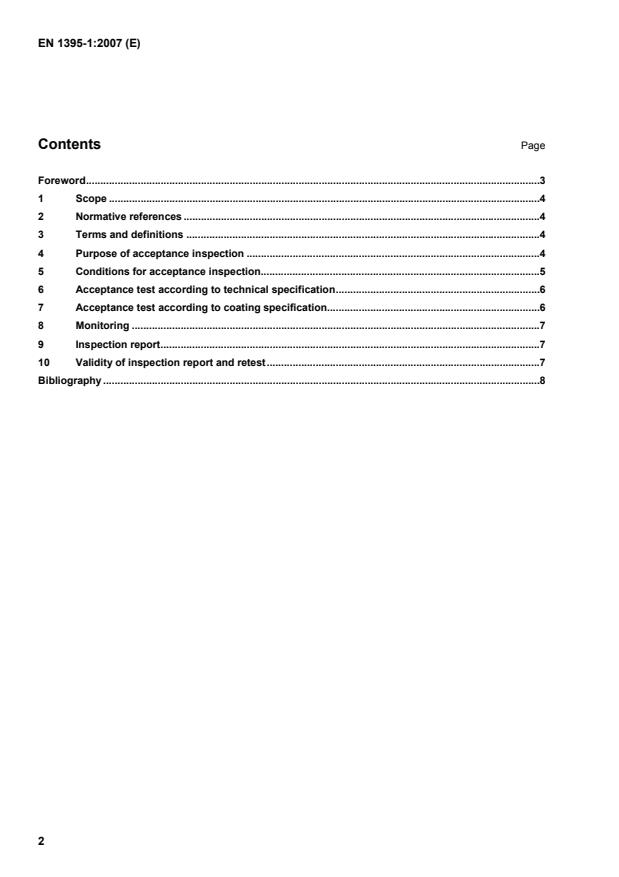

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermal spraying - Acceptance inspection of thermal spraying equipment - Part 1: General requirements]DKWHYHProjection thermique - Contrôle d'acceptation du matériel de projection thermique - Partie 1: Exigences généralesThermisches Spritzen - Abnahmeprüfungen für Anlagen zum thermischen Spritzen - Teil 1: Allgemeine AnforderungenTa slovenski standard je istoveten z:EN 1395-1:2007SIST EN 1395-1:2007en25.220.20Površinska obdelavaSurface treatmentICS:SIST EN 1395:19991DGRPHãþDSLOVENSKI
STANDARDSIST EN 1395-1:200701-april-2007
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1395-1January 2007ICS 25.220.20Supersedes EN 1395:1996
English VersionThermal spraying - Acceptance inspection of thermal sprayingequipment - Part 1: General requirementsProjection thermique - Contrôle d'acceptation du matérielde projection thermique - Partie 1: Exigences généralesThermisches Spritzen - Abnahmeprüfungen für Anlagenzum thermischen Spritzen - Teil 1: AllgemeineAnforderungenThis European Standard was approved by CEN on 23 December 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1395-1:2007: E
...
