Inland navigation vessels - Outboard ladders

This document applies to outboard ladders for inland navigation vessels. Outboard ladders are used on inland navigation vessels having great side heights to facilitate safe climbing into ship's boats, safe disembarking or safe crossing over onto vessels in the case of significantly different boarding heights.
This document specifies safety requirements on design, dimensions and strength and test conditions for outboard ladders.
Outboard ladders are intended for that range where boarding stairs according to EN 1502 are not sufficient in length. This range starts at a boarding height of approximately at 2,8 m above the light water-line.
Boarding ladders are not intended for use by passengers.

Fahrzeuge der Binnenschifffahrt - Außenbordleitern

Dieses Dokument gilt für Außenbordleitern für Fahrzeuge der Binnenschifffahrt. Außenbordleitern werden auf Fahrzeugen der Binnenschifffahrt mit großer Seitenhöhe eingesetzt, um den sicheren Einstieg in Beiboote, den sicheren Übergang zum Land oder das sichere Übersteigen zu benachbarten Schiffen bei sehr unterschiedlichen Bordhöhen zu ermöglichen.
Dieses Dokument legt Sicherheitsanforderungen an Bauart, Maße und Festigkeit sowie Prüfbedingungen für Außenbordleitern fest.
Außenbordleitern sind für den Bereich vorgesehen, in dem Außenbordtreppen nach EN 1502 bezüglich ihrer Länge nicht ausreichen. Dieser Bereich beginnt bei einer Bordhöhe von ungefähr 2,8 m über der Leerwasserlinie.
Außenbordleitern sind nicht für die Benutzung durch Fahrgäste vorgesehen.

Bateaux de navigation intérieure - Échelles de bord extérieures

Le présent document s’applique aux échelles de bord extérieures pour les bateaux de navigation intérieure. Les échelles de bord extérieures sont utilisées sur les bateaux de navigation intérieure pour assurer la sécurité des transferts vers les canots, du débarquement sur la terre ferme ou du passage sur des navires à pont inférieur.
Le présent document spécifie les exigences de sécurité relatives à la conception, aux dimensions, à la solidité et aux conditions d’essai pour les échelles de bord extérieures.
Les échelles de bord extérieures sont conçues pour la gamme de bateaux de navigation intérieure pour lesquels les escaliers de bordaille conformes à l’EN 1502 ne sont pas suffisamment longs. Cette gamme démarre à une hauteur de bord de plus d’environ 2,8 m au-dessus de la ligne d’eau à vide.
Les échelles de bord extérieures ne sont pas destinées à être utilisées par les passagers.

Plovila za celinske vode - Zunanje lestve

General Information

Status
Withdrawn
Publication Date
25-Feb-2020
Withdrawal Date
07-Feb-2023
Current Stage

Relations

Buy Standard

Standard
EN 17361:2020
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2020
Plovila za celinske vode - Zunanje lestve
Inland navigation vessels - Outboard ladders
Fahrzeuge der Binnenschifffahrt - Außenbordleitern
Bateaux de navigation intérieure - Échelles de bord extérieures
Ta slovenski standard je istoveten z: EN 17361:2020
ICS:
47.020.10 Ladijski trupi in njihovi Hulls and their structure
konstrukcijski elementi elements
47.060 Jezerska in rečna plovila Inland navigation vessels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17361
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2020
EUROPÄISCHE NORM
ICS 47.020.10; 47.060
English Version
Inland navigation vessels - Outboard ladders
Bateaux de navigation intérieure - Échelles de bord Fahrzeuge der Binnenschifffahrt - Außenbordleitern
extérieures
This European Standard was approved by CEN on 13 January 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17361:2020 E
worldwide for CEN national Members.

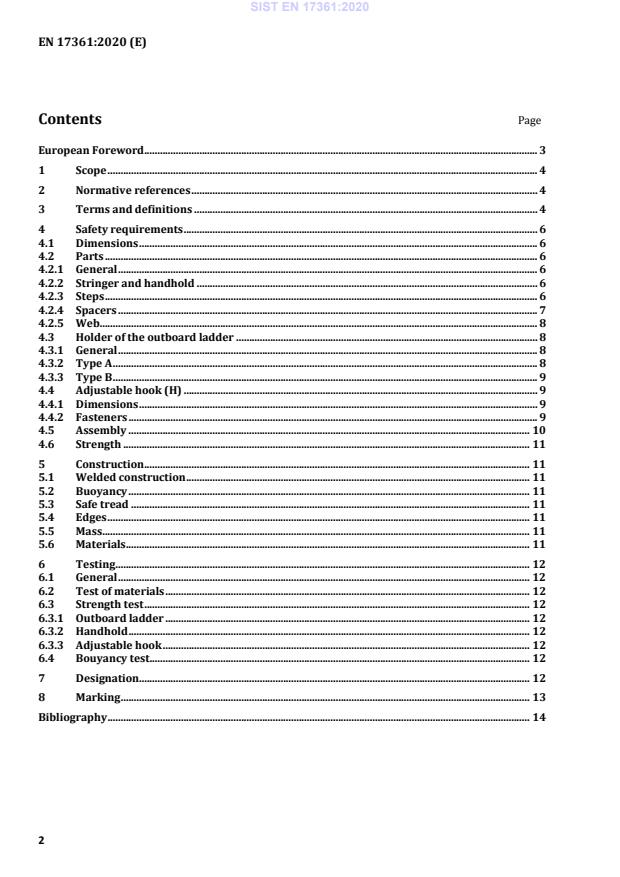

Contents Page
European Foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Safety requirements . 6
4.1 Dimensions . 6
4.2 Parts . 6
4.2.1 General . 6
4.2.2 Stringer and handhold . 6
4.2.3 Steps . 6
4.2.4 Spacers . 7
4.2.5 Web. 8
4.3 Holder of the outboard ladder . 8
4.3.1 General . 8
4.3.2 Type A . 8
4.3.3 Type B . 9
4.4 Adjustable hook (H) . 9
4.4.1 Dimensions . 9
4.4.2 Fasteners . 9
4.5 Assembly . 10
4.6 Strength . 11
5 Construction . 11
5.1 Welded construction . 11
5.2 Buoyancy . 11
5.3 Safe tread . 11
5.4 Edges . 11
5.5 Mass . 11
5.6 Materials . 11
6 Testing . 12
6.1 General . 12
6.2 Test of materials . 12
6.3 Strength test . 12
6.3.1 Outboard ladder . 12
6.3.2 Handhold . 12
6.3.3 Adjustable hook . 12
6.4 Bouyancy test . 12
7 Designation. 12
8 Marking . 13
Bibliography . 14

European foreword
This document (EN 17361:2020) has been prepared by Technical Committee CEN/TC 15 “Inland
navigation vessels”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2020, and conflicting national standards
shall be withdrawn at the latest by September 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document applies to outboard ladders for inland navigation vessels. Outboard ladders are used on
inland navigation vessels having great side heights to facilitate safe climbing into ship's boats, safe
disembarking or safe crossing over onto vessels in the case of significantly different boarding heights.
This document specifies safety requirements on design, dimensions and strength and t
...
