EN 545:2006
(Main)Ductile iron pipes, fittings, accessories and their joints for water pipelines - Requirements and test methods
Ductile iron pipes, fittings, accessories and their joints for water pipelines - Requirements and test methods
This European Standard specifies the requirements and associated test methods applicable to ductile iron pipes, fittings, accessories and their joints for the construction of pipelines:
to convey water (e. g. potable water);
with or without pressure;
to be installed below or above ground.
This standard is applicable to pipes, fittings and accessories which are:
manufactured with socketed, flanged or spigot ends;
normally delivered externally and internally coated;
suitable for fluid temperatures between 0 °C and 50 °C, excluding frost.
This standard covers pipes, fittings and accessories cast by any type of foundry process or manufactured by fabrication of cast components, as well as corresponding joints, in a size range extending from DN 40 to DN 2 000, inclusive.
This standard specifies requirements for materials, dimensions and tolerances, mechanical properties and standard coatings of ductile iron pipes and fittings. It also gives performance requirements for all components including joints. Joint design and gasket shapes are outside the scope of this standard.
NOTE In this standard, all pressures are relative pressures, expressed in bars (100 kPa = 1 bar).
Rohre, Formstücke, Zubehörteile aus duktilem Gusseisen und ihre Verbindungen für Wasserleitungen - Anforderungen und Prüfverfahren
Diese Europäische Norm legt die Anforderungen und die diesbezüglichen Prüfverfahren fest, die auf duktile Gussrohre, Formstücke, Zubehörteile und ihre Verbindungen zur Errichtung von Rohrleitungen anwendbar sind:
- zum Transport von Wasser (z. B. Trinkwasser);
- mit oder ohne Innendruck;
- oberirdisch oder erdüberdeckt.
Diese Norm gilt für Rohre, Formstücke und Zubehörteile, die
- mit Muffen, Flanschen oder Einsteckenden versehen sind;
- üblicherweise mit einem Innen- und Außenschutz geliefert werden;
- zum Transport flüssiger Medien zwischen 0 °C und 50 °C geeignet sind, jedoch außerhalb des Frostbereiches.
Diese Norm gilt für Rohre, Formstücke und Zubehörteile, die nach einem beliebigen Gießverfahren oder aus gegossenen Einzelteilen hergestellt werden, ebenso für die entsprechenden Verbindungen für den Nennweitenbereich von DN 40 bis einschließlich DN 2000.
Diese Norm legt die Anforderungen an die Werkstoffe, Maße und Grenzabmaße, die mechanischen Eigenschaften und die Standardbeschichtungen duktiler Gussrohre und Formstücke fest. Sie beinhaltet ebenfalls die Anforderungen an die Funktionstüchtigkeit aller Bauteile, einschließlich der Verbindungen. Die Ausführung der Verbindungen und die Formen der Dichtungen fallen nicht in den Anwendungsbereich dieser Norm.
ANMERKUNG In dieser Norm sind alle Drücke relative Drücke und werden in bar ausgedrückt (100 kPa = 1 bar).
Tuyaux, raccords et accessoires en fonte ductile et leurs assemblages pour canalisations d'eau - Prescriptions et méthodes d'essai
La présente Norme européenne prescrit les exigences et les méthodes d'essai associées, applicables aux tuyaux, raccords et accessoires en fonte ductile et à leurs assemblages, destinés à la construction de canalisations :
- pour transporter de l'eau (par exemple de l'eau potable) ;
- avec ou sans pression ;
- installées dans le sol ou en aérien.
Cette norme est applicable aux tuyaux, raccords et accessoires qui sont :
- fabriqués avec des extrémités à emboîture, à bride ou à bout uni ;
- normalement livrés revêtus extérieurement et intérieurement ;
- utilisables pour des températures de fluide allant de 0 °C à 50 °C, gel exclus.
Cette norme traite des tuyaux, raccords et accessoires moulés par tout procédé de fonderie ou fabriqués à partir de composants moulés, ainsi que les assemblages correspondants, pour la gamme de dimensions allant de DN 40 à DN 2 000 inclus.
Cette norme prescrit les exigences pour les matériaux, les dimensions et tolérances, les propriétés mécaniques et les revêtements standard des tuyaux et raccords en fonte ductile. Elle indique également des prescriptions de performance pour tous les composants y compris les assemblages. La conception des assemblages et la géométrie des bagues de joint ne font pas partie du domaine d’application de cette norme.
NOTE Dans la présente norme, toutes les pressions sont des pressions relatives, elles sont exprimées en bars (100 kPa = 1 bar).
Cevi, fitingi, pribor in spoji za vodovodno omrežje iz nodularne litine - Zahteve in metode preskušanja
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2007
1DGRPHãþD
SIST EN 545:2002
SIST EN 545:2002/AC:2005
Cevi, fitingi, pribor in spoji za vodovodno omrežje iz nodularne litine - Zahteve in
metode preskušanja
Ductile iron pipes, fittings, accessories and their joints for water pipelines - Requirements
and test methods
Rohre, Formstücke, Zubehörteile aus duktilem Gusseisen und ihre Verbindungen für
Wasserleitungen - Anforderungen und Prüfverfahren
Tuyaux, raccords et accessoires en fonte ductile et leurs assemblages pour
canalisations d'eau - Prescriptions et méthodes d'essai
Ta slovenski standard je istoveten z: EN 545:2006
ICS:
23.040.10 Železne in jeklene cevi Iron and steel pipes
23.040.40 Kovinski fitingi Metal fittings
91.140.60 Sistemi za oskrbo z vodo Water supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 545
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2006
ICS 23.040.10; 23.040.40 Supersedes EN 545:2002
English Version
Ductile iron pipes, fittings, accessories and their joints for water
pipelines - Requirements and test methods
Tuyaux, raccords et accessoires en fonte ductile et leurs Rohre, Formstücke, Zubehörteile aus duktilem Gusseisen
assemblages pour canalisations d'eau - Prescriptions et und ihre Verbindungen für Wasserleitungen -
méthodes d'essai Anforderungen und Prüfverfahren
This European Standard was approved by CEN on 11 October 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 545:2006: E
worldwide for CEN national Members.

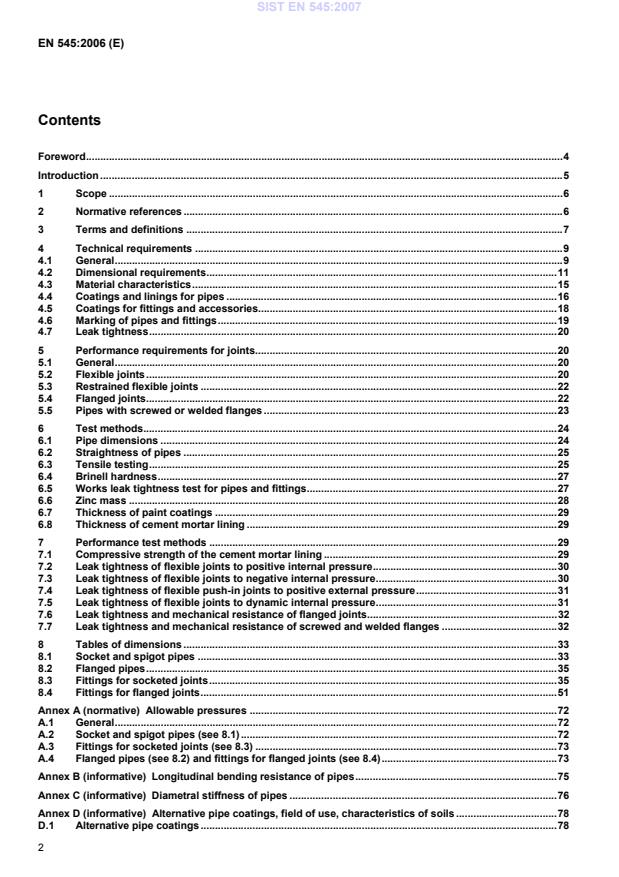

Contents
Foreword.4
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .7
4 Technical requirements .9
4.1 General.9
4.2 Dimensional requirements.11
4.3 Material characteristics.15
4.4 Coatings and linings for pipes .16
4.5 Coatings for fittings and accessories.18
4.6 Marking of pipes and fittings.19
4.7 Leak tightness.20
5 Performance requirements for joints.20
5.1 General.20
5.2 Flexible joints.20
5.3 Restrained flexible joints .22
5.4 Flanged joints.22
5.5 Pipes with screwed or welded flanges .23
6 Test methods.24
6.1 Pipe dimensions .24
6.2 Straightness of pipes .25
6.3 Tensile testing.25
6.4 Brinell hardness.27
6.5 Works leak tightness test for pipes and fittings.27
6.6 Zinc mass .28
6.7 Thickness of paint coatings .29
6.8 Thickness of cement mortar lining .29
7 Performance test methods .29
7.1 Compressive strength of the cement mortar lining .29
7.2 Leak tightness of flexible joints to positive internal pressure.30
7.3 Leak tightness of flexible joints to negative internal pressure.30
7.4 Leak tightness of flexible push-in joints to positive external pressure.31
7.5 Leak tightness of flexible joints to dynamic internal pressure.31
7.6 Leak tightness and mechanical resistance of flanged joints.32
7.7 Leak tightness and mechanical resistance of screwed and welded flanges .32
8 Tables of dimensions .33
8.1 Socket and spigot pipes .33
8.2 Flanged pipes.35
8.3 Fittings for socketed joints.35
8.4 Fittings for flanged joints.51
Annex A (normative) Allowable pressures .72
A.1 General.72
A.2 Socket and spigot pipes (see 8.1).72
A.3 Fittings for socketed joints (see 8.3) .73
A.4 Flanged pipes (see 8.2) and fittings for flanged joints (see 8.4).73
Annex B (informative) Longitudinal bending resistance of pipes.75
Annex C (informative) Diametral stiffness of pipes .76
Annex D (informative) Alternative pipe coatings, field of use, characteristics of soils .78
D.1 Alternative pipe coatings .78
D.2 Field of use, characteristics of soils.79
Annex E (informative) Field of use, water characteristics .80
Annex F (informative) Quality assurance.81
F.1 General.81
F.2 Performance tests .81
F.3 Manufacturing process .81
Annex G (informative) Calculation method of buried pipelines, heights of cover .83
G.1 Calculation method .83
G.2 Heights of cover.85
Bibliography.87
Foreword
This document (EN 545:2006) has been prepared by Technical Committee CEN/TC 203 “Cast iron pipes, fittings
and their joints”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by May 2007, and conflicting national standards shall be withdrawn at the latest by
May 2007.
This document supersedes EN 545:2002.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United
Kingdom.
Introduction
This standard is in conformity with the general requirements already established by CEN/TC 164 in the field of
water supply.
In respect of potential adverse effects on the quality of water intended for human consumption, caused by the
product covered by this standard:
this standard provides no information as to whether the product may be used without restriction in any of the
member states of the EU or EFTA;
it should be noted that, while awaiting the adoption of verifiable European criteria, existing national regulations
concerning the use and/or the characteristics of this product remain in force.
1 Scope
This European Standard specifies the requirements and associated test methods applicable to ductile iron pipes,
fittings, accessories and their joints for the construction of pipelines:
to convey water (e. g. potable water);
with or without pressure;
to be installed below or above ground.
This standard is applicable to pipes, fittings and accessories which are:
manufactured with socketed, flanged or spigot ends;
normally delivered externally and internally coated;
suitable for fluid temperatures between 0 °C and 50 °C, excluding frost.
This standard covers pipes, fittings and accessories cast by any type of foundry process or manufactured by
fabrication of cast components, as well as corresponding joints, in a size range extending from DN 40 to DN 2 000,
i
...
