EN 13200-6:2006

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zuschaueranlagen - Teil 6: Demontierbare (provisorische) TribünenInstallations pour spectateurs - Partie 6: Tribunes (temporaires) démontablesSpectator facilities - Part 6: Demountable (temporary) stands97.220.10Športni objektiSports facilities97.200.10Gledališka, odrska in studijska oprema ter delovne postajeTheatre, stage and studio equipment91.040.10Javne stavbePublic buildingsICS:Ta slovenski standard je istoveten z:EN 13200-6:2006SIST EN 13200-6:2006en01-december-2006SIST EN 13200-6:2006SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13200-6August 2006ICS 97.040.10; 97.200.10; 97.220.10 English VersionSpectator facilities - Part 6: Demountable (temporary) standsInstallations pour spectateurs - Partie 6: Tribunes(temporaires) démontablesZuschaueranlagen - Teil 6: Demontierbare (provisorische)TribünenThis European Standard was approved by CEN on 12 July 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13200-6:2006: ESIST EN 13200-6:2006

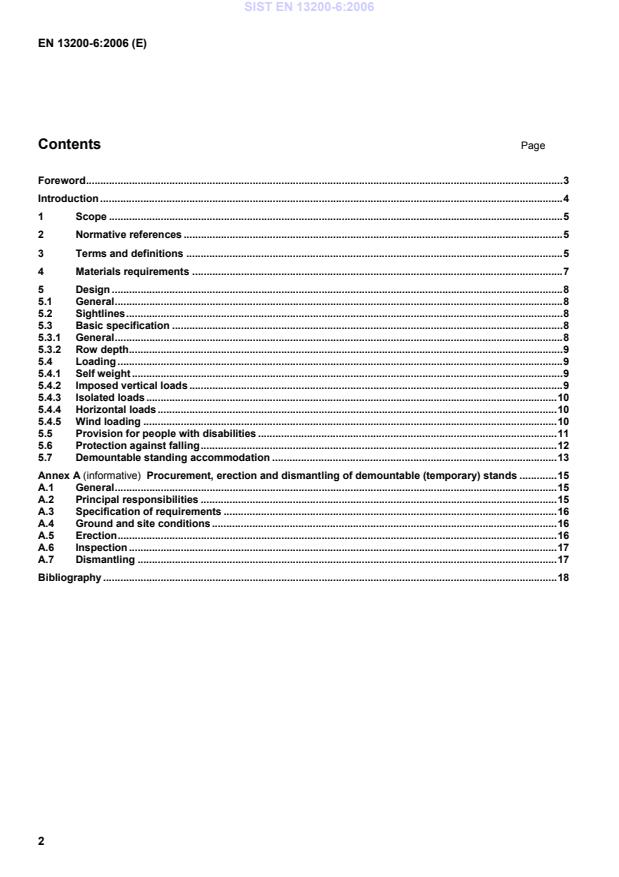

Procurement, erection and dismantling of demountable (temporary) stands.15 A.1 General.15 A.2 Principal responsibilities.15 A.3 Specification of requirements.16 A.4 Ground and site conditions.16 A.5 Erection.16 A.6 Inspection.17 A.7 Dismantling.17 Bibliography.18
CEN/TR 13200-2 Spectator facilities – Layout criteria of service area – Part 2: Characteristics and national situations EN 13200-3 Spectator facilities – Part 3: Separating elements – Requirements prEN 13200-4 Spectator facilities – Part 4: Seats – Product Characteristics EN 13200-5 Spectator facilities – Part 5: Telescopic stands EN 13200-6 Spectator facilities – Part 6: Demountable (temporary) stands According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 13200-6:2006

1 Scope This European standard specifies product characteristics for demountable (temporary) stands at permanent or temporary entertainment venues including sports stadiums, sport halls and indoor and outdoor facilities. Stands in fairground and amusement parks are excluded from this standard (see EN 13814). 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1991-1-1, Eurocode 1: Actions on structures - Part 1-1: General actions - Densities, self-weight, imposed loads for buildings EN 1991-1-4, Eurocode 1: Actions on structures - Part 1-4: General actions - Wind actions
EN 13200-1:2003, Spectator facilities - Part 1: Layout criteria for spectator viewing area - Specification EN 13200-3, Spectator facilities – Part 3: Separating elements – Requirements 3 Terms and definitions For the purposes of this European Standard, the terms and definitions given in 13200-1:2003 and the following apply. 3.1 demountable (temporary) stands tiered system constructed from standardised components that can be erected and dismantled, moved from place to place and deployed in various configurations both indoors and outdoors to produce standing or seating accommodation for spectators 3.2 design documentation documents provided by the designer of demountable (temporary) stands that ensures that the basis of design may be clearly understood and from which all design criteria can be verified 3.3 guard rail safety barrier fitted to the sides, rear or front of a grandstand or within the seating area in order to protect users from falling 3.4 handrail component designed to protect and assist the passage of users of the grandstand SIST EN 13200-6:2006

3.5 riser vertical component between one row and another row or landing above or below it (see Figure 1)
Key 1 riser 2 row depth Figure 1 — Riser 3.6
row depth horizontal distance between successive risers (see Figure 1) 3.7 seat-way clearway clear space measured at right angles between perpendiculars as shown in the following sketches. In all the following cases the minimum value of the seat-way ‘E’ is 350 mm and the recommended minimum value is 400 mm (see Figure 2) SIST EN 13200-6:2006

Key E Clearway Figure 2 — Seat-way 3.8 tread horizontal component of a step 3.9 vomitory access route built into the gradient of a stand which directly links spectator accommodation with routes for ingress, egress or emergency evacuation 4 Materials requirements Demountable (temporary) stands incorporate elements from a range of materials including steel, aluminium, timber, plywood, paints and plastic components. Where materials, components and methods of design and construction are not specifically covered by CEN Standards, the designer should be satisfied that the materials and methods to be employed are such as to ensure sufficient levels of safety, durability, integrity, strength, serviceability and performance. Alternatively, a test assembly should be built to test the structure, SIST EN 13200-6:2006

5 Design 5.1 General Demountable stands shall fulfil the national requirements for fire escape and emergency evacuation. Demountable (temporary) stands may be described as a seating or standing deck of a stepped tiered nature supported by a substructure possessing large numbers of common elements.
Demountable (temporary) stands are used for a wide spectrum of events both indoors and outdoors ranging from minor local events to major international events seating thousands of spectators.
A seating place is required to provide a minimum viewing standard together with a sufficient level of safety for the spectator body. Viewing standards refer to the ability of a seated spectator to see a predetermined focal point in the activity area. This viewing standard is often referred to as a sight line.
The layout of the seating deck and the geometry of the deck are required to provide for the safe ingress and egress of spectators.
Protective barriers on the perimeter of the seating deck and within the seating layout provide protection against falling.
The supporting structure is required to safely resist the static and dynamic forces created by the spectator body and other dynamic forces that are required by applicable national standards.
Criteria concerning sightline, layout and protection from falling are similar to permanent and temporary seating decks. The nature of vertical support of permanent and temporary seating decks is significantly different as is the ratio of live load to dead load.
For demountable stands manufactured before the publication of this standard, a written risk assessment shall be necessary to justify a departure from the minimum values. 5.2 Sightlines Requirements and recommendations pertaining to sightlines are given in EN 13200-1. Where sightlines resulting from the installation of temporary seating do not meet the standards required for permanent seating the matter should be dealt with by a risk assessment made by the manufacturer.
5.3 Basic specification 5.3.1 General Where demountable stands are used outdoors and in the absence of applicable national standards, t
...
