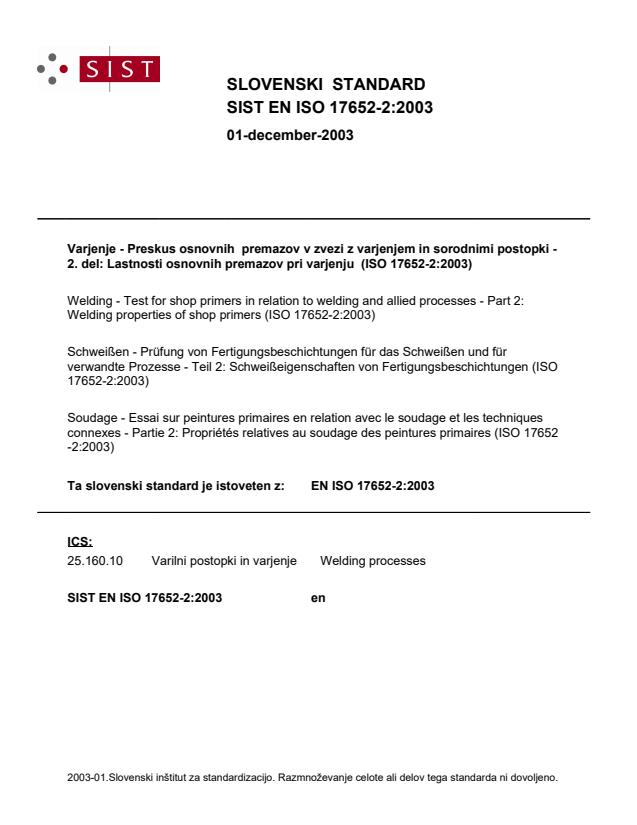

EN ISO 17652-2:2003

SLOVENSKI STANDARD
01-december-2003
Varjenje - Preskus osnovnih premazov v zvezi z varjenjem in sorodnimi postopki -
2. del: Lastnosti osnovnih premazov pri varjenju (ISO 17652-2:2003)
Welding - Test for shop primers in relation to welding and allied processes - Part 2:
Welding properties of shop primers (ISO 17652-2:2003)
Schweißen - Prüfung von Fertigungsbeschichtungen für das Schweißen und für
verwandte Prozesse - Teil 2: Schweißeigenschaften von Fertigungsbeschichtungen (ISO
17652-2:2003)
Soudage - Essai sur peintures primaires en relation avec le soudage et les techniques
connexes - Partie 2: Propriétés relatives au soudage des peintures primaires (ISO 17652
-2:2003)
Ta slovenski standard je istoveten z: EN ISO 17652-2:2003
ICS:
25.160.10 Varilni postopki in varjenje Welding processes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

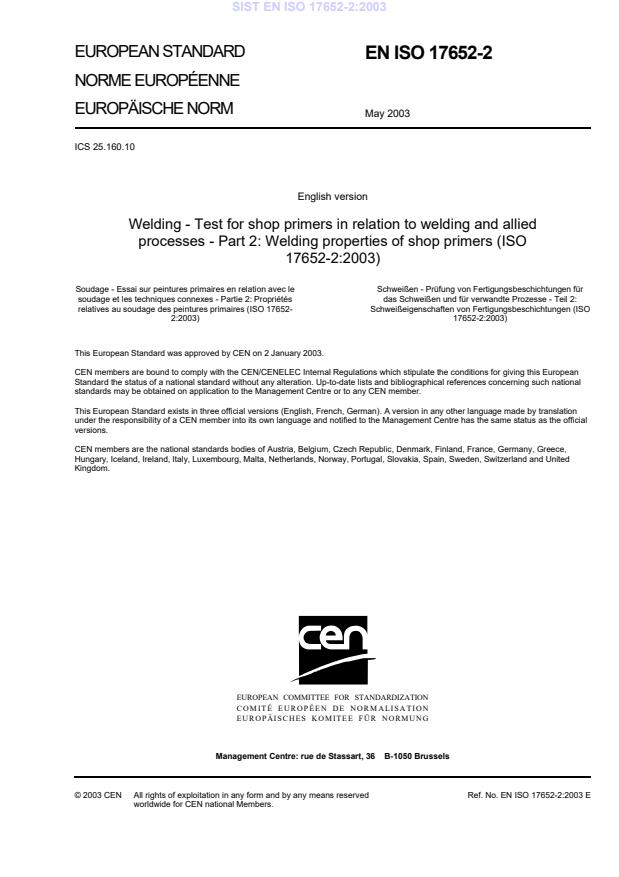

EUROPEAN STANDARD
EN ISO 17652-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2003
ICS 25.160.10
English version
Welding - Test for shop primers in relation to welding and allied
processes - Part 2: Welding properties of shop primers (ISO
17652-2:2003)
Soudage - Essai sur peintures primaires en relation avec le Schweißen - Prüfung von Fertigungsbeschichtungen für
soudage et les techniques connexes - Partie 2: Propriétés das Schweißen und für verwandte Prozesse - Teil 2:
relatives au soudage des peintures primaires (ISO 17652- Schweißeigenschaften von Fertigungsbeschichtungen (ISO
2:2003) 17652-2:2003)
This European Standard was approved by CEN on 2 January 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 17652-2:2003 E
worldwide for CEN national Members.

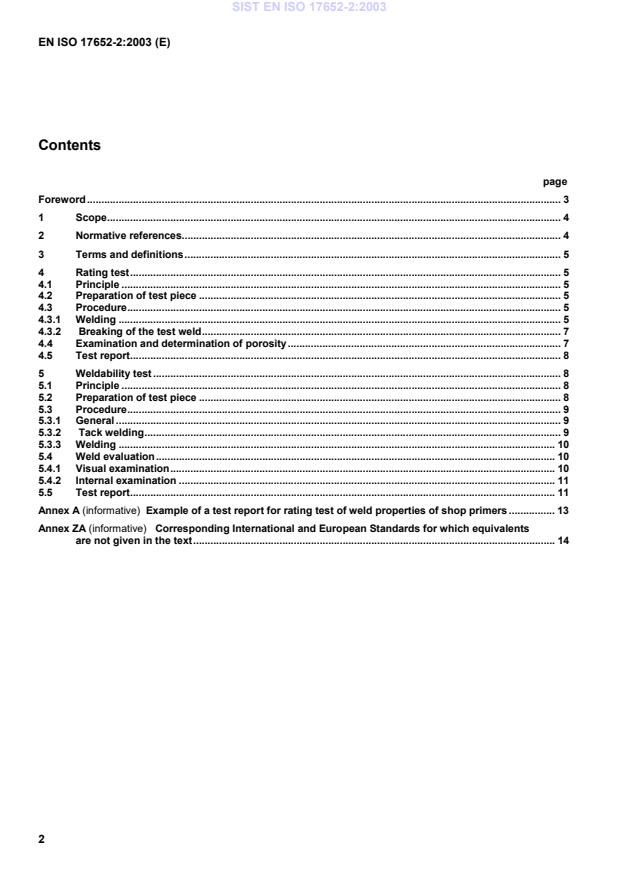

Contents
page
Foreword. 3
1 Scope. 4
2 Normative references. 4
3 Terms and definitions. 5
4 Rating test. 5
4.1 Principle . 5
4.2 Preparation of test piece . 5
4.3 Procedure. 5
4.3.1 Welding . 5
4.3.2 Breaking of the test weld. 7
4.4 Examination and determination of porosity. 7
4.5 Test report. 8
5 Weldability test. 8
5.1 Principle . 8
5.2 Preparation of test piece . 8
5.3 Procedure. 9
5.3.1 General . 9
5.3.2 Tack welding. 9
5.3.3 Welding . 10
5.4 Weld evaluation. 10
5.4.1 Visual examination. 10
5.4.2 Internal examination . 11
5.5 Test report. 11
Annex A (informative) Example of a test report for rating test of weld properties of shop primers . 13
Annex ZA (informative)  Corresponding International and European Standards for which equivalents
are not given in the text. 14
Foreword
This document (EN ISO 17652-2:2003) has been prepared by Technical Committee CEN/TC 121 "Welding", the
secretariat of which is held by DS, in collaboration with Technical Committee ISO/TC 44 “Welding and allied
processes”.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by November 2003, and conflicting national standards shall be withdrawn at the latest
by November 2003.
EN ISO 17652 consists of the following parts, under the general title: Welding – Test for shop primers in relation to
welding and allied processes:
- Part 1: General requirements
- Part 2: Welding properties of shop primers
- Part 3: Thermal cutting
- Part 4: Emission of fumes and gases
Annexes A and ZA are informative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This part of this European Standard describes tests for assessing the influence of shop primers on the weldability.
The following tests are detailed:
a) Rating test
This screening test provides a method of assessing the relative weldability of a shop primer of a specified thickness
by making a standard weld and subsequently evaluating the severity of the resulting porosity. Rating tests are
suitable for declaration by suppliers of the influence of particular shop primers and similar purposes;
b) Weldability test
This test describes a method for evaluating the weldability of welding consumables and shop primer combinations,
using various arc welding processes. A standard size fillet is produced that enables comparison to be made. An
overall assessment of the quality of the resultant weld is made. Weldability tests may be more closely related to
actual conditions during production.
For precaution for protection of health, safety and environment during testing, see EN ISO 17652-1.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
EN 439, Welding consumables - Shielding gases for arc welding and cutting.
EN 440, Welding consumables - Wire electrodes and deposits for gas shielded metal arc welding of non alloy and
fine grain steels - Classification.
EN 10025:1990, Hot rolled products of non-alloy structural steels Technical delivery conditions.

EN 10238, Automatically blast-cleaned and automatically prefabricated primed structural steel products.
EN 10278, Dimensions and tolerances of bright steel products.
EN ISO 4063, Welding and allied processes  Nomenclature of processes and reference numbers (ISO
4063:1998).
EN ISO 6947, Welds - Working positions - Definitions of angles of slope and rotation (ISO 6947:1993).
EN ISO 2808, Paints and varnishes - Determination of film thickness (ISO 2808:1999).
EN ISO 8501-1:2001, Preparation of steel substrates before application of paints and related products - Visual
assessment of surface cleanliness - Part 1: Rust grades and preparation grades of uncoated steel substrates and of
steel substrates after overall removal of previous coatings (ISO 8501-1:1988).
prEN ISO 15609-1:2000, Specification and approval of welding procedures for metallic materials - Welding
procedure specification - Part 1: Arc welding (ISO/DIS 15609-1:2000).
EN ISO 17652-1:2003, Welding - Test for shop primers in relation to welding and allied processes - Part 1: General
requirements (ISO 17652-1:2003).
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions in EN ISO 17652-1:2003 apply.
4 Rating test
4.1 Principle
This test provides a method of assessing the relative weldability of shop primers of a specified thickness by making
a standard weld over a range of shop primers and subsequently evaluating the severity of the resulting porosity.
Only one welding procedure is prescribed, using metal active gas welding (process 135 in accordance with
EN ISO 4063).
The joint configuration and close fit-up are designed to give significant levels of porosity for reasons of
differentiation and reproducibility.
The standard does not specify limits for acceptability as these depend on the practical application. It is expec
...
