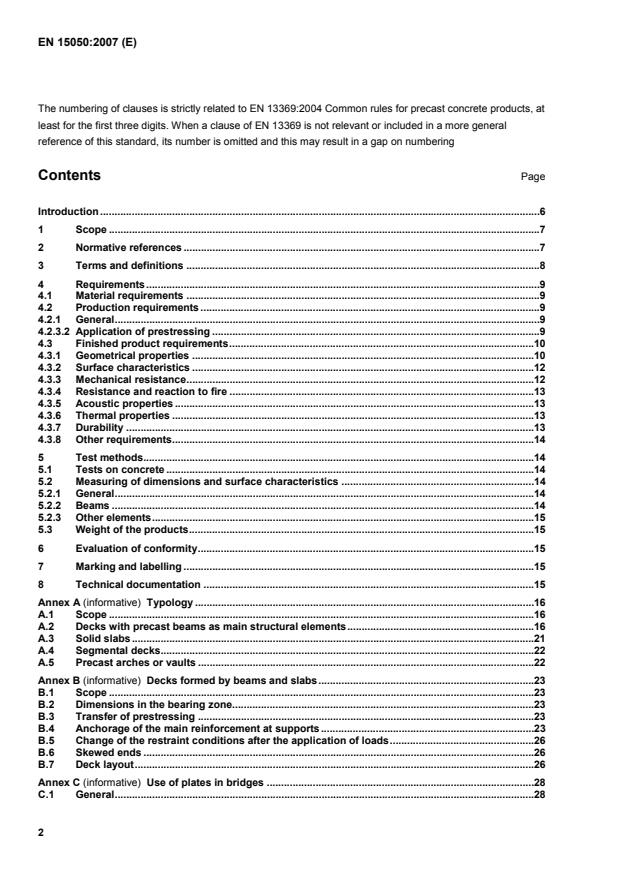

Typology.16 A.1 Scope.16 A.2 Decks with precast beams as main structural elements.16 A.3 Solid slabs.21 A.4 Segmental decks.22 A.5 Precast arches or vaults.22 Annex B (informative)
Decks formed by beams and slabs.23 B.1 Scope.23 B.2 Dimensions in the bearing zone.23 B.3 Transfer of prestressing.23 B.4 Anchorage of the main reinforcement at supports.23 B.5 Change of the restraint conditions after the application of loads.26 B.6 Skewed ends.26 B.7 Deck layout.26 Annex C (informative)
Use of plates in bridges.28 C.1 General.28

Continuity of bridge decks.31 D.1 Scope.31 D.2 Continuity of bridge decks.31 D.3 Hogging moments at supports.31 D.4 Long term sagging moments at supports.31 Annex E (informative)
Infilled beams.37 E.1 General.37 E.2 Infilled beams with a thin topping.37 E.3 Infilled beams with a thick topping.37 Annex F (informative)
Precast beams without topping.39 F.1 Scope.39 F.2 Transverse prestressing by post-tensioning.39 F.3 Reinforced joints.39 Annex G (informative)
Precast segmental decks.41 G.1 General.41 G.1.1 Description.41 G.1.2 Joints.41 G.1.3 Keys.41 G.1.4 Post-tensioning.42 G.2 Design.42 G.2.1 Assembly stage.42 G.2.2 Final situation.42 G.2.3 Checking of joints.43 G.2.4 Local transverse bending.43 G.2.5 Discontinuity regions.43 G.3 Production.44 G.4 Building assembly.44 G.4.1 Segment positioning.44 G.4.2 Segment sealing.44 G.4.3 Post-tensioning.44 G.4.4 Closing segment.44 Annex H (informative)
Ambient conditions for bridge elements.46 Annex J (normative)
Finished product inspection.47 Annex Y (informative)
Choice of CE marking method.48 Y.1 General.48 Y.2 Method 1.48 Y.3 Method 2.48 Y.4 Method 3.48 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive.49 ZA.1 Scope and relevant characteristics.49 ZA.2 Procedure for attestation of conformity of precast concrete bridge elements.50 ZA.2.1 System of attestation of conformity.50 ZA.2.2 EC Certificate and Declaration of conformity.52 ZA.3 CE marking and labelling.52 ZA.3.1 General.52 ZA.3.2 Declaration of geometrical data and material properties.54 ZA.3.3 Declaration of product properties.56 ZA.3.4 Declaration of compliance with a given design specification.58 Bibliography.60

The installation of some structural precast concrete products is dealt with by ENV 13670-1: Execution of concrete structures – Part 1: Common rules, which has at the moment the status of a European prestandard. In all countries it can be accompanied by alternatives for national application and it shall not be treated as a European Standard. The programme of standards for structural precast concrete products comprises the following standards, in some cases consisting of several parts: EN 1168, Precast concrete products — Hollow core slabs EN 12794, Precast concrete products — Foundation piles EN 12843, Precast concrete products — Masts and poles EN 13224, Precast concrete products — Ribbed floor elements EN 13225, Precast concrete products — Linear structural elements EN 13693, Precast concrete products — Special roof elements EN 13747, Precast concrete products — Floor plates for floor systems EN 13978, Precast concrete products — Precast concrete garages EN 14843, Precast concrete products — Stairs EN 14844, Precast concrete products — Box culverts EN 14991, Precast concrete products — Foundation elements EN 14992, Precast concrete products — Wall elements

(which is greater)
Figure 1a
Figure 1b Figure 1c
Figure 1d Figure 1 — Basic dimensions and deviations

Typology A.1 Scope Some examples of elements dealt with in this European Standard are presented in this annex, even if this annex is not exhaustive. Other types of precast elements can be used in bridge construction. A.2 Decks with precast beams as main structural elements Some types of precast beams used in bridges are sketched in Figure A.1:  rectangular beams (Figure A.1a);  I or double T beams (Figure A.1b);  TT beams (Figure A.1c);  T beams with (Figure A.1d) or without base enlargement;  inverted T beams (Figure A.1e and f);  U beams, V beams (Figure A.1g and h).

Figure A.1 — Some examples of precast beams and related cast in situ concrete The following sub types of decks result: a) precast beams, completed by a cast in situ slab (Figure A.2); b) one or more U beams, completed by cast in situ slab (Figure A.3); c) segmental beams, completed by cast in situ slab (Figure A.4); d) precast T beams completed by cast in situ slab (Figure A.5); e) infilled precast beams (Figure A.6); f) precast box elements without topping (Figure A.7). In types from a) to c) thin floor plates are frequently used as permanent formwork for the cast in situ concrete slab (see B.6).

Key 1 cast in situ slab 2 precast slab (or formwork) Figure A.2 — Precast beams with cast in situ slab
Figure A.3a
Figure A.3b Key 1 in situ slab 2 precast beam Figure A.3 — Single (A.3a) or multiple (A.3b) box girders

Figure A.4a
Figure A.4b Key 1 connections 2 cast in situ slab 3 precast beam
Figure A.4 — Segmental beams, cast in situ slab

Figure A.5 — Precast beams, cast in situ slab
Figure A.6a
Figure A.6b Key 1 transverse reinforcement 2 precast elements Figure A.6 — Infilled precast beams

Figure A.7 — Precast box elements without cast in situ slab A.3 Solid slabs Decks formed by precast slabs over entire span, with longitudinal shear keys, completed by cast in situ (Figure A.8) or precast slab post-tensioned transversally. Solid slabs are usually used for short spans. Side elevation
Cross section Key 1 precast slab 2 cast in situ concrete Figure A.8 — Solid slab

Figure A.9 — Precast segment A.5 Precast arches or vaults
Key 1 wing wall 2 precast collar wall 3 precast concrete arch elements 4 continuous cast in situ concrete strip footing Figure A.10 — Example of precast concrete arch structure

Decks formed by beams and slabs B.1 Scope This annex deals with decks having precast beams as the main resistant elements, i.e. types described in A.1 a), b), c) and d). B.2 Dimensions in the bearing zone The suggested minimum dimensions for the bearing zone of precast beams are shown in Figure B.1 (full depth bearings ) and in Figure B.2 (half joints). Such dimensions are to be intended as design specifications and not as acceptance tolerances. Deviations from the above values require special detailing provisions to assure safety against local spalling of concrete. Half joints (Figure B.2) can lead to durability and maintenance problems because of difficulties in inspection and in bearings replacement and should be avoided as far as possible. In case of beams to be placed with a longitudinal gradient greater than 3 %, a cavity should be provided in the underside of the beam to ensure a horizontal bearing surface at the support. In the cavity area the minimum concrete cover should still be guarantied. B.3 Transfer of prestressing 8.10.2 and 8.10.3 of EN 1992-1-1:2004 and 8.10 of EN 1992-2:2005 should apply. When the prestressing tendons are placed outside of the vertical plane of the webs, a horizontal transfer check should be made. This is particularly important for very wide elements such as box and U beams. B.4 Anchorage of the main reinforcement at supports At the end of the beams, enough support length should be provided to verify that the horizontal force, derived from the shear mechanism, is resisted by the tension chord. When the transfer of prestressing is assured by bond (pre-tensioned beams), the part of prestressing effectively anchored can be evaluated according to 8.10.2.2 and 8.10.2.3 of EN 1992-1-1:2004. The effectiveness of tendons placed at a distance from the web edge greater than the thickness of the flange should be verified case by case. If the force provided by the prestressing is insufficient, adequately anchored reinforcing steel should be added.

Figure B.1 — Dimensions in the bearing zone

Key 1 alternative shape of the beam Figure B.2 — Dimensions in the bearing zone in case of half joints

Key 1 diaphragm 2 deck slab 3 beam 4 web hole at end of the beam, for diaphragm reinforcement 5 local square end to beam Figure B.3 — Local square end of the acute corner

Use of plates in bridges C.1 General This annex deals with the use of concrete precast plates as components of decks bridges designed in accordance with EN 1992-2 whose main structure can be made with reinforced or prestre
...
