EN 15767-2:2009
(Main)Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 2: Water nozzles
Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 2: Water nozzles
1.1 In addition to the requirements given in EN 15767-1, this European Standard is applicable to water nozzles, including water with fire extinguishing additives. It specifies requirements for safety, performance, classification and designation, as well as test methods, instructions for use and maintenance and marking.
1.2 This European Standard is not applicable to water nozzles that are manufactured before its date of publication.
Tragbare Geräte zum Ausbringen von Löschmitteln, welche mit Feuerlöschpumpen gefördert werden - Tragbare Werfer - Teil 2: Wasserdüsen
1.1 Zusätzlich zu den in EN 15767-1 enthaltenen Anforderungen gilt diese Europäischen Norm für Wasserdüsen, einschließlich der Verwendung von Wasser mit Löschmittelzusätzen. Behandelt werden Anforderungen an Sicherheit, Leistung, Klassifizierung und Bezeichnung sowie Prüfverfahren, Anleitungen für Gebrauch und Instandhaltung und Kennzeichnung.
1.2 Die vorliegende Europäische Norm gilt nicht für Wasserdüsen, die vor dem Datum der Veröffentlichung dieser Europäischen Norm hergestellt wurden.
Equipement portable de projection d'agents d'extinction alimenté par des pompes à usage incendie - Lances-canon portables - Partie 2 : Diffuseurs à eau
1.1 En complément des prescriptions énoncées dans l’EN 15767-1, la présente Norme européenne s'applique aux diffuseurs à eau y compris lorsque l’eau est additionnée d’agents d’extinction. Elle spécifie les prescriptions de sécurité, les performances, la classification et la désignation, ainsi que les méthodes d'essai, les instructions d'utilisation et d'entretien et le marquage.
1.2 La présente Norme européenne n'est pas applicable aux diffuseurs à eau fabriqués avant sa date de publication.
Prenosna oprema za črpanje in uporabo gasilnega sredstva iz gasilskih črpalk - Prenosni monitorji - 2. del: Gasilno sredstvo - voda
General Information
- Status
- Published
- Publication Date
- 02-Jun-2009
- Withdrawal Date
- 30-Dec-2009
- Technical Committee
- CEN/TC 192 - Fire service equipment
- Drafting Committee
- CEN/TC 192 - Fire service equipment
- Current Stage
- 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
- Start Date
- 01-Oct-2024
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 02-Oct-2024
Overview
EN 15767-2:2009 is a CEN European Standard that specifies requirements for water nozzles used with portable monitors supplied by fire‑fighting pumps. Applied in addition to EN 15767‑1 (general requirements for portable monitor assemblies), Part 2 covers safety, performance, classification, designation, test methods, instructions for use and maintenance, and marking for water nozzles - including use with water containing firefighting additives. This standard does not apply to nozzles manufactured before its publication date.
Key Topics and Requirements
Important technical requirements and test methods defined in EN 15767‑2:2009:
- Scope and definitions
- Covers smooth‑bore, flat‑spray and combination nozzles (types 1–4, including automatic pressure‑controlled nozzles).
- Mechanical limits
- Maximum mass by Qmax: <2 000 l/min → 4 kg; 2 000–4 000 → 8 kg; 4 000–8 000 → 12 kg; >8 000 → 20 kg.
- Maximum operating torques: lever 20 N·m; valve handle 15 N·m; rotating elements 15 N·m.
- Hydraulic performance
- Reference pressure pR = 6 bar (±0.1 bar); nominal pN = 16 bar; test pt = 25.5 bar.
- Flow rates measured at straight jet and maximum spray angle at pR; allowable deviation −0/+10%.
- Spray jet minimum angle: 100°; effective throw requirements specified (for flows >500 l/min) and ≥60 m for >4 000 l/min.
- Flush and debris handling
- For combination nozzles with Qmax < 2 000 l/min, a 6.35 mm steel ball must pass during flushing without shut‑off.
- Flush feature must have mechanical/visual engagement indicator.
- Durability and environment
- Heat test: stored 24 h at (55 ± 2) °C and still operable.
- Frost test: drained and stored at (−15 ± 2) °C for 30 min; operating elements must remain movable.
- Leak‑tightness
- No visible leakage for 1 min at pR.
- Documentation & marking
- Instruction and maintenance handbook required (datasheet per Annex B).
- Permanent marking: manufacturer ID, serial/batch/year, reference to EN 15767‑2, nozzle type, spray type, Qmax, pN, pM (type 4), jet/flush/flow positions.
Applications and Who Uses It
EN 15767‑2 is used by:
- Nozzle manufacturers for design, testing and CE‑compliance.
- Fire brigades and procurement officers to specify performance and safety in tenders.
- Testing laboratories and certification bodies for acceptance and conformity testing.
- Service/maintenance teams for inspection, servicing and replacement planning.
- Safety managers ensuring compatibility of portable monitors with firefighting pumps and water additives.
Keywords: EN 15767-2:2009, water nozzles standard, portable monitors, fire fighting pumps, nozzle flowrates, effective throw, spray angle, leak‑tightness.
Related Standards
- EN 15767‑1:2009 - General requirements for portable monitor assemblies (referenced norm).
- EN 15767‑3 - Foam devices (under preparation at the time of publication).
Frequently Asked Questions
EN 15767-2:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 2: Water nozzles". This standard covers: 1.1 In addition to the requirements given in EN 15767-1, this European Standard is applicable to water nozzles, including water with fire extinguishing additives. It specifies requirements for safety, performance, classification and designation, as well as test methods, instructions for use and maintenance and marking. 1.2 This European Standard is not applicable to water nozzles that are manufactured before its date of publication.
1.1 In addition to the requirements given in EN 15767-1, this European Standard is applicable to water nozzles, including water with fire extinguishing additives. It specifies requirements for safety, performance, classification and designation, as well as test methods, instructions for use and maintenance and marking. 1.2 This European Standard is not applicable to water nozzles that are manufactured before its date of publication.
EN 15767-2:2009 is classified under the following ICS (International Classification for Standards) categories: 13.220.10 - Fire-fighting. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 15767-2:2009 has the following relationships with other standards: It is inter standard links to prEN 15767-2. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 15767-2:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tragbare Geräte zum Ausbringen von Löschmitteln, welche mit Feuerlöschpumpen gefördert werden - Tragbare Werfer - Teil 2: WasserdüsenEquipement portable de projection d'agents d'extinction alimenté par des pompes à usage incendie - Lances-canon portables - Partie 2 : Diffuseurs à eauPortable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 2: Water nozzles13.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 15767-2:2009SIST EN 15767-2:2009en,fr,de01-september-2009SIST EN 15767-2:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15767-2June 2009ICS 13.220.10 English VersionPortable equipment for projecting extinguishing agents suppliedby fire fighting pumps - Portable monitors - Part 2: WaternozzlesEquipement portable de projection d'agents d'extinctionalimenté par des pompes à usage incendie - Lances-canonportables - Partie 2 : Diffuseurs à eauTragbare Geräte zum Ausbringen von Löschmitteln, welchemit Feuerlöschpumpen gefördert werden - Tragbare Werfer- Teil 2: WasserdüsenThis European Standard was approved by CEN on 23 April 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15767-2:2009: ESIST EN 15767-2:2009

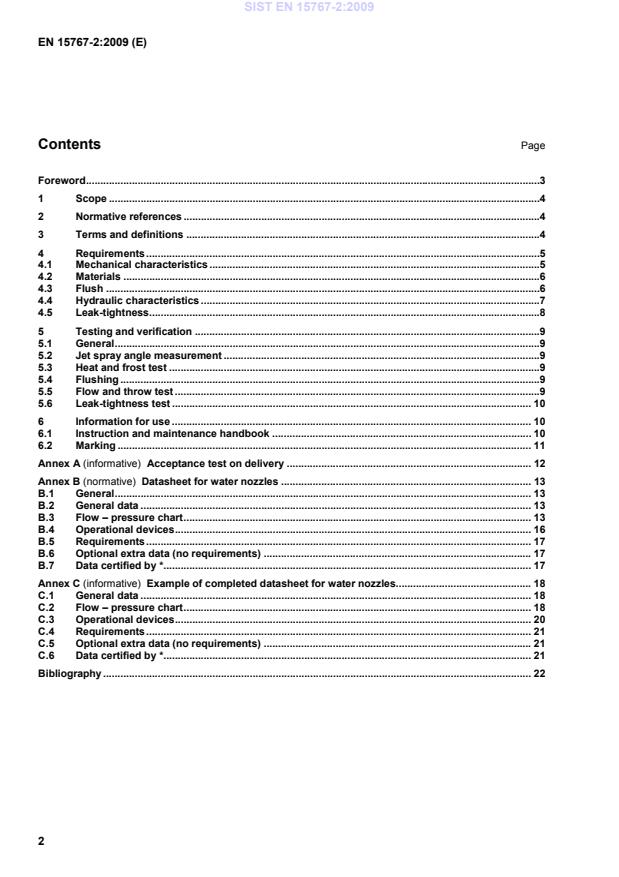

Acceptance test on delivery . 12Annex B (normative)
Datasheet for water nozzles . 13B.1General . 13B.2General data . 13B.3Flow – pressure chart . 13B.4Operational devices . 16B.5Requirements . 17B.6Optional extra data (no requirements) . 17B.7Data certified by *. 17Annex C (informative)
Example of completed datasheet for water nozzles. 18C.1General data . 18C.2Flow – pressure chart . 18C.3Operational devices . 20C.4Requirements . 21C.5Optional extra data (no requirements) . 21C.6Data certified by *. 21Bibliography . 22 SIST EN 15767-2:2009
1) Under preparation. SIST EN 15767-2:2009
nozzle providing a flat spray water stream 3.1.3 combination water nozzle nozzle with a adjustable pattern, corresponding to the following definitions 3.1.3.1 combination water nozzle – type 1 nozzle with adjustable pattern at variable flow NOTE Changing the pattern changes the flow. 3.1.3.2 combination water nozzle – type 2 nozzle with adjustable pattern at constant flow NOTE Changing the pattern does not change the flow. SIST EN 15767-2:2009
3.1.3.4.1 combination water nozzle – type 4.1 nozzle with adjustable pattern at constant pressure 3.1.3.4.2 combination water nozzle – type 4.2 nozzle with adjustable pattern and selectable flow at constant pressure 3.2 median pressure pm for automatic water nozzle, average pressure of the pressure control range 3.3 jet
3.3.1 straight jet jet having the maximum throw and mechanical effect 3.3.2 spray jet any jet different to the straight jet [EN 15182-1:2007] 3.4 flush position allowing the water nozzle to clear debris 3.5 manufacturer's stated maximum flow Qmax flow under which the water nozzle can be operated safely and efficiently 4 Requirements 4.1 Mechanical characteristics 4.1.1 Mass
The water nozzle shall have a maximum mass as defined in Table 1. SIST EN 15767-2:2009
...
