EN 15767-1:2009
(Main)Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 1: General requirements for portable monitor assemblies
Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 1: General requirements for portable monitor assemblies
1.1 This European Standard specifies safety requirements, performance requirements, test methods, instructions for use and maintenance, and marking requirements for portable monitor assemblies.
NOTE 1 Additional requirements for water nozzles and foam devices can be found in EN 15767-2 and prEN 15767-3 respectively.
NOTE 2 Fitting systems are dealt with in national standards or requirements, respectively.
This European Standard is applicable to portable monitor assemblies that can be both permanently installed (e.g. on a flange, a vehicle, a fire boat, etc.) and can also be used as portable monitor assemblies.
This standard should be read in conjunction with either part 2 or 3.
1.2 This European Standard is not applicable to monitors permanently installed on firefighting and rescue service vehicles, for which requirements are given in EN 1846-3 [2].
1.3 This European Standard is not applicable to portable monitor assemblies which are manufactured before its date of publication.
Tragbare Geräte zum Ausbringen von Löschmitteln, welche mit Feuerlöschpumpen gefördert werden - Tragbare Werfer - Teil 1: Allgemeine Anforderungen für tragbare Werfer
1.1 Diese Europäische Norm legt Sicherheitsanforderungen, Anforderungen an die Leistungsfähigkeit, Prüf-verfahren, Anleitungen für Gebrauch und Instandhaltung und Anforderungen an die Kennzeichnung von tragbaren Werfern fest.
ANMERKUNG 1 Zusätzliche Anforderungen an Wasserdüsen und Schaumdüsen sind EN 15767 2 bzw. prEN 15767 3 zu entnehmen.
ANMERKUNG 2 Kupplungen werden in nationalen Normen bzw. Anforderungen behandelt.
Diese Europäische Norm gilt für tragbare Werfer, die sowohl fest installiert sein (z. B. an einem Flansch, einem Fahrzeug, einem Feuerlöschboot usw.) und auch als tragbare Werfer verwendet werden können.
Die vorliegende Norm sollte zusammen mit Teil 2 oder Teil 3 gelesen werden.
1.2 Diese Europäische Norm gilt nicht für Werfer, die an Feuerwehrfahrzeugen fest angebaut sind. Deren Anforderungen sind in EN 1846-3 [2] enthalten.
1.3 Die vorliegende Europäische Norm gilt nicht für tragbare Werfer, die vor dem Datum der Veröffent-lichung hergestellt wurden.
Equipement portable de projection d'agents d'extinction alimenté par des pompes à usage incendie - Lances-canon portables - Partie 1: Prescriptions générales pour les ensembles lances-canons portables
1.1 La présente Norme européenne spécifie les prescriptions de sécurité, les prescriptions de performance, les méthodes d’essais, les instructions d'utilisation et de maintenance, et les prescriptions relatives au marquage des ensembles lance-canon portables.
NOTE 1 Les prescriptions complémentaires relatives aux diffuseurs à eau et aux dispositifs pour la mousse font l'objet, respectivement, des EN 15767-2 et EN 15767-3.
NOTE 2 Les systèmes de raccordement sont traités respectivement dans les normes ou les prescriptions nationales.
La présent Norme européenne s’applique aux ensembles lance-canon portables qui peuvent à la fois être installés à demeure (par exemple sur un plateau, un véhicule, un bateau-pompe, etc.) et qui peuvent également être utilisés comme un ensemble lance-canon portable.
Il convient de lire la présente norme conjointement avec la Partie 2 ou la Partie 3.
1.2 La présente Norme européenne ne s'applique pas aux lances-canon installées à demeure sur les véhicules de secours et de lutte contre l’incendie dont les prescriptions sont données dans l’EN 1846-3 [2].
1.3 La présente Norme européenne n'est pas applicable aux ensembles lances-canon portables fabriqués avant sa date de publication.
Prenosna oprema za črpanje in uporabo gasilnega sredstva iz gasilskih črpalk - Prenosni monitorji - 1. del: Splošne zahteve za prenosne monitorje
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HTragbare Geräte zum Ausbringen von Löschmitteln, welche mit Feuerlöschpumpen gefördert werden - Tragbare Werfer - Teil 1: Allgemeine Anforderungen für tragbare WerferEquipement portable de projection d'agents d'extinction alimenté par des pompes à usage incendie - Lances-canon portables - Partie 1: Prescriptions générales pour les ensembles lances-canons portablesPortable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable monitors - Part 1: General requirements for portable monitor assemblies13.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 15767-1:2009SIST EN 15767-1:2009en,fr,de01-september-2009SIST EN 15767-1:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15767-1June 2009ICS 13.220.10 English VersionPortable equipment for projecting extinguishing agents suppliedby fire fighting pumps - Portable monitors - Part 1: Generalrequirements for portable monitor assembliesEquipement portable de projection d'agents d'extinctionalimenté par des pompes à usage incendie - Lances-canonportables - Partie 1: Prescriptions générales pour lesensembles lances-canons portablesTragbare Geräte zum Ausbringen von Löschmitteln, welchemit Feuerlöschpumpen gefördert werden - Tragbare Werfer- Teil 1: Allgemeine Anforderungen für tragbare WerferThis European Standard was approved by CEN on 23 April 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15767-1:2009: ESIST EN 15767-1:2009

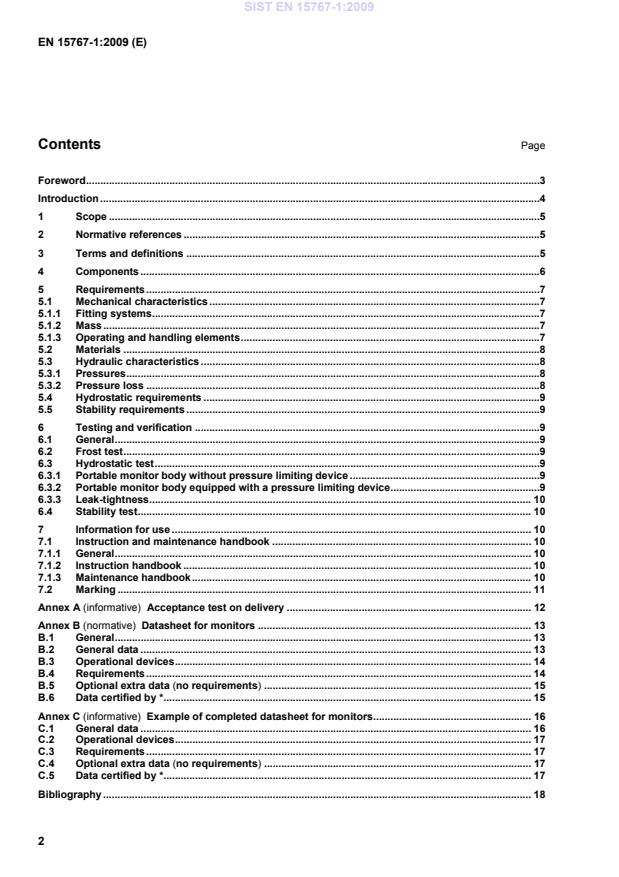

Acceptance test on delivery . 12Annex B (normative)
Datasheet for monitors . 13B.1General . 13B.2General data . 13B.3Operational devices . 14B.4Requirements . 14B.5Optional extra data (no requirements) . 15B.6Data certified by *. 15Annex C (informative)
Example of completed datasheet for monitors . 16C.1General data . 16C.2Operational devices . 17C.3Requirements . 17C.4Optional extra data (no requirements) . 17C.5Data certified by *. 17Bibliography . 18 SIST EN 15767-1:2009
1) Under preparation. SIST EN 15767-1:2009
Its purpose is not to define a specific monitor design but to help the user in understanding and choosing the correct equipment.
The manufacturer may be defined as the person or company taking technical responsibility for the supply of the product. SIST EN 15767-1:2009
NOTE 2 Fitting systems are dealt with in national standards or requirements, respectively. This European Standard is applicable to portable monitor assemblies that can be both permanently installed (e.g. on a flange, a vehicle, a fire boat, etc.) and can also be used as portable monitor assemblies. This standard should be read in conjunction with either part 2 or 3. 1.2 This European Standard is not applicable to monitors permanently installed on firefighting and rescue service vehicles, for which requirements are given in EN 1846-3 [2]. 1.3 This European Standard is not applicable to portable monitor assemblies which are manufactured before its date of publication. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 15767-2, Portable equipment for projecting extinguishing agents supplied by fire fighting pumps — Portable monitors — Part 2: Water nozzles prEN 15767-3, Portable equipment for projecting extinguishing agents supplied by fire fighting pumps — Portable monitors — Part 3: Foam devices 3 Terms and definitions For the purposes of this European Standard, the following terms and definitions apply. 3.1 portable monitor assembly combination of components for ground operations that connects to a water supply via hose(s) and coupling(s) and projects extinguishing agents according to the operators requirements 3.2 portable monitor body portable monitor assembly without nozzle 3.3 nozzle component connected to the outlet of the monitor body that controls the water or the foam flowrate and/or pattern NOTE Water nozzles are defined in EN 15767-2 and foam devices are defined in prEN 15767-3. 3.4 pressures NOTE 1 The pressures are expressed in bar. SIST EN 15767-1:2009
3) a carrying device (3); 4) optional: a horizontal and vertical travel device (5); 5) optional
...
