EN 454:2000+A1:2009

SLOVENSKI STANDARD
01-marec-2010
Stroji za predelavo hrane - Planetarni mešalniki - Varnostne in higienske zahteve
Food processing machinery - Planetary mixers - Safety and hygiene requirements
Nahrungsmittelmaschinen - Planetenrühr- und -knetmaschinen - Sicherheits- und
Hygieneanforderungen
Machines pour les produits alimentaires - Batteurs-mélangeurs - Prescriptions relatives à
la sécurité et l'hygiène
Ta slovenski standard je istoveten z: EN 454:2000+A1:2009
ICS:
67.260 Tovarne in oprema za Plants and equipment for the
živilsko industrijo food industry
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 454:2000+A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2009
ICS 67.260 Supersedes EN 454:2000
English Version
Food processing machinery - Planetary mixers - Safety and
hygiene requirements
Machines pour les produits alimentaires - Batteurs- Nahrungsmittelmaschinen - Planetenrühr- und -
mélangeurs - Prescriptions relatives à la sécurité et knetmaschinen - Sicherheits- und Hygieneanforderungen
l'hygiène
This European Standard was approved by CEN on 22 December 1999 and includes Amendment 1 approved by CEN on 24 October 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 454:2000+A1:2009: E
worldwide for CEN national Members.

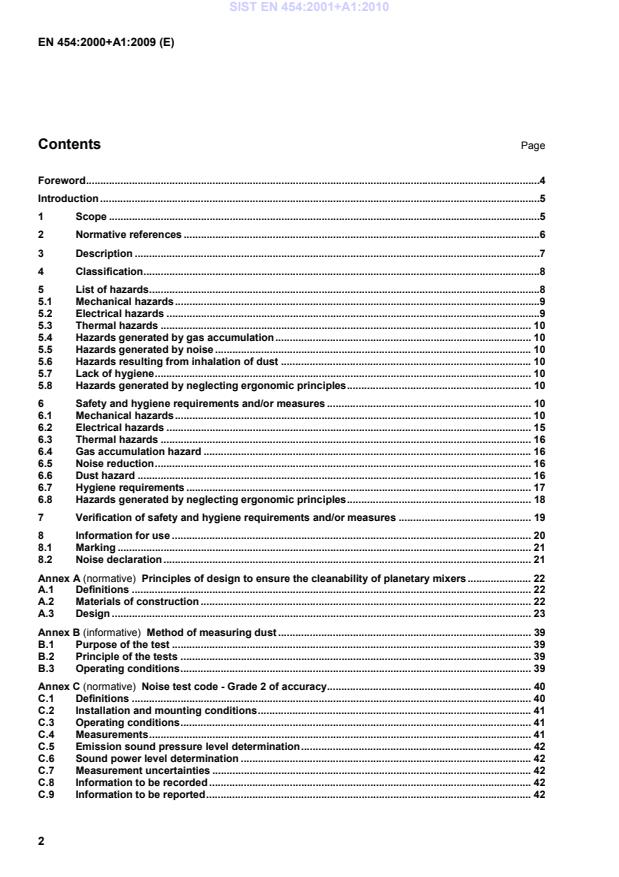

Contents Page
Foreword .4
Introduction .5
1 Scope .5
2 Normative references .6
3 Description .7
4 Classification .8
5 List of hazards .8
5.1 Mechanical hazards .9
5.2 Electrical hazards .9
5.3 Thermal hazards . 10
5.4 Hazards generated by gas accumulation . 10
5.5 Hazards generated by noise . 10
5.6 Hazards resulting from inhalation of dust . 10
5.7 Lack of hygiene . 10
5.8 Hazards generated by neglecting ergonomic principles . 10
6 Safety and hygiene requirements and/or measures . 10
6.1 Mechanical hazards . 10
6.2 Electrical hazards . 15
6.3 Thermal hazards . 16
6.4 Gas accumulation hazard . 16
6.5 Noise reduction . 16
6.6 Dust hazard . 16
6.7 Hygiene requirements . 17
6.8 Hazards generated by neglecting ergonomic principles . 18
7 Verification of safety and hygiene requirements and/or measures . 19
8 Information for use . 20
8.1 Marking . 21
8.2 Noise declaration . 21
Annex A (normative) Principles of design to ensure the cleanability of planetary mixers . 22
A.1 Definitions . 22
A.2 Materials of construction . 22
A.3 Design . 23
Annex B (informative) Method of measuring dust . 39
B.1 Purpose of the test . 39
B.2 Principle of the tests . 39
B.3 Operating conditions . 39
Annex C (normative) Noise test code - Grade 2 of accuracy. 40
C.1 Definitions . 40
C.2 Installation and mounting conditions . 41
C.3 Operating conditions . 41
C.4 Measurements . 41
C.5 Emission sound pressure level determination . 42
C.6 Sound power level determination . 42
C.7 Measurement uncertainties . 42
C.8 Information to be recorded . 42
C.9 Information to be reported . 42
C.10 Declaration and verification of noise emission values . 43
Annex D (informative) Bibliography . 44
Annex ZA (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37EC"""" . 45
Annex ZB (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC"" . 46
""
Foreword
This document (EN 454:2000+A1:2009) has been prepared by Technical Committee CEN/TC 153 "Machinery
intended for use with foodstuffs and feed", the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2010, and conflicting national standards shall be withdrawn at
the latest by June 2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1 approved by CEN on 24 October 2009.
This document supersedes EN 454:2000.
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
!For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document."
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Introduction
The extent to which hazards are covered is indicated in the scope of this standard. In addition, machinery
shall comply as appropriate with EN 292 for hazards which are not covered by this standard.
1 Scope
This standard specifies safety and hygiene requirements for the design and manufacture of fixed bowl
1)
planetary mixers of capacity greater than or equal to 5 l and less than 500 l used to process various
ingredients e.g. cocoa, flour, sugar, oils and fat, minced meat, eggs, and other ingredients, in the food
industry and shops.
These machines are sometimes used in other industries (e.g. pharmaceutical industry, chemical industry,
printing, etc.), but hazards related to these uses are not considered in this standard.
The following machines are excluded:
 accessory planetary mixers;
 continuously fed machines;
2)
 dough mixers ;
 experimental and testing machines under development by the manufacturers;
 domestic appliances.
The intended use of the machine, as defined in 3.12 of EN 292-1:1991 and in the manufacturer's instruction
handbook, is loading various ingredients, processing them in a stationary bowl by means of appropriate
beaters, unloading and cleaning.
Processing is carried out in cycles of variable duration.
It can be either manually or automatically-controlled, in individual cycles or on a cycle repeat basis, etc.
Manual operations are sometimes necessary to add ingredients without stopping the beater.
On machines fitted with a bowl lifting and lowering device or with a device for moving the bowl/head/beater
vertically the working position is that when the beater is nearest to the bottom of the bowl.
The significant hazards covered by this standard are mechanical (shearing, trapping, loss of stability),
electrical, thermal, ergonomic and also hazards resulting from gas accumulation, noise, inhalation of dust, and
lack of hygiene.
!deleted text"
The standard applies only to machines manufactured after the date of its issue.

1) Note: Below 5 l, EN 60335-1 and EN 60335-2 are applicable.
2) EN 453.
2 Normative references
This European standard incorporates, by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to
this European Standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
EN 292-1:1991, Safety of machinery - Basic concepts - General principles for design - Part 1: Basic
terminology, methodology
EN 292-2:1991+A1:1995, Safety of machinery - Basic concepts - General principles for design - Part 2:
Technical principles and specifications
EN 298:1993, Automatic gas burner control systems for gas burners and gas burning appliances with or
without fans
EN 563:1994, Safety of machinery - Temperatures of touchable surfaces - Ergonomics data to establish
temperature limit values for hot surfaces
EN 614-1:1995, Safety of machinery - Ergonomic design principles - Part1: Terminology and general
principles
EN 954-1:1996, Safety of machinery - Safety related parts of control systems - Part 1: General principles for
design
EN 1050:1996, Safety of machinery -Principles for risk assessment
EN 1088:1995, Safety of machinery - Interlocking devices associated with guards - Principles for design and
selection
EN 1672-2:1997, Food processing machinery - Common requirements - Part 2: Hygiene requirements
EN 60204-1:1997, Safety of machinery - Electrical equipment of machines - Part 1: General requirements
EN 60529:1991, Degrees of protection provided by enclosures
EN 60651:1994, Sound level meters
EN ISO 3743-1:1995, Acoustics - Determination of sound levels of noise sources - Engineering methods for
small, movable sources in reverberant fields - Part 1:Comparison method for hard-walled test rooms
EN ISO 3744:1995, Acoustics - Determination of sound power levels of noise sources using sound pressure -
Engineering method in an essentially free field over a reflecting plane
EN ISO 4871:1996, Acoustics - Declaration and verification of noise emission values of machinery and
equipment
EN ISO 11201:1995, Acoustics - Noise emitted by machinery and equipment - Measurement of emission
sound pressure levels at the work station and at other specified positions - Engineering method in an
essentially free field over a reflecting plane
EN ISO 11688-1:1998, Acoustics - Recommended practice for the design of low-noise machinery and
equipment - Part 1: Planning
EN ISO 12001:1996, Acoustics - Noise emitted by machinery and equipment - Rules for the drafting and
presentation of a noise test code
ISO 468:1982, Surface roughness - Parameters values and general rules for specifying requirements
3 Description
A planetary mixer (see figure 1) usually consists of a frame supporting:
a) a casing containing the beater(s) drive mechanism;
b) control devices;
c) a bowl, in which ingredients are processed;
d) interchangeable beaters designed to process ingredients and which move around a fixed or mobile axis
(planetary motion). Their rotation speed may be either constant or variable;
e) a power connection for attachments such as meat mincers, vegetable slicers, etc.;
f) a device for vertically moving the bowl or the head of the mixer to allow beater removal;
g) a device for handling the bowl, for example a trolley.
The following features may also be included:
 bowl heating;
 bowl cooling;
 bowl gravity discharge.
Figure 1 a)      Figure 1 b)
Figure 1 — Main parts of a planetary mixer (with guard removed) and illustration of bowl diameter
4 Classification
Planetary mixers shall be divided into the following three categories according to their bowl volume and/or
diameter:
 class 1 shall have a volume equal to or greater than 5 l and less than 10 l and/or a diameter less than or
equal to 260 mm;
 class 2 shall have a volume equal to or greater than 10 l and less than 150 l and/or a diameter greater
than 260 mm and less than or equal to 510 mm;
 class 3 shall have a volume greater than or equal to 150 l and less than 500 l and/or a diameter greater
than 510 mm;
Where:
 the bowl volume is the maximum volume of water in litres that the bowl can contain;
 the bowl diameter is the inside diameter D measured at the bowl upper edge (figure 1).
When a mixer is supplied with several bowls of different capacities, the mixer classification shall be
determined by the size of the bowl with the greatest volume.
5 List of hazards
This clause contains all hazards identified by risk assessment (see EN 1050) as specific and significant for
planetary mixers and which require action to reduce risk.
!When fixed guards, or parts of the machine acting as such, are not permanently fixed e.g. by welding, their
fixing systems shall remain attached to the guards or to the machinery when the guards are removed."
5.1 Mechanical hazards
The significant mechanical hazards are:
 shearing hazard;
 trapping hazard;
 loss of stability.
The example shown in figure 2 illustrates 3 danger zones associated with these hazards:
zone 1:volume covered by the moving beater; hazard of trapping;
zone 2:mechanical power connection for attachments, if any; hazard of shearing, trapping;
zone 3:space between bowl lifting system and frame; hazard of trapping during bowl lifting/lowering.

Figure 2 — Danger zones of a planetary mixer (with guard removed)
5.2 Electrical hazards
Hazard of electric shock from direct or indirect contact with live components.
Hazard of external influences on electrical equipment (e.g. cleaning with water).
5.3 Thermal hazards
Where a bowl heating device is fitted, there is a hazard of burns by contact with the heating device or with the
bowl.
5.4 Hazards generated by gas accumulation
Where open flame heating devices are used as bowl heating, there is a hazard of gas accumulation.
5.5 Hazards generated by noise
Especially class 3 planetary mixers generate airborne noise which can result in hearing damage, in accidents
due to interference with speech communication and interference with the perception of acoustic signals.
5.6 Hazards resulting from inhalation of dust
Because of the larger volume of ingredients processed, the use of class 3 planetary mixers particularly
exposes operators to dust including flour and ingredients which may be harmful to their health, causing rhinitis
(running noses), watering eyes and possibly occupational asthma.
5.7 Lack of hygiene
Lack of hygiene can create a risk to human health and unacceptable modification of foodstuff e.g.
contamination by microbial growth or foreign materials.
5.8 Hazards generated by neglecting ergonomic principles
During operation, cleaning and maintenance, there is a risk of injury or chronic damage to the body resulting
from awkward body postures.
Movement of the bowl between different working stations, or filling or emptying of the bowl can create a risk of
injury or chronic damage to the body from lifting, pushing and pulling of heavy loads.
6 Safety and hygiene requirements and/or measures
This clause states the requirements and/or measures to be met to reduce the effect of the hazards detailed in
clause 5.
6.1 Mechanical hazards
Where reference is made to interlocking devices throughout clause 6, they shall comply with clauses 4.2.1, 5
and 6 of EN 1088:1995.
Safety related control systems shall be category 1 as defined in clause 6 of EN 954-1:1996.
6.1.1 Zone 1 - Volume covered by the movement of the beater
6.1.1.1 Class 1 planetary mixers
Because of their low power and small size, access to the volume covered by the beater need not be
prevented but shall be at least restricted in the following ways:
a) there shall be a minimum distance of 120 mm between the upper edge of the bowl and the upper limit of
the volume covered by the beater (see figure 3 a));
b) a bowl extension shall be provided. This may be fixed or associated with an interlocking device and
movable so that the beater will not operate unless it is in position (see figure 3 b)).

Figure 3 a)       Figure 3 b)
Figure 3 — Class 1 planetary mixers

6.1.1.2 Class 2 planetary mixers
A class 2 planetary mixer shall be fitted either with a guard as specified in 6.1.1.3 or with one or more
sensitive bars complying with the following:
 the bars shall stop the beater rotation when a vertical upward or downward force of 30 N is applied to
them;
 movement to actuate the stopping device shall not exceed 5 mm;
 there shall be a minimum distance of 120 mm between the upper limit of the volume covered by the
beater and the upper edge of the bowl;
 the distances between the trip bar (or bars), the bowl and the machine frame shall comply with the values
shown in figure 4;
 the design of the trip bar shall minimize the risk that the accumulation of food between the trip bar and a
fixed part prevents its operation.

Dimensions in millimetres
a < 40 mm
b < 60 mm
c<100 mm
Figure 4 a)     Figure 4 b)
Figure 4 — Class 2 planetary mixers with trip bars
6.1.1.3 Class 2 and 3 planetary mixers
A class 2 planetary mixer not fitted with a pressure sensitive bar or a class 3 planetary mixer shall be fitted
with a movable interlocking guard which shall prevent access to the inner volume of the bowl.
As it is necessary to gain access to the bowl for example to add ingredients, guard dimensions shall comply
with the values in figure 5.
Dimensions in millimetres
Figure 5 a)     Figure 5 b)
Figure 5 — Class 2 and 3 planetary mixers with interlocking guard
 for the bowl of the largest diameter supplied with the machine, the gap between the bowl and the guard
shall not exceed 15 mm;
 dimensions l or h are unlimited depending on the type of guard (see figures 5 a) and 5 b)).
6.1.1.4 Mixers with several bowls
Where a mixer is supplied with several bowls, the requirements of 6.1.1.1 to 6.1.1.3, shall be met for the
largest bowl, as applicable. In the working position, all the bowls supplied with a mixer shall have their upper
edges at a level no more than 15 mm below the guard (see figure 6).

1 Largest bowl 2 smallest bowl
Figure 6 — Mixer with several bowls - Class 2 and 3
6.1.1.5 Up and down movement
On class 2 and class 3 machines an interlocking device shall prevent beater movement when the bowl lifting
system is not in the normal operating position e.g. a switch actuated by a cam located inside the frame.
However, if it is necessary to process ingredients in anything other than the normal bowl position, the beater
control shall be of the hold-to-run type (see 3.23.3 of EN 292-1:1991).
The hold-to-run control shall be located following ergonomic principles of EN 614-1:1995 taking account of
hygienic requirements (see 6.6).
6.1.1.6 Stopping time
Guard actuated stopping devices shall stop the beater without any ingredients present in the bowl in less than
or equal to 4 s. If this not possible, opening of the guard shall be prevented until the beater has stopped
moving (see 3.22.5 of EN 292-1:1991).
When a sensitive bar is used, the stopping devices shall stop the beater with the bowl empty in less than or
equal to 2 s.
6.1.2 Zone 2 - Power connection (mechanical)
The drive shaft on which attachments are fitted shall not project from the machine frame and shall be fitted
with a cover which cannot be removed from the machine, e.g. hinged, so as to enclose the connection point.
6.1.3 Zone 3 - Space between bowl lifting system and frame
6.1.3.1 The guide and drive mechanism operating the vertical movement of the bowl shall not create any
risks of trapping or pinching. This may be achieved by use of a fixed guard.
6.1.3.2 When manually operated the minimum distance between either the bowl or the frame and the lever
for lifting and lowering the bowl shall be 50 mm in order to prevent injury when operating the lever.
6.1.3.3 If the bowl lifting and lowering mechanism is motorized, crushing between the ascending bowl, bowl
lifting system and machine frame and any guard shall be prevented. This may be by either:
- a trip device or;
- a hold-to-run control to operate the bowl movement.
6.1.3.4 For class 2 and class 3 machines, the bowl lifting and lowering mechanism shall be able to hold a
vertical force equal to twice the weight of the bowl filled with water, when it is in its upper position.
6.1.4 Loss of stability
Machines shall be designed to be stable and shall comply with 6.1.4.1 to 6.1.4.2 as applicable.
For machines to be fixed to the floor, the instruction handbook shall indicate the values of forces at the fixing
points.
6.1.4.1 Free standing machines without castors shall be stable when tilted 10° from the horizontal plane in
the most unfavourable direction.
6.1.4.2 Free standing machines with castors shall have at least two castors (or sets of castors) fitted with a
locking device, and shall comply with the provisions of 6.1.4.1.
6.2 Electrical hazards
The electrical equipment shall comply with EN 60204-1:1997, with the following precisions.
6.2.1 Electromagnetic compatibility (see 4.4.2 of EN 60204-1:1997)
Where electrical/electronic components are used, the manufacturer shall ensure that the equipment shall not
generate electromagnetic disturbances above the levels that are appropriate for its intended place of use. In
addition, the equipment shall have adequate level of immunity to electromagnetic disturbances so that it can
correctly function in its intended place of use.
NOTE 1 The supplier of the electrical/electronic equipment should be able to detail its electromagnetic compatibility.
NOTE 2 Where conditions of use, installation and maintenance are specified by the supplier in order to achieve
electromagnetic compatibility, these should be complied with by the manufacturer.
6.2.2 Cleaning with water
If it is intended that the machine be cleaned with water, the manufacturer shall provide warnings and a method
of cleaning in the instruction handbook.
6.2.3 Protection against electric shock (see clause 6 of EN 60204-1:1997)
The electrical equipment shall comply with clause 6 of EN 60204-1:1997.
6.2.4 Power circuits (see 7.2.3 of EN 60204-1:1997)
A device for detection and interruption of overcurrent in the phase conductor is sufficient for single phase
machines.
6.2.5 Earth faults (see 9.4.3.1 of EN 60204-1:1997)
For machinery supplied from a single phase conductor and an earthed neutral conductor, there is no
requirement for double pole interruption.
6.2.6 Emergency stop (see 10.7 of EN 60204-1:1997)
An emergency stop is not required.
6.2.7 Motor enclosures (see 15.2 of EN 60204-1:1997)
Where a motor has a degree of protection lower than IP23 it shall be mounted inside an enclosure that
guarantees a minimum degree of protection of IP23.
6.3 Thermal hazards
On machines equipped with a device to maintain food at a constant temperature during processing, bowl
handles and grips shall be designed in such a way as to avoid burns according to EN 563:1994.
6.4 Gas accumulation hazard
Open flame heating devices shall be allowed only on class 1 and class 2 machines. Means shall be provided
to prevent escape of unburnt gas e.g. a flame protection system. Further details of gas burner control systems
can be found in EN 298.
6.5 Noise reduction
Planetary mixers shall be so designed and constructed that risks from airborne noise emission are reduced to
the lowest level by particularly applying measures at source to control noise (see for example
EN ISO 11688-1). The success of the applied noise reduction measures is assessed on the basis of the actual
noise emission values (see and Annex C) in relation to other machines of the same family.
6.6 Dust hazard
Flour dust emission shall be minimised.
Particularly for a class 3 planetary mixer, this may be achieved by any of the methods in the following
examples:
a) use of a solid cover;
b) by means of a time-delay device which, when starting the machine, makes the tool rotate at no more than
60 rpm for the planetary action and 180 rpm for the tool for a least 120 s before the operator can engage
a higher speed;
c) by means of a dust extraction device;
If the machine is intended for use with automatic feeding of dry ingredients, the manufacturer shall design
measures to prevent dust emission during feeding without decreasing the level of safety.
NOTE 1 This standard does not deal with automatic feeding.
NOTE 2 In the future revision of the standard, more information will be given relating to the prevention of dust
emission. A research program is being carried out on this subject.
A method for measuring dust is given for information in annex B.
6.7 Hygiene requirements
Planetary mixers shall be designed and manufactured in accordance with EN 1672-2:1997 and annex A.
The 3 zones shown in figure 7 are defined in EN 1672-2:1997. The precise boundary between the zones
depends on the detailed design of the machine but in general they are at least as follows.
6.7.1 Food area
The food area is as follows:
 the inside of the bowl;
 the beater and rotating holder of the beater;
 the inside of solid bowl guards or the whole of guards with holes;
 any trip bars.
6.7.2 Splash area
The splash area is as follows:
 the outside of the bowl;
 for solid guards, the outside surface of the guard;
 the front surface of the machine facing the bowl;
 the horizontal surface above the bowl.
6.7.3 Non food area
The remaining areas of the machine that do not come into contact with the food.

Food area
Splash area
Non food area
Figure 7 — Hygiene areas (with guards removed)

6.8 Hazards generated by neglecting ergonomic principles
Awkward body postures during maintenance and cleaning as well as filling and emptying the bowl and other
operations, shall be avoided.
Suitably positioned means to allow the use of lifting devices and/or transport carriages shall be provided for
installation, removal and transport of any part of the planetary mixer weighing more than 25 kg.
If the mass of the filled removable bowl exceeds 25 kg, a handling device shall be fitted, for example wheels
on the bowl or a separate trolley.
Pushing and pulling with great effort shall be avoided e.g. by use of low-friction castor wheels on transport
carriages or by the design of the bowl coupling mechanism.
If the bowl lifting and lowering mechanism is operated manually, the force required for this operation shall not
exceed 250 N when the bowl is carrying the nominal load.
Control devices shall be placed within proper reach for the operator as stated in annex A of EN 614-1:1995.
7 Verification of safety and hygiene requirements and/or measures
Table 1
Relevant clause Method of verification
6.1.1.1 By measurement and functional test of the interlocking device
6.1.1.2 By functional test of the sensitive bars
By measurement of the effort
By measurement of the distances
6.1.1.3 By measurement and functional test of the interlocking device
6.1.1.4 By measurement
6.1.1.5 By functional test of the hold-to-run control and of the
interlocking device
6.1.1.6 By measurement of time or functional test of guard-locking
6.1.2 By visual check that the power take-off point is well enclosed
6.1.3.1 By inspection
6.1.3.2 By measurement
6.1.3.3 By functional test of the hold-to-run control and/or interlocking
device and trip device if fitted
6.1.3.4 By measurement
6.1.4 When the machine is tilted 10° the bowl shall be filled with
water and the machine shall remain stable
6.2 Verification shall be in accordance with clause 19 of
EN 60204-1:1997 except for the following two cases:
Tests relating to electromagnetic compatibility may be limited
where the supplier of the electric/electronic equipment has
successfully tested for compatibility and the manufacturer has
mounted the equipment in accordance with the supplier's
recommendations.
An additional test to that detailed in 19.2 of EN 60204-1:1997
shall be carried out to test the continuity of the protective
bonding circuit between the PE (protective earth) terminal
and accessible metallic parts of the equipment.
6.3 By measurement
6.4 By checking the conformity with EN 298:1993
6.5 In accordance with annex C
6.6 By inspection and measurement of time-delay
6.7 In accordance with clause 6 of EN 1672-2:1997 and by
inspection
6.8 By measurement of effort
By inspection of the visibility of the indications, buttons.

8 Information for use
The manufacturer shall provide an instruction handbook in accordance with 5.5 of EN 292-2:1991 + A1:1995.
In particular, the instruction handbook shall provide:
 the provisions for handling, transportation, storage, installation, starting up;
 the provisions for cleaning and rinsing: the cleaning products to be used, the recommended implements,
the procedures and frequency, any necessary warning (for example, the cleaning shall be done once the
machine is stopped, using water and soap with plastic scraper. Metallic implements are not
recommended).
Moreover, if cleaning with water jet is authorised, the manufacturer shall indicate the maximum pressure
permitted;
 the normal quantity of processed products;
 information warning the user about the risk of dust. In particular, the machine instruction handbook shall
include methods of loading to minimise dust emission, especially when loading manually dry ingredients;
for example:
 careful handling of bagged products by minimizing the height above the bowl base from which they
are poured;
 careful slitting of bags in the lower part of the bowl to allow dust free discharge of flour as far as
possible;
 use of temporary bowl covers to minimize openings through which flour may escape;
 ingredients with known health risks should be listed e.g. flour, and the need to consult suppliers hazard
data sheets should be highlighted. The possible need to wear respiratory protective equipment during
manual loading shall be indicated;
 the values of forces at fixing points if the machine is fixed;
 a warning to the operator during maintenance on the hazard of residual voltage especially from
capacitors;
 the value of the overcurrent protective device in the case of machines covered by 6.2.4;
!
 the limits that shall be respected and the measures to be taken for ensuring stability during use,
transportation, assembly, dismantling when out of service, testing or foreseeable breakdowns;
 the operating method to be followed in the event of accident or breakdown; if a blockage is likely to occur,
the operating method to be followed so as to enable the equipment to be safely unblocked;
 the specifications of the spare parts to be used, when these affect the health and safety of operators;
 if need be: the description of the adjustment and maintenance operations to be carried out by the user
and the preventive maintenance measures to be observed;
 instructions to isolate the machine in a safe condition in the event of interventions such as repair or
maintenance (isolation from energy supply of all nature, locking of the disconnecting device, neutralising
residual energy, testing);
 in the case of machinery capable of being plugged into an electricity supply: information warning the user
that he shall be able to check that the plug remains visible from any of the points to which he has access;
 the instruction handbook (and any sales literature describing the performances of the machine) shall
contain the following information on airborne noise emissions, determined and declared in accordance
with Annex C of this European Standard:
 the A-weighted emission sound pressure level at workstations, where this exceeds 70 dB(A); where
this level does not exceed 70 dB(A), this fact shall be indicated,
 the peak C-weighted instantaneous sound pressure value at workstations, where this exceeds 63 Pa
(130 dB in relation to 20 µPa),
 the A-weighted sound power level emitted by the machinery, where the A-weighted emission sound
pressure level at workstations exceeds 80 dB(A).
 Whenever sound emission values are indicated the uncertainties "K" surrounding these values shall be
specified. The operating conditions of the machinery during measurement and the measuring methods
used shall be described."
8.1 Marking
The minimum marking shall include:
!
 the business name and full address of the manufacturer and, where applicable, his authorised
representative;
 designation of the machinery;
3)
 mandatory marking;"
 designation of series or type;
 serial number if any;
 rating information (mandatory for electrical products: voltage, frequency, power, …);
!
 the year of construction, that is the year in which the manufacturing process is completed."
8.2 Noise declaration
The instruction handbook shall give the declared noise emission values of the machinery and give the
reference to the noise test code in Annex C and to the basic noise emission standards on which the
determination of these values is based.

3) !For machines and their related products intended to be put on the market in the EEA, CE marking as defined in
the applicable European Directive(s), e.g. Machinery."

Annex A
(normative)
Principles of design to ensure the cleanability of planetary mixers
A.1 Definitions
For the purpose of this annex, the following definitions apply.
A.1.1 easily cleanable
Designed and constructed to permit the elimination of soil by a simple cleaning method (e.g. hand and
sponge).
A.1.2 fitted surfaces
Surfaces separated by a distance less than or equal to 0,5 mm.
A.1.3 joined surfaces
Surfaces between which no particle of product becomes trapped in small crevices, thus becoming difficult to
dislodge and so introduce a contamination hazard.
A.2 Materials of construction
A.2.1 Type of materials
A.2.1.1 Materials for food area:
Some materials (e.g. plastics) shall be the subject to overall or specific migration tests.
NOTE European Directives give the list of materials in contact with food and foods intended for human consumption.
Materials not mentioned in the European Directives are accepted as long as food compatibility is proven.
A.2.1.2 Materials for splash area
See 5.2.2 in EN 1672-2:1997.
A.2.1.3 Non food area
See 5.2.3 in EN 1672-2:1997.
A.2.2 Surface conditions
The surface finish of materials used on surfaces shall permit easy cleaning under satisfactory conditions. The
roughness values (R ) according to ISO 468 shall comply with the values given in tables A.1 and A.2.
z
A.2.2.1 Surface condition for food area
Table A.1
Technique of construction Roughness (R )
z
Drawn - rolled - spun
≤ 25
Moulded - cast
≤ 30
Machined
≤ 25
Injected
- metal
≤ 25
- plastics
≤ 25
Coating
- paint (test reservation)
≤ 16
- plastics (test revervation)
≤ 16
- glass
≤ 16
- metal (test reservation)
≤ 16
A.2.2.2 Surface condition for splash area
Table A.2
Technique of construction Roughness (R )
z
Drawn - rolled - spun
≤ 30
Moulded - cast
≤ 40
Machined
≤ 40
Injected
- metals
≤ 40
- plastic
≤ 40
Coating
- paint
≤ 30
- plastics
≤ 30
- glass
≤ 30
- metal
≤ 30
A.3 Design
A.3.1 Connections of internal surfaces
Connections shall have the same roughness as the connected surfaces. These shall be designed to avoid any
dead space, see EN 1672-2:1997.
A.3.1.1 Connections of internal surfaces for food area
Two surfaces shall be connected according to:
 rounded edge having a radius greater than a curve of minimum radius (r ) of 3 mm obtained by:
 machining (cutting into material mass);
 bending the sheet metal (bending and forming);
 design (in moulds, shells of foundry, injection
...
