EN 663:1994
(Main)Resilient floor coverings - Determination of conventional pattern depth
Resilient floor coverings - Determination of conventional pattern depth
This European Standard specifies three methods for determining conventional pattern depth by change in appearance of the characteristics of the pattern of resilient floor coverings which are classified as follows: Group 1: Patterns where the different bands (in colour and/or relief) are distributed in a uniform manner, wher the ration of pattern to background in small areas of 0,01 m2 to 0,02 m2 in not more than 1:4; Group 2: Patterns where this ration varies considerably where some areas of 0,01 m2 to 0,02 m2 may contain only one part of the pattern.
Elastische Bodenbeläge - Bestimmung der Dekortiefe
Diese Europäische Norm legt drei Verfahren zur Bestimmung der der Dekortiefe durch Aussehensveränderung der Dekors von elastischen Bodenbelägen fest, die wie folgt unterschieden werden: Gruppe 1: Dekors, bei denen die verschiedenen Aussehensbereiche (Farbe und/oder Relief) sich in einer gleichmässigen Folge wiederholen, wobei bei kleinen Bereichen von 0,01 m2 bis 0,02 m2 das Verhältnis zwischen Dekor und Hintergrund nicht grösser als 1/4 ist; Gruppe 2: Dekors, bei denen dieses Verhältnis beträchtlich schwankt, wobei einige Bereiche von 0,01 m2 bis 0,02 m2 möglicherweise nur einen Teil der Dekors enthalten.
Revêtements de sol résilients - Détermination de la profondeur conventionnelle du décor
La présente Norme Européenne prescrit trois méthodes de détermination de la profondeur conventionnelle du décor par le changement d'aspect des caractéristiques du décor des revêtements de sol résilients. Les différents décors sont classés de la manière suivante: Groupe 1: Décors où les plages d'aspect différent (couleur et/ou relief) sont réparties de façon uniforme et où le rapport "décor/fond" en petites surfaces comprises entre 1 dm2 et 2 dm2 n'est pas supérieur à 1/4; Groupe 2: Décors pour lesquels ce rapport varie de manière considérable.
Netekstilne talne obloge - Ugotavljanje dogovorjene globine dekorja
General Information
- Status
- Published
- Publication Date
- 13-Nov-1994
- Withdrawal Date
- 30-May-1995
- Technical Committee
- CEN/TC 134 - Resilient and textile floor coverings
- Drafting Committee
- CEN/TC 134/WG 7 - Resilient floor coverings
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 23-Apr-2021
- Completion Date
- 28-Jan-2026
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 28-Jan-2026
- Referred By
EN 1818:1998 - Resilient floor coverings - Determination of the effect of loaded heavy duty castors - Effective Date
- 28-Jan-2026
- Referred By
EN 13378:2001 - Pasta processing plants - Pasta presses - Safety and hygiene requirements - Effective Date
- 28-Jan-2026
- Referred By
EN 13378:2001+A1:2013 - Pasta processing plants - Pasta presses - Safety and hygiene requirements - Effective Date
- 28-Jan-2026
- Referred By
EN 12041:2000+A1:2009 - Food processing machinery - Moulders - Safety and hygiene requirements - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 12342:1998+A1:2009 - Breathing tubes intended for use with anaesthetic apparatus and ventilators - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 453:2000+A1:2009 - Food processing machinery - Dough mixers - Safety and hygiene requirements - Effective Date
- 28-Jan-2026
Overview
EN 663:1994 is a CEN (European) standard that defines how to measure the conventional pattern depth of resilient floor coverings. The standard specifies three methods for determining pattern depth based on changes in the appearance of the flooring pattern. It is used to classify and quantify the visual relief and colour-pattern depth of non-textile resilient floor coverings for quality control, specification and comparative testing.
Key topics and technical requirements
- Scope: Measurement of conventional pattern depth for resilient (non-textile) floor coverings.
- Three measurement methods: The standard prescribes three distinct methods to assess pattern depth by observing change in appearance. (EN 663:1994 gives procedural detail in the full text.)
- Pattern classification: Flooring patterns are classified into two groups:
- Group 1: Patterns with uniformly distributed bands (colour and/or relief). The pattern-to-background ratio in small areas of 0.01 m² to 0.02 m² is not more than 1:4.
- Group 2: Patterns with highly variable distribution; some small areas (0.01 m² to 0.02 m²) may contain only a single part of the pattern.
- Applicable materials: Non‑textile resilient floor coverings (ICS 97.150).
- Standard identification: CEN European Standard EN 663:1994 (adopted nationally in some countries, e.g., SIST EN 663:1999 in Slovenia).
Practical applications
Who uses EN 663:1994 and why:
- Manufacturers - for product development, in-house QC and to ensure consistent pattern reproduction across production batches.
- Independent test laboratories - to perform standardized, repeatable measurements of pattern depth for certification and compliance testing.
- Specifiers, architects and interior designers - to compare visual texture and relief between products when selecting coverings for aesthetic or performance reasons.
- Contractors and procurement teams - to verify supplied materials match contract or tender specifications.
- Regulatory bodies and conformity assessment organizations - for harmonized assessment when pattern appearance is part of performance criteria.
Related standards
- Other CEN standards on resilient floor coverings cover properties such as wear resistance, slip resistance and dimensional tolerances. When specifying or testing flooring, combine EN 663:1994 with relevant performance standards to get a complete assessment.
Keywords: EN 663:1994, resilient floor coverings, conventional pattern depth, pattern depth determination, CEN standard, floor covering testing.
Frequently Asked Questions
EN 663:1994 is a standard published by the European Committee for Standardization (CEN). Its full title is "Resilient floor coverings - Determination of conventional pattern depth". This standard covers: This European Standard specifies three methods for determining conventional pattern depth by change in appearance of the characteristics of the pattern of resilient floor coverings which are classified as follows: Group 1: Patterns where the different bands (in colour and/or relief) are distributed in a uniform manner, wher the ration of pattern to background in small areas of 0,01 m2 to 0,02 m2 in not more than 1:4; Group 2: Patterns where this ration varies considerably where some areas of 0,01 m2 to 0,02 m2 may contain only one part of the pattern.
This European Standard specifies three methods for determining conventional pattern depth by change in appearance of the characteristics of the pattern of resilient floor coverings which are classified as follows: Group 1: Patterns where the different bands (in colour and/or relief) are distributed in a uniform manner, wher the ration of pattern to background in small areas of 0,01 m2 to 0,02 m2 in not more than 1:4; Group 2: Patterns where this ration varies considerably where some areas of 0,01 m2 to 0,02 m2 may contain only one part of the pattern.
EN 663:1994 is classified under the following ICS (International Classification for Standards) categories: 97.150 - Floor coverings. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 663:1994 has the following relationships with other standards: It is inter standard links to EN 4816:2017, EN 1818:1998, EN 13378:2001, EN 13378:2001+A1:2013, EN 12041:2000+A1:2009, EN 650:2012, EN ISO 14577-1:2002, EN 13379:2001+A1:2013, EN 1974:1998+A1:2009, EN 3275:2002, EN 13289:2001+A1:2013, EN 12342:1998+A1:2009, EN 13379:2001, EN 14521:2004, EN 453:2000+A1:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 663:1994 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 663:1994 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

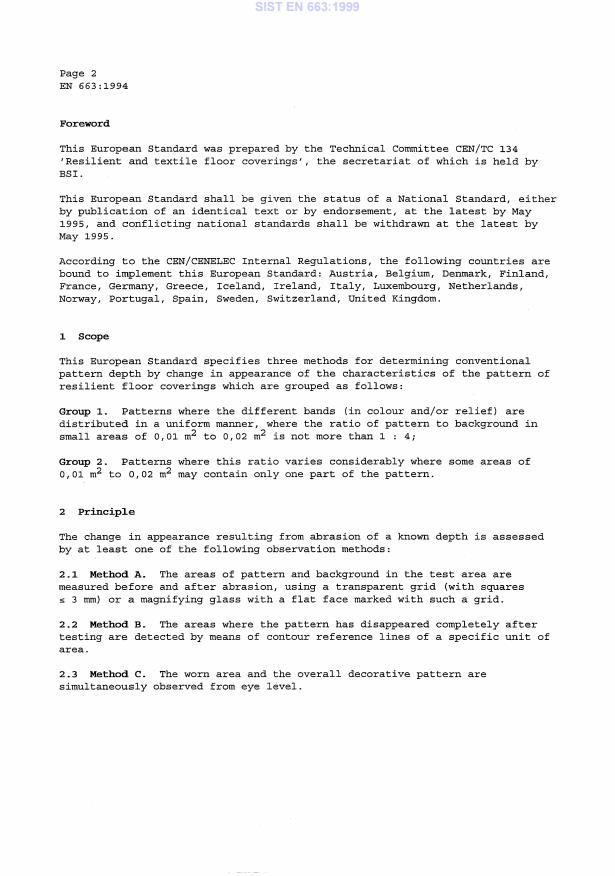

Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-1999
Netekstilne talne obloge - Ugotavljanje dogovorjene globine dekorja
Resilient floor coverings - Determination of conventional pattern depth
Elastische Bodenbeläge - Bestimmung der Dekortiefe
Revetements de sol résilients - Détermination de la profondeur conventionnelle du décor
Ta slovenski standard je istoveten z: EN 663:1994
ICS:
97.150 Netekstilne talne obloge Non-textile floor coverings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov teg
...
