EN 13238:2010

(Main)

Reaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates

Reaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates

This European Standard describes the conditioning procedures for test specimens which will be tested according to the European standards for reaction to fire.
The rules for the selection of substrates for construction products when carrying out reaction to fire tests are also detailed in this European Standard.
This European Standard does not contain requirements for
-   the pre-drying of test specimens for the non-combustibility test according EN ISO 1182;
-   methods of cleaning (e.g. washing) and other methods for the assessment of durability aspects, which are dealt with in the relevant product standards.

Prüfungen zum Brandverhalten von Bauprodukten - Konditionierungsverfahren und allgemeine Regeln für die Auswahl von Trägerplatten

Diese Europäische Norm beschreibt die Verfahren zur Konditionierung von Probekörpern, die nach Europäischen Normen für das Brandverhalten geprüft werden.
Die Regeln für die Auswahl von Trägerplatten für Bauprodukte zur Durchführung von Prüfungen zum Brandverhalten werden ebenfalls in dieser Europäischen Norm behandelt.
Diese Europäische Norm enthält keine Anforderungen an
-   die Vortrocknung von Probekörpern für die Nichtbrennbarkeitsprüfung nach EN ISO 1182 sowie an;
-   die Reinigungsverfahren (z. B. Waschen) und weitere Verfahren zur Beurteilung der Dauerhaftigkeit, da diese in den jeweiligen Produktnormen behandelt werden.

Essais de réaction au feu des produits de construction - Modes opératoires de conditionnement et règles générales de sélection des substrats

La présente norme européenne spécifie pour les essais de réaction au feu les modes opératoires de conditionnement des éprouvettes de produits de construction, ainsi que les règles de sélection des substrats pour le revêtement de sol et les produits de surface des murs/plafonds.
La présente norme européenne ne traite pas des modes opératoires de pré-séchage de l'EN ISO 1182, ni les modes opératoires de lavage et de nettoyage par rapport à la durabilité, lesquels sont abordés dans les normes produits.

Preskusi odziva gradbenih proizvodov na ogenj - Postopki kondicioniranja in splošna pravila za izbiro podlag

Ta evropski standard opisuje postopke kondicioniranja za preskusne primerke, ki bodo preskušeni v skladu z evropskimi standardi za odziv na ogenj. Pravila za izbor substratov za gradbene proizvode, ko se izvajajo preskusi odzivnosti na ogenj, so prav tako podrobno opisana v tem evropskem standardu. Ta evropski standard ne vsebuje zahtev za – predsušenje preskusnih primerkov za preskus negorljivosti v skladu z EN ISO 1182; - metode za čiščenje (npr. pranje) in druge metode za ocenjevanje vidikov vzdržljivosti, ki so obravnavani v ustreznih proizvodnih standardih.

General Information

Status
Published
Publication Date
09-Feb-2010
Withdrawal Date
30-Aug-2010
ICS
13.220.50 - Fire-resistance of building materials and elements
Technical Committee
CEN/TC 127 - Fire safety in buildings
Drafting Committee
CEN/TC 127/WG 4 - Reaction to fire
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
10-Feb-2010
Due Date
02-Feb-2010
Completion Date
10-Feb-2010
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
89/106/EEC - Construction products
Mandate
M/117 - Horizontal complement to the mandates to CEN/CENELEC concerning the execution of standardization work for the valuation of construction products and elements in respect of their resistance to fire
Ref Project
SIST EN 13238:2010 - Reaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates

Relations

Replaces
EN 13238:2001 - Reaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates
Effective Date
08-Jun-2022
Revised
prEN 13238 - Reaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates
Effective Date
26-Apr-2017

Buy Standard

EN 13238:2010EN 13238:2010
PreviousNext
Standard
EN 13238:2010
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

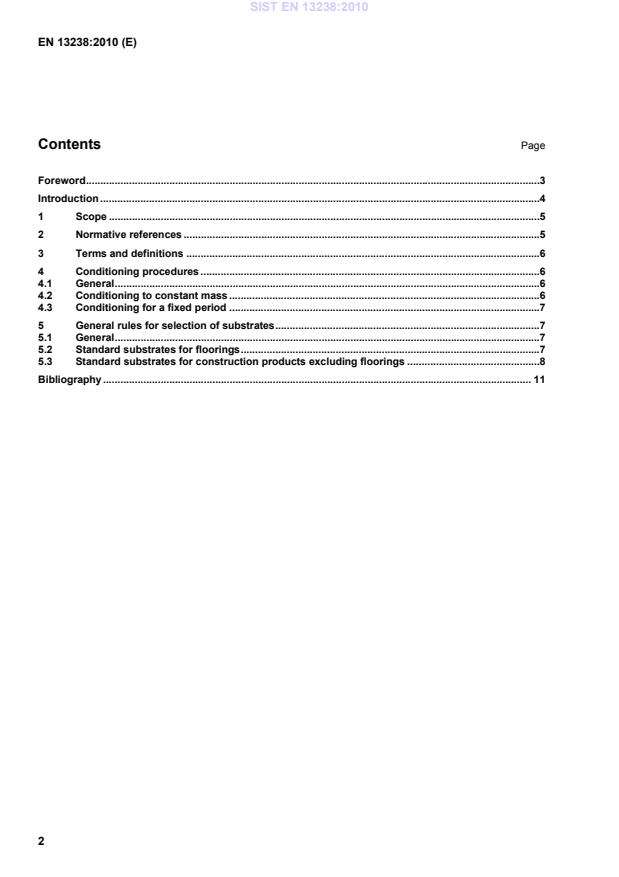

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Preskusi odziva gradbenih proizvodov na ogenj - Postopki kondicioniranja in splošna pravila za izbiro podlagPrüfungen zum Brandverhalten von Bauprodukten - Konditionierungsverfahren und allgemeine Regeln für die Auswahl von TrägerplattenEssais de réaction au feu des produits de construction - Mode opératoire du conditionnement et règles générales de sélection des substratsReaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates13.220.50Požarna odpornost gradbenih materialov in elementovFire-resistance of building materials and elementsICS:Ta slovenski standard je istoveten z:EN 13238:2010SIST EN 13238:2010en,de01-junij-2010SIST EN 13238:2010SLOVENSKI
STANDARDSIST EN 13238:20021DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13238
February 2010 ICS 13.220.50 Supersedes EN 13238:2001English Version
Reaction to fire tests for building products - Conditioning procedures and general rules for selection of substrates
Essais de réaction au feu des produits de construction - Modes opératoires de conditionnement et règles générales de sélection des substrats
Prüfungen zum Brandverhalten von Bauprodukten - Konditionierungsverfahren und allgemeine Regeln für die Auswahl von Trägerplatten This European Standard was approved by CEN on 18 December 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13238:2010: ESIST EN 13238:2010

The Construction Products Directive requires products to be tested in their end use condition which, for the purpose of substrates, could lead to an economically unrealistic large variety of tests to be carried out. This large spectrum has been reduced to a practical number of standard substrates that enables the majority of end use conditions to be represented. Rules for the selection of such substrates are given in this European Standard.
This European Standard is intended for use in conjunction with European Standards covering the reaction to fire test methods for the relevant construction products. SIST EN 13238:2010

1 Scope
This European Standard describes the conditioning procedures for test specimens which will be tested according to the European standards for reaction to fire. The rules for the selection of substrates for construction products when carrying out reaction to fire tests are also detailed in this European Standard.
This European Standard does not contain requirements for  the pre-drying of test specimens for the non-combustibility test according EN ISO 1182;  methods of cleaning (e.g. washing) and other methods for the assessment of durability aspects, which are dealt with in the relevant product standards. 2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
EN 312, Particleboards
Specifications EN 520, Gypsum plasterboards — Definitions, requirements and test methods EN 636, Plywood
Specifications EN 13501-1, Fire classification of construction products and building elements
Part 1: Classification using data from reaction to fire tests EN 13823, Reaction to fire tests for building products
Building products excluding floorings exposed to the thermal attack by a single burning item EN 14306, Thermal insulation products for building equipment and industrial installations
Factory made calcium silicate (CS) products
Specification EN 14390, Fire test
Large-scale room reference test for surface products EN ISO 1182, Reaction to fire tests for building products — Non-combustibility test (ISO 1182:2002) EN ISO 1716, Reaction to fire tests for building products
Determination of the heat of combustion (ISO 1716:2002) EN ISO 9239-1, Reaction to fire tests for floorings — Part 1: Determination of the burning behaviour using a radiant heat source (ISO 9239-1:2002) EN ISO 11925-2, Reaction to fire tests
Ignitability of building products subjected to direct impingement of flame – Part 2: Single-flame source test (ISO 11925-2:2002) EN ISO 13943:2000, Fire safety — Vocabulary (ISO 13943:2000) ISO 390, Products in fibre-reinforced cement — Sampling and inspection ISO 1887, Textile glass — Determination of combustible-matter content
For the purposes of this document, the terms and definitions given in EN ISO 13943:2000 and the following apply. 3.1 material
single basic substance or uniformly dispersed mixture of substances, e.g. metal, stone, timber, concrete, mineral wool with uniformly dispersed binder or polymers 3.2 product mat
...
