EN 15746-4:2020
(Main)Railway applications - Track - Road-rail machines and associated equipment - Part 4: Technical requirements for running, travelling and working on urban rail
Railway applications - Track - Road-rail machines and associated equipment - Part 4: Technical requirements for running, travelling and working on urban rail
1.1 General
This document specifies the technical requirements to minimize the specific railway hazards of self-propelled road-rail machines - henceforward referred to as machines - and associated equipment, intended for use on urban rail. These hazards can arise during the commissioning, the operation and the maintenance of machines when carried out in accordance with the specification given by the manufacturer or his authorized representative. Where a machine is designed and intended for use on mainline and urban rail, the machine will comply with the most onerous conditions of FprEN 15746-1 and FprEN 15746-4. In all cases the machine will comply with the requirements set out in FprEN 15746-2.
The requirements in this document amend those in FprEN 15746-1 as required for the use of the machine on urban railways.
This document does not apply to the following:
- the requirements for quality of the work or performance of the machine;
- the specific requirements established by the machine operator for the use of machines, which will be the subject of negotiation between the manufacturer and the Urban Rail Manager;
- moving and working while not on rails;
- separate machines temporarily mounted on machines and associated equipment.
This document does not establish the additional requirements for the following:
- operation subject to special rules, e.g. potentially explosive atmospheres;
- hazards due to natural causes, e.g. earthquake, lightning, flooding;
- working methods;
- operation in severe working conditions requiring special measures, e.g. extreme environmental conditions such as: freezing temperatures, high temperatures, corrosive environments, tropical environments, contaminating environments, strong magnetic fields;
- hazards occurring when used to handle suspended loads which may swing freely.
For a road-rail machine it is assumed that an EU road permissible host vehicle will offer an accepted safety level for its designed basic functions before conversion. Unless explicitly stated otherwise in a particular clause this specific aspect is not dealt with in this European Standard.
Other track construction and maintenance machines used on railway tracks are dealt with in other European Standards, see Annex B.
1.2 Scope of urban rail
Urban rail systems cover Urban Guided Transport systems (UGT) and might include other rail systems excluded from the scope of the Interoperability Directive 2008/57/EC (Article 1.3 (a) and (b)).
Urban Guided Transport systems (UGT), which cover metro, tram and light rail, are defined as public transport systems permanently guided at least by one rail, intended for the operation of local, urban and suburban passenger services with self-propelled vehicles and operated either segregated or not from general road and pedestrian traffic.
Categories of urban rail systems include:
- (I) Metros: UGT systems operated on their own right of way and segregated from general road and pedestrian traffic. They are consequently designed for operations in tunnel, viaducts or on surface level but with physical separation in such a way that inadvertent access is not possible. In different parts of the world, Metro systems are also known as the underground, the subway or the tube. Rail systems with specific construction issues operating on a segregated guideway (e.g. monorail, rack railways) are also treated as Metros as long as they are designated as part of the urban public transport network.
- (II) Trams: UGT systems not segregated from general road and pedestrian traffic, which share their right of way with general road and/or pedestrian traffic and are therefore embedded in their relevant national road traffic legislation (highway codes and specific adaptations).
(...)
Bahnanwendungen - Oberbau - Zweiwege-Maschinen und zugehörige Ausrüstungen - Teil 4: Technische Anforderungen an das Fahren, die Versetzfahrt und den Arbeitseinsatz in Schienennahverkehrssystemen
1.1 Allgemeines
Dieses Dokument legt die technischen Anforderungen zur Minimierung eisenbahnspezifischer Gefährdungen von selbstangetriebenen Zweiwege-Maschinen – im Folgenden als Maschinen bezeichnet – und ihrer zugehörigen Ausrüstung für den Einsatz auf Schienennahverkehrssystemen fest. Diese Gefährdungen können bei der Inbetriebnahme, im Betrieb und bei der Instandhaltung entstehen, wenn sie den Anweisungen des Herstellers oder seines autorisierten Vertreters entsprechend erfolgen. Wenn eine Maschine für den Einsatz auf Vollbahnen und Schienennahverkehrssystemen ausgelegt und vorgesehen ist, wird die Maschine den strengsten Bedingungen von EN 15746 1 und EN 15746 4 entsprechen. In allen Fällen wird die Maschine den Anforderungen in EN 15746 2 entsprechen.
Die Anforderungen dieses Dokuments ändern jene in EN 15746 1, wie sie für den Einsatz einer Maschine auf Schienennahverkehrssystemen erforderlich sind.
Dieses Dokument ist nicht anzuwenden für:
- Anforderungen an die Qualität von Arbeiten oder an die Leistung der Maschine;
- spezielle Anforderungen für den Einsatz der Maschinen, festgelegt von dem Maschinenbetreiber, die der Absprache zwischen Hersteller und dem Nahverkehrsinfrastrukturbetreiber unterliegen;
- Fahren und Arbeiten auf anderen Untergründen als auf Schienen;
- gesonderte Maschinen/Geräte/Anlagen, die vorübergehend an Maschinen und zugehörige Ausrüstungen angebaut sind.
Dieses Dokument legt nicht die zusätzlichen Anforderungen für Folgendes fest:
- Einsätze, die besonderen Regeln unterliegen, z. B. explosionsgefährdete Umgebungen;
- Gefährdungen aufgrund natürlicher Ursachen, z. B. Erdbeben, Blitzschlag, Überschwemmung;
- Arbeitsverfahren;
- Einsätze unter schwierigen Arbeitsbedingungen, die besondere Maßnahmen erfordern, z. B. unter außergewöhnlichen Bedingungen wie Einsatz bei Frost, hohen Temperaturen, korrosiver Umgebung, tropischer Umgebung, kontaminierter Umgebung, starkem Magnetfeld;
- Gefährdungen durch frei schwingende Lasten.
Für die Umrüstung in eine Zweiwege-Maschine wird davon ausgegangen, dass ein EU-Straßen-zugelassenes Basisfahrzeug ein akzeptiertes Sicherheitsniveau für seine vorgesehenen Grundfunktionen bietet. Sofern es nicht in einem bestimmten Abschnitt ausdrücklich anderes festgelegt ist, wird dieser besondere Aspekt nicht in dieser Europäischen Norm behandelt.
Andere Gleisbau- und Instandhaltungsmaschinen für den Einsatz auf Bahngleisen werden in anderen Europäischen Normen behandelt, siehe Anhang B.
1.2 Anwendungsbereich der Schienennahverkehrssysteme
[...]
1.3 Maschinenkategorie für diese Europäische Norm
[...]
1.4 Gültigkeit dieses Dokuments
[...]
Applications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 4 : Exigences techniques pour la circulation, le déplacement et le travail sur les réseaux ferrés urbains
Le présent document traite des exigences techniques visant à réduire le plus possible les dangers ferroviaires spécifiques aux machines rail-route automotrices (désignées ci-après les « machines ») et aux équipements associés, destinés à emprunter le rail urbain. Ces dangers peuvent survenir lors de la mise en service, l'exploitation et l'entretien des machines, lorsque ces opérations sont effectuées conformément aux spécifications données par le fabricant ou par son représentant agréé. Lorsqu'une machine est conçue et destinée à emprunter le système ferroviaire transeuropéen et les voies ferrées urbaines, la machine doit respecter les conditions les plus rigoureuses établies dans l’EN 15746 1 et l’EN 15746 4. Dans tous les cas, la machine doit satisfaire aux prescriptions de l’EN 15746 2.
Les prescriptions établies dans le présent document modifient celles de l’EN 15746 1 selon l'usage de la machine sur les voies ferrées urbaines.
Le présent document ne s'applique pas :
— aux exigences relatives à la qualité du travail et aux performances de la machine ;
— aux exigences spécifiques établies par l'opérateur de la machine en ce qui concerne l'emploi des machines et qui font l'objet de négociations entre le fabricant et le gestionnaire du réseau ferroviaire urbain ;
— aux modes travail et déplacement lorsque la machine ne circule pas sur les rails ;
— aux machines distinctes montées provisoirement sur les machines ou équipements associés.
Le présent document n'entend pas non plus définir les exigences supplémentaires suivantes :
— mise en œuvre de la machine dans des conditions soumises à des règles particulières (par exemple, atmosphères potentiellement explosives) ;
— dangers dus à des causes naturelles (tremblement de terre, foudre, inondation, etc.) ;
— méthodes de travail ;
— exploitation de la machine dans des conditions de travail rigoureuses nécessitant des mesures particulières ou dans des conditions d'environnement extrêmes (températures très froides ou très élevées, environnements corrosifs, tropicaux ou contaminants, forts champs magnétiques) ;
— dangers dus aux mouvements de charges librement suspendues susceptibles de se balancer.
Pour une machine rail-route, il est supposé qu'un véhicule-hôte autorisé à circuler sur le réseau routier au sein de l'Union européenne offrira un niveau de sécurité acceptable pour ses fonctions de base avant conversion. Sauf spécification contraire explicite dans un article particulier, cet aspect spécifique n'est pas traité dans la présente Norme européenne.
Les autres machines de construction et de maintenance de la voie empruntant également les voies ferrées sont couvertes par d'autres Normes européennes (voir Annexe B).
Železniške naprave - Zgornji ustroj proge - Dvopotna železniška vozila in oprema - 4. del: Tehnične zahteve za obratovanje, vožnjo in delovanje mestne železnice
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2021
Železniške naprave - Zgornji ustroj proge - Dvopotna železniška vozila in oprema -
4. del: Tehnične zahteve za obratovanje, vožnjo in delovanje mestne železnice
Railway applications - Track - Road-rail machines and associated equipment - Part 4:
Technical requirements for running, travelling and working on urban rail
Bahnanwendungen - Oberbau - Zweiwege-Maschinen und zugehörige Ausrüstungen -
Teil 4: Technische Anforderungen an das Fahren, Versetzen und Arbeiten in städtischen
Schienennahverkehrssystemen
Applications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 4 :
Exigences techniques pour la circulation, le déplacement et le travail sur les réseaux
ferrés urbains
Ta slovenski standard je istoveten z: EN 15746-4:2020
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 15746-4
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2020
EUROPÄISCHE NORM
ICS 93.100
English Version
Railway applications - Track - Road-rail machines and
associated equipment - Part 4: Technical requirements for
running, travelling and working on urban rail
Applications ferroviaires - Voie - Machines rail-route et Bahnanwendungen - Oberbau - Zweiwege-Maschinen
équipements associés - Partie 4 : Prescriptions und zugehörige Ausrüstungen - Teil 4: Technische
techniques pour la circulation, le déplacement et le Anforderungen an das Fahren, Versetzen und Arbeiten
travail sur réseau ferroviaire urbain in städtischen Schienennahverkehrssystemen
This European Standard was approved by CEN on 5 May 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15746-4:2020 E
worldwide for CEN national Members.

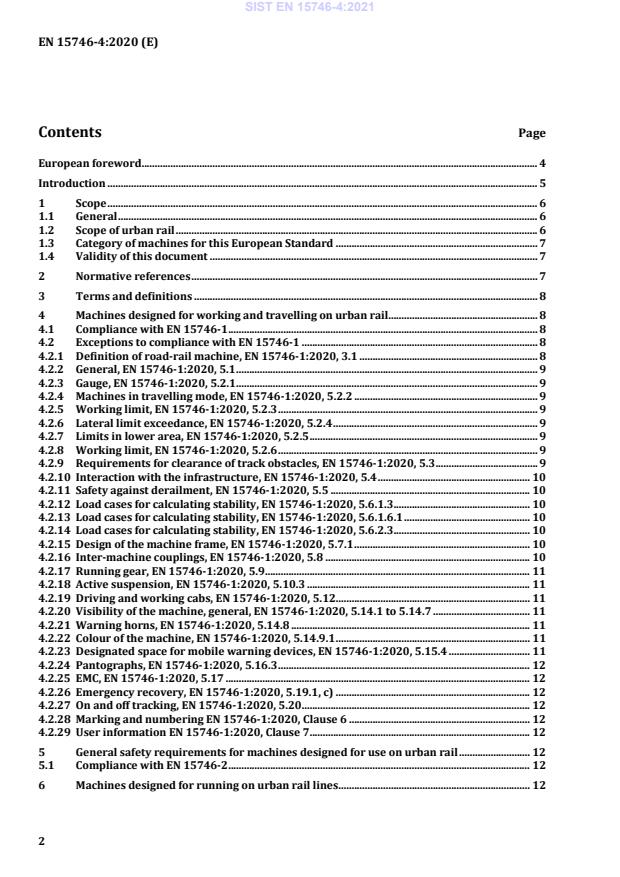

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
1.1 General . 6
1.2 Scope of urban rail . 6
1.3 Category of machines for this European Standard . 7
1.4 Validity of this document . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Machines designed for working and travelling on urban rail. 8
4.1 Compliance with EN 15746-1 . 8
4.2 Exceptions to compliance with EN 15746-1 . 8
4.2.1 Definition of road-rail machine, EN 15746-1:2020, 3.1 . 8
4.2.2 General, EN 15746-1:2020, 5.1 . 9
4.2.3 Gauge, EN 15746-1:2020, 5.2.1 . 9
4.2.4 Machines in travelling mode, EN 15746-1:2020, 5.2.2 . 9
4.2.5 Working limit, EN 15746-1:2020, 5.2.3 . 9
4.2.6 Lateral limit exceedance, EN 15746-1:2020, 5.2.4 . 9
4.2.7 Limits in lower area, EN 15746-1:2020, 5.2.5 . 9
4.2.8 Working limit, EN 15746-1:2020, 5.2.6 . 9
4.2.9 Requirements for clearance of track obstacles, EN 15746-1:2020, 5.3 . 9
4.2.10 Interaction with the infrastructure, EN 15746-1:2020, 5.4 . 10
4.2.11 Safety against derailment, EN 15746-1:2020, 5.5 . 10
4.2.12 Load cases for calculating stability, EN 15746-1:2020, 5.6.1.3. 10
4.2.13 Load cases for calculating stability, EN 15746-1:2020, 5.6.1.6.1 . 10
4.2.14 Load cases for calculating stability, EN 15746-1:2020, 5.6.2.3. 10
4.2.15 Design of the machine frame, EN 15746-1:2020, 5.7.1 . 10
4.2.16 Inter-machine couplings, EN 15746-1:2020, 5.8 . 10
4.2.17 Running gear, EN 15746-1:2020, 5.9 . 11
4.2.18 Active suspension, EN 15746-1:2020, 5.10.3 . 11
4.2.19 Driving and working cabs, EN 15746-1:2020, 5.12. 11
4.2.20 Visibility of the machine, general, EN 15746-1:2020, 5.14.1 to 5.14.7 . 11
4.2.21 Warning horns, EN 15746-1:2020, 5.14.8 . 11
4.2.22 Colour of the machine, EN 15746-1:2020, 5.14.9.1 . 11
4.2.23 Designated space for mobile warning devices, EN 15746-1:2020, 5.15.4 . 11
4.2.24 Pantographs, EN 15746-1:2020, 5.16.3 . 12
4.2.25 EMC, EN 15746-1:2020, 5.17 . 12
4.2.26 Emergency recovery, EN 15746-1:2020, 5.19.1, c) . 12
4.2.27 On and off tracking, EN 15746-1:2020, 5.20 . 12
4.2.28 Marking and numbering EN 15746-1:2020, Clause 6 . 12
4.2.29 User information EN 15746-1:2020, Clause 7 . 12
5 General safety requirements for machines designed for use on urban rail . 12
5.1 Compliance with EN 15746-2 . 12
6 Machines designed for running on urban rail lines . 12
6.1 Compliance with EN 15746-3 . 12
6.2 Requirements for machines running on urban rail . 12
6.2.1 Signalling . 12
6.2.2 Route selection . 13
6.2.3 Communication . 13
7 Instruction handbook . 13
Annex A (normative) Special national conditions . 14
Annex B (informative) Structure of European Standards for track construction and
maintenance machines . 15
Bibliography . 17
European foreword
This document (EN 15746-4:2020) has been prepared by Technical Committee CEN/TC 256 “Railway
applications”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2021, and conflicting national standards shall be
withdrawn at the latest by June 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
EN 15746, Railway applications — Track — Road-rail machines and associated equipment, is currently
composed with the following parts:
— Part 1: Technical requirements for travelling and working;
— Part 2: General safety requirements;
— Part 3: Technical requirements for running;
— Part 4: Technical requirements for running, travelling and working on urban rail.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
This document is the fourth of a series of four parts of the European Standard: Railway applications —
Track — Road-rail machines and associated equipment, dealing with railway specific risks of the road-
rail machines when running, travelling and working on railway infrastructures:
— Part 1 covers the technical requirements for the machines in travelling and working modes, and is
applicable for all machines.
— Part 2 covers the safety requirements for the machines in travelling and working modes; this is a
document harmonized with the European Machinery Directive 2006/42/EC.
— Part 3 covers the essential requirements for the machines that have a running mode and run on
tracks within the scope of the Railway Directive 2007/58/EC; this is a document harmonized with
the Railway Interoperability Directive 2008/57/EC and its associated Technical Specifications for
Interoperability (TSI).
— Part 4 covers the technical requirements for the machines intended to have running, travelling
and/or working mode on urban rail.
Part 1 defines requirements for approval of the machine for use on the railway. Depending on the
decision of the Infrastructure Manager or National rules the assessment of conformance could be by the
Infrastructure Manager concerned, by a third party assessor or declaration of conformity by the
manufacturer.
Part 2 defines requirements for the machine to be declared conformant by the manufacturer, except in
the case of machines classified under Annex 4 of the Machinery Directive, which require a conformity
check in conjunction with a notified body.
Part 3 defines requirements for running on the European railway network. Assessment of conformity is
by a notified body as prescribed in the Railway Interoperability Directive.
Part 4 defines requirements for approval of the machine for use
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
