EN 81-21:2018

SLOVENSKI STANDARD
01-julij-2018
1DGRPHãþD
SIST EN 81-21:2009+A1:2012
9DUQRVWQDSUDYLOD]DNRQVWUXLUDQMHLQYJUDGQMRGYLJDOOLIWRY'YLJDOD]DSUHYR]
RVHELQEODJDGHO1RYDRVHEQDLQWRYRUQRRVHEQDGYLJDODYREVWRMHþLK
VWDYEDK
Safety rules for the construction and installation of lifts - Lifts for the transport of persons
and goods - Part 21: New passenger and goods passenger lifts in existing building
Sicherheitsregeln für die Konstruktion und den Einbau von Aufzügen - Aufzüge für die
Personen- und Gütertransport - Teil 21: Neue Personen- und Lastenaufzüge in
bestehenden Gebäuden
Règles de sécurité pour la construction et l'installation des élévateurs - Elévateur pour le
transport de personnes et d'objets - Partie 21 : Ascenseurs et ascenseurs de charge
neufs dans les bâtiments existants
Ta slovenski standard je istoveten z: EN 81-21:2018
ICS:
91.140.90 'YLJDOD7HNRþHVWRSQLFH Lifts. Escalators
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 81-21
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2018
EUROPÄISCHE NORM
ICS 91.140.90 Supersedes EN 81-21:2009+A1:2012
English Version
Safety rules for the construction and installation of lifts -
Lifts for the transport of persons and goods - Part 21: New
passenger and goods passenger lifts in existing building
Règles de sécurité pour la construction et l'installation Sicherheitsregeln für die Konstruktion und den Einbau
des élévateurs - Elévateur pour le transport de von Aufzügen - Aufzüge für den Personen- und
personnes et d'objets - Partie 21 : Ascenseurs et Gütertransport - Teil 21: Neue Personen- und
ascenseurs de charge neufs dans les bâtiments Lastenaufzüge in bestehenden Gebäuden
existants
This European Standard was approved by CEN on 11 May 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 81-21:2018 E
worldwide for CEN national Members.

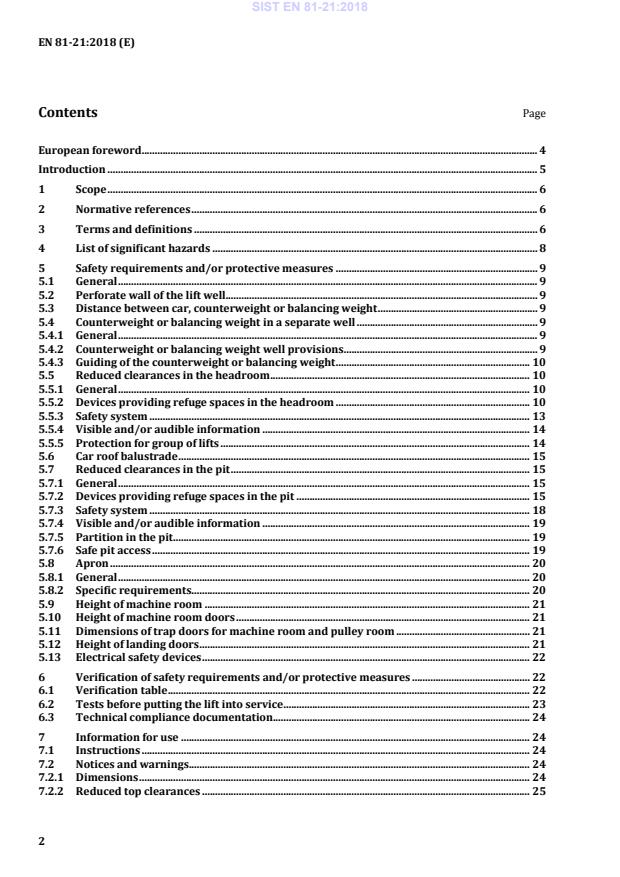

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 List of significant hazards . 8
5 Safety requirements and/or protective measures . 9
5.1 General . 9
5.2 Perforate wall of the lift well. 9
5.3 Distance between car, counterweight or balancing weight . 9
5.4 Counterweight or balancing weight in a separate well . 9
5.4.1 General . 9
5.4.2 Counterweight or balancing weight well provisions. 9
5.4.3 Guiding of the counterweight or balancing weight . 10
5.5 Reduced clearances in the headroom . 10
5.5.1 General . 10
5.5.2 Devices providing refuge spaces in the headroom . 10
5.5.3 Safety system . 13
5.5.4 Visible and/or audible information . 14
5.5.5 Protection for group of lifts . 14
5.6 Car roof balustrade . 15
5.7 Reduced clearances in the pit . 15
5.7.1 General . 15
5.7.2 Devices providing refuge spaces in the pit . 15
5.7.3 Safety system . 18

5.7.4 Visible and/or audible information . 19
5.7.5 Partition in the pit . 19
5.7.6 Safe pit access . 19
5.8 Apron . 20
5.8.1 General . 20
5.8.2 Specific requirements . 20
5.9 Height of machine room . 21
5.10 Height of machine room doors . 21
5.11 Dimensions of trap doors for machine room and pulley room . 21
5.12 Height of landing doors . 21
5.13 Electrical safety devices . 22
6 Verification of safety requirements and/or protective measures . 22
6.1 Verification table . 22
6.2 Tests before putting the lift into service . 23
6.3 Technical compliance documentation. 24
7 Information for use . 24
7.1 Instructions . 24
7.2 Notices and warnings . 24
7.2.1 Dimensions . 24
7.2.2 Reduced top clearances . 25
7.2.3 Extendable balustrade . 25
7.2.4 Reduced bottom clearances . 25
7.2.5 Extendable car apron . 26
Annex A (normative) List of the electric safety devices . 27
Annex B (informative) Periodic examinations and tests, examinations and tests after an
important modification or after an accident . 28
B.1 Periodic examinations and tests . 28
B.2 Examinations and tests after an important modification or after an accident . 28
Annex C (normative) Examination of pre-triggered stopping system . 29
C.1 General provisions . 29
C.2 Statement and test samples . 29
C.3 Laboratory tests . 30
C.4 Calculation. 31
C.5 Test report . 33
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/33/EU aimed to be covered . 34

European foreword
This document (EN 81-21:2018) has been prepared by Technical Committee CEN/TC 10 “Lifts,
escalators and moving walks”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2018 and conflicting national standards
shall be withdrawn at the latest by September 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 81-21:2009+A1:2012.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
The main changes with respect to the previous edition (EN 81-21:2009+A1:2012) are as follows:
— updating of references and their associated requirements with regard to EN 81-20:2014;
— removal of duplicated text in reference to the requirements for refuge spaces expressed in
EN 81-20:2014;
— replacement of Annex ZA with regard to the commission mandate M/549/C(2016) 5844 Final and
Directive 2014/33/EU.
This standard is part of the EN 81 series of standards “Safety rules for the construction and installation of
lifts”. This is the second edition.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Introduction
This document is a type C standard as stated in EN ISO 12100.
When provisions of this type C standard are different from those stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for
machines that have been designed and built according to the provisions of this type C standard.
The machinery concerned and the extent to which hazards, hazardous situations and events are
covered are indicated in the scope of this document.
Where one or several requirements in EN 81-20:2014 cannot be fulfilled, due to reasons such as the
constraints of the structure of the existing building, the corresponding requirements in this European
Standard apply. According to section 2.2 of Annex I to the Lifts Directive, the application of alternative
measures to prevent the risk of crushing above and underneath the lift car is restricted to installations
where the requirement for free space or refuge is impossible to fulfil and may be subject to prior
approval by national authorities.
The main concern dealt with in this standard is the reduction of top and pit clearances that may be
required due to site conditions. The adopted principle of safety is based on two levels of achievement:
first by means of an electrical stopping of the lift car, then by means of a mechanical stopping of the lift
car.
When drafting this standard, it has been considered for reduced overhead and pit the following:
a) Risk reduction measures that rely solely on operations in compliance with procedures are
considered as not acceptable, except in a few situations in which mistake-proof solutions are not
available (e.g. some activities in repair and installation in which safety devices cannot be
operational);
b) The risk reduction measures are automatically (without any intervention) activated, or may be
manually activated if mistake-proof-by-design, or a combination of both is used.
1 Scope
This European Standard specifies the safety rules related to new passenger and goods/passenger lifts
permanently installed in existing buildings where in some circumstances due to limitations enforced by
building constraints, some requirements of EN 81-20:2014 cannot be met.
This European Standard addresses a number of these constraints and gives requirements for
alternative solutions. It will be read and applied in conjunction with the European Standard
EN 81-20:2014.
This European Standard covers:
— either the construction and installation of one or more complete new lift(s) including new well and
machinery spaces in an existing building; or
— the replacement of one or more existing lift(s) by new ones in existing well(s) and machinery
spaces.
This European Standard does not cover:
— replacement or modifications of some parts to a lift already installed;
— other applications outside of the scope of EN 81-20:2014.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 81-20:2014 Safety rules for the construction and installation of lifts - Lifts for the transport of persons
and goods - Part 20: Passenger and goods passenger lifts
EN ISO 12100:2010, Safety of machinery - General principles for design - Risk assessment and risk
reduction (ISO 12100:2010)
EN ISO 13857:2008, Safety of machinery - Safety distances to prevent hazard zones being reached by
upper and lower limbs (ISO 13857:2008)
ISO 3864-1:2011, Graphical symbols - Safety colours and safety signs - Part 1: Design principles for safety
signs and safety markings
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100:2010,
EN 81-20:2014 and the following apply.
3.1
existing building
building, which is used or was already used before the order for the lift was placed
Note 1 to entry: A building whose internal structure is completely renewed is considered as a new building.
3.2
movable stop
mechanical device that under normal operation allows the free movement of the lift between normal
terminal stops
Note 1 to entry: Where a person enters on the car roof or in the pit, the device limits the travel of the car to
ensure sufficient refuge space in the headroom or in the pit.
3.3
triggering device
device for operating a stopping gear by a mechanical linkage when the lift car passes a predetermined
position in the well
Note 1 to entry: This device is activated when an access to the lift well is opened by means of a key.
3.4
stopping gear
mechanical device for stopping, and maintaining stationary the lift car in the case of movement of the
lift car above and/or below a predetermined position in the well to protect person(s) on the car roof
and/or in the pit
3.5
pre-triggered stopping system
system including the triggering device, the stopping gear and a mechanical linkage in between
Note 1 to entry: Under normal operation of the lift, the system allows the free movement of the lift between
normal terminal stops. Where a person enters on the car roof or in the pit the system ensures refuge spaces in the
headroom or in the pit.
4 List of significant hazards
This clause contains a list of all the significant hazards, hazardous situations and events, as far as they
are dealt with in this standard, identified by risk assessment as significant for this type of machinery
and which require action to eliminate or reduce the risk (see Table 1).
Table 1 — List of significant hazards
Hazards Relevant clauses in this
No
as listed in Annex B of EN ISO 12100:2010 standard
1 Mechanical hazards due to:
- Machine parts or work pieces, e.g.:
- Accumulation of energy inside the machinery, e.g.:
Crushing hazard 5.5, 5.7
Shearing hazard 5.2 a), 5.4.2
Drawing-in or trapping hazard 5.5.3, 5.7.3
Impact hazard 5.3, 5.4.3, 5.9, 5.10, 5.11, 5.12.
Slip, trip and fall of persons (related to machinery) 5.2 b), 5.4.2, 5.8
- Uncontrolled amplitude of movements 5.4.1, 5.4.3
- From insufficient mechanical strength of parts 5.5.2.3.2 d), 5.6.1.2 a),
5.7.2.3.2 d), 5.8.1
- Falling of person from person carrier 5.6, 5.8.1
8 Hazards generated by neglecting ergonomic principles
in machinery design as, e.g. hazards from:

Access 5.4.2 d), 5.9, 5.10, 5.11, 5.12
Inadequate local lighting 5.4.2 h), 5.4.2 i)
Unhealthy postures 5.5.1
Human error, human behaviour 5.5.4, 5.7.4, 7.2
From abnormal conditions of assembly / testing / use / 5.4, 5.5, 5.6, 5.7, 5.8
maintenance
9 Hazards associated with the environment in which the
machine is used
Failure of the power supply 5.5.2.5.1.1, 5.5.3.1, 5.5.3.2,
5.7.2.5.1.1, 5.7.3.1, 5.7.3.2
Failure of the control circuit 5.5, 5.7
Unexpected start-up, unexpected overrun / overspeed (or
any similar malfunction) from;
- Restoration of energy supply after an interruption 5.5.4, 5.7.4
5 Safety requirements and/or protective measures
5.1 General
Lifts within the scope of this standard shall comply with the relevant safety requirements and/or
protective measures of the following clauses where one or several requirements in EN 81-20:2014
cannot be fulfilled. In addition, the lift shall be designed according to the principles of
EN ISO 12100:2010 for relevant but not significant hazards, which are not dealt with by this standard.
5.2 Perforate wall of the lift well
The requirements for the well enclosure of EN 81-20:2014, 5.2.5.2 are complemented by the following:
Any existing well enclosure may be perforate provided that
a) EN ISO 13857:2008, 4.2.4.2 is fulfilled; and
b) a protective imperforate screen shall be provided around the landing door locking devices in order
to prevent any manipulation of the locking devices by means of a rigid rod 0,30 m long.
NOTE National regulations for the preservation of historical buildings may require the retention of an
existing perforate enclosure.
5.3 Distance between car, counterweight or balancing weight
The requirements of EN 81-20:2014, 5.2.5.5.1 h) for this distance may be replaced by the following:
The car and its associated components shall be at a distance of at least 25 mm from the counterweight
or balancing weight (if there is one) and its associated components.
To avoid any impact between the car (and its associated components) and the counterweight or
balancing weight (and its associated components), in case of failure of normal guidance, emergency
guidance on the car and counterweight shall be provided to maintain the car and the counterweight in
their horizontal position.
5.4 Counterweight or balancing weight in a separate well
5.4.1 General
The counterweight or the balancing weight may be installed in a separate well from the car, provided
that the configuration on site does not permit the installation of a lift having an available car area
sufficient to fulfil the transport needs.
NOTE The standard covers only the installation of one counterweight (or balancing weight) in its own well.
The following requirements shall be met.
5.4.2 Counterweight or balancing weight well provisions
The requirements of EN 81-20:2014, 5.2.5.1.2 are complemented as follows:
In case of a separate well for the counterweight/balancing weight the following requirements apply:
a) all requirements related to the totally enclosed well (EN 81-20:2014, 5.2.1.8 and 5.2.5.2) shall be
fulfilled for the well of the counterweight/balancing weight;
b) inspection doors shall be provided at both ends of the separate well and where necessary between
them to allow safe maintenance and examinations of the well equipment; they shall comply with
EN 81-20:2014, 5.2.3;
c) the distance between inspection doors and equipment requiring maintenance or inspection shall
not exceed 0,7 m;
d) where a safety gear is installed at the counterweight/balancing weight, inspection doors shall-
provide access to be able to inspect and maintain the full travel of the counterweight/balancing
weight;
e) stopping device(s) accessible on opening the inspection doors at both ends of the separate well
shall be provided, in conformity with the requirements of EN 81-20:2014, 5.12.1.11;
f) electric socket outlets accessible on opening the inspection doors at both ends of the well shall be
provided as defined in EN 81-20:2014, 5.10.7.2;
g) the separate well shall be exclusively used for the lift in compliance with EN 81-20:2014, 5.2.1.2;
h) the separate well shall be provided with permanently installed electric lighting, giving an intensity
of at least 50 lux on the equipment requiring maintenance/inspection;
i) means to switch the separate well lighting shall be provided on opening the inspection door at the
lower end of the well.
5.4.3 Guiding of the counterweight or balancing weight
The requirements of EN 81-20:2014, 5.7.1 are supplemented as follows:
When travelling in a separate well, the counterweight or the balancing weight may be guided by ropes
or by the shape of the counterweight or the balancing weight and its well enclosure.
If the counterweight or balancing weight is resting on its buffers it shall be kept in a substantially
upright position by the use of a small distance to the well enclosure or an emergency guiding.
Provisions shall be made so as to avoid the counterweight or the balancing weight to rotate, e.g. by
using equal number of left and right twisted suspension ropes.
Where its shape guides the counterweight or balancing weight, the enclosure of the well shall be
continuous and flush without any protrusion from which the counterweight or the balancing weight can
be blocked. The well enclosure shall be covered by durable material.
In case of ropes as guiding elements a minimum number of 4 ropes shall be used. Springs or weights
shall tighten the ropes. The horizontal free distance between the counterweight or the balancing weight
and the well enclosure shall be at least 50 mm if the enclosure of the well is continuous and flush
otherwise it shall be increased by 2 mm for each meter of distance between the fixations of the ropes.
5.5 Reduced clearances in the headroom
5.5.1 General
The requirements of EN 81-20:2014, 5.2.5.7 may be replaced by the following:
5.5.2 Devices providing refuge spaces in the headroom
5.5.2.1 General
The devices shall be:
a) either movable stops; or
b) a pre-triggered stopping system.
5.5.2.2 Movable stops
5.5.2.2.1 General
Automatically operated movable stops shall be designed to prevent damage due to any collision when
they are moved between the fully retracted and extended position.
5.5.2.2.2 Arrangement
5.5.2.2.2.1 In the case of traction drive lifts, the movable stops shall be installed in such a way as to
act on a downwards travelling counterweight to mechanically stop the car.
5.5.2.2.2.2 In the case of positive drive lifts, the movable stops shall be installed in such a way as to
act on an upwards travelling car to mechanically stop the car.
5.5.2.2.2.3 In the case of hydraulic lifts, the movable stops shall consist of one or more devices
external to the jack situated outside of the car projection, the resultant force of which is exerted on the
centre line of the jack.
5.5.2.2.3 Buffering of movable stops
5.5.2.2.3.1 In the case of traction and positive drive lifts the movable stops shall incorporate buffers
or act on buffers complying with EN 81-20:2014, 5.8.1 and 5.8.2.
5.5.2.2.3.2 In the case of hydraulic lifts the design of the movable stops shall be such that the
average retardation of the car does not exceed 1 g and that in case of an indirect acting lift the
n
retardation does not result in slack rope or chain.
5.5.2.3 Pre-triggered stopping system
5.5.2.3.1 General
The pre-triggered stopping system shall include a triggering device with its actuation means for
tripping a mechanical stopping gear by a linkage when the car reaches a fixed tripping point in the up
direction.
5.5.2.3.2 The triggering device shall be easily accessible so that examinations and maintenance
operations can be carried out in complete safety from the pit, or from the car roof or from outside of the
well.
5.5.2.3.3 The pre-triggered stopping system shall comply with the following:
a) the stopping gear shall be fixed on the car and act on the guide rails of the car;
b) the stopping gear shall be tripped by a mechanical triggering device using a mechanical linkage for
the tripping operation;
c) the stopping gear shall be kept tripped by the triggering device and the linkage when the car is at
any position above the tripping point;
in case of a release of the stopping gear due to dynamic effects or rescue operations it shall be re-
engaged when the car moves again in up direction above the tripping point keeping the required
refuge space;
d) the stopping gear shall be operated positively;
1) where springs are used they shall act by compression and be guided;
2) where a rope is used the minimum breaking load of the rope shall be related by a safety factor
of at least 8 to the tensile force created during operation of the stopping gear;
e) the force required to activate the stopping gear shall be at least the greater of the following two
values:
1) twice the engagement force of the stopping gear taking into consideration the tolerances due to
friction;
2) 300 N.
f) the stopping gear shall operate an electric safety device in conformity with EN 81-20:2014, 5.11.2,
if it is engaged;
g) when the stopping gear has been tripped, the return to normal operation shall require the
intervention of a person competent in maintenance procedures;
h) after the release, the stopping gear shall be in a condition to operate;
i) The triggering device shall be protected against the accidental insertion of objects and from dirt
and corrosion such that its operation is not affected;
j) the pre-triggered stopping system shall be able to stop the car and keep it stopped from any speed
between zero and the tripping speed of the ascending car overspeed protections means;
k) the maximum retardation by the stopping gear shall not exceed 1 g in the worst condition as
n
validated according to Annex C;
l) when the stopping gear operates, the floor of the car with or without the load uniformly distributed
shall not incline more than 5 % from its normal position;
m) the pre-triggered stopping system shall be designed and verified according to the requirements in
Annex C.
5.5.2.4 Clearances
When the buffers according to 5.5.2.2.3.1 are fully compressed or when the car is stopped by the pre-
triggered stopping system the refuge spaces on car roof and clearances in the headroom shall comply
with EN 81-20:2014, 5.2.5.7.
5.5.2.5 Operation
5.5.2.5.1 General
The movable stops or the triggering device shall be operated:
a) automatically at the latest when the safety system (5.5.3) has been activated; or
b) manually.
5.5.2.5.2 In the case of power failure to devices providing clearances:
a) the automatic movable stops or the automatic triggering device shall be activated and maintained
in the active position at least up to power restoration;
b) for manually operated movable stops or for manually operated triggering devices, a mechanical
safety device shall maintain the car stationary. This device shall be activated and maintained in the
active position at least up to power restoration.
5.5.2.5.3 For traction drive lifts, in the case of manual operation of moveable stops or manual
operation of triggering devices, the mechanical safety device according to 5.5.2.5.2 b) shall be operated
by the safety system (5.5.3), in order to prevent any movement of the car in the up direction if the
movable stops or the triggering device is not in the active position.
5.5.2.6 Electrical monitoring
The movable stops or the triggering device shall be provided with electric safety devices according to
EN 81-20:2014, 5.11.2 that monitor:
a) the fully extended (active) position; and
b) the fully retracted (inactive) position.
5.5.3 Safety system
5.5.3.1 An electric safety device according to EN 81-20:2014, 5.11.2 shall:
a) activate a safety system that neutralizes normal operation;
b) be operated when any access to the car roof is opened by means of a key;
c) be bi-stable;
d) be reset together with the resetting of the safety system (See 5.5.3.2).
For landing doors not mechanically coupled to the car door an additional electric device according to
EN 81-20:2014, 5.11.2 shall prevent any movement of the car if this landing door gives access to the car
roof and is open. This device shall not be accessible without using a tool.
5.5.3.2 The resetting of the safety system and the return of the lift to normal operation shall only be
made by operation of an electrical reset device.
The resetting shall be effective only when:
a) the lift is not in inspection operation;
b) the stopping devices in the pit and on the car roof according EN 81-20:2014, 5.12.1.11.1 a), c) and
d) are not in the STOP position;
c) any access to the car roof is closed and locked;
d) the devices providing the refuge spaces are in the inactive position (see 5.5.2);
A power failure shall not reset the safety system.
5.5.3.3 The electrical reset device shall be:
a) lockable with the use of a padlock or equivalent, to ensure no inadvertent operation; and
b) placed outside of the well and accessible to authorized persons only (maintenance, inspection and
rescue); and
c) monitored by an electric safety device according to EN 81-20:2014, 5.11.2, which prevents normal
operation when the reset device remains activated.
5.5.3.4 An additional electric safety device in conformity with EN 81-20:2014, 5.11.2 shall interrupt
movements of the car under inspection operation in up direction before the buffering parts of the
movable stops are hit or before the triggering device is tripping the stopping gear. The car shall be
stopped before the stopping gear is tripped.
This electrical safety device shall allow the movement of the car only in the down direction.
In the position in which the car has stopped, examinations and test and maintenance operations for all
components, which are located in the headroom shall be able to be carried out in complete safety from
the car roof or from outside of the well.
5.5.3.5 Normal operation of the lift shall only be possible if the movable stops or the triggering
device are in the inactive position and the safety system is not activated.
5.5.3.6 When the safety system has been activated, inspection operation shall only be possible if the
movable stops or the triggering device are in the active position.
5.5.3.7 When the safety system has been activated and the movable stops or the triggering device
are not in the active position, emergency electrical operation shall only be possible in down direction.
5.5.4 Visible and/or audible information
On opening by means of a key of any access to the car roof (see 5.5.3.1), a signal visible and/or audible
from the landing shall inform about the positions (active and not active) of:
a) the movable stops; or
b) the triggering device.
If both ends of the travel are protected by the movable stop(s) and/or by pre-triggered stopping
system(s), this information shall allow noticing whether it is from top or bottom end of the well.
The audible signal may be switched off after 60 s provided that the movable stops or the triggering
device are in the active position. The audible signal shall be re-activated when the movable stops or the
triggering device is removed from the active position.
See also 7.2.2.
5.5.5 Protection for group of lifts
Where the horizontal distance from the edge of the car roof of a lift having reduced top clearances to the
car roof of an adjacent lift(s) is less than 2,0 m a partition according to EN 81-20:2014, 5.2.5.5.2 shall
prevent access to the lift(s) having reduced top clearances.
The partition shall extend through the full height and depth of the well.
5.6 Car roof balustrade
5.6.1 The requirements of EN 81-20:2014, 5.4.7.2 are supplemented as follows:
5.6.2  Where a balustrade is necessary on the car roof according to EN 81-20:2014, an easily and
safely extendable balustrade shall be permanently installed.
See also 7.2.3.
5.6.3 The extendable balustrade shall meet the following requirements:
a) the balustrade shall be as EN 81-20:2014, 5.4.7.4, and shall be such as its fixings ensure it remains
in its extended position when a force of 1000 N is applied vertically at right angles to any point at
the top of the balustrade.
b) the balustrade shall be designed in such a way that it can be totally unfolded/folded or
extended/retracted while standing on a safe area;
c) if the safe standing area is on the car roof, it shall be:
1) according to EN 81-20:2014, 5.2.5.7.3;
2) clearly indicated and visible from the landing;
3) placed at a distance from the edge of the car roof not less than 0,50 m, where the risk of falling
exists.
d) electric safety devices in conformity with EN 81-20:2014, 5.11.2 shall prevent the movement of the
car if:
1) in normal operation, the balustrade is not fully retracted;
2) in inspection operation from the car roof if the balustrade is not fully extended.
e) For emergency electrical operation and in inspection operation a direction dependant electric
safety device (EN 81-20:2014, 5.11.2) shall prevent upward movements in the zone where the
balustrade, if not folded or retracted, can collide with the ceiling of the well.
NOTE This direction dependant electric safety device for the balustrade can be realized with the electric
safety device according to 5.5.3.4.
5.7 Reduced clearances in the pit
5.7.1 General
The requirements of EN 81-20:2014, 5.2.5.8.1 and 5.2.5.8.2 may be replaced by the following.
5.7.2 Devices providing refuge spaces in the pit
5.7.2.1 General
The devices shall be:
a) either movable stops; or
b) a pre-triggered stopping system.
5.7.2.2 Movable stops
Movable stops shall comply with the following:
a) the movable stops shall be installed in the pit to mechanically stop the car;
b) the movable stops shall incorporate buffers or act on buffers complying with EN 81-20:2014, 5.8.1
and 5.8.2;
c) automatically operated movable stops shall be designed to prevent damage due to any collision
when they are moved between the fully retracted and extended position.
5.7.2.3 Pre-triggered stopping system
5.7.2.3.1 General
The pre-triggered stopping system shall include a triggering device with its actuation means for
tripping the mechanical stopping gear by a linkage when the car reaches a fixed tripping point in the
down direction.
5.7.2.3.2 The triggering device shall be easily accessible so that examinations and maintenance
operations can be carried out in complete safety from the pit, or from the car roof or from outside of the
well.
5.7.2.3.3 The pre-triggered stopping system shall comply with the following:
a) the stopping gear shall be fixed on the car and act on the guide rails of the car;
b) the stopping gear shall be tripped by a mechanical triggering device using a mechanical linkage for
the tripping operation;
c) the stopping gear shall be kept tripped by the triggering device and the linkage when the car is at
any position below the tripping point.
In case of a release of the stopping gear due to dynamic effects or rescue operations it shall be re-
engaged when the car moves again in down direction below the tripping point keeping the required
refuge space;
d) the stopping gear shall be operated positively:
1) where springs are used they shall act by compression and be guided;
2) where a rope is used the minimum breaking load of the rope shall be related by a safety factor
of at least 8 to the tensile force created during operation of the stopping gear;
e) the force required to activate the stopping gear shall be at least the greater of the following two
values:
1) twice the engagement force of the stopping gear taking into consideration the tolerances due to
friction;
2) 300 N;
f) the stopping gear shall operate an electric safety device in conformity with EN 81-20:2014, 5.11.2,
if it is engaged;
g) when the stopping gear has been tripped, return to normal operation shall require the intervention
of a competent maintenance person;
h) after the release, the stopping gear shall be in a condition to operate;
i) the triggering device shall be protected against the accidental insertion of objects and from dirt and
corrosion, such that its operation is not affected;
j) the pre-triggered stopping system shall be able to stop the car and keep it stopped from any speed
between zero and the tripping speed of the safety gear;
k) the maximum retardation by the stopping gear shall not create a retardation higher than the one
created by the safety gear;
l) when the stopping gear operates, the floor of the car with or without the load uniformly distributed
shall not incline more than 5 % from its normal position;
m) the pre-triggered stopping system shall be designed and verified according to the requirements in
Annex C.
5.7.2.4 Clearances
When the car rests on the fully compressed buffers according to 5.7.2.2 b)or when the car is stopped by
the pre-triggered stopping system the refuge spaces and clearances in the pit shall comply with
EN 81-20:2014, 5.2.5.8.
5.7.2.5 Operation
5.7.2.5.1 General
The movable stops or the triggering device shall be operated:
a) automatically at the latest when the safety system (5.7.3) has been activated; or
b) manually.
5.7.2.5.2 In the case of power failure to devices providing clearances:
a) the automatic movable stops or the automatic triggering device shall be activated and maintained
in the active position at least up to power restoration;
b) for manually operated movable stops or for manually operated triggering devices, a mechanical
safety device shall maintain the car stationary. This device shall be activated and maintained in the
active position at least up to power restoration.
5.7.2.5.3 In the case of manual operation of moveable stops or manual operation of triggering
devices, the mechanical safety device according to 5.7.2.5.2 b) shall be o
...
