EUROPEAN STANDARD
EN ISO 140-18
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2006
ICS 91.120.20
English Version
Acoustics - Measurement of sound insulation in buildings and of
building elements - Part 18: Laboratory measurement of sound
generated by rainfall on building elements (ISO 140-18:2006)
Acoustique - Mesurage de l'isolation acoustique des Akustik - Messung der Schalldämmung in Gebäuden und
immeubles et des éléments de construction - Partie 18: von Bauteilen - Teil 18: Messung des durch Regenfall auf
Mesurage en laboratoire du bruit produit par la pluie sur les Bauteile verursachten Schalls im Prüfstand (ISO 140-
éléments de construction (ISO 140-18:2006) 18:2006)
This European Standard was approved by CEN on 14 November 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 140-18:2006: E
worldwide for CEN national Members.

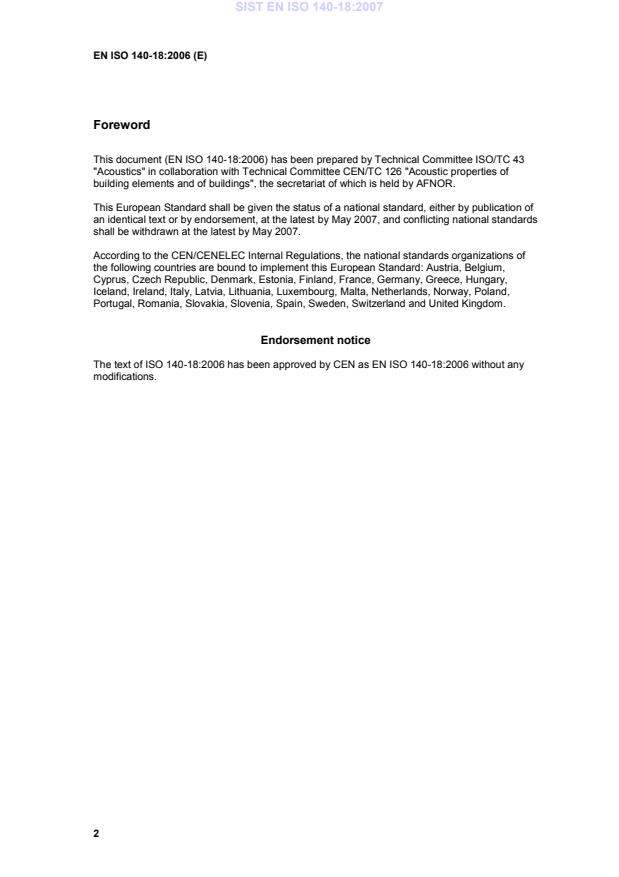

Foreword
This document (EN ISO 140-18:2006) has been prepared by Technical Committee ISO/TC 43
"Acoustics" in collaboration with Technical Committee CEN/TC 126 "Acoustic properties of
building elements and of buildings", the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by May 2007, and conflicting national standards
shall be withdrawn at the latest by May 2007.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 140-18:2006 has been approved by CEN as EN ISO 140-18:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 140-18
First edition
2006-11-15
Acoustics — Measurement of sound
insulation in buildings and of building
elements —
Part 18:
Laboratory measurement of sound
generated by rainfall on building
elements
Acoustique — Mesurage de l'isolement acoustique des immeubles et
des éléments de construction —
Partie 18: Mesurage en laboratoire des bruits produit par la pluie sur les
éléments de construction
Reference number
ISO 140-18:2006(E)
©
ISO 2006
ISO 140-18:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

ISO 140-18:2006(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Equipment . 3
5 Test arrangement. 3
6 Classification of rain types . 4
7 Test equipment and procedure . 4
8 Expression of results . 9
9 Measurement uncertainty . 9
10 Test report . 10
Annex A (informative) Example of a tank with perforated base . 11
Annex B (informative) Reference test specimens. 14
Bibliography . 16

ISO 140-18:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 140-18 was prepared by Technical Committee ISO/TC 43, Acoustics, Subcommittee SC 2, Buildings
acoustics.
ISO 140 consists of the following parts, under the general title Acoustics — Measurement of sound insulation
in buildings and of building elements:
— Part 1: Requirements for laboratory test facilities with suppressed flanking transmission
— Part 2: Determination, verification and application of precision data
— Part 3: Laboratory measurements of airborne sound insulation of building elements
— Part 4: Field measurements of airborne sound insulation between rooms
— Part 5: Field measurements of airborne sound insulation of façade elements and façades
— Part 6: Laboratory measurements of impact sound insulation of floors
— Part 7: Field measurements of impact sound insulation of floors
— Part 8: Laboratory measurements of the reduction of transmitted impact noise by floor coverings on a
heavyweight standard floor
— Part 9: Laboratory measurement of room-to-room airborne sound insulation of a suspended ceiling with a
plenum above it
— Part 10: Laboratory measurement of airborne sound insulation of small building elements
— Part 11: Laboratory measurements of the reduction of transmitted impact sound by floor coverings on
lightweight reference floors
— Part 13: Guidelines (Technical Report)
— Part 14: Guidelines for special situations in the field
— Part 16: Laboratory measurement of the sound reduction index improvement by additional lining
— Part 18: Laboratory measurement of sound generated by rainfall on building elements
iv © ISO 2006 – All rights reserved

ISO 140-18:2006(E)
Introduction
This part of ISO 140 prescribes a laboratory method for the measurement of sound generated by rainfall on
building elements using artificial raindrops produced by a water tank.
Ideally, one should expose the test specimen to real rain for such measurements. But real rain is neither
steady nor continuous with respect to time. Furthermore, raindrops can vary in diameter due to several factors,
including geographic location, which will introduce variability in measured values. One can, however, use real
raindrops as a means of validation of measured results obtained with artificial raindrops by building a test
room in an unobstructed location. For such research, it is important that the rain sensor or rain gauge is
capable of measuring constant short interval rainfall rates. In the absence of drop size information,
repeatability and fluctuations of the measured sound levels with real rain can be investigated by undertaking
measurements separated by a time interval of at least 24 h.
Artificial raindrop generation systems, other than the water tank used in this part of ISO 140, exist, such as
hydraulic spray nozzles; however, so far, nozzles corresponding to the specifications given in this part of
ISO 140 are not commercially available: indeed, their flow rate is too high when the drop diameter is correct or
the drop diameter is too small when the flow rate is correct. As a result, only the water tank solution is
proposed in this part of ISO 140.
An alternative to real rain or artificial raindrops is the dry mechanical excitation of the test specimen.
Researchers have used different methods, such as excitation by an impact hammer and other mechanical
impacting simulators, with an aim to simulate the noise of real rain. Such methods invariably suffer from the
drawback that the noise source does not generate both the sound levels and the sound spectra that compare
well with corresponding values generated by the real rain on various types of test specimens. Further
research work is encouraged to develop mechanical methods of rain noise generation that can match both the
sound levels and spectra of real rain.

INTERNATIONAL STANDARD ISO 140-18:2006(E)

Acoustics — Measurement of sound insulation in buildings and
of building elements —
Part 18:
Laboratory measurement of sound generated by rainfall on
building elements
1 Scope
This part of ISO 140 specifies a laboratory method of measurement of the impact sound insulation of roofs,
roof/ceiling systems and skylights excited by artificial rainfall. The results obtained can be used for assessing
the noise to be produced by rainfall on a given building element in the room or space below. The results can
also be used to compare rainfall sound insulation capabilities of building elements and to design building
elements with appropriate rainfall sound insulation properties.
This part of ISO 140 is based on measurements with artificial raindrops under controlled conditions using a
water tank in a laboratory test facility in which flanking sound transmission is suppressed. Measurements
using real rain, although a useful means for validation purposes, are not included because of the variable,
unpredictable and intermittent nature of real rain. Other mechanical simulation methods under investigation by
researchers are not sufficiently well developed at present to adequately simulate real rain both in terms of
sound levels and spectra generated.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 140-1:1997, Acoustics — Measurement of sound insulation in buildings and of building elements —
Part 1: Requirements for laboratory test facilities with suppressed flanking transmission
ISO 140-3, Acoustics — Measurement of sound insulation in buildings and of building elements — Part 3:
Laboratory measurements of airborne sound insulation of building elements
ISO 3382-2, Acoustics — Measurement of room acoustic parameters — Part 2: Reverberation time in ordinary
rooms
ISO 10848-1:2006, Acoustics — Laboratory measurement of the flanking transmission of airborne and impact
sound between adjoining rooms — Part 1: Frame document
ISO 15186-1:2000, Acoustics — Measurement of sound insulation in buildings and of building elements using
sound intensity — Part 1: Laboratory measurements
IEC 60721-2-2, Classification of environmental conditions — Part 2: Environmental conditions appearing in
nature — Precipitation and wind
IEC 61260, Electroacoustics — Octave-band and fractional-octave-band filters
ISO 140-18:2006(E)
IEC 61672-1:2002, Electroacoustics — Sound level meters — Part 1: Specifications
IEC 61672-2:2003, Electroacoustics —Sound level meters — Part 2: Pattern evaluation tests
IEC 60942:2003, Electroacoustics — Sound calibrators
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
average sound pressure level in a room
L
ten times the common logarithm of the ratio of the space and time average of the squared sound pressure to
the square of the reference sound pressure, the space average being taken over the entire room with the
exception of those parts where the direct radiation of a sound source or the near field of the boundaries (walls,
etc.) is of significant influence
NOTE 1 The sound pressure level is given in decibels (dB).
NOTE 2 If a continuously moving microphone is used, L is determined by the following equation:
T
m
1/Tp (t) dt
m
∫
L= 10 lg dB (1)
p
where
p(t) is the sound pressure, in pascals;
p is the reference sound pressure and is equal to 20 µPa;
T is the integration time, in seconds.
m
NOTE 3 If fixed microphone positions are used, L is determined by
22 2
pp++ .+p
12 n
L= 10 lg dB (2)
np
where p , p , …, p are r.m.s. sound pressures at n different positions in the room. In practice, usually the sound pressure
1 2 n
levels L are measured. In this case, L is determined by
i
n
L /10
i
L= 10 lg 10 dB (3)
∑
n
i=1
where L are the sound pressure levels L to L at n different positions in the room.
i 1 n
3.2
sound intensity level
sound power level per unit area radiated by the test specimen into the test room below referenced to a value
−12 2
of 1 × 10 W/m
NOTE The sound intensity level is given in decibels (dB).
2 © ISO 2006 – All rights reserved

ISO 140-18:2006(E)
3.3
rainfall rate
depth of water layer created by spreading the rainfall on a horizontal surface in a 1 h time interval
NOTE The rainfall rate is given in millimetres per hour (mm/h).
3.4
volume median drop diameter
value when 50 % of the total volume of water sprayed is made up of drops with diameter larger than the
median value and 50 % with smaller diameter
NOTE The volume median drop diameter is expressed in millimetres.
4 Equipment
The accuracy of the sound level measurement equipment shall comply with the requirements of accuracy
classes 0 or 1 specified in IEC 61672-1:2002 and IEC 61672-2:2003. The complete sound measuring system
including the microphone shall be adjusted before each measurement using a sound calibrator which
complies with the requirements of accuracy class 1 specified in IEC 60942:2003.
The one-third-octave band filters shall comply with the requirements specified in IEC 61260.
The reverberation time measurement equipment shall comply with the requirements specified in ISO 3382-2.
5 Test arrangement
5.1 Test room
A test room without a permanent roof or with an opening in the roof for installation of the test specimens is
required for these measurements; however, if the intensity method is used, then the receiving space shall
meet the requirements given in 7.4.
The requirements of the test room are based on ISO 140-1. The volume of the test room shall be at least
50 m . The ratios of the room dimensions shall be so chosen that the natural frequencies in the low
frequencies are spaced as uniformly as possible. If necessary, diffusing elements should be installed in the
test room to obtain a diffuse field.
The airborne sound insulation of the walls, door(s) and floor of the test room shall be sufficiently high so that
the sound field measured in the test room is only that generated by the impact excitation of the test specimen
and radiated from the test specimen.
The background noise level in the test room shall be sufficiently low to permit the measurement of sound
generated by excitation of the test specimen with artificial rainfall. The correction associated with background
noise is discussed in 7.3.2.
The reverberation time in the test room should not be excessively long. It is recommended that the
reverberation time in the test room be not more than 2 s at low test frequencies. If the reverberation time in the
test room is too long, proceed according to ISO 140-1.
5.2 Test specimen
5.2.1 Standard specimen and laboratory configuration
2 2
The size of the opening shall be between 10 m and 20 m , with the length of the shorter edge being not less
than 2,3 m. The test specimen shall be well sealed at the perimeter with the test room to prevent leakage
sound transmission. The joints within the test specimen, if any, shall be sealed in a manner as similar as
possible to the actual construction.
ISO 140-18:2006(E)
For skylights, the preferred dimensions are 1 500 mm × 1 250 mm with limit deviations of ±50 mm. Skylights
shall be installed in a filler slab construction of sufficiently high airborne sound insulation and well sealed at
the perimeter so that the sound field measured in the test room is only that generated by the impact excitation
of the test specimen and radiated from the test specimen.
The minimum slope of the test specimen is 5° for roofs and 30° for skylights. The slope used shall be the
lowest that is feasible to assure water drainage. Unrepresentative niches should be limited as far as is
possible in practice for small test specimens like skylights, for example by installing the test specimen in a test
opening in a construction having the same slope as the slope of the test specimen.
The position of a small test opening in the surrounding roof construction shall fulfil the same specifications as
for a window opening in a test wall in accordance with ISO 140-3.
5.2.2 Other configurations
Specimens of surface area less than 1 m are not recommended. The slope of the test specimen may be the
actual slope for specific situations/systems, if known.
6 Classification of rain types
The real rain can be classified in terms of rainfall rate, typical dro
...
