EN 14187-6:2017
(Main)Cold applied joint sealants - Test method - Part 6: Determination of the adhesion/cohesion properties after immersion in test fuels and liquid chemicals
Cold applied joint sealants - Test method - Part 6: Determination of the adhesion/cohesion properties after immersion in test fuels and liquid chemicals
This European Standard specifies a test method to determine the adhesion/cohesion properties after immersion in test fuels and liquid chemicals.
Kalt verarbeitbare Fugenmassen - Prüfverfahren - Teil 6: Bestimmung der Haft- und Dehnungseigenschaften nach Lagerung in Prüfkraftstoffen und flüssigen Chemikalien
Diese Europäische Norm legt ein Prüfverfahren zur Bestimmung der Haft- und Dehnungseigenschaften nach der Lagerung in Prüfkraftstoffen oder in flüssigen Chemikalien fest.
Mastics pour joints appliqués à froid - Méthodes d’essai - Partie 6: Détermination des propriétés d'adhésivité/cohésion après immersion dans des carburants d'essai et des produits chimiques liquides
Cette Norme européenne spécifie une méthode d'essai pour déterminer les propriétés d'adhésivité/cohésion après immersion dans des carburants d'essai ou dans des produits chimiques liquides.
Hladno nanosljive tesnilne mase za stike - Preskusne metode - 6. del: Ugotavljanje adhezijskih/kohezijskih lastnosti po namakanju v preskusnem gorivu in tekočih kemikalijah
Ta evropski standard določa preskusno metodo za ugotavljanje adhezijskih/kohezijskih lastnosti po namakanju v preskusnem gorivu in tekočih kemikalijah.
General Information
- Status
- Published
- Publication Date
- 28-Mar-2017
- Withdrawal Date
- 29-Sep-2017
- Technical Committee
- CEN/TC 227 - Road materials
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 17-Dec-2023
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 04-Apr-2017
Overview
EN 14187-6:2017 - Cold applied joint sealants: Test method - Part 6 defines a laboratory procedure to evaluate the adhesion and cohesion properties of cold-applied joint sealants after immersion in test fuels and liquid chemicals. Prepared by CEN/TC 227, this European Standard is aimed at assessing sealant durability when exposed to fuels, oils, de-icing fluids and other chemicals relevant to road and pavement joints.
Key Topics
- Scope and purpose: Determine loss of adhesion/cohesion caused by immersion in specified test liquids and relevant site chemicals.
- Test principle: Sealant is cast between two concrete supports, immersed in the test liquid, then extended to a defined movement (100% or 140% of original width). Breaks in adhesion/cohesion and tensile properties are recorded.
- Specimen preparation: Uses concrete supports (EN 13880-12), anti-adherent substrate, and spacers. Sealant conditioned 24 h at (23 ± 2) °C prior to casting.
- Conditioning and testing: Conditioning per EN ISO 8340 (method A or B); immersion temperatures selectable at 23 °C, 35 °C or 50 °C.
- Immersion periods: Typical exposure periods are 8 h, 24 h, 72 h, 7 days or 21 days.
- Mechanical loading and measurement:
- Tensile testing machine extends specimens at (5.5 ± 0.5) mm/min.
- Record tensile modulus at 100% extension and note any adhesion/cohesion failures; maintain extension for 24 h before final inspection.
- Test liquids: Includes defined mixtures (e.g., gasoline with up to 20% bioalcohol, isooctane/toluene blends), jet fuels, oils, glycols and a list of liquid chemicals (Annex A) such as de-icing fluids and buffered sodium formate.
- Reporting: Results must include test liquid description, immersion time/temperature, specimen appearance, deviations and test data.
Note: the standard includes a health & safety warning - tests involve toxic liquids and require appropriate protective measures and environmental controls.
Applications
EN 14187-6:2017 is used by:
- Sealant manufacturers for product development and conformity testing.
- Independent testing laboratories performing durability and chemical resistance evaluations.
- Infrastructure owners, road authorities and pavement contractors specifying sealant performance for joints exposed to fuels, oils, de-icers and aviation/vehicle fluids.
- Certification bodies and procurement teams requiring objective test data for material selection.
Keywords: EN 14187-6:2017, cold applied joint sealants, adhesion/cohesion test, immersion in test fuels, liquid chemicals, sealant durability, road construction materials, joint sealant testing.
Related Standards
- EN 14187 series (Parts 1–9) - other sealant test methods (rate of cure, tack-free time, weathering, flame resistance, etc.)
- EN 13880-12 - concrete supports for bond testing
- EN 14188-4 - primer specifications for joint sealants
- EN ISO 6927 - sealant vocabulary
- EN ISO 8340 - tensile properties at maintained extension
Frequently Asked Questions
EN 14187-6:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Cold applied joint sealants - Test method - Part 6: Determination of the adhesion/cohesion properties after immersion in test fuels and liquid chemicals". This standard covers: This European Standard specifies a test method to determine the adhesion/cohesion properties after immersion in test fuels and liquid chemicals.
This European Standard specifies a test method to determine the adhesion/cohesion properties after immersion in test fuels and liquid chemicals.
EN 14187-6:2017 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14187-6:2017 has the following relationships with other standards: It is inter standard links to EN 14187-6:2003. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14187-6:2017 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.NHPLNDOLMDKKalt verarbeitbare Fugenmassen - Teil 6: Prüfverfahren zur Bestimmung der Haft- und Dehnungseigenschaften nach Lagerung in flüssigen ChemikalienMastics pour joints appliqués à froid - Méthodes d'essai - Partie 6: Détermination des propriétés d'adhésivité/cohésion après immersion dans des carburants d'essai et des produits chimiques liquidesCold applied joint sealants - Test method - Part 6: Determination of the adhesion/cohesion properties after immersion in test fuels and liquid chemicals93.080.20Materiali za gradnjo cestRoad construction materials91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 14187-6:2017SIST EN 14187-6:2017en,fr,de01-maj-2017SIST EN 14187-6:2017SLOVENSKI
STANDARDSIST EN 14187-6:20041DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14187-6
March
t r s y ICS
{ uä r z rä t r Supersedes EN
s v s z yæ xã t r r uEnglish Version
Cold applied joint sealants æ Test method æ Part
xã immersion in test fuels and liquid chemicals Mastics pour joints appliqués à froid æ Méthodes d 5essai æ Partie
x ã Détermination des proprietés liquides chimiques liquides
Kalt verarbeitbare Fugenmassen æ Prüfverfahren æ Teil
xã Bestimmung der Haftæ und Dehnungseigenschaften nach Lagerung in flüssigen Chemikalien This European Standard was approved by CEN on
x February
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v s z yæ xã t r s y ESIST EN 14187-6:2017

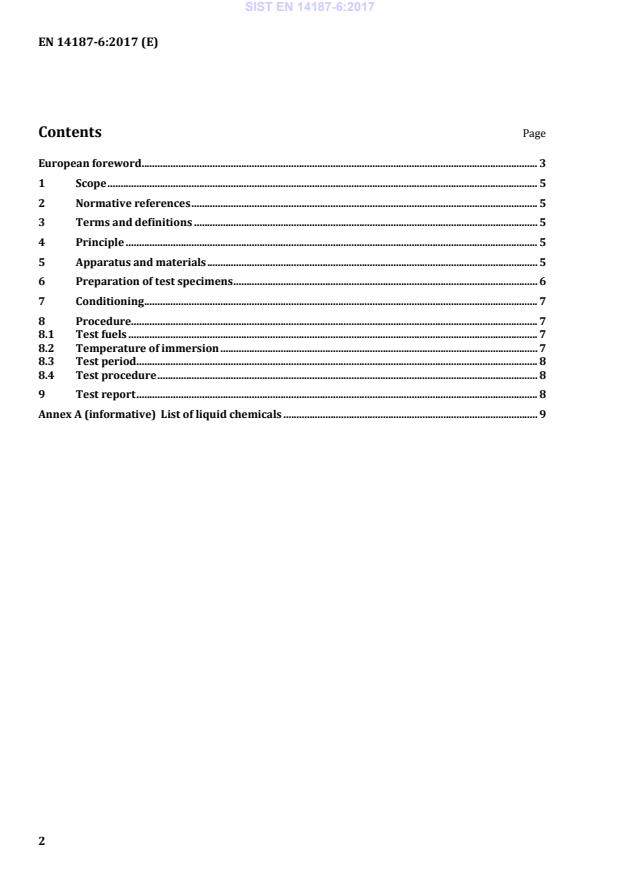

List of liquid chemicals . 9
...
