EN 14188-4:2009
(Main)Joint fillers and sealants - Part 4: Specifications for primers to be used with joint sealants
Joint fillers and sealants - Part 4: Specifications for primers to be used with joint sealants
This European Standard specifies requirements for material characterisation for primers for hot and cold applied joint sealants for use in roads, airfields and other concrete pavements. This European Standard also applies to primers for hot and cold applied joint sealants in bituminous surfacing and a bituminous surfacing and an adjacent concrete pavement.
Fugeneinlagen und Fugenmassen - Teil 4: Spezifikationen für Voranstriche für Fugeneinlagen und Fugenmassen
Diese Europäische Norm legt Anforderungen an die Materialbeschreibung von Voranstrichen für Fugenmassen
für Heiß- und Kaltanwendung beim Bau von Straßen, Flugplätzen und sonstigen Verkehrsflächen
fest. Diese Europäische Norm gilt auch für Voranstriche für heiß und kalt verarbeitbare Fugenmassen für
Asphaltflächen und zwischen Asphaltflächen und benachbarten Betonflächen.
Produits de scellement de joints - Partie 4: Spécifications pour primaires utilisés avec les produits de scellement de joints
Polnilne in tesnilne mase za stike - 4. del: Specifikacije za predhodne premaze po uporabi tesnilnih mas za stike
Ta evropski standard opredeljuje zahteve za opis lastnosti materialov za predhodne premaze za hladno in toplo nanosljive tesnilne mase za stike za uporabo pri cestah, letališčih in drugih betonskih tlakih. Ta evropski standard velja tudi za predhodne premaze za hladno in toplo nanosljive tesnilne mase za stike pri bituminoznih krovnih plasteh ter za bituminozne krovne plasti in sosednji betonski tlak.
General Information
- Status
- Published
- Publication Date
- 07-Jul-2009
- Withdrawal Date
- 30-Jan-2010
- Technical Committee
- CEN/TC 227 - Road materials
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 14-Feb-2022
- Completion Date
- 14-Apr-2025
Overview
EN 14188-4:2009 - "Joint fillers and sealants - Part 4: Specifications for primers to be used with joint sealants" (CEN) defines material characterisation and conformity procedures for primers used with hot and cold applied joint sealants. It covers primers for use on roads, airfields and other concrete pavements, and also primers for joint sealants in bituminous surfacing and at interfaces between bituminous surfacing and adjacent concrete pavements.
Key topics and technical requirements
- Primer types: bitumen-based for hot applied sealants (PBH) and resin-based primers for hot (PRH) and cold applied sealants (PRC‑o one-component, PRC‑m multi‑component).
- Essential properties and test methods (with referenced EN/ISO standards):
- Homogeneity (EN 15466‑1) - primer must be homogeneous after homogenisation.
- Density (EN ISO 2811‑2) - results must lie within the manufacturer’s declared value (MDV) tolerance (±5%).
- Viscosity / flow (EN ISO 2431) - MDV tolerance ±15%.
- Resistance against alkali (EN 15466‑2) - primer shall be “resistant”.
- Evaporation behaviour of volatiles and solid content (EN 15466‑3) - MDV tolerances specified (volatiles ±5%, solids −2% / +5%).
- Flash point (EN ISO 2719) - MDV tolerance −5 °C / +5 °C.
- Softening point for bitumen‑based primers after solvent extraction (EN 12697‑3 and EN 1427); not applicable for resin primers.
- Dangerous substances - manufacturer must ensure compliance with national health/environment rules.
- Conformity assessment:
- Initial Type Testing for all Clause 5 characteristics.
- Further type testing after significant changes to product, raw materials or process.
- Factory Production Control (FPC) - documented system (EN ISO 9001 accepted), equipment calibration, inspection, testing frequencies and record keeping.
- Marking and packaging: containers must be indelibly labelled with manufacturer, primer type, batch, expiry, compatible sealant types, use/storage/disposal directions and statutory hazard labelling.
Applications and users
- Practical use: specifying and verifying primers used to improve adhesion and performance of joint sealants in highways, airport pavements, bridges, car parks and other concrete/bituminous pavement joints.
- Primary users:
- Manufacturers of primers and joint sealants (product development, FPC).
- Contractors and specifiers (material selection, procurement, installation guidance).
- Testing laboratories (type testing, compliance checks).
- Asset owners and authorities (technical specifications, quality assurance).
Related standards
- EN 14188-1 (hot applied sealants), EN 14188-2 (cold applied sealants), EN 14188-3 (preformed joint seals)
- Test standards referenced within EN 14188-4: EN 15466 parts 1–3, EN ISO 2719, EN ISO 2811-2, EN ISO 2431, EN 12697‑3, EN 1427, EN ISO 9001
This standard is essential where consistent primer performance, safety labelling and documented factory control are required to ensure durable joint sealant systems in road and airfield pavement applications.
Frequently Asked Questions
EN 14188-4:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Joint fillers and sealants - Part 4: Specifications for primers to be used with joint sealants". This standard covers: This European Standard specifies requirements for material characterisation for primers for hot and cold applied joint sealants for use in roads, airfields and other concrete pavements. This European Standard also applies to primers for hot and cold applied joint sealants in bituminous surfacing and a bituminous surfacing and an adjacent concrete pavement.
This European Standard specifies requirements for material characterisation for primers for hot and cold applied joint sealants for use in roads, airfields and other concrete pavements. This European Standard also applies to primers for hot and cold applied joint sealants in bituminous surfacing and a bituminous surfacing and an adjacent concrete pavement.
EN 14188-4:2009 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14188-4:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

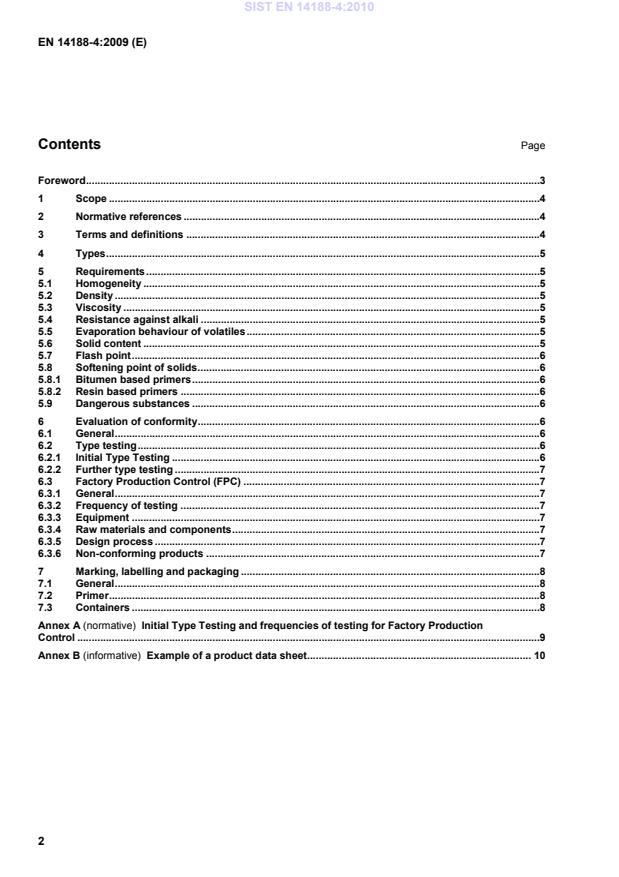

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Polnilne in tesnilne mase za stike - 4. del: Specifikacije za predhodne premaze po uporabi tesnilnih mas za stikeFugeneinlagen und Fugenmassen - Teil 4: Spezifikationen für Voranstriche für Fugeneinlagen und FugenmassenProduits de scellement de joints - Partie 4: Spécifications relatives aux primaires utilisés avec les produits de scellement de jointsJoint fillers and sealants - Part 4: Specifications for primers to be used with joint sealants93.080.20Materiali za gradnjo cestRoad construction materials91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 14188-4:2009SIST EN 14188-4:2010en,de01-januar-2010SIST EN 14188-4:2010SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14188-4July 2009ICS 93.080.20 English VersionJoint fillers and sealants - Part 4: Specifications for primers to beused with joint sealantsProduits de scellement de joints - Partie 4: Spécificationsrelatives aux primaires utilisés avec les produits descellement de jointsFugeneinlagen und Fugenmassen - Teil 4: Spezifikationenfür Voranstriche für Fugeneinlagen und FugenmassenThis European Standard was approved by CEN on 6 June 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14188-4:2009: ESIST EN 14188-4:2010
Initial Type Testing and frequencies of testing for Factory Production Control
.................................................................................................................................................................9Annex B (informative)
Example of a product data sheet . 10 SIST EN 14188-4:2010
2 Normative references The following referenced documents are indispensable for the application of this European Standard. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1427, Bitumen and bituminous binders - Determination of the softening point - Ring and Ball method EN 12697-3, Bituminous mixtures - Test methods for hot mix asphalt - Part 3: Bitumen recovery: Rotary evaporator EN 14188-1:2004, Joint fillers and sealants — Part 1: Specifications for hot applied sealants EN 14188-2:2004, Joint fillers and sealants — Part
...
