EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1562
March 2012 ICS 77.080.10 Supersedes EN 1562:1997English Version
Founding - Malleable cast irons
Fonderie - Fontes malléables
Gießereiwesen - Temperguss This European Standard was approved by CEN on 14 January 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1562:2012: ESIST EN 1562:2012

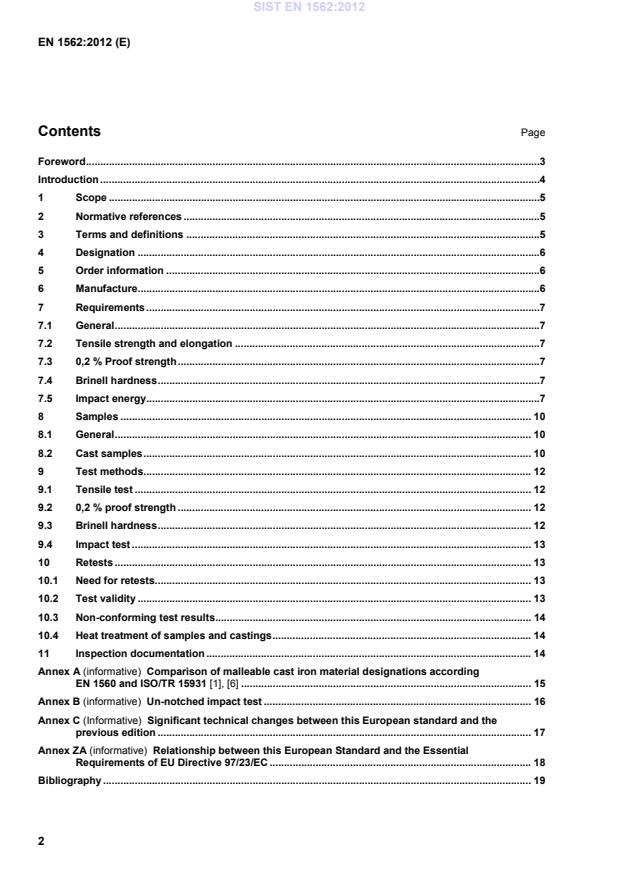

Comparison of malleable cast iron material designations according EN 1560 and ISO/TR 15931 [1], [6] . 15Annex B (informative)
Un-notched impact test . 16Annex C (Informative)
Significant technical changes between this European standard and the previous edition . 17Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC . 18Bibliography . 19SIST EN 1562:2012

(ISO 148-1:2009) EN ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method (ISO 6506-1) EN ISO 6892-1:2009, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1:2009) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 malleable cast iron cast material, mainly iron and carbon based, which solidifies in the as-cast condition with a graphite-free (white) structure and achieves its final properties after a heat treatment 3.2 whiteheart malleable cast iron cast material, mainly iron and carbon based, which is cast white and then given a heat treatment in a decarburizing atmosphere to produce a material which is partially or entirely decarburized. Any remaining graphite is in the form of temper carbon 3.3 blackheart malleable cast iron cast material, mainly iron and carbon based, which is cast white and then given a non-decarburizing heat treatment, to produce a material in which all graphite is in the form of temper carbon SIST EN 1562:2012

5 Order information The following information shall be supplied by the purchaser: a) the number of this European Standard; b) the designation of the material; c) the relevant wall thickness of the casting; d) any special requirements. All requirements shall be agreed between the manufacturer and the purchaser by the time of acceptance of the order e.g. technical delivery conditions according to EN 1559-1 and EN 1559-3. 6 Manufacture The method of manufacture of malleable cast iron as well as its chemical composition and heat treatment shall be left to the discretion of the manufacturer, who shall ensure compliance with the property requirements given in this European Standard for the material ordered. NOTE To produce structures such as ferrite, pearlite or other transformation products of austenite, both material types (groups) depend upon either the malleablising heat treatment or the subsequent additional heat treatment and/or additions of alloying elements. For castings intended to be given additional treatment (such as galvanizing) and/or in the case of castings for use at low temperatures to optimize the impact energy of the material, the phosphorous content should not exceed 0,10 %. SIST EN 1562:2012

7.5 Impact energy The minimum impact energy values measured on V-notched test pieces machined from cast samples given in Table 3 at room temperature, if applicable, shall only be determined if specified by the purchaser by the time of acceptance of the order. Impact energy testing is normally requested for EN-GJMB-350-10 only. The method of testing shall be in accordance with 9.4. NOTE If the purchaser requires impact testing to be performed on whiteheart malleable cast iron or other grades of blackheart malleable cast irons, then the Charpy un-notched test should be used (see informative Annex B).
piece
Tensile strength Elongation 0,2 % proof strength Brinell hardness(for informationonly) t d Rm A3,4 Rp0,2 mm mm MPa % MPa HBW Symbol Number
min. min. min. max.
EN-GJMW-350-4 5.4200
230 t ≤ 3
6 270 10 — a 3 < t ≤ 5
9 310
5 — 5 < t ≤ 7 12 350
4 — t > 7 15 360
3 —
EN-GJMW-360-12b 5.4201
200 t ≤ 3
6 280 16 — a 3 < t ≤ 5
9 320 15 170 5 < t ≤ 7 12 360 12 190 t > 7 15 370
7 200
EN-GJMW-400-5 5.4202
220 t ≤ 3
6 300 12 — a 3 < t ≤ 5
9 360
8 200 5 < t ≤ 7 12 400
5 220 t >
...
