EN ISO 10140-1:2010/A2:2014

SLOVENSKI STANDARD
01-september-2014
$NXVWLND/DERUDWRULMVNRPHUMHQMH]YRþQHL]ROLUQRVWLJUDGEHQLKHOHPHQWRYGHO
3UDYLODXSRUDEH]DGRORþHQHL]GHONH'RSROQLOR+UXS]DUDGLGHåMD,62
$PG
Acoustics - Laboratory measurement of sound insulation of building elements - Part 1:
Application rules for specific products - Amendment 2: Rainfall sound (ISO 10140-
1:2010/Amd 2:2014)
Akustik - Messung der Schalldämmung von Bauteilen im Prüfstand - Teil 1:
Anwendungsregeln für bestimmte Produkte - Änderung 2: Regenschall (ISO 10140-
1:2010/Amd 2:2014)
Acoustique - Mesurage en laboratoire de l'isolation acoustique des éléments de
construction - Partie 1: Règles d'application pour produits particuliers - Amendement 2:
Bruit produit par la pluie (ISO 10140-1:2010/Amd 2:2014)
Ta slovenski standard je istoveten z: EN ISO 10140-1:2010/A2:2014
ICS:
17.140.01 $NXVWLþQDPHUMHQMDLQ Acoustic measurements and
EODåHQMHKUXSDQDVSORãQR noise abatement in general
91.060.01 Stavbni elementi na splošno Elements of buildings in
general
91.120.20 $NXVWLNDYVWDYEDK=YRþQD Acoustics in building. Sound
L]RODFLMD insulation
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 10140-1:2010/A2
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2014
ICS 91.120.20
English Version
Acoustics - Laboratory measurement of sound insulation of
building elements - Part 1: Application rules for specific products
- Amendment 2: Rainfall sound (ISO 10140-1:2010/Amd 2:2014)
Acoustique - Mesurage en laboratoire de l'isolation Akustik - Messung der Schalldämmung von Bauteilen im
acoustique des éléments de construction - Partie 1: Règles Prüfstand - Teil 1: Anwendungsregeln für bestimmte
d'application pour produits particuliers - Amendement 2: Produkte - Änderung 2: Regenschall (ISO 10140-
Bruit produit par la pluie (ISO 10140-1:2010/Amd 2:2014) 1:2010/Amd 2:2014)
This amendment A2 modifies the European Standard EN ISO 10140-1:2010; it was approved by CEN on 20 March 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10140-1:2010/A2:2014 E
worldwide for CEN national Members.

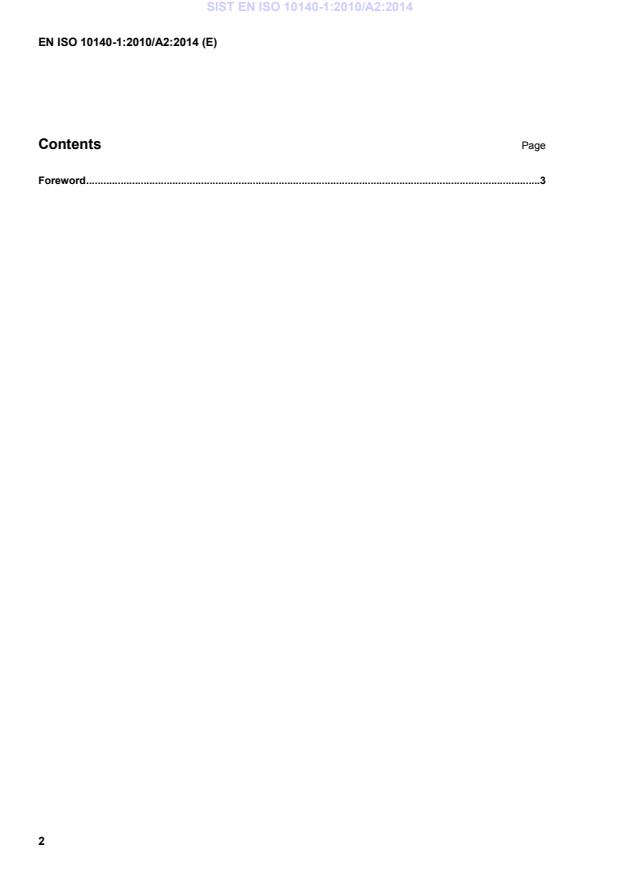

Contents Page
Foreword .3
Foreword
This document (EN ISO 10140-1:2010/A2:2014) has been prepared by Technical Committee ISO/TC 43
"Acoustics" in collaboration with the Technical Committee CEN/TC 126 “Acoustic properties of building
elements and of buildings” the secretariat of which is held by AFNOR.
This Amendment to the European Standard EN ISO 10140-1:2010 shall be given the status of a national
standard, either by publication of an identical text or by endorsement, at the latest by November 2014, and
conflicting national standards shall be withdrawn at the latest by November 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of EN ISO 10140-1:2010/Amd 2:2014 has been approved by CEN as EN ISO 10140-1:2010/A2:2014
without any modification.
INTERNATIONAL ISO
STANDARD 10140-1
First edition
2010-09-01
AMENDMENT 1
2012-02-01
Acoustics — Laboratory measurement of
sound insulation of building elements —
Part 1:
Application rules for specific products
AMENDMENT 1: Guidelines for the
determination of the sound reduction index
of joints filled with fillers and/or seals
Acoustique — Mesurage en laboratoire de l'isolation acoustique des
éléments de construction —
Partie 1: Règles d'application pour produits particuliers
AMENDEMENT 1: Lignes directrices pour la détermination de l'indice
de réduction acoustique de joints comblés de matière de remplissage
et/ou d'éléments d'étanchéité
Reference number
ISO 10140-1:2010/Amd.1:2012(E)
©
ISO 2012
ISO 10140-1:2010/Amd.1:2012(E)

©  ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

ISO 10140-1:2010/Amd.1:2012(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to ISO 10140-1:2010 was prepared by Technical Committee ISO/TC 43, Acoustics,
Subcommittee SC 2, Building acoustics.

ISO 10140-1:2010/Amd.1:2012(E)

Acoustics — Laboratory measurement of sound insulation of
building elements —
Part 1:
Application rules for specific products
AMENDMENT 1: Guidelines for the determination of the sound
reduction index of joints filled with fillers and/or seals
page v, Introduction
Add the following final paragraph.
Annex J has been developed for joints filled with fillers or seals.
page 1, Clause 2
Add the date “2010” to ISO 10140-2.
page 31
Insert Annex J, which starts on page 2, before the Bibliography.
page 32, Bibliography
Add the following entries.
[15] EN 12354-3, Building acoustics — Estimation of acoustic performance of buildings from the
performance of elements — Part 3: Airborne sound insulation against outdoor sound
[16] NEN 5273, Akoestische prestatie van kier- en naaddichting — Laboratoriummeetmethode op
basis van NEN-EN-ISO 140-3 [Acoustic performance of sealing — Laboratory measurement
based on EN ISO 140-3]
[17] ERTEL, H., MECHEL, F.P. Akustische Dichtung von Fugen durch akustisch wirksame
Nebenvolumen -akustiche Filter- und akustische Lippendichtungen. [Acoustic sealing of joints
by acoustically effective supplementary volumes — Acoustic filter and acoustic lip seals].
Stuttgart: Fraunhofer IRB, 1979. 37 p. (IBP Report No. BS 35/79.)
[18] ERTEL, H. Experimentelle Untersuchungen von akustischen Fugendichtungen —
Prinziplösungen für wirksame Dichtungskonstruktionen [Experimental investigations of acoustic
joint seals — Principle of solutions for effective seal construction]. Stuttgart: Fraunhofer IRB,
1981. 44 p. (IBP Report No. BS 57/81.)
[19] FROELICH, H., SCHUMACHER, R., SAß, B. Konstruktionsmerkmale für schalldämmende
Wohnungseingangstüren und Bürotüren aus Holz und Holzwerkstoffen — Forschungsbericht.
[Design features of sound-absorbing residential entrance doors and office doors in wood and
timber materials — Research report]. Stuttgart: Fraunhofer IRB, 1996. 175 p.
ISO 10140-1:2010/Amd.1:2012(E)
Annex J
(normative)
Joints filled with fillers or seals — Sound reduction index
J.1 Application
This annex applies to acoustic sealing of slits (with or without fillers) and of gaps or joints between parts of
windows or doors. Fillers are materials to fill in joints, e.g. foam or sealing tape, gaskets (or seals) are
elements to close openable joints, e.g. retractable floor seals or rebate seals for doors and windows.
The general guidelines in the relevant clauses of ISO 10140-2 shall always be followed. The quantity to be
determined is the sound reduction index of joints, R , per metre of a sealed gap or joint, in decibels as a
s
function of frequency.
The sound reduction index of joints (of the slit, s) with sound transmission only through the joint or the slit is
evaluated from Equation (J.1).
Sl
n
RLL10 lg (J.1)
s1 2
A l
n
where
L is the energy average sound pressure level in the source room, in decibels (see ISO 10140-2);

L is the energy average sound pressure level in the receiving room, in decibels (see ISO 10140-2);

l is the length of the joint, in metres;
is the reference area, in square metres (S = 1 m );
S
n n
l is the reference length, in metres (l = 1 m);
n n
A is the equivalent absorption area in the receiving room, in square metres.
NOTE To achieve a better signal-to-noise ratio, simultaneous measurements can be performed on an element with
enlarged length of the joint.
For this type of measurement, the influence of flanking transmission through the object in which the slits are
present can be very important, so the maximum sound insulation of the test arrangement requires
measurement, e.g. by sealing the test joint on both sides with elastic sealant, leading to R . Unless this
s,max
value is 10 dB higher than the measured value, the measurement results require correction for this flanking
transmission.
Test R when the test arrangement is prepared.
s,max
The sound reduction index of joints (of the slit) R shall be calculated according to the rules of
s
ISO 10140-2:2010, A.3, using Equation (J.2).

 R /10
R /10
s,max
s
R 10 lg 10 10 (J.2)
s
 

2 © ISO 2012 – All rights reserved

ISO 10140-1:2010/Amd.1:2012(E)

where R is the sound reduction index measured with the test element in the test opening, in decibels.
s

If the difference R R is less than 6 dB in any of the frequency bands, the correction shall be 1,3 dB.
s,max s

If R is larger than R  3 dB, the lower limit of the sound reduction index R may be set as R . The
s s max s s,max
,
resulting number shall be presented in brackets and expressed as a minimum value, e.g (R  50,4 dB).
s
The single number ratings are determined in accordance with ISO 717-1. If for one or more frequency bands
the result is larger than R  3 dB, the single number rating is also determined with an infinitely high sound
s,max
reduction index for those indicative bands. If that result differs by more than 1 dB from that first directly
determined, the single number ratings shall also be presented in brackets.
The values which are evaluated can be used directly to compare products (e.g. fillers or sealings) or for the
determination of the sound insulation of composite elements, taking into account the appropriate length of
joints.
Besides the measurement results for well-described situations, this annex also presents a method to
summarize results in a more global way, suitable for use as input data for prediction methods.
J.2 Test element
J.2.1 General
The design of the joint to be tested should be similar to the application, because the geometry of the joint is an
important parameter for the sound insulation of joints. For this, the design of the environment
...
