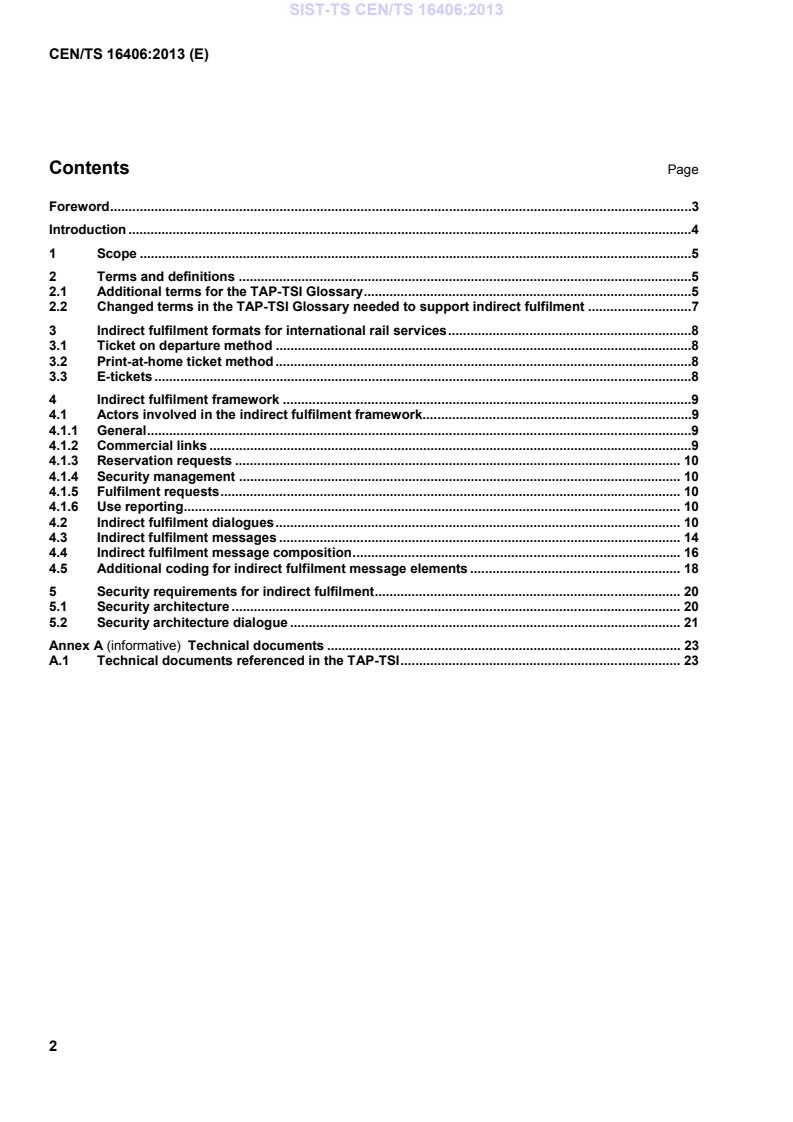

Contents Page
Foreword .3
Introduction .4
1 Scope .5
2 Terms and definitions .5
2.1 Additional terms for the TAP-TSI Glossary .5
2.2 Changed terms in the TAP-TSI Glossary needed to support indirect fulfilment .7
3 Indirect fulfilment formats for international rail services .8
3.1 Ticket on departure method .8
3.2 Print-at-home ticket method .8
3.3 E-tickets .8
4 Indirect fulfilment framework .9
4.1 Actors involved in the indirect fulfilment framework.9
4.1.1 General .9
4.1.2 Commercial links .9
4.1.3 Reservation requests . 10
4.1.4 Security management . 10
4.1.5 Fulfilment requests . 10
4.1.6 Use reporting . 10
4.2 Indirect fulfilment dialogues . 10
4.3 Indirect fulfilment messages . 14
4.4 Indirect fulfilment message composition . 16
4.5 Additional coding for indirect fulfilment message elements . 18
5 Security requirements for indirect fulfilment . 20
5.1 Security architecture . 20
5.2 Security architecture dialogue . 21
Annex A (informative) Technical documents . 23
A.1 Technical documents referenced in the TAP-TSI . 23

Foreword
This document (CEN/TS 16406:2013) has been prepared by Technical Committee CEN/TC 278 “Road
transport and traffic telematics”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
0 Introduction
0.1 General
This document has been prepared as a Technical Specification (TS) because the subject of indirect fulfilment
for rail is a volatile and fast-moving business and technical subject. Moreover, it is expected that a revision to
the TS will be needed, specifically to make changes related to the indirect fulfilment of "Non-integrated
reservation tickets" (NRT tickets"), and will take place no longer than two years after its bringing into force. At
that time it is expected that the TS after having become an EN will have been referenced by the TAP-TSI and
any variation will require to be approved not only by CEN/TC 278 but the European Rail Agency's Change
Control Management process for changes to TSIs.
The purpose of the TAP-TSI is to introduce a statutory framework of requirements and obligations for railway
operators, infrastructure managers and others that will ensure interoperability in rail transport ticketing and
information provision. Within the 2011 version of the TAP-TSI text there are some open points related to
indirect fulfilment and Security.
This document is intended to become a European standard contributing towards closing these open points
relating to the subsystem 'Telematics applications for passenger services' of the trans-European rail system
(TAP-TSI) as well as to the relevant technical documents listed in Annex III of the TAP-TSI (see Annex A).

0.2 Indirect fulfilment open points
The open points in the TAP-TSI cover indirect fulfilment used for international services and cross-border
sales. In these cases, the TAP-TSI already has layout specifications for the RCT2 paper ticket used in direct
fulfilment, based on UIC leaflet 918-2, and for the A4 print-at-home indirect fulfilment method, based on UIC
leaflet 918-3.
Fulfilment specifications are missing
 for ticket on departure (TOD - where the passenger is given a code at the time of sale, and uses the code
or a payment card to collect the RCT2 paper ticket at the station), and
 for manifest-on-list (or e-ticket or paperless ticket – where there is no ticket at all, the ticket control staff
having pre-loaded or over-the-air access to the reservation database, and the passenger proves they can
travel by showing some ID).
To meet the indirect fulfilment needs of the open points, a set of specifications are needed for a generic
indirect fulfilment request framework and for a security method for fulfilment requests. These specifications
are given by this TS.
In order to ensure the compatibility between this TS and in particular between the future standard and the
TAP-TSI, several changes to the TAP-TSI are needed after agreement by the ERA and the rail sector. The
changes are in three main parts. The first is the change to the Basic Parameters in chapter 4 of the TAP-TSI
where the obligations are defined. The second change is to the technical documents being annexes to the
TAP-TSI (see Annex A) that specify the method by which timetable, fares, reservation and other data has to
be exchanged. For indirect fulfilment, the Technical Document affected is B5, covering reservations. The third
change is to the glossary, which defines what the terms used in the TAP-TSI mean.
The analysis later in this document demonstrates that, although security requirements are relevant for indirect
fulfilment, no rail-specific requirements exist at this time and open standards for key distribution and
management are sufficient. As a result, no specification is needed for the TAP-TSI to meet the Open Point.
1 Scope
This Technical Specification provides, in Clause 2, new and changed glossary items needed to define indirect
fulfilment and its characteristics and to support the changes to the TAP-TSI and ERA Technical Document B5.
Clause 3 defines the layout formats used for international rail services fulfilled using the ticket on departure
and print-at-home ticket methods.
Clause 4 provides the changes to ERA Technical Document B5 that are required to provide the generic
indirect fulfilment framework, covering ticket on departure, print-at-home and e-ticket fulfilment methods,
although the main use of the specification is expected to be for ticket on departure.
Clause 5 provides the analysis of the security requirements of indirect fulfilment, and the conclusion that no
rail-specific specifications are needed.
2 Terms and definitions
For the purposes of this document, the terms and definitions given in TAP-TSI and the following apply.
2.1 Additional terms for the TAP-TSI Glossary
2.1.1
indirect fulfilment
the process of fulfilment where the customer purchases a ticket other than at a station or face to face at a
ticket vendor
Note 1 to entry: Indirect fulfilment methods are conventional ticket on departure, print-at-home ticket, e-ticket and smart
ticket on departure.
2.1.2
indirect fulfilment message framework
a set of computer-to-computer messages between involved parties including carriers, issuers, retailers,
distributors, attributors, station managers and TCOs that allow for the indirect fulfilment of all types of tickets
excluding a conventional ticket
2.1.3
indirect fulfilment security framework
the set of equipment, processes and messages that ensures the security of the indirect fulfilment and ticket
control of all forms of tickets
2.1.4
product owner
the product owner is responsible for his products
 Functions of Ownership: Specifying pricing, usage rules and commercial rules.
 Functions of Clearing: Trip reconstruction, product aggregation based on received usage data using
product definition rules, linking of aggregated usage data with acquisition data, preparation of
apportionment data based on product specification rules.
 Functions of Reporting: Detailed acquisition data with no link to usage data within the reporting period,
usage data with no link to acquisition data within the reporting period, linked aggregated product data
within the reporting period
Note 1 to entry: This term is required as ticketing equipment is not always defined by carrier(s), as it could be defined by
an organisation owned wholly or partly by Transport Authorities.
[SOURCE: ISO 24014-1:2007, 5.1]
2.1.5
conventional ticket
a ticket for a product printed as specified by the carrier(s) on paper or paper-derived card and optionally with
machine-readable magnetic stripe and/or optically readable product data which the TCO(s) for the transport
service are equipped to read
Note 1 to entry: A conventional ticket provides autonomous and independent title to t
...
