EUROPEAN STANDARD
EN 621
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2009
ICS 97.100.20 Supersedes EN 621:1998
English Version
Non-domestic gas-fired forced convection air heaters for space
heating not exceeding a net heat input of 300 kW, without a fan
to assist transportation of combustion air and/or combustion
products
Générateurs d'air chaud à convection forcée utilisant les Gasbefeuerte Warmlufterzeuger mit erzwungener
combustibles gazeux pour le chauffage de locaux autres Konvektion zum Beheizen von Räumen für den nicht-
que l'habitat individuel, de débit calorifique sur Hi inférieur häuslichen Gebrauch mit einer Nennwärmebelastung nicht
ou égal à 300 kW, sans ventilateur pour aider l'alimentation über 300 kW, ohne Gebläse zur Beförderung der
en air comburant et/ou l'évacuation des produits de Verbrennungsluft und/oder der Abgase
combustion
This European Standard was approved by CEN on 10 October 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 621:2009: E
worldwide for CEN national Members.

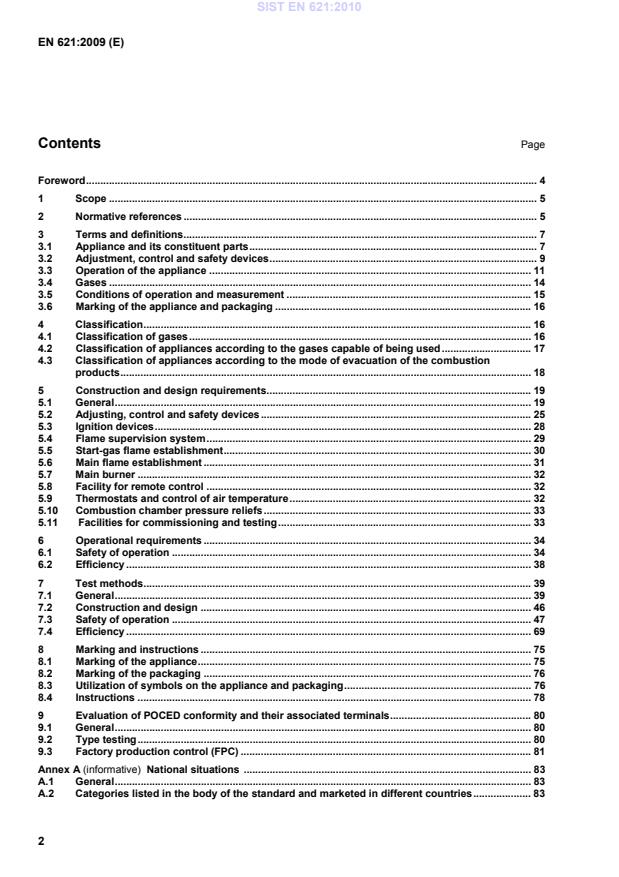

Contents Page
Foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions. 7
3.1 Appliance and its constituent parts . 7
3.2 Adjustment, control and safety devices . 9
3.3 Operation of the appliance . 11
3.4 Gases . 14
3.5 Conditions of operation and measurement . 15
3.6 Marking of the appliance and packaging . 16
4 Classification . 16
4.1 Classification of gases . 16
4.2 Classification of appliances according to the gases capable of being used . 17
4.3 Classification of appliances according to the mode of evacuation of the combustion
products . 18
5 Construction and design requirements. 19
5.1 General . 19
5.2 Adjusting, control and safety devices . 25
5.3 Ignition devices . 28
5.4 Flame supervision system . 29
5.5 Start-gas flame establishment . 30
5.6 Main flame establishment . 31
5.7 Main burner . 32
5.8 Facility for remote control . 32
5.9 Thermostats and control of air temperature . 32
5.10 Combustion chamber pressure reliefs . 33
5.11 Facilities for commissioning and testing . 33
6 Operational requirements . 34
6.1 Safety of operation . 34
6.2 Efficiency . 38
7 Test methods . 39
7.1 General . 39
7.2 Construction and design . 46
7.3 Safety of operation . 47
7.4 Efficiency . 69
8 Marking and instructions . 75
8.1 Marking of the appliance . 75
8.2 Marking of the packaging . 76
8.3 Utilization of symbols on the appliance and packaging . 76
8.4 Instructions . 78
9 Evaluation of POCED conformity and their associated terminals . 80
9.1 General . 80
9.2 Type testing . 80
9.3 Factory production control (FPC) . 81
Annex A (informative) National situations . 83
A.1 General . 83
A.2 Categories listed in the body of the standard and marketed in different countries . 83
A.3 Appliance supply pressures corresponding to the categories given in A.2 . 85
A.4 Special categories marketed nationally or locally . 86
A.5 Test gases corresponding to the special categories given in A.4 . 90
A.6 Gas connections in the various countries . 91
A.7 Flue connections in the various countries . 93
Annex B (informative) Equivalence rules . 94
B.1 Conversion to categories within a restricted Wobbe index range . 94
B.2 Conversion to categories within an identical Wobbe index range . 94
B.3 Conversion to categories within a wider Wobbe index range . 95
Annex C (informative) Facilities for commissioning and testing . 96
C.1 Appliances with automatic ignition of a start-gas flame . 96
C.2 Appliances with direct automatic ignition of the main burner . 96
Annex D (informative) Identification of gas types in use in various countries . 97
Annex E (informative) A-deviations . 98
E.1 General . 98
E.2 Switzerland . 98
Annex F (normative) Special national conditions . 99
F.1 General . 99
F.2 Belgium . 99
F.3 Italy . 99
Annex G (informative) National solutions for countries whose national bodies are Affiliate
Members of CEN . 100
G.1 Categories listed in the body of the standard and marketed in different countries . 100
G.2 Appliance supply pressures corresponding to the categories given in G.1 . 100
G.3 Special categories marketed nationally or locally . 100
G.4 Gases and test pressures corresponding to the special categories given in G.3 . 100
Annex H (informative) Calculation of conversions of NOx . 101
Annex I (informative) An example of a sampling plan . 102
I.1 Sampling plans . 102
I.2 Inspection levels and procedures. 103
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 90/396/EEC . 104
Annex ZB (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Directive . 106
ZB.1 Scope and relevant characteristics . 106
ZB.2 Procedure(s) for attestation of conformity of [construction products] . 108
ZB.3 CE marking and labelling . 110
Bibliography . 112

Foreword
This document (EN 621:2009) has been prepared by Technical Committee CEN/TC 180 “Domestic and non-
domestic gas fired air heaters and non-domestic overhead radiant heaters”, the secretariat of which is held by
AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2010, and conflicting national standards shall be withdrawn at the
latest by May 2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 621:1998.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document.
This revision modifies EN 621:1998. It has been prepared to incorporate requirements for combustion
products evacuation ducts, POCEDs, supplied as an integral part of the system to support the EU Directive
89/106/EEC on construction products under mandate M105. To this end it extends the scope of the standard
to cover Type B appliances.
Furthermore, the opportunity presented by this revision has been taken to update the standard in respect to
EN 437:2003.
NOTE For countries requesting special categories (specified in EN 437:2003), the absence of specific information
concerning A.4.3 and A.4.4 implies that the general requirements described in the body of the standard (see 5.1.1, 5.2.2,
5.2.3 and 5.2.5) also apply to these special categories.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

1 Scope
This European Standard specifies the requirements and test methods for the safety and efficiency of non-
domestic gas-fired air heaters not exceeding a net heat input of 300 kW with (an) atmospheric burner(s) and
without a fan to assist the transportation of combustion air and/or flue gases, hereafter referred to as
"appliances".
This European Standard applies to Type B , B , C and C appliances intended for use in other than single
11 41 11 31
unit residential dwellings. Provision of the heated air may be by means of ducting or may be directly into the
heated space.
This standard does not apply to:
a) appliances intended for use in a single unit residential dwelling;
b) appliances of the condensing type;
c) appliances for outdoor installation;
d) dual purpose air conditioning appliances (heating and cooling);
e) appliances where the air is heated by an intermediate fluid;
f) appliances with forced draught burners;
g) appliances fitted with a manual or automatic means of adjusting the combustion air supply or the
combustion products evacuation (including flue dampers);
h) portable or transportable forced convection appliances;
i) appliances having multiple heating units with a single draught diverter;
j) appliances fitted with more than one flue outlet;
k) appliances that are designed for continuous condensation within the flue system under normal
operating conditions;
l) appliances having combustion products evacuation ducts, POCEDs, that are non-metallic.
This standard is applicable to appliances which are intended to be type tested. It also includes requirements
concerning the evaluation of conformity, including factory production control, but these requirements only
apply to POCEDs and their associated terminals.
NOTE Requirements for appliances which are not type tested would need to be subject to further consideration.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 88-1, Pressure regulators and associated safety devices for gas appliances – Part 1: Pressure regulators
for inlet pressures up to and including 500 mbar

EN 125, Flame supervision devices for gas burning appliances – Thermoelectric flame supervision devices

EN 126, Multifuctional controls for gas burning appliances
EN 161:2007, Automatic shut-off valves for gas burners and gas appliances
EN 257, Mechanical thermostats for gas-burning appliances
EN 298:2003, Automatic gas burner control systems for gas burners and gas burning appliances with or
without fans
EN 437:2003, Test gases – Test pressures – Appliance categories
EN 1859:2000, Chimneys – Metal chimneys – Test methods
EN 10226-1, Pipe threads where pressure tight joints are made on the threads – Part 1: Taper external
threads and parallel internal threads – Dimensions, tolerances and designation
EN 10226-2, Pipe threads where pressure tight joints are made on the threads – Part 2: Taper external
threads and taper internal threads – Dimensions, tolerances and designation
EN 60335-1, Household and similar electrical appliances – Safety – Part 1: General requirements (IEC 60335-
1:2001, modified)
EN 60335-2-102, Household and similar electrical appliances – Safety – Part 2-102: Particular requirements
for gas, oil and solid-fuel burning appliances having electrical connections (IEC 60335-2-102:2004, modified)
EN 60529:1991, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989)
EN 60584-1, Thermocouples – Part 1: Reference tables (IEC 60584-1:1995)
EN 60584-2:1993, Thermocouples – Part 2: Tolerances (IEC 60584-2:1982 + A1:1989)
EN 60730-1, Automatic electrical controls for household and similar use – Part 1: General requirements (IEC
60730- 1:1999, modified)
EN 60730-2-9:2002, Automatic electrical controls for household and similar use – Part 2-9: Particular
requirements for temperature sensing controls (IEC 60730-2-9:2000, modified)
EN 61058-1, Switches for appliances – Part 1: General requirements (IEC 61058-1:2000 + A1:2001, modified)
EN ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads – Part 1: Dimensions,
tolerances and designation (ISO 228-1:2000)
ISO 1182, Reaction to fire tests for building products – Non-combustibility test
ISO 7005-1, Metallic flanges – Part 1: Steel flanges
ISO 7005-2, Metallic flanges – Part 2: Cast iron flanges
ISO 7005-3, Metallic flanges – Part 3: Copper alloy and composite flanges
CR 1404, Determination of emissions from appliances burning gaseous fuels during type-testing
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1 Appliance and its constituent parts
3.1.1
non-domestic air heater
appliance designed for the heating and possibly ventilation of a building other than a single unit residential
dwelling
3.1.2
forced convection air heater
appliance designed to provide space heating from a central source by distributing heated air, by means of an
air moving device, either through ducting or directly into the heated space
3.1.3
gas inlet connection
the part of the appliance intended to be connected to the gas supply
3.1.4
mechanical joint
mechanical means of obtaining soundness
means of ensuring the soundness of an assembly of several (generally metallic) parts without the use of
liquids (e.g. pastes and tapes)
EXAMPLE Metal to metal joints; conical joints; toroidal sealing rings (“O” rings); flat joints.
3.1.5
gas circuit
part of the appliance that conveys or contains the gas between the appliance gas inlet connection and the
burner(s)
3.1.6
restrictor
device with an orifice, which is placed in the gas circuit so as to create a pressure drop and thus reduce the
gas pressure at the burner to a predetermined value for a given supply pressure and rate
3.1.7
gas rate adjuster
component allowing an authorised person to set the gas rate of the burner to a predetermined value according to
the supply conditions
NOTE 1 Adjustment can be progressive (screw adjuster) or in discrete steps (by changing restrictors).
NOTE 2 The adjusting screw of an adjustable regulator is regarded as a gas rate adjuster.
NOTE 3 The action of adjusting this device is called “adjusting the gas rate”.
NOTE 4 A factory sealed gas rate adjuster is considered to be non-existent.
3.1.8
setting an adjuster
immobilization of an adjuster (by some means such as e.g. a screw) after the manufacturer or installer has
adjusted it
3.1.9
sealing an adjuster
setting of an adjuster using a material such that any attempt to change the adjustment breaks the sealing
material and makes the interference with the adjuster apparent
NOTE 1 The adjuster is then said to be "sealed" in its adjustment position.
NOTE 2 A factory sealed adjuster is considered to be non-existent.
NOTE 3 A regulator is considered to be non-existent if it has been factory sealed in a position such that it is not
operational in the range of supply pressures corresponding to the appliance category.
3.1.10
putting an adjuster or a control out of service
putting an adjuster or a control (of temperature, pressure, etc.) out of action and sealing it in this position
NOTE The appliance then functions as if the adjuster or control had been removed.
3.1.11
injector
component that admits the gas into a burner
3.1.12
main burner
burner that is intended to assure the thermal function of the appliance
3.1.13
ignition device
means (e.g. flame, electrical ignition device or other device) used to ignite the gas at the ignition burner or at the
main burner
NOTE This device can operate intermittently or permanently.
3.1.14
ignition burner
burner whose flame is intended to ignite another burner
3.1.15
aeration adjuster
device enabling the air to be set at the desired value according to the supply conditions
NOTE The action of adjusting this device is called "adjusting the aeration".
3.1.16 combustion products circuit
3.1.16.1
combustion chamber
enclosure inside which combustion of the air-gas mixture takes place
3.1.16.2
flue outlet
the part of a Type B appliance that connects with a flue to evacuate the products of combustion
3.1.16.3
draught diverter
device placed in the combustion products circuit to reduce the influence of flue-pull and that of down-draught
on the burner performance and combustion
3.1.16.4
POCED
combustion products evacuation duct that is intended to be used only with a specific appliance/system, this
duct being either supplied with the appliance/system or specified in the manufacturers instructions
3.2 Adjustment, control and safety devices
3.2.1
range rating device
component on the appliance intended to be used by the installer to adjust the heat input of the appliance, within a
range of heat inputs stated by the manufacturer, to suit the actual heat requirements of the installation
NOTE This adjustment may be progressive (e.g. by use of a screw adjuster) or in discrete steps (e.g. by changing restrictors).
3.2.2
automatic burner control system
system comprising at least a programming unit and all the elements of a flame detector device
NOTE The various functions of an automatic burner control system may be in one or more housings. [EN 298:2003]
3.2.3
programming unit
device which reacts to signals from control and safety devices, gives control commands, controls the start-up
sequence, supervises the burner operation and causes controlled shut-down, and if necessary safety shut-
down and lock-out
NOTE The programming unit follows a predetermined sequence of actions and always operates in conjunction with a
flame detector device. [EN 298:2003]
3.2.4
programme
sequence of control operations determined by the programming unit involving switching on, starting up,
supervising and switching off the burner
NOTE Safety actions such as safety shut down and lock out are also part of the programme. [EN 298:2003]
3.2.5
flame detector device
device by which the presence of a flame is detected and signalled
NOTE A flame detector device can consist of a flame sensor, an amplifier and a relay for signal transmission. These
parts, with the possible exception of the actual flame sensor, may be assembled in a single housing for use in conjunction
with a programming unit. [EN 298:2003]
3.2.6
flame signal
signal given by the flame detector device, normally when the flame sensor senses a flame
[EN 298:2003]
3.2.7
flame simulation
condition which occurs when the flame signal indicates the presence of a flame when in reality no flame is
present
[EN 298:2003]
3.2.8
1)
pressure regulator
device which maintains the outlet pressure constant independent of the variations in inlet pressure and/or flow
rate within defined limits
3.2.9
adjustable pressure regulator
regulator provided with means for changing the outlet pressure setting
3.2.10
flame supervision device
device that, in response to a signal from the flame detector, keeps the gas supply open and shuts it off in the
absence of the supervised flame
3.2.11
automatic shut-off valve
valve designed to open when energized and to close automatically when de-energized
3.2.12
control thermostat
device controlling the operation of the appliance (by on/off, high/low or modulating control) and enabling the
temperature to be kept automatically, within a given tolerance, at a predetermined value
3.2.13
overheat cut-off device
device that shuts off and locks out the gas supply before the appliance is damaged and/or before safety is
compromised and which requires manual intervention to restore the gas supply
NOTE This device is preset and sealed by the appliance manufacturer (see 5.9.4).
3.2.14
overheat control device
automatic reset device that shuts down the gas supply to the burner when the temperature of the delivered air
exceeds a certain preset value during abnormal operating conditions
3.2.15
fan delay control
control that starts and/or stops the air delivery fan when the temperature of the delivered air reaches a certain
predetermined value
3.2.16
temperature sensing element; temperature sensor
component that detects the temperature of the environment to be supervised or controlled
3.2.17
modulating control
automatic control by which the heat input of the appliance can be varied in a continuous manner between the
nominal heat input and a minimum value
3.2.18
high/low control
automatic control which permits an appliance to operate either at the nominal heat input or at a fixed reduced
heat input
1) The term "regulator" is used in this case and for a volume regulator.
3.2.19
closed position indicator switch
switch fitted to an automatic shut-off valve which indicates when the closure member is in the closed position
3.2.20
proof of closure switch
switch fitted to an automatic shut-off valve with mechanical overtravel which indicates when the closure
member is in the closed position
3.2.21
valve proving system
system to check the effective closure of the start gas or main gas safety shut-off valves, and which is capable
of detecting small gas leakage rates (e.g. by means of a pressure or vacuum proving system)
3.3 Operation of the appliance
3.3.1
volume flow rate
V
volume of gas consumed by the appliance in unit time during continuous operation
NOTE The volume flow rate is expressed in cubic metres per hour (m /h), litres per minute (l/min), cubic decimetres per
3 3
hour (dm /h) or cubic decimetres per second (dm /s). [EN 437:2003].
3.3.2
mass flow rate
M
mass of gas consumed by the appliance in unit time during continuous operation
NOTE The mass flow rate is expressed in kilograms per hour (kg/h) or grams per hour (g/h). [EN 437:2003]
3.3.3
heat input
Q
quantity of energy used in unit time corresponding to the volumetric or mass flow rates: the calorific value
used being the net or gross calorific value
NOTE The heat input is expressed in kilowatts (kW). [EN 437:2003].
3.3.4
nominal heat input
Q
n
value of the heat input, in kW, declared by the manufacturer
3.3.5
flame stability
characteristic of flames which remain on the burner ports or in the flame reception zone intended by the
construction
3.3.6
flame lift
total or partial lifting of the base of the flame away from the burner port or the flame reception zone provided
by the design
NOTE Flame lift may cause the flame to blow out (i.e. extinction of the air-gas mixture).
3.3.7
light-back
entry of a flame into the body of the burner
3.3.8
light-back at the injector
ignition of the gas at the injector, either as a result of light-back into the burner or by the propagation of a
flame outside the burner
3.3.9
sooting
phenomenon appearing during incomplete combustion and characterized by deposits of soot on the surfaces
or parts in contact with the combustion products or with the flame
3.3.10
yellow tipping
yellowing of the tip of the blue cone of an aerated flame
3.3.11
first safety time
interval between the ignition burner gas valve, the start gas valve or main gas valve, as applicable, being
energized and the ignition burner gas valve, start gas valve or main gas valve, as applicable, being de-
energized if the flame detector signals the absence of a flame at the end of this interval
NOTE Where there is no second safety time, this is called the safety time.
3.3.12
second safety time
where there is a first safety time to either a ignition burner or start gas flame only, the interval between the
main gas valve being energized and the main gas valve being de-energized if the flame detector signals the
absence of a flame
3.3.13
start gas
gas that is supplied at the start gas rate to establish the start gas flame
3.3.14
start gas rate
the restricted gas flow rate admitted either to a separate ignition burner or to the main burner during the first
safety time
3.3.15
start gas flame
flame established at the start gas rate either at the main burner or at a separate ignition burner
3.3.16
running condition of the system
condition of the system in which the burner is in normal operation under the supervision of the programming
unit and its flame detector device
3.3.17
automatic burner system
burner system in which, when starting from the completely shut-down condition, the gas is ignited and the
flame is detected and proved without manual intervention
3.3.18
non-automatic burner system
burner system with an ignition burner which is ignited under manual supervision
3.3.19
controlled shut-down
process by which the power to the gas shut-off valve(s) is removed immediately, e.g. as a result of the action
of a controlling function
[EN 298:2003]
3.3.20
safety shut-down
process which is effected immediately following the response of a protection device or a fault in the automatic
burner control system and puts the burner out of operation
NOTE The resulting state of the system is defined by deactivated terminals for the gas shut-off valves and the ignition
device. [EN 298:2003]
3.3.21  Lock-out
3.3.21.1
non-volatile lock-out
safety shut-down condition of the system, such that a restart can only be accomplished by a manual reset of
the system and by no other means
[EN 298:2003]
3.3.21.2
volatile lock-out
safety shut-down condition of the system, such that a restart can only be accomplished by either the manual
reset of the system or an interruption of the electrical supply and its subsequent restoration
[EN 298:2003]
3.3.22
spark restoration
process by which, after disappearance of the flame signal, the ignition device is energized again without the
gas supply having been totally interrupted
NOTE This process ends with the restoration of the running condition or, if there is no flame signal at the end of the
safety time, with non-volatile lock-out.
3.3.23
automatic recycling
process by which, after loss of flame during the running condition or accidental interruption of the operation of
the appliance, the gas supply is interrupted and the complete start sequence is automatically re-initiated
NOTE This process ends with the restoration of the running condition or, if there is no flame signal at the end of the
safety time or, if the cause of the accidental interruption has not been removed, with non-volatile lock-out.
3.3.24
ignition opening time
time interval between ignition of the supervised flame and the moment when the valve is held open
3.3.25
extinction safety time
time interval between extinction of the supervised flame and the gas supply being shut off:
a) to the main burner; and/or
b) to the ignition burner.
3.3.26
ignition interlock
part which prevents the operation of the igniter as long as the main gasway is open
3.3.27
re-start interlock
mechanism which prevents the re-opening of the gasway to the main burner or the main burner and the
ignition burner until the armature plate has separated from the magnetic element
3.4 Gases
3.4.1
test gases
gases intended for the verification of the operational characteristics of appliances using combustible gases
[EN 437:2003]
NOTE Test gases comprise the reference and the limit gases. [EN 437:2003]
3.4.2
reference gases
test gases with which appliances operate under nominal conditions when they are supplied at the
corresponding normal pressure
[EN 437:2003]
3.4.3
limit gases
test gases representative of the extreme variations in the characteristics of the gases for which appliances
have been designed
[EN 437:2003]
3.4.4
gas pressure
static pressure, relative to the atmospheric pressure, measured at right angles to the direction of flow of the
gas
NOTE Test pressures are expressed in millibars (mbar) or bars (bar).
3.4.5
test pressure
gas pressures used to verify the operational characteristics of appliances using combustible gases
NOTE 1 Test pressures consist of normal and limit pressures.
NOTE 2 Test pressures are expressed in millibars (mbar); 1 mbar = 10 Pa. [EN 437:2003]
3.4.6
normal pressure
p
n
pressure under which the appliances operate in nominal conditions when they are supplied with the
corresponding reference gas
[EN 437:2003]
3.4.7
limit pressure
pressures representative of the extreme variations in the appliance supply conditions
[EN 437:2003]
NOTE Limit pressures consist of maximum limit pressure p and minimum limit pressure p .
max min
3.4.8
pressure couple
combination of two distinct gas distribution pressures applied by reason of the significant difference existing
between the Wobbe indices within a single family or group in which:
 the higher pressure corresponds only to gases of low Wobbe index;
 the lower pressure corresponds to gases of high Wobbe index
[EN 437:2003]
3.4.9
relative density
d
ratio of the masses of equal volumes of dry gas and dry air under the same conditions of temperature and
pressure
3.4.10
calorific value
quantity of heat produced by the complete combustion, at a constant pressure equal to 1 013,25 mbar, of a
unit volume or mass of gas, the constituents of the combustible mixture being taken at reference conditions
and the products of combustion being brought back to the same conditions
NOTE 1 A distinction is made between:
a) the gross calorific value H in which the water produced by combustion is assumed to be condensed;
s
b) the net calorific value H in which the water produced by combustion is assumed to be in the vapour state.
i
NOTE 2 The calorific value is expressed either in megajoules per cubic metre of dry gas at the reference conditions
(MJ/m ) or in megajoules per kilogram of dry gas (MJ/kg). [EN 437:2003]
3.4.11
Wobbe index
gross Wobbe index: W ; net Wobbe index: W
s i
ratio of the calorific value of a gas per unit volume and the square root of its relative density under the same
reference conditions
NOTE 1 The Wobbe index is said to be gross or net according to whether the calorific value used is the gross or net
calorific value.
NOTE 2 The Wobbe index is expressed either in megajoules per cubic metre of dry gas at the reference conditions
(MJ/m ) or in megajoules per kilogram of dry gas (MJ/kg). [EN 437:2003]
3.5 Conditions of operation and measurement
3.5.1
reference conditions
 for calorific values, temperature: 15 °C;
 for gas and air volumes dry, brought to 15 °C and to an absolute pressure of 1 013,25 mbar.
3.5.2
cold condition
condition of the appliance required for some tests and obtained by allowing the unlit appliance to attain
thermal equilibrium at room temperature
3.5.3
hot condition
condition of the appliance required for some tests and obtained by heating to thermal equilibrium at the
nominal heat input specified by the manufacturer, any thermostat remaining fully open
3.5.4
equivalent resistance
resistance to flow (in mbar) measured at the outlet of the appliance, which is equivalent to that of the actual
flue
3.6 Marking of the appliance and packaging
3.6.1
direct country of destination
country for which the appliance has been certified and which is specified by the manufacturer as the intended
country of destination
NOTE 1 At the time of putting the appliance on the market and/or of installation, the appliance shall be capable of
operating, without adjustment or modification, with one of the gases distributed in the country concerned, at the
appropriate supply pressure.
NOTE 2 More than one country can be specified if the appliance, in its current state of adjustment, can be used in each
of these countries.
3.6.2
indirect country of destination
country for which the appliance has been certified, but for which, in its present state of adjustment, it is not
suitable
NOTE Subsequent modification or adjustment is essential in order that the appliance can be utilized safely and
correctly in this country.
4 Classification
4.1 Classification of gases
Gases are classified into three families, possibly divided into groups according to the value of the Wobbe
index. Table 1 specifies the families and groups of gas used in this standard.
Table 1 — Gas classification
Gas families and groups Gross Wobbe index at 15 °C and 1 013,25 mbar
MJ/m
Minimum Maximum
First family
* Group a 22,4 24,8
Second family 39,1 54,7
* Group H 45,7 54,7
* Group L 39,1 44,8
* Group E 40,9 54,7
Third family 72,9 87,3
* Group B/P 72,9 87,3
* Group P 72,9 76,8
* Group B 81,8 87,3
4.2 Classification of appliances according to the gases capable of being used
4.2.1 Category I
4.2.1.1 General
Appliances of Category I are designed exclusively for the use of gases of a single family or of a single group.
4.2.1.2 Appliances designed for use on first family gases only
Category I : Appliances using only gases of Group a of the first family at the prescribed supply pressure (this
1a
category is not used).
4.2.1.3 Appliances designed for use on second family gases only
Category I : Appliances using only gases of Group H of the second family at the prescribed supply pressures.
2H
Category I : Appliances using only gases of Group L of the second
...
