EN 3553:2004
(Main)Aerospace series - Aluminium alloy AL-P2618A - T6511 - Extruded bar and section - a or D
Aerospace series - Aluminium alloy AL-P2618A - T6511 - Extruded bar and section - a or D </= 160 mm
This standard specifies the requirements relating to:
Aluminium alloy AL-P2618A
T6511
Extruded bar and section
a or D < 160 mm
for aerospace application.
This standard may also be used to supply material for use in the T6510 condition if specified by the purchaser on the order and the product is marked accordingly.
Luft- und Raumfahrt - Aluminiumlegierung AL-P2618A - T6511 - Stranggepresste Stangen und Profile - a oder D </= 160 mm
Diese Norm legt die Anforderungen an
Aluminiumlegierung AL P2618A
T6511
Stranggepresste Stangen und Profile
a oder D < or = 160 mm
für Anwendungen in der Luft- und Raumfahrt fest.
Diese Norm darf auch für die Lieferung des Werkstoffs im Zustand T6511 verwendet werden, falls dies vom Käufer in der Bestellung angegeben wird und das Erzeugnis entsprechend gekennzeichnet ist.
Série aérospatiale - Alliage d'aluminium AL-P2618A - T6511 - Barres et profilés filés - a ou D </= 160 mm
Aeronavtika - Aluminijeva zlitina AL-P2618A - T6511 - Iztiskane palice in profili - a ali D </= 160 mm
General Information
- Status
- Published
- Publication Date
- 30-Nov-2004
- Withdrawal Date
- 29-Jun-2005
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 500-1:2006+A1:2009 - Mobile road construction machinery - Safety - Part 1: Common requirements - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 1459:1998+A3:2012 - Safety of industrial trucks - Self-propelled variable reach trucks - Effective Date
- 28-Jan-2026
Overview
EN 3553:2004 is a CEN (Aerospace series) standard that specifies requirements for aluminium alloy AL‑P2618A in the T6511 condition, manufactured as extruded bars and sections with a maximum cross‑section dimension (a or D) of ≤ 160 mm. It is intended for aerospace applications and may be used to supply material in the T6510 condition if the purchaser so specifies and the product is marked accordingly.
Key topics and technical requirements
- Material designation: Aluminium alloy AL‑P2618A (composition ranges and limits are defined in the standard).
- Product form: Extruded bars and sections, maximum dimension a or D ≤ 160 mm; three size groups: ≤10 mm, 10–100 mm, 100–160 mm.
- Delivery conditions: Primary delivery in T6511 (solution heat treatment, quench and controlled stretch, followed by artificial ageing). T6510 is permitted only by purchaser’s order.
- Heat treatment parameters (typical as shown):
- Solution temperature: 525 °C ≤ θ ≤ 535 °C / quench to ≤ 80 °C
- Controlled stretch: +1 % to ≤3 %
- Ageing: 187 °C to 205 °C for 16–24 h
- Note: Longer solution times (typically 4–24 h) may be required for this alloy.
- Mechanical properties (minimums by size group):
- Proof stress Rp0.2: ≥ 340 MPa (≤10 mm), ≥ 360 MPa (10–100 mm), ≥ 350 MPa (100–160 mm)
- Tensile strength Rm: ≥ 410 MPa, ≥ 420 MPa, ≥ 410 MPa (corresponding groups)
- Elongation A (50 mm): ≥ 5 % (≤10 mm), ≥ 6 % (other groups)
- Other controls & inspections:
- Tests, test-piece orientation and samples referenced to EN 4400‑3 (bar and section technical specification)
- Defect acceptance, dimensional and marking inspections, batch uniformity and extrusion back‑end defect requirements are addressed via EN 4400‑3.
- Typical physical data: Electrical conductivity is given as a typical value (e.g., ~18.0 MS/m for one condition and ~21.0 MS/m for another).
Applications and users
- Intended for aerospace manufacturers, suppliers, material engineers, procurement and quality assurance teams involved in structural and metallic components where a certified high‑strength extruded aluminium section is required.
- Typical uses include aerospace structural parts fabricated from extruded bars and profiles (up to 160 mm cross section) where controlled heat treatment and mechanical properties are critical.
Related standards
- EN 4400‑3 - Aerospace series: Aluminium and aluminium alloy wrought products - Technical specification - Part 3: Bar and section (normative reference)
- EN 4258 - General organisation of aerospace metallic material standards
- EN 4500‑2 - Rules for drafting/presentation for aluminium alloy material standards
Keywords: EN 3553:2004, AL‑P2618A, T6511, extruded bar, aerospace aluminium, EN 4400‑3, T6510, mechanical properties, aerospace standard.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3553:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Aluminium alloy AL-P2618A - T6511 - Extruded bar and section - a or D </= 160 mm". This standard covers: This standard specifies the requirements relating to: Aluminium alloy AL-P2618A T6511 Extruded bar and section a or D < 160 mm for aerospace application. This standard may also be used to supply material for use in the T6510 condition if specified by the purchaser on the order and the product is marked accordingly.
This standard specifies the requirements relating to: Aluminium alloy AL-P2618A T6511 Extruded bar and section a or D < 160 mm for aerospace application. This standard may also be used to supply material for use in the T6510 condition if specified by the purchaser on the order and the product is marked accordingly.
EN 3553:2004 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3553:2004 has the following relationships with other standards: It is inter standard links to EN 4258:2024, EN 13140:2000+A1:2009, EN 474-1:2006+A1:2009, EN 13118:2000+A1:2009, EN 500-1:2006+A1:2009, EN 15573:2008, EN 15059:2009, EN ISO 4254-7:2009, EN 1459:1998+A3:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3553:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2005
Aeronavtika - Aluminijeva zlitina AL-P2618A - T6511 - Iztiskane palice in profili - a
ali D
Aerospace series - Aluminium alloy AL-P2618A - T6511 - Extruded bar and section - a or
D
Luft- und Raumfahrt - Aluminiumlegierung AL-P2618A - T6511 - Stranggepresste
Stangen und Profile - a oder D
Série aérospatiale - Alliage d'aluminium AL-P2618A - T6511 - Barres et profilés filés - a
ou D
Ta slovenski standard je istoveten z: EN 3553:2004
ICS:
49.025.20 Aluminij Aluminium
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 3553
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2004
ICS 49.025.20
English version
Aerospace series - Aluminium alloy AL-P2618A - T6511 -
Extruded bar and section - a or D ≤ 160 mm
Série aérospatiale - Alliage d'aluminium AL-P2618A - Luft- und Raumfahrt - Aluminiumlegierung AL-P2618A -
T6511 - Barres et profilés filés - a ou D ≤ 160 mm T6511 - Stranggepresste Stangen und Profile - a oder D ≤
160 mm
This European Standard was approved by CEN on 15 July 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3553:2004: E
worldwide for CEN national Members.

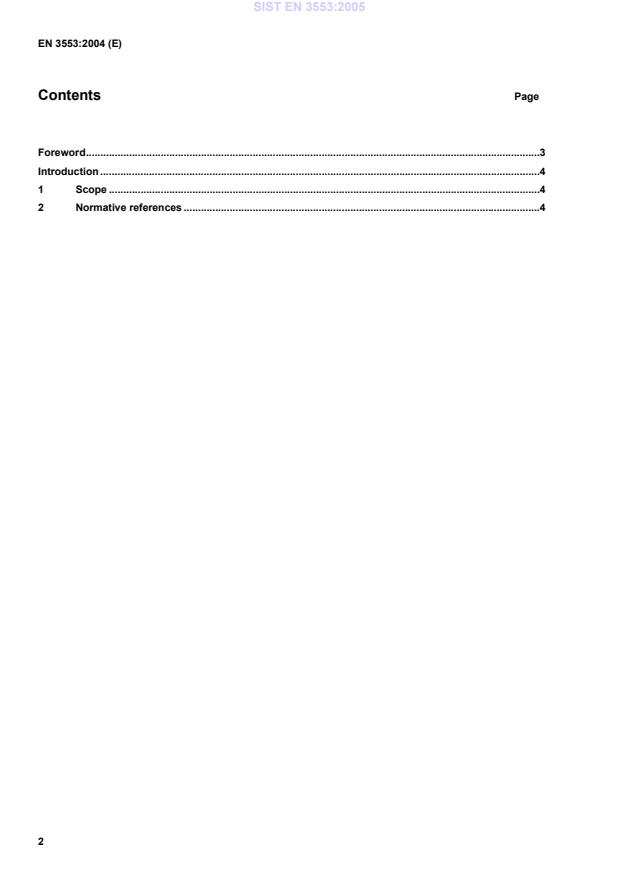

Contents Page
Foreword.3
Introduction .4
1 Scope .4
2 Normative references .4
Foreword
This document (EN 3553:2004) has been prepared by the European Association of Aerospace
Manufacturers - Standardization (AECMA-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
AECMA, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2005, and conflicting national standards shall be withdrawn at
the latest by June 2005.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, E
...
