ASTM F2204/F2204M-22
(Guide)Standard Guide for Describing Shoreline and Inland Response Techniques
Standard Guide for Describing Shoreline and Inland Response Techniques
SIGNIFICANCE AND USE
4.1 Once the extent and type of oiling has been defined and documented using proper procedures (see Guides F1686 and F1687), decisions are made on the appropriate course of action for site cleaning and restoration. In some cases, natural recovery (accompanied by monitoring) can be the preferred approach whereas in other cases, active response may be preferred and appropriate. This guide summarizes the principal response techniques available for shoreline, wetland, and terrain habitats.
4.2 This guide is intended to minimize the potential for added impact to the environment from use of response techniques in an overly-aggressive manner or in unsuitable conditions or habitats.
4.3 In Section 5, typical considerations, which can limit the applicability of a given technique are addressed in Constraints. An example that is applicable to all techniques other than natural recovery, is special permission will likely be needed for any response operations at sites with known culturally or historically important resources. Also, in Section 5, a synopsis of main trade-offs from use of a particular technique is provided in Environmental Effects.
SCOPE
1.1 This guide describes methods to clean and remediate stranded oil on marine and lake shorelines, on river banks and other inland water body shorelines, and terrestrial habitats. The primary goal of any countermeasure is to aid recovery while minimizing additional impact.
1.2 This guide describes 22 different tactics that are available for consideration. These options range from natural recovery to active physical or biochemical intervention.
1.3 The tactics listed might not be appropriate under all possible circumstances, and multiple countermeasures could be appropriate on the same shoreline, river bank, lake shore or terrestrial habitat.
1.4 This guide describes technical considerations for selecting appropriate response countermeasures or techniques.
1.5 Selection of specific countermeasures for use during a spill response is guided by properties of the oil, degree of oiling, site accessibility, geomorphology, substrate and vegetation type, mobility of available equipment, hydrologic (coastal and inland) and meteorological conditions, and the presence of sensitive natural and archeological resources. It is advisable to consult with appropriate regulatory authorities since certain response options may require government authorization or approval, or both.
1.6 This guide does not address response to submerged, sunken or buried oil.
1.7 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2022
- Technical Committee
- F20 - Hazardous Substances and Oil Spill Response
- Drafting Committee
- F20.17 - Shoreline and Inland Countermeasures
Relations
- Refers
ASTM F2532-19(2024) - Standard Guide for Determining Net Environmental Benefit of Dispersant Use - Effective Date
- 01-Mar-2024
- Effective Date
- 01-Mar-2019
- Effective Date
- 01-Dec-2013
- Effective Date
- 01-Apr-2013
- Effective Date
- 01-Jan-2012
- Refers
ASTM F1686-09e1 - Standard Guide for Surveys to Document and Assess Oiling Conditions on Shorelines - Effective Date
- 01-Oct-2009
- Refers
ASTM F1686-09 - Standard Guide for Surveys to Document and Assess Oiling Conditions on Shorelines - Effective Date
- 01-Oct-2009
- Effective Date
- 01-Oct-2009
- Effective Date
- 01-Nov-2007
- Effective Date
- 01-Apr-2007
- Effective Date
- 01-Apr-2006
- Effective Date
- 01-Oct-2005
- Effective Date
- 10-Oct-2002
- Effective Date
- 10-May-1998
- Effective Date
- 10-Feb-1997
Overview
ASTM F2204/F2204M-22, titled Standard Guide for Describing Shoreline and Inland Response Techniques, is an international guidance document developed by ASTM International. The guide provides a framework for selecting, describing, and implementing methods to clean and remediate stranded oil along marine, lake, and river shorelines as well as inland and terrestrial habitats. Its primary goal is to support the recovery of affected environments while minimizing additional harm, ensuring that countermeasures are both effective and responsible.
This guide is particularly significant for organizations, responders, and authorities involved in oil spill response planning and execution. It details 22 different tactics, ranging from natural recovery to active intervention methods, emphasizing the need to balance environmental restoration with potential risks and operational constraints.
Key Topics
- Range of Response Techniques: The guide covers a broad spectrum of shoreline and inland oil spill response methods, such as:
- Natural recovery
- Manual and mechanical oil removal
- Use of sorbents
- Barriers and berms
- Debris removal
- Water flushing (various pressures and temperatures)
- Sediment relocation
- Vegetation cutting/removal
- Flooding/deluge
- Selection Criteria: Choosing suitable spill response countermeasures depends on:
- Oil type and degree of contamination
- Habitat type (wetland, shore, terrestrial, etc.)
- Site accessibility and geomorphology
- Equipment mobility and availability
- Hydrological and meteorological factors
- Sensitive natural, cultural, or archaeological resources
- Environmental Considerations: Each technique includes guidance on:
- Environmental trade-offs and constraints
- Potential adverse effects of aggressive or inappropriate cleanup
- Waste generation and management challenges
- Regulatory requirements and the need for proper authorization in certain scenarios
Applications
ASTM F2204/F2204M-22 serves as a crucial reference for:
- Oil Spill Responders and Planners: Emergency response teams, environmental agencies, and contractors use this guide to make informed decisions when addressing oil spills in diverse environments, ensuring that remediation supports long-term ecological health.
- Regulatory and Oversight Bodies: Authorities consult the guide to evaluate proposed response plans and strategies, enforce environmental protection regulations, and ensure compliance with both international and local standards.
- Operators of Critical Infrastructure: Organizations operating near or on water bodies (e.g., ports, pipelines, refineries) apply the guide’s principles to develop robust contingency plans, incident response protocols, and training programs.
- Environmental Consultants: Experts rely on the standard for conducting site assessments, recommending appropriate countermeasures, and monitoring post-cleanup recovery.
Related Standards
ASTM F2204/F2204M-22 is part of a comprehensive suite of ASTM and international oil spill response standards. Notable referenced documents include:
- ASTM F1686 - Guide for Surveys to Document and Assess Oiling Conditions
- ASTM F1687 - Guide for Terminology and Indices to Describe Oiling Conditions on Shorelines and Other Terrain
- ASTM F1872 - Guide for Use of Chemical Shoreline Cleaning Agents: Environmental and Operational Considerations
- ASTM F2205 - Guide for Ecological Considerations for the Use of Chemical Dispersants in Oil Spill Response: Tropical Environments
- ASTM F2532 - Guide for Determining Net Environmental Benefit of Dispersant Use
These standards help ensure a harmonized approach to spill response, risk management, and environmental stewardship, reinforcing the importance of science-based, internationally recognized best practices for shoreline and inland oil spill remediation.
Keywords: ASTM F2204/F2204M-22, shoreline response techniques, inland oil spill remediation, oil spill response standards, environmental protection, habitat restoration, oil spill waste management, regulatory compliance, oil spill cleanup methods, shoreline habitat recovery.
Buy Documents
ASTM F2204/F2204M-22 - Standard Guide for Describing Shoreline and Inland Response Techniques
REDLINE ASTM F2204/F2204M-22 - Standard Guide for Describing Shoreline and Inland Response Techniques
Get Certified
Connect with accredited certification bodies for this standard

ABS Quality Evaluations Inc.
American Bureau of Shipping quality certification.

Element Materials Technology
Materials testing and product certification.

NSF International
Global independent organization facilitating standards development and certification.
Sponsored listings
Frequently Asked Questions
ASTM F2204/F2204M-22 is a guide published by ASTM International. Its full title is "Standard Guide for Describing Shoreline and Inland Response Techniques". This standard covers: SIGNIFICANCE AND USE 4.1 Once the extent and type of oiling has been defined and documented using proper procedures (see Guides F1686 and F1687), decisions are made on the appropriate course of action for site cleaning and restoration. In some cases, natural recovery (accompanied by monitoring) can be the preferred approach whereas in other cases, active response may be preferred and appropriate. This guide summarizes the principal response techniques available for shoreline, wetland, and terrain habitats. 4.2 This guide is intended to minimize the potential for added impact to the environment from use of response techniques in an overly-aggressive manner or in unsuitable conditions or habitats. 4.3 In Section 5, typical considerations, which can limit the applicability of a given technique are addressed in Constraints. An example that is applicable to all techniques other than natural recovery, is special permission will likely be needed for any response operations at sites with known culturally or historically important resources. Also, in Section 5, a synopsis of main trade-offs from use of a particular technique is provided in Environmental Effects. SCOPE 1.1 This guide describes methods to clean and remediate stranded oil on marine and lake shorelines, on river banks and other inland water body shorelines, and terrestrial habitats. The primary goal of any countermeasure is to aid recovery while minimizing additional impact. 1.2 This guide describes 22 different tactics that are available for consideration. These options range from natural recovery to active physical or biochemical intervention. 1.3 The tactics listed might not be appropriate under all possible circumstances, and multiple countermeasures could be appropriate on the same shoreline, river bank, lake shore or terrestrial habitat. 1.4 This guide describes technical considerations for selecting appropriate response countermeasures or techniques. 1.5 Selection of specific countermeasures for use during a spill response is guided by properties of the oil, degree of oiling, site accessibility, geomorphology, substrate and vegetation type, mobility of available equipment, hydrologic (coastal and inland) and meteorological conditions, and the presence of sensitive natural and archeological resources. It is advisable to consult with appropriate regulatory authorities since certain response options may require government authorization or approval, or both. 1.6 This guide does not address response to submerged, sunken or buried oil. 1.7 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 4.1 Once the extent and type of oiling has been defined and documented using proper procedures (see Guides F1686 and F1687), decisions are made on the appropriate course of action for site cleaning and restoration. In some cases, natural recovery (accompanied by monitoring) can be the preferred approach whereas in other cases, active response may be preferred and appropriate. This guide summarizes the principal response techniques available for shoreline, wetland, and terrain habitats. 4.2 This guide is intended to minimize the potential for added impact to the environment from use of response techniques in an overly-aggressive manner or in unsuitable conditions or habitats. 4.3 In Section 5, typical considerations, which can limit the applicability of a given technique are addressed in Constraints. An example that is applicable to all techniques other than natural recovery, is special permission will likely be needed for any response operations at sites with known culturally or historically important resources. Also, in Section 5, a synopsis of main trade-offs from use of a particular technique is provided in Environmental Effects. SCOPE 1.1 This guide describes methods to clean and remediate stranded oil on marine and lake shorelines, on river banks and other inland water body shorelines, and terrestrial habitats. The primary goal of any countermeasure is to aid recovery while minimizing additional impact. 1.2 This guide describes 22 different tactics that are available for consideration. These options range from natural recovery to active physical or biochemical intervention. 1.3 The tactics listed might not be appropriate under all possible circumstances, and multiple countermeasures could be appropriate on the same shoreline, river bank, lake shore or terrestrial habitat. 1.4 This guide describes technical considerations for selecting appropriate response countermeasures or techniques. 1.5 Selection of specific countermeasures for use during a spill response is guided by properties of the oil, degree of oiling, site accessibility, geomorphology, substrate and vegetation type, mobility of available equipment, hydrologic (coastal and inland) and meteorological conditions, and the presence of sensitive natural and archeological resources. It is advisable to consult with appropriate regulatory authorities since certain response options may require government authorization or approval, or both. 1.6 This guide does not address response to submerged, sunken or buried oil. 1.7 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F2204/F2204M-22 is classified under the following ICS (International Classification for Standards) categories: 13.200 - Accident and disaster control; 75.180.01 - Equipment for petroleum and natural gas industries in general. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F2204/F2204M-22 has the following relationships with other standards: It is inter standard links to ASTM F2532-19(2024), ASTM F2532-19, ASTM F2532-13, ASTM F2205-07(2013), ASTM F1872-12, ASTM F1686-09e1, ASTM F1686-09, ASTM F1687-09, ASTM F2205-07, ASTM F2205-02(2007), ASTM F2532-06, ASTM F1872-05, ASTM F2205-02, ASTM F1872-98, ASTM F1687-97(2003). Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F2204/F2204M-22 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

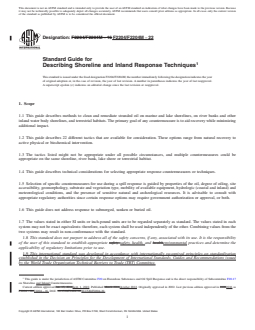

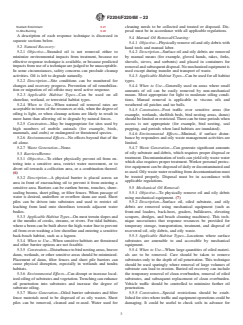

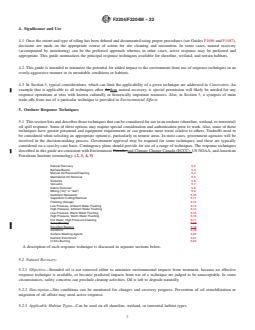

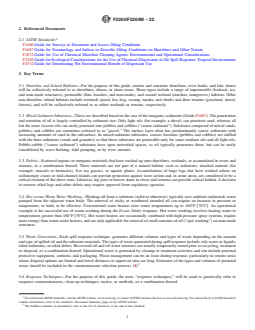

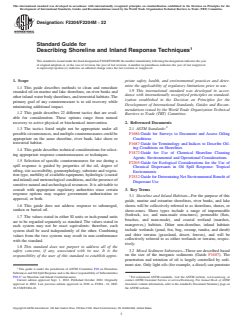

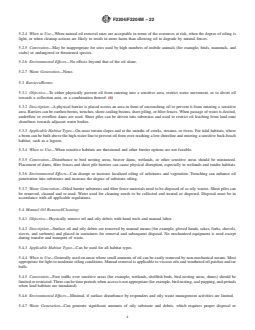

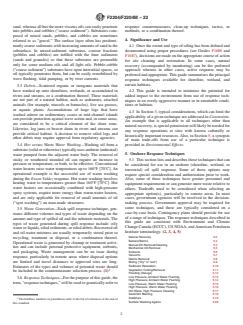

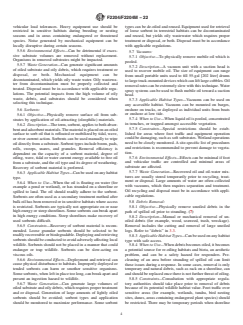

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F2204/F2204M − 22
Standard Guide for
Describing Shoreline and Inland Response Techniques
ThisstandardisissuedunderthefixeddesignationF2204/F2204M;thenumberimmediatelyfollowingthedesignationindicatestheyear
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
1.1 This guide describes methods to clean and remediate
1.9 This international standard was developed in accor-
stranded oil on marine and lake shorelines, on river banks and
dance with internationally recognized principles on standard-
other inland water body shorelines, and terrestrial habitats.The
ization established in the Decision on Principles for the
primary goal of any countermeasure is to aid recovery while
Development of International Standards, Guides and Recom-
minimizing additional impact.
mendations issued by the World Trade Organization Technical
1.2 This guide describes 22 different tactics that are avail-
Barriers to Trade (TBT) Committee.
able for consideration. These options range from natural
recovery to active physical or biochemical intervention. 2. Referenced Documents
1.3 The tactics listed might not be appropriate under all
2.1 ASTM Standards:
possiblecircumstances,andmultiplecountermeasurescouldbe F1686 Guide for Surveys to Document and Assess Oiling
appropriate on the same shoreline, river bank, lake shore or
Conditions
terrestrial habitat. F1687 Guide for Terminology and Indices to Describe Oil-
ing Conditions on Shorelines
1.4 This guide describes technical considerations for select-
F1872 Guide for Use of Chemical Shoreline Cleaning
ing appropriate response countermeasures or techniques.
Agents: Environmental and Operational Considerations
1.5 Selection of specific countermeasures for use during a
F2205 Guide for Ecological Considerations for the Use of
spill response is guided by properties of the oil, degree of
Chemical Dispersants in Oil Spill Response: Tropical
oiling, site accessibility, geomorphology, substrate and vegeta-
Environments
tion type, mobility of available equipment, hydrologic (coastal
F2532 Guide for Determining Net Environmental Benefit of
and inland) and meteorological conditions, and the presence of
Dispersant Use
sensitive natural and archeological resources. It is advisable to
consult with appropriate regulatory authorities since certain
3. Key Terms
response options may require government authorization or
3.1 Shoreline and Inland Habitats—For the purpose of this
approval, or both.
guide, marine and estuarine shorelines, river banks, and lake
1.6 This guide does not address response to submerged,
shores will be collectively referred to as shorelines, shores, or
sunken or buried oil.
shore-zones. Shore types include a range of impermeable
(bedrock, ice, and man-made structures), permeable (flats,
1.7 The values stated in either SI units or inch-pound units
beaches, and man-made), and coastal wetland (marshes,
are to be regarded separately as standard. The values stated in
mangroves,) habitats. Other non-shoreline, inland habitats
each system may not be exact equivalents: therefore, each
include wetlands (pond, fen, bog, swamp, tundra, and shrub)
system shall be used independently of the other. Combining
and drier terrains (grassland, desert, forests), and will be
values from the two systems may result in non-conformance
collectively referred to as either wetlands or terrains, respec-
with the standard.
tively.
1.8 This standard does not purport to address all of the
3.2 Mixed Sediment Substrates—These are described based
safety concerns, if any, associated with its use. It is the
on the size of the inorganic sediments (Guide F1687). The
responsibility of the user of this standard to establish appro-
penetration and retention of oil is largely controlled by sedi-
ment size. Only light oils (for example, a diesel) can penetrate
This guide is under the jurisdiction of ASTM Committee F20 on Hazardous
Substances and Oil Spill Response and is the direct responsibility of Subcommittee
F20.17 on Shoreline and Inland Countermeasures. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Sept. 1, 2022. Published October 2022. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 2002. Last previous edition approved in 2016 as F2204 – 16. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/F2204-22. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2204/F2204M − 22
sand, whereas all but the more viscous oils can easily penetrate response countermeasures, clean-up techniques, tactics, or
into pebbles and cobbles (“coarse sediment”). Substrates com- methods, or a combination thereof.
posed of mixed sands, pebbles, and cobbles are sometimes
4. Significance and Use
referred to as “gravel.” The surface layer often has predomi-
nantly coarse sediments with increasing amounts of sand in the
4.1 Once the extent and type of oiling has been defined and
subsurface. In mixed-sediment substrates, coarser fractions
documented using proper procedures (see Guides F1686 and
(pebbles and cobbles) are infilled with the finer sediments
F1687), decisions are made on the appropriate course of action
(sands and granules) so that these substrates are permeable
for site cleaning and restoration. In some cases, natural
only for some medium oils and all light oils. Pebble-cobble
recovery (accompanied by monitoring) can be the preferred
(“coarse sediment”) substrates have open interstitial spaces, so
approach whereas in other cases, active response may be
oil typically penetrates them, but can be easily remobilized by
preferred and appropriate.This guide summarizes the principal
wave flushing, tidal pumping, or by river currents.
response techniques available for shoreline, wetland, and
terrain habitats.
3.3 Debris—Scattered organic or inorganic materials that
have washed up onto shorelines, wetlands, or accumulated in
4.2 This guide is intended to minimize the potential for
rivers and streams, or a combination thereof. These materials
added impact to the environment from use of response tech-
are not part of a natural habitat, such as sediments, attached
niques in an overly-aggressive manner or in unsuitable condi-
animals (for example, mussels or barnacles), live sea grasses,
tions or habitats.
or aquatic plants. Accumulations of large logs that have
4.3 In Section 5, typical considerations, which can limit the
washed ashore on sedimentary coasts or mid-channel islands
applicability of a given technique are addressed in Constraints.
can provide protection against wave action and, in some areas,
An example that is applicable to all techniques other than
are considered to be a critical element of the shore zone.
naturalrecovery,isspecialpermissionwilllikelybeneededfor
Likewise, log jams or beaver dams in rivers and streams can
any response operations at sites with known culturally or
provide critical habitat. A decision to remove oiled logs and
historically important resources.Also, in Section 5, a synopsis
other debris may require approval from regulatory agencies.
of main trade-offs from use of a particular technique is
3.4 Hot versus Warm Water Washing—Washing oil from a provided in Environmental Effects.
substrate(solidorotherwise)typicallyusesambient(unheated)
5. Onshore Response Techniques
water pumped from the adjacent water body. The removal of
sticky or weathered stranded oil can require an increase in
5.1 Thissectionlistsanddescribesthosetechniquesthatcan
pressure or temperature, or both, to be effective. Conventional
be considered for use in an onshore (shoreline, wetland, or
water heaters raise water temperatures up to 160°F [70°C].An
terrestrial) oil spill response. Some of these options may
operational example is the successful use of warm washing
require special consideration and authorization prior to work.
during the Exxon Valdez response. Hot water washing involves
Also, some of these techniques have greater personnel and
heating water to temperatures greater than 160°F [70°C]. Hot
equipment requirements or can generate more waste relative to
water heaters are occasionally combined with high-pressure
others. Tradeoffs need to be considered when selecting an
spray systems, require more energy than warm-water heaters,
appropriate option(s), particularly in remote areas. In most
and are only applicable for removal of small amounts of oil
cases, government agencies will be involved in the decision-
(“spot washing”) on man-made structures.
making process. Government approval may be required for
some techniques, and these are typically considered on a
3.5 Waste Generation—Each spill response technique, gen-
case-by-case basis. Contingency plans should provide for use
erates different volumes and types of waste depending on the
of a range of techniques. The response techniques described in
amount and type of spilled oil and the substrate materials. The
this guide are consistent with Environment and Climate
types of waste generated during spill response include: oily
Change Canada (ECCC), US NOAA, andAmerican Petroleum
waterorliquids,oiledsediments,oroileddebris.Recoveredoil
Institute terminology. (2, 3, 4, 5)
and oil-water mixtures are usually temporarily stored prior to
Natural Recovery 5.2
recycling, treatment or disposal, or a combination thereof.
Barriers/Berms 5.3
Operational waste is generated by cleanup or treatment activi-
Manual Oil Removal/Cleaning 5.4
ties and can include personal protective equipment, sorbents,
Mechanical Oil Removal 5.5
Sorbents 5.6
and packaging. Waste management can be an issue during
Vacuums 5.7
response, particularly in remote areas where disposal options
Debris Removal 5.8
are limited and travel distances to approved sites are long.
Mixing (“dry” or “wet”) 5.9
Sediment Relocation 5.10
Estimates of the types and volumes of potential waste should
3 Vegetation Cutting/Removal 5.11
be included in the countermeasure selection process. (1)
Flooding (Deluge) 5.12
Low Pressure, Ambient Water Flushing 5.13
3.6 Response Techniques—Forthepurposeofthisguide,the
High Pressure, Ambient Water Flushing 5.14
term,“responsetechniques,”willbeusedtogenericallyreferto
Low Pressure, Warm Water Flushing 5.15
High Pressure, Warm Water Flushing 5.16
Hot Water, High Pressure Cleaning 5.17
Sand/Grit Blasting 5.18
Solidifiers 5.19
The boldface numbers in parentheses refer to the list of references at the end of
Surface Washing Agents 5.20
this standard.
F2204/F2204M − 22
cleaning needs to be collected and treated or disposed. Dis-
Nutrient Enrichment 5.21
In-Situ Burning 5.22
posal must be in accordance with all applicable regulations.
A description of each response technique is discussed in
5.4 Manual Oil Removal/Cleaning:
separate sections below.
5.4.1 Objective—Physically remove oil and oily debris with
5.2 Natural Recovery: hand tools and manual labor.
5.2.1 Objective—Stranded oil is not removed either to
5.4.2 Description—Surface oil and oily debris are removed
minimize environmental impacts from treatment, because no by manual means (for example, gloved hands, rakes, forks,
effective response technique is available, or because predicted
shovels, sieves, and sorbents) and placed in containers for
impacts from use of a technique are judged to be unacceptable. removalandsubsequentdisposal.Nomechanizedequipmentis
In some circumstances, safety concerns can preclude cleanup
used except during transfer and transport of waste.
activities. Oil is left to degrade naturally. 5.4.3 Applicable Habitat Types—Can be used for all habitat
5.2.2 Description—Site conditions can be monitored for
types.
changes and recovery progress. Prevention of oil remobiliza-
5.4.4 When to Use—Generally used on areas where small
tion or migration of oil offsite may need active response.
amounts of oil can be easily removed by non-mechanical
5.2.3 Applicable Habitat Types—Can be used on all means. Most appropriate for light to moderate oiling condi-
shoreline, wetland, or terrestrial habitat types.
tions. Manual removal is applicable to viscous oils and
5.2.4 When to Use—When natural oil removal rates are weathered oil patches and tar balls.
acceptable in terms of the resources at risk, when the degree of
5.4.5 Constraints—Foot traffic over sensitive areas (for
oiling is light, or when cleanup actions are likely to result in example, wetlands, shellfish beds, bird nesting areas, dunes)
more harm than allowing oil to degrade by natural forces.
should be limited or restricted.There can be time periods when
5.2.5 Constraints—May be inappropriate for sites used by access is not appropriate (for example, bird nesting, seal
high numbers of mobile animals (for example, birds,
pupping, and periods when land habitats are inundated).
mammals, and crabs) or endangered or threatened species. 5.4.6 Environmental Effects—Minimal, if surface distur-
5.2.6 Environmental Effects—No effects beyond that of the
bance by responders and oily waste management activities are
oil alone. limited.
5.2.7 Waste Generation—None.
5.4.7 Waste Generation—Can generate significant amounts
of oily substrate and debris, which requires proper disposal or
5.3 Barriers/Berms:
treatment. Decontamination of tools can yield oily waste water
5.3.1 Objective—To either physically prevent oil from en-
which also requires proper treatment. Worker personal protec-
tering into a sensitive area, restrict water movement, or to
tive equipment can be disposed of daily or decontaminated and
divert oil towards a collection area, or a combination thereof.
re-used. Oily waste water resulting from decontamination must
(6)
be treated properly. Disposal must be in accordance with
5.3.2 Description—A physical barrier is placed across an
applicable regulations.
area in front of encroaching oil to prevent it from entering a
sensitive area. Barriers can be earthen berms, trenches, shore- 5.5 Mechanical Oil Removal:
sealing booms, sheet piling, or filter fences. When passage of 5.5.1 Objective—To physically remove oil and oily debris
water is desired, underflow or overflow dams are used. Sheet using mechanical equipment. (7)
piles can be driven into substrates and used to restrict oil 5.5.2 Description—Surface oil, oiled substrate, and oily
leaching from land onto shorelines towards adjacent water debris are removed using mechanical equipment (such as
bodies. front-end loaders, back-hoes, graders, bulldozers, elevating
5.3.3 Applicable Habitat Types—On most terrain slopes and scrapers, dredges, and beach cleaning machines). This tech-
at the mouths of creeks, streams, or rivers. For tidal habitats, nique necessitates that response resources be provided for
where a berm can be built above the high-water line to prevent temporary storage, transportation, treatment, and disposal of
oil from over-washing a low shoreline and entering a sensitive recovered oil, oily debris, and oily waste.
back-beach habitat, such as a lagoon. 5.5.3 Applicable Habitat Types—Locations where surface
5.3.4 When to Use—When sensitive habitats are threatened substrates are amenable to and accessible by mechanical
and other barrier options are not feasible. equipment.
5.3.5 Constraints—Disturbancetobirdnestingareas,beaver
5.5.4 When to Use—When large quantities of oiled materi-
dams, wetlands, or other sensitive areas should be minimized. als are to be removed. Care should be taken to remove
Placement of dams, filter fences and sheet pile barriers can
substrates only to the depth of oil penetration. This technique
cause physical disruption, especially in wetlands and tundra should be used sparingly where removal of large volumes of
habitats.
substrate can lead to erosion. Buried oil recovery can include
5.3.6 Environmental Effects—Can disrupt or increase local- the temporary removal of clean overburden, removal of oiled
substrates, and subsequent replacement of clean overburden.
izedoilingofsubstratesandvegetation.Trenchingcanenhance
oil penetration into substrates and increase the degree of Vehicle traffic should be controlled to minimize further oil
substrate oiling. penetration.
5.3.7 Waste Generation—Oiled barrier substrates and filter 5.5.5 Constraints—Special restrictions should be estab-
fence materials need to be disposed of as oily wastes. Sheet lishedforsiteswheretrafficandequipmentoperationscouldbe
piles can be removed, cleaned and re-used. Water used for damaging. It could be useful to check soils in advance for
F2204/F2204M − 22
vehicular load tolerances. Heavy equipment use should be types can be de-oiled and reused. Equipment used for retrieval
restricted in sensitive habitats during breeding or nesting of loose sorbent in terrestrial habitats can be decontaminated
seasons and in areas containing endangered or threatened and reused, but yields oily wastewater which requires proper
species. Noise generated by mechanical equipment can be treatment or disposal, or both. Disposal must be in accordance
locally disruptive during certain seasons. with applicable regulations.
5.5.6 Environmental Effects—Can be detrimental if exces-
5.7 Vacuums:
sive substrate volumes are removed without replacement.
5.7.1 Objective—To physically remove mobile oil which is
Organisms in removed substrates might be impacted.
pooled.
5.5.7 Waste Generation—Can generate significant amounts
5.7.2 Description—A vacuum unit with a suction head is
of oiled substrate and oily debris, which requires treatment or
used to recover mobile oil. The size of equipment can range
disposal, or both. Mechanical equipment can be
from small portable units used to fill 55-gal [202 liter] drums
decontaminated, which yields oily waste water. Oily wastewa-
tolargetruck-mounteddeviceswhichcanliftlargecobbles.Oil
ter from decontamination must be properly collected and
removalratescanbeextremelyslowwiththistechnique.Water
treated. Disposal must be in accordance with applicable regu-
spray systems can be used to flush mobile oil toward a suction
lations. The potential impacts from the high volume of oily
head.
waste, debris, and substrates should be considered when
5.7.3 Applicable Habitat Types—Vacuums can be used on
selecting this technique.
any accessible habitat. Vacuums can be mounted on barges,
onshore on trucks, or deployed as individual units from boats
5.6 Sorbents:
or onshore at low tide.
5.6.1 Objective—Physically remove surface oil from sub-
5.7.4 When to Use—When liquid oil is pooled, concentrated
strates by application of oil-attracting (oleophilic) materials.
in trenches, or trapped amongst accessible vegetation.
5.6.2 Description—The term, sorbent, applies to both absor-
5.7.5 Constraints—Special restrictions should be estab-
bentandadsorbentmaterials.Thematerialisplacedonanoiled
lished for areas where foot traffic and equipment operation
surface to sorb oil that is refloated or mobilized by tidal, wave,
could be damaging, such as soft substrates.Wetland operations
or river current action. Sorbents can be used manually to wipe
need to be closely monitored.Asite-specific list of procedures
oildirectlyfromasubstrate.Sorbenttypesincludeboom,pads,
and restrictions is recommended to prevent damage to vegeta-
rolls, sweeps, snares, and granules. Removal efficiency is
tion.
dependent on the capacity of a sorbent material, degree of
5.7.6 Environmental Effects—Effects can be minimal if foot
oiling, wave, tidal or water current energy available to free oil
and vehicular traffic are controlled and minimal areas of
from a substrate, and the oil type and its degree of weathering.
substrate are affected.
Recovery of sorbent material is preferred.
5.7.7 Waste Generation—Recovered oil and oil-water mix-
5.6.3 Applicable Habitat Types—Canbeusedonanyhabitat
tures are usually stored temporarily prior to recycling, treat-
type.
ment or disposal. Large amounts of water are often collected
5.6.4 When to Use—When the oil is floating on water (for
with vacuums, which then requires separation and treatment.
example a pond or wetland), or has stranded on a shoreline or
Oil recycling and disposal must be in accordance with appli-
spilled to land. The oil should readily adhere to the sorbent.
cable regulations.
Sorbents are often used as a secondary treatment method after
bulk oil has been removed or in sensitive habitats where access
5.8 Debris Removal:
is restricted. Sorbents are typically not appropriate on or near
5.8.1 Objective—Physically remove unoiled debris in the
high energy or steep shorelines. Some sorbents can break apart
path of spilled oil prior to stranding. (7)
in high energy conditions. Steep shorelines make recovery of
5.8.2 Description—Manual or mechanical removal of un-
used sorbents difficult.
oiled debris (for example, wood, seaweed, trash, wreckage).
5.6.5 Constraints—Recovery of sorbent material is recom-
Removal includes the cutting and removal of large unoiled
mended. Loose granular sorbents should be selected to be logs. Refer to “debris” in 3.3.
readily recoverable or biodegradable. Deploying and retrieving
5.8.3 Applicable Habitat Types—Canbeusedonanyhabitat
sorbentsshouldbeconductedtoavoidadverselyaffectinglocal type with safe access.
wildlife. Sorbents should not be placed in a manner that could
5.8.4 When to Use—Whendebrisbecomesoiled,itbecomes
endanger or trap wildlife. Sorbents can be slow-acting on
a potential source for re-oiling habitats and biota, an aesthetic
viscous oils.
problem, and can be a safety hazard for responders. Pre-
5.6.6 Environmental Effects—Deployment and retrieval can
cleaning of an area before stranding of spilled oil can limit
cause physical disturbance to habitats. Improperly deployed or these issues during a response. In some cases, removal is only
tended sorbents can harm or smother sensitive organisms.
temporary and natural debris, such as rack on a shoreline, can
Somesorbents,whenleftinplacetoolong,canbreakapartand andshouldbereplacedoncethereisnotfurtherthreatofoiling.
present an ingestion hazard to wildlife.
5.8.5 Constraints—Consultation with appropriate regula-
5.6.7 Waste Generation—Can generate large volumes of tory authorities should take place prior to removal of debris
oiledsubstrateandoilydebris,whichrequirespropertreatment because of its potential wildlife habitat value. Foot traffic over
and or disposal. Generation of large amounts of lightly oiled sensitive areas (for example, wetlands, tundra, bird nesting
sorbents should be avoided; sorbent types and application sites, dunes, areas containing endangered plant species) should
should be monitored to maximize performance. Some sorbent be restricted. There may be temporary periods when shoreline
F2204/F2204M − 22
access is restricted (for example, bird nesting, influx of large 5.10 Sediment Relocation:
numbers of migratory birds, or seal pupping). 5.10.1 Objective—Physically relocate oiled sediments to
5.8.6 Environmental Effects—Removal could affect future enhancenaturalweatheringandcleaningratesbywaveorriver
habitat use, lower erosion protection, and reduce sources of current activity. (8)
food from foraging for some species. 5.10.2 Description—Oiled sediments are removed from one
5.8.7 Waste Generation—An advantage of collecting debris location and relocated to another which has a greater potential
prior to oiling is that waste disposal requirements would likely forweatheringprocessesorexposuretowaveorcurrentaction.
be less restrictive than if the debris is oiled. Oiled debris is 5.10.3 Applicable Habitat Types—This technique is gener-
likely to be handled as hazardous waste. Disposal of oiled ally used on sand, coarse-sediment, or cobble shorelines or
debris must be in accordance with applicable regulations. river bars where sediment removal, potential erosion, or low
natural sediment replenishment, or a combination thereof, are
5.9 Mixing:
of concern. Sediment relocation can also be used at remote
5.9.1 Objective—Physically rework oiled sediments in situ
sites with small amounts of oil.
to break up oil deposits, increase surface area, and mix deeper
5.10.4 When to Use—Appropriate for sites where oil is
subsurface oil layers to expose them to natural removal
stranded above the normal waterline or in the upper intertidal
processes and enhance their rate of natural weathering and
zone, swash zone, or river bank. Sediment relocation can be
degradation. (8)
used where remoteness or other logistical limitations make
5.9.2 Description—Oiled substrate is mixed either in the
oiledsedimentremovalimpracticalorundesirableduetowaste
absence of water above the water line (“dry” mixing) or
management issues. Can be used in later phases of a cleanup
underwater (“wet” mixing) using mechanical equipment or
program to accelerate the weathering of oil residues after bulk
manual tools. In both cases, the intent is to agitate sediment in
oil removal has been completed.
situ,withoutsedimentremoval.Thisdifferentiatesmixingfrom
5.10.5 Constraints—This technique is not usually appli-
sediment relocation ( 5.10) where sediments are purposely
cable on shorelines located immediately adjacent to shellfish
moved from one location to another. Refloated oil from
habitatsorfishspawningareasduringbirdmigrationduetothe
reworked areas can be contained and recovered. “Wet” mixing
potential of introducing oil into these sensitive habitats.
typically takes place within a boomed area in shallow water
5.10.6 Environmental Effects—Oil released onto surface
(<1 m depth), and can involve the use of high-pressure water
water can be transported to immediately adjacent areas. Field
jets to agitate underwater sediments. Landfarming, which uses
experiments show the released oil rapidly spreads into the
both mixing and bioremediation (5.21) is a common practice
water column, is positively or neutrally buoyant, and is
and may require regulatory approval.
unlikely to sink in quantities which could cause widespread
5.9.3 Applicable Habitat Types—Any habitat which can
adverseeffects.Studiesshowratesofnaturalbiodegradationof
support mechanical equipment or foot traffic, or both.
oil, released into water from sediment relocation, are greatly
5.9.4 When to Use—On sand to coarse-sediment substrates
accelerated. Oil recovery efforts (booming and collection) at
with surface or subsurface oil, where sediment removal is not
the site of relocation can limit spreading of oil which could
feasible due to erosion or waste disposal issues, and in remote
otherwiseposearisktoimmediatelyadjacentsensitiveareasor
areas with small amounts of oil. Can be used in later phases of
populations. Typically, this technique is not used with oil
a cleanup program, after bulk oil removal has been completed,
recovery as an objective.
to accelerate weathering of oil residues.
5.10.7 Waste Generation—Equipment used for sediment
5.9.5 Constraints—Might not be applicable on shorelines
relocationcanbedecontaminatedandreused.Decontamination
located immediately adjacent to sensitive habitats (for
yields oily wastewater which requires proper treatment or
example, those with shellfish beds, fish-spawning areas, bird
disposal, or both. Disposal must be in accordance with appli-
nesting or concentration areas) because of the potential for
cable regulations.
continued release of oil.
5.11 Vegetation Cutting/Removal:
5.9.6 Environmental Effects—Mixing of oil into substrate
5.11.1 Objective—Physical removal of oiled vegetation to
could expose biota which occur beyond the original layer of
prevent oiling of wildlife and secondary oil releases.
oil. Repeated reworking could delay re-establishment of biota.
5.11.2 Description—Oiled vegetation is cut using weed
Oil released into water, either by “wet” mixing or by rising
trimmers or other appropriate tools, and picked or raked up.
water levels after “dry” mixing and that cannot be contained at
Cut vegetation is bagged for disposal.
the surface, can flow to adjacent areas. Studies show rates of
biodegradationofoilaregreatlyacceleratedwhenitisreleased 5.11.3 Applicable Habitat Types—Habitats(suchasmarshes
or wetlands) composed of emergent, herbaceous vegetation,
into surface water from mixing. Field experiments show
released oil rapidly spreads into a water column, is positively uppershorelinesafterveryhightides,andriverandlakeshores
after flooding. (9)
or neutrally buoyant, and is unlikely to sink in quantities which
could cause widespread effects. 5.11.4 When to Use—Use when the risk of oiled vegetation
5.9.7 Waste Generation—Equipment used for mixing affecting wildlife outweighs the value of the vegetation to be
cut, and there is no less destructive technique to remove or
sediment, whether dry or wet, can be decontaminated and
reused.Decontaminationyieldsoilywastewaterwhichrequires reduce the risk of oiling to acceptable levels.
proper treatment or disposal, or both. Disposal must be in 5.11.5 Constraints—Cutting only the oiled parts of plants
accordance with applicable regulations. and leaving roots, and as much of the stem as possible,
F2204/F2204M − 22
minimizes impacts. Strict monitoring of operations should
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F2204/F2204M − 16 F2204/F2204M − 22
Standard Guide for
Describing Shoreline and Inland Response Techniques
This standard is issued under the fixed designation F2204/F2204M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This guide describes methods to clean and remediate stranded oil on marine and lake shorelines, on river banks and other
inland water body shorelines, and terrestrial habitats. The primary goal of any countermeasure is to aid recovery while minimizing
additional impact.
1.2 This guide describes 22 different tactics that are available for consideration. These options range from natural recovery to
active physical or biochemical intervention.
1.3 The tactics listed might not be appropriate under all possible circumstances, and multiple countermeasures could be
appropriate on the same shoreline, river bank, lake shore or terrestrial habitat.
1.4 This guide describes technical considerations for selecting appropriate response countermeasures or techniques.
1.5 Selection of specific countermeasures for use during a spill response is guided by properties of the oil, degree of oiling, site
accessibility, geomorphology, substrate and vegetation type, mobility of available equipment, hydrologic (coastal and inland) and
meteorological conditions, and the presence of sensitive natural and archeological resources. It is advisable to consult with
appropriate regulatory authorities since certain response options may require government authorization or approval, or both.
1.6 This guide does not address response to submerged, sunken or buried oil.
1.7 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This guide is under the jurisdiction of ASTM Committee F20 on Hazardous Substances and Oil Spill Response and is the direct responsibility of Subcommittee F20.17
on Shoreline and Inland Countermeasures.
Current edition approved Jan. 15, 2016Sept. 1, 2022. Published March 2016October 2022. Originally approved in 2002. Last previous edition approved in 20092016 as
F2204 – 09.F2204 – 16. DOI: 10.1520/F2204-16.10.1520/F2204-22.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2204/F2204M − 22
2. Referenced Documents
2.1 ASTM Standards:
F1686 Guide for Surveys to Document and Assess Oiling Conditions
F1687 Guide for Terminology and Indices to Describe Oiling Conditions on Shorelines and Other Terrain
F1872 Guide for Use of Chemical Shoreline Cleaning Agents: Environmental and Operational Considerations
F2205 Guide for Ecological Considerations for the Use of Chemical Dispersants in Oil Spill Response: Tropical Environments
F2532 Guide for Determining Net Environmental Benefit of Dispersant Use
3. Key Terms
3.1 Shoreline and Inland Habitats—For the purpose of this guide, marine and estuarine shorelines, river banks, and lake shores
will be collectively referred to as shorelines, shores, or shore-zones. Shore types include a range of impermeable (bedrock, ice,
and man-made structures), permeable (flats, beaches, and man-made), and coastal wetland (marshes, mangroves,) habitats. Other
non-shoreline, inland habitats include wetlands (pond, fen, bog, swamp, tundra, and shrub) and drier terrains (grassland, desert,
forests), and will be collectively referred to as either wetlands or terrains, respectively.
3.2 Mixed Sediment Substrates—These are described based on the size of the inorganic sediments (Guide F1687). The penetration
and retention of oil is largely controlled by sediment size. Only light oils (for example, a diesel) can penetrate sand, whereas all
but the more viscous oils can easily penetrate into pebbles and cobbles (“coarse sediment”). Substrates composed of mixed sands,
pebbles, and cobbles are sometimes referred to as “gravel.” The surface layer often has predominantly coarse sediments with
increasing amounts of sand in the subsurface. In mixed-sediment substrates, coarser fractions (pebbles and cobbles) are infilled
with the finer sediments (sands and granules) so that these substrates are permeable only for some medium oils and all light oils.
Pebble-cobble (“coarse sediment”) substrates have open interstitial spaces, so oil typically penetrates them, but can be easily
remobilized by wave flushing, tidal pumping, or by river currents.
3.3 Debris—Scattered organic or inorganic materials that have washed up onto shorelines, wetlands, or accumulated in rivers and
streams, or a combination thereof. These materials are not part of a natural habitat, such as sediments, attached animals (for
example, mussels or barnacles), live sea grasses, or aquatic plants. Accumulations of large logs that have washed ashore on
sedimentary coasts or mid-channel islands can provide protection against wave action and, in some areas, are considered to be a
critical element of the shore zone. Likewise, log jams or beaver dams in rivers and streams can provide critical habitat. A decision
to remove oiled logs and other debris may require approval from regulatory agencies.
3.4 Hot versus Warm Water Washing—Washing oil from a substrate (solid or otherwise) typically uses ambient (unheated) water
pumped from the adjacent water body. The removal of sticky or weathered stranded oil can require an increase in pressure or
temperature, or both, to be effective. Conventional water heaters raise water temperatures up to 160°F [70°C]. An operational
example is the successful use of warm washing during the Exxon Valdez response. Hot water washing involves heating water to
temperatures greater than 160°F [70°C]. Hot water heaters are occasionally combined with high-pressure spray systems, require
more energy than warm-water heaters, and are only applicable for removal of small amounts of oil (“spot washing”) on man-made
structures.
3.5 Waste Generation—Each spill response technique, generates different volumes and types of waste depending on the amount
and type of spilled oil and the substrate materials. The types of waste generated during spill response include: oily water or liquids,
oiled sediments, or oiled debris. Recovered oil and oil-water mixtures are usually temporarily stored prior to recycling, treatment
or disposal, or a combination thereof. Operational waste is generated by cleanup or treatment activities and can include personal
protective equipment, sorbents, and packaging. Waste management can be an issue during response, particularly in remote areas
where disposal options are limited and travel distances to approved sites are long. Estimates of the types and volumes of potential
waste should be included in the countermeasure selection process. (1)
3.6 Response Techniques—For the purpose of this guide, the term, “response techniques,” will be used to generically refer to
response countermeasures, clean-up techniques, tactics, or methods, or a combination thereof.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The boldface numbers in parentheses refer to the list of references at the end of this standard.
F2204/F2204M − 22
4. Significance and Use
4.1 Once the extent and type of oiling has been defined and documented using proper procedures (see Guides F1686 and F1687),
decisions are made on the appropriate course of action for site cleaning and restoration. In some cases, natural recovery
(accompanied by monitoring) can be the preferred approach whereas in other cases, active response may be preferred and
appropriate. This guide summarizes the principal response techniques available for shoreline, wetland, and terrain habitats.
4.2 This guide is intended to minimize the potential for added impact to the environment from use of response techniques in an
overly-aggressive manner or in unsuitable conditions or habitats.
4.3 In Section 5, typical considerations, which can limit the applicability of a given technique are addressed in Constraints. An
example that is applicable to all techniques other thethan natural recovery, is special permission will likely be needed for any
response operations at sites with known culturally or historically important resources. Also, in Section 5, a synopsis of main
trade-offs from use of a particular technique is provided in Environmental Effects.
5. Onshore Response Techniques
5.1 This section lists and describes those techniques that can be considered for use in an onshore (shoreline, wetland, or terrestrial)
oil spill response. Some of these options may require special consideration and authorization prior to work. Also, some of these
techniques have greater personnel and equipment requirements or can generate more waste relative to others. Tradeoffs need to
be considered when selecting an appropriate option(s), particularly in remote areas. In most cases, government agencies will be
involved in the decision-making process. Government approval may be required for some techniques, and these are typically
considered on a case-by-case basis. Contingency plans should provide for use of a range of techniques. The response techniques
described in this guide are consistent with Environment Canada, and Climate Change Canada (ECCC), US NOAA, and American
Petroleum Institute terminology. (2, 3, 4, 5)
Natural Recovery 5.2
Barriers/Berms 5.3
Manual Oil Removal/Cleaning 5.4
Mechanical Oil Removal 5.5
Sorbents 5.6
Vacuums 5.7
Debris Removal 5.8
Mixing (“dry” or “wet”) 5.9
Sediment Relocation 5.10
Vegetation Cutting/Removal 5.11
Flooding (Deluge) 5.12
Low Pressure, Ambient Water Flushing 5.13
High Pressure, Ambient Water Flushing 5.14
Low Pressure, Warm Water Flushing 5.15
High Pressure, Warm Water Flushing 5.16
Hot Water, High Pressure Cleaning 5.17
Sand Blasting 5.18
Sand/Grit Blasting 5.18
Solidifiers 5.19
Surface Washing Agents 5.20
Nutrient Enrichment 5.21
In-Situ Burning 5.22
A description of each response technique is discussed in separate sections below.
5.2 Natural Recovery:
5.2.1 Objective—Stranded oil is not removed either to minimize environmental impacts from treatment, because no effective
response technique is available, or because predicted impacts from use of a technique are judged to be unacceptable. In some
circumstances, safety concerns can preclude cleanup activities. Oil is left to degrade naturally.
5.2.2 Description—Site conditions can be monitored for changes and recovery progress. Prevention of oil remobilization or
migration of oil offsite may need active response.
5.2.3 Applicable Habitat Types—Can be used on all shoreline, wetland, or terrestrial habitat types.
F2204/F2204M − 22
5.2.4 When to Use—When natural oil removal rates are acceptable in terms of the resources at risk, when the degree of oiling is
light, or when cleanup actions are likely to result in more harm than allowing oil to degrade by natural forces.
5.2.5 Constraints—May be inappropriate for sites used by high numbers of mobile animals (for example, birds, mammals, and
crabs) or endangered or threatened species.
5.2.6 Environmental Effects—No effects beyond that of the oil alone.
5.2.7 Waste Generation—None.
5.3 Barriers/Berms:
5.3.1 Objective—To either physically prevent oil from entering into a sensitive area, restrict water movement, or to divert oil
towards a collection area, or a combination thereof. (6)
5.3.2 Description—A physical barrier is placed across an area in front of encroaching oil to prevent it from entering a sensitive
area. Barriers can be earthen berms, trenches, shore-sealing booms, sheet piling, or filter fences. When passage of water is desired,
underflow or overflow dams are used. Sheet piles can be driven into substrates and used to restrict oil leaching from land onto
shorelines towards adjacent water bodies.
5.3.3 Applicable Habitat Types—On most terrain slopes and at the mouths of creeks, streams, or rivers. For tidal habitats, where
a berm can be built above the high-water line to prevent oil from over-washing a low shoreline and entering a sensitive back-beach
habitat, such as a lagoon.
5.3.4 When to Use—When sensitive habitats are threatened and other barrier options are not feasible.
5.3.5 Constraints—Disturbance to bird nesting areas, beaver dams, wetlands, or other sensitive areas should be minimized.
Placement of dams, filter fences and sheet pile barriers can cause physical disruption, especially in wetlands and tundra habitats.
5.3.6 Environmental Effects—Can disrupt or increase localized oiling of substrates and vegetation. Trenching can enhance oil
penetration into substrates and increase the degree of substrate oiling.
5.3.7 Waste Generation—Oiled barrier substrates and filter fence materials need to be disposed of as oily wastes. Sheet piles can
be removed, cleaned and re-used. Water used for cleaning needs to be collected and treated or disposed. Disposal must be in
accordance with all applicable regulations.
5.4 Manual Oil Removal/Cleaning:
5.4.1 Objective—Physically remove oil and oily debris with hand tools and manual labor.
5.4.2 Description—Surface oil and oily debris are removed by manual means (for example, gloved hands, rakes, forks, shovels,
sieves, and sorbents) and placed in containers for removal and subsequent disposal. No mechanized equipment is used except
during transfer and transport of waste.
5.4.3 Applicable Habitat Types—Can be used for all habitat types.
5.4.4 When to Use—Generally used on areas where small amounts of oil can be easily removed by non-mechanical means. Most
appropriate for light to moderate oiling conditions. Manual removal is applicable to viscous oils and weathered oil patches and tar
balls.
5.4.5 Constraints—Foot traffic over sensitive areas (for example, wetlands, shellfish beds, bird nesting areas, dunes) should be
limited or restricted. There can be time periods when access is not appropriate (for example, bird nesting, seal pupping, and periods
when land habitats are inundated).
5.4.6 Environmental Effects—Minimal, if surface disturbance by responders and oily waste management activities are limited.
5.4.7 Waste Generation—Can generate significant amounts of oily substrate and debris, which requires proper disposal or
F2204/F2204M − 22
treatment. Decontamination of tools can yield oily waste water which also requires proper treatment. Worker personal protective
equipment can be disposed of daily or decontaminated and re-used. Oily waste water resulting from decontamination must be
treated properly. Disposal must be in accordance with applicable regulations.
5.5 Mechanical Oil Removal:
5.5.1 Objective—To physically remove oil and oily debris using mechanical equipment. (7)
5.5.2 Description—Surface oil, oiled substrate, and oily debris are removed using mechanical equipment (such as front-end
loaders, back-hoes, graders, bulldozers, elevating scrapers, dredges, and beach cleaning machines). This technique necessitates that
response resources be provided for temporary storage, transportation, treatment, and disposal of recovered oil, oily debris, and oily
waste.
5.5.3 Applicable Habitat Types—Locations where surface substrates are amenable to and accessible by mechanical equipment.
5.5.4 When to Use—When large quantities of oiled materials are to be removed. Care should be taken to remove substrates only
to the depth of oil penetration. This technique should be used sparingly where removal of large volumes of substrate can lead to
erosion. Buried oil recovery can include the temporary removal of clean overburden, removal of oiled substrates, and subsequent
replacement of clean overburden. Vehicle traffic should be controlled to minimize further oil penetration.
5.5.5 Constraints—Special restrictions should be established for sites where traffic and equipment operations could be damaging.
It could be useful to check soils in advance for vehicular load tolerances. Heavy equipment use should be restricted in sensitive
habitats during breeding or nesting seasons and in areas containing endangered or threatened species. Noise generated by
mechanical equipment can be locally disruptive during certain seasons.
5.5.6 Environmental Effects—Can be detrimental if excessive substrate volumes are removed without replacement. Organisms in
removed substrates might be impacted.
5.5.7 Waste Generation—Can generate significant amounts of oiled substrate and oily debris, which requires treatment or disposal,
or both. Mechanical equipment can be decontaminated, which yields oily waste water. Oily wastewater from decontamination must
be properly collected and treated. Disposal must be in accordance with applicable regulations. The potential impacts from the high
volume of oily waste, debris, and substrates should be considered when selecting this technique.
5.6 Sorbents:
5.6.1 Objective—Physically remove surface oil from substrates by application of oil-attracting (oleophilic) materials.
5.6.2 Description—The term, sorbent, applies to both absorbent and adsorbent materials. The material is placed on an oiled surface
to sorb oil that is refloated or mobilized by tidal, wave, or river current action. Sorbents can be used manually to wipe oil directly
from a substrate. Sorbent types include boom, pads, rolls, sweeps, snares, and granules. Removal efficiency is dependent on the
capacity of a sorbent material, degree of oiling, wave, tidal or water current energy available to free oil from a substrate, and the
oil type and its degree of weathering. Recovery of sorbent material is preferred.
5.6.3 Applicable Habitat Types—Can be used on any habitat type.
5.6.4 When to Use—When the oil is floating on water (for example a pond or wetland), or has stranded on a shoreline or spilled
to land. The oil should readily adhere to the sorbent. Sorbents are often used as a secondary treatment method after bulk oil has
been removed or in sensitive habitats where access is restricted. Sorbents are typically not appropriate on or near high energy or
steep shorelines. Some sorbents can break apart in high energy conditions. Steep shorelines make recovery of used sorbents
difficult.
5.6.5 Constraints—Recovery of sorbent material is recommended. Loose granular sorbents should be selected to be readily
recoverable or biodegradable. Deploying and retrieving sorbents should be conducted to avoid adversely affecting local wildlife.
Sorbents should not be placed in a manner that could endanger or trap wildlife. Sorbents can be slow-acting on viscous oils.
5.6.6 Environmental Effects—Deployment and retrieval can cause physical disturbance to habitats. Improperly deployed or tended
sorbents can harm or smother sensitive organisms. Some sorbents, when left in place too long, can break apart and present an
ingestion hazard to wildlife.
F2204/F2204M − 22
5.6.7 Waste Generation—Can generate large volumes of oiled substrate and oily debris, which requires proper treatment and or
disposal. Generation of large amounts of lightly oiled sorbents should be avoided; sorbent types and application should be
monitored to maximize performance. Some sorbent types can be de-oiled and reused. Equipment used for retrieval of loose sorbent
in terrestrial habitats can be decontaminated and reused, but yields oily wastewater which requires proper treatment or disposal,
or both. Disposal must be in accordance with applicable regulations.
5.7 Vacuums:
5.7.1 Objective—To physically remove mobile oil which is pooled.
5.7.2 Description—A vacuum unit with a suction head is used to recover mobile oil. The size of equipment can range from small
portable units used to fill 55-gal [202 liter] drums to large truck-mounted devices which can lift large cobbles. Oil removal rates
can be extremely slow with this technique. Water spray systems can be used to flush mobile oil toward a suction head.
5.7.3 Applicable Habitat Types—Vacuums can be used on any accessible habitat. Vacuums can be mounted on barges, onshore on
trucks, or deployed as individual units from boats or onshore at low tide.
5.7.4 When to Use—When liquid oil is pooled, concentrated in trenches, or trapped amongst accessible vegetation.
5.7.5 Constraints—Special restrictions should be established for areas where foot traffic and equipment operation could be
damaging, such as soft substrates. Wetland operations need to be closely monitored. A site-specific list of procedures and
restrictions is recommended to prevent damage to vegetation.
5.7.6 Environmental Effects—Effects can be minimal if foot and vehicular traffic are controlled and minimal areas of substrate are
affected.
5.7.7 Waste Generation—Recovered oil and oil-water mixtures are usually stored temporarily prior to recycling, treatment or
disposal. Large amounts of water are often collected with vacuums, which then requires separation and treatment. Oil recycling
and disposal must be in accordance with applicable regulations.
5.8 Debris Removal:
5.8.1 Objective—Physically remove unoiled debris in the path of spilled oil prior to stranding. (7)
5.8.2 Description—Manual or mechanical removal of unoiled debris (for example, wood, seaweed, trash, wreckage). Removal
includes the cutting and removal of large oiledunoiled logs. Refer to “debris” in 3.3.
5.8.3 Applicable Habitat Types—Can be used on any habitat type with safe access.
5.8.4 When to Use—When debris becomes oiled, it becomes a potential source for re-oiling habitats and biota, an aesthetic
problem, and can be a safety hazard for responders. Pre-cleaning of an area before stranding of spilled oil can limit these issues
during a response. In some cases, removal is only temporary and natural debris, such as rack on a shoreline, can and should be
replaced once there is not further threat of oiling.
5.8.5 Constraints—Consultation with appropriate regulatory authorities should take place prior to removal of debris because of
its potential wildlife habitat value. Foot traffic over sensitive areas (for example, wetlands, tundra, bird nesting sites, dunes, areas
containing endangered plant species) should be restricted. There may be temporary periods when shoreline access is restricted (for
example, bird nesting, influx of large numbers of migratory birds, or seal pupping).
5.8.6 Environmental Effects—Removal could affect future habitat use, lower erosion protection, and reduce sources of food from
foraging for some species.
5.8.7 Waste Generation—An advantage of collecting debris prior to oiling is that waste disposal requirements would likely be less
restrictive than if the debris is oiled. Oiled debris is likely to be handled as hazardous waste. Disposal of oiled debris must be in
accordance with applicable regulations.
F2204/F2204M − 22
5.9 Mixing:
5.9.1 Objective—Physically rework oiled sediments in situ to break up oil deposits, increase surface area, and mix deeper
subsurface oil layers to expose them to natural removal processes and enhance their rate of natural weathering and degradation.
(8)
5.9.2 Description—Oiled substrate is mixed either in the absence of water above the water line (“dry” mixing) or underwater
(“wet” mixing) using mechanical equipment or manual tools. In both cases, the intent is to agitate sediment in situ, without
sediment removal. This differentiates mixing from sediment relocation ( 5.10) where sediments are purposely moved from one
location to another. Refloated oil from reworked areas can be contained and recovered. “Wet” mixing typically takes place within
a boomed area in shallow water (<1 m depth), and can involve the use of high-pressure water jets to agitate underwater sediments.
Landfarming, which uses both mixing and bioremediation (5.21) is a common practice and may require regulatory approval.
5.9.3 Applicable Habitat Types—Any habitat which can support mechanical equipment or foot traffic, or both.
5.9.4 When to Use—On sand to coarse-sediment substrates with surface or subsurface oil, where sediment removal is not feasible
due to erosion or waste disposal issues, and in remote areas with small amounts of oil. Can be used in later phases of a cleanup
program, after bulk oil removal has been completed, to accelerate weathering of oil residues.
5.9.5 Constraints—Might not be applicable on shorelines located immediately adjacent to sensitive habitats (for example, those
with shellfish beds, fish-spawning areas, bird nesting or concentration areas) because of the potential for continued release of oil.
5.9.6 Environmental Effects—Mixing of oil into substrate could expose biota which occur beyond the original layer of oil.
Repeated reworking could delay re-establishment of biota. Oil released into water, either by “wet” mixing or by rising water levels
after “dry” mixing and that cannot be contained at the surface, can flow to adjacent areas. Studies show rates of biodegradation
of oil are greatly accelerated when it is released into surface water from mixing. Field experiments show released oil rapidly
spreads into a water column, is positively or neutrally buoyant, and is unlikely to sink in quantities which could cause widespread
effects.
5.9.7 Waste Generation—Equipment used for mixing sediment, whether dry or wet, can be decontaminated and reused.
Decontamination yields oily wastewater which requires proper treatment or disposal, or both. Disposal must be in accordance with
applicable regulations.
5.10 Sediment Relocation:
5.10.1 Objective—Physically relocate oiled sediments to enhance natural weathering and cleaning rates by wave or river current
activity. (8)
5.10.2 Description—Oiled sediments are removed from one location and relocated to another which has a greater potential for
weathering processes or exposure to wave or current action.
5.10.3 Applicable Habitat Types—This technique is generally used on sand, coarse-sediment, or cobble shorelines or river bars
where sediment removal, potential erosion, or low natural sediment replenishment, or a combination thereof, are of concern.
Sediment relocation can also be used at remote sites with small amounts of oil.
5.10.4 When to Use—Appropriate for sites where oil is stranded above the normal waterline or in the upper intertidal zone, swash
zone, or river bank. Sediment relocation can be used where remoteness or other logistical limitations make oiled sediment removal
impractical or undesirable due to waste management issues. Can be used in later phases of a cleanup program to accelerate the
weathering of oil residues after bulk oil removal has been completed.
5.10.5 Constraints—This technique is not usually applicable on shorelines located immediately adjacent to shellfish habitats or
fish spawning areas during bird migration due to the potential of introducing oil into these sensitive habitats.
5.10.6 Environmental Effects—Oil released onto surface water can be transported to immediately adjacent areas. Field experiments
show the released oil rapidly spreads into the water column, is positively or neutrally buoyant, and is unlikely to sink in quantities
which could cause widespread adverse effects. Studies show rates of natural biodegradation of oil, released into water from
sediment relocation, are greatly accelerated. Oil recovery efforts (booming and collection) at the site of relocation can limit
F2204/F2204M − 22
spreading of oil which could otherwise pose a risk to immediately adjacent sensitive areas or populations. Typically, this technique
is not used with oil recovery as an objective.
5.10.7 Waste Generation—Equipment used for sediment relocation can be decontaminated and reused. Decontamination yields
oily wastewater which requires proper treatment or disposal, or both. Disposal must be in accordance with applicable regulations.
5.11 Vegetation Cutting/Removal:
5.11.1 Objective—Physical removal of oiled vegetation to prevent oiling of wildlife and secondary oil releases.
5.11.2 Description—Oiled vegetation is cut using weed trimmers or other appropriate tools, and picked or raked up. Cut vegetation
is bagged for disposal.
5.11.3 Applicable Habitat Types—Habitats (such as marshes or wetlands) composed of emergent, herbaceous vegetation, upper
shorelines after very high tides, and river and lake shores after flooding. (9)
5.11.4 When to Use—Use when the risk of oiled vegetation affecting wildlife outweighs the value of the vegetation to be cut, and
there is no less destructive technique to remove or reduce the risk of oiling to acceptable levels.
5.11.5 Constraints—Cutting only the oiled parts of plants and leaving roots, and as much of the stem as possible, minimizes
impacts. Strict
...








Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
