(Test Method)Standard Test Method for Fluid Tightness Ability of Adhesives Used on Threaded Fasteners
Standard Test Method for Fluid Tightness Ability of Adhesives Used on Threaded Fasteners
SIGNIFICANCE AND USE
5.1 Thread-locking adhesives are often used on threaded fasteners in sealing applications. This test method is used to determine an adhesive's ability to provide sealing capabilities under specified conditions.
SCOPE
1.1 This test method covers the determination of the ability of adhesives used for locking and sealing threaded fasteners, to make leak-tight assemblies.
1.2 The values stated in inch-pound units are to be regarded as the standard. The SI units given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Dec-2022
- Technical Committee
- D14 - Adhesives
- Drafting Committee
- D14.80 - Metal Bonding Adhesives
Relations
- Effective Date
- 01-Jul-2012
- Effective Date
- 01-May-2012
- Effective Date
- 01-Dec-2011
- Effective Date
- 01-Jan-2011
- Effective Date
- 01-Oct-2008
- Effective Date
- 15-Aug-2008
- Effective Date
- 01-Mar-2008
- Effective Date
- 01-Dec-2006
- Effective Date
- 01-Apr-2005
- Effective Date
- 01-Apr-2005
- Effective Date
- 01-Dec-2004
- Effective Date
- 01-Apr-2004
- Effective Date
- 10-May-2003
- Effective Date
- 10-Oct-2000
Overview
ASTM D5657-07(2023): Standard Test Method for Fluid Tightness Ability of Adhesives Used on Threaded Fasteners is a widely recognized standard developed by ASTM International. This test method is designed to evaluate the ability of adhesives applied to threaded fasteners-such as bolts and nuts-to create leak-tight assemblies. By measuring the sealing performance of adhesives under specified conditions, this standard helps ensure that fastening assemblies meet industry requirements for fluid containment and pressure resistance.
This method is crucial in applications where thread-locking adhesives are expected to enhance fluid tightness and prevent leaks in mechanical structures. The standard is applicable internationally and has been developed in accordance with globally recognized principles outlined by the WTO Technical Barriers to Trade (TBT) Committee.
Key Topics
- Leak-tight Assemblies: The test determines whether adhesives provide sufficient sealing to prevent fluid leakage through threaded fastener joints.
- Pressure Testing: Adhesive-cured assembly samples are subjected to a controlled pressure (typically 50 psi) to verify fluid tightness.
- Test Procedures: The guideline details specimen preparation, curing conditions, assembly, and step-by-step test methods, ensuring repeatability and accuracy.
- Material Standards: References to complementary standards such as SAE J429 for bolts and Federal Specification FF-N-836 for nuts ensure consistency in materials used for testing.
- Reporting Requirements: The standard prescribes clear documentation of adhesive identification, number of samples tested, and results-critical for quality assurance and traceability.
- Safety Considerations: Users are responsible for implementing appropriate safety, health, and environmental policies when applying this standard.
Applications
ASTM D5657-07(2023) is highly valuable across multiple industries where fluid-tight performance of threaded fasteners is critical. Typical applications include:
- Automotive Assemblies: Ensuring that engine and transmission fasteners maintain safe, leak-free performance under pressure.
- Aerospace Components: Verifying the integrity of fastener seals in hydraulics and fuel systems.
- Industrial Equipment: Used for pumps, pipelines, and pressure vessels requiring dependable sealing of bolt connections.
- Manufacturing and Maintenance: Assessment and selection of thread-locking adhesives during design, assembly, or repair processes to meet stringent sealing requirements.
By providing a standardized method to evaluate adhesive effectiveness, ASTM D5657 helps manufacturers select the right products for critical sealing applications and enhances end-user confidence in leak-prevention performance.
Related Standards
For organizations implementing or auditing adhesive sealing performance in threaded fasteners, the following standards are relevant:
- ASTM D907: Terminology of Adhesives-provides definitions critical for understanding the terms used in ASTM D5657.
- SAE J429: Mechanical and Material Requirements for Externally Threaded Fasteners-specifies material and performance criteria for bolts used in fluid tightness tests.
- Federal Specification FF-N-836: Specifications for various types of nuts, ensuring consistency in test specimens.
- ASTM International Standards: For further guidance on adhesive testing, material specifications, and assembly verification.
Adhering to ASTM D5657-07(2023) supports regulatory compliance, enhances safety, and delivers reliable sealing solutions for threaded fastener assemblies worldwide.
Get Certified
Connect with accredited certification bodies for this standard
Smithers Quality Assessments
US management systems and product certification.
DIN CERTCO
DIN Group product certification.
Sponsored listings
Frequently Asked Questions
ASTM D5657-07(2023) is a standard published by ASTM International. Its full title is "Standard Test Method for Fluid Tightness Ability of Adhesives Used on Threaded Fasteners". This standard covers: SIGNIFICANCE AND USE 5.1 Thread-locking adhesives are often used on threaded fasteners in sealing applications. This test method is used to determine an adhesive's ability to provide sealing capabilities under specified conditions. SCOPE 1.1 This test method covers the determination of the ability of adhesives used for locking and sealing threaded fasteners, to make leak-tight assemblies. 1.2 The values stated in inch-pound units are to be regarded as the standard. The SI units given in parentheses are for information only. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 Thread-locking adhesives are often used on threaded fasteners in sealing applications. This test method is used to determine an adhesive's ability to provide sealing capabilities under specified conditions. SCOPE 1.1 This test method covers the determination of the ability of adhesives used for locking and sealing threaded fasteners, to make leak-tight assemblies. 1.2 The values stated in inch-pound units are to be regarded as the standard. The SI units given in parentheses are for information only. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D5657-07(2023) is classified under the following ICS (International Classification for Standards) categories: 83.180 - Adhesives. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D5657-07(2023) has the following relationships with other standards: It is inter standard links to ASTM D907-12a, ASTM D907-12, ASTM D907-11a, ASTM D907-11, ASTM D907-08b, ASTM D907-08a, ASTM D907-08, ASTM D907-06, ASTM D907-05, ASTM D907-05e1, ASTM D907-04a, ASTM D907-04, ASTM D907-03, ASTM D907-00. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D5657-07(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

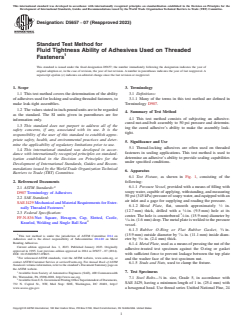

Designation: D5657 − 07 (Reapproved 2023)
