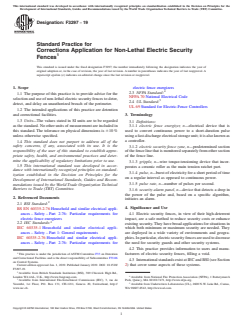

Designation: F3297 − 19
Standard Practice for
Corrections Application for Non-Lethal Electric Security
Fences
This standard is issued under the fixed designation F3297; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope electric fence energizers
2.3 NFPA Standard:
1.1 The purpose of this practice is to provide advice for the
NFPA 70 National Electrical Code
selection and use of non-lethal electric security fences to deter,
2.4 UL Standard:
detect, and delay an unauthorized breach of the perimeter.
UL 69 Standard for Electric-Fence Controllers
1.2 The intended applications of this practice are detention
and correctional facilities.
3. Terminology
1.3 Units—The values stated in SI units are to be regarded 3.1 Definitions:
as the standard. No other units of measurement are included in
3.1.1 electric fence energizer, n—electrical device that is
this standard. The tolerance on physical dimensions is 610 % used to convert continuous power to a short-duration pulse
unless otherwise specified.
usingafast-dischargeelectricalstorageunit;itisalsoknownas
a controller.
1.4 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
3.1.2 electric security fence zone, n—predetermined section
responsibility of the user of this standard to establish appro- ofthefencelinethatismonitoredseparatelyfromothersection
priate safety, health, and environmental practices and deter-
of the fence line.
mine the applicability of regulatory limitations prior to use.
3.1.3 gripple, n—wire torque-tensioning device that incor-
1.5 This international standard was developed in accor-
porates a ceramic roller as the main tension ratchet part.
dance with internationally recognized principles on standard-
3.1.4 pulse, n—burst of electricity for a short period of time
ization established in the Decision on Principles for the
on a regular interval as opposed to continuous power.
Development of International Standards, Guides and Recom-
3.1.5 pulse rate, n—number of pulses per second.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
3.1.6 security alarm panel, n—device that detects a drop in
the power of the pulse and, based on a specific algorithm,
2. Referenced Documents
initiates an alarm.
2.1 BSI Standard:
4. Significance and Use
BS EN 60335-2-76 Household and similar electrical appli-
ances – Safety – Part 2-76: Particular requirements for
4.1 Electric security fences, in view of their high-deterrent
electric fence energizers
impact, are a safe method to reduce security costs or enhance
2.2 IEC Standards:
existingsecurity.Theyhavebroadapplicationsforsituationsin
IEC 60335-1 Household and similar electrical appli- which both minimum or maximum security are needed. They
ances – Safety – Part 1: General requirements
are deployed in a wide variety of environments and geogra-
IEC 60335-2-76 Household and similar electrical appli- phies.Inparticular,electricsecurityfencesareusedtodecrease
ances – Safety – Part 2-76: Particular requirements for the need for security guards and other security systems.
4.2 This practice provides information to users and manu-
facturers of electric security fences, filling a void.
This practice is under the jurisdiction of ASTM Committee F33 on Detention
and Correctional Facilities and is the direct responsibility of Subcommittee F33.06
4.3 InternationalstandardsexistatIECandBSI(seeSection
on Control Systems.
2) that cover some aspects of these systems.
Current edition approved Jan. 1, 2019. Published January 2019. DOI: 10.1520/
F3297-19.
Available from British Standards Institution (BSI), 389 Chiswick High Rd.,
London W4 4AL, U.K., http://www.bsigroup.com. Available from National Fire Protection Association (NFPA), 1 Batterymarch
Available from International Electrotechnical Commission (IEC), 3, rue de Park, Quincy, MA 02169-7471, http://www.nfpa.org.
Varembé, 1st Floor, P.O. Box 131, CH-1211, Geneva 20, Switzerland, http:// Available from Underwriters Laboratories (UL), 2600 N.W. Lake Rd., Camas,
www.iec.ch. WA 98607-8542, http://www.ul.com.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

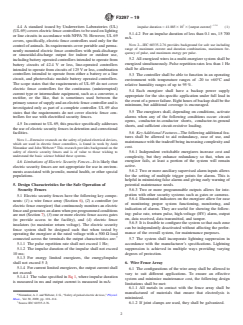

F3297 − 19
3 21.34
4.4 A standard issued by Underwriters Laboratories (UL) impulse duration 5 41.885 310 3 output current (1)
~ !
(UL69) covers electric fence controllers to be used on lighting
5.1.4.2 For an impulse duration of less than 0.1 ms, 15 700
or line circuits in accordance with NFPA 70. However, UL 69
mA.
covers, specifically, electric fence controllers used only for the
NOTE 2—IEC 60335-2-76 provides background for safe use including
control of animals. Its requirements cover portable and perma-
range of maximum current and duration combinations, maximum fre-
nently mounted electric fence controllers with peak-discharge
quency of pulse, and maximum energy per pulse.
or sinusoidal-discharge output for indoor or outdoor use,
5.2 All energized wires in a multi-energizer system shall be
including battery operated controllers intended to operate from
energized simultaneously. Pulse repetition rates less than 1 Hz
battery circuits of 42.4 V or less, line-operated controllers
shall be allowed.
intended to operate from circuits of 125 V or less, combination
controllers intended to operate from either a battery or a line
5.3 The controller shall be able to function in an operating
circuit, and photovoltaic module battery operated controllers.
environment with temperature ranges of -20 to +60°C and
The scope states that the requirements of UL 69 do not cover
relative humidity ranges of up to 95 %.
electric fence controllers for the continuous (uninterrupted)
5.4 Each energizer shall have a backup power supply
current type or intermediate equipment, such as a converter, a
appropriate for the site-specific application under full load in
rectifier, or the like, that is sometimes used between the
the event of a power failure. Eight hours of backup shall be the
primary source of supply and an electric fence controller and is
minimum, but additional coverage is encouraged.
investigated only as part of a complete controller. UL 69 also
5.5 The energizers shall, depending on conditions, activate
states that the requirements do not cover electric fence con-
alarms when any of the following conditions occur: circuit
trollers for use with electrified security fences.
opens, conductor-to-conductor shorts, conductor-to-ground
4.5 In contrast to UL69, this practice specifically addresses
shorts, and sufficient circuit-resistive loading.
the use of electric security fences in detention and correctional
5.6 Key Additional Features—The following additional fea-
facilities.
tures shall be allowed to aid redundancy, ease of use, and
NOTE 1—Extensive research on the safety of pulsed electrical devices,
maintenance with the tradeoff being increasing complexity and
which are used in electric fence controllers, is found in work by Amit
6 cost.
Nimunkar and John Webster. This research provides background on the
5.6.1 Independent switchable energizers increase cost and
safety of electric security fences and is of value to those wishing to
understand the basic science behind these systems.
complexity, but they enhance redundancy so that, when an
energizer fails, at least a portion of the system will remain
4.6 Limitations of Electric Security Fences—It is likely that
active.
electric security fences are not appropriate for use in environ-
5.6.2 Two or more auxiliary supervised alarm inputs allows
ments associated with juvenile, mental health, or other special
for the setting of multiple trigger points for alarms. This is
populations.
helpful in minimizing false alarms and giving early warning of
5. Design Characteristics for the Safe Operation of potential maintenance needs.
Security Fences
5.6.3 Two or more programmable outputs allows for inte-
gration with other security systems such as gates or cameras.
5.1 Electric security fences have the following key compo-
5.6.4 Illuminated indicators on the energizer allow for ease
nents: (1) a wire fence array (Section 6), (2) a controller (or
of monitoring proper system functioning, monitoring, and
electric fence energizer) that continuously monitors an electric
indication of alarms. They are useful for showing the follow-
fencea
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
