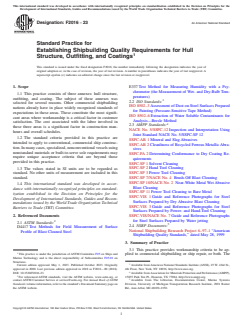

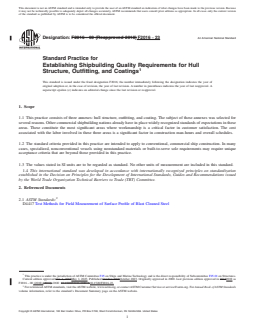

Designation: F2016 − 00 (Reapproved 2018) F2016 − 23 An American National Standard
Standard Practice for
Establishing Shipbuilding Quality Requirements for Hull
Structure, Outfitting, and Coatings
This standard is issued under the fixed designation F2016; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice consists of three annexes: hull structure, outfitting, and coating. The subject of these annexes was selected for
several reasons. Other commercial shipbuilding nations already have in place widely recognized standards of expectations in these
areas. These constitute the most significant areas where workmanship is a critical factor in customer satisfaction. The cost
associated with the labor involved in these three areas is a significant factor in construction man-hours and overall schedules.
1.2 The standard criteria provided in this practice are intended to apply to conventional, commercial ship construction. In many
cases, specialized, nonconventional vessels using nonstandard materials or built-to-serve sole requirements may require unique
acceptance criteria that are beyond those provided in this practice.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D4417 Test Methods for Field Measurement of Surface Profile of Blast Cleaned Steel
This practice is under the jurisdiction of ASTM Committee F25 on Ships and Marine Technology and is the direct responsibility of Subcommittee F25.01 on Structures.
Current edition approved Oct. 1, 2018May 1, 2023. Published October 2018October 2023. Originally approved in 2000. Last previous edition approved in 20122018 as
F2016 – 00 (2018).(2012). DOI: 10.1520/F2016-00R18.10.1520/F2016-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2016 − 23

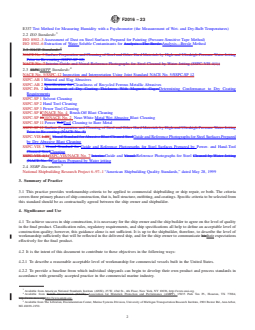

E337 Test Method for Measuring Humidity with a Psychrometer (the Measurement of Wet- and Dry-Bulb Temperatures)
2.2 ISO Standards:
ISO 8502–3 Assessment of Dust on Steel Surfaces Prepared for Painting (Pressure-Sensitive Tape Method)
ISO 8502–6 Extraction of Water Soluble Contaminants for Analysis—The Bresle Analysis—Bresle Method
2.3 NACE Standards:
NACE No. 5 Surface Preparation and Cleaning of Steel and Other Hard Materials by High-and Ultrahigh-Pressure Water Jetting
Prior to Re-coating (SSPC-SP 12)
NACE No. 7 Interim Guide and Visual Reference Photographs for Steel Cleaned by Water Jetting (SSPC-VIS 4(1))
2.3 SSPCAMPP Standards:
NACE No. 5/SSPC-12 Inspection and Interpretation Using Joint Standard NACE No. 5/SSPC-SP 12
SSPC-AB 1 Mineral and Slag Abrasives
SSPC-AB 2 Specification for Cleanliness of Recycled Ferrous Metallic Abrasives
SSPC-PA 2 Measurement of Dry Coating Thickness With Magnetic GagesDetermining Conformance to Dry Coating
Requirements
SSPC-SP 1 Solvent Cleaning
SSPC-SP 2 Hand Tool Cleaning
SSPC-SP 3 Power Tool Cleaning
SSPC-SP 77/NACE No. 4 Brush-Off Blast Cleaning
SSPC-SP 1010/NACE No. 2 Near-White Metal Wet Abrasive Blast Cleaning
SSPC-SP 11 Power TollTool Cleaning to Bare Metal
SSPC-SP 12 Surface Preparation and Cleaning of Steel and Other Hard Materials by High-and Ultrahigh-Pressure Water Jetting
Prior to Re-coating (NACE No. 5)
SSPC-VIS 1-891 Visual Standard for Abrasive Blast Cleaned SteelGuide and Reference Photographs for Steel Surfaces Prepared
by Dry Abrasive Blast Cleaning
SSPC-VIS 3 Visual Standard for Guide and Reference Photographs for Steel Surfaces Prepared by Power- and Hand-Tool
Cleaned SteelCleaning
SSPC-VIS 4(1)SSPC-VIS/NACE No. 7 Interim Guide and Visual Reference Photographs for Steel Cleaned by Water Jetting
(NACE No. 7)Surfaces Prepared by Water jetting
2.4 NSRP Documents:
National Shipbuilding Research Project 6–97–1 “American Shipbuilding Quality Standards,” dated May 28, 1999
3. Summary of Practice
3.1 This practice provides workmanship criteria to be applied to commercial shipbuilding or ship repair, or both. The criteria
covers three primary phases of ship construction, that is, hull structure, outfitting, and coatings. Specific criteria to be selected from
this standard should be as contractually agreed between the ship owner and shipbuilder.

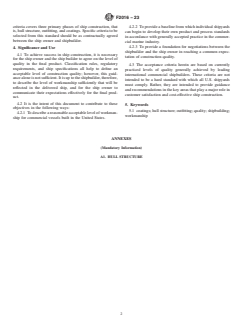

4. Significance and Use
4.1 To achieve success in ship construction, it is necessary for the ship owner and the ship builder to agree on the level of quality
in the final product. Classification rules, regulatory requirements, and ship specifications all help to define an acceptable level of
construction quality; however, this guidance alone is not sufficient. It is up to the shipbuilder, therefore, to describe the level of
workmanship sufficiently that will be reflected in the delivered ship, and for the ship owner to communicate histheir expectations
effectively for the final product.
4.2 It is the intent of this document to contribute to these objectives in the following ways:
4.2.1 To describe a reasonable acceptable level of workmanship for commercial vessels built in the United States.
4.2.2 To provide a baseline from which individual shipyards can begin to develop their own product and process standards in
accordance with generally accepted practice in the commercial marine industry.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
Available from NACE International (NACE), Association for Materials Protection and Performance (AMPP), 15835 Park Ten Pl., Houston, TX 77084,
http://www.nace.org.http://www.ampp.org.
Available from The Librarian, Documentation Center, Marine Systems Division, University of Michigan Transportation Research Institute, 2901 Baxter Rd., Ann Arbor,
MI 48109–2150.
F2016 − 23

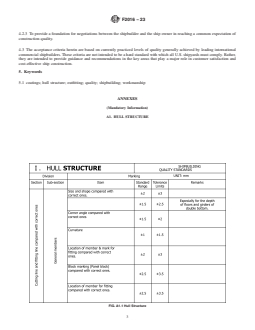

4.2.3 To provide a foundation for negotiations between the shipbuilder and the ship owner in reaching a common expectation of
construction quality.
4.3 The acceptance criteria herein are based on currently practiced levels of quality generally achieved by leading international
commercial shipbuilders. These criteria are not intended to be a hard standard with which all U.S. shipyards must comply. Rather,
they are intended to provide guidance and recommendations in the key areas that play a major role in customer satisfaction and
cost-effective ship construction.
5. Keywords
5.1 coatings; hull structure; outfitting; quality; shipbuilding; workmanship
ANNEXES
(Mandatory Information)
A1. HULL STRUCTURE

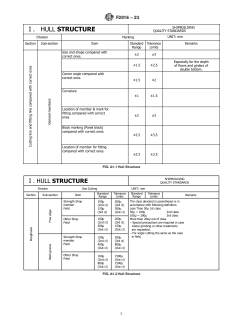

FIG. A1.1 Hull Structure
F2016 − 23

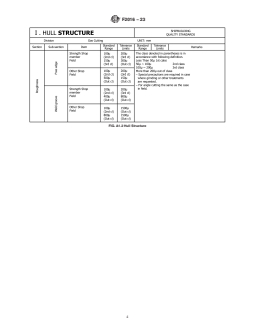

FIG. A1.2 Hull Structure
F2016 − 23
FIG. A1.3 Hull Structure
F2016 − 23
FIG. A1.4 Hull Structure
F2016 − 23

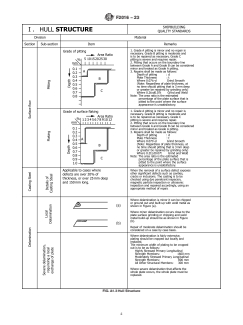

FIG. A1.5 Hull Structure
F2016 − 23
FIG. A1.6 Hull Structure
F2016 − 23
FIG. A1.7 Hull Structure
F2016 − 23
FIG. A1.8 Hull Structure
F2016 − 23
FIG. A1.9 Hull Structure
F2016 − 23
FIG. A1.10 Hull Structure
F2016 − 23
FIG. A1.11 Hull Structure
F2016 − 23
FIG. A1.12 Hull Structure
F2016 − 23
FIG. A1.13 Hull Structure
F2016 − 23
FIG. A1.14 Hull Structure
F2016 − 23
FIG. A1.15 Hull Structure
F2016 − 23
FIG. A1.16 Hull Structure
F2016 − 23
FIG. A1.17 Hull Structure
F2016 − 23
FIG. A1.18 Hull Structure
F2016 − 23
FIG. A1.19 Hull Structure
F2016 − 23
FIG. A1.20 Hull Structure
F2016 − 23
FIG. A1.21 Hull Structure
F2016 − 23
FIG. A1.22 Hull Structure
...
