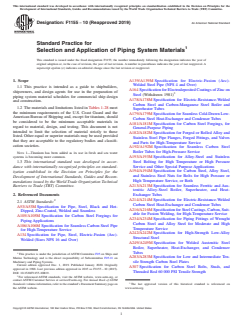

ASTM F1155-10(2019)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F1155 − 10 (Reapproved 2019) An American National Standard
Standard Practice for
Selection and Application of Piping System Materials
This standard is issued under the fixed designation F1155; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope A139/A139M Specification for Electric-Fusion (Arc)-
Welded Steel Pipe (NPS 4 and Over)
1.1 This practice is intended as a guide to shipbuilders,
A164 Specification for Electrodeposited Coatings of Zinc on
shipowners, and design agents for use in the preparation of
Steel (Withdrawn 1981)
piping system material schedules for commercial ship design
A178/A178M Specification for Electric-Resistance-Welded
and construction.
Carbon Steel and Carbon-Manganese Steel Boiler and
1.2 The materials and limitations listed in Tables 1-28 meet
Superheater Tubes
the minimum requirements of the U.S. Coast Guard and the
A179/A179M Specification for Seamless Cold-Drawn Low-
American Bureau of Shipping and, except for titanium, should
Carbon Steel Heat-Exchanger and Condenser Tubes
be considered to be the minimum acceptable materials in
A181/A181M Specification for Carbon Steel Forgings, for
regard to material, design, and testing. This document is not
General-Purpose Piping
intended to limit the selection of material strictly to those
A182/A182M Specification for Forged or Rolled Alloy and
listed. Other equal or superior materials may be used provided
Stainless Steel Pipe Flanges, Forged Fittings, and Valves
that they are acceptable to the regulatory bodies and classifi-
and Parts for High-Temperature Service
cation societies.
A192/A192M Specification for Seamless Carbon Steel
Boiler Tubes for High-Pressure Service
NOTE 1—Titanium has been added as its use in fresh and sea water
systems is becoming more common.
A193/A193M Specification for Alloy-Steel and Stainless
Steel Bolting for High Temperature or High Pressure
1.3 This international standard was developed in accor-
Service and Other Special Purpose Applications
dance with internationally recognized principles on standard-
A194/A194M Specification for Carbon Steel, Alloy Steel,
ization established in the Decision on Principles for the
and Stainless Steel Nuts for Bolts for High Pressure or
Development of International Standards, Guides and Recom-
High Temperature Service, or Both
mendations issued by the World Trade Organization Technical
A213/A213M Specification for Seamless Ferritic and Aus-
Barriers to Trade (TBT) Committee.
tenitic Alloy-Steel Boiler, Superheater, and Heat-
Exchanger Tubes
2. Referenced Documents
2 A214/A214M Specification for Electric-Resistance-Welded
2.1 ASTM Standards:
Carbon Steel Heat-Exchanger and Condenser Tubes
A53/A53M Specification for Pipe, Steel, Black and Hot-
A216/A216M SpecificationforSteelCastings,Carbon,Suit-
Dipped, Zinc-Coated, Welded and Seamless
able for Fusion Welding, for High-Temperature Service
A105/A105M Specification for Carbon Steel Forgings for
A234/A234M Specification for Piping Fittings of Wrought
Piping Applications
Carbon Steel and Alloy Steel for Moderate and High
A106/A106M Specification for Seamless Carbon Steel Pipe
Temperature Service
for High-Temperature Service
A242/A242M Specification for High-Strength Low-Alloy
A134 Specification for Pipe, Steel, Electric-Fusion (Arc)-
Structural Steel
Welded (Sizes NPS 16 and Over)
A249/A249M Specification for Welded Austenitic Steel
Boiler, Superheater, Heat-Exchanger, and Condenser
Tubes
This practice is under the jurisdiction of ASTM Committee F25 on Ships and
A283/A283M Specification for Low and Intermediate Ten-
Marine Technology and is the direct responsibility of Subcommittee F25.11 on
Machinery and Piping Systems.
sile Strength Carbon Steel Plates
Current edition approved Dec. 1, 2019. Published January 2020. Originally
A307 Specification for Carbon Steel Bolts, Studs, and
approved in 1988. Last previous edition approved in 2015 as F1155 – 10 (2015).
Threaded Rod 60 000 PSI Tensile Strength
DOI: 10.1520/F1155-10R19.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on The last approved version of this historical standard is referenced on
the ASTM website. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

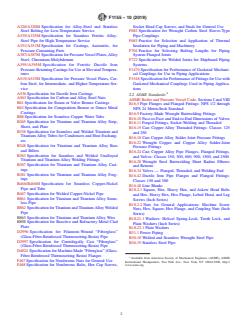

F1155 − 10 (2019)
A320/A320M Specification for Alloy-Steel and Stainless Socket Head Cap Screws, and Studs for General Use
Steel Bolting for Low-Temperature Service F682 Specification for Wrought Carbon Steel Sleeve-Type
A335/A335M Specification for Seamless Ferritic Alloy- Pipe Couplings
Steel Pipe for High-Temperature Service F683 Practice for Selection and Application of Thermal
A351/A351M Specification for Castings, Austenitic, for Insulation for Piping and Machinery
Pressure-Containing Parts F704 Practice for Selecting Bolting Lengths for Piping
A387/A387M Specification for PressureVessel Plates,Alloy System Flanged Joints
Steel, Chromium-Molybdenum F722 Specification for Welded Joints for Shipboard Piping
A395/A395M Specification for Ferritic Ductile Iron Systems
Pressure-Retaining Castings for Use at ElevatedTempera- F1476 Specification for Performance of Gasketed Mechani-
tures cal Couplings for Use in Piping Applications
A515/A515M Specification for Pressure Vessel Plates, Car- F1548 SpecificationforPerformanceofFittingsforUsewith
bon Steel, for Intermediate- and Higher-Temperature Ser- Gasketed Mechanical Couplings Used in Piping Applica-
vice tions
A536 Specification for Ductile Iron Castings
2.2 ASME Standards:
A563 Specification for Carbon and Alloy Steel Nuts
ASME Boiler and Pressure Vessel Code, Sections I and VIII
B61 Specification for Steam or Valve Bronze Castings
B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through
B62 Specification for Composition Bronze or Ounce Metal
NPS 24 Metric/Inch Standard
Castings
B16.9 Factory-Made Wrought Buttwelding Fittings
B88 Specification for Seamless Copper Water Tube
B16.10 Face-to-Face and End-to-End Dimensions of Valves
B265 Specification for Titanium and Titanium Alloy Strip,
B16.11 Forged Fittings, Socket-Welding and Threaded
Sheet, and Plate
B16.15 Cast Copper Alloy Threaded Fittings: Classes 125
B338 Specification for Seamless and Welded Titanium and
and 250
Titanium Alloy Tubes for Condensers and Heat Exchang-
B16.18 Cast Copper Alloy Solder Joint Pressure Fittings
ers
B16.22 Wrought Copper and Copper Alloy Solder-Joint
B348 Specification for Titanium and Titanium Alloy Bars
Pressure Fittings
and Billets
B16.24 Cast Copper Alloy Pipe Flanges, Flanged Fittings,
B363 Specification for Seamless and Welded Unalloyed
and Valves: Classes 150, 300, 600, 900, 1500, and 2500
Titanium and Titanium Alloy Welding Fittings
B16.28 Wrought Steel Buttwelding Short Radius Elbows
B367 Specification for Titanium and Titanium Alloy Cast-
and Returns
ings
B16.34 Valves — Flanged, Threaded, and Welding End
B381 Specification for Titanium and Titanium Alloy Forg-
B16.42 Ductile Iron Pipe Flanges and Flanged Fittings:
ings
Classes 150 and 300
B466/B466M Specification for Seamless Copper-Nickel
B16.48 Line Blanks
Pipe and Tube
B18.2.1 Square, Hex, Heavy Hex, and Askew Head Bolts
B467 Specification for Welded Copper-Nickel Pipe
and Hex, Heavy Hex, Hex Flange, Lobed Head, and Lag
B861 Specification for Titanium and Titanium Alloy Seam-
Screws (Inch Series)
less Pipe
B18.2.2 Nuts for General Applications: Machine Screw
B862 Specification for Titanium and TitaniumAlloy Welded
Nuts, Hex, Square, Hex Flange, and Coupling Nuts (Inch
Pipe
Series)
B863 Specification for Titanium and Titanium Alloy Wire
B18.21.1 Washers: Helical Spring-Lock, Tooth Lock, and
B898 Specification for Reactive and Refractory Metal Clad
Plain Washers (Inch Series)
Plate
B18.22.1 Plain Washers
D2996 Specification for Filament-Wound “Fiberglass”
B31.1 Power Piping
(Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
B36.10 Welded and Seamless Wrought Steel Pipe
D2997 Specification for Centrifugally Cast “Fiberglass”
B36.19 Stainless Steel Pipe
(Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
D4024 Specification for Machine Made “Fiberglass” (Glass-
Fiber-Reinforced Thermosetting Resin) Flanges
Available from American Society of Mechanical Engineers (ASME), ASME
F467 Specification for Nonferrous Nuts for General Use
International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
F468 Specification for Nonferrous Bolts, Hex Cap Screws, www.asme.org.
F1155 − 10 (2019)

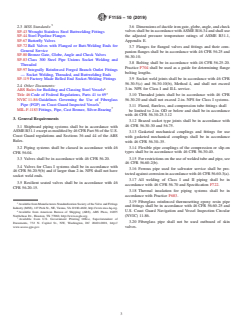

2.3 MSS Standards: 3.6 Dimensions of ductile iron gate, globe, angle, and check
SP-43 Wrought Stainless Steel Buttwelding Fittings valves shall be in accordance withASME B16.34 and shall use
SP-44 Steel Pipeline Flanges the adjusted pressure temperature ratings of ASME B31.1,
SP-67 Butterfly Valves Appendix E.
SP-72 Ball Valves with Flanged or Butt-Welding Ends for
3.7 Flanges for flanged valves and fittings and their com-
General Service
panion flanges shall be in accordance with 46 CFR 56.25 and
SP-80 Bronze Gate, Globe, Angle and Check Valves
56.30-10.
SP-83 Class 300 Steel Pipe Unions Socket Welding and
3.8 Bolting shall be in accordance with 46 CFR 56.25-20.
Threaded
Practice F704 shall be used as a guide for determining flange
SP-97 Integrally Reinforced Forged Branch Outlet Fittings
bolting lengths.
— Socket Welding, Threaded, and Buttwelding Ends
3.9 Socket weld joints shall be in accordance with 46 CFR
SP-119 Factory Made Belled End Socket-Welding Fittings
56.30-5(c) and 56.30-10(b), Method 4, and shall not exceed
2.4 Other Documents:
6 3-in. NPS for Class I and II-L service.
ABS Rules for Building and Classing Steel Vessels
3.10 Threaded joints shall be in accordance with 46 CFR
Title 46 Code of Federal Regulations, Parts 41 to 69
56.30-20 and shall not exceed 2-in. NPS for Class I systems.
NVIC 11-86 Guidelines Governing the Use of Fiberglass
Pipe (FGP) on Coast Guard Inspected Vessels
3.11 Flared, flareless, and compression tube fittings shall
MIL-F-1183 Fittings, Pipe, Cast Bronze, Silver-Brazing
be limited to 2-in. OD or below and shall be in accordance
with 46 CFR 56.30-25.3.12
3. General Requirements
3.12 Brazed socket type joints shall be in accordance with
46 CFR 56.30-30 and 56.75.
3.1 Shipboard piping systems shall be in accordance with
ASMEB31.1exceptasmodifiedby46CFRPart56oftheU.S.
3.13 Gasketed mechanical couplings and fittings for use
Coast Guard regulations and Sections 36 and 44 of the ABS
with gasketed mechanical couplings shall be in accordance
Rules.
with 46 CFR 56.30–35.
3.14 Flexible pipe couplings of the compression or slip-on
3.2 Piping systems shall be classed in accordance with 46
types shall be in accordance with 46 CFR 56.30-40.
CFR 56.04.
3.15 For restrictions on the use of welded tube and pipe, see
3.3 Valves shall be in accordance with 46 CFR 56.20.
46 CFR 56.60-2(b).
3.4 Valves for Class I systems shall be in accordance with
3.16 Ferrous pipe used for saltwater service shall be pro-
46 CFR 56.20-9(b) and if larger than 2-in. NPS shall not have
tectedagainstcorrosioninaccordancewith46CFR56.60-3(a).
socket weld ends.
3.17 All welding of Class I and II piping shall be in
3.5 Resilient seated valves shall be in accordance with 46
accordance with 46 CFR 56.70 and Specification F722.
CFR 56.20-15.
3.18 Thermal insulation for piping systems shall be in
accordance with Practice F683.
3.19 Fiberglass reinforced thermosetting epoxy resin pipe
AvailablefromManufacturersStandardizationSocietyoftheValveandFittings
and fittings shall be in accordance with 46 CFR 56.60-25 and
Industry (MSS), 127 Park St., NE,Vienna,VA22180-4602, http://www.mss-hq.org.
U.S. Coast Guard Navigation and Vessel Inspection Circular
Available from American Bureau of Shipping (ABS), ABS Plaza, 16855
Northchase Dr., Houston, TX 77060, http://www.eagle.org.
(NVIC) 11-86.
Available from U.S. Government Printing Office, Superintendent of
3.20 Fiberglass pipe shall not be used outboard of skin
Documents, 732 N. Capitol St., NW, Washington, DC 20401-0001, http://
www.access.gpo.gov. valves.
F1155 − 10 (2019)

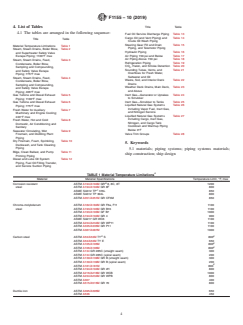

4. List of Tables
Title Table
4.1 The tables are arranged in the following sequence:
Fuel Oil Service Discharge Piping Table 13
Cargo Oil (and Vent Piping) and Table 14
Title Table
Crude Oil Wash Piping
Steering Gear Fill and Drain Table 15
Material Temperature Limitations Table 1
Piping, and Telemotor Piping
Steam, Steam Drains, Boiler Blow, Table 2
Hydraulic Piping Table 16
and Superheater Safety Valve
Air Piping 150 psi and Below Table 17
Escape Piping; 1100°F max
Air Piping Above 150 psi Table 18
Steam, Steam Drains, Feed, Table 3
Refrigeration Piping Table 19
Condensate, Boiler Blow,
CO , Halon, and Smoke Detection Table 20
Sampling and Compounding, 2
Sounding Tubes, Vents, and Table 21
and Safety Valve Escape
Overflows for Fresh Water,
Piping; 775°F max
Saltwater and Oil
Steam, Steam Drains, Feed, Table 4
Waste, Soil, and Interior Deck Table 22
Condensate, Boiler Blow,
Drains
Sampling and Compounding,
Weather Deck Drains, Main Deck, Table 23
and Safety Valve Escape
and Above
Piping; 406°F max
Inert Gas—Generator or Uptakes Table 24
Gas Turbine and Diesel Exhaust Table 5
to Scrubber
Piping; 1100°F max
Inert Gas—Scrubber to Tanks Table 25
Gas Turbine and Diesel Exhaust Table 6
Liquified Natural Gas Systems Table 26
Piping; 775°F max
Including Vapor Fuel, Inert Gas,
Fresh Water for Auxiliary Table 7
and Nitrogen Service
Machinery and Engine Cooling;
Liquified Natural Gas Systems Table 27
240°F max
Including Cargo, Inert Gas,
Fresh Water, Hot and Cold Table 8
Nitrogen, and Cargo Tank
Domestic, Air Conditioning and
Cooldown and Warmup Piping
Sanitary
Below 0°F
Seawater Circulating, Wet Table 9
Valve Trim Groups Table 28
Firemain, and Distilling Plant
Piping
Dry Firemain, Foam, Sprinkling, Table 10
5. Keywords
Deckwash, and Tank Cleaning
Piping
5.1 materials; piping systems; piping systems materials;
Bilge, Clean Ballast, and Pump Table 11
ship construction; ship design
Priming Piping
Diesel and Lube Oil System Table 12
Piping, Fuel Oil Filling Transfer,
and Service Suction Piping
A
TABLE 1 Material Temperature Limitations
Material Material Specifications Temperature Limit, °F, max
B
Corrosion resistant ASTM A194/A194M GR 8, 8C, 8T 1200
steel ASTM A194/A194M GR 8F 800
C
ASME SA312 TP 316L 850
ASME SA312 TP 304L 800
ASTM A351/A351M GR CF3M 850
Chrome-molybdenum ASTM A182/A182M GR F6a, F11 1100
steel ASTM A193/A193M GR B16 1100
ASTM A193/A193M GF B7 1000
ASTM A194/A194M GR 4 900
ASME SA217 GR WC6 1100
ASTM A234/A234M GR WP11 1100
ASTM A335/A335M GR P11 1100
ASTM A387/A387M 1000
D E
Carbon steel ASTM A53/A53M TY S 800
ASTM A53/A53M TY E 650
E
ASTM A105/A105M 800
E
ASTM A106/A106M 800
ASTM A134 GR 285C (straight seam) 300
ASTM A134 GR 285C (spiral seam) 200
ASTM A139/A139M GR B (straight seam) 300
ASTM A139/A139M GR B (spiral seam) 200
E
ASTM A181/A181M 800
ASTM A194/A194M GR 2H 800
ASTM A216/A216M GR WCB 1000
ASTM A234/A234M GR WPB 800
ASTM A307 400
ASTM A515/A515M GR 70 800
Ductile iron ASTM A395/A395M 650
ASTM A536 450
F1155 − 10 (2019)
TABLE 1 Continued
Material Material Specifications Temperature Limit, °F, max
Bronze ASME SB61 550
ASME SB62 406
Copper nickel alloy ASME SB466 C70600 600
ASME SB467 C70600 600
Copper ASTM B88 TY K or L 400
ASME SB75 400
Glass reinforced ASTM D2996 GR 1 225
plastic ASTM D2997 GR 1 225
ASTM D4024 GR 1 225
CP Titanium ASTM B367 (Castings) 600
Grades 1, 2, 3, 4, 7, 11, 12 ASTM B381 (Forgings) 600
ASTM B861 (Seamless Pipe) 600
ASTM B338 (Seamless & Welded Tube) 600
ASTM B862 (Welded Pipe) 600
ASTM B265 (Strip, Sheet and Plate) 600
ASTM B348 (Bar and Billet) 600
A
Maximum temperature limits in accordance with ASME B31.1 for all material, except glass reinforced plastic, which is in accordance with NVIC 11-86 and Specification
A536 which is in accordance with 46 CFR 56.
B
GR—grade.
C
TP—tubular product.
D
TY—type.
E
Upon prolonged exposure to temperatures above 775°F, the carbide phase or carbon steel may be converted to graphite.
TABLE 2 Steam, Steam Drains, Boiler Blow, Superheater Safety Valve Escape Piping
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification 1100°F
Remarks/Limitations
B C
Pipe Seamless CrMo steel ASTM A335/A335M GR P11 ASME B36.10 . . .
Takedown joints Flanges: weld neck or CrMo steel ASTM A182/A182M GR F11 ASME B16.5 . . .
socket weld
D
Bolting Bolts/bolt studs CrMoV steel ASTM A193/A193M GR B16 ASME B18.2.1 . . .
E
Nuts CMo steel ASTM A194/A194M GR 4 ASME B18.2.2 . . .
Fittings Flanged CrMo steel ASME SA217 GR WC6 or ASME B16.5 . . .
ASTM A182/A182M GR F11
Buttweld CrMo steel ASTM A234/A234M GR WP11 ASME B16.9 . . .
or B16.28
Socket weld CrMo steel ASTM A182/A182M GR F11 ASME B16.11 . . .
F
Valves: gate, globe, Flanged or buttweld CrMo steel ASME SA217 GR WC6 or ASME B16.34 Trim group 1
angle, check
ASTM A182/A182M GR F11
Socket weld CrMo steel ASTM A182/A182M GR F6a ASME B16.34 . . .
or GR F11
A
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
B
CrMo—chromium-molybdenum.
C
GR—grade.
D
CrMoV—chromium-molybdenum-vanadium.
E
CMo—carbon-molybdenum.
F
For trim group definition, refer to Table 28.
TABLE 3 Steam, Steam Drains, Feed, Condensate Boiler Blow Sampling and Compounding, Safety Valve Escape Piping
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
775°F
Remarks/Limitations
B C
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B ASME B36.10 A53/A53M GR B TY E
resistance welded
or A53/A53M Limited to a design
GR B TY S or E pressure of 350 psig.
See also Table 1.
Takedown joints Flanges: weld neck, Carbon steel ASTM A105/A105M ASME B16.5 . . .
socket weld or
slip-on
Unions: socket weld Carbon steel ASTM A105/A105M MSS-SP-83 . . .
F1155 − 10 (2019)
TABLE 3 Continued
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
775°F
Remarks/Limitations
D
Bolting Bolts/bolt studs CrMo steel ASTM A193/A193M GR B7 ASME B18.2.1 . . .
Nuts Carbon steel ASTM A194/A194M GR 2H ASME B18.2.2 . . .
Fittings Flanged Carbon steel ASTM A216/A216M GR ASME B16.5 . . .
WCB or A105/A105M
Butt weld Carbon steel ASTM A234/A234M GR ASME B16.9 . . .
WPB or B16.28
Socket weld Carbon steel ASTM A234/A234M GR ASME B16.11 . . .
WPB or A105/A105M
E
Valves: gate, globe, Flanged or buttweld Carbon steel ASTM A216/A216M GR ASME B16.34 Trim group 2
angle, check WCB or A105/A105M
Socket weld Carbon steel ASTM A234/A234M GR ASME B16.34 . . .
WPB or A105/A105M
A
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
B
GR—grade.
C
TY—type.
D
CrMo—chromium-molybdenum
E
For trim group definition, refer to Table 28.
TABLE 4 Steam, Steam Drains, Feed, Condensate, Boiler Blow Sampling and Compounding, and Safety Valve Escape Piping
Maximum Temperature
A B
Item Type Style Material Specification Design Specification
406°F
Remarks/Limitations
C D
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B ASME B36.10 A53/A53M GR B TY E
resistance welded or A53/A53M limited to a design
GR B TY S or E pressure of 350 psig
Takedown joints Flanges: weld neck, Carbon steel ASTM A105/A105M ASME B16.5 . . .
socket weld or slip-on
Unions: socket weld or Carbon steel ASTM A105/A105M MSS-SP-83 . . .
threaded
Unions: threaded or Bronze ASME SB61 or SB62 MIL-F-1183 . . .
brazed
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
Nuts Carbon steel ASTM A563 GR A ASME B18.2.2 . . .
Fittings Flanged Carbon steel ASTM A216/A216M GR ASME B16.5 . . .
WCB
or
Buttweld Carbon steel ASTM A234/A234M GR ASME B16.9 . . .
WPB or B16.28
Socket weld Carbon steel ASTM A234/A234M GR ASME B16.11 . . .
WPB or A105/A105M
Sleeve couplings Carbon steel ASTM A234/A234M GR ASTM F682 .
WPB
Threaded or brazed Bronze ASME SB61 or SB62 MIL-F-1183 . . .
E
Valves: gate, globe, Flanged Ductile iron ASTM A395/A395M ASME B16.34 Trim group 3 and 4
angle, check Flanged or buttweld Carbon steel ASTM A216/A216M GR ASME B16.34 . . .
WCB or A105/A105M
ASTM A105/A105M ASME B16.34
F
Socket weld Carbon steel ASME SB61 or SB62 MSS-SP-80 .
Threaded or brazed Bronze .
A
When combining dissimilar materials, galvanic corrosion can occur, especially in seawater systems, and should be considered.
B
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
C
GR—grade.
D
TY—type.
E
For trim group definition, refer to Table 28.
F
MSS-SP-80 valves limited to 75 % of valve design pressure.
TABLE 5 Gas Turbine and Diesel Exhaust Piping
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification 1100°F
Remarks/Limitations
B C
Pipe Seamless CrMo steel ASTM A335/A335M GR ASME B36.10 . . .
P11
D
Plate formed CrMo steel ASTM A387/A387M Commercial .
F1155 − 10 (2019)
TABLE 5 Continued
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
1100°F
Remarks/Limitations
Takedown joints Flanges: weld neck or CrMo steel ASTM A182/A182M GR F11 ASME B16.5 . . .
socket weld
D
Flanges: plate CrMo steel ASTM A387/A387M Commercial .
E
Bolting Bolts/bolt studs CrMoV steel ASTM A193/A193M GR B16 ASME B18.2.1 . . .
F
Nuts CMo steel ASTM A194/A194M GR 4 ASME B18.2.2 . . .
A
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
B
CrMo—chromium-molybdenum.
C
GR—grade.
D
Specific Coast Guard and ABS approval for design required.
E
CrMoV—chromium-molybdenum-vanadium.
F
CMo—carbon-molybdenum.
TABLE 6 Gas Turbine and Diesel Exhaust Piping
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
775°F
Remarks/Limitations
B
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B ASME B36.10 See Table 1
resistance welded or A53/A53M
GR BTYS or E
Takedown joints Flanges: weld neck, Carbon steel ASTM A105/A105M ASME B16.5 . . .
socket weld or slip-on
C
Flanges: plate Carbon steel ASTM A515/A515M GR 70 Commercial .
D
Bolting Bolts/bolt studs CrMo steel ASTM A193/A193M GR B7 ASME B18.2.1 . . .
Nuts Carbon steel ASTM A194/A194M GR 2H ASME B18.2.2 . . .
Fittings Flanged Carbon steel ASTM A216/A216M GR ASME B16.5 . . .
WCB or A105/A105M
Buttweld Carbon steel ASTM A234/A234M GR ASME B16.9 . . .
WPB or B16.28
A
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
B
GR—grade.
C
Specific Coast Guard and ABS approval required.
D
CrMo—chromium-molybdenum.
TABLE 7 Fresh Water for Auxiliary Machinery and Engine Cooling
Maximum Temperature
A
B
Item Type/Style Material Material Specification Design Specification
240°F
Remarks/Limitations
C
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B or ASME B36.10 . . .
D
resistance welded A53/A53M GR B TY SorE
CP Titanium ASTM B861 / ASME SB861
Grade 2 ASTM B862 / ASME SB862
E F
Filament wound FGP ASTM D2996 GR 1 Commercial See Table 1 and NVIC
E F G
Centrifugally cast FGP ASTM D2997 GR1 Commercial 11-86
Takedown joints Flanges: socket weld or Carbon steel ASTM A105/A105M ASME B16.5 . . .
slip-on
Unions: socket weld or Carbon steel ASTM A105/A105M MSS-SP-83 . . .
threaded
Unions: threaded or Bronze ASME SB61 or SB62 MIL-F-1183 . . .
brazed
H
Flanges: adhesive GRP ASTM D4024 GR 1 ASTM D4024 .
bonded
Gasketed Ductile iron ASTM A536 ASTM F1476 .
mechanical
couplings
Flanges: CP Titanium ASTM B381/ ASME SB381 ASME B16.5
Blind, Weld Neck (Dimensions only)
Slip-On, Threaded Pipe
Figure 8 Blanks CP Titanium ASME B16.5
ASME B16.48
(Dimensions only)
Spectacle Blinds CP Titanium Pipe Fitters Bluebook
(Dimensions only)
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
F1155 − 10 (2019)
TABLE 7 Continued
Maximum Temperature
A
B
Item Type/Style Material Material Specification Design Specification
240°F
Remarks/Limitations
Nuts ASTM A563 GR A ASME B18.2.2 . . .
CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Washers CP Titanium ASTM B265 / ASME SB265
1, 2, 3, 4, 7, 11, 12
Per Request Only:
Bolt/Bolt Studs CP Titanium ASTM F468 (Bolts)
2, 3, 4, 7, 12
Nuts CP Titanium
2, 3, 4, 7, 12 ASTM F467 (Nuts)
Plain Washers and CP Titanium ASME B18.21.1
Lock Washers 1, 2, 3, 4, 7, 11, 12 ASME B18.22.1
Fittings Flanged Carbon steel ASTM A216/A216M GR WCB ASME B16.5 . . .
or A105/A105M
Buttweld Carbon steel ASTM A234/A234M GR WPB ASME B16.9 . . .
or B16.28
Socket weld or Carbon steel ASTM A234/A234M GR WPB ASME B16.9 . . .
threaded
or B16.28
Sleeve couplings Carbon steel ASTM A234/A234M GR WPB ASTM F682 .
Threaded or brazed Bronze ASME SB61 or SB62 MIL-F-1183 . . .
H F
Adhesive bonded GRP Commercial Commercial .
Used with Ductile iron A536 F1548 .
gasketed
mechanical
couplings
Buttweld CP Titanium ASTM B363 / ASME SB363 ASME B16.9
Elbows, Tees, Caps, 1, 2, 3, 4, 7, 12 MSS SP-43
& Reducers (Dimensions only)
Socket-Welding or CP Titanium ASTM B381 / ASME SB381 ASME B16.11
Threaded Elbows, Tees, 1, 2, 3, 4, 7, 12 MSS SP-97
Couplings, Bushings (Dimensions only)
Plugs CP Titanium ASTM B381 / ASME SB381 ASME B16.11
(Dimensions only)
MSS SP-97
Unions CP Titanium ASTM B381 / ASME SB381 MSS SP-83
(Dimensions only)
Nipples CP Titanium ASTM B861 / ASME SB861 MSS SP-83
ASTM B862 / ASME SB862 (Dimensions only)
Belled End Socket- CP Titanium ASTM B363 / ASME SB363 MSS SP-119
Welding Elbows, Tees, (Dimensions only)
Couplings, Reducers,
Caps
Threaded, Socket- CP Titanium ASTM B381 / ASME SB381 MSS SP-97
Welding, and (Dimensions only)
Buttwelding Outlets
I
Valves Butterfly wafer or lug Ductile iron ASTM A395/A395M MSS-SP-67 Trim group 4
type
I
Butterfly grooved Ductile iron ASTM A536 . . . Trim group 4
end
I
Valves: gate, globe, Flanged Ductile iron ASTM A395/A395M ASME B16.34 Trim group 4
I
angle, check Flanged or buttweld Carbon steel ASTM A216/A216M GR WCB ASME B16.34 Trim group 3 and 4
or A105/A105M
I
Socket weld Carbon steel ASTM A105/A105M ASME B16.34 Trim group 3 and 4
J I
Threaded or brazed Bronze ASME SB61 or SB62 MSS-SP-80 Trim group 3 and 4
I
Grooved end Ductile iron ASTM A536 . . . Trim group 3 and 4
I
Valves: ball Flanged or buttweld Carbon steel ASTM A216/A216M GR WCB MSS-SP-72 Trim group 3 and 4
or A105/A105M
or A181/A181M
A
When combining dissimilar materials, galvanic corrosion can occur especially in seawater systems, and should be considered.
B
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
C
GR—grade.
D
TY—type.
E
FGP—fiberglass pipe.
F
Specific Coast Guard and ABS approval required.
G
For U.S. flag vessels in addition to classification society requirements.
H
GRP—glass reinforced plastic.
I
For trim group definition, refer to Table 28.
J
MSS-SP-80 valves limited to 75 % of valve design pressure.
F1155 − 10 (2019)
TABLE 8 Fresh Water, Hot and Cold Domestic, Air Conditioning, Sanitary
B
A Maximum Temperature 240°F
Item Type/Style Material Material Specification Design Specification
Remarks/Limitations
C
Pipe Seamless Copper ASTM B88 TY K or L ASTM B88 Hard drawn. Must be
annealed for pressures
greater than 225 psig.
D E F
Filament wound FGP ASTM D2996 GR 1 Commercial See Table 1 and NVIC
G
11-86
D F
Centrifugally cast FGP ASTM D2997 GR 1 Commercial See Table 1 and NVIC
G
11-86
Seamless or electric CP Titanium ASTM B861 / ASME SB861
Resistance welded Grade 2 ASTM B862 / ASME SB862
Takedown joints Flanges: silbraze Bronze ASME SB862 ASME B16.24 . . .
Unions: brazed or Bronze ASME SB861 or SB862 MIL-F-1183 . . .
threaded
H
Flanges: adhesive GRP ASTM D4024 GR 1 ASTM D4024 .
bonded
I
Gasketed Ductile iron ASTM A536 ASTM F1476 .
mechanical
couplings
Flanges: CP Titanium ASTM B381 / ASME SB381 ASME B16.5
Blind, Weld Neck (Dimensions only)
Slip-On, Threaded Pipe
Figure 8 Blanks CP Titanium ASME B16.5
ASME B16.48
(Dimensions only)
Spectacle Blinds CP Titanium Pipe Fitters Bluebook
(Dimensions only)
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
Nuts Carbon steel ASTM A563 GR A ASME B18.2.2 . . .
Bolts/Bolt Studs CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Nuts CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Washers CP Titanium ASTM B265 / ASME SB265
1, 2, 3, 4, 7, 11, 12
Per Request only:
Bolts/Bolt Studs CP Titanium ASTM F468 (Bolts)
2, 3, 4, 7, 12
Nuts CP Titanium ASTM F467 (Nuts)
2, 3, 4, 7, 12
Plain Washers & CP Titanium ASME B18.21.1
Lock Washers 1, 2, 3, 4, 7, 12 ASME B18.22.1
Fittings Silbraze Copper ASME SB88 TY K or L ASME B16.22 . . .
H F
Adhesive bonded GRP Commercial Commercial .
Used with Bronze ASTM B61 ASTM F1476 .
gasketed or B62
mechanical
couplings
Buttweld CP Titanium ASTM B363 / ASME SB363 ASME B16.9
Elbows, Tees, Caps, MSS SP-43
& Reducers 1, 2, 3, 4, 7, 12 (Dimensions only)
Socket-Welding or CP Titanium ASTM B381 / ASME SB381 ASME B16.11
Threaded Elbows, Tees 1, 2, 3, 4, 7, 12 MSS SP-97
Couplings, Bushings
(Dimensions only)
Plugs CP Titanium ASTM B381 / ASME SB381 ASME B16.11
MSS SP-97
(Dimensions only)
Unions CP Titanium ASTM B381 / ASME SB381 MSS SP-83
(Dimensions only)
Nipples CP Titanium ASTM B861 / ASME SB861 MSS SP-83
ASTM B862 / ASME SB862 (Dimensions only)
Belled End Socket- CP Titanium ASTM B363 / ASME SB363 MSS SP-119
Welding Elbows, Tees, (Dimensions only)
Couplings, Reducers,
Caps
Threaded, Socket- CP Titanium ASTM B381 / ASME SB381 MSS SP-97
Welding, and (Dimensions only)
Buttwelding Outlets
J
Valves Butterfly wafer or lug Ductile iron ASTM A395/A395M MSS-SP-67 Trim group 4
J
Butterfly grooved Bronze ASTM B61 . . . Trim group 4
end or B62
F1155 − 10 (2019)
TABLE 8 Continued
B
Maximum Temperature 240°F
A
Item Type/Style Material Material Specification Design Specification
Remarks/Limitations
K J
Valves: gate, globe, Flanged or brazed Bronze ASME SB61 or SB62 MSS-SP-80 Trim group 4
angle, check
J
Valves: ball Flanged Bronze ASME SB61 or SB62 MSS-SP-72 Trim group 4
A
When combining dissimilar materials galvanic corrosion can occur, especially in seawater systems, and should be considered.
B
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
C
TY—type.
D
FGP—fiberglass pipe.
E
GR—grade.
F
Specific Coast Guard and ABS approval required.
G
For U.S. flag vessels in addition to classification society requirements.
H
GRP—glass reinforced plastic.
I
Acceptable when gasket isolates coupling housings from fluid.
J
For trim group definition, refer to Table 28.
K
MSS-SP-80 valves limited to 75 % of valve design pressure.
TABLE 9 Sea Water Circulating, Wet Firemain, and Distilling Plant Piping
Maximum Temperature
A B
Item Type/Style Material Material Specification Design Specification
150°F
Remarks/Limitations
C
Pipe Seamless or welded CNA 90:10 ASME SB466 or SB467 ASME SB466 or SB467
D E F G
Filament wound FGP ASTM D2996 GR 1 Commercial See NVIC 11-86
D F G
Centrifugally cast FGP ASTM D2997 GR 1 Commercial See NVIC 11-86
Seamless or electric CP Titanium ASTM B861 / ASME SB861
Resistance welded Grade 2 ASTM B862 / ASME SB862
Takedown joints Flanges: brazed Bronze ASME SB62 ASME B16.24 . . .
Unions: brazed Bronze ASME SB61 or SB62 MIL-F-1183 . . .
H
Flanges: adhesive GRP ASTM D4024 GR 1 ASTM D4024 .
bonded
I
Gasketed Ductile iron ASTM A536 ASTM F1476 .
mechanical
couplings
Flanges: CP Titanium ASTM B381 / ASME SB381 ASME B16.5
Blind, Weld Neck (Dimensions only)
Slip-On, Threaded Pipe
Figure 8 Blanks CP Titanium ASME B16.5
ASME B16.48
(Dimensions only)
Spectacle Blinds CP Titanium Pipe Fitters Bluebook
(Dimensions only)
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
Nuts Carbon steel ASTM A563 GR A ASME B18.2.2 . . .
Bolts/Bolt Studs CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Nuts CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Washers CP Titanium ASTM B265 / ASME SB265
1, 2, 3, 4, 7, 11, 12
Per Request only:
Bolts/Bolt Studs CP Titanium ASTM F468 (Bolts)
2, 3, 4, 7, 12
Nuts CP Titanium ASTM F467 (Nuts)
2, 3, 4, 7, 12
Plain Washers & CP Titanium ASME B18.21.1
Lock Washers 1, 2, 3, 4, 7, 12 ASME B18.22.1
Fittings Flanged Bronze ASME SB61 or SB62 ASME B16.24 . . .
Buttweld or welding CNA 90:10 ASME SB466 or SB467 810-1385880 . . .
sleeve
Brazed Bronze ASME SB61 or SB62 MIL-F-1183 . . .
H F
Adhesive bonded GRP Commercial Commercial .
Used with Bronze ASTM B61 ASTM F1548 .
gasketed or B62
mechanical CNA ASTM B466/B466M ASTM F1548 .
couplings or B467
Buttweld CP Titanium ASTM B363 / ASME SB363 ASME B16.9
Elbows, Tees, Caps, 1, 2, 3, 4, 7, 12 MSS SP-43
& Reducers (Dimensions only)
Socket-Welding or CP Titanium ASTM B381 / ASME SB381 ASME B16.11
Threaded Elbows, Tees 1, 2, 3, 4, 7, 12 MSS SP-97
F1155 − 10 (2019)
TABLE 9 Continued
Maximum Temperature
A
B
Item Type/Style Material Material Specification Design Specification
150°F
Remarks/Limitations
Couplings, Bushings (Dimensions only)
Plugs CP Titanium ASTM B381 / ASME SB381 ASME B16.11
MSS SP-97
(Dimensions only)
Unions CP Titanium ASTM B381 / ASME SB381 MSS SP-83
(Dimensions only)
Nipples CP Titanium ASTM B861 / ASME SB861 MSS SP-83
ASTM B862 / ASME SB862 (Dimensions only)
Belled End Socket- CP Titanium ASTM B363 / ASME SB363 MSS SP-119
Welding Elbows, Tees, (Dimensions only)
Couplings, Reducers,
Caps
Threaded, Socket- CP Titanium ASTM B381 / ASME SB381 MSS SP-97
Welding, and (Dimensions only)
Buttwelding Outlets
J K
Valves Butterfly water or lug Ductile iron ASTM A395/A395M MSS-SP-67 Trim group 6
J
Carbon steel ASTM A216/A216M GR
WCB or A105/A105M
K
Butterfly grooved Bronze ASTM B61 . . . Trim group 4
end or B62
L K
Valves: gate, globe, Flanged Bronze ASME SB61 or SB62 MSS-SP-80 Trim group 6
angle, check Brazed
A
When combining dissimilar materials, galvanic corrosion can occur, especially in seawater systems, and should be considered.
B
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
C
CNA—copper nickel alloy.
D
FGP—fiberglass pipe.
E
GR—grade.
F
Specific Coast Guard and ABS approval required.
G
For U.S. flag vessels in addition to classification society requirements.
H
GRP—glass reinforced plastic.
I
Acceptable when gasket isolates coupling housings from fluid.
J
Not permitted with CNA piping.
K
For trim group definition, refer to Table 28.
L
MSS-SP-80 valves limited to 75 % of valve design pressure.
TABLE 10 Dry Fire Main, Foam, Sprinkling, Deckwash, Tank Cleaning Piping
Maximum Temperature
A
B
Item Type/Style Material Material Specification Design Specification
200°F
Remarks/Limitations
C
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B ASME B36.10 . . .
resistance welded or A53/A53M
D
GR B TY SorE
Takedown joints Flanges: socket weld or Carbon steel ASTM A105/A105M ASME B16.5 . . .
slip-on
Unions: socket weld or Carbon steel ASTM A105/A105M MSS-SP-83 . . .
threaded
Gasketed Ductile iron ASTM A536 ASTM F1476 .
mechanical
couplings
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
Nuts Carbon steel ASTM A563 GR A ASME B18.2.2 . . .
Fittings Buttweld Carbon steel ASTM A234/A234M GR WPB ASME B16.9 . . .
or B16.28
Socket weld Carbon steel ASTM A234/A234M GR WPB ASME B16.11 . . .
or A105/A105M
Sleeve coupling Carbon steel ASTM A234/A234M GR WPB ASTM F682 .
Threaded Bronze ASME SB61 or SB62 ASME B16.15 . . .
Used with Ductile iron ASTM A536 ASTM F1548 .
Gasketed
mechanical
couplings
Valves Butterfly wafer or lug type Ductile iron ASTM A395/A395M MSS-SP-67 . . .
E
Butterfly grooved Ductile iron ASTM A536 . . . Trim group 4
end
F1155 − 10 (2019)
TABLE 10 Continued
Maximum Temperature
A
B
Item Type/Style Material Material Specification Design Specification
200°F
Remarks/Limitations
E
Valves: gate, globe, Flanged Ductile iron ASTM A395/A395M ASME B16.34 Trim group 4
E
angle, check Flanged or buttweld Carbon steel ASTM A216/A216M GR WCB Trim group 3
or A105/A105M
Socket weld Carbon steel ASTM A234/A234M GR WPB ASME B16.34 . . .
or A105/A105M
F
Flanged or threaded Bronze ASME SB61 or SB62 MSS-SP-80 .
E
Grooved end Ductile iron ASTM A536 . . . Trim group 3 and 4
A
When combining dissimilar materials, galvanic corrosion can occur, especially in seawater systems, and should be considered.
B
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
C
GR—grade.
D
TY—type.
E
For trim group definition, refer to Table 28.
F
MSS-SP-80 valves limited to 75 % of valve design pressure.
TABLE 11 Bilge, Clean Ballast, and Pump Priming Piping
Maximum Temperature
Design
A B
Item Type/Style Material Material Specification
100°F
Specification
Remarks/Limitations
C
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B ASME B36.10 . . .
resistance weld or A53/A53M
D
GR B TY SorE
E F G
Filament wound FGP ASTM D2996 GR 1 Commercial See NVIC 11-86
E F G
Centrifugally cast FGP ASTM D2997 GR 1 Commercial See NVIC 11-86
Seamless or electric CP Titanium ASTM B861 / ASME SB861
Resistance welded Grade 2 ASTM B862 / ASME SB862
Takedown joints Flanges: slip-on or socket Carbon steel ASTM A105/A105M ASME B16.5 . . .
weld
H
Flanges: plate Steel with NCA facing ASTM A283/A283M ASME B16.5 . . .
Unions: socket weld or Carbon steel ASTM A105/A105M MSS-SP-83 . . .
threaded
I
Flanges: adhesive bonded GRP ASTM D4024 GR 1 ASTM D4024 .
Gasketed Ductile iron ASTM A536 ASTM F1476 .
mechanical
couplings
Flanges: CP Titanium ASTM B381 / ASME SB381 ASME B16.5
Blind, Weld Neck (Dimensions only)
Slip-On, Threaded Pipe
Figure 8 Blanks CP Titanium ASME B16.5
ASME B16.48
(Dimensions only)
Spectacle Blinds CP Titanium Pipe Fitters Blue-
book
(Dimensions only)
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
Nuts Carbon steel ASTM A563 GR A ASME B18.2.2 . . .
Bolts/Bolt Studs CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Nuts CP Titanium ASTM B348 / ASME SB348
2, 3, 4, 7, 12 ASTM B381 / ASME SB381
Washers CP Titanium ASTM B265 / ASME SB265
1, 2, 3, 4, 7, 11, 12
Per Request only:
Bolts/Bolt Studs CP Titanium ASTM F468 (Bolts)
2, 3, 4, 7, 12
Nuts CP Titanium ASTM F467 (Nuts)
2, 3, 4, 7, 12
Plain Washers & CP Titanium ASME B18.21.1
Lock Washers 1, 2, 3, 4, 7, 12 ASME B18.22.1
Fittings Buttweld Carbon steel ASTM A234/A234M GR WPB ASME B16.9 or .
B16.28
Socket weld or threaded Carbon steel ASTM A234/A234M GR WPB ASME B16.11 . . .
or A105/A105M
Sleeve coupling Carbon steel ASTM A234/A234M GR WPB ASTM F682 .
I F
Adhesive bonded GRP Commercial Commercial .
Used with Ductile iron ASTM A536 ASTM F1548 .
gasketed
mechanical
couplings
F1155 − 10 (2019)
TABLE 11 Continued
Maximum Temperature
Design
A
B
Item Type/Style Material Material Specification
100°F
Specification
Remarks/Limitations
Buttweld CP Titanium ASTM B363 / ASME SB363 ASME B16.9
Elbows, Tees, Caps, 1, 2, 3, 4, 7, 12 MSS SP-43
& Reducers (Dimensions only)
Socket-Welding or CP Titanium ASTM B381 / ASME SB381 ASME B16.11
Threaded Elbows, Tees 1, 2, 3, 4, 7, 12 MSS SP-97
Couplings, Bushings (Dimensions only)
Plugs CP Titanium ASTM B381 / ASME SB381 ASME B16.11
MSS SP-97
(Dimensions only)
Unions CP Titanium ASTM B381 / ASME SB381 MSS SP-83
(Dimensions only)
Nipples CP Titanium ASTM B861 / ASME SB861 MSS SP-83
ASTM B862 / ASME SB862 (Dimensions only)
Belled End Socket- CP Titanium ASTM B363 / ASME SB363 MSS SP-119
Welding Elbows, Tees, (Dimensions only)
Couplings, Reducers,
Caps
Threaded, Socket- CP Titanium ASTM B381 / ASME SB381 MSS SP-97
Welding, and (Dimensions only)
Buttwelding Outlets
Valves Butterfly wafer or lug type Ductile iron ASTM A395/A395M MSS-SP-67 . . .
Carbon steel ASTM A216/A216M GR WCB
or A105/A105M
J
Butterfly grooved Ductile iron ASTM A536 . . . Trim group 4
end
J
Valves: gate, globe, Flanged Ductile iron ASTM A395/A395M ASME B16.34 Trim group 3 and 4
J
angle, check Carbon steel ASTM A216/A216M GR WCB ASME B16.34 Trim group 3 and 4
or A105/A105M
K J
Threaded or brazed Bronze ASME SB61 or SB62 MSS-SP-80 Trim group 3 and 4
J
Grooved end Ductile iron ASTM A536 . . . Trim group 3 and 4
A
When combining dissimilar materials, galvanic corrosion can occur, especially in seawater systems, and should be considered.
B
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
C
GR—grade.
D
TY—type.
E
FGP—fiberglass pipe.
F
Specific Coast Guard and ABS approval required.
G
For U.S. flag vessels in addition to classification society requirements.
H
NCA—nickel copper alloy.
I
GRP—glass-reinforced plastic.
J
For trim group definition, refer to Table 28.
K
MSS-SP-80 valves limited to 75 % of valve design pressure.
TABLE 12 Diesel and Lube Oil System Piping Fuel Oil Filling, Transfer, and Service Suction Piping
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
200°F
Remarks/Limitations
B
Pipe Seamless or electric Carbon steel ASTM A106/A106M GR B ASME B36.10 . . .
resistance welded or A53/A53M GR
C
BTY SorE
D E F
Filament wound FGP ASTM D2996 GR 1 Commercial See NVIC 11-86
D E F
Centrifugally cast FGP ASTM D2997 GR 1 Commercial See NVIC 11-86
Takedown joints Flanges: weldneck, Carbon steel ASTM A105/A105M ASME B16.5 . . .
socket weld or slip-on
Unions: socket weld or Carbon steel ASTM A105/A105M MSS-SP-83 . . .
threaded
G
Flanges: adhesive GRP ASTM D4024 GR 1 ASTM D4024 .
bonded
Gasketed Ductile iron ASTM A536 ASTM F1476 .
mechanical
couplings
Bolting Bolts/bolt studs Carbon steel ASTM A307 GR B ASME B18.2.1 . . .
Nuts Carbon steel ASTM A563 GR A ASME B18.2.2 . . .
Fittings Buttweld Carbon steel ASTM A234/A234M GR WPB ASME B16.9 . . .
or B16.28
Socket weld or threaded Carbon steel ASTM A234/A234M GR WPB ASME B16.11 . . .
or A105/A105M
F1155 − 10 (2019)
TABLE 12 Continued
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
200°F
Remarks/Limitations
Sleeve couplings Carbon steel ASTM A234/A234M GR WPB ASTM F682 .
D E
Adhesive bonded GRP Commercial Commercial .
Used with Ductile iron ASTM A536 ASTM F1548 .
gasketed
mechanical
couplings
H
Valves Butterfly wafer or lug Ductile iron ASTM A395/A395M MSS-SP-67 Trim group 4 and 5
Carbon steel ASTM A216/A216M GR WCB
or A105/A105M
H
Butterfly grooved Ductile iron ASTM A536 . . . Trim group 4
end
H
Valves: gate, globe, Flanged Ductile iron ASTM A395/A395M ASME B16.34 Trim group 4 and 5
angle, check Carbon steel ASTM A216/A216M GR WCB
or A105/A105M
H
Socket weld or threaded Carbon steel ASTM A234/A234M GR WPB ASME B16.34 Trim group 3
or A105/A105M
H
Grooved end Ductile iron ASTM A536 . . . Trim group 3 and 4
A
Consult applicable material and design specifications, and Table 1 where indicated, to establish pressure/temperature ratings.
B
GR—grade.
C
TY—type.
D
FGP—fiberglass pipe.
E
Specific Coast Guard and ABS approval required.
F
For U.S. flag vessel in addition to classification society requirements.
G
GRP—glass reinforced plastic.
H
For trim group definition, refer to Table 28.
TABLE 13 Fuel Oil Service Discharge Piping
Maximum Temperature
A
Item Type/Style Material Material Specification Design Specification
300°F
Remarks/Limitations
B
Pipe Seamless Carbon steel ASTM A106/A106M GR B ASME B36.10 . . .
or A53/A53M GR
C
BTY S
Takedown joints Flanges: weldneck, Carbon steel ASTM A105/A105M ASME B16.5 . . .
socket weld or slip-on
Unions: socket weld or Carbon steel ASTM A105/A105M MSS-SP-83 . . .
threaded
Gasketed Ductile iron ASTM A536 ASTM
...
