SIST EN 61048:2006/A1:2016
(Amendment)Auxiliaries for lamps - Capacitors for use in tubular fluorescent and other discharge lamp circuits - General and safety requirements
Auxiliaries for lamps - Capacitors for use in tubular fluorescent and other discharge lamp circuits - General and safety requirements
This International Standard states the requirements for both self-healing and non-self-healing continuously rated a.c. capacitors of up to and including 2,5 kVAr, and not less than 0,1 µF, having a rated voltage not exceeding 1 000 V, which are intended for use in discharge lamp circuits operating at 50 Hz or 60 Hz and at altitudes up to 3 000 m.
Geräte für Lampen - Kondensatoren für Leuchtstofflampen- und andere Entladungslampenkreise - Allgemeine Anforderungen und Sicherheitsanforderungen
Appareils auxiliaires pour lampes - Condensateurs destinés à être utilisés dans les circuits de lampes tubulaires à fluorescence et autres lampes à décharge - Prescriptions générales et de sécurité
La présente Norme internationale énonce les exigences pour les condensateurs autorégénérateurs et non autorégénérateurs pour usage permanent en courant alternatif, d'une puissance inférieure ou égale à 2,5 kVAr, de capacité supérieure à 0,1 µF et dont la tension assignée n'excède pas 1 000 V, qui sont destinés à être utilisés dans les circuits de lampes à décharge fonctionnant à 50 Hz ou 60 Hz à des altitudes jusqu'à 3 000 m.
Pribor za sijalke - Kondenzatorji za uporabo v tokokrogih s cevastimi fluorescenčnimi in drugimi sijalkami - Splošne in varnostne zahteve - Dopolnilo A1
Ta mednarodni standard navaja zahteve tako za samoozdravljive kot nesamoozdravljive kondenzatorje za neprekinjeni nazivni tok zmogljivosti največ 2,5 kVAr in najmanj 0,1 µF z nazivno napetostjo največ 1000 V, ki so namenjeni za uporabo v tokokrogih s sijalkami, ki delujejo pri frekvenci 50/60 Hz in nadmorski višini največ 3000 m. OPOMBA: Te sijalke in povezane dušilke so obravnavane v ustreznih standardih IEC 60081, IEC 60901, IEC 60188, IEC 60192, IEC 60662 in IEC 61167 ter IEC 61347-2-8 in IEC 61347-2-9. Zajema kondenzatorje, namenjene za povezavo v sklopu, povezavo zaporedno s krogotokom sijalke ali delujočo kombinacijo obeh možnosti. Zajema samo impregnirane ali neimpregnirane kondenzatorje z dielektrikom iz papirja, plastične folije ali kombinacije obojega, bodisi z metalizirano folijo bodisi z elektrodami kovinske folije. Ta standard ne zajema kondenzatorjev za preprečevanje radijskih motenj, zahteve za katere so podane v standardu IEC 60384-14. Preskusi, obravnavani v tem standardu, so tipski preskusi. Zahteve za preskušanje posameznih kondenzatorjev med proizvodnjo niso vključene.
General Information
- Status
- Published
- Publication Date
- 09-Mar-2016
- Technical Committee
- IESV - Lamps and related equipment
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 26-Feb-2016
- Due Date
- 02-May-2016
- Completion Date
- 10-Mar-2016
Relations
- Effective Date
- 22-May-2012
Overview
The European Standard SIST EN 61048:2006/A1:2016, published by CLC and based on IEC 61048:2006/A1:2015, specifies the general and safety requirements for capacitors used in tubular fluorescent and other discharge lamp circuits. This standard applies to both self-healing and non-self-healing a.c. capacitors with ratings up to 2.5 kVAr and capacitances not less than 0.1 µF, designed for operation at 50 Hz or 60 Hz, with rated voltages not exceeding 1000 V. The standard also covers capacitors intended for use at altitudes up to 3000 meters.
Key to compliance is ensuring capacitors meet safety and performance criteria essential for reliable and safe operation in lighting applications.
Key Topics
Scope and Application
SIST EN 61048:2006/A1:2016 targets capacitors in discharge lamps such as tubular fluorescent lamps. It includes requirements for continuous a.c. operation capacitors in a voltage range up to 1000 V and specific capacitance values.Built-in Capacitors and Insulation Requirements
Annex E introduces additional requirements for built-in capacitors with insulation equivalent to double or reinforced insulation, commonly used in Class II luminaires. These include enhanced tests for creepage distances, clearances, and high-voltage withstand capabilities.Marking and Identification
Capacitors covered by this standard must have clear marking, including the symbol IEC 60417-6295 for built-in capacitors with special insulation, to ensure proper identification and safe usage.Testing and Safety Performance
The standard details rigorous safety and performance tests:- Dielectric strength and high-voltage tests between terminals and case
- Resistance to heat, fire, tracking, and adverse operating conditions
- Self-healing and destruction tests ensuring capacitor reliability under stress
- Sealing and heating tests to verify durability
Design Information for Luminaires
Annex F provides informative guidance on luminaire design, emphasizing the need for adequate spacing around capacitors-especially type B capacitors-to allow proper operation of the overpressure safety device without reducing creepage distances and clearances.
Applications
SIST EN 61048:2006/A1:2016 capacitors are crucial components in:
Tubular Fluorescent Lamp Circuits
Ensuring stable operation and safety of the auxiliary circuitry in fluorescent lamps used in commercial, industrial, and residential lighting.Discharge Lamp Equipment
Applied in auxiliary circuits for other types of discharge lamps, improving efficiency and lifespan.Class II Luminaire Internal Components
Capacitors with reinforced insulation enhance safety in luminaires that do not rely on earth connections, preventing electrical shock hazards.High Reliability and Safety Lighting Solutions
Compliance with EN 61048 ensures capacitors meet necessary safety requirements for voltage withstand and environmental resistance, reducing failure rates and improving user safety.
Related Standards
- IEC 60598-1 – General requirements for luminaires, includes definitions and requirements on double and reinforced insulation referenced in EN 61048.
- Low Voltage Directive (LVD 2006/95/EC) – EN 61048 supports compliance with essential safety objectives for electrical equipment within voltage limits.
- IEC 60417 – Provides standard graphical symbols including marking for built-in capacitors.
Adhering to the SIST EN 61048:2006/A1:2016 standard guarantees that capacitors used in fluorescent and discharge lamp circuits provide safe, reliable, and efficient operation. Manufacturers, designers, and installers rely on this standard to select components that meet stringent performance and safety criteria, ensuring compliance with European regulatory frameworks and high product quality.
Frequently Asked Questions
SIST EN 61048:2006/A1:2016 is a amendment published by the Slovenian Institute for Standardization (SIST). Its full title is "Auxiliaries for lamps - Capacitors for use in tubular fluorescent and other discharge lamp circuits - General and safety requirements". This standard covers: This International Standard states the requirements for both self-healing and non-self-healing continuously rated a.c. capacitors of up to and including 2,5 kVAr, and not less than 0,1 µF, having a rated voltage not exceeding 1 000 V, which are intended for use in discharge lamp circuits operating at 50 Hz or 60 Hz and at altitudes up to 3 000 m.
This International Standard states the requirements for both self-healing and non-self-healing continuously rated a.c. capacitors of up to and including 2,5 kVAr, and not less than 0,1 µF, having a rated voltage not exceeding 1 000 V, which are intended for use in discharge lamp circuits operating at 50 Hz or 60 Hz and at altitudes up to 3 000 m.
SIST EN 61048:2006/A1:2016 is classified under the following ICS (International Classification for Standards) categories: 29.140.30 - Fluorescent lamps. Discharge lamps; 31.060.01 - Capacitors in general. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 61048:2006/A1:2016 has the following relationships with other standards: It is inter standard links to SIST EN 61048:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 61048:2006/A1:2016 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 2014/35/EU. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST EN 61048:2006/A1:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2016
3ULERU]DVLMDONH.RQGHQ]DWRUML]DXSRUDERYWRNRNURJLKVFHYDVWLPL
IOXRUHVFHQþQLPLLQGUXJLPLVLMDONDPL6SORãQHLQYDUQRVWQH]DKWHYH'RSROQLOR$
Auxiliaries for lamps - Capacitors for use in tubular fluorescent and other discharge lamp
circuits - General and safety requirements
Geräte für Lampen - Kondensatoren für Leuchtstofflampen- und andere
Entladungslampenkreise - Allgemeine Anforderungen und Sicherheitsanforderungen
Appareils auxiliaires pour lampes - Condensateurs destinés à être utilisés dans les
circuits de lampes tubulaires à fluorescence et autres lampes à décharge - Prescriptions
générales et de sécurité
Ta slovenski standard je istoveten z: EN 61048:2006/A1:2016
ICS:
29.140.30 )OXRUHVFHQþQHVLMDONH6LMDONH Fluorescent lamps.
Discharge lamps
31.060.01 Kondenzatorji na splošno Capacitors in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 61048:2006/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2016
ICS 29.140.99
English Version
Auxiliaries for lamps - Capacitors for use in tubular fluorescent
and other discharge lamp circuits - General and safety
requirements
(IEC 61048:2006/A1:2015)
Appareils auxiliaires pour lampes - Condensateurs destinés Geräte für Lampen - Kondensatoren für Leuchtstofflampen-
à être utilisés dans les circuits de lampes tubulaires à und andere Entladungslampenkreise - Allgemeine
fluorescence et autres lampes à décharge - Prescriptions Anforderungen und Sicherheitsanforderungen
générales et de sécurité (IEC 61048:2006/A1:2015)
(IEC 61048:2006/A1:2015)
This amendment A1 modifies the European Standard EN 61048:2006; it was approved by CENELEC on 2015-08-11. CENELEC members
are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a
national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61048:2006/A1:2016 E

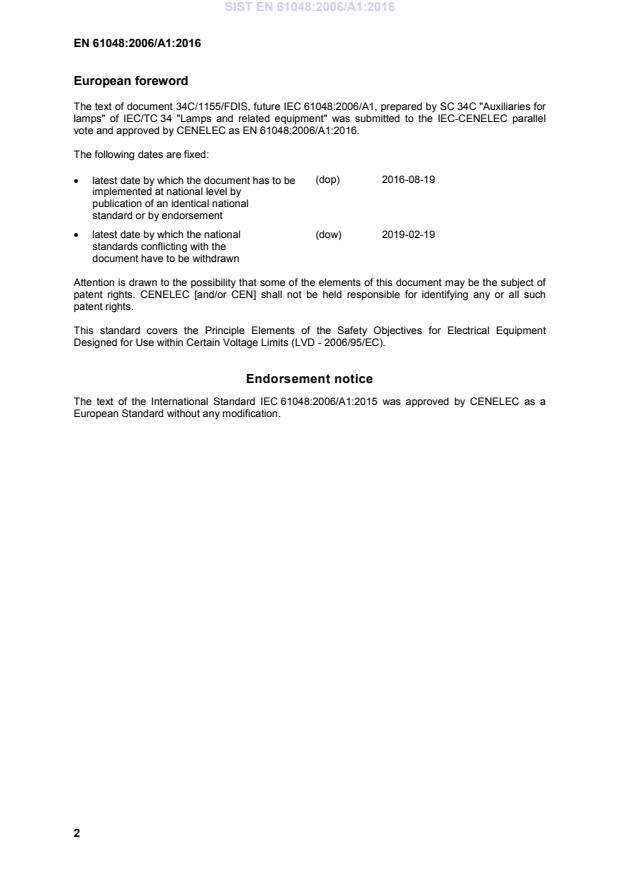

European foreword
The text of document 34C/1155/FDIS, future IEC 61048:2006/A1, prepared by SC 34C "Auxiliaries for
lamps" of IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 61048:2006/A1:2016.
The following dates are fixed:
(dop) 2016-08-19
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2019-02-19
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 61048:2006/A1:2015 was approved by CENELEC as a
European Standard without any modification.
IEC 61048 ®
Edition 2.0 2015-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Auxiliaries for lamps – Capacitors for use in tubular fluorescent and other
discharge lamp circuits – General and safety requirements
Appareils auxiliaires pour lampes – Condensateurs destinés à être utilisés dans
les circuits de lampes tubulaires à fluorescence et autres lampes à décharge –
Prescriptions générales et de sécurité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-2781-7
– 2 – IEC 61048:2006/AMD1:2015
© IEC 2015
FOREWORD
This amendment has been prepared by subcommittee 34C: Auxiliaries for lamps, of IEC
technical committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34C/1155/FDIS 34C/1160
...
