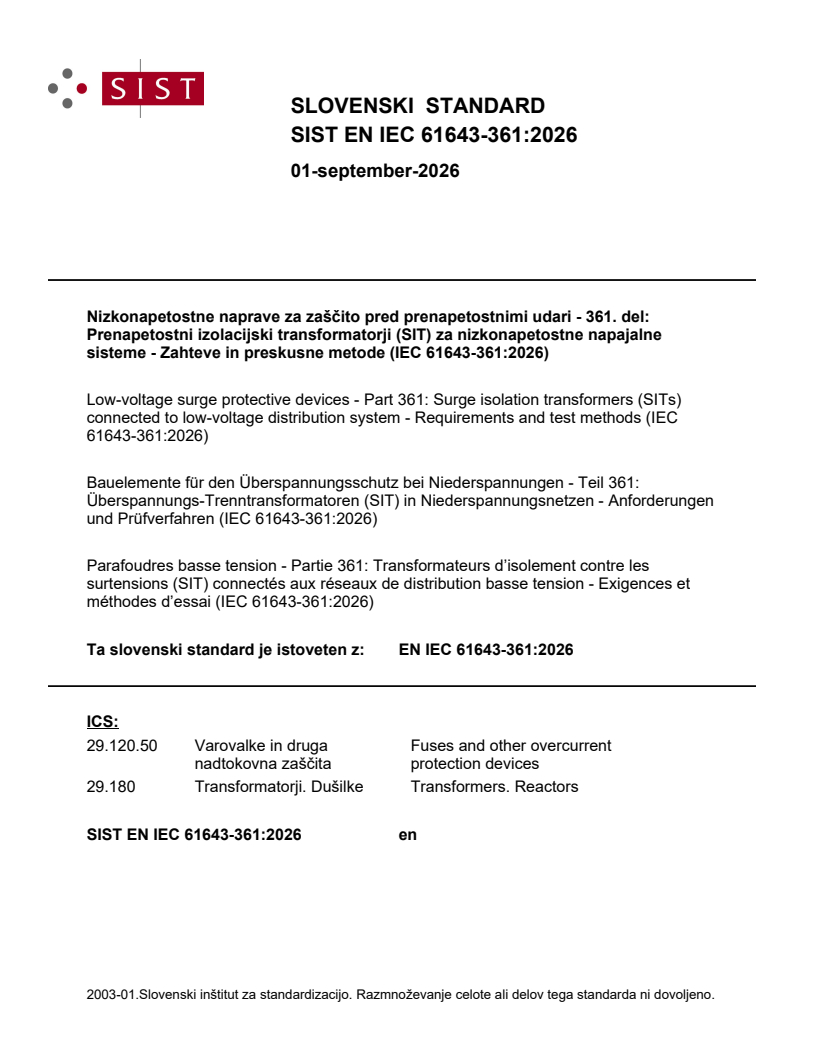

SIST EN IEC 61643-361:2026

SLOVENSKI STANDARD
01-september-2026
Nizkonapetostne naprave za zaščito pred prenapetostnimi udari - 361. del:
Prenapetostni izolacijski transformatorji (SIT) za nizkonapetostne napajalne
sisteme - Zahteve in preskusne metode (IEC 61643-361:2026)
Low-voltage surge protective devices - Part 361: Surge isolation transformers (SITs)
connected to low-voltage distribution system - Requirements and test methods (IEC
61643-361:2026)
Bauelemente für den Überspannungsschutz bei Niederspannungen - Teil 361:
Überspannungs-Trenntransformatoren (SIT) in Niederspannungsnetzen - Anforderungen
und Prüfverfahren (IEC 61643-361:2026)
Parafoudres basse tension - Partie 361: Transformateurs d’isolement contre les
surtensions (SIT) connectés aux réseaux de distribution basse tension - Exigences et
méthodes d’essai (IEC 61643-361:2026)
Ta slovenski standard je istoveten z: EN IEC 61643-361:2026
ICS:
29.120.50 Varovalke in druga Fuses and other overcurrent
nadtokovna zaščita protection devices
29.180 Transformatorji. Dušilke Transformers. Reactors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

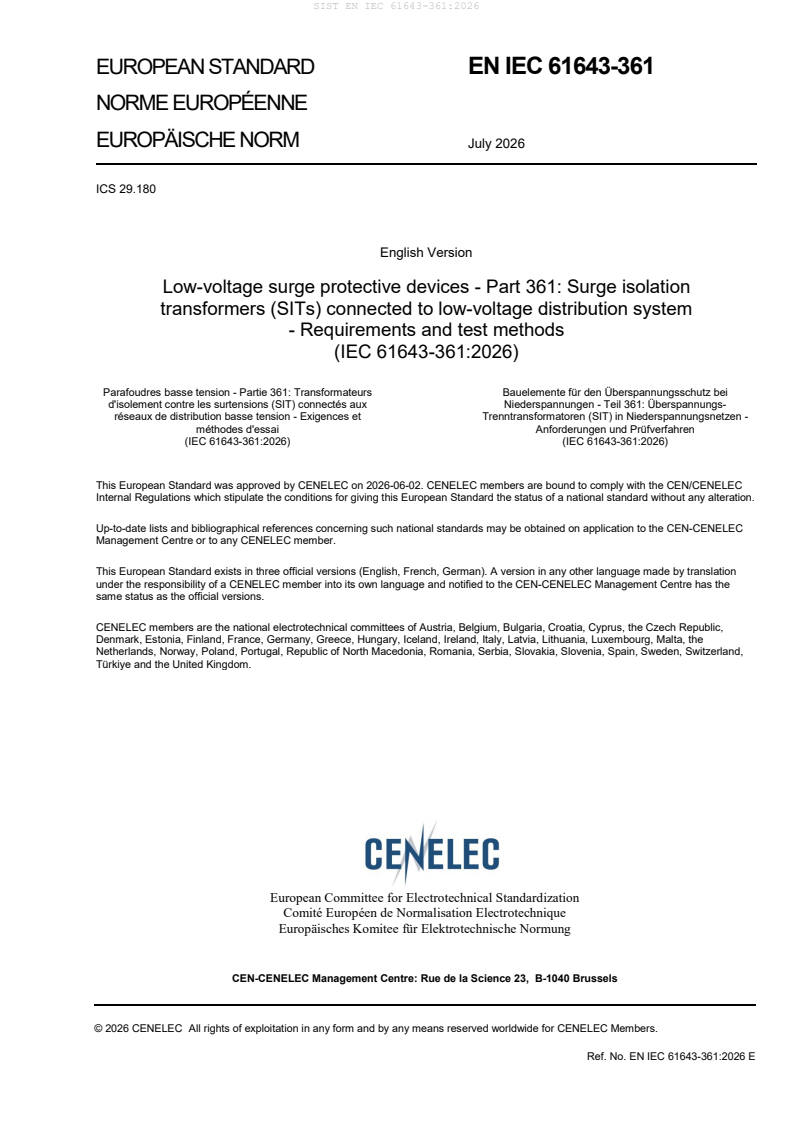

EUROPEAN STANDARD EN IEC 61643-361

NORME EUROPÉENNE
EUROPÄISCHE NORM July 2026
ICS 29.180
English Version
Low-voltage surge protective devices - Part 361: Surge isolation
transformers (SITs) connected to low-voltage distribution system
- Requirements and test methods
(IEC 61643-361:2026)
Parafoudres basse tension - Partie 361: Transformateurs Bauelemente für den Überspannungsschutz bei
d'isolement contre les surtensions (SIT) connectés aux Niederspannungen - Teil 361: Überspannungs-
réseaux de distribution basse tension - Exigences et Trenntransformatoren (SIT) in Niederspannungsnetzen -
méthodes d'essai Anforderungen und Prüfverfahren
(IEC 61643-361:2026) (IEC 61643-361:2026)
This European Standard was approved by CENELEC on 2026-06-02. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61643-361:2026 E

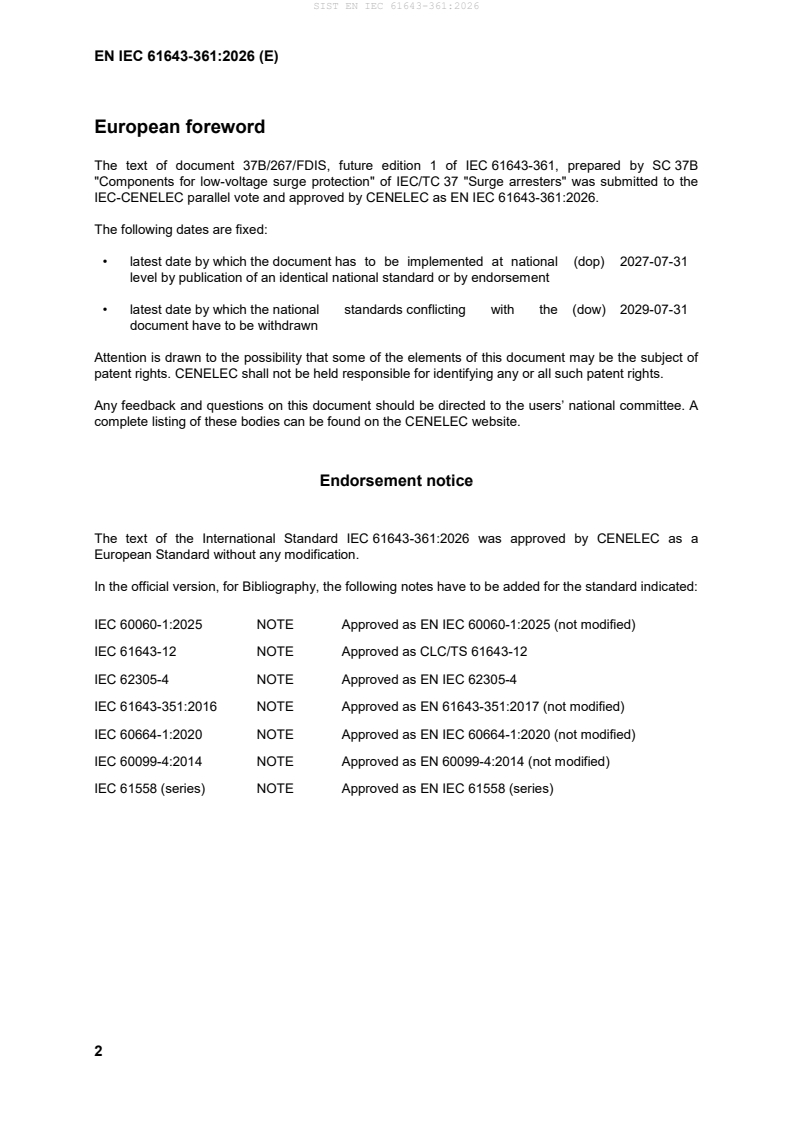

European foreword
The text of document 37B/267/FDIS, future edition 1 of IEC 61643-361, prepared by SC 37B
"Components for low-voltage surge protection" of IEC/TC 37 "Surge arresters" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61643-361:2026.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-07-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-07-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61643-361:2026 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60060-1:2025 NOTE Approved as EN IEC 60060-1:2025 (not modified)
IEC 61643-12 NOTE Approved as CLC/TS 61643-12
IEC 62305-4 NOTE Approved as EN IEC 62305-4
IEC 61643-351:2016 NOTE Approved as EN 61643-351:2017 (not modified)
IEC 60664-1:2020 NOTE Approved as EN IEC 60664-1:2020 (not modified)
IEC 60099-4:2014 NOTE Approved as EN 60099-4:2014 (not modified)
IEC 61558 (series) NOTE Approved as EN IEC 61558 (series)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 61643-361 ®
Edition 1.0 2026-04
INTERNATIONAL
STANDARD
Low-voltage surge protective devices -
Part 361: Surge isolation transformers (SITs) connected to low-voltage
distribution system - Requirements and test methods
ICS 29.180  ISBN 978-2-8327-1224-5

IEC 61643-361:2026-04(en)
IEC 61643-361:2026 © IEC 2026
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and symbols . 6
3.1 Terms and definitions . 6
3.2 Symbols . 8
3.3 Abbreviated terms and acronyms . 9
4 Service condition . 9
4.1 Temperature range . 9
4.2 Humidity range . 9
4.3 Altitude and air pressure . 9
5 SIT surge condition . 10
5.1 General . 10
5.2 SITs surge mitigation . 10
6 Electrical requirements . 11
6.1 General . 11
6.2 Insulation resistance . 11
6.3 Power frequency withstand voltage . 11
6.4 Impulse withstand voltage . 12
7 Type tests . 12
7.1 General . 12
7.2 Test condition . 12
7.3 Sample preparation. 12
7.4 Insulation resistance . 13
7.5 Power frequency withstand voltage . 13
7.6 Impulse withstand voltage . 14
Annex A (informative) 1,2/50 impulse . 17
Bibliography . 18

Figure 1 – Symbol of SIT for single phase low-voltage power system (single-line
diagram) . 8
Figure 2 – Symbol of SIT for single phase low-voltage power system (multi-line
diagram) . 8
Figure 3 – SITs under common mode surge condition . 11
Figure 4 – Sample preparation . 13
Figure 5 – Test circuit of insulation resistance . 13
Figure 6 – Power frequency withstand voltage test circuit . 14
Figure 7 – Construction of pass/fail template from the 1,2/50 open-circuit waveform . 15
Figure 8 – Pass/fail template and test waveforms . 15
Figure 9 – Impulse withstand voltage test circuit . 16
Figure A.1 – 1,2/50 time periods and voltage amplitudes . 17

IEC 61643-361:2026 © IEC 2026
Table 1 – List of abbreviations and acronyms used in this standard . 9
Table 2 – Conditions used for test . 12
Table A.1 – 1,2/50 voltage impulse generator parameters . 17

IEC 61643-361:2026 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Low-voltage surge protective devices -
Part 361: Surge isolation transformers (SITs) connected
to low-voltage distribution system - Requirements and test methods

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61643-361 has been prepared by subcommittee 37B: Components for low-voltage surge
protection, of IEC technical committee 37: Surge arresters. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
37B/267/FDIS 37B/270/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
IEC 61643-361:2026 © IEC 2026
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61643 series, published under the general title Low-voltage surge
protective devices, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
IEC 61643-361:2026 © IEC 2026
INTRODUCTION
This part of IEC 61643 covers surge isolation transformers (SITs) whose rated impulse
withstands voltage coordinates with the expected surge environment of the installation location.
This type of surge protective component (SPC) isolates and attenuates transient voltage in
conjunction with current diverting components (or SPDs).
SITs are a product with specific enhanced insulation layers between the primary and secondary
windings and an electric screen (ES) inserted between primary and secondary windings. With
these ES and specific enhanced insulation layers, the surge that appears between the primary
winding and earth (common-mode) is greatly attenuated and appears between the secondary
winding and earth. SITs are products with a particularly improved impulse withstand voltage
compared to ordinary isolating transformers.
It is essential that SITs are protected by an appropriate SPD at their primary side, to avoid any
damage to the SIT itself. SITs are intended to be used in surge protection to establish lightning
protection zones.
IEC 61643-361:2026 © IEC 2026
1 Scope
This part of IEC 61643 applies to surge isolation transformers (SITs) dedicated to surge
mitigation and for connection to 50/60 Hz power circuits and equipment rated up to
1 000 V RMS. This document covers the surge and mitigation performance of SITs with an
impulse withstand voltage performance of at least 30 kV, and provides standard methods for
testing and rating.
This document covers surge-related parameters but does not address typical transformer tests
and parameters covered by the IEC 61558 series [13] . This document also does not cover SIT
operation under differential mode lightning surge conditions.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-1, Environmental testing - Part 1: General and guidance
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1.1
surge isolation transformer for power
SIT
isolation transformer which has high impulse withstand voltage with/without electric screen
between input and output windings
Note 1 to entry: SITs for power systems require electric screen.
[SOURCE: IEC 61643-351:2016 [8], 3.1.1, modified – the alternative without electric screen has
been removed.]
3.1.2
electric screen
electric shield (US)
screen of conductive material intended to reduce the penetration of an electric field into a given
region
[SOURCE: IEC 60050-151:2001 [9], 151-13-10]
___________
Numbers in square brackets refer to the Bibliography.
--------------------
...
