SIST ISO 5658-2:2006/Amd 1:2011:2018
(Amendment)ISO 5658-2:2006/Amd 1:2011
ISO 5658-2:2006/Amd 1:2011
Essais de réaction au feu — Propagation du feu — Partie 2: Propagation latérale sur les produits de bâtiment et de transport en position verticale — Amendement 1
[Not translated]
General Information
- Status
- Not Published
- Technical Committee
- POZ - Požarna varnost
- Current Stage
- 98 - Abandoned project (Adopted Project)
- Start Date
- 03-Apr-2024
- Due Date
- 08-Apr-2024
- Completion Date
- 03-Apr-2024
Relations
- Effective Date
- 10-May-2014
Overview
SIST ISO 5658-2:2006/Amd 1:2011:2018 is an important amendment to the international standard outlining methods for reaction to fire tests, specifically focusing on the lateral spread of flame on building and transport products in vertical configurations. Published by the International Organization for Standardization (ISO), this amendment refines the procedures and clarifies testing parameters to enhance safety evaluations related to flame spread on vertical surfaces.
The amendment updates the testing methodology to improve accuracy and consistency in assessing fire behavior of materials commonly used in the construction and transport industries. It introduces refinements in data calculation methods and validates repeatability and reproducibility through extensive interlaboratory trials.
Key Topics
Lateral Spread of Flame: The standard details how to measure and assess the spread of flame along vertical surfaces, critical to understanding fire dynamics on walls, panels, and transportation product exteriors.
Test Methodology Enhancements: Amendment 1 adds precision in calculating the longest flame spread duration, requiring it to correspond to a point at least 30 mm behind the maximum flame progression along the test specimen’s midline.
Interlaboratory Validation: A significant feature of this amendment is the inclusion of results from a 2008 third interlaboratory test conducted by ISO/TC 92/SC 1, involving seven laboratories and seven different materials such as plywood, fire-retardant plywood, gypsum board, polyisocyanurate foam with aluminum foil, polycarbonate sheet, fire-retardant particleboard, and PVC-coated steel sheet.
Repeatability and Reproducibility: The amendment provides detailed statistical analyses of test results, highlighting the consistency of critical parameters such as the critical heat flux at extinction (CFE) and the thermal energy associated with persistent combustion (Qsb). The data help laboratories and manufacturers understand the reliability of the test outcomes.
Harmonization with IMO Standards: By incorporating principles from IMO Resolution A.653(16), this amendment harmonizes ISO testing procedures with international marine safety regulations, facilitating global application and acceptance.
Practical Applications
Building Materials Testing: SIST ISO 5658-2:2006/Amd 1:2011:2018 is vital for manufacturers and safety inspectors to evaluate the fire resistance and lateral flame spread characteristics of vertical building products, aiding compliance with fire safety codes.
Transportation Industry: The standard is crucial for assessing flame spread on vertical surfaces of transport vehicles, including aircraft, ships, and railcars, ensuring materials meet stringent safety requirements.
Fire Safety Engineering: Fire safety professionals and engineers use this standard to design safer buildings and vehicles by choosing materials proven to resist flame spread, reducing fire hazards and improving occupant safety.
Quality Control in Manufacturing: Producers of construction and transport products utilize this test protocol to maintain quality control and certify materials meet required fire safety performance standards.
Related Standards
ISO 5725-2:1994: This standard is referenced within ISO 5658-2/Amd 1 for methods of determining repeatability and reproducibility of measurement techniques, supporting the statistical validity of fire testing results.
IMO Resolution A.653(16): International Maritime Organization standards that align with ISO 5658-2 amendments to ensure fire safety in maritime applications, particularly concerning flame spread assessment.
ISO/TC 92 Standards: Related ISO standards developed by the Technical Committee 92 address various aspects of fire safety, including fire testing methodologies, fire resistance of materials, and fire behavior.
SIST ISO 5658-2:2006/Amd 1:2011:2018 remains a critical document for improving safety measures against fire spread on vertical surfaces, supporting architects, engineers, manufacturers, and safety regulators worldwide in achieving higher levels of fire protection for both building and transport products.
Frequently Asked Questions
SIST ISO 5658-2:2006/Amd 1:2011:2018 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "ISO 5658-2:2006/Amd 1:2011". This standard covers: ISO 5658-2:2006/Amd 1:2011
ISO 5658-2:2006/Amd 1:2011
SIST ISO 5658-2:2006/Amd 1:2011:2018 is classified under the following ICS (International Classification for Standards) categories: 13.220.50 - Fire-resistance of building materials and elements. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST ISO 5658-2:2006/Amd 1:2011:2018 has the following relationships with other standards: It is excused to SIST ISO 5658-2:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST ISO 5658-2:2006/Amd 1:2011:2018 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 5658-2
Second edition
2006-09-15
AMENDMENT 1
2011-11-01
Reaction to fire tests — Spread of
flame —
Part 2:
Lateral spread on building and transport
products in vertical configuration
AMENDMENT 1
Essais de réaction au feu — Propagation du feu —
Partie 2: Propagation latérale sur les produits de bâtiment et de
transport en position verticale
AMENDEMENT 1
Reference number
ISO 5658-2:2006/Amd.1:2011(E)
©
ISO 2011

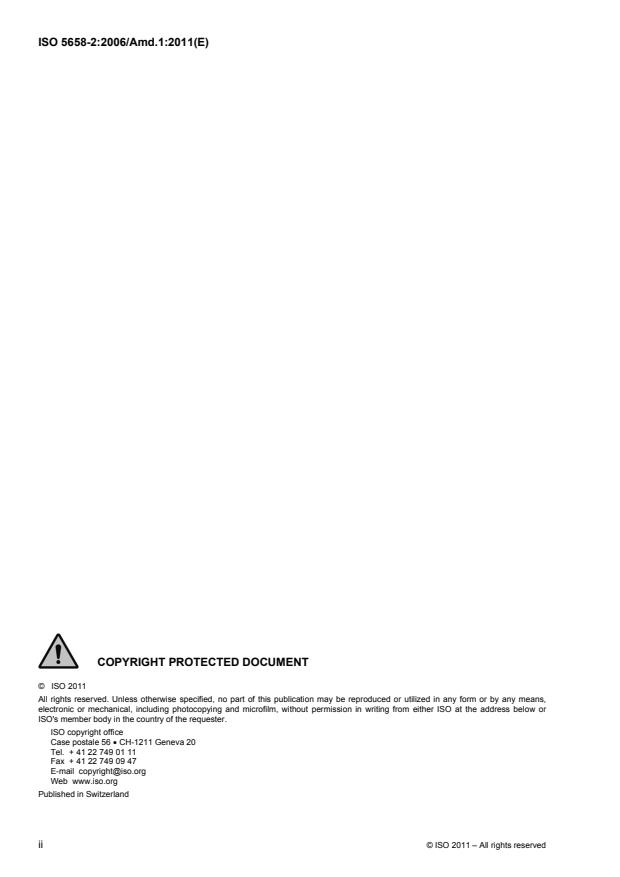

ISO 5658-2:2006/Amd.1:2011(E)
© ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved
ISO 5658-2:2006/Amd.1:2011(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to ISO 5658-2:2006 was prepared by Technical Committee ISO/TC 92, Fire safety,
Subcommittee SC 1, Fire initiation and growth.
ISO 5658-2:2006/Amd.1:2011(E)
Reaction to fire tests — Spread of flame —
Part 2:
Lateral spread on building and transport products in vertical
configuration
AMENDMENT 1
Page 22, Clause 12
Add the following sentence at the end of the text after the first dash:
The longest time used in this calculation shall correspond to flame arrival at a position at least 30 mm
before the position of furthest flame propagation on the centreline of the test specimen.
Page 28, Annex E
After Table E.3, a
...
NORME ISO
INTERNATIONALE 5658-2
Deuxième édition
2006-09-15
AMENDEMENT 1
2011-11-01
Essais de réaction au feu —
Propagation du feu —
Partie 2:
Propagation latérale sur les produits
de bâtiment et de transport en position
verticale
AMENDEMENT 1
Reaction to fire tests — Spread of flame —
Part 2: Lateral spread on building and transport products in vertical
configuration
AMENDMENT 1
Numéro de référence
ISO 5658-2:2006/Amd.1:2011(F)
©
ISO 2011

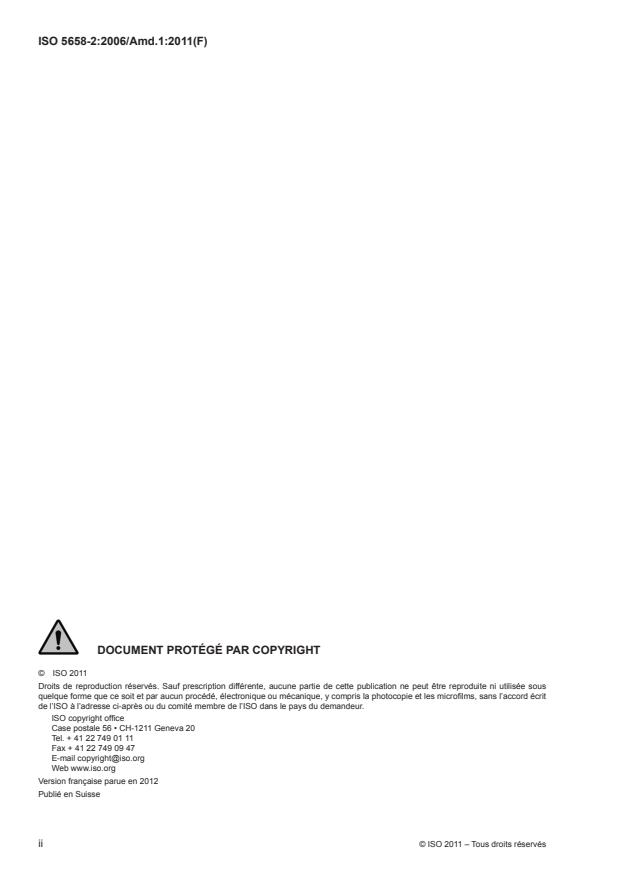

ISO 5658-2:2006/Amd.1:2011(F)
DOCUMENT PROTÉGÉ PAR COPYRIGHT
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l’accord écrit
de l’ISO à l’adresse ci-après ou du comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Version française parue en 2012
Publié en Suisse
ii © ISO 2011 – Tous droits réservés
ISO 5658-2:2006/Amd.1:2011(F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes nationaux de
normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est en général confiée aux
comités techniques de l’ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du comité
technique créé à cet effet. Les organisations internationales, gouvernementales et non gouvernementales,
en liaison avec l’ISO participent également aux travaux. L’ISO collabore étroitement avec la Commission
électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI, Partie 2.
La tâche principale des comités techniques est d’élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur publication
comme Normes internationales requiert l’approbation de 75 % au moins des comités membres votants.
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de droits
de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable de ne pas avoir
identifié de tels droits de propriété et averti de leur existence.
L’Amendement 1 à l’ISO 5658-2:2006 a été élaboré par le comité technique ISO/TC 92, Sécurité au feu,
sous-comité SC 1, Amorçage et développement du feu.
ISO 5658-2:2006/Amd.1:2011(F)
Essais de réaction au feu — Propagation du feu —
Partie 2:
Propagation latérale sur les produits de bâtiment et
de transport en position verticale
AMENDEMENT 1
Page 24, Article 12
Ajouter la phrase suivante à la fin du texte du premier tiret:
«Le temps le plus long utilisé dans ce calcul doit correspondre à l’arrivée de la flamme à une position
située au moins 30 mm en retrait de celle de la progression maximale de la flamme sur l’axe médian de
l’éprouvette.»
Page 30, Annexe E
Après le Tableau E.3, ajouter le texte suivant ainsi que les Tableaux E.4, E.5 et E.6.
«En 2008, un troisième essai interlaboratoires a é
...
